SINREY SIP744V IP network horn campus broadcast public places high power amplifier horn optional
- Category: Broadcast\u00A0Intercom\u00A0Systems >>>
- Supplier: Guangzhou Xinyue Network Equipment Co. Ltd.
Share on (1600901017252):
Product Overview
Description
Product recommendation
Product Description
SIP AUDIO MODULE SIP2101T

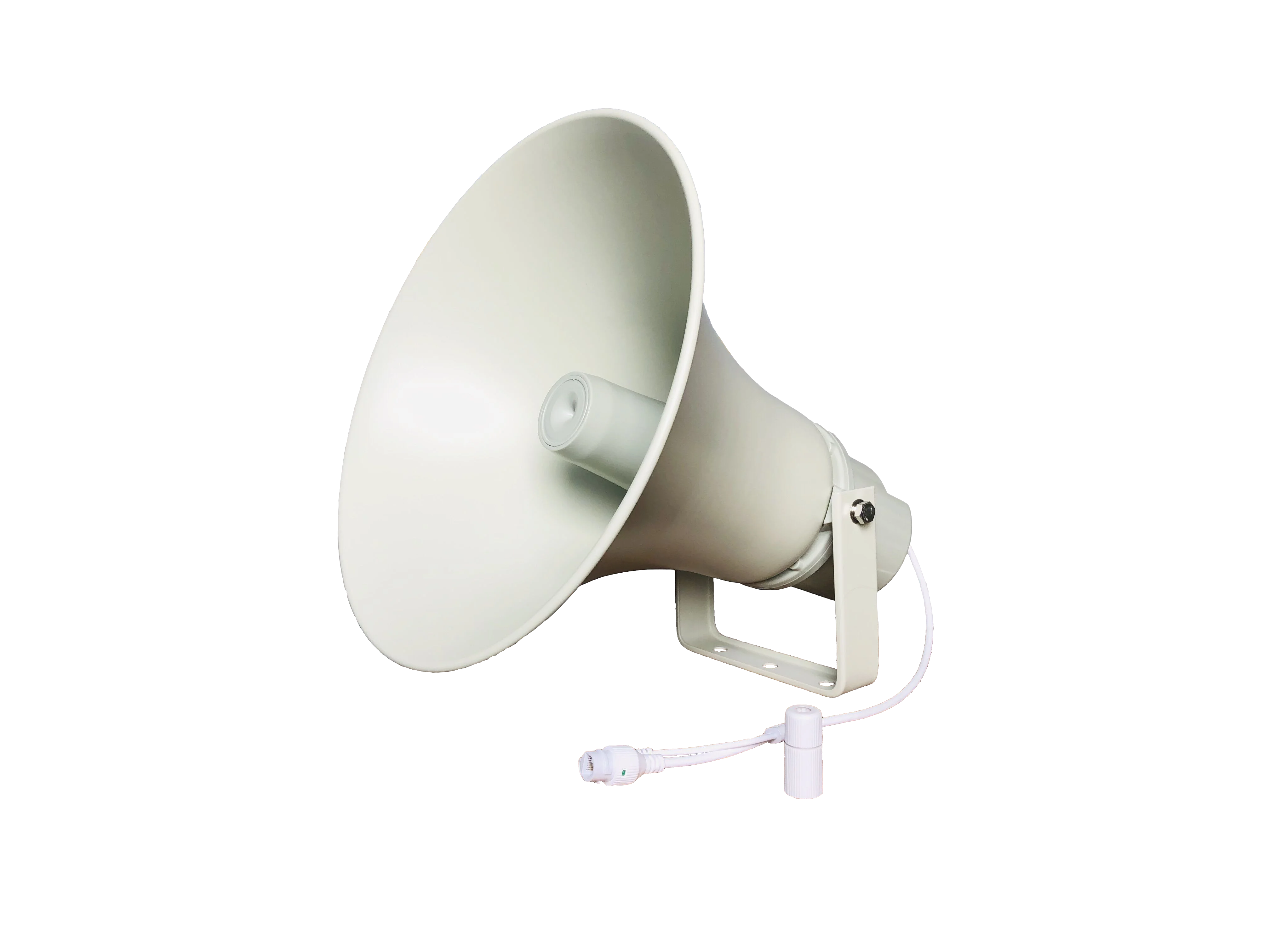

SIP744T is a wall mounted network active speaker with 10 / 100M Ethernet interface, which can output and play network sound source
through built-in power amplifier and speaker;
SIP744T has built-in professional speaker and network decoder. The network decoder specially filters out the low-frequency signal
to make the playing sound clearer and the transmission distance longer. It can be used in places where long-distance sound source
amplification is needed.
Characteristic
Standard RJ45 network interface, provide firmware online remote upgrade;
Based on ARM + DSP architecture, high-speed industrial chip is adopted, and the start-up time is less than 1 second;
Built in decoding module, 30W / 50W power amplifier circuit;
Provide a variety of decoding methods;
Built in a full frequency high-quality horn, the sound is loud, penetrating and clear;
Outdoor waterproof shell;
Poe power supply can be selected; 50W version can be selected.
Specification
Network interface | 10/100Base-TX adaptive network, RJ45 interface, sending and receiving data instructions |
Network protocol | Support TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, etc. |
Broadcast output | comes with 30W power amplifier and horn speaker |
Input voltage | DC 12-20V |
Power consumption | static <300Mw |
Working temperature | DC 9~24V |
Specification and size | Φ246x292mm |
Panel | Metal shell, wall mountable |
Application
Outdoor loudspeaker
Desktop walkie talkie
intercom terminal
PLAY

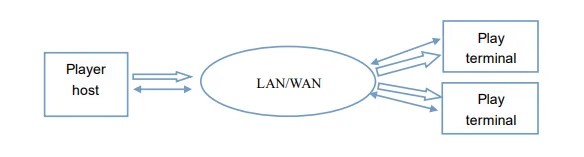

The network audio equipment can receive the audio stream from the network, and convert it into an analog audio signal for output after being decoded. The figure below is a standard playback application scenario.
INTERCOM

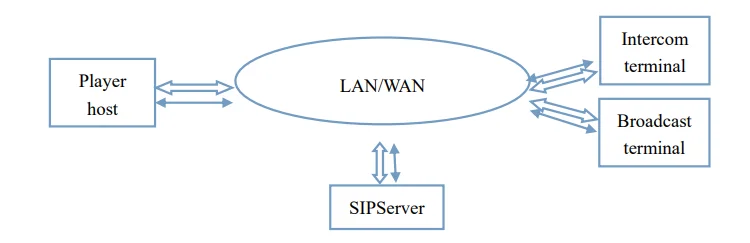

SIP2103T / SIP2403T / SIP2703T can be used in a two-way SIP intercom system
The broadcast intercom host can use our company's broadcast system control software, broadcast equipment, network microphones, etc., or use the SIP server prepared by the user.
The company is a national high-tech enterprise with high-tech products.
We have set up R & D center, chip factory and comprehensive manufacturing base in Guangzhou. The factory covers an area of 8500 square meters. The company is committed to building international top brands.
We have a professional and strong R & D team to provide further customization in terms of firmware, software and solution requirements.
