TTC 100 Industrial intelligent digital display thermostat temperature controller 48x48

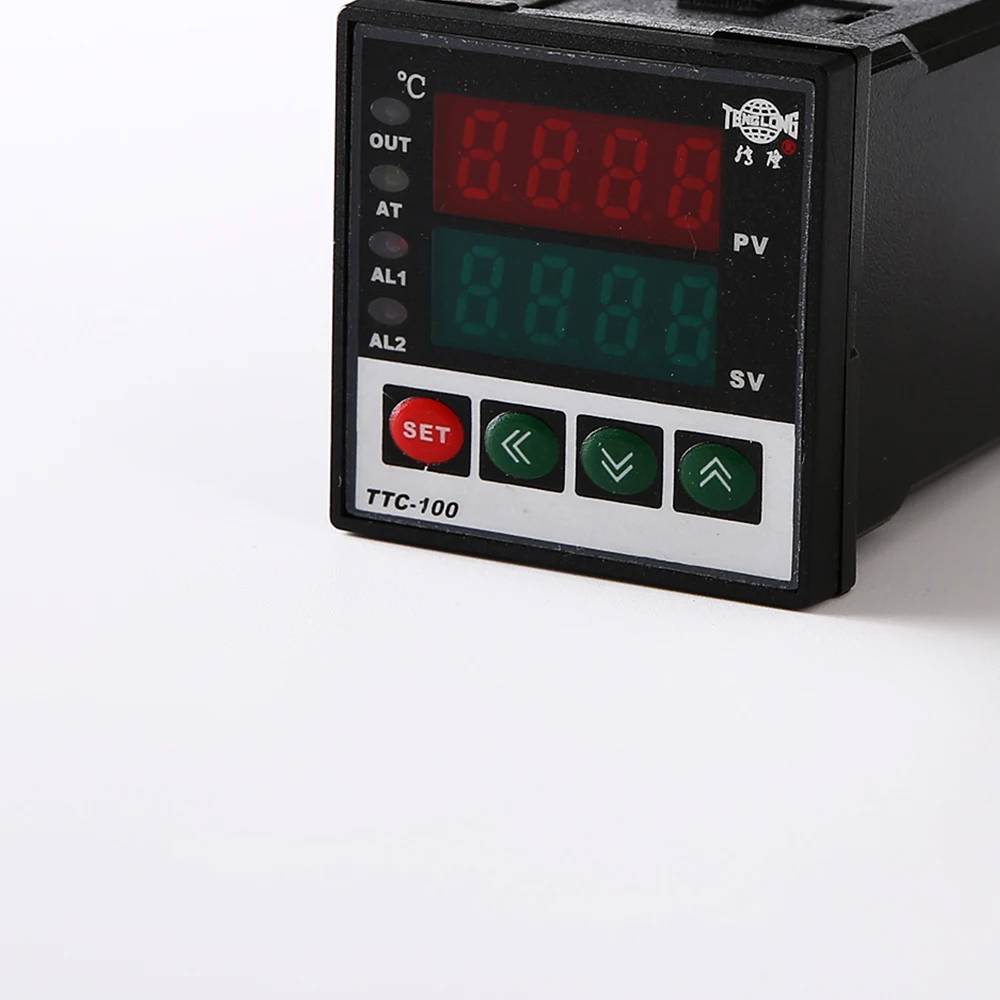

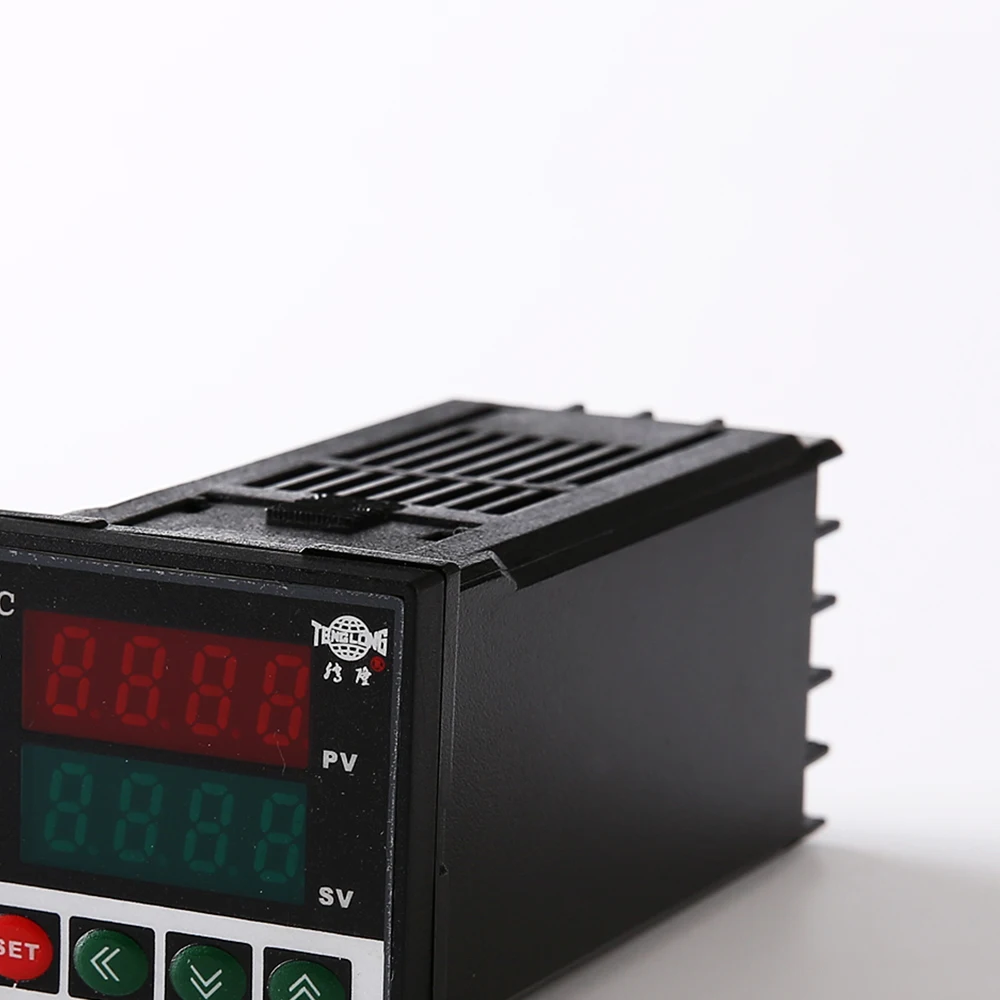

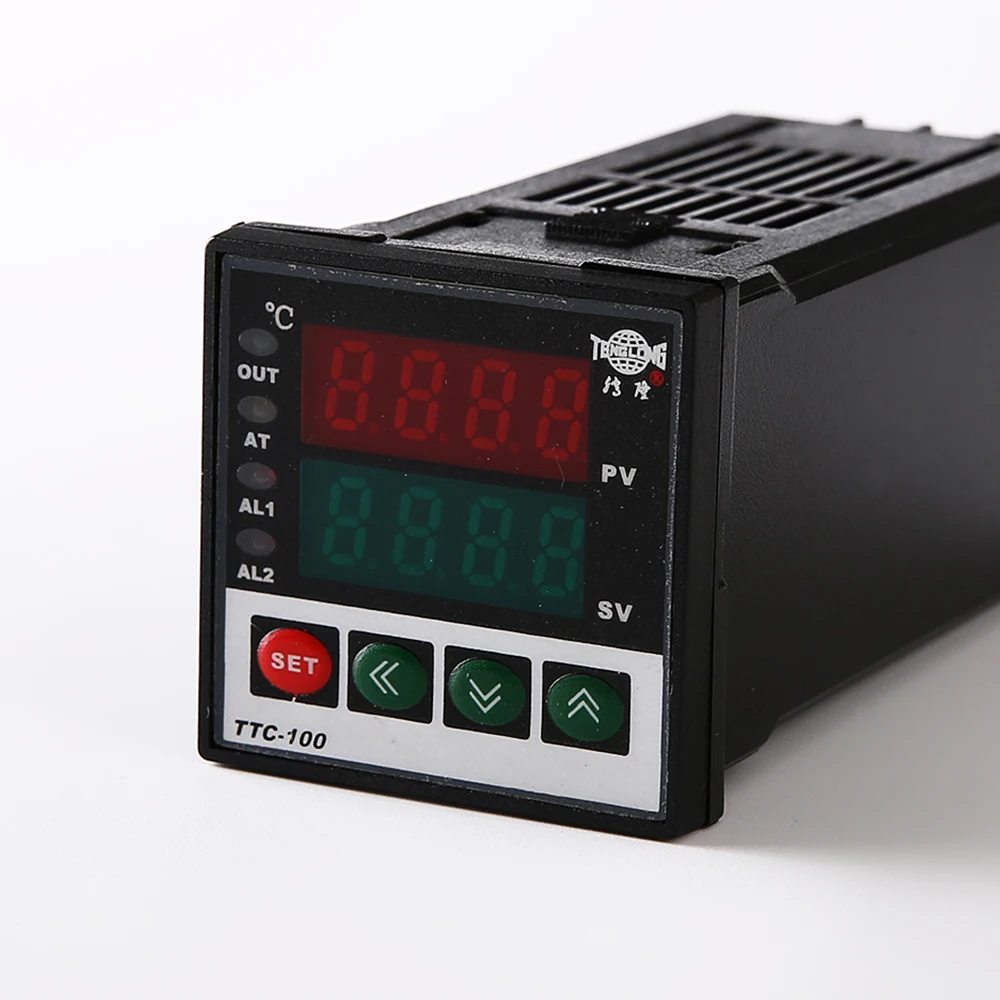

TTC-100 Industrial intelligent digital display thermostat temperature controller 48x48
TTC-100 Industrial intelligent digital display thermostat temperature controller 48x48
TTC-100 Industrial intelligent digital display thermostat temperature controller 48x48
TTC-100 Industrial intelligent digital display thermostat temperature controller 48x48
TTC-100 Industrial intelligent digital display thermostat temperature controller 48x48
TTC-100 Industrial intelligent digital display thermostat temperature controller 48x48

TTC 100 Industrial intelligent digital display thermostat temperature controller 48x48

Share on (1600901019828):


Price:US$16.80 - US$21.80

Quantity:


Product Overview

Description







1.Accepts tthermocouple, thermal resistance, analog temperature ,platinum RTD inputs, the range can be set free.
2.Zero adjustment full of software, the cold end temperature alone, amplifierfrom zero, accuracy is better than 0.5% FS
3.Fuzzy control theory and traditional PID method, controlling fast and smoothly,setting method of advanced precision.
4.Relay contact, logic level, zero output of silicon controlled and power output are available, the other two groups of alarm output contact can be defined;
5.Self-tuning PID control technology, with temperature control quickly, fastresponse, small overshoot, high precision, etc compared with the traditional






Indication accuracy
±0.5%kFS
Resolution
14Bit
Sampling period
0.5 Secretary
Suplly voltage
AC85~AC265V 50HZ
Insulation resistance
＞50MΩ(500VDC)
Dielectric strength
1500VAC/1min
Power consumption
＜10VA
Application environment
0~50℃,45~85%RH

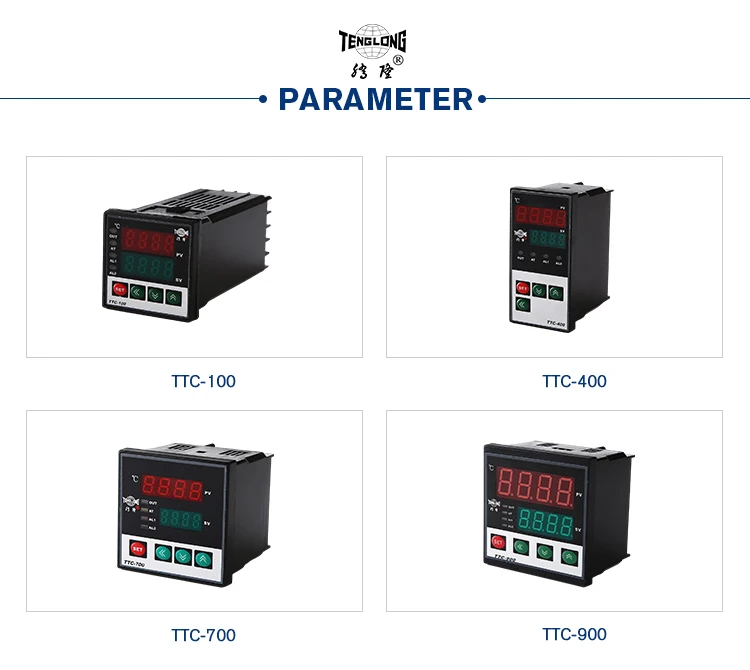

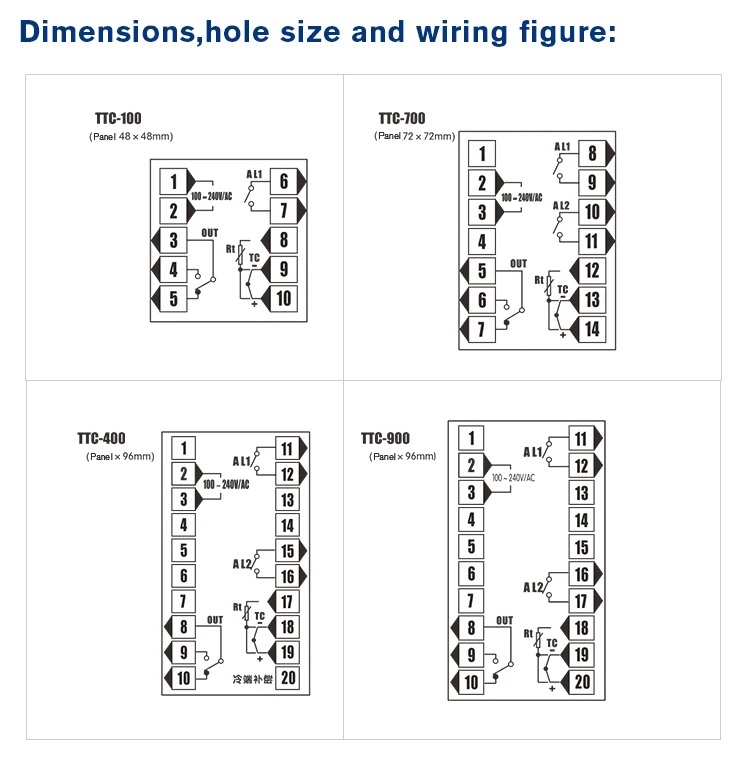

Code
Panel(W*H)
Size(W*H*D)
Opening size(W*H)
TTC-100
48*48
44*44*100
(44+1)*(44+1)
TTC-400
48*96
44*92*100
(44+1)*(92+1)
TTC-700
72*72
68*68*100
(92+1)*(44+1)
TTC-900
96*96
92*92*100
(92+1)*（92+1）








Tenglong Electronics Meter Co., Ltd
We are a technology company who specializes in designing manufacturing and severing together. Having gained national patents more than 10 items. The products widely used in industry automation instruments and equipment field, include length measuring, counting, timing , current and voltage , temperature, lubricating time controller, LED tower light and LED alarm light.
