Automatic corrugated plate welding machine

Product Overview

Description

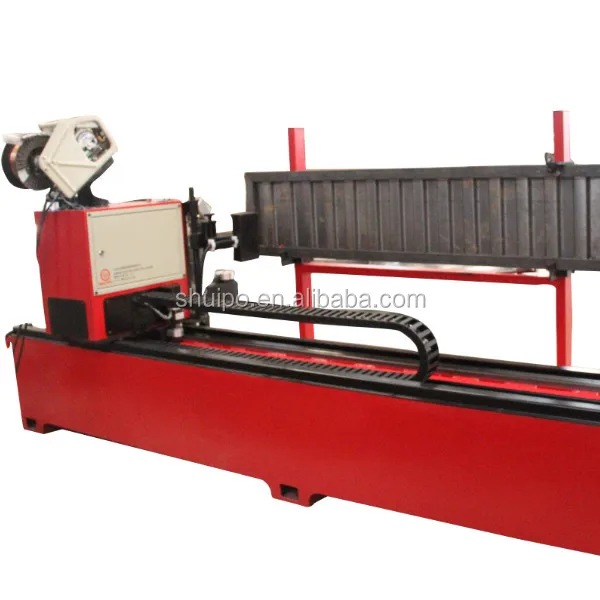

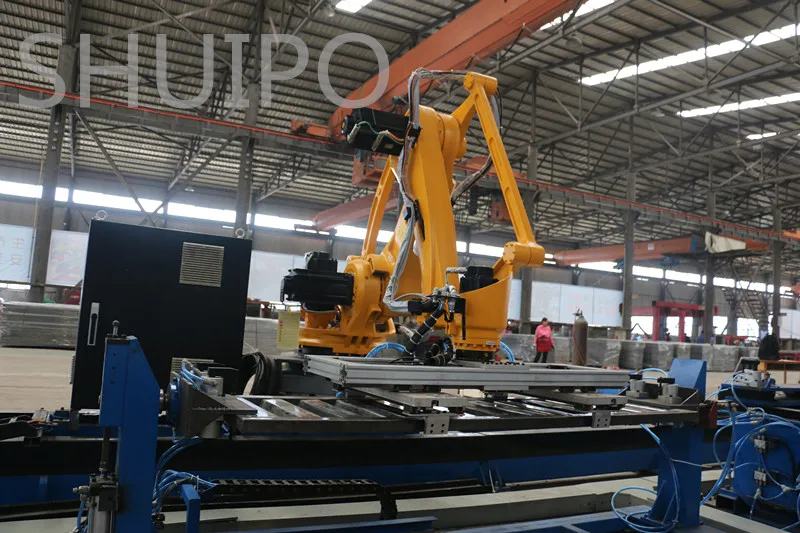

Automatic corrugated plate welding robot







FEATURES

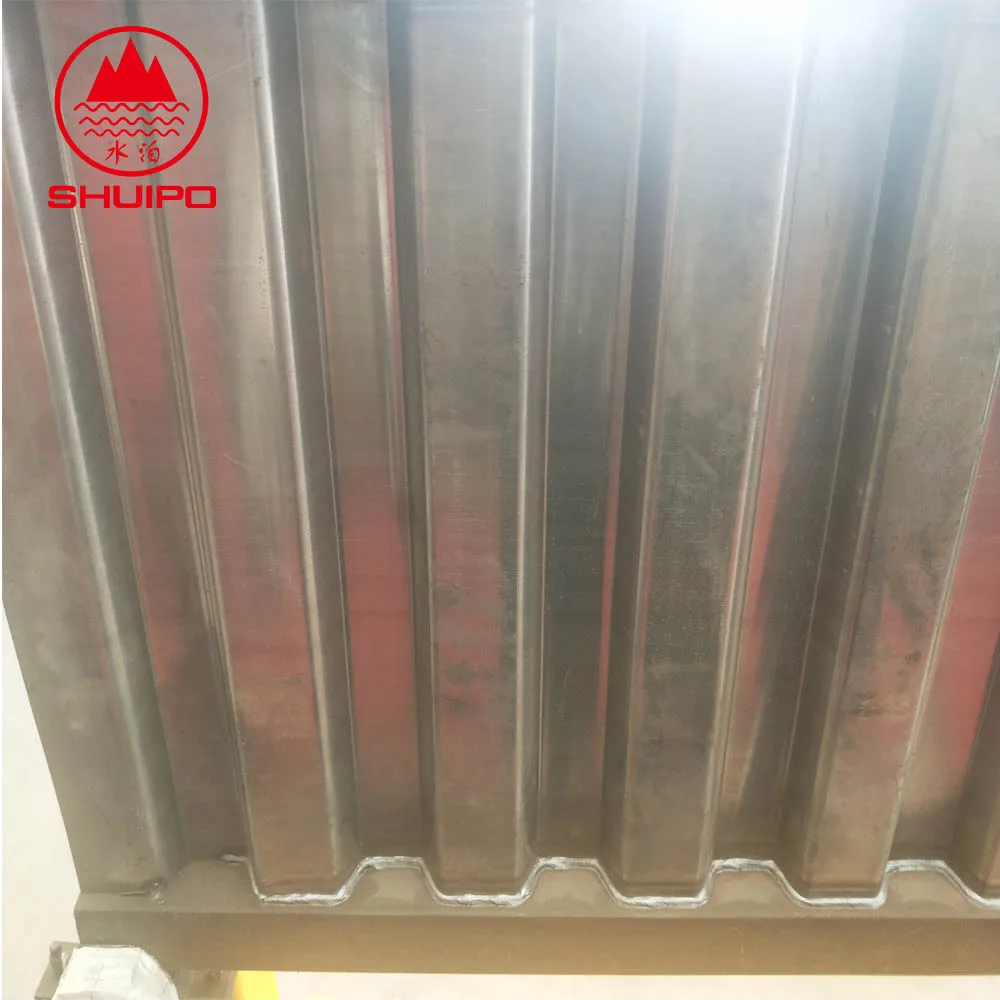

Welding workpiece shape			Corrugated board
Welding workpiece material			Carbon steel
Corrugated board thickness			0.9mm-2mm
Effective welding length			4000mm
Welding position from ground height			850mm
Welding trolley drive			Gear rack+servo motor drive
Welding torch moving up and down			Servo motor+ball screw+linear guide rail drive
Welding torch forward and back movement			Servo motor+ball screw+linear guide rail drive
Welding torch up and down distance			180mm
Welding torch front and back moving distance			300mm
Wire diameter			0.8 mm
The laser adjusts its travel up and down			80mm
Welding speed adjustment range			0-700mm/min(adjustable )
Idle speed			0-10000mm/min(adjustable )
Seam tracking mode			Laser tracking
Welding way			MIG
The host power			About 25 kw
Welding power source			SHUIPO
Workbench			Pneumatic bench



Customer artifact requirements			Corrugated plate Angle greater than 110 degrees
			Weld seam clearance is less than 0.5 mm
			workpiece straightness is less than 4mm/6000mm
Main parts configuration
NO.	NAME						BRAND
1	Laser scanner						KEYENCE
2	PLC						Delta
3	Touch screen						Delta
4	Motion controller						Delta
5	Contactor						Schneider
6	Button						Schneider
7	Relay						Schneider
8	Planetary reducer						NEUGART
9	Mobile cable & rag chain						Lgus
