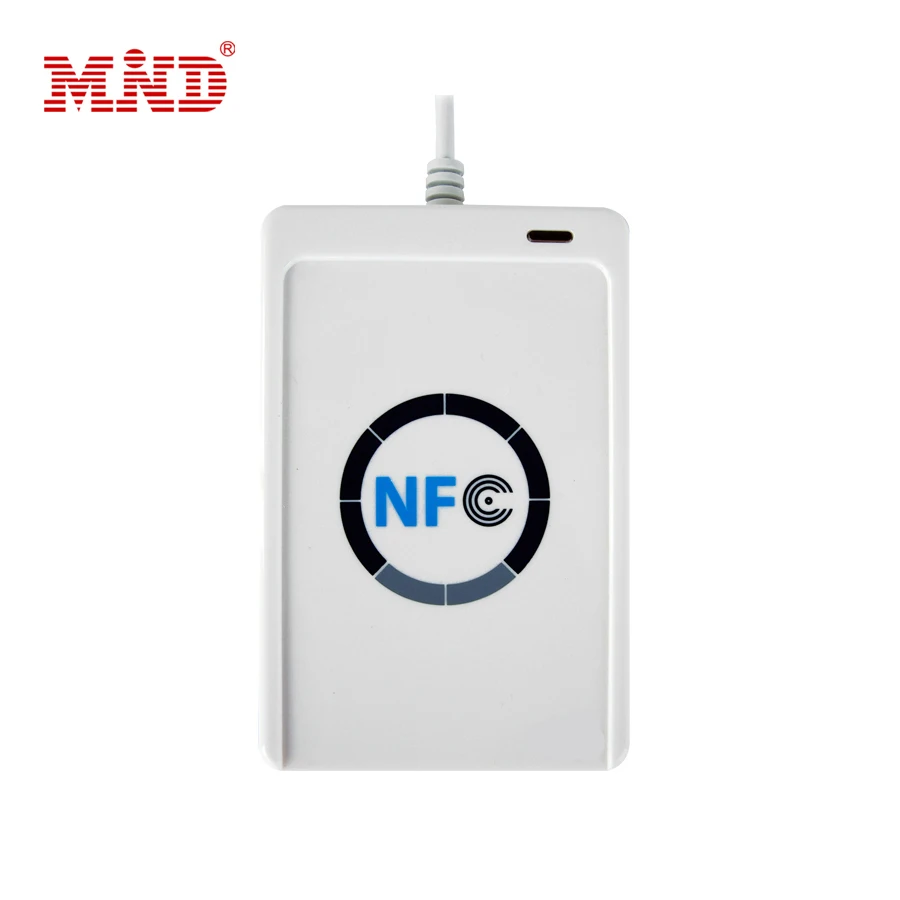

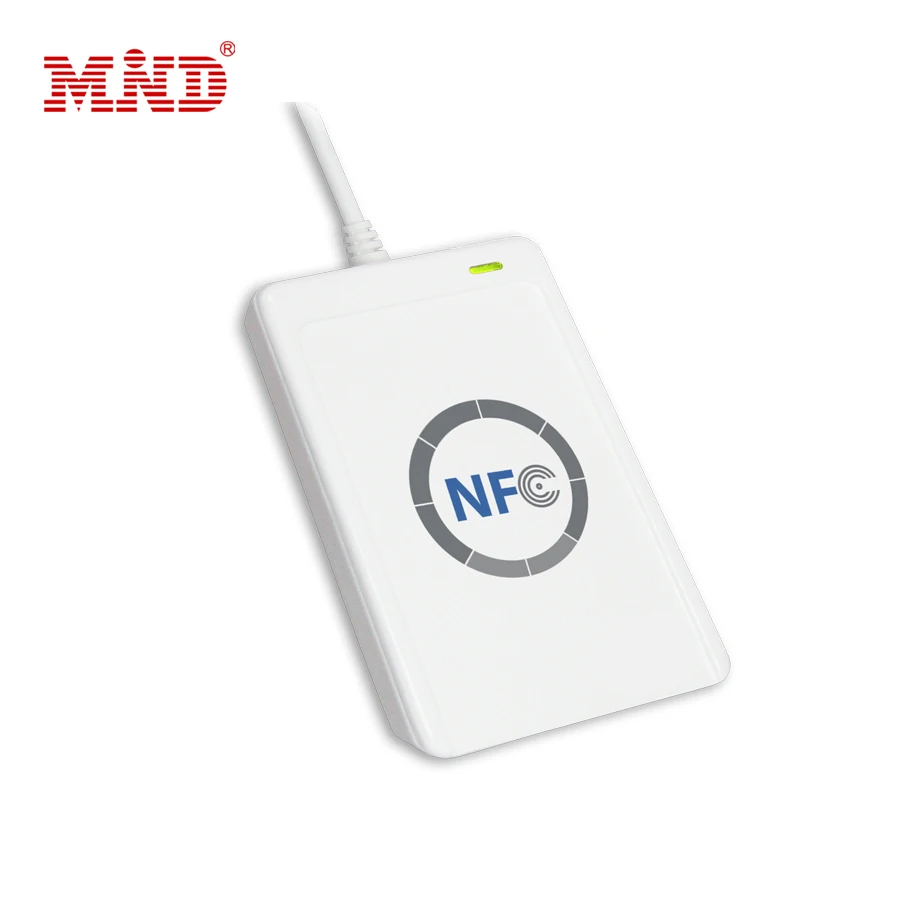

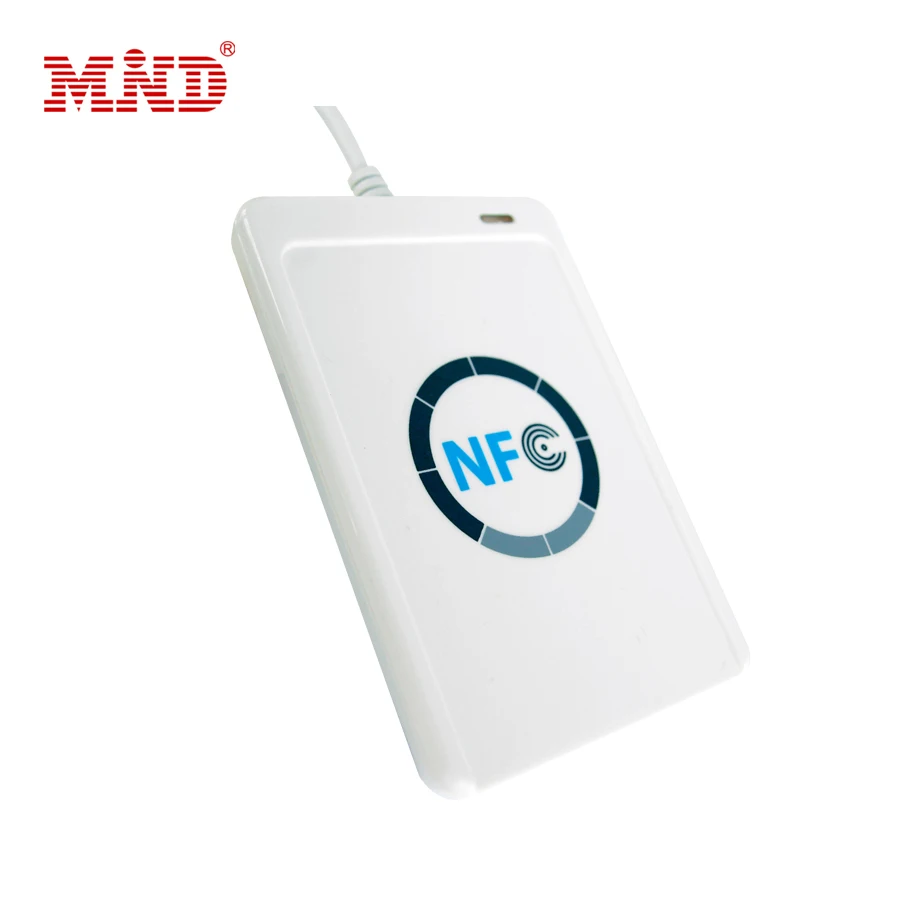

Factory Price 13.56mhz USB NFC RFID Contactless Smart Card Reader
- Category: >>>
- Supplier: Chengdu Mind Golden Card System Co. Ltd.
Share on (1600901031395):
Product Overview
Description
Factory Price 13.56mhz USB NFC RFID Contactless Smart Card Reader
Features
* USB 2.0 Full Speed Interface
* CCID Compliance
* Smart Card Reader:
* USB 2.0 Full Speed Interface
* CCID Compliance
* Smart Card Reader:
* Read/write speed up to 424 kbps
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag
type)
* Supports ISO 14443 Type A and B cards, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
* Built-in anti-collision feature (only 1 tag is accessed at any time)
* Application Programming Interface: * Supports PC/SC
* Supports CT-API (through wrapper on top of PC/SC)
* Peripherals: * User-controllable bi-color LED
* User-controllable buzzer
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag
type)
* Supports ISO 14443 Type A and B cards, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
* Built-in anti-collision feature (only 1 tag is accessed at any time)
* Application Programming Interface: * Supports PC/SC
* Supports CT-API (through wrapper on top of PC/SC)
* Peripherals: * User-controllable bi-color LED
* User-controllable buzzer
Products Description
Dimensions | 98 mm (L) x 65 mm (W) x 12.8 mm (H) |
Weight | 70 g |
Interface | USB Full Speed |
Operating Distance | Up to 50 mm (depends on the tag type) |
Supply Voltage | Regulated 5V DC |
Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
Operating Temperature | 0-50 °C |
Operating Frequency | 13.56 MHz |
Smart Card Interface Support | ISO14443 Type A & B |
FeliCa | |
4 types of NFC (ISO/IEC18092) tags | |
Compliance/Certifications | ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed |
Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012 | |
Operating System Support | Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win 7 x64, |
Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, | |
Windows CE 5.0 and 6.0,, Win Vista, Win 2008, Win 7, Win 8,Win 8 x 64, Win 2012 x64 | |
Mac | |
Linux | |
Android 3.1 and above | |
Application | e-Government |
e-Healthcare | |
Transportation Network Security |
