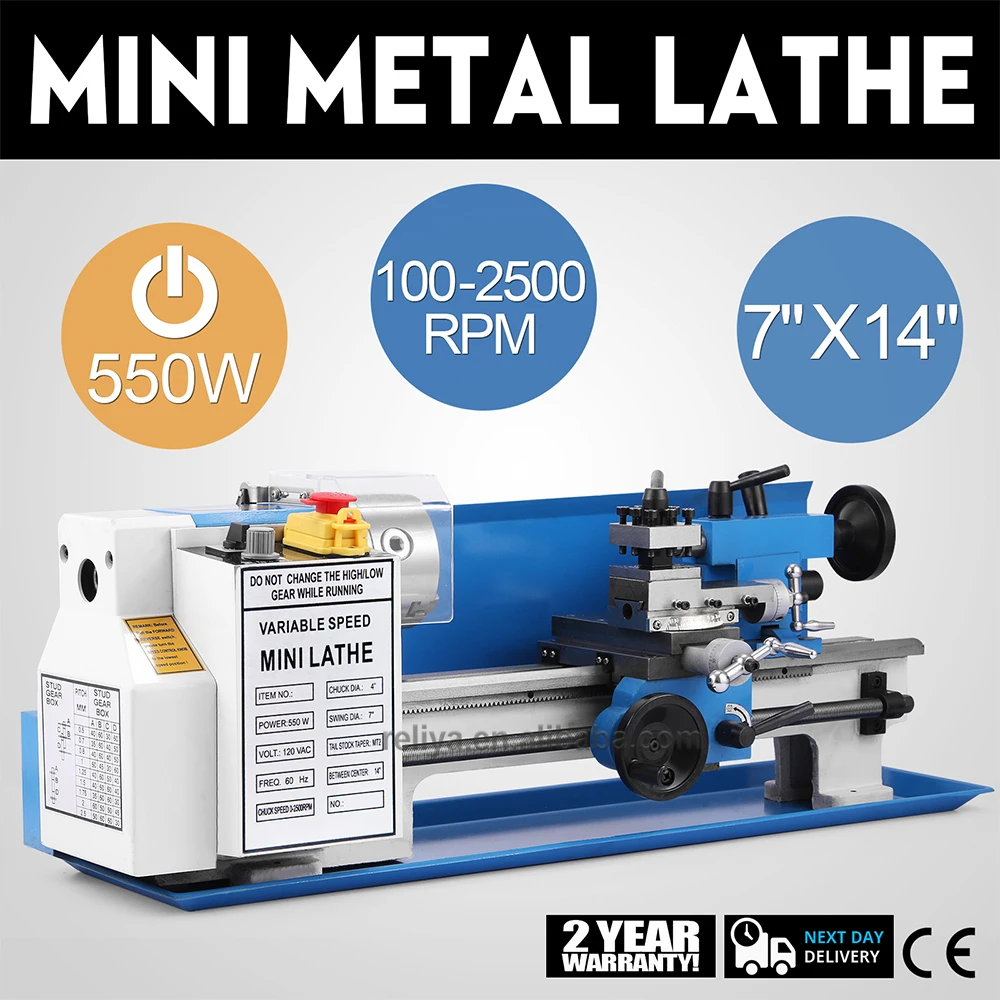

350MM mini metal lathe CJ18 550w digital screen metal gears Variable speed mini Lathe
- Category: >>>
- Supplier: Shanghai Relia Machinery Equipment Co. Ltd.
Share on (1600901033449):
Product Overview
Description
Products Description
Mini lathe
Sturdy Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.

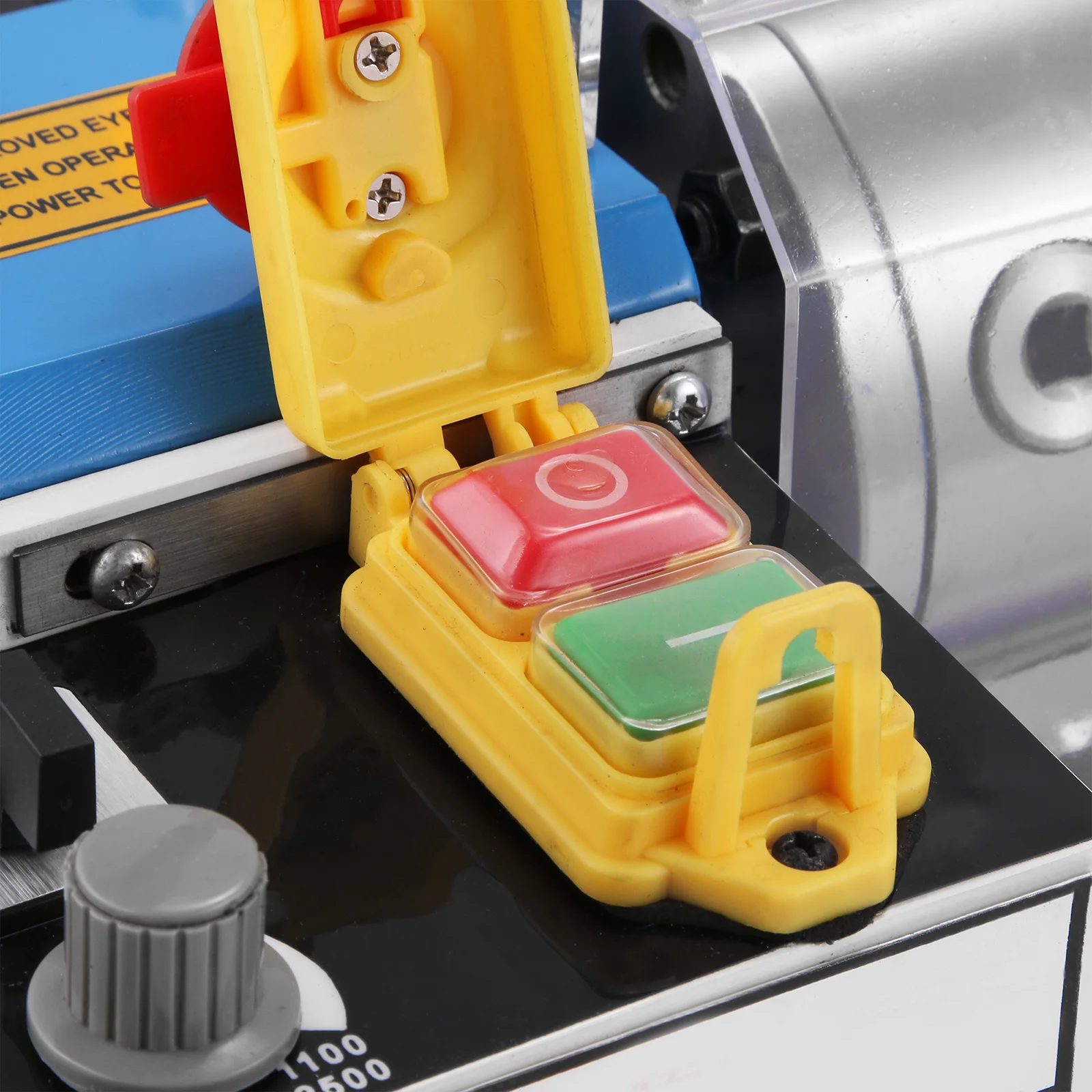

Infinitely Variable Speeds: Power metal lathes has large center distance 13.78" / 350 mm and swing over bed:7.09" / 180 mm, spindle bore: 0.82" / 21 mm. Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. Emergency stop button included.
Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. A free lamp is included.
Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
Infinitely Variable Speeds: Power metal lathes has large center distance 13.78" / 350 mm and swing over bed:7.09" / 180 mm, spindle bore: 0.82" / 21 mm. Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. Emergency stop button included.
Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. A free lamp is included.
Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
Details Images

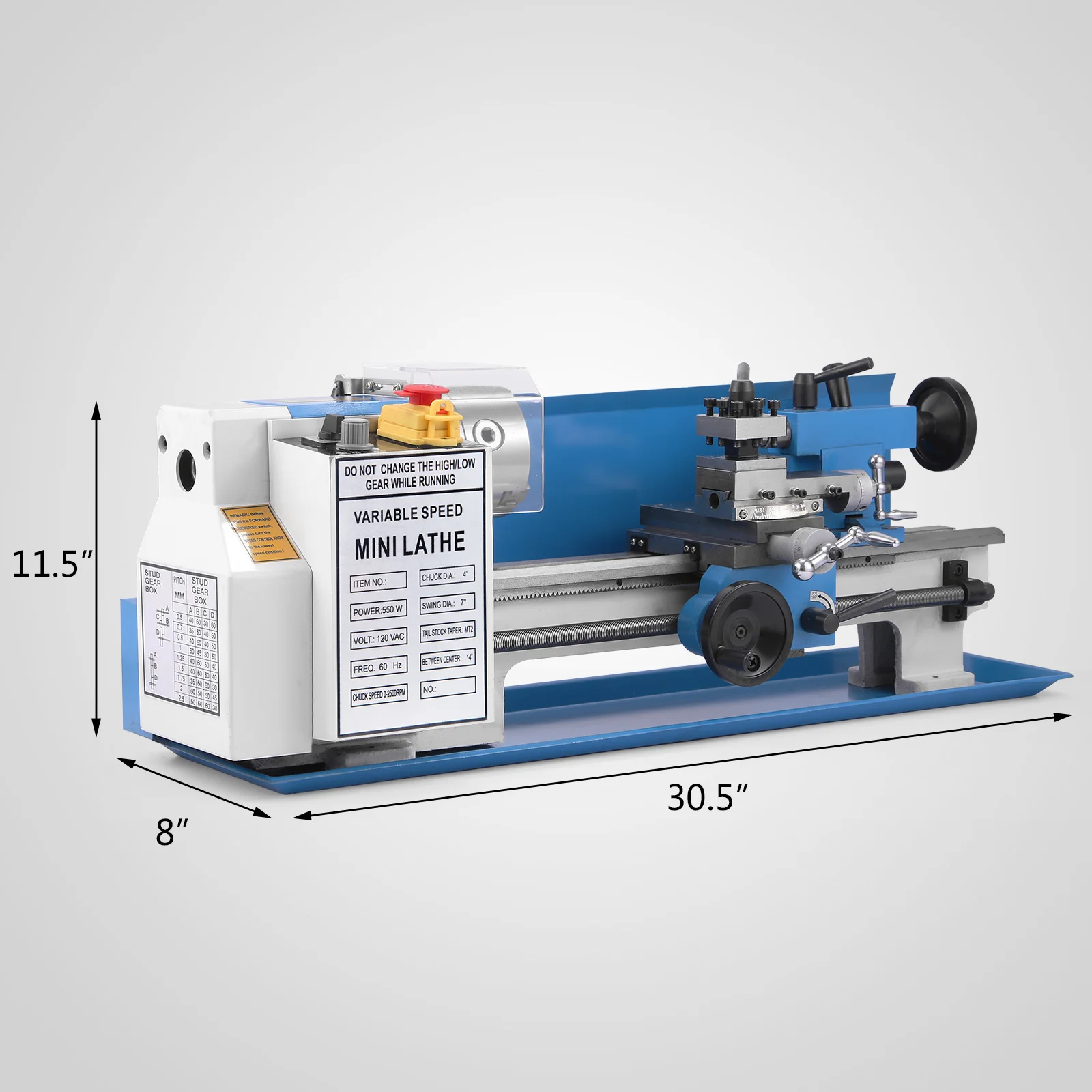

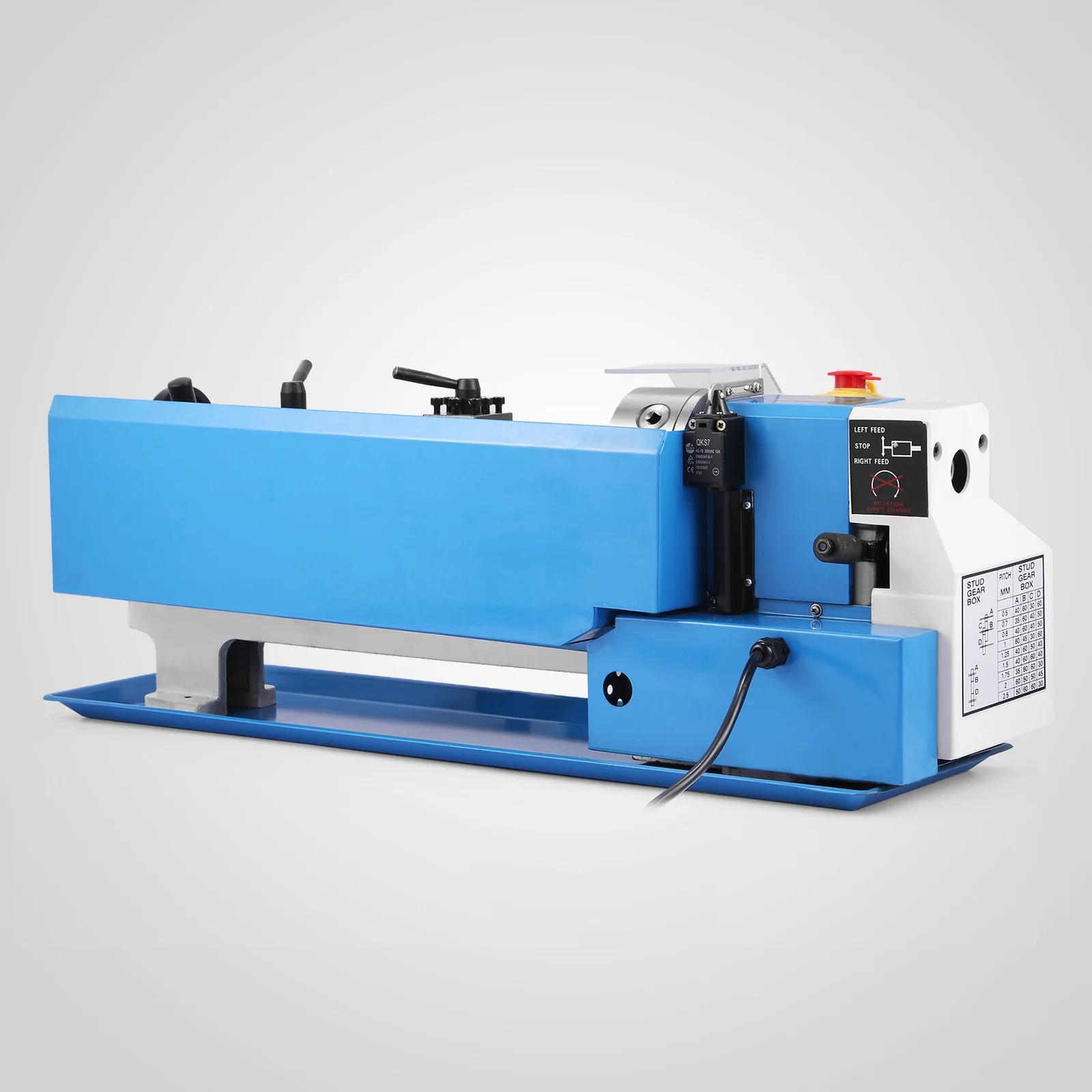

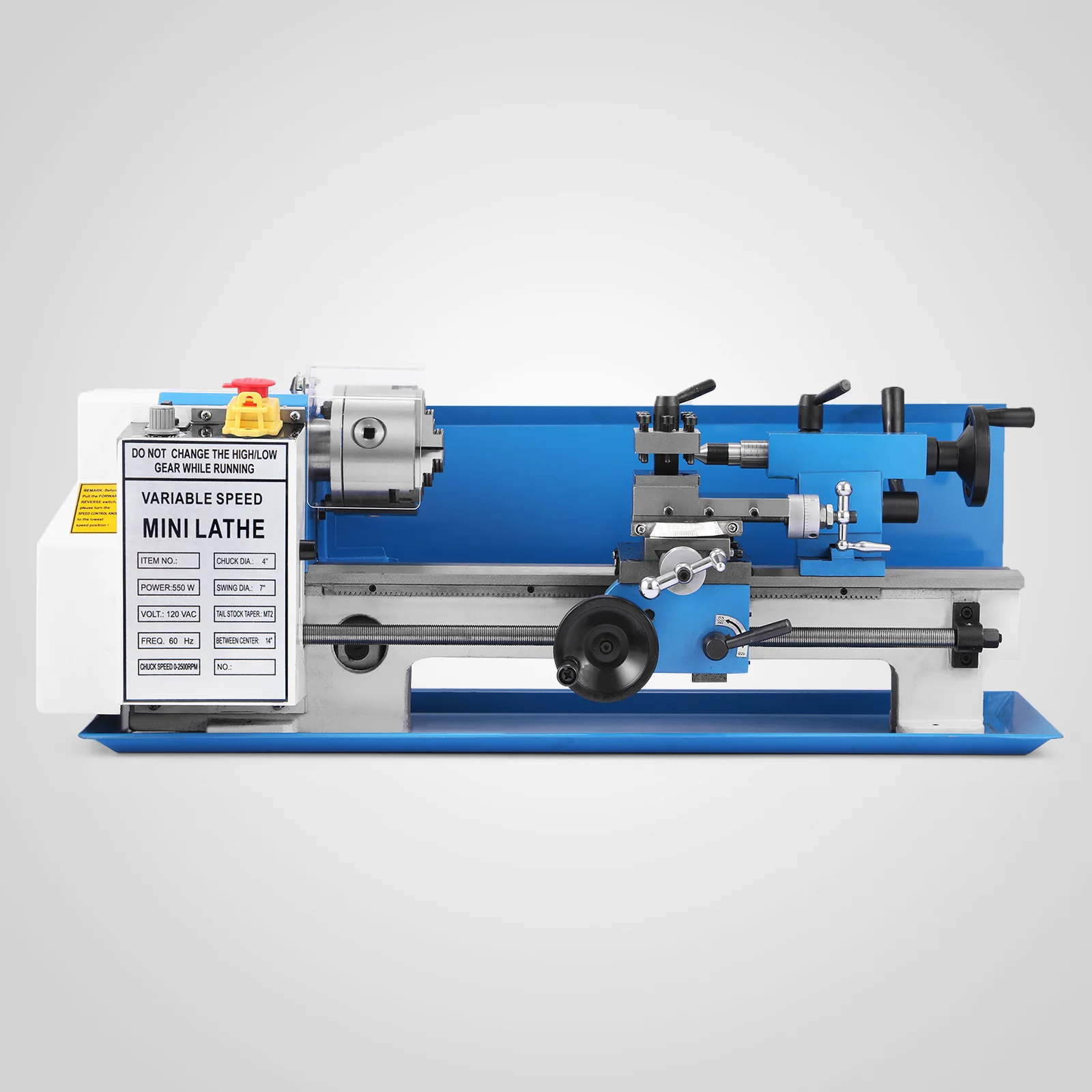

Heavy-Duty Machine
Made of superior iron, which can withstand long years. Feature a 7-inch swing over bed, 13.78 inch distance between centers. The wide through hole allows easy work with long and thin pieces including pins, bushings, axles, and shafts.
Stepless Speed Control
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
The self-centering 3-jaw chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.

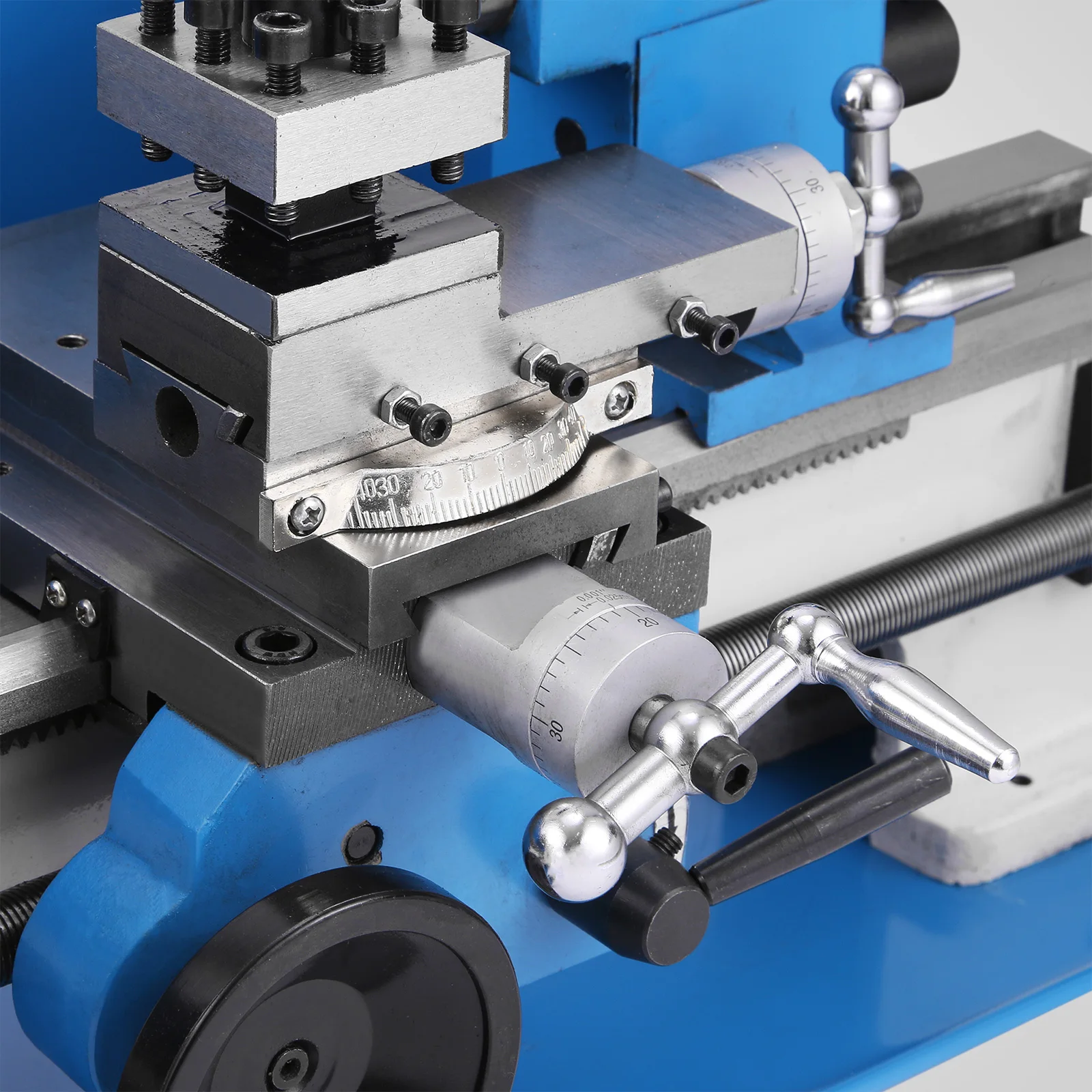

Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm. A lamp is for accurate operation in dark circumstances.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
Specifications
Volt | 110V/220V 50-60 Hz |
Motor Power | 550W |
Motor Type | Brushed |
Variable Speed Gear | Plastic Nylon or metal |
Certification | CE |
Swing Over Bed | 7" / 180 mm |
Distance Between Centers | 350mm |
Spindle Accuracy | 0.0004" / 0.01 mm |
Spindle Speed | 50 - 2500 RPM |
Spindle Bore | 0.83" / 21 mm |
Tail Stock Taper | MT2 |
Spindle Taper | MT3 |
Top Slide Travel | 1.38" / 35 mm |
Cross Slide Travel | 2.56" / 65 mm |
Item Dimensions (L x W x H) | 75*23*25CM |
Company Profile
Who we are?
Shanghai Relia was Founded in 2005，has more than 15 years of production experience and 10 years of export experience, and has invested in more than 10 top factories in China, which can provide high-quality products and top after-sales service.
We are a diversified enterprise, integrating R&D, production, agency and sales.
Since its establishment, it has established good cooperative relations with many enterprises at home and abroad.
Products sell well all over the country, and are exported to Europe, America, Southeast Asia, South America, Australia, Russia, the Middle East, Africa and other places.
With advanced production equipment, professional technology and R&D team, our products are favored by customers.
We are a diversified enterprise, integrating R&D, production, agency and sales.
Since its establishment, it has established good cooperative relations with many enterprises at home and abroad.
Products sell well all over the country, and are exported to Europe, America, Southeast Asia, South America, Australia, Russia, the Middle East, Africa and other places.
With advanced production equipment, professional technology and R&D team, our products are favored by customers.
Customer Photos

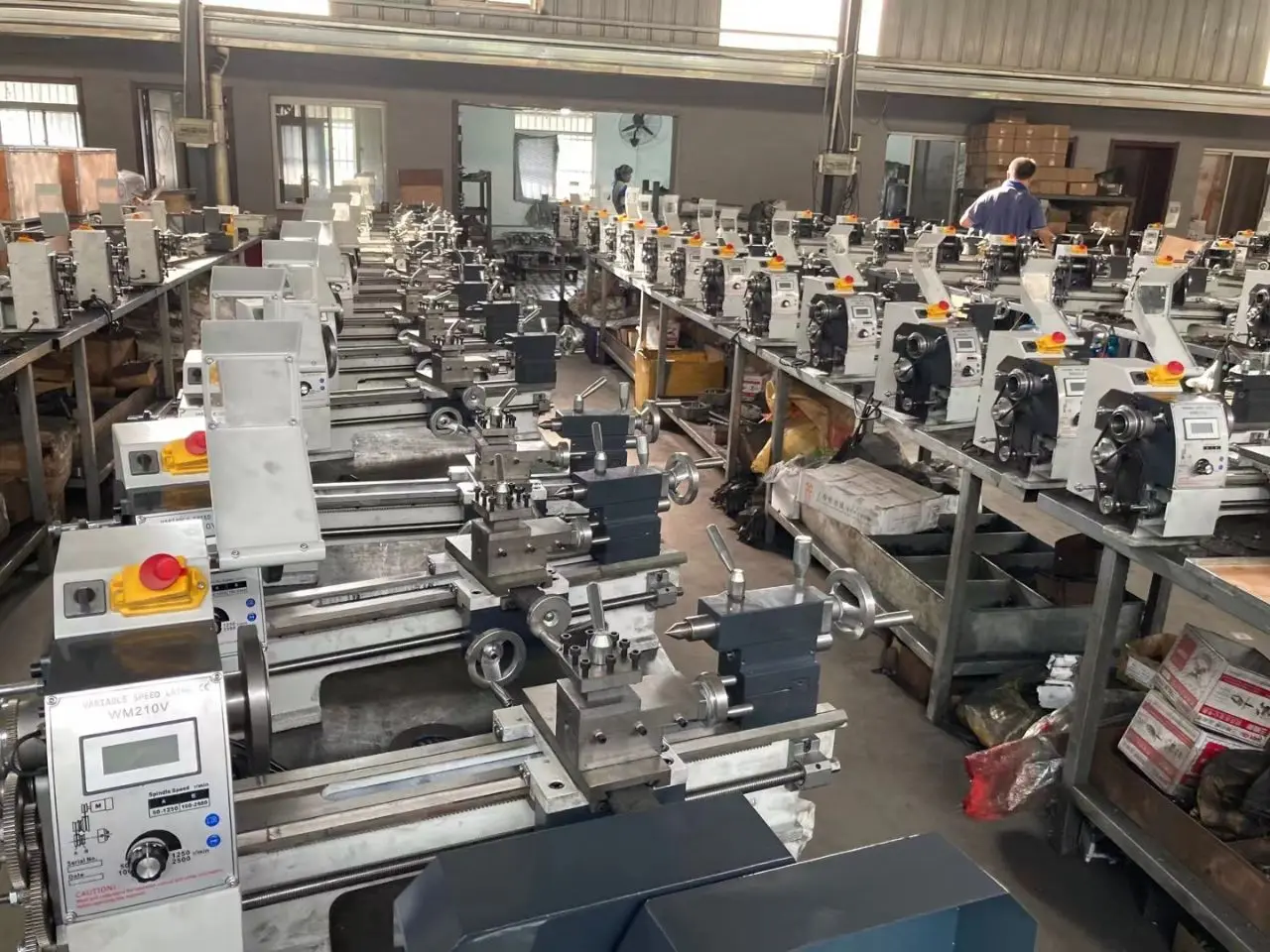

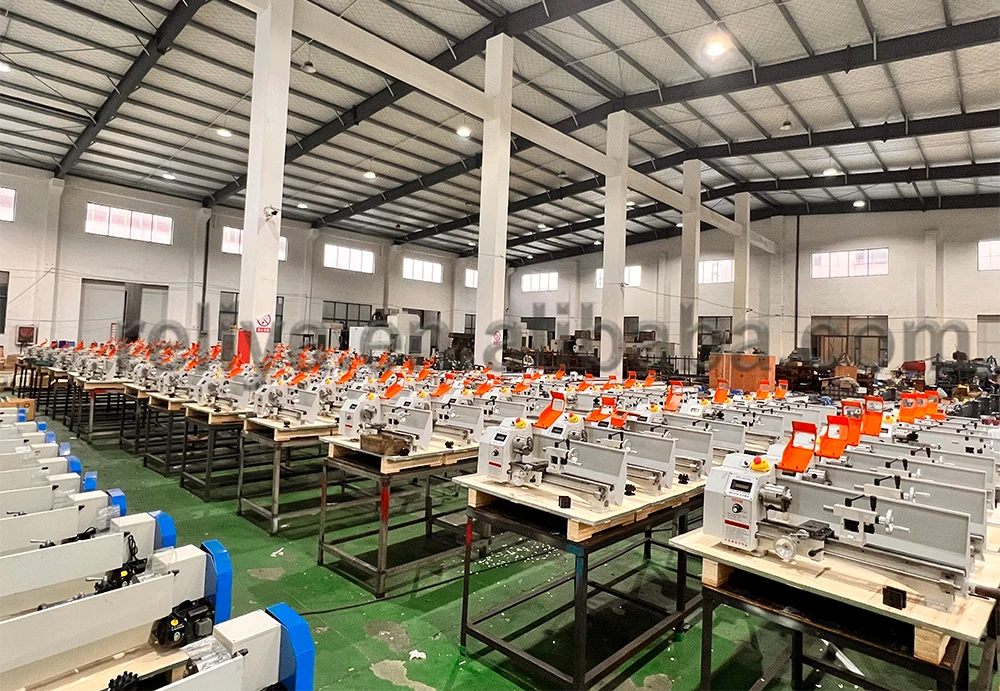

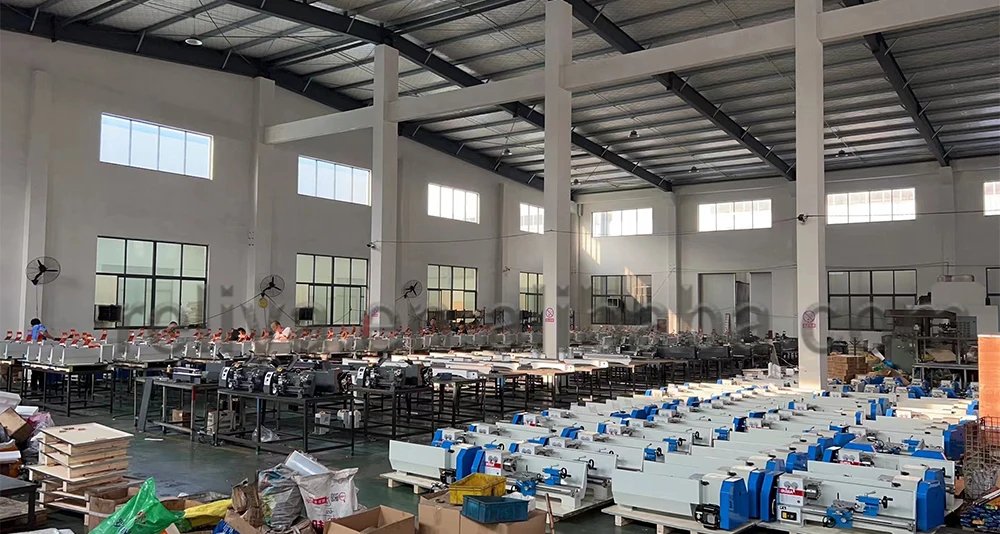

Factory
Package Content
1 x Mini Metal Lathe
1 x Working Light
3 x Chuck Jaw
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrench
9 x Plastic Nylon Gear
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Box
1 x Working Light
3 x Chuck Jaw
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrench
9 x Plastic Nylon Gear
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Box
Certifications
FAQ
1.How about after sales services?
24 months warranty for Reliya mini lathe. Any technical problem during warranty time, We can provide free replacement parts And technical support is also available after 2 year.
2.Do you accept OEM and ODM?
Yes, we also have profession R&D teams to responds your special needs quickly.
3.What is your company's advantage?
Our company has a professional team, professional production line and good after-sales service.Alao we have best shipping solution & freight rate.
4.What kind of shipment you can arrange?
Yes, by sea, by air or by express ( TNT, FEDEX, DHL, UPS ,
EMS etc). we have professional sales and shipment team to offer the best and prompt service.
24 months warranty for Reliya mini lathe. Any technical problem during warranty time, We can provide free replacement parts And technical support is also available after 2 year.
2.Do you accept OEM and ODM?
Yes, we also have profession R&D teams to responds your special needs quickly.
3.What is your company's advantage?
Our company has a professional team, professional production line and good after-sales service.Alao we have best shipping solution & freight rate.
4.What kind of shipment you can arrange?
Yes, by sea, by air or by express ( TNT, FEDEX, DHL, UPS ,
EMS etc). we have professional sales and shipment team to offer the best and prompt service.
