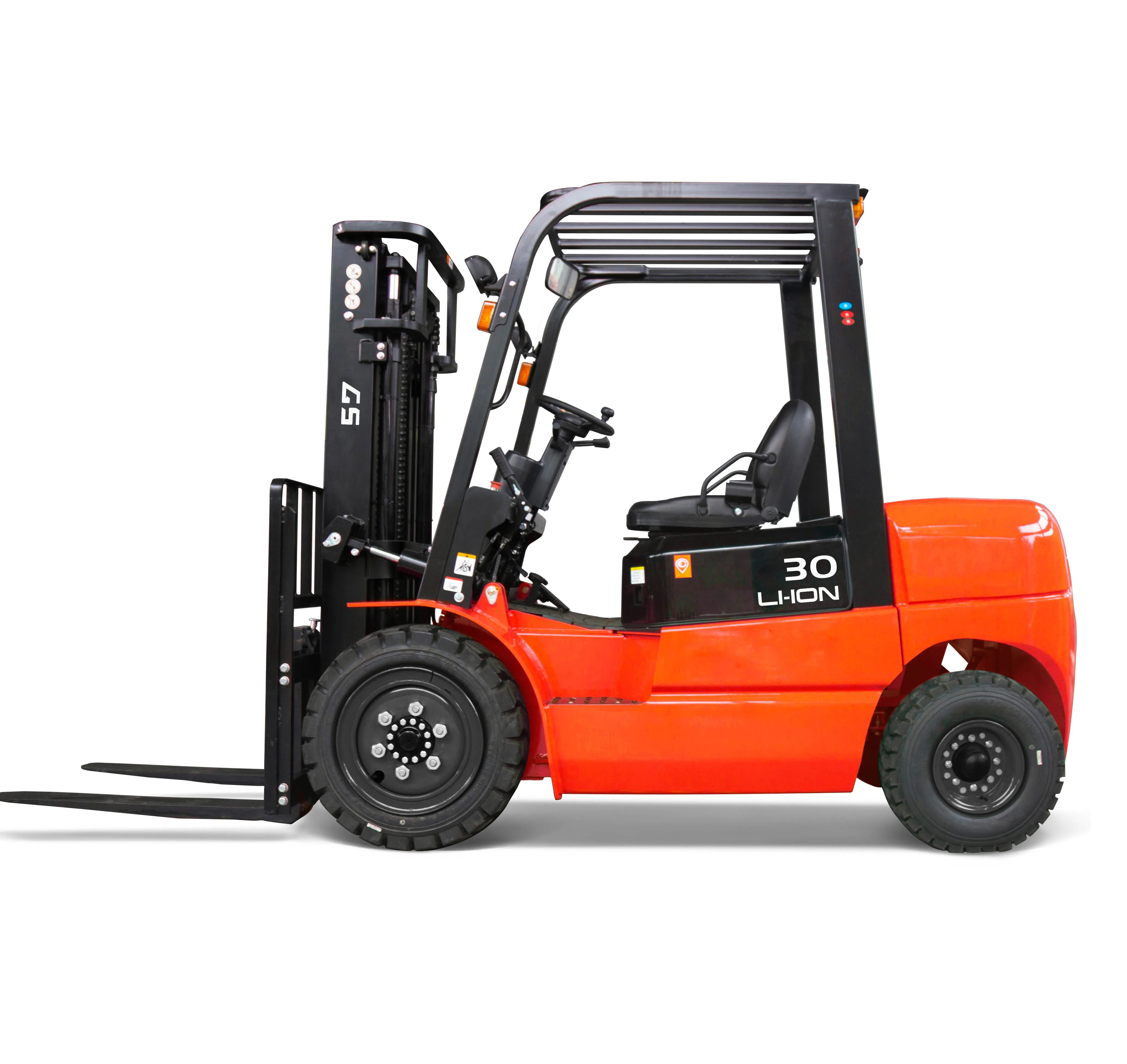

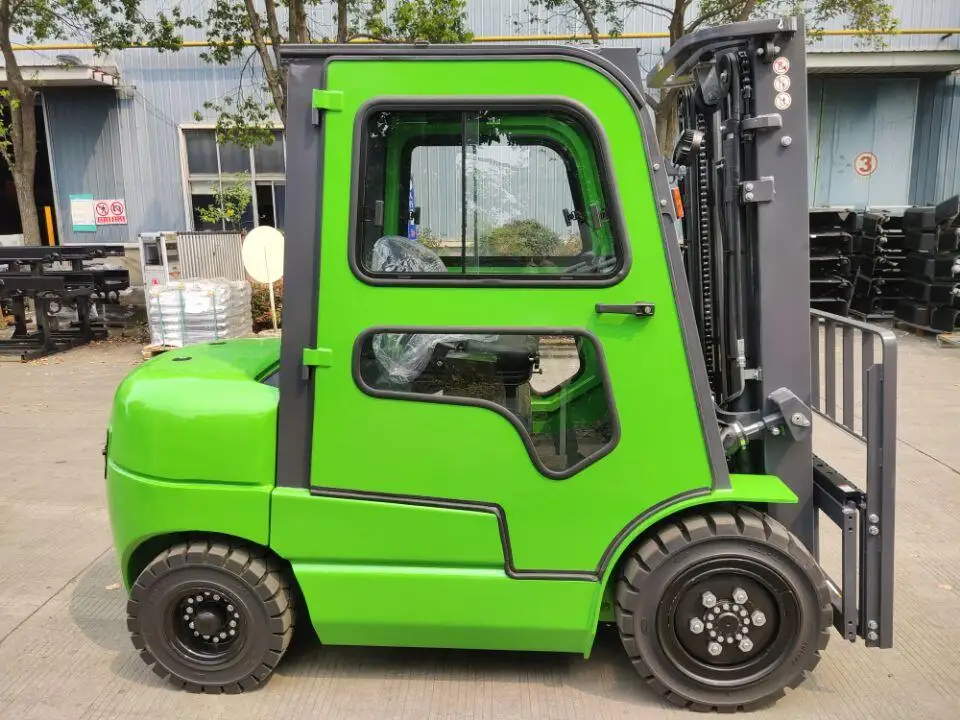

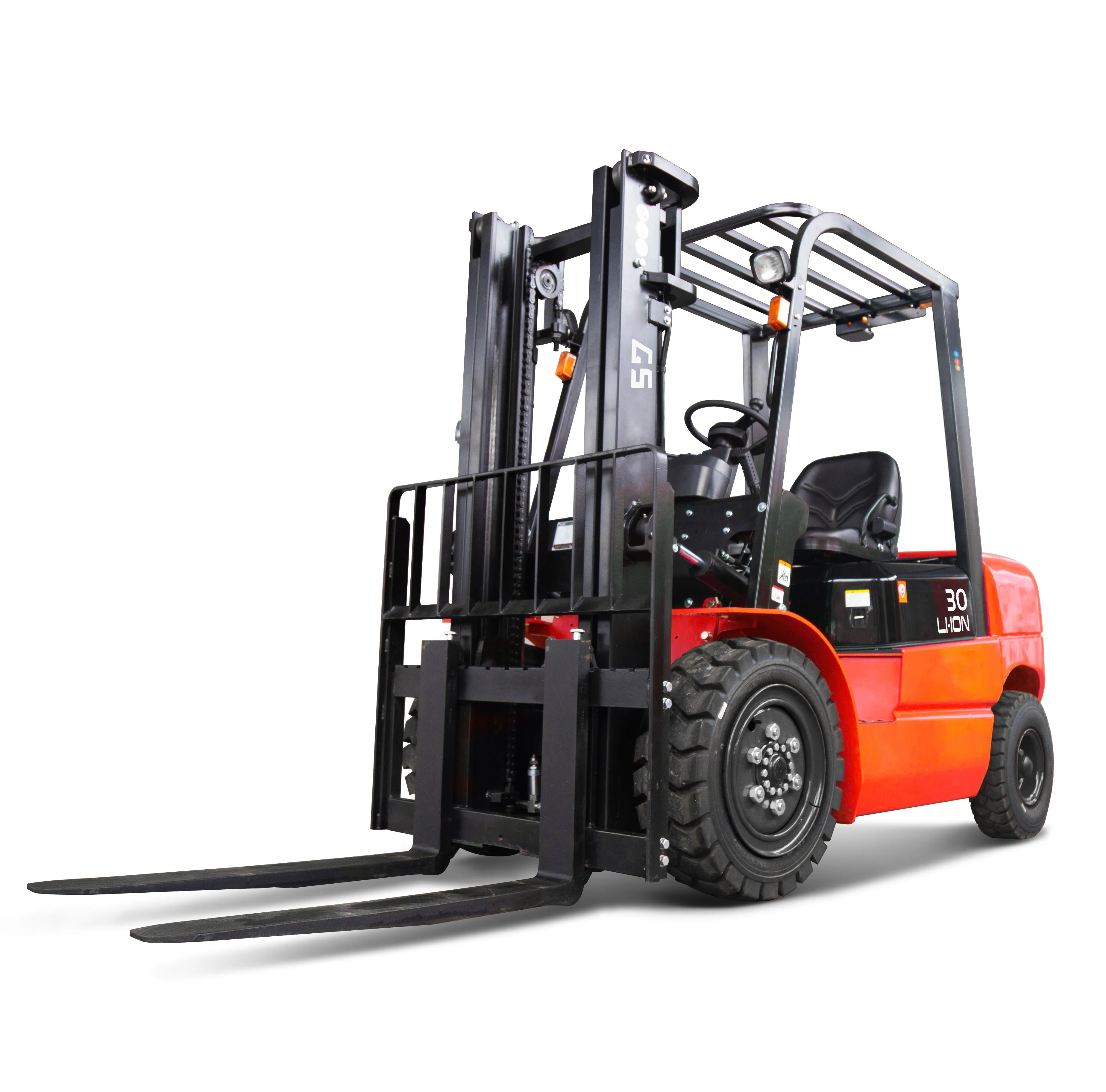

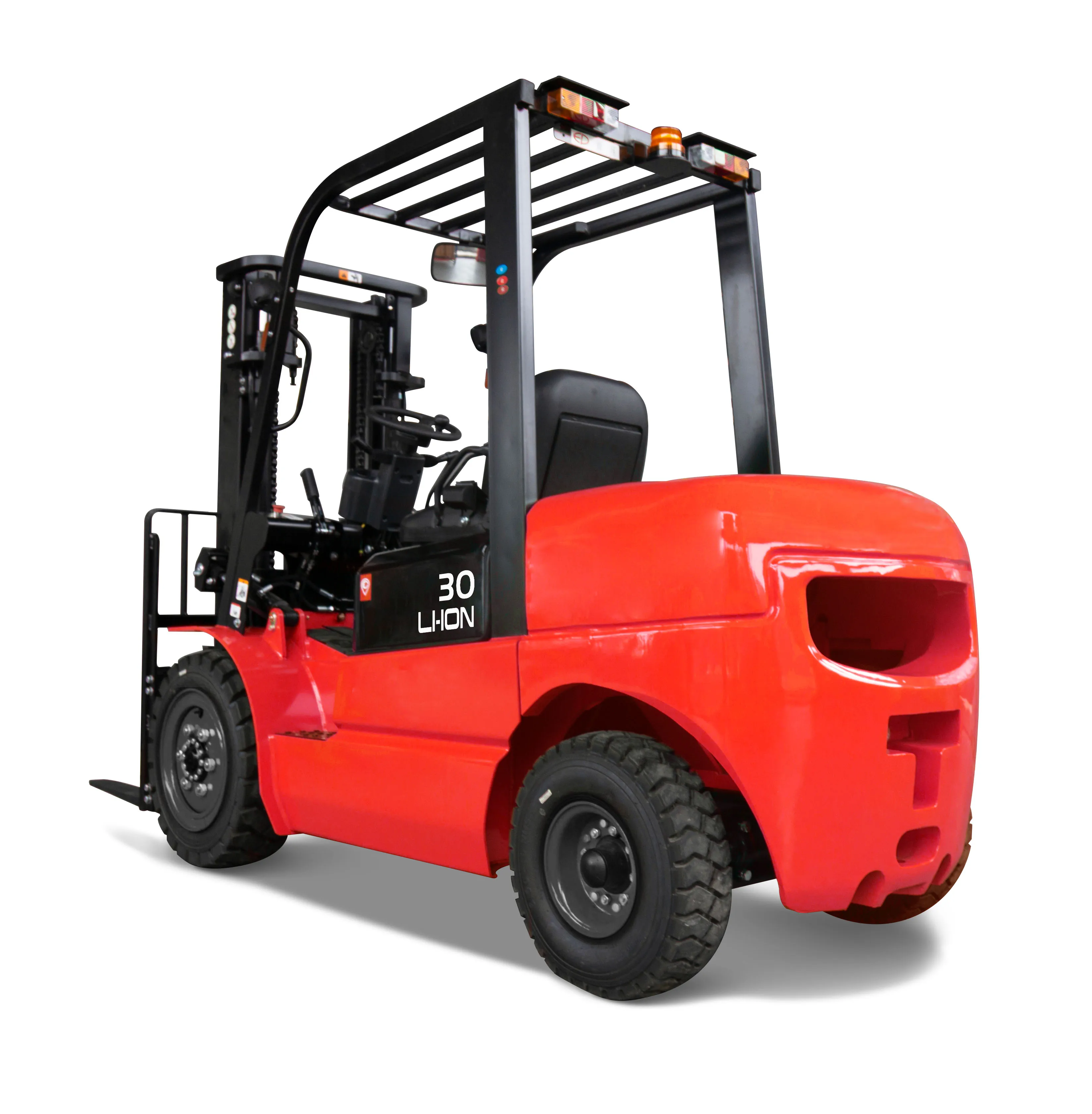

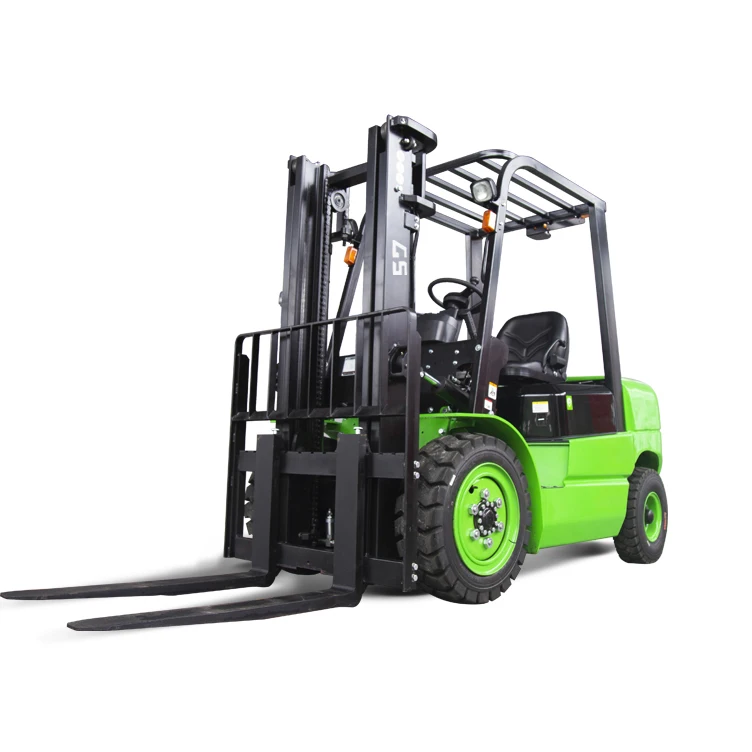

3Ton Lead Acid Lithium Battery Support Operated Electric Forklift CPD30
- Category: >>>
- Supplier: Hangzhou Xinli Machinery Co. Ltd.
Share on (1600901066816):
Product Overview
Description
Product Description
EFL302 Electric Counterbalance Forklift Truck 3.0T
Features:
1. IC forklift design with li-lon technology
2.Big tyres & high ground clearance
3.Simple components for easy service & maintenance
4.Li-lon battery for opportunity charging & flexibility
5.Outdoor & indoor: the most flexbile forklift in the industry
TELEMATICS:
EFL302 offers the latest Telematics. It provides the following features to facilitate your feet management:
1.Truck location in real-time
2.Reports of truck usages and diagnosis
3.Li-ion battery condition analytics
4.Updates on card access registration
Light
Lithium battery
Comfortable seat/warning lights
Bales Clamp
Paper roll clamp
Specification
No. | Model designation | EFL302 | |
1 | rated capacity (kg) | Q | 3000 |
2 | Load center distance (mm) | c | 500 |
3 | Wheelbase (mm) | y | 1750 |
4 | Self weight (include battery) (kg) | 4080 | |
5 | Height, mast lowered (mm) | h1 | 2070 |
6 | Free lift (load backrest) (mm) | h2 | 120 |
7 | Lift height (mm) | h3 | 3000 |
8 | Height, mast extended (mm) | h4 | 4110 |
9 | Height of overhead guard (cabin) (mm) | h6 | 2160 |
10 | Fork dimensions (mm) | 45X122X1070 | |
11 | Overall length (mm) | l1 | 3780 |
12 | Overall width (mm) | b1/ b2 | 1230 |
13 | Turning radius (mm) | Wa | 2500 |
14 | Travel speed, laden/ unladen(km/ h) | 11/12 | |
15 | Lifting speed, laden/ unladen (m/ s) | 0.29/ 0.36 | |
16 | Lowering speed, laden/unladen (m/ s) | 0.4/ 0.43 | |
17 | Drive motor rating S2 60 min (kW) | 10 | |
18 | Lift motor rating at S3 15% (kW) | 12 | |
19 | Battery voltage/nominal capacity K5 (V/ Ah) | 80V/205AH | |
20 | The maximum allowed size battery | 731X 608X 326mm |
