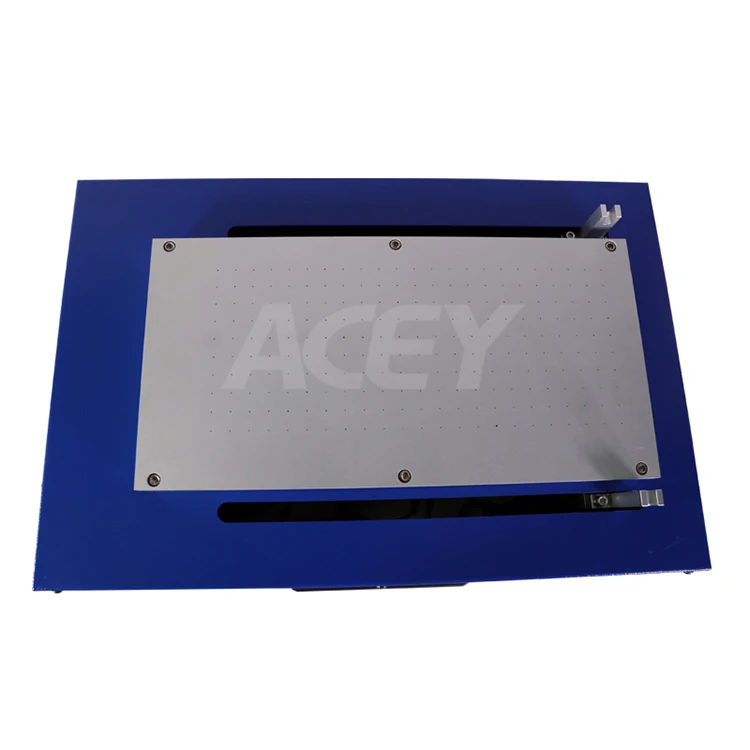

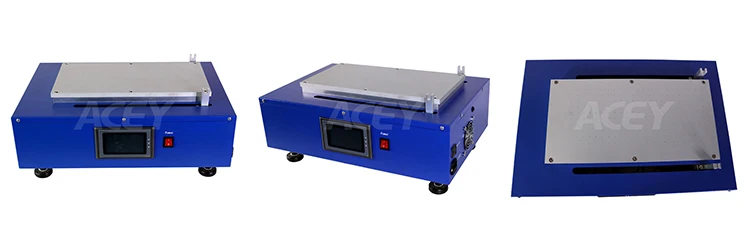

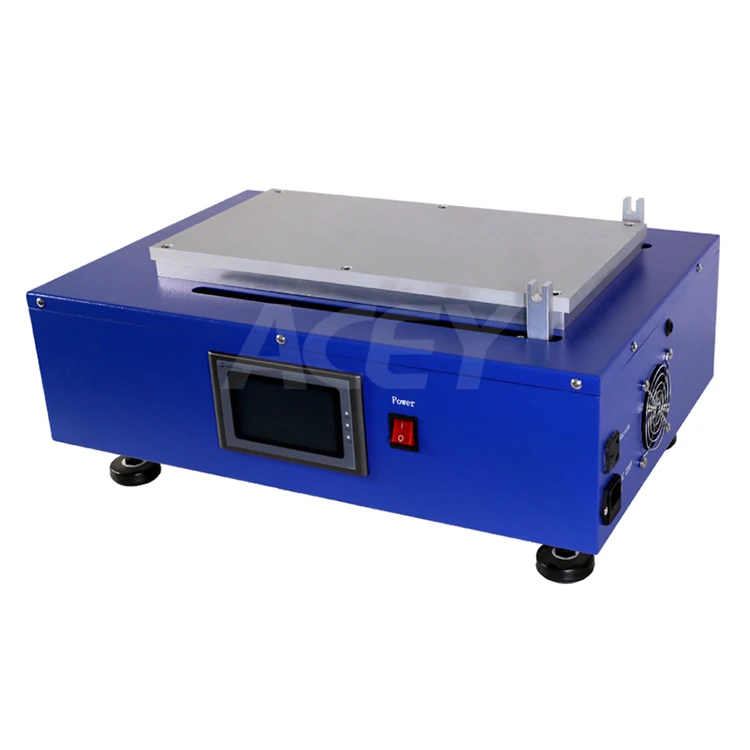

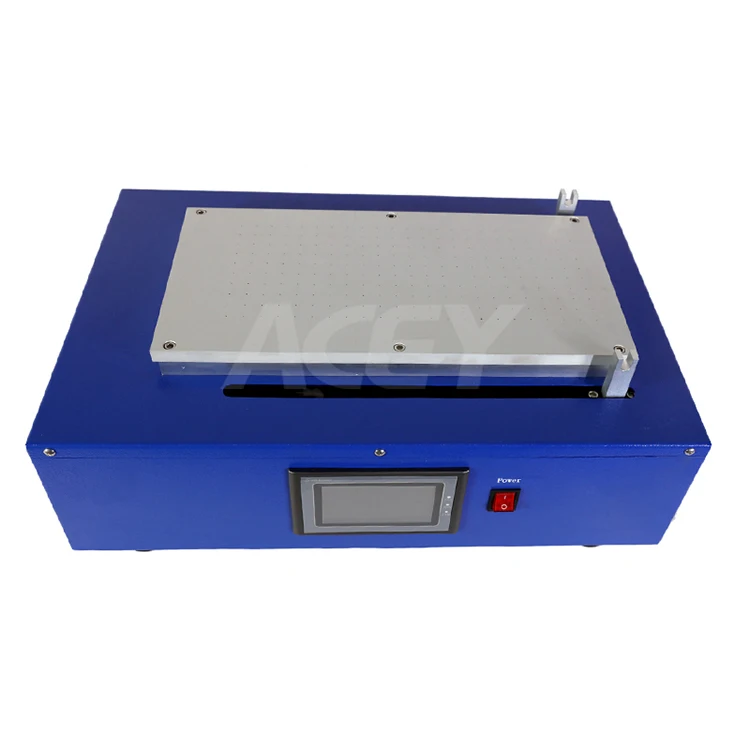

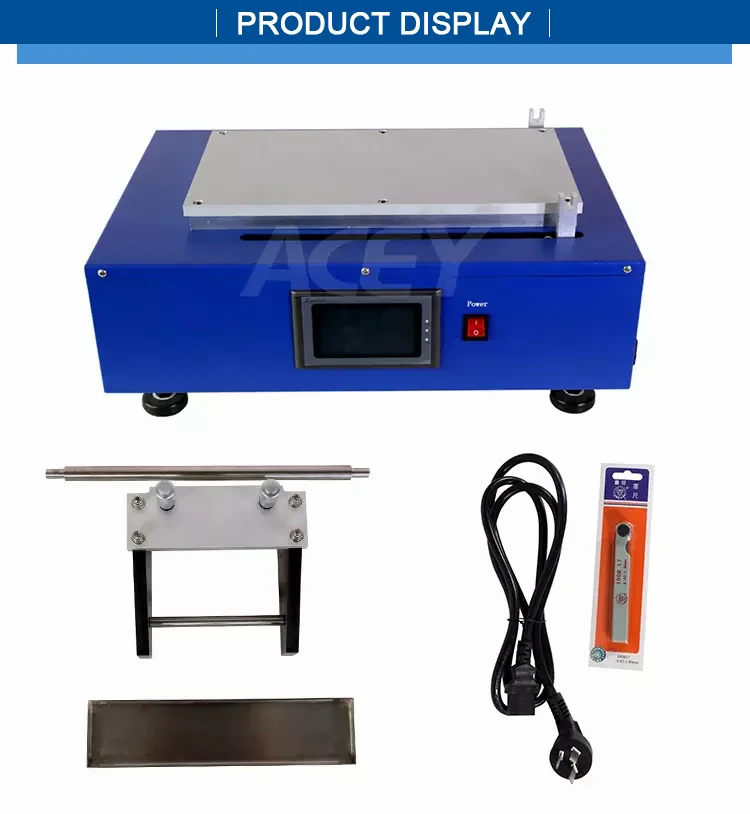

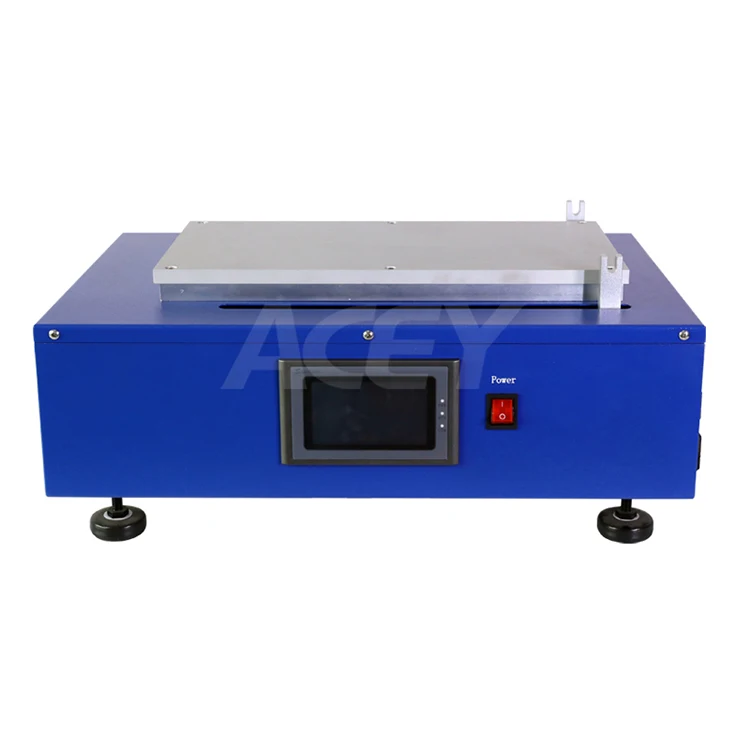

Lab Automatic Electrode Doctor Blade Film Coater Small Roller Coating Machine

Product Overview

Description



ACEY-FC250 is widely used in various coating research, such as ceramic film, crystal film, battery material film, special nano film. Adjust with a micrometer to achieve the thickness of the film to be coated. The instrument is equipped with a precise adjustable film device, and the moving push rod pushes it to move at a constant speed to achieve the uniformity of the slurry coating on the substrate. This equipment is particularly suitable for making battery substrates, which can ensure the substrate The density of the positive/negative electrode material in each part of the sheet is uniform.

Product Name	Film Coating Machine
Model No	ACEY-FC250
Film coating speed	0~100mm/sec
Gas source	0.5-0.8MPa compressed air
Coating width	0~150mm (customizable)
Travel	300mm
Coating thickness accuracy	±3um
Vacuum plate	aluminum plate with vacuum (convenient for substrate adsorption)
Vacuum plate size	L410mm×W200mm×H30mm
Scraper adjustable range	0~3.5mm
Power supply	220V/50Hz
Weight	48KG
Dimensions	L549mm×W305mm×H335mm



Packing
