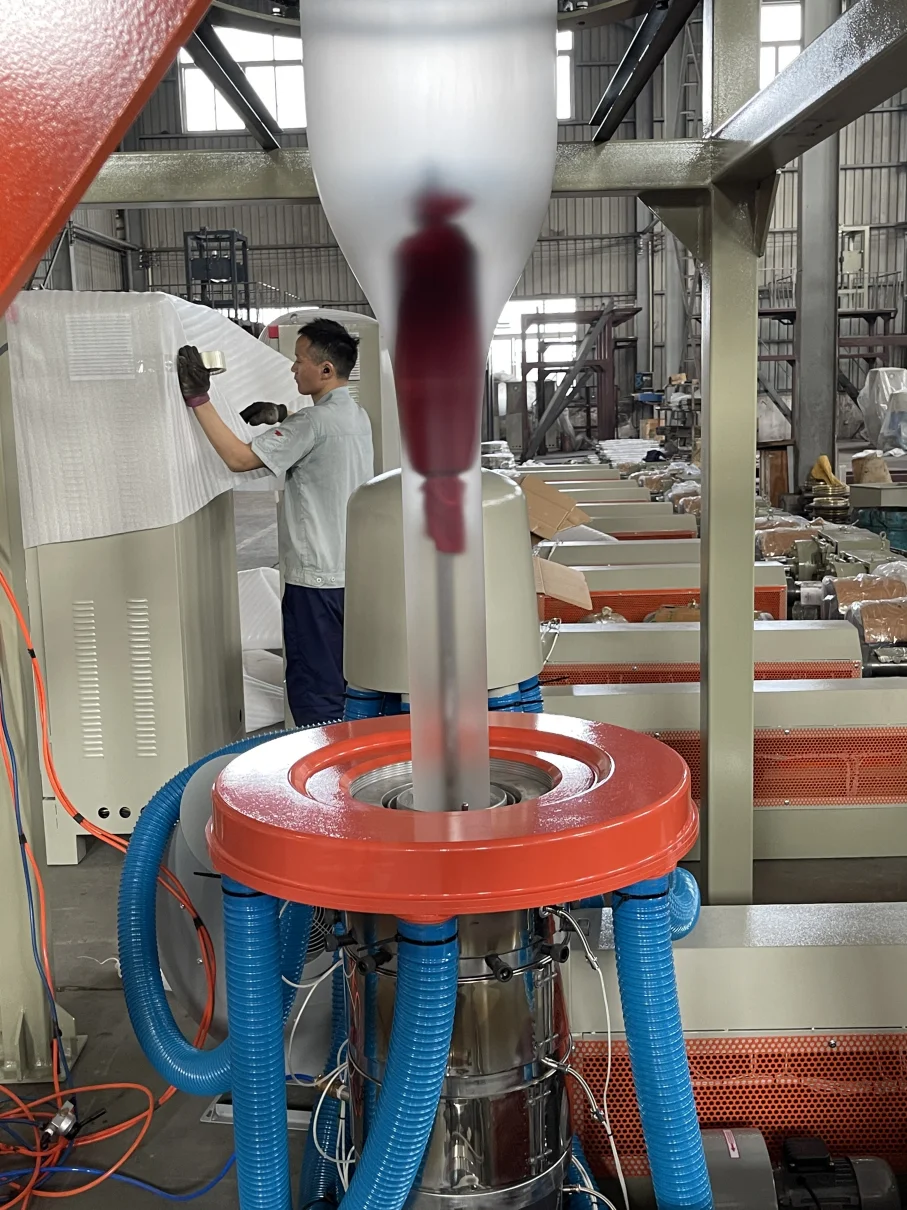

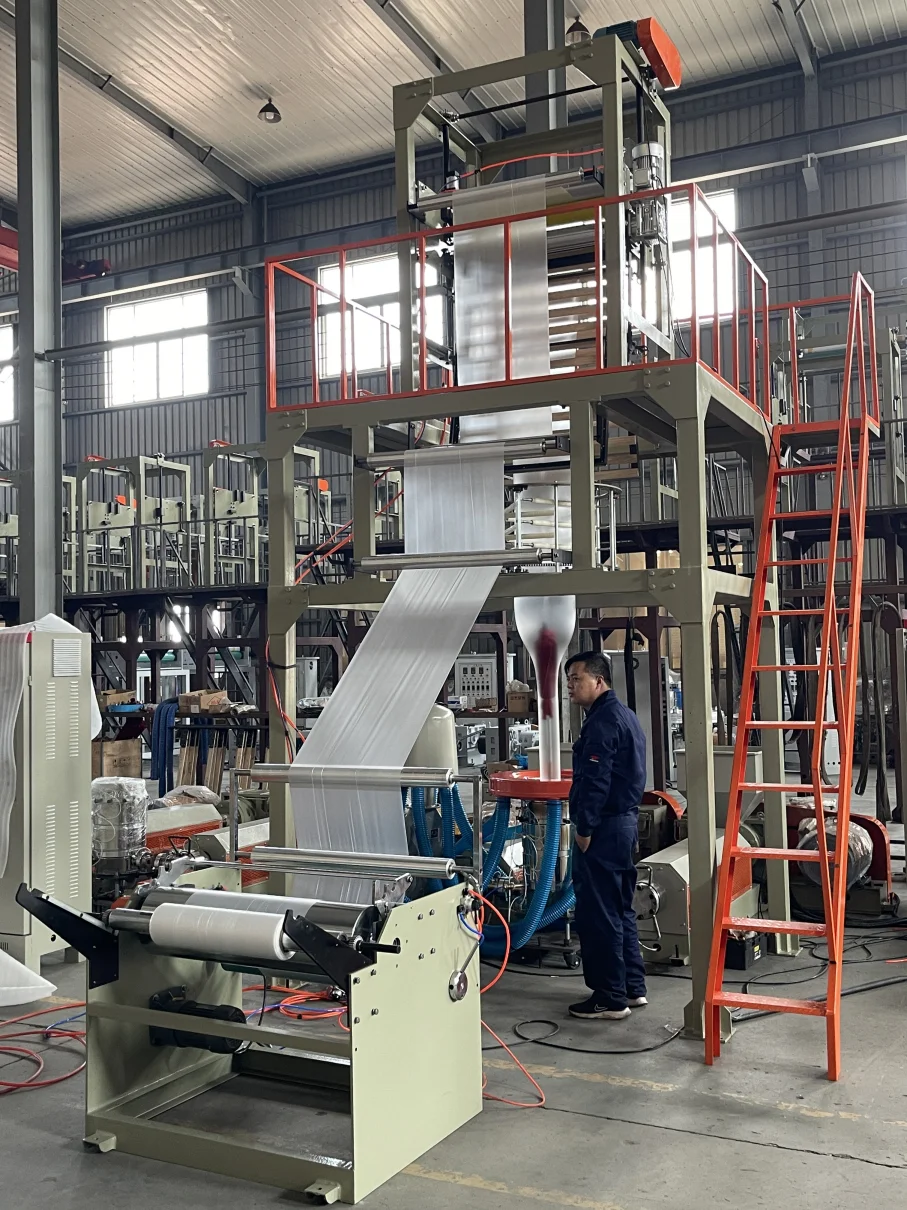

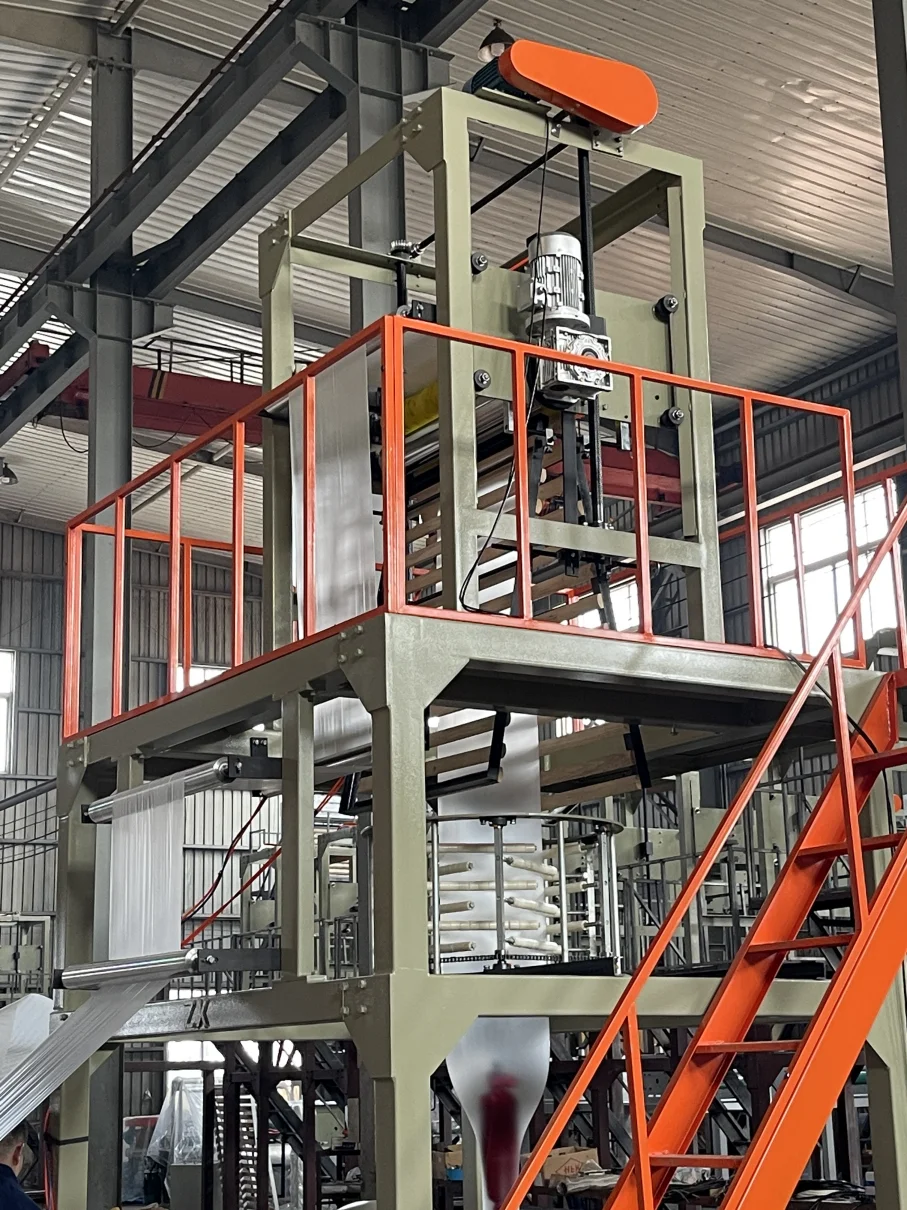

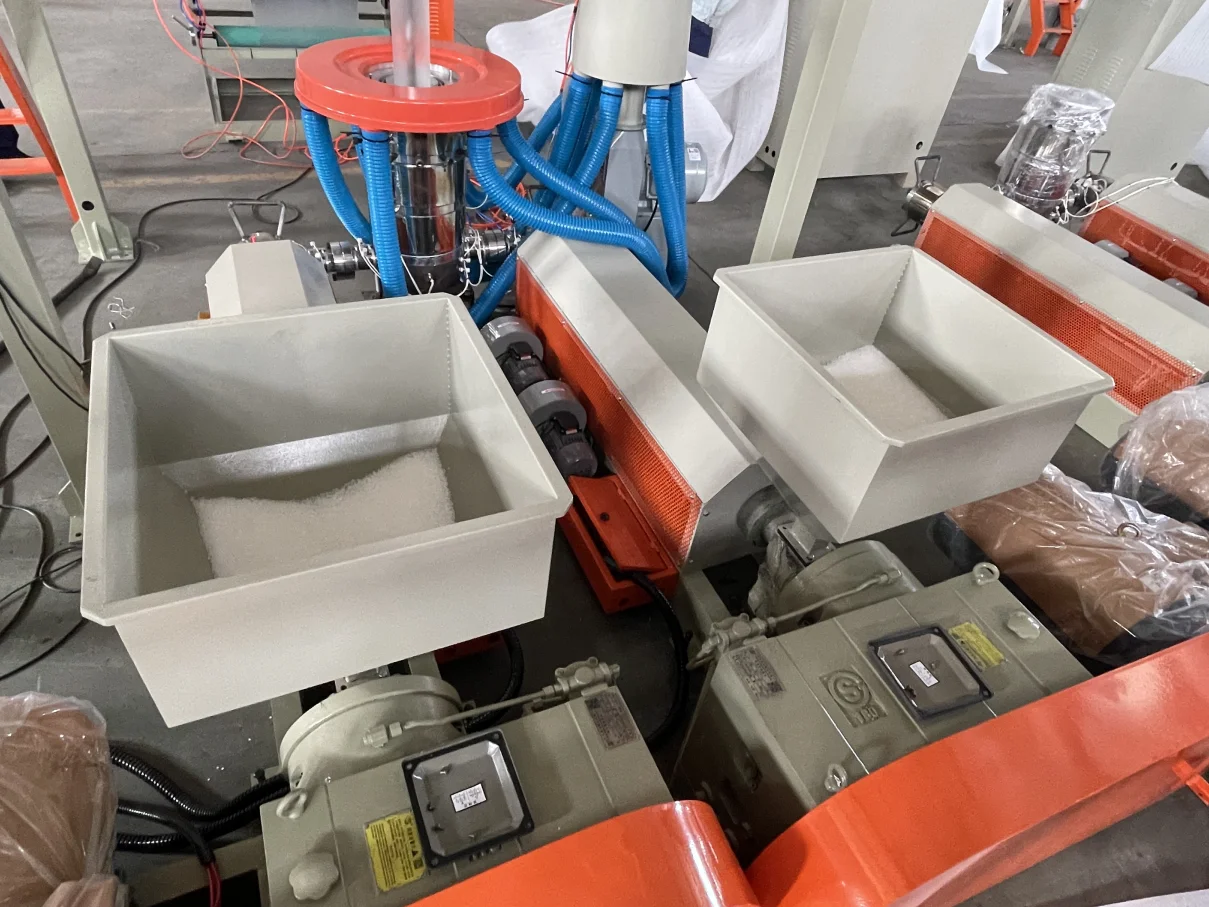

2SJABA 900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price
2SJABA-900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price
2SJABA-900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price
2SJABA-900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price
2SJABA-900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price
2SJABA-900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price
2SJABA-900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price

2SJABA 900 High Speed Agricultural Biodegradable Polypropylene PP PE LDPE HDPE Plastic Bag Film Blowing Extrusion Machine Price

Share on (1600901093115):


Price:$25,500.00 - $28,000.00

Quantity:


Product Overview

Description



2SJABA-800 Series Film Blowing Machine
Optional Equipment:
1.Auto Loader
2.Corona Treater
3.Air Compressor
4.Air Cooling Device
5.Air Shaft


Products Description


Model
2SJABA-900
2SJABA-1100
2SJABA-1300
Suitable Material
HDPE LDPE LLDPE


Film Width
400-800mm
500-1000mm
600-1200mm
Film Thickness
0.03-0.2mm
0.03-0.2mm
0.03-0.2mm
Max Extrusion Output
HD:80kg/h
LD:120kg/h
HD:100kg/h
LD:150kg/h
HD:120kg/h
LD:180kg/h
Extruder



Screw Diameter
φ50x2
φ55x2
φ55x1  φ65x1
Screw L/D Length
28:1/30:1
28:1/30:1
28:1/30:1
Screw Material
Sacm-645/38 Crmoala


Cylinder Cooling
Sacm-645/38 Crmoala


Driving Motor
370W x2
370W x2
370W x2
Gear Box
15kw x2
18.5kw x2
22kw+18.5kw
Temperature Control
3
3
3
Average-power Consume
30kw
35kw
40kw
Type of Die



Die Sze
HD:80
LD:180
HD:100
LD:220
HD:120
LD:250
Temperature Control
3
3
3
Air Ring
2
2
2
Air Blower
3kw x1
4kw x1
5.5kw x1
Center Steady Stick
2
2
2
Take-up Unit



Roller Width
900mm
1100mm
1300mm
Effective Width
800mm
1000mm
1200mm
Height Adjustable
800mm
800mm
800mm
Take-up Speed
10-65m/min
10-65m/min
10-65m/min
Take-up Motor
1.5kw
1.5kw
2.2kw

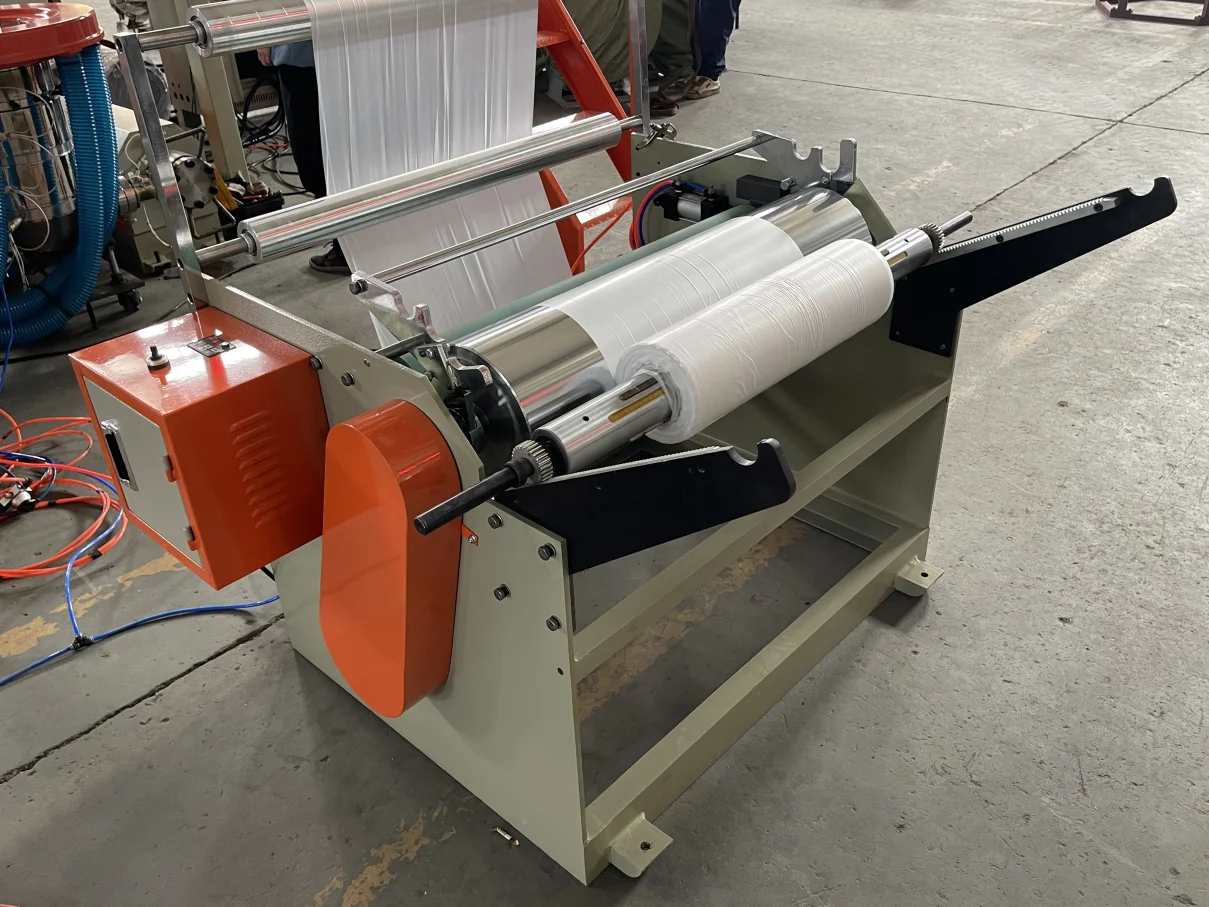

Winding Unit



Type
Surface Friction Type


Winding Motor
16N.m
16N.m
16N.m
Winding Speed
10-65m/min
10-65m/min
10-65m/min
Power Supply
380V,50HZ,3PHASE


Outline Dimension(L*W*H)
4.8x3.2x5.5m
5x3.5x6m
5x3.7x7.5m
