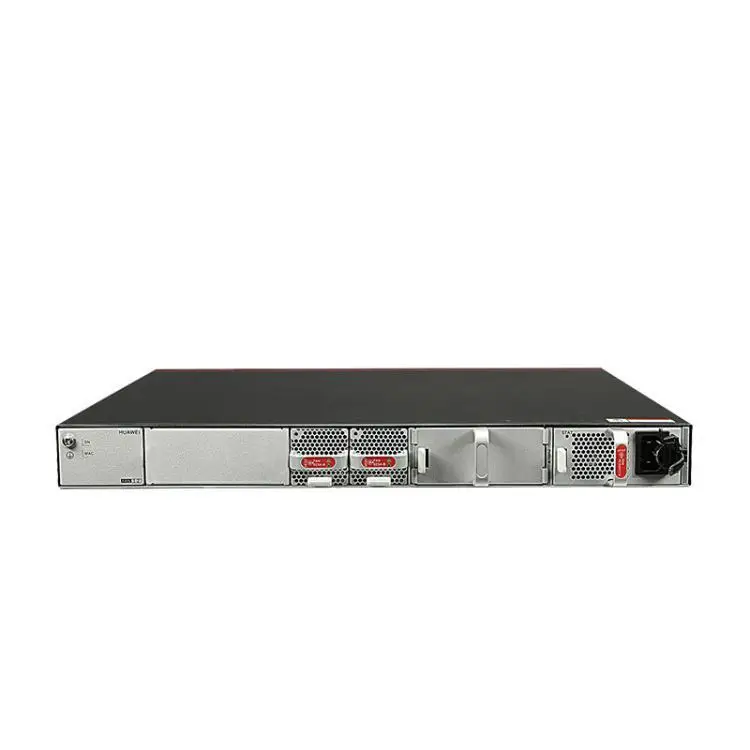

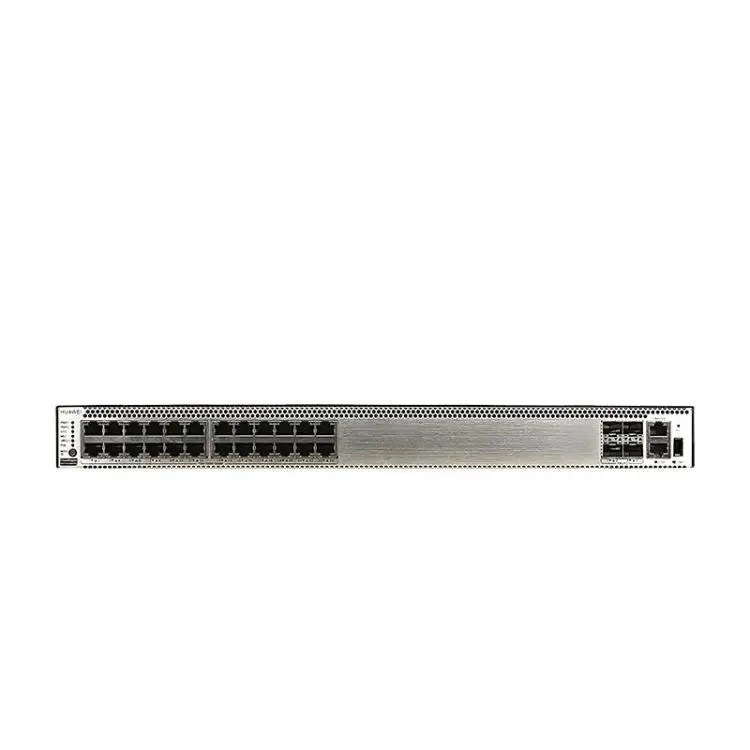

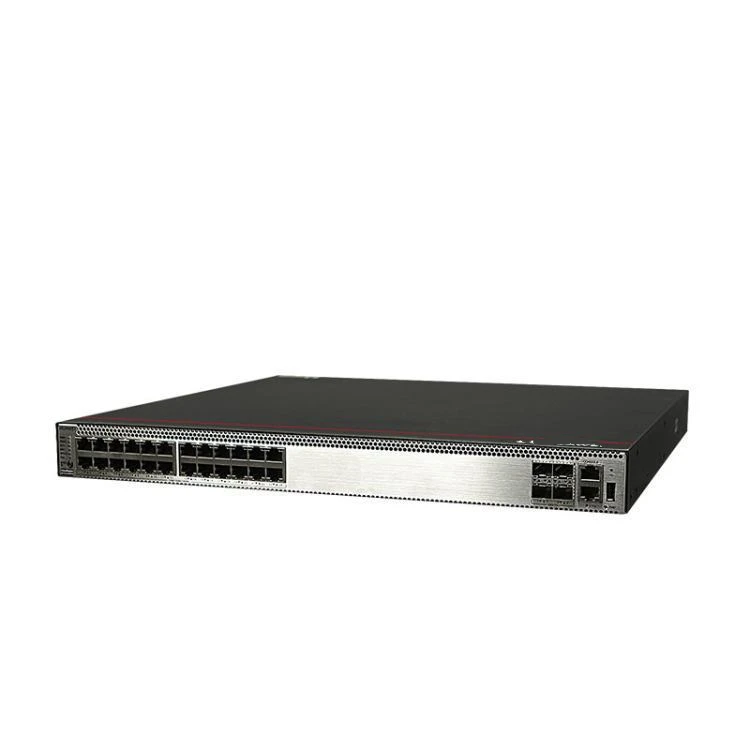

Expandable card slot for industrial fiber switch network S5731S H24T4XC A 24 port industrial switch
- Category: >>>
- Supplier: Beijing Keke Naite Technology Co. Ltd.
Share on (1600901101166):
Product Overview
Description
Product Description
Product Name | S5731S-H24T4XC-A |
Introduction | The CloudEngine S5731-H is a series of next generation intelligent switches that provide GE/10 GE electrical downlink ports and four 10 GE uplink ports, with one extended slot. |
Fixed port | S5731S-H24T4XC-A (24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, single daughter card slot) Switching capacity 758Gbps/7.58Tbps, packet forwarding rate 228/426Mpps, support for dual power supply, and comes with a 150W power supply |
Package | Carton |
- CloudEngine S5731S-H series switch
The CloudEngine S5731S-H series switch is an enhanced gigabit access switch developed by Huawei for the distribution market. It can provide full gigabit electrical access and fixed gigabit or 10 Gigabit uplink ports, and some models reserve one expansion slot.
The CloudEngine S5731S-H series switches have wired and wireless deep integration capabilities, support onboard AC, and can manage up to 1K AP; Having the ability to follow the business and provide a consistent user experience; It has the VxLAN capability, supports the network virtualization function, and meets the requirements of the Campus network for multiple purposes; At the same time, this series of switches has built-in security probes that support abnormal traffic detection, threat analysis of encrypted traffic, and network wide threat trapping functions. It is the best choice for connecting large and medium-sized high-end quality park network branches, small park network cores, and data centers. Widely used in various industries such as healthcare, retail, mining, and the internet.
Specifications
Forwarding Performance | 426Mpps |
Switching Capacity2 | 758Gbps/7.58Tbps |
Fixed Ports | 24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, single daughter card slot |
PoE+ | Unsupported |
MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting |
VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation |
Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
Feature
Large port cache, non blocking forwarding of services
Industry 6-fold port cache with gigabit bandwidth forwarding without blocking, meeting the network requirements of low latency services such as voice, video, VR, etc. in the Wi Fi 6 era
Artificial Intelligence for IT Operations, fault minute level positioning
Support Telemetry technology, collect device data in real time, cooperate with Campus network network analyzer to find network problems that affect user experience in a timely manner, and accurately guarantee user experience
Exclusive trapping technology, early detection of threats
Identify potential threat traffic through built-in security probes, cooperate with HiSec Insight system for security threat event detection, and achieve network wide security cooperation and prevention
Related Products
Company Introduction
Beijing COCONET Technology Co., Ltd specializes in information construction and network engineering design and services. Our company focuses on industry customers and provides professional solutions and product services covering the entire lifecycle of ICT, mainly for the government, transportation, finance, schools and enterprises. We provide comprehensive,three-dimensional, multi-level IT system network construction, as well as safe, neutral and reliable IT infrastructure cloudservices.
Our company takes “reputation first, technology first, and first-class service” as its mission. We currently have some skilled technical experts and have been certified by internationally renowned IT manufacturers to provide customers with perfect after-sales and pre-sales service support. Users by pass integrators and directly negotiate with channel distributors to save costs.
Our company takes “reputation first, technology first, and first-class service” as its mission. We currently have some skilled technical experts and have been certified by internationally renowned IT manufacturers to provide customers with perfect after-sales and pre-sales service support. Users by pass integrators and directly negotiate with channel distributors to save costs.
Packing&Shipping

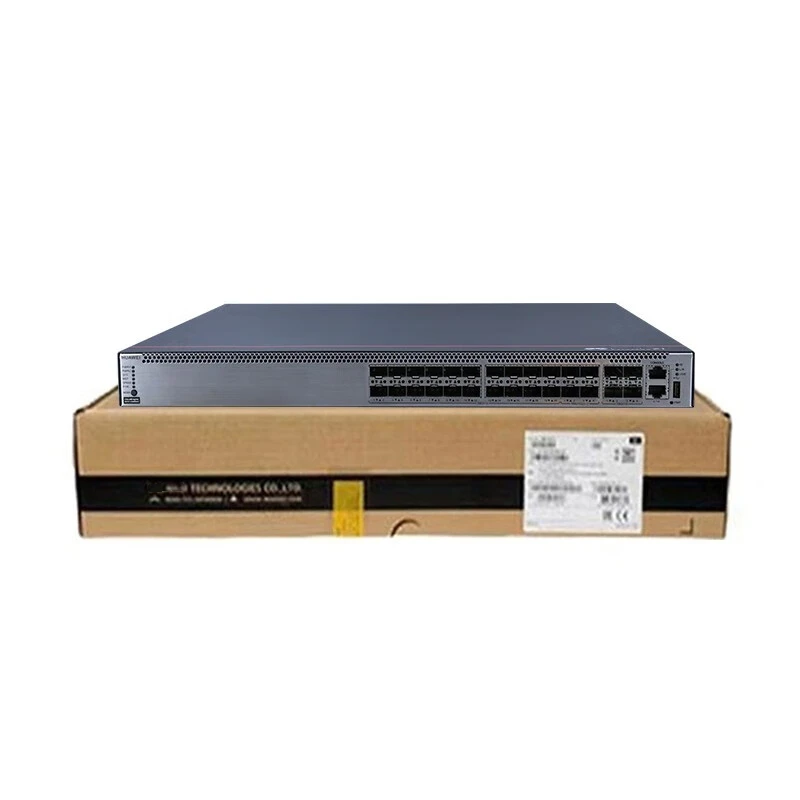

Outer packing description:
