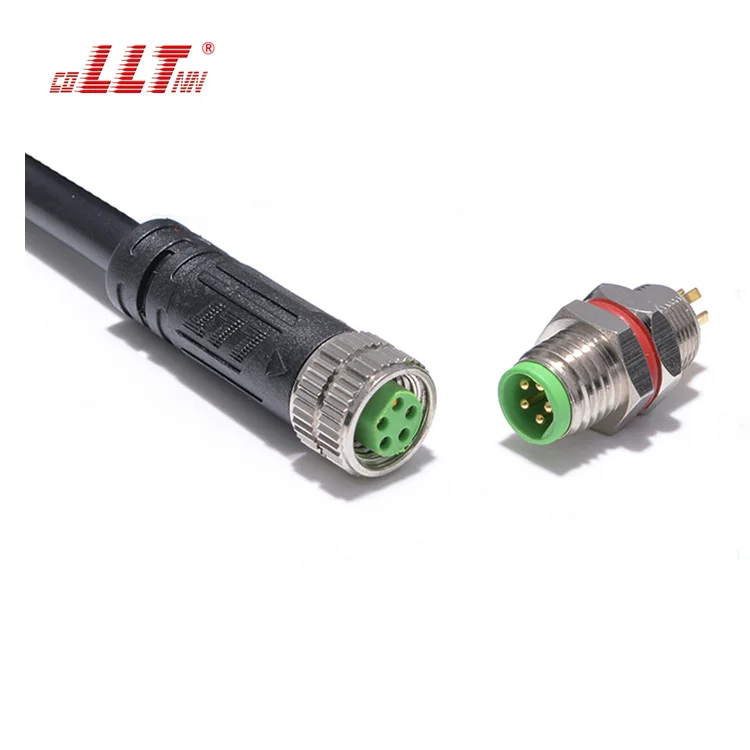

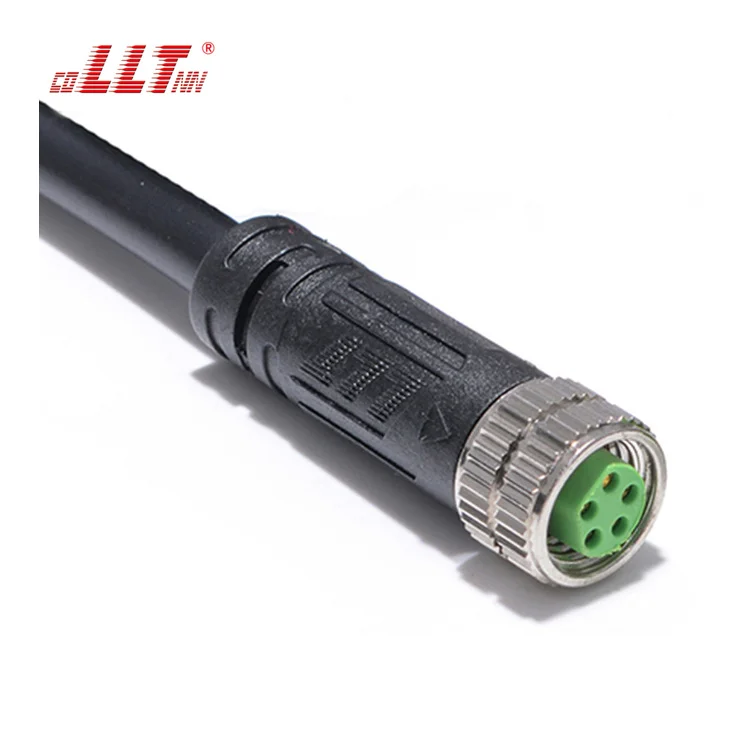

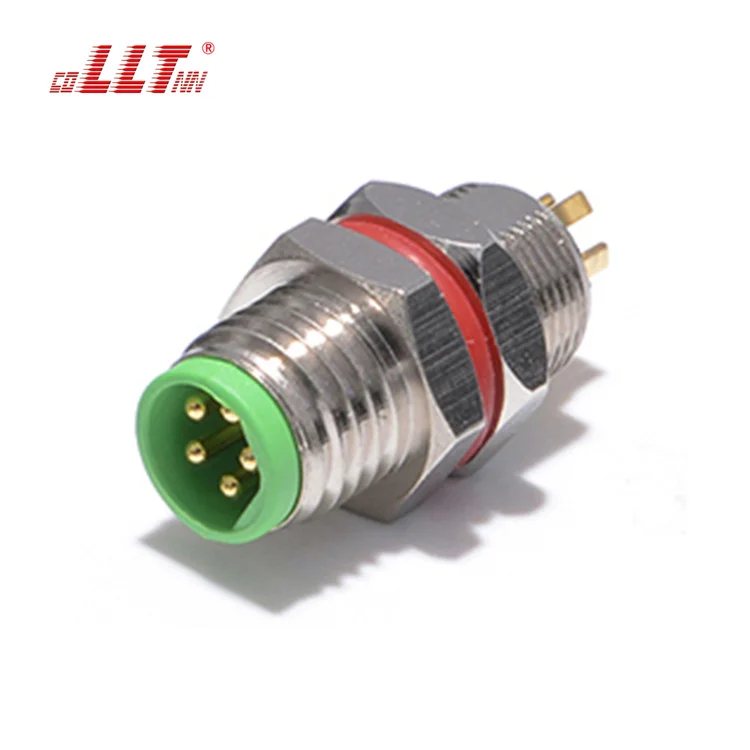

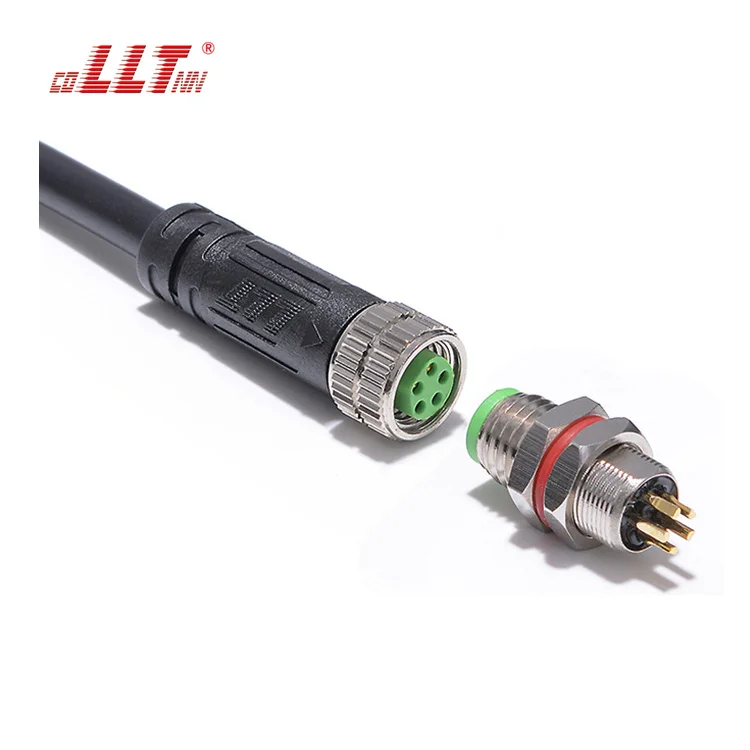

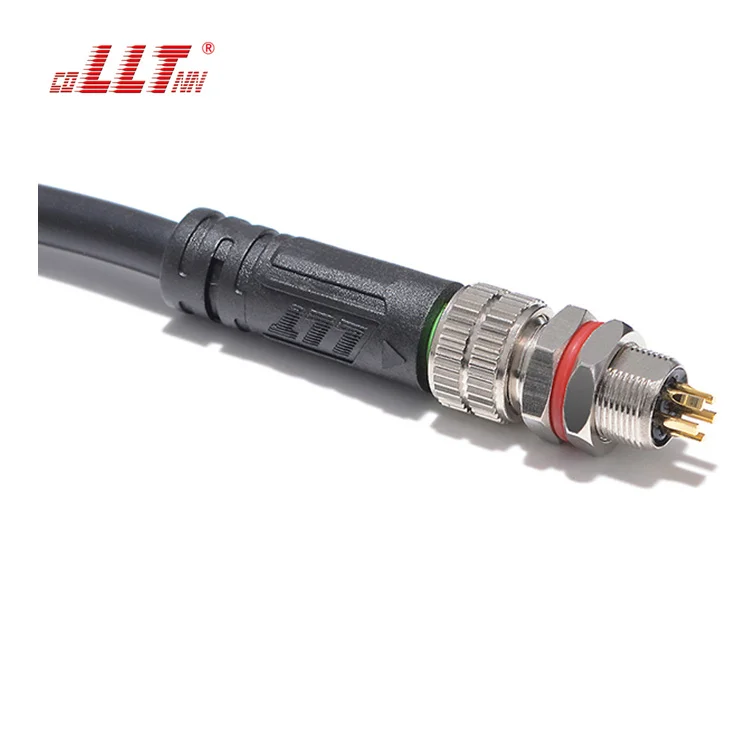

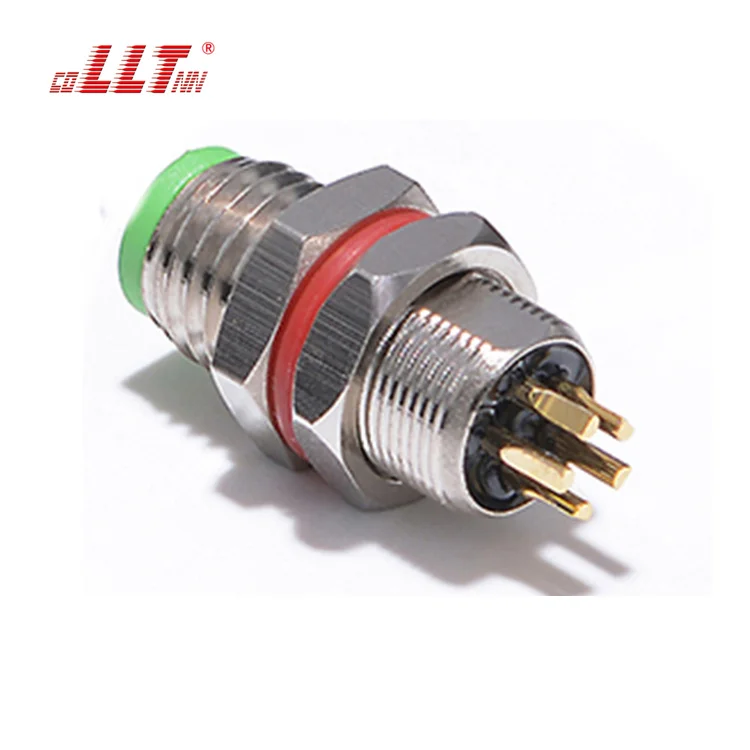

LLT M8 110V 5A outdoor IP67 2 3 4 5 pin panel mount waterproof connector male female

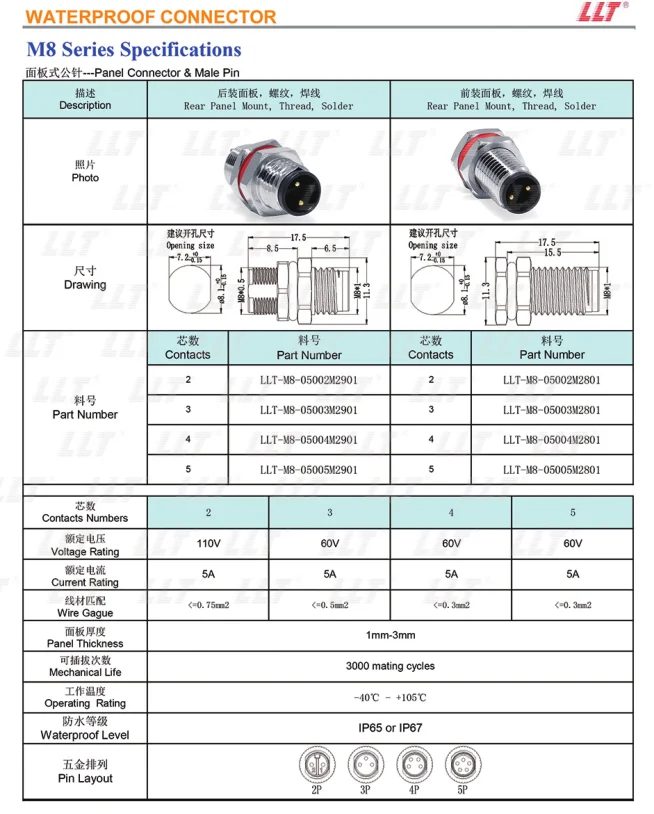

Product Description
| 1 | Model No. | LLT-M8 panel mount waterproof connector | |
| 2 | Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 5AMP |
| 6 | Voltage Rating | 110V | |
| 7 | Contact Resistance | <10mΩ | |
| 8 | Insulation Resistance | 1000MΩ at DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -45°C~+105°C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP67/IP68 waterproof | |
| 13 | Cable Max. Diameter | 6.1mm(<=0.75mm2) | |
| 14 | Pins Range | 2, 3, 4, 5 | |
| 15 | Certificate | CCC; CE; RoHS;SAA | |
Company Information
LLT TECHNOLOGY INDUSTRY Co., Ltd ----based in ShenZhen which is a global large-scale production enterprise, specializing in the production of high tech precision outdoor waterproof connector,aviation plug,wire and cable.
With stable,reliable quality and excellent service,We got good recognition and Comment from a lot of customers at home and abroad.
Through more than 20 years of unremitting efforts, LLT has a proven history of providing customer-driven, avant-garde, qualified safety products.
Advantages
IP67 68 rated waterproof
Fast delivery
Strong and professional techinical consult service
A whole set of certificate such as TUV,CE,UL,SAA and so on
Buyer Feedback
Certifications
FAQ
1. Can I use it under the water?
LLT connector reach IP68 rating, you can use it underwater.
2. Can I have a sample order?
Yes, sample order and trial order are welcome to check our quality.
3. What about the lead time?
3days for sample,7-15days for mass production.
4: What's your after-sales service?
We provide customized service for you, also can help you to solve your customers' problem.
5. Can I print my logo on the watertight power connectors?
Yes. OEM/ODM is available, we will make drawing and sample for your confirm first.
6. Which kind of wire connector can I use?
Kindly tell us your pin numbers, wire size or cable outer diameter so that we can recommend the suitable models to you.
More detail,please send inquiry to me,we will try our best to help you!
