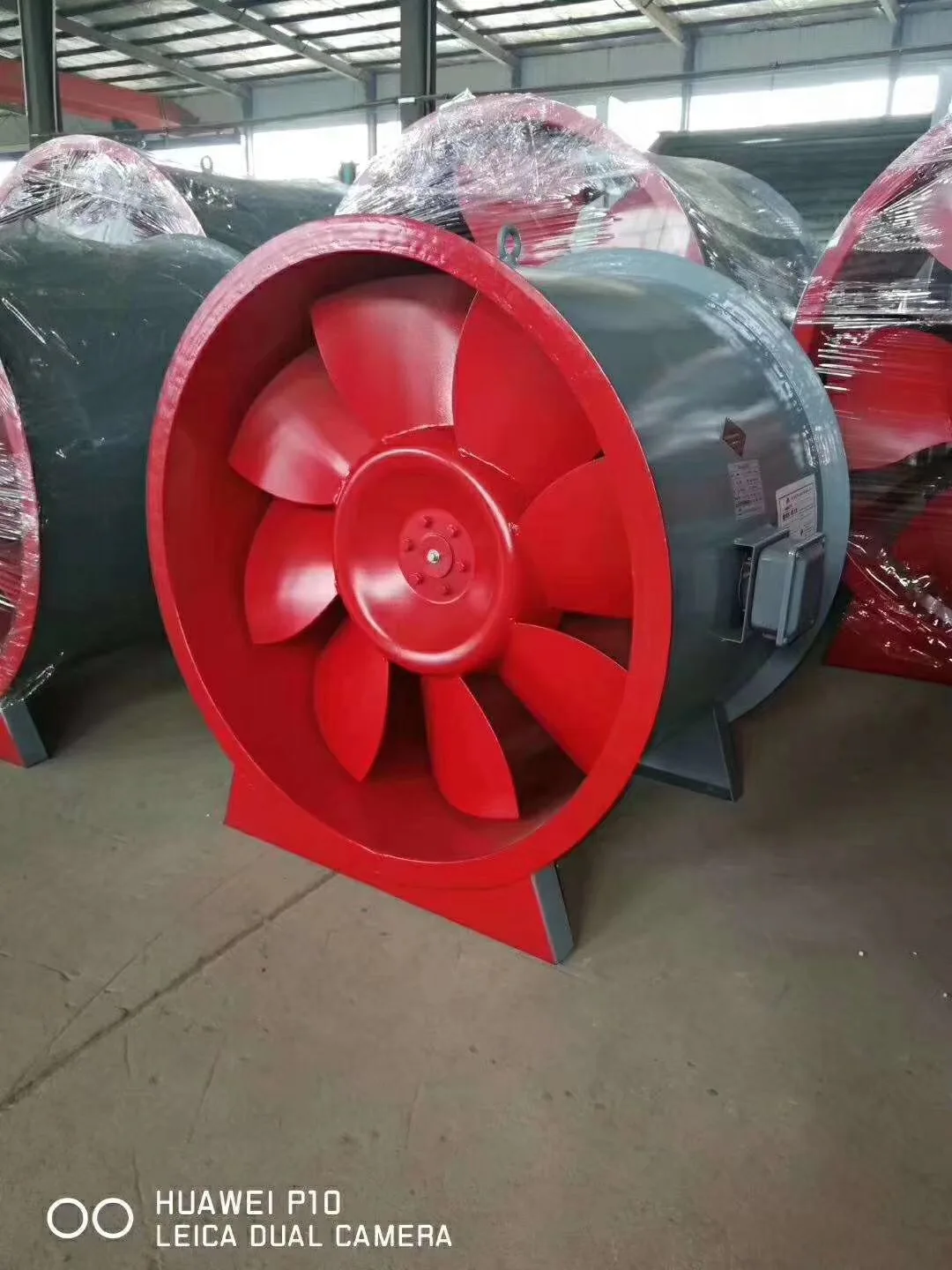

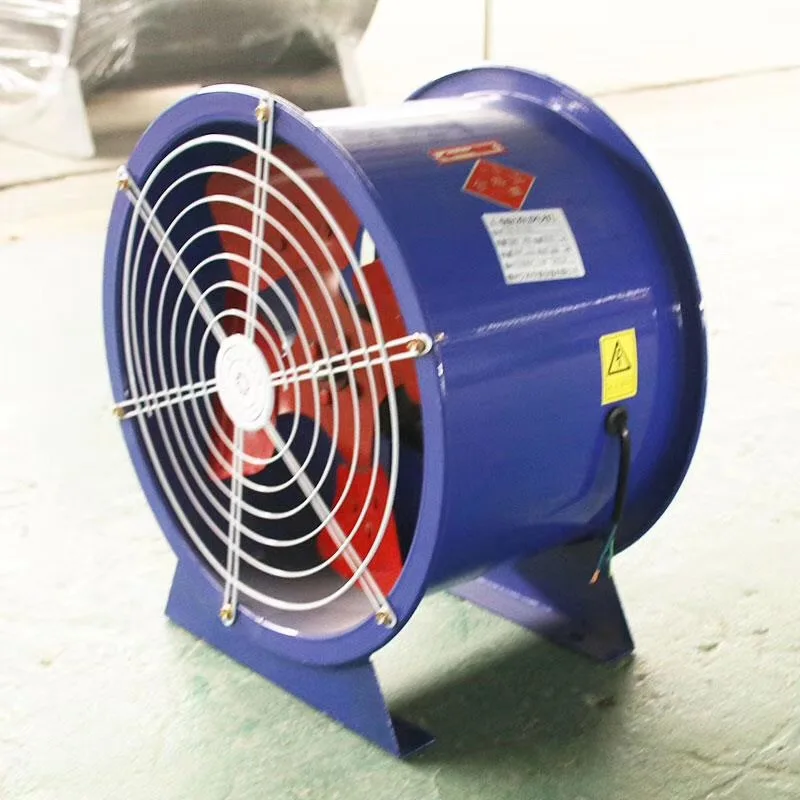

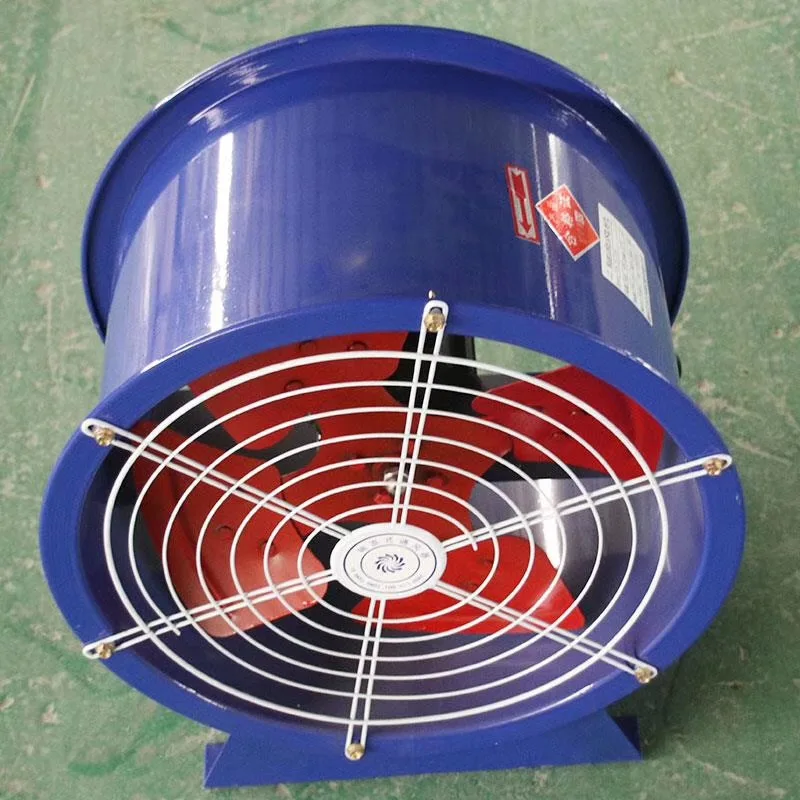

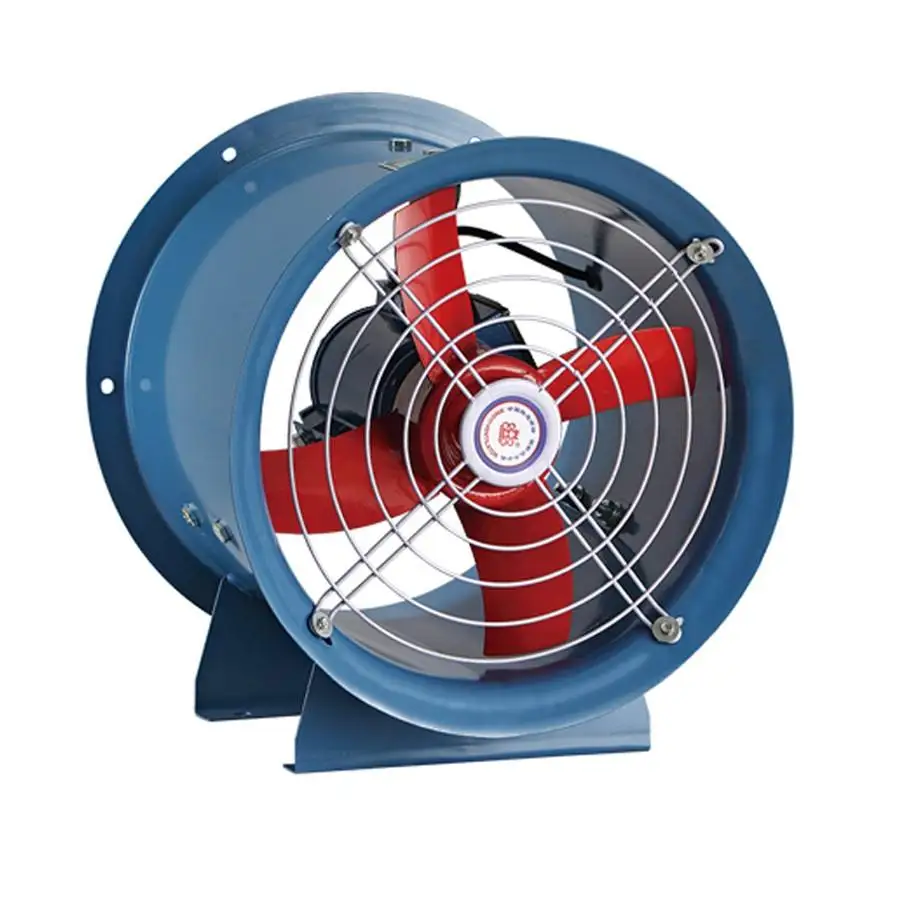

High Temperature Proof Explosion Proof Metal Axial Flow Fan 380V For Industrial Ventilation

Product Overview

Description

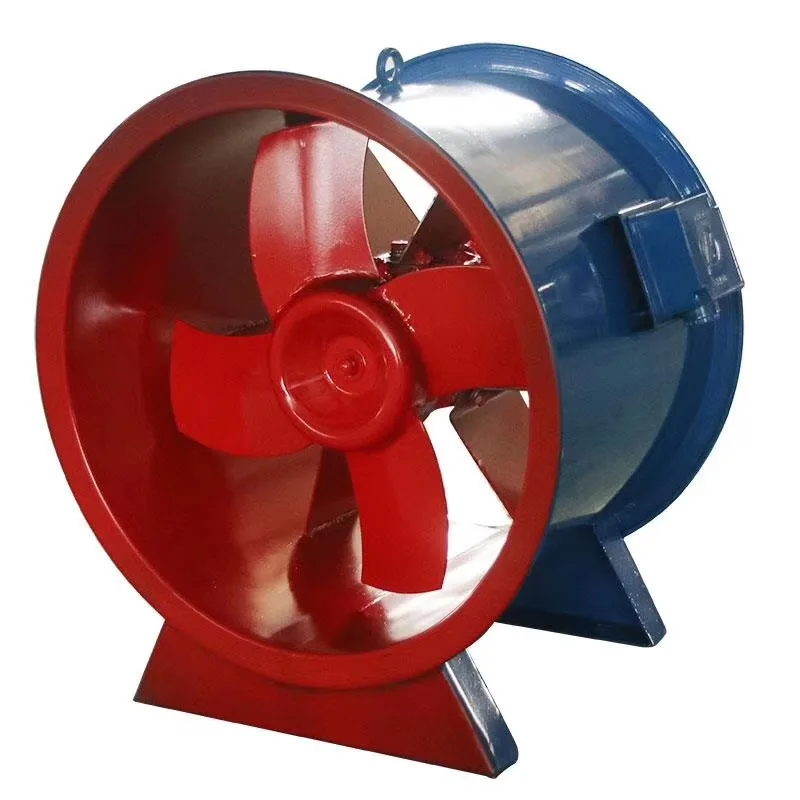

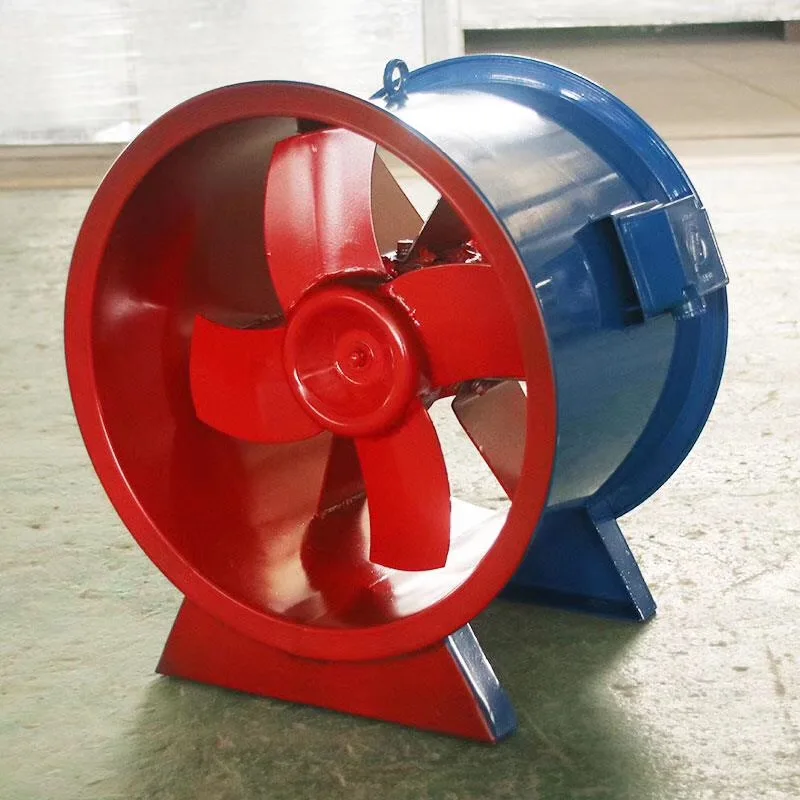

Explosion Proof Axial Fan















1. Application
The ZHT-35 type axial fan is not only suitable for the workshop, warehouse, hotel, shopping mall, restaurant, office’s ventilation, but also used for the refrigeration, air conditioning and refrigeration equipment ancillary.

 It is easy to install, good air-change effect, security, can send the air to anywhere via air duct.

2. Structure:

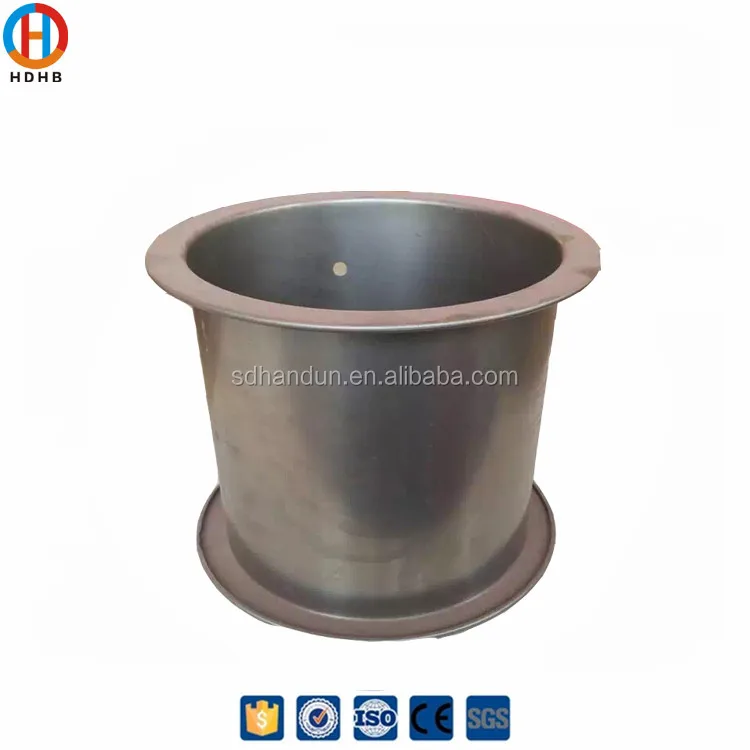

 The axial fan contains 1, nave; 2, blade; 3, axle; 4, shell; 5,wind collector; 6, fairing; ,7, rectifier; 8,diffuser; 9, and the wind inlet and impeller etc;

3.Type:

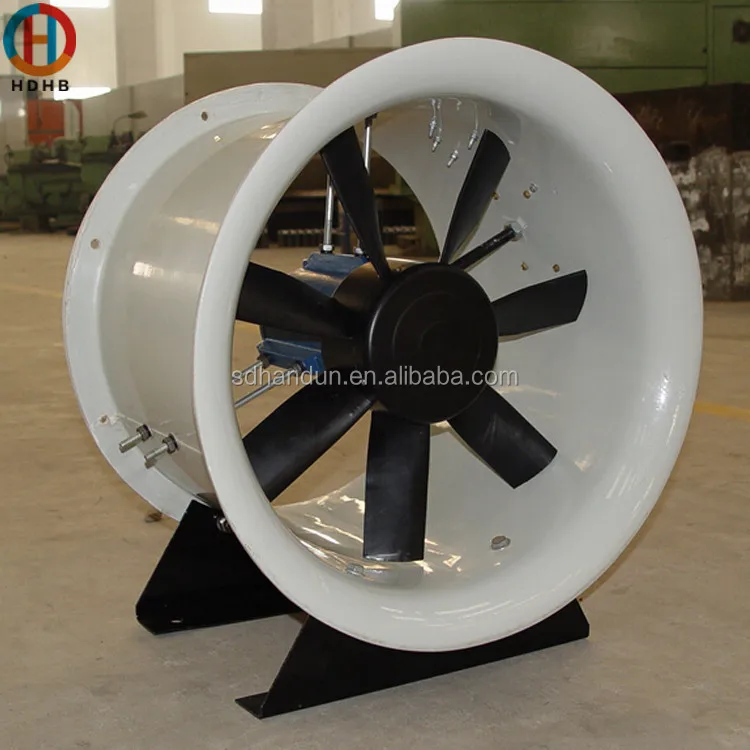

  The fans conisist of steel fan, FRP fan, plastic fan, PP fan, PVC fan, aluminum fan, stainless steel fan etc according to differnet material

  The fans are divided into anti-corrosion fan, anti-explosion and anti-corrosion fan. According to the usage.

  The fans are didivded into induct fan, wall type fan, fixed type fan, rainproof and dustproof fan, external motor type fan etc. according to the customers’ requirements.

4.Advantage:
  This kind of fan has the features: structure suppleness, stable and reliable, low noise, good look. The parts can be made separately, easy to assemble and disassemble.

5.Types of the impeller:

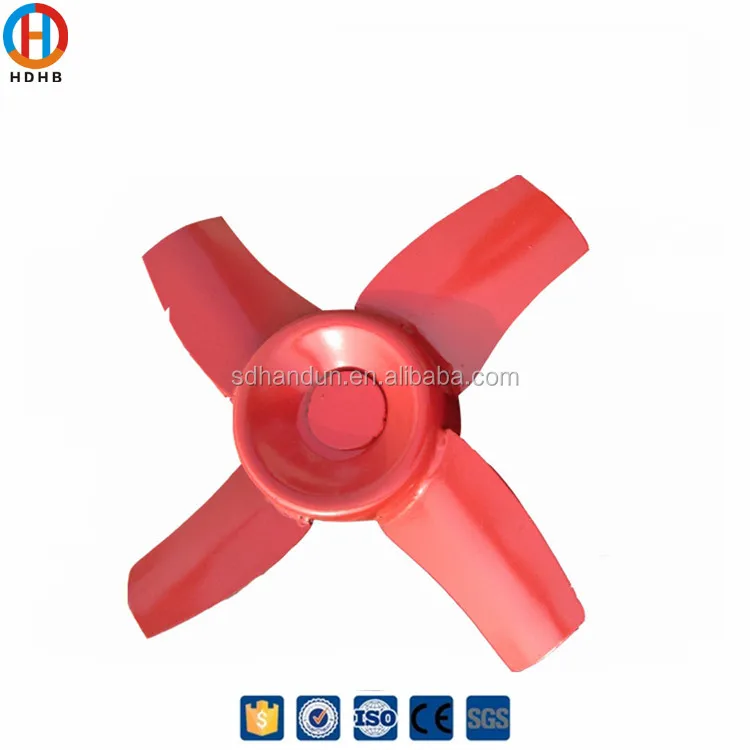

The impellers of the ZHT-35 axial fan are divided into three types: Type I, type II, type III according to the blade angle curve and blade shape
6.Feartures:

1, Power supply: 380V 50 HZ, 3 phase. (110V-480V optional)

2, Shell &impeller material: FRP,  mild Steel.

3, Type: Axial

4, Installation: In the wall, on the support frame, standby self, hang install.

5, Low noise, high efficiency, good price.

6, Anti-corrosion, anti-explosion

7.Technical Parameters :



No.	Rotation speed RPM	Air Volume M3/h	Full press Pa	Noise Db	Power kw
2.8	2900	2662	148	62	0.18
	1450	1331	37	54	0.025
3.15	2900	3790	188	67	0.370
	1450	1895	47	55	0.040
3.55	2900	5424	240	70	0.550
	1450	2712	60	56	0.090
4	2900	7758	304	74	1.1
	1450	3879	76	61	0.180
4.5	1450	5524	96	63	0.250
5	1450	7577	119	67	0.370
	960	5104	47	63	0.180
5.6	1450	10645	149	69	0.750
	960	7171	59	64	0.370
6.3	1450	15157	189	72	1.5
	960	10210	75	64	0.370
7.1	1450	21695	240	76	2.2
	960	14614	95	67	0.75
8.0	1450	31035	305	80	4.0
	960	20906	120	70	1.1
9.0	960	29767	152	74	2.2
10.0	960	40832	188	78	4.0
11.2	960	57366	236	81	5.5
