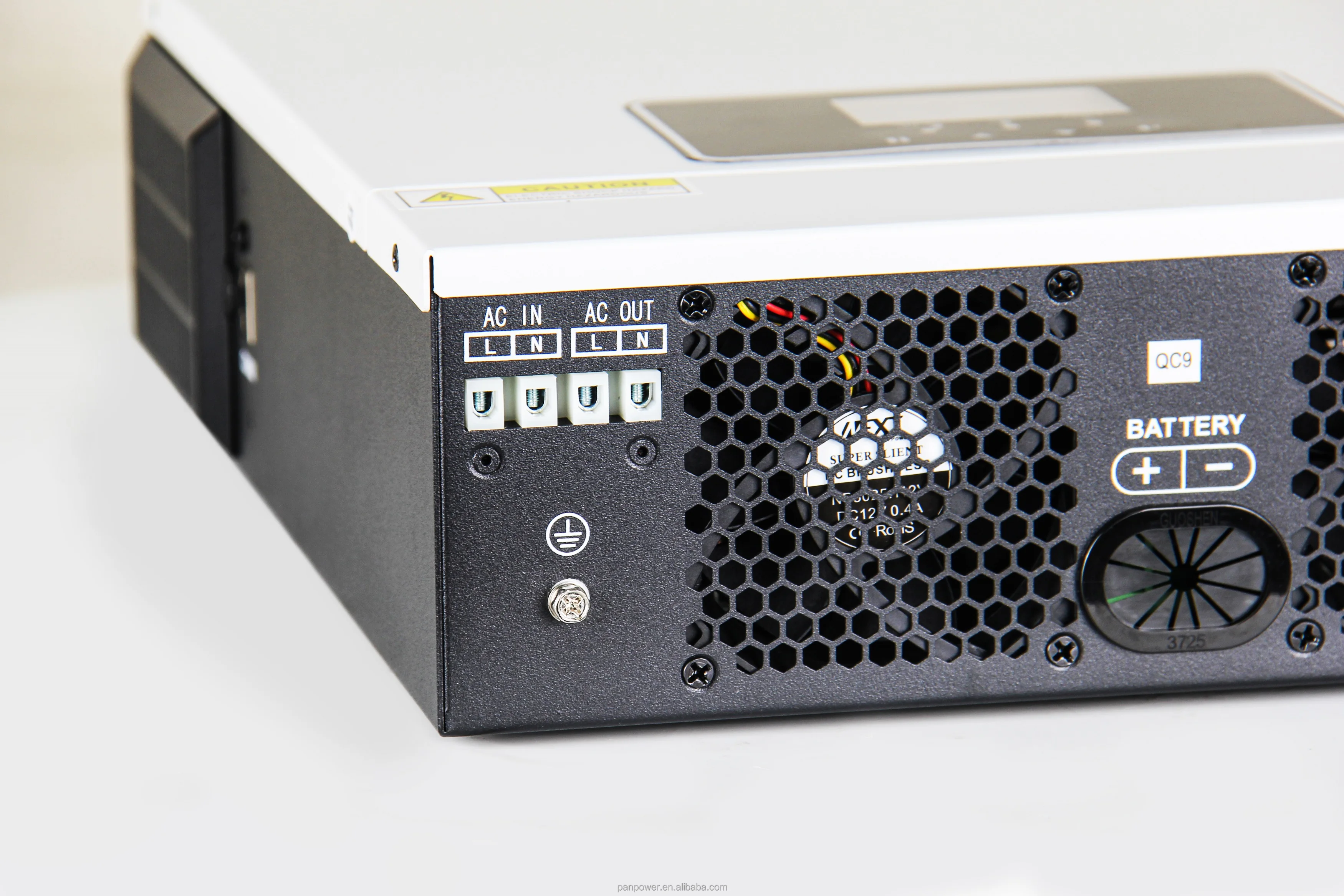

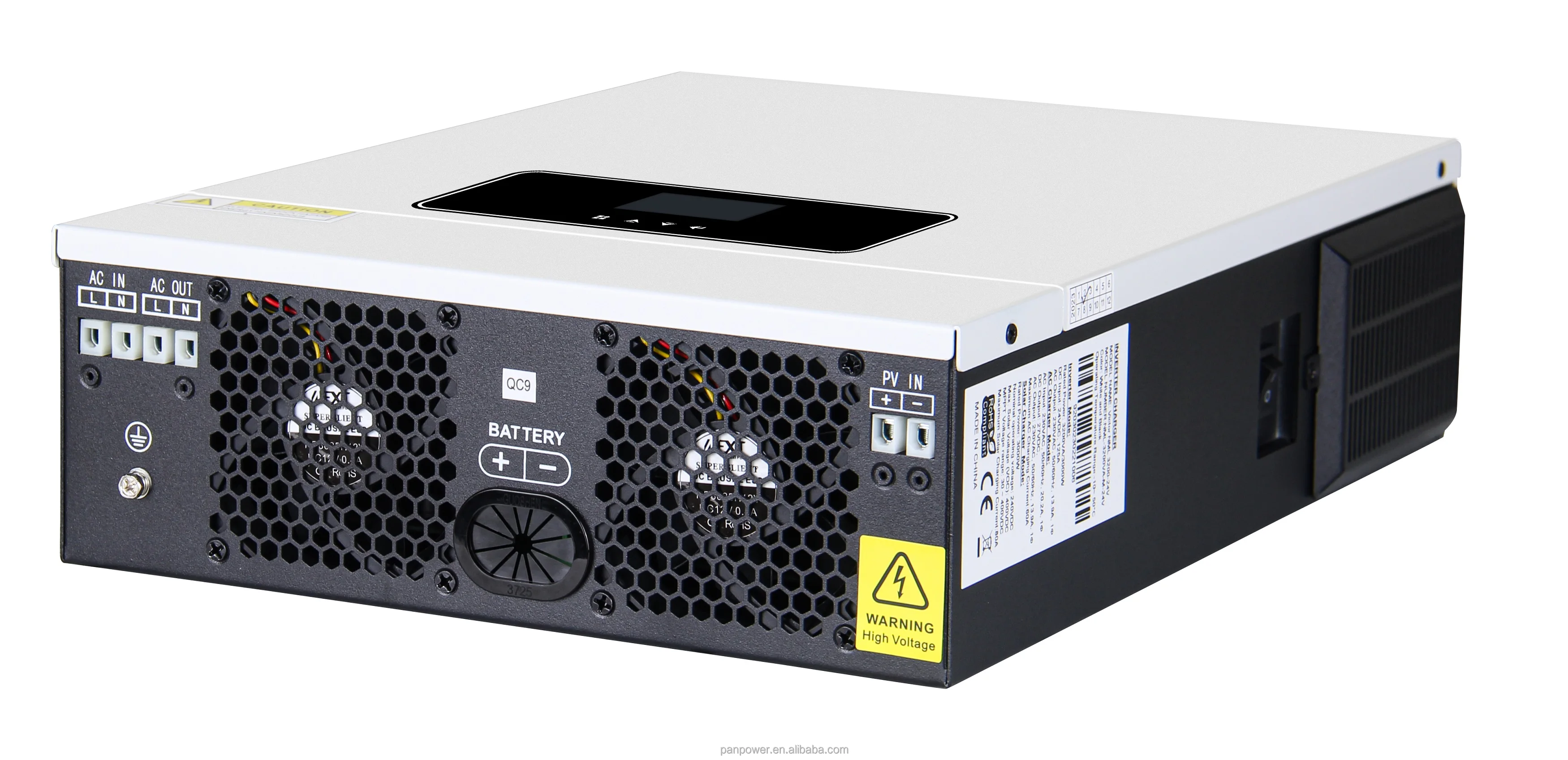

Off Grid Hybrid System 2KVA 3.2KVA High Frequency 1600W 3000W Solar 12V/24V 1.6KW 3KW Inverter
- Category: >>>
- Supplier: Guangdong Panpower Power Supply Co. Ltd.
Share on (1600901168013):
Product Overview
Description

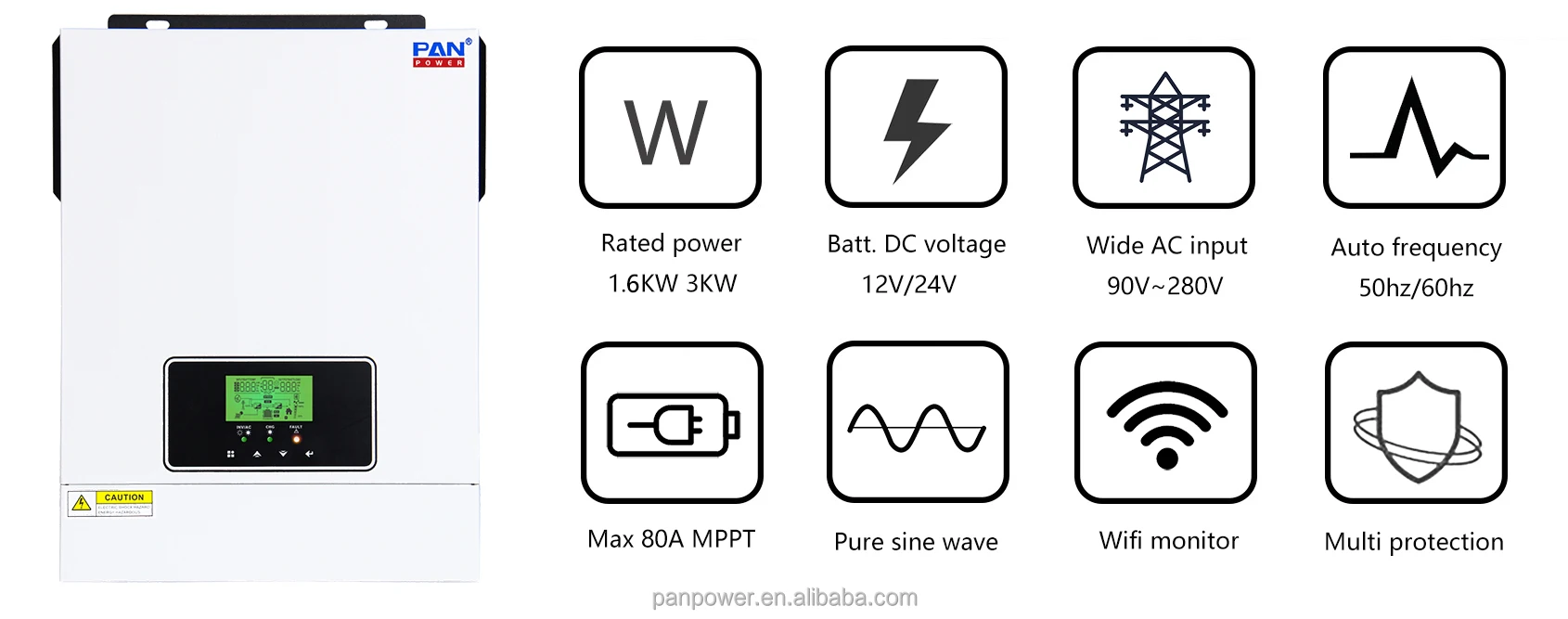

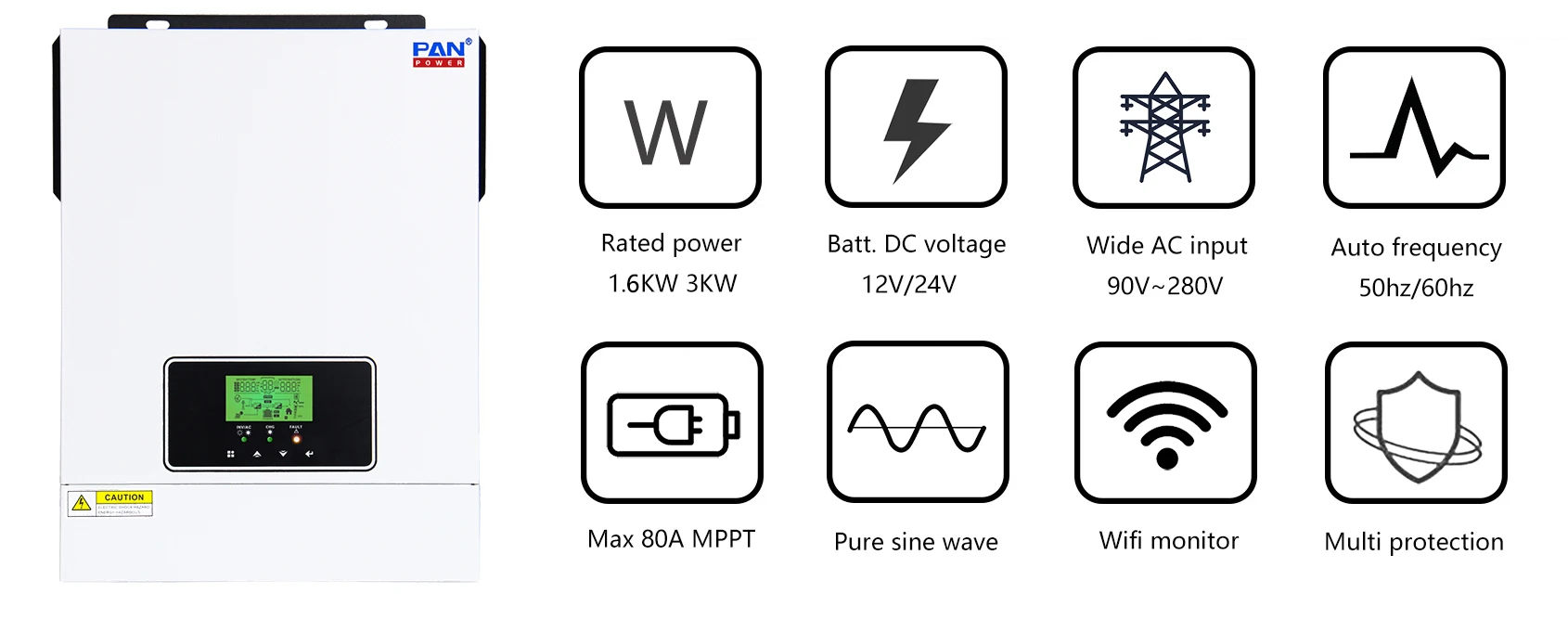

Main Features
* Pure sine wave inverter;
* Built-in 80A MPPT solar charge controller
* Selectable charging current based on applications
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering;
* Overload and short circuit protection
* Wide AC input range 90V~280V
* Smart battery charger design for optimized battery performance
* Selectable input voltage range for home appliances and personal computers
* Built-in 80A MPPT solar charge controller
* Selectable charging current based on applications
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering;
* Overload and short circuit protection
* Wide AC input range 90V~280V
* Smart battery charger design for optimized battery performance
* Selectable input voltage range for home appliances and personal computers

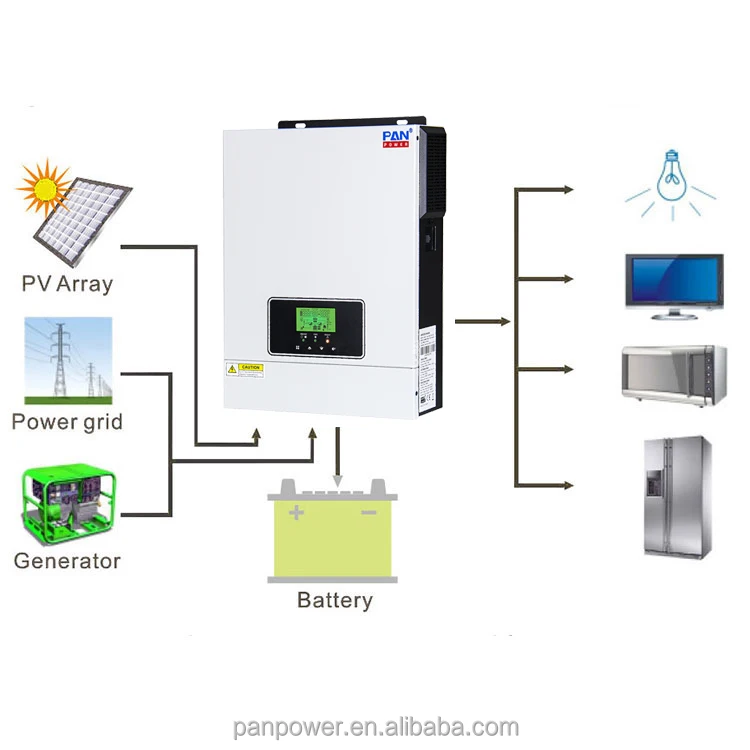

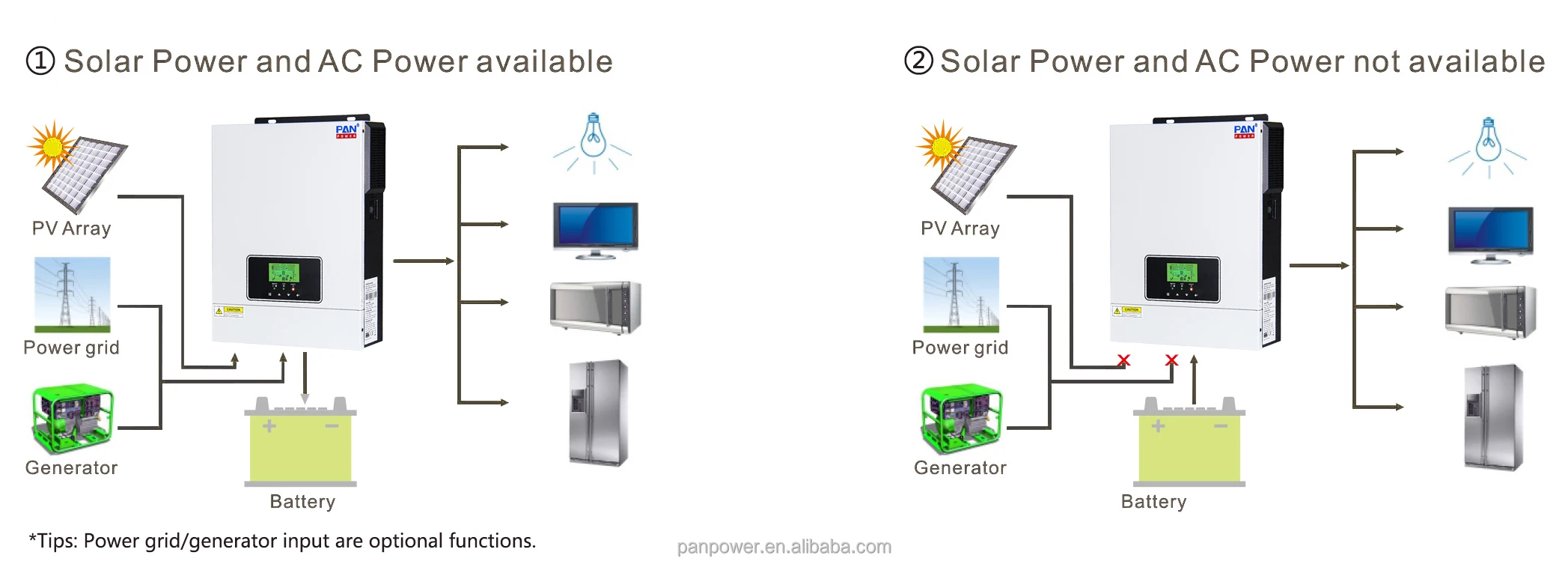

System Diagram
Technical Parameters
Model | NM-2000-12 | NM-3200-24 | ||
Capacity | 1600W | 3000W | ||
Parallel Capability | NO | NO | ||
INPUT | ||||
Nominal Voltage | 220/230VAC | |||
Acceptable Voltage Range | 178~280VAC (For Personal Computers), 90~280 VAC (For Home Appliances) | |||
Frequency | 50/60HZ (Auto sensing) | |||
OUTPUT | ||||
Nominal Voltage | 220/230VAC ± 5% | |||
Surge Power | 3000W | 6000W | ||
Frequency | 50Hz/60Hz | |||
Waveform | Pure Sine Wave | |||
Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) | |||
Peak Efficiency(pv to inv) | 97% | |||
Peak Efficiency (batt to pv) | 93% | |||
Overload Protection | 5s@>=150% load; 10s 110%~150% load | |||
Crest Factor | 3:1 | |||
Admissible Power Factor | 0.6~1(inductive or capacitive) | |||
BATTERY | ||||
Battery Voltage | 12VDC | 24VDC | ||
Floating Chargr Voltage | 13.5VDC | 27VDC | ||
Overcharge Protection | 16VDC | 33VDC | ||
Charging Method | CC/CV | |||
Solar Charge & AC Charge | ||||
Solar Charge Type | MPPT | |||
Max. PV Array Power | 2000W | 3000W | ||
Max. PV Array Open Circuit Voltage | 450 VDC | |||
PV Array MPPT Voltage Range | 30VDC~450 VDC | |||
Maximum Solar Charge Current | 60A | 80A | ||
Maximum AC Charge Current | 80A | 80A | ||

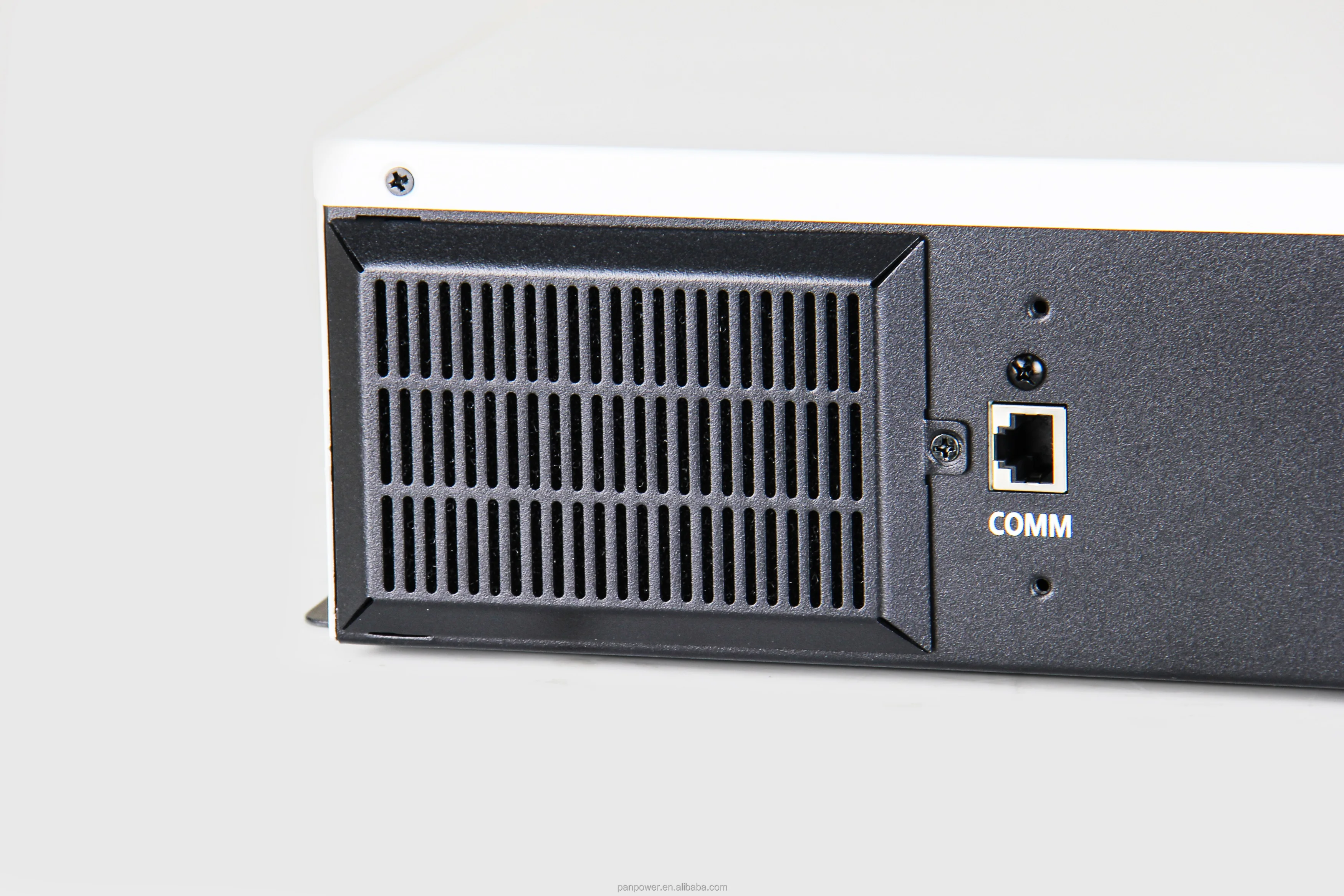

Communication Interface | USB/RS232/WIFI | |||
Environment | ||||
Operating Temperature | (-10℃~55℃) | |||
Storage Temperature | (-15℃~60℃) | |||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Nature | ||||
Size (L*W*H) mm | 348*270*95 | |||
Gross Weight (kg) | 4.8 | 5.5 | ||
Product Description

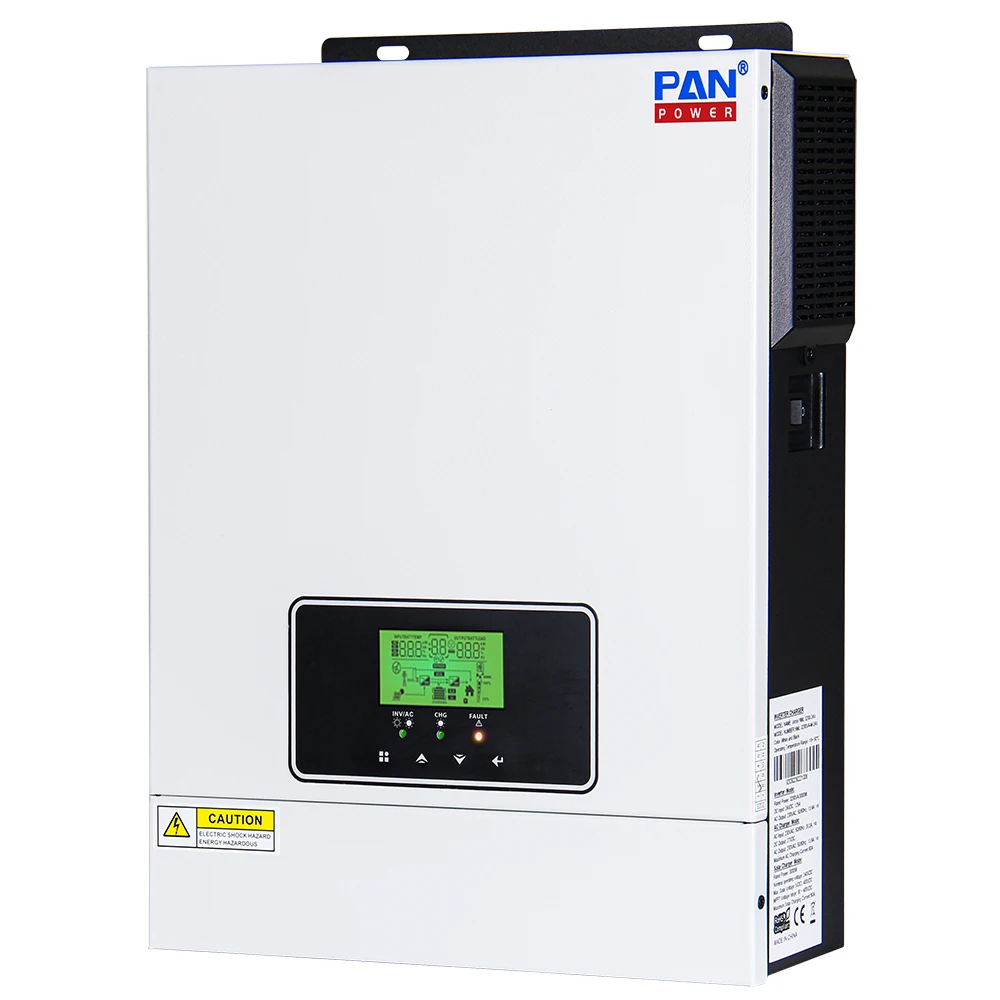

1.5kw 3kw solar system mppt solar charge controller with solar inverter. This is a multi functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Company Profile
Product packaging
FAQ
Q: What’s the payment term?
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
