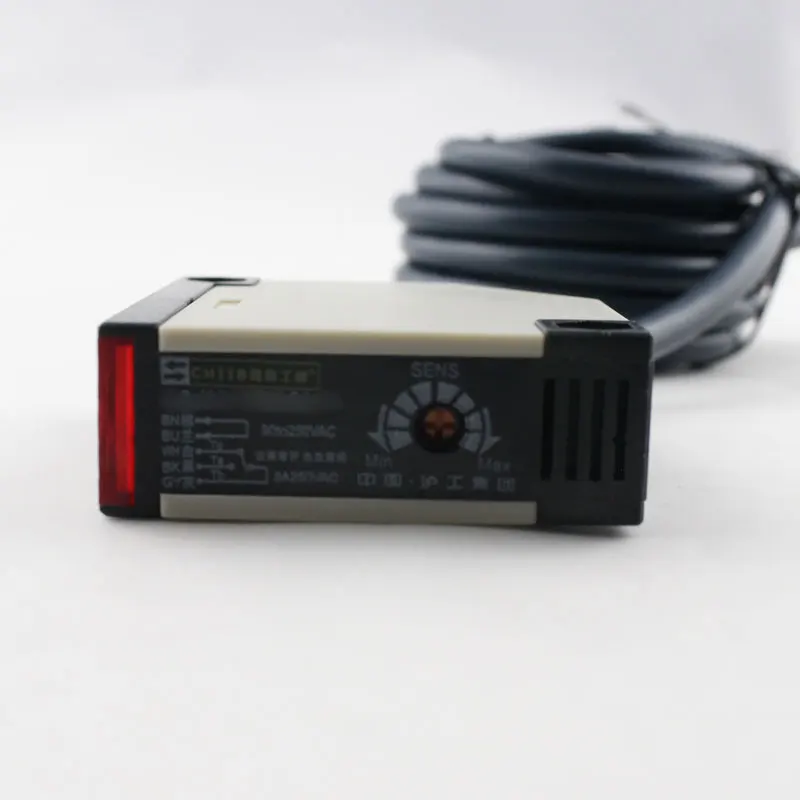

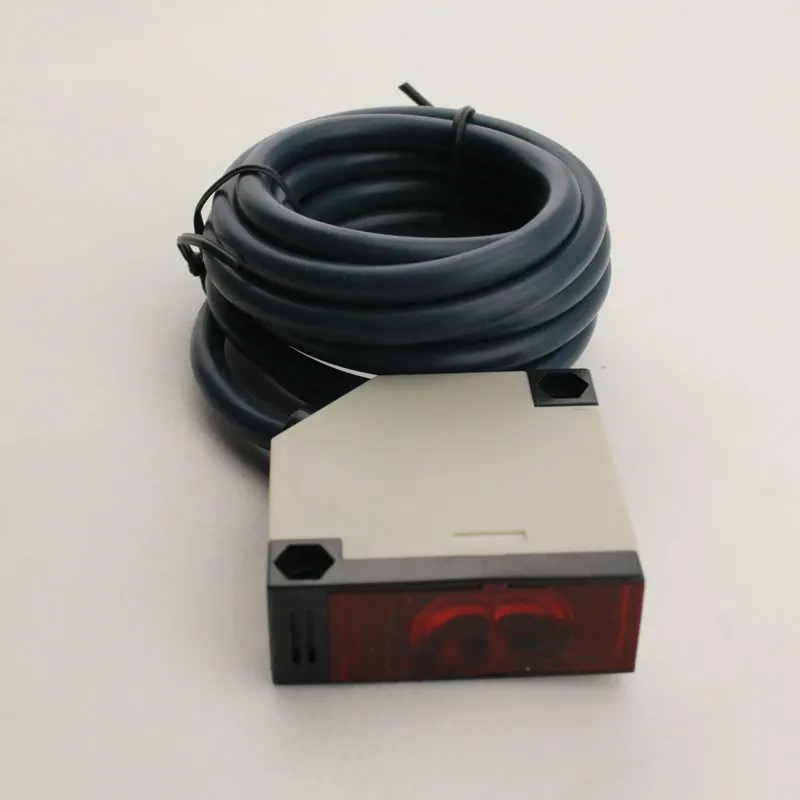

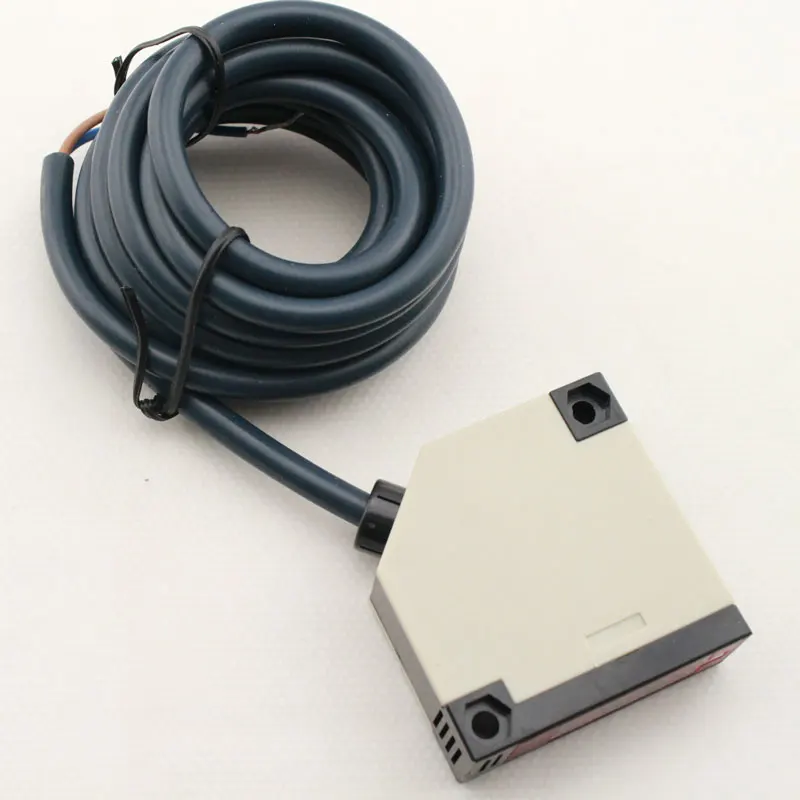

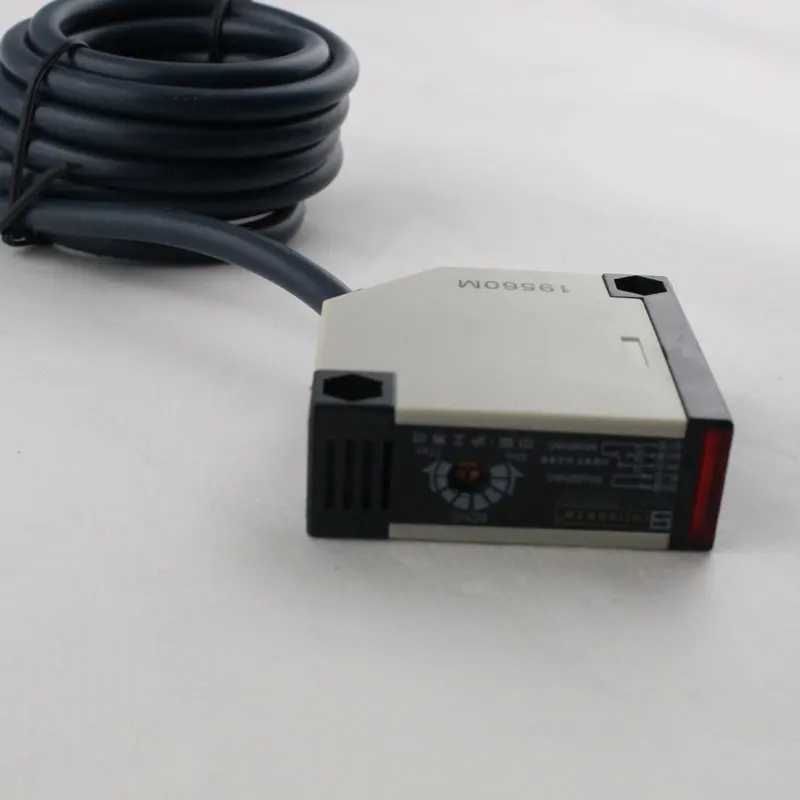

E3JK DS30M1/2 Diffuse reflection Photoelectric Switch Sensor 30cm 50cm 70cm 1m 5 Wires IP67 ac dc12v 24v 36v 220v 380v
- Category: >>>
- Supplier: Yueqing Lianrun Electric Co. Ltd.
Share on (1600901168032):
Product Overview
Description
Specifications | ||||||||||||
Mode l | NO | E3JK-DS30M1 | E3JK-DS50M1 | E3JK-DS70M1 | E3JK-DS100M1 | |||||||
NC | E3JK-DS30M2 | E3JK-DS50M2 | E3JK-DS70M2 | E3JK-DS100M2 | ||||||||
Respnose time | 1ms | 1ms | 1ms | 1ms | 1ms | |||||||
Connection | 2m PVC cable | |||||||||||
Sensingdistance | 30CM±10% | 50CM±10% | 70CM±10% | 100CM±10% | ||||||||
Detection range regulation | Sensitivity adjuster | Sensitivity adjuster | Sensitivity adjuster | Sensitivity adjuster | ||||||||
Detection type | Diffuse reflection | |||||||||||
Standardsensingtarget | >φ15mm opaque object | |||||||||||
Supplyvoltage | DC:6-36V ；AC：90-250V | |||||||||||
Leakagecurrent | ≤0.6mA | |||||||||||
Responsefrequency(F) | 500Hz（DC）25Hz（AC） | |||||||||||
Consunptioncurrent | DC3-wireNPNPNP：≤10mA;DC2-wire：≤3mA；AC2-wire：≤2mA | |||||||||||
Loadcurrent | ≤200mA(receiver) | |||||||||||
Residual voltage | ≤2.5V(receiver) | |||||||||||
Consumption current | ≤25mA | |||||||||||
Outputindicator | RED LED | |||||||||||
Circuit protection | Short-circuit, overload and reverse polarity | |||||||||||
Ambienttemperature | -20~+70℃ | |||||||||||
Vibration resistance | 10…50Hz (0.5mm) | |||||||||||
Protectiondegree | IP67(IECstandards) | |||||||||||
Meterial | PBT | |||||||||||
Sensingside | PBT | |||||||||||
Product Description
Product Usage
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders
Q : Can I get a sample?
A : Of course, but you need to pay the minimum sample fee
Q : When will you ship my order?
A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q : How can you guarantee the production quality?
A : The quality of our products has passedCQC&CEcertification. We have 20+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders
Q : Can I get a sample?
A : Of course, but you need to pay the minimum sample fee
Q : When will you ship my order?
A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q : How can you guarantee the production quality?
A : The quality of our products has passedCQC&CEcertification. We have 20+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.
