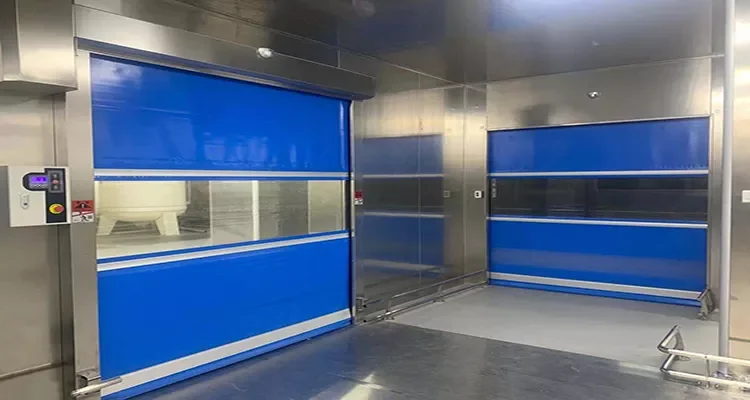

Warehouse Clean Room Automatic high speed Rapid Door PVC Fabric Rapid Roll up Door
- Category: >>>
- Supplier: Dongguan Amber Purification Engineering LimitedDongguan Limited
Share on (1600901170270):
Product Overview
Description
Product Description

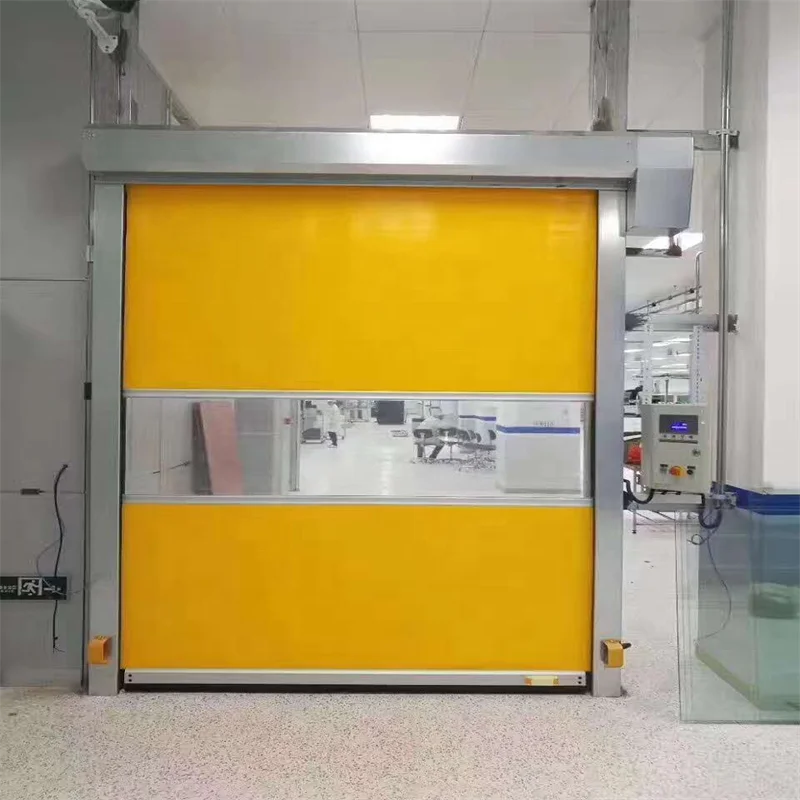

Industrial Warehouse Clean Room high speed motor pvc fast rolling door
High speed shutter door is a barrier is a barrier door with rapid rise and fall.And its main function is quickly isolation, thus
to ensure the air quality of the workshop without dust. It has the functions of heat preservation,cold
preservation,insect-proof,insect-proof,windproof,sound insulation,fire proof,anti odour,day lighting and so on.It widely used in food,chemistry,textile,electronics,supermarket,freezing,logistics,storage and other places.
to ensure the air quality of the workshop without dust. It has the functions of heat preservation,cold
preservation,insect-proof,insect-proof,windproof,sound insulation,fire proof,anti odour,day lighting and so on.It widely used in food,chemistry,textile,electronics,supermarket,freezing,logistics,storage and other places.
Advantage
1.Multiple functions:it has the functions of thermal insulation, insect proof, noise reduction, smell insulation, indoor barrier
effect,reducing energy consumption and keeping the cleanness of indoor working environment .
2.Strong sealing performance: its composite material guide can be closed enough with door frame under the wind pressure. The bottom of the door frame is equipped with aggravated septum ,it can be closely attached to uneven ground to ensure its leakproofness.
3.Various designs :its size can be adjusted according to the size of the installation site, and windows can be added to increase indoor lighting and transparency.
4.Safety:it adopts infrared protection and airbag protection device.
Operating system: button, remote control, manual when power off
effect,reducing energy consumption and keeping the cleanness of indoor working environment .
2.Strong sealing performance: its composite material guide can be closed enough with door frame under the wind pressure. The bottom of the door frame is equipped with aggravated septum ,it can be closely attached to uneven ground to ensure its leakproofness.
3.Various designs :its size can be adjusted according to the size of the installation site, and windows can be added to increase indoor lighting and transparency.
4.Safety:it adopts infrared protection and airbag protection device.
Operating system: button, remote control, manual when power off
Name | High Speed Rolling Up Door |
System | Power system, integration control system. |
Accessories | Imported motor, high quality aluminum alloy frame, door curtain, door post, buzzer,anti-collision post, wireless switch, pull switch, indoor signal lamp, infrared electronic eye, alarm lamp. |
Material | Mainly material: PVC , frame material: aluminum alloy. |
Cross bar(Guide Rail) | 1. Aluminum Lath 2. Steel (Standard) |
Transparent window | 1.Location: Accordingly to custom's design.Middle section/Bottom Section evern full transparent. The windows can be Rectangle or Ellipse. As well as the size. 2. Thickness: 0.8mm/1.5mm Curtain. |
Regualr size | 2000*2500mm, 1800*2500mm, 2200*2500mm |
Remark | Any customized size is available |

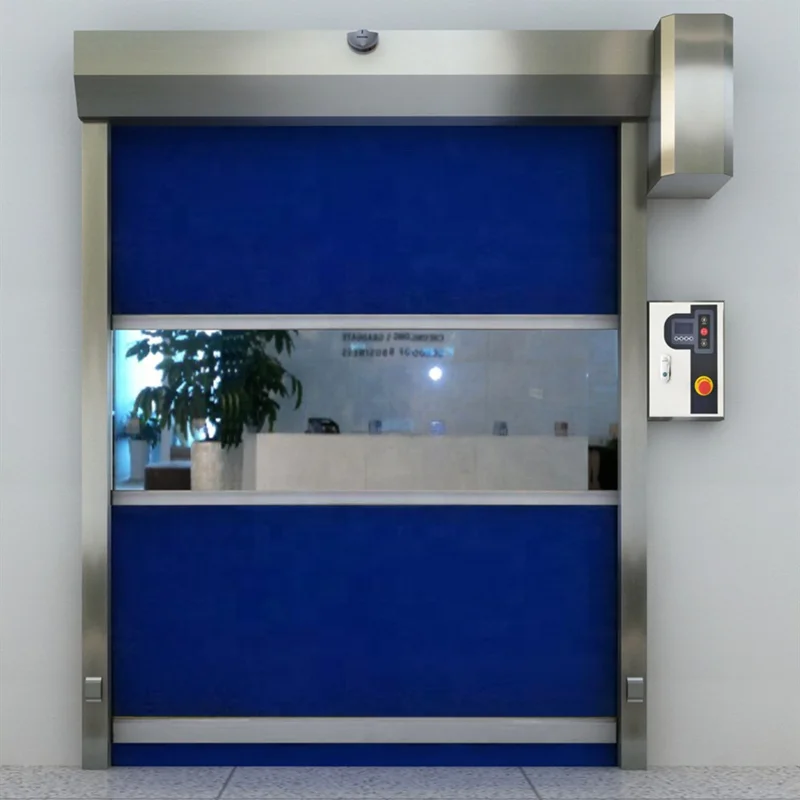

Fast rolling door
Maximum available wall to wall size: W5.5m*H6.5m
Side width: 400mm
Installed space: 450mm
Speed of up and down: 0.6-1.5m/s
Window transparency: 96%
Noise reduction: 60dB
Optional remote control
Voltage: 380V
Motor power: 0.75-3.0KW
Side width: 400mm
Installed space: 450mm
Speed of up and down: 0.6-1.5m/s
Window transparency: 96%
Noise reduction: 60dB
Optional remote control
Voltage: 380V
Motor power: 0.75-3.0KW
Accumulated fast rolling door
Strong wind resistance performance
Size: maximum size up to W20m*H20m
Frame material:rail and casing are high quality painting processed cold rolled sheet, galvanized sheet.
Cord fabric: high density industrial woven fabric
The PVC transparent window can be square or oval, which increases the safety and management convenience.
Opening and closing speed: adjustable
Size: maximum size up to W20m*H20m
Frame material:rail and casing are high quality painting processed cold rolled sheet, galvanized sheet.
Cord fabric: high density industrial woven fabric
The PVC transparent window can be square or oval, which increases the safety and management convenience.
Opening and closing speed: adjustable

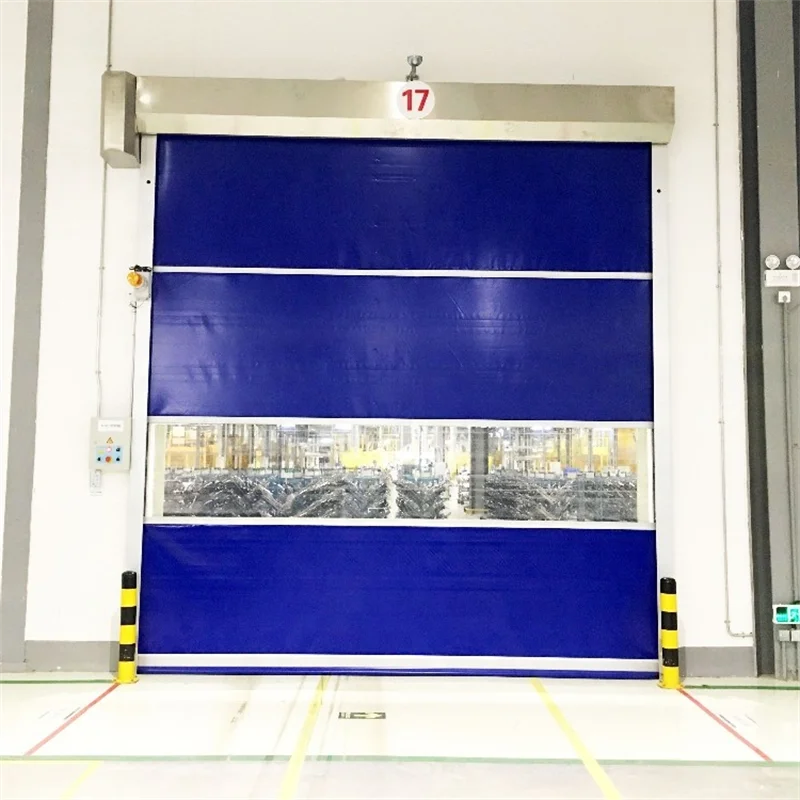

High speed rolling door (reinforced)
Inlay balance system
Speed: up to 1.0-2.0m/s (variable frequency of speed).
Curtain material: industrial fiber woven fabric,2.0mm thickness,optional choice with PVC transparent windows.
Control: high-tech microcomputer CPU frequency control system.
Balance system: spring balance system
Wind resistant capability: 9m/s-50Pa (calculated by wall to wall size 3m*3m)
Safety system: automatic safety side blank, safety grating on both sides (height 2m)
Material: galvanized sheet, cold rolled sheet, aluminum alloy slider and door casing.
Maximum size: W8.0m*H6.0m
Speed: up to 1.0-2.0m/s (variable frequency of speed).
Curtain material: industrial fiber woven fabric,2.0mm thickness,optional choice with PVC transparent windows.
Control: high-tech microcomputer CPU frequency control system.
Balance system: spring balance system
Wind resistant capability: 9m/s-50Pa (calculated by wall to wall size 3m*3m)
Safety system: automatic safety side blank, safety grating on both sides (height 2m)
Material: galvanized sheet, cold rolled sheet, aluminum alloy slider and door casing.
Maximum size: W8.0m*H6.0m

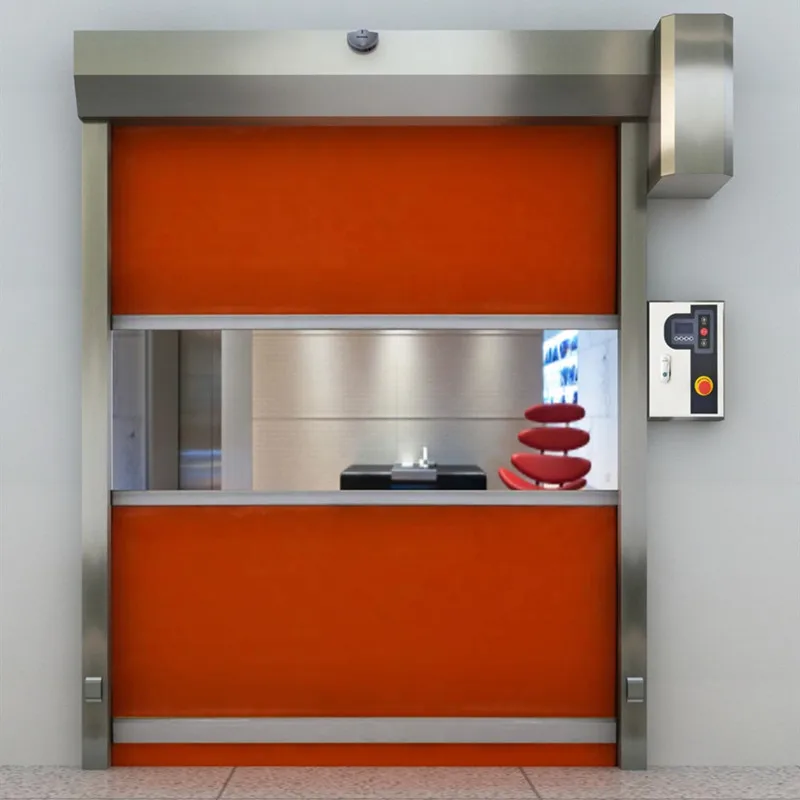

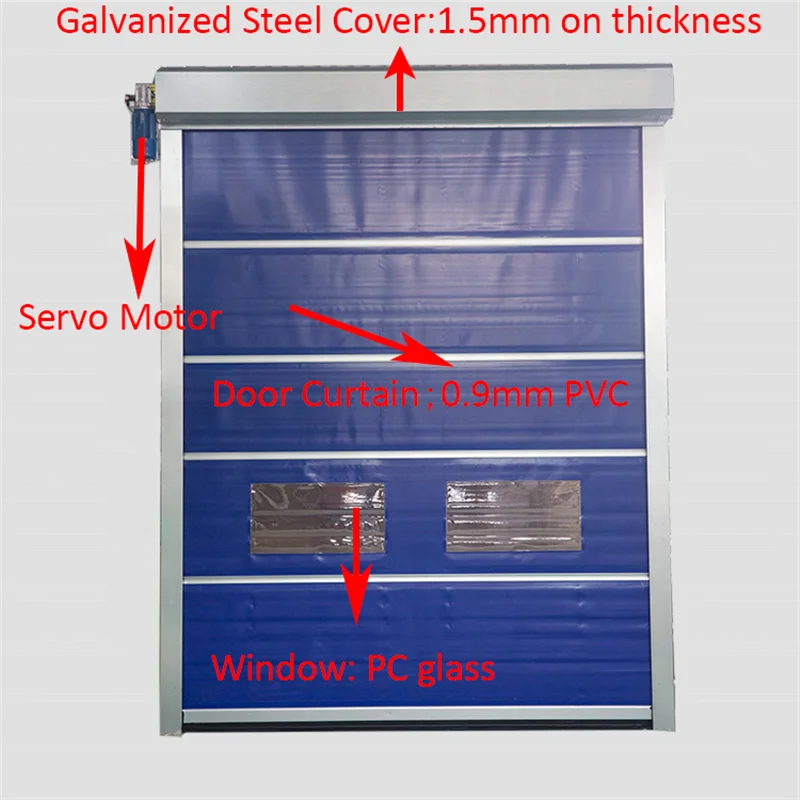

Details Images

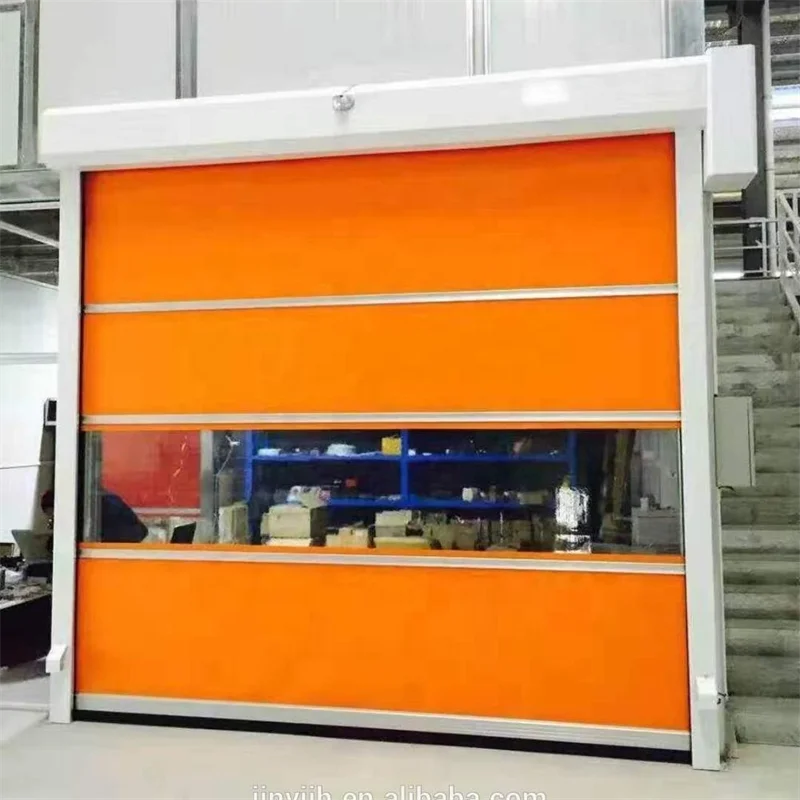

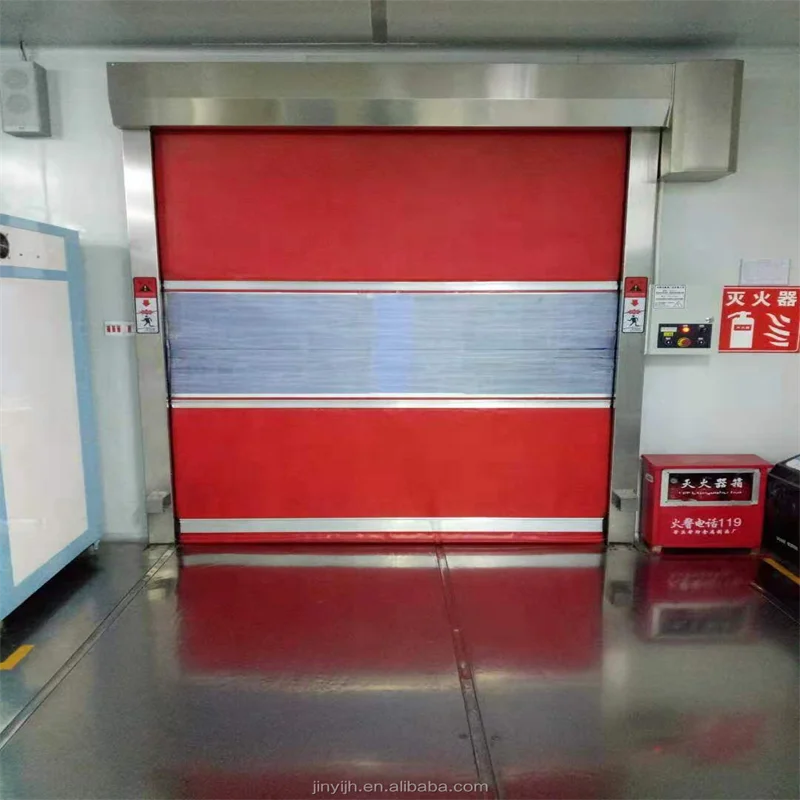

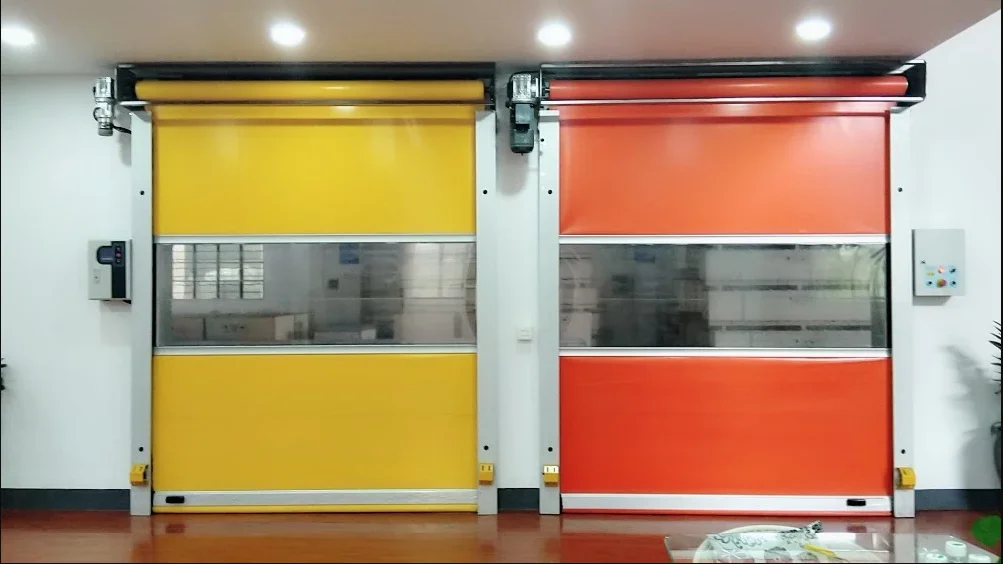

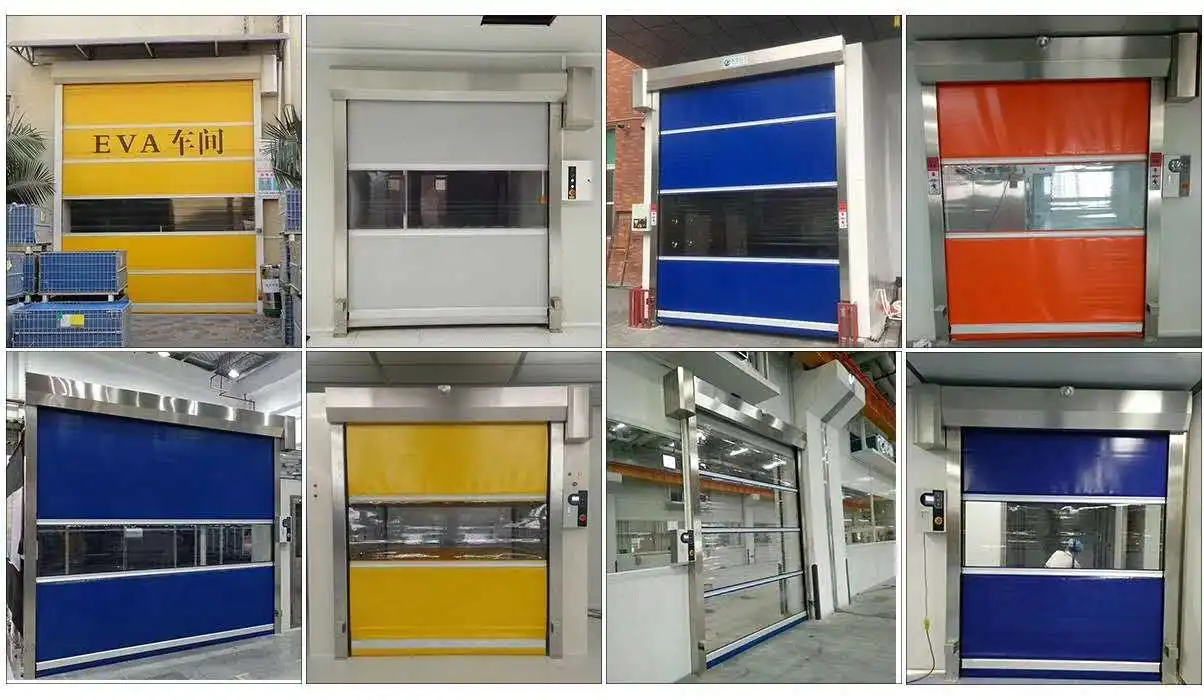

Project Images
Company Profile
Our production line:
Certifications
Packing & Delivery
standard export package/dust free room clean room
