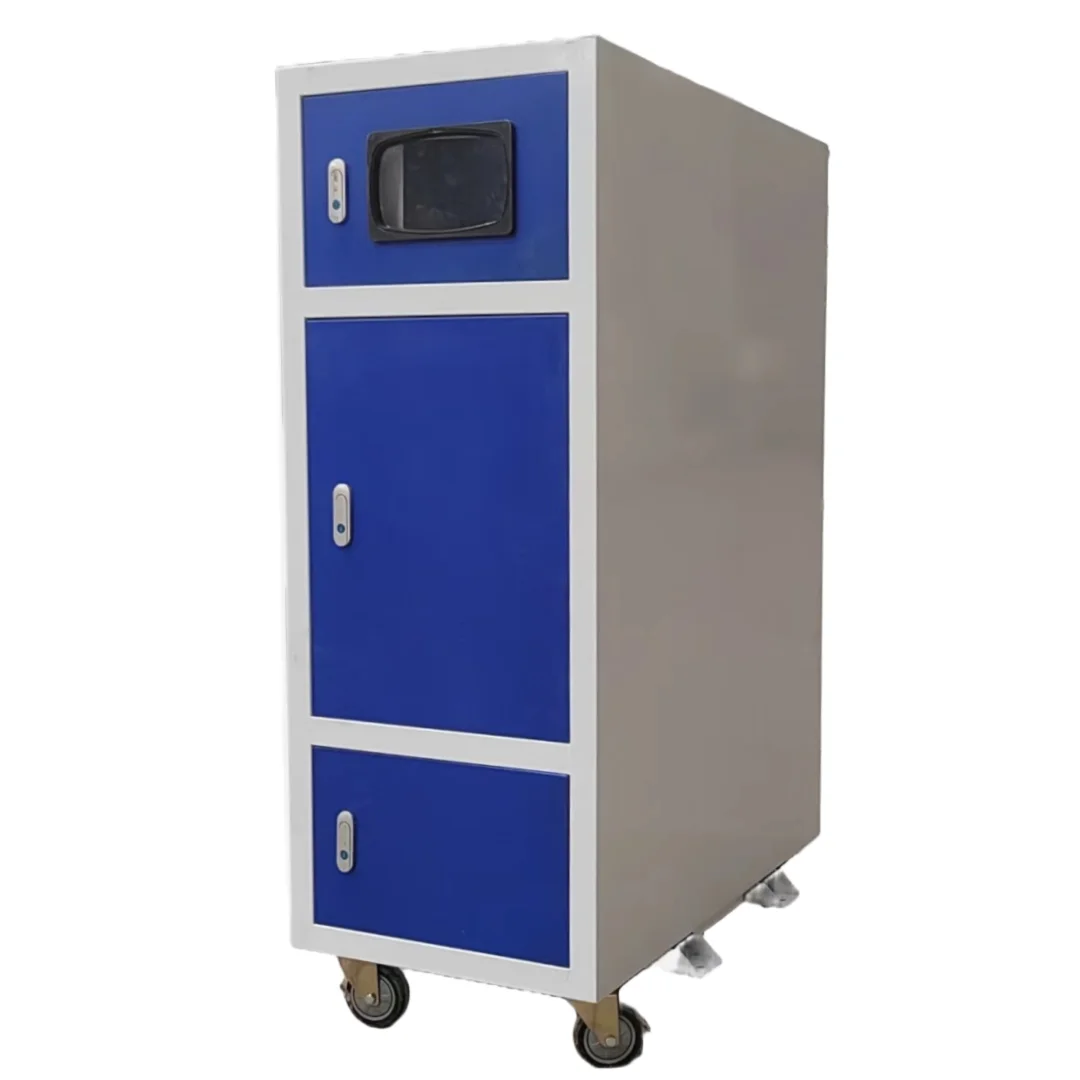

Hot Seller 50Kw Replacing Ammonia Decomposition Methanol Based Hydrogen Synthesis Unit For Waste Management
- Category: >>>
- Supplier: Wobo Industrial Group Corp.
Share on (1600901200758):
Product Overview
Description
Operating A Safe And Reliable Methanol Cracking Hydrogen Production Unit
Hot Seller 50Kw Replacing Ammonia Decomposition Methanol-Based Hydrogen Synthesis Unit For Waste Management
Product Description
WOBO's methanol cracking hydrogen production unit efficiently decomposes methanol at low temperatures. The decomposition
atmosphere of the unit provides both a protective atmosphere for metal heat treatment and a reducing atmosphere for metal
reduction. It can be used as a standalone protective atmosphere, carburizing atmosphere, or in combination with nitrogen as a
carrier gas. This unit is suitable for bright heat treatment in metallurgy, machinery, chains, standard parts, fasteners, and
small hardware industries. It is also used in the energy-saving and environmentally friendly transformation of boilers and kilns.
atmosphere of the unit provides both a protective atmosphere for metal heat treatment and a reducing atmosphere for metal
reduction. It can be used as a standalone protective atmosphere, carburizing atmosphere, or in combination with nitrogen as a
carrier gas. This unit is suitable for bright heat treatment in metallurgy, machinery, chains, standard parts, fasteners, and
small hardware industries. It is also used in the energy-saving and environmentally friendly transformation of boilers and kilns.
Our company's methanol cracking hydrogen production unit offers several advantages, including cost savings in investment, low operating temperatures, no pollution, and low production costs. It has widely replaced traditional ammonia decomposition furnaces for hydrogen production and high-temperature direct methanol decomposition processes. It is also utilized in the energy-saving and environmentally friendly transformation of dry boilers, kilns, and hot blast stoves.
Product Parameters
Model | WJQ-10 | WJQ-20 | WJQ-30 | |||
Power | 33KW | 38KW | 50KW | |||
Raw water | Distilled water or deionized water | Distilled water or deionized water | Distilled water or deionized water | |||
Methanol consumption | 6kg/h | 12kg/h | 18kg/h | |||
Hydrogen production | 0-10Nm3/h | 0-20Nm3/h | 0-30Nm3/h | |||
Operating pressure | 0.4~0.6Mpa | 0.4~0.6Mpa | 0.4~0.6Mpa | |||
Hydrogen purity | ≥99.99% | ≥99.99% | ≥99.99% | |||
Control method | PLC automatic control | PLC automatic control | PLC automatic control | |||
Dimension | 2300*1400*2300mm | 2300*1400*2300mm | 2600*1800*2400mm | |||
Weight | 3300Kg | 3500Kg | 4500Kg | |||
For more information, please contact us. | ||||||
Technical Principle
The Basic Principle Of Methanol Cracking Hydrogen Production Machine

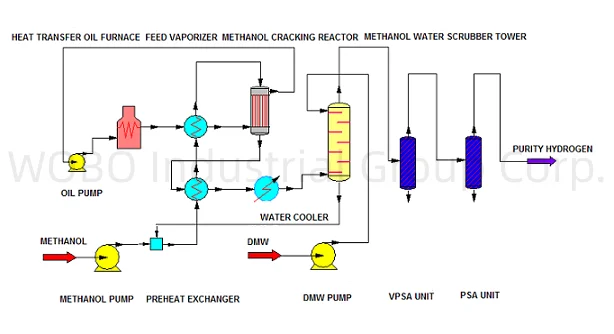

Methanol hydrogen production involves mixing methanol and water in a specific ratio and subjecting the mixture to superheated steam under controlled temperature and pressure conditions, with the presence of a catalyst. This process leads to simultaneous catalytic cracking and carbon monoxide shift reactions, resulting in the formation of a mixed gas containing hydrogen and carbon dioxide. The produced gas is then passed through a pressure swing adsorption unit for separation and purification, yielding high-purity hydrogen as the final product.
The main reactions involved in methanol hydrogen production are as follows: Methanol (CH3OH) undergoes catalytic cracking, converting it into carbon monoxide (CO) and hydrogen gas (H2) while releasing energy. Additionally, carbon monoxide reacts with water (H2O) through the carbon monoxide shift reaction, resulting in the formation of carbon dioxide (CO2) and more hydrogen gas.
The overall reaction combines these processes, transforming methanol and water into carbon dioxide and three molecules of hydrogen gas, with the release of energy. Through the separation and purification processes, the final product obtained is highly pure hydrogen gas.
Product Advantages
* Mature technology, safe and reliable operation, and cost-effectiveness.
* Efficient catalyst
* On-site hydrogen production
* Long lifespan
* Maintenance-free
* Multiple units in parallel
* No environmental pollution.
* Equipped with safety devices for over-temperature, over-pressure, and other safety concerns.
* Efficient catalyst
* On-site hydrogen production
* Long lifespan
* Maintenance-free
* Multiple units in parallel
* No environmental pollution.
* Equipped with safety devices for over-temperature, over-pressure, and other safety concerns.
Product Application
Industrial Hydrogen Production
Hydrogen is a crucial element in several industrial processes, such as ammonia production, petroleum refining, and metal processing. Methanol hydrogenation units can provide a source of hydrogen for these industries.
Hydrogen Storage and Transportation
Methanol is a more energy-dense and easily transportable liquid compared to gaseous hydrogen. Methanol hydrogenation units can be employed to convert methanol to hydrogen for storage and transportation purposes.
Backup Power for Renewable Energy Systems
Methanol reformers can serve as backup power sources for renewable energy systems like solar and wind power, providing a stable energy supply when renewable sources are intermittent.
Hydrogen Fuel Cells
Methanol hydrogenation units are used to produce hydrogen for fuel cells. Hydrogen fuel cells are an environmentally friendly and efficient power source used in vehicles, backup power systems, and various industrial applications.

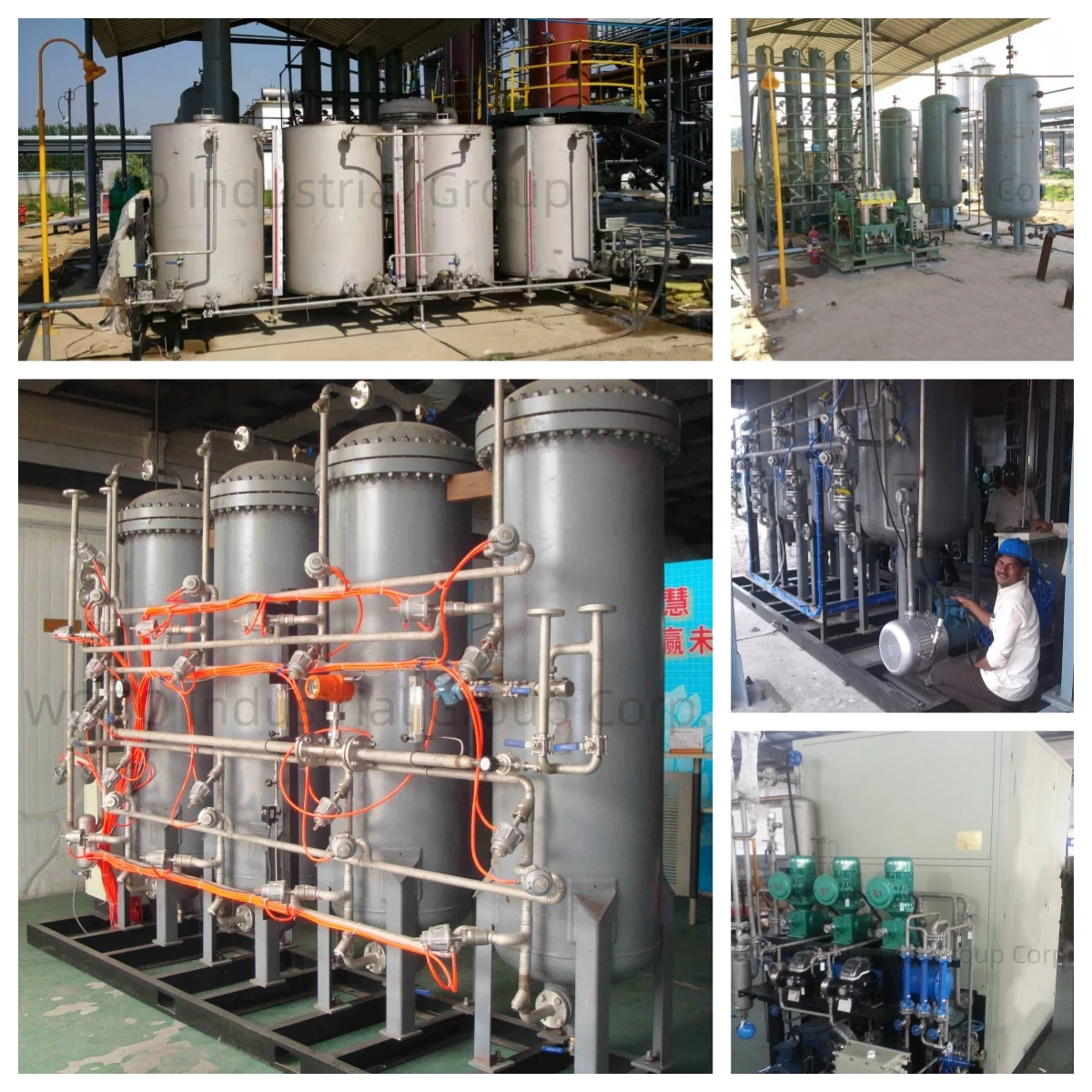

Project Case
