18650 Cylinder Cell Case with Anti Explosive Cap and Insulation O ring
- Category: >>>
- Supplier: Linyi Gelin New Energy Co. Ltd.
Share on (1600901201086):
Product Overview
Description
Product Overview

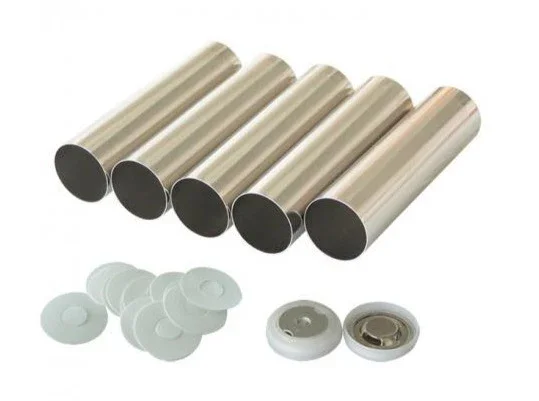

18650 Cylinder Cell Case with
Anti-Explosive Cap & Insulation O-ring
This is a cylindrical case for a battery to ensure that it does not explode over time. Battery case dimensions here are 18 mm (OD) x 17.5 mm (ID)) x 67 mm (H).
Materials:
Case and cap are made of nickel plated A3 steel;
Seal O-ring and spacer are made of nylon;
Insulating gasket is made of PET.
Case and cap are made of nickel plated A3 steel;
Seal O-ring and spacer are made of nylon;
Insulating gasket is made of PET.

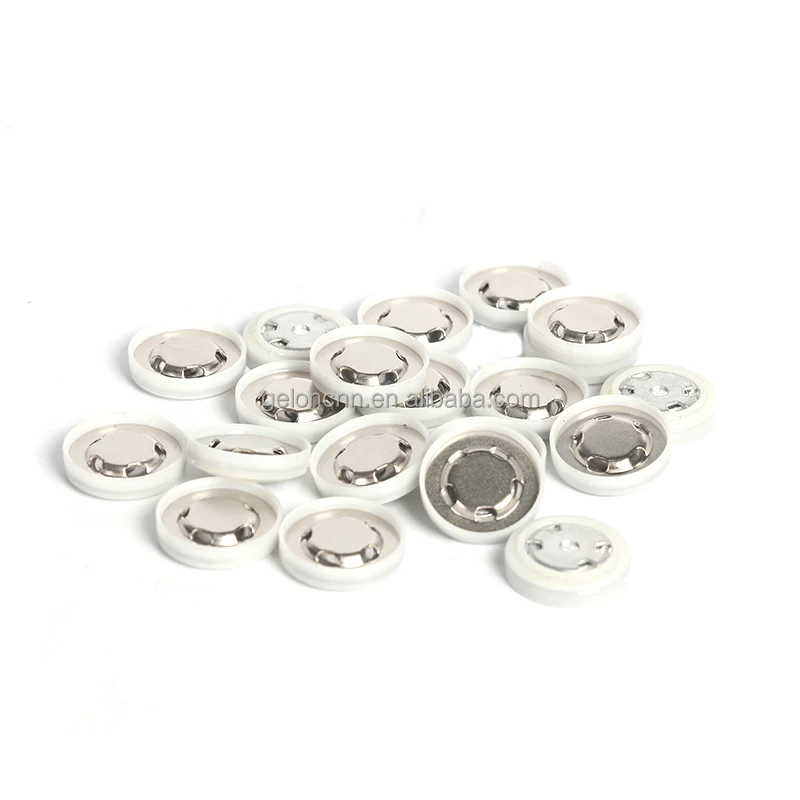

Cap :
Cap with Built-in PTC Thermistor for over-current protection
18650 / 26650 / 21700 / 32650 / 4680 , etc.
In addition, we can also offer Super Capacitor Case, Aluminium case, Shaped Battery Case.
Product Name | Cylinder Cell Case |
Case and cap materials | Ni plated A3 steel |
Seal O-ring and spacer materials | Nylon |
Insulating gasket | PET |
18650 Battery Case Dimensions | 18mm(OD) x 17.5mm (ID) x 67mm (H) |
Other options | 18650 / 26650 / 21700 / 32650 / 4680 , etc. |
PRODUCT SPECIFICATIONS
