hydrogen chlorine gas flow meter rotar flowmeter medical metal tube rotameter for steam air water with alarm
- Category: >>>
- Supplier: Shanghai Zhaohui Pressure Apparatus Co. Ltd.
Share on (1600901215645):
Product Overview
Description
Products Description

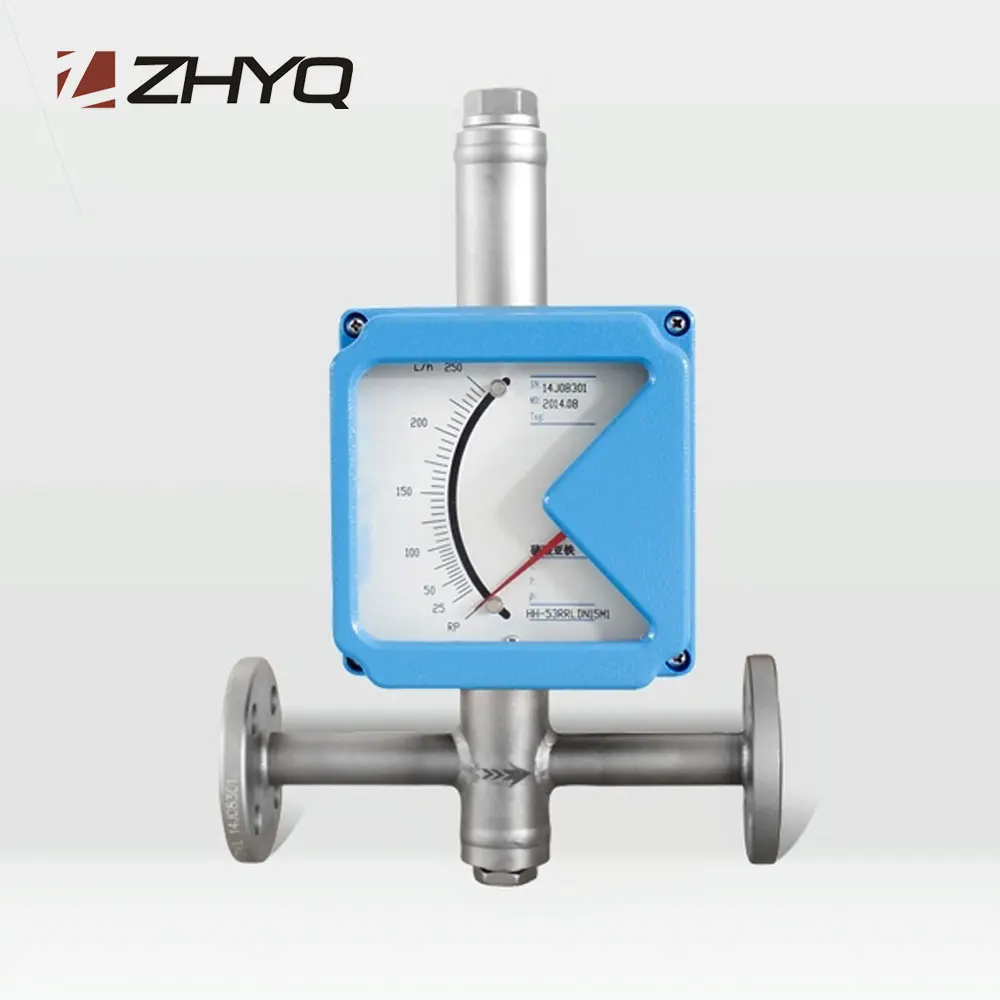

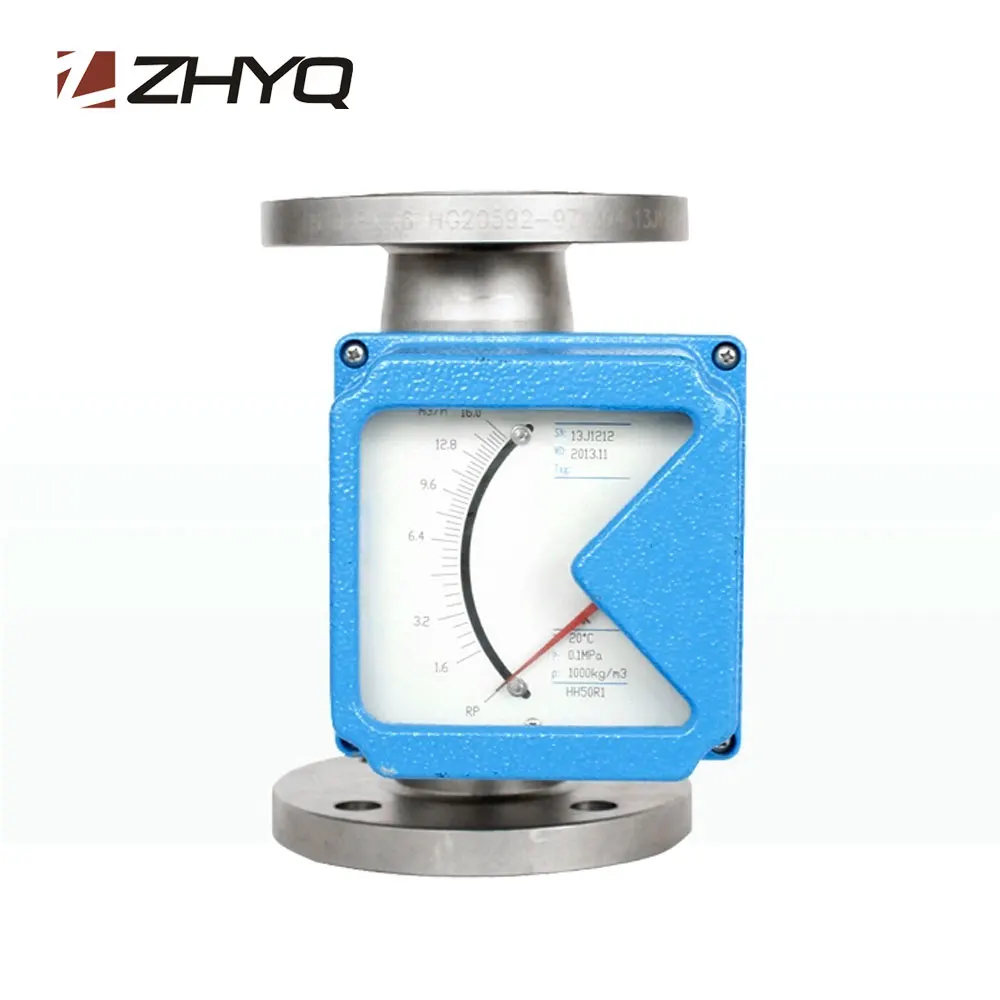

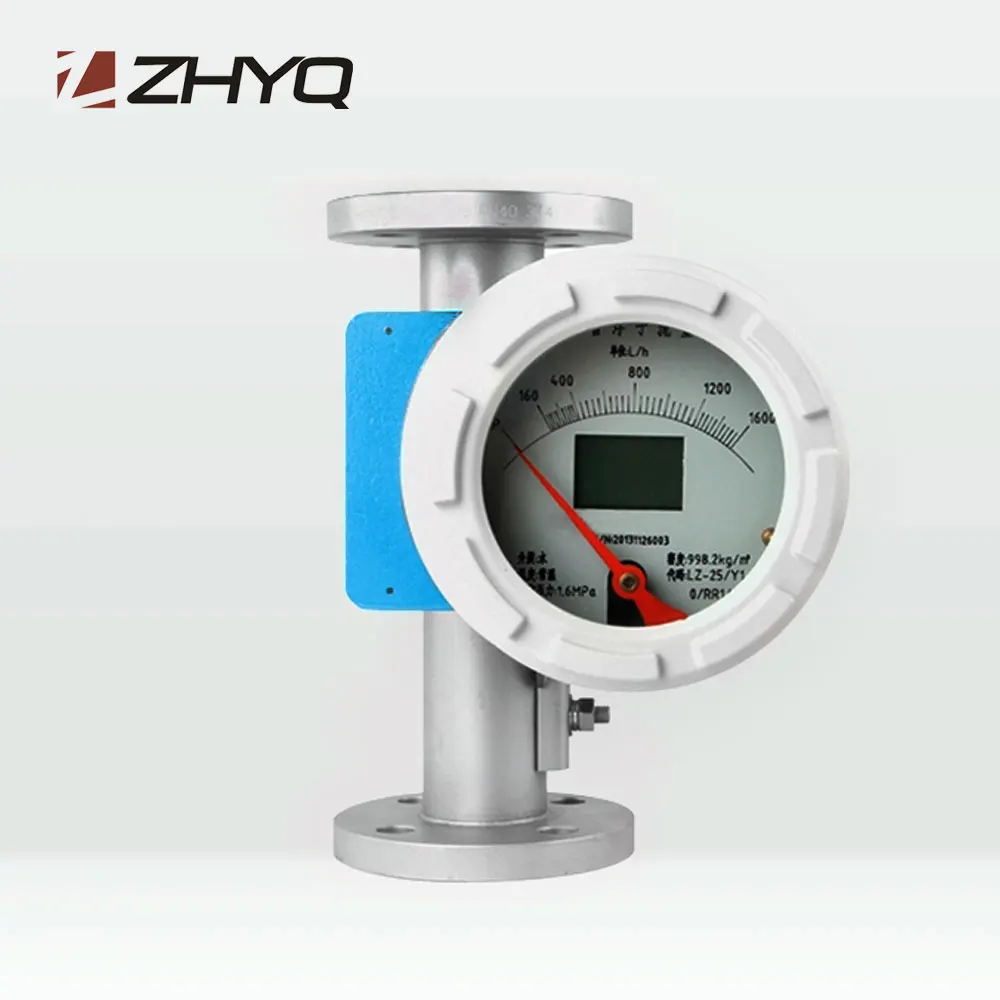

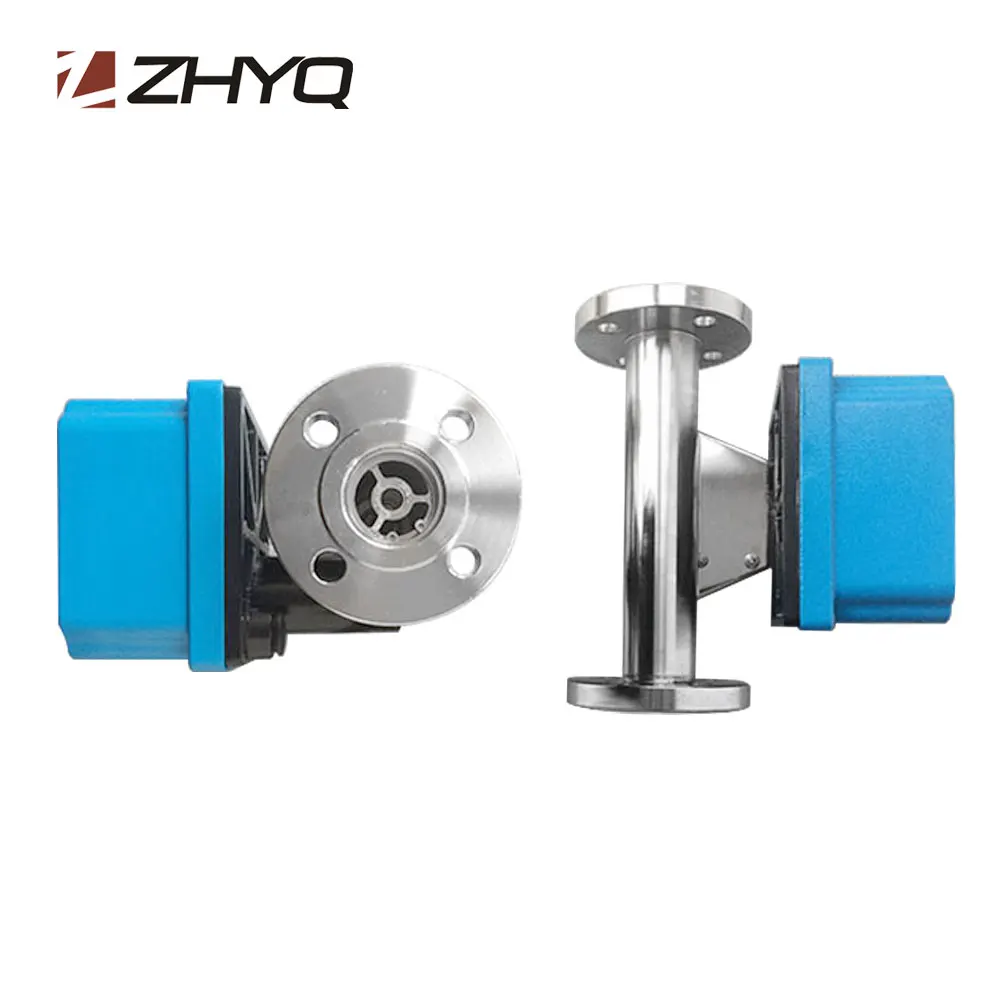

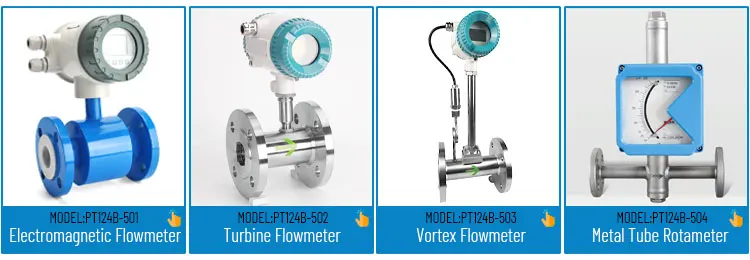

Metal Tube Rotameter
PT124B-504 Metal tube rotameter is a variable area flow meter based on float position measurement. Using all-metal structure and Modular concept design.
Because of its small size, small pressure loss, large range ratio (10:1), easy installation and maintenance, etc.,Therefore, it is widely used in flow measurement and process control of small flow, low flow velocity, and various harsh media conditions in complex and harsh environments in various industries.
Because of its small size, small pressure loss, large range ratio (10:1), easy installation and maintenance, etc.,Therefore, it is widely used in flow measurement and process control of small flow, low flow velocity, and various harsh media conditions in complex and harsh environments in various industries.
Parameter
Diameter | DN15, DN25, DN50, DN80, DN100, DN150 (Please consult with the manufacturer for other diameters) |
Flow Range | Water:1.0~150000 L/H Gas: 0.05~3000 m3/H (For the flow rate range, please refer to page 11) |
Range ratio | 10:1 ; 20:1 (special) |
Accuracy | Grade 1.5 ; Grade 1.0 (Special) |
Pressure rating | DN15, DN25, DN50: 4.0MPa (maximum 20MPa) DN80, DN100, DN150: 1.6MPa (Maximum: DN80: 10MPa; DN100: 6.4MPa; DN150: 4.0MPa) |
Medium temperature standard | Nomal:-30℃~+120℃, High temperature: 120℃~350℃ |
Power Supply | 24VDC (12~36VDC), 220VAC |
Output signal | 4 ~ 20mADC (two-wire system), HART protocol can be added |
Output load | 500Ω(at 24V power supply) |
Ambient temperature local type | Nomal: -40℃~120℃ Remote type: -30℃~60℃ |
Storage conditions Temperature | -40℃~85℃ (Humidity: ≤ 85%) |
Flange standard | GB/T9119-2000, user can specify (other connection forms can be negotiated with the manufacturer) |
Cable Interface | M20×1.5, 1/2 NPT |
Enclosure Protection | IP65 |
Explosion Proof | Marking Intrinsically Safe, Ex ia IICT6, Flameproof: Ex d IICT6 |
Pressure loss | Reference to flow chart for details |
Medium viscosity DN15 | η<5mPa.s DN25: η <250mPa.s DN50~DN150: η<300mPa.s |
Wetted material | R1: SS304, 1Cr18Ni9Ti; R0: SS316, 0Cr18Ni12Mo2Ti; RL: SS316L, 00Cr17Ni14Mo2Ti; Ti: Titanium; Rp: PTFE lining |
Features
1. Single-axis, non-contact new magnetic coupling structure, more stable signal transmission;
2. Modular combination design, easy maintenance, maintenance-free in normal use;
3. Two-line, large-screen liquid crystal display instantaneous and cumulative flow, with backlight;
4. The intelligent type has power-down protection, data backup and recovery functions;
5. All-metal structure, anti-seismic, pressure-resistant, temperature-resistant, and anti-corrosion;
6. Short stroke, total height 250mm, more convenient design and installation.
2. Modular combination design, easy maintenance, maintenance-free in normal use;
3. Two-line, large-screen liquid crystal display instantaneous and cumulative flow, with backlight;
4. The intelligent type has power-down protection, data backup and recovery functions;
5. All-metal structure, anti-seismic, pressure-resistant, temperature-resistant, and anti-corrosion;
6. Short stroke, total height 250mm, more convenient design and installation.

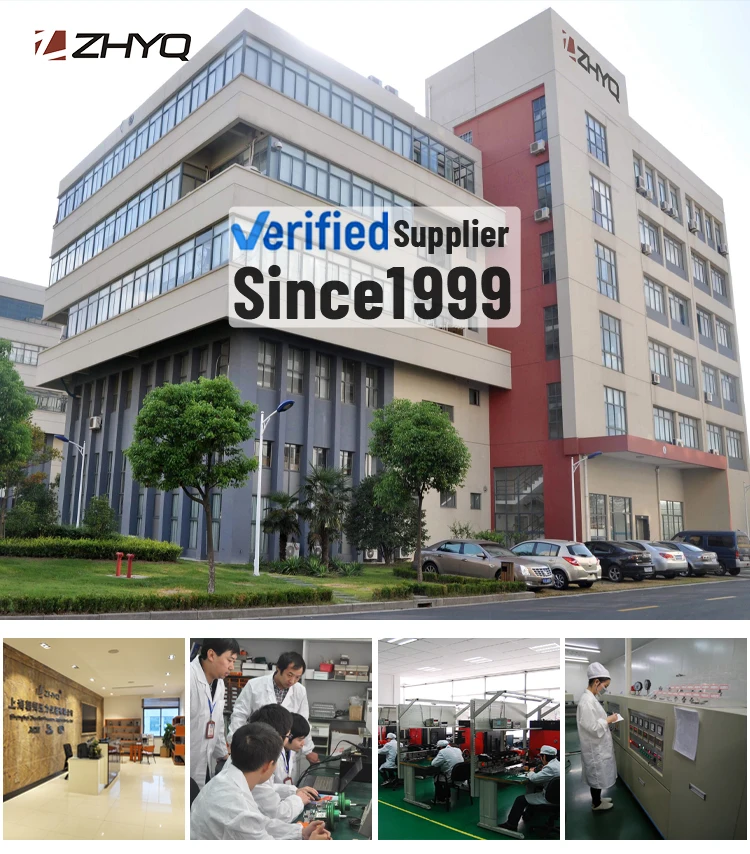

Company Profile
