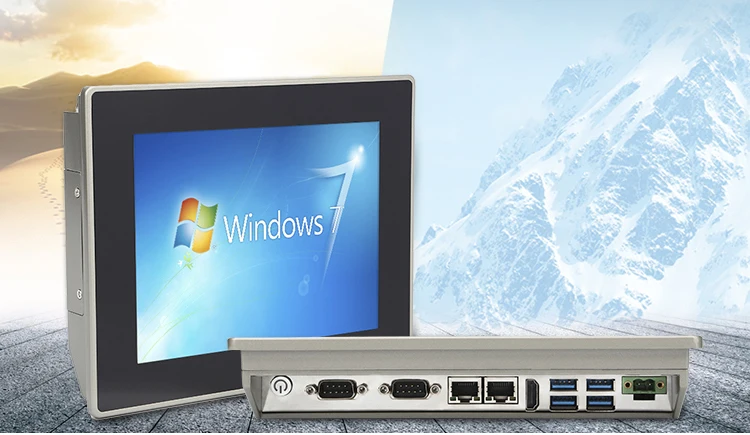

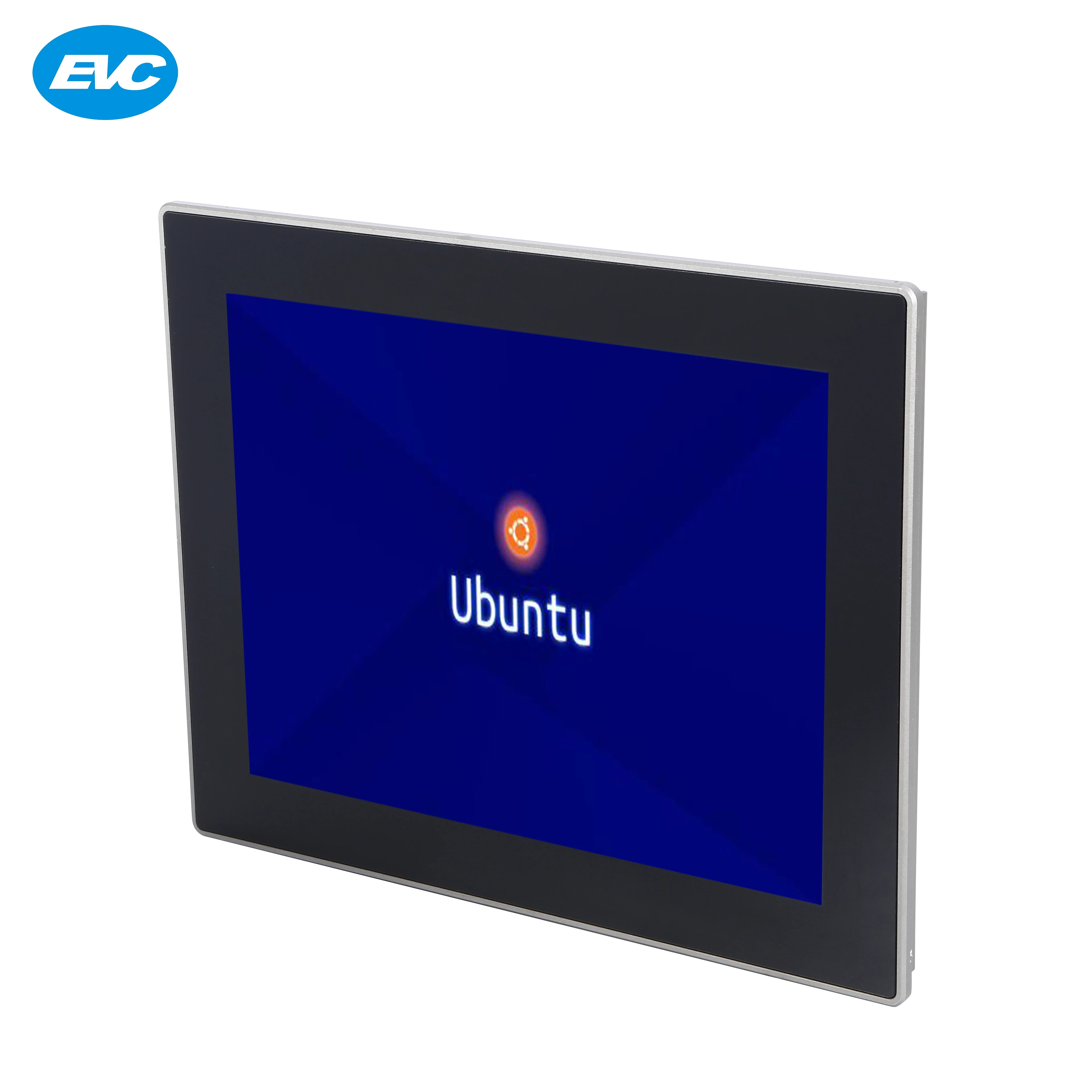

PANEL PC
Compact design with rich l/O ports provides a variety of expansion
and flexible installation
UItra High & Low Temperature Tolerance
Working temp:-20°C~ 65°C (-4°F~149°F)

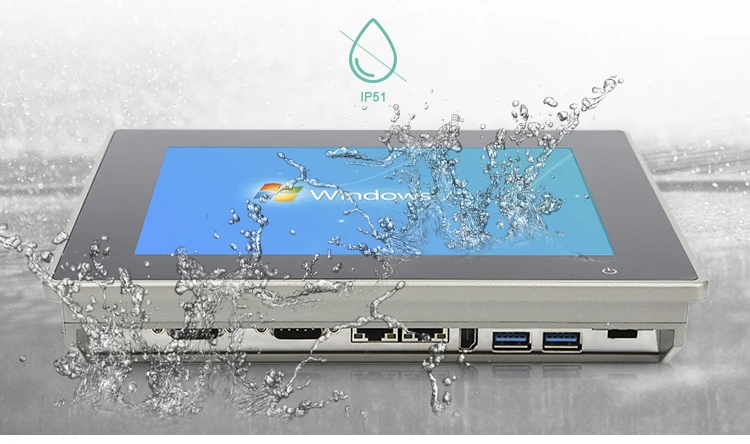

Meet IP65 Waterproof Standard
Panel waterproof level: IP65

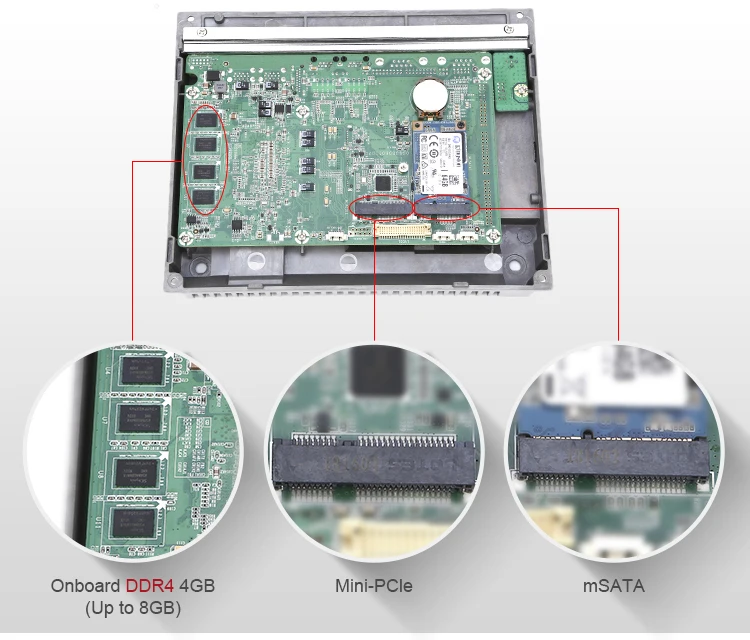

Onboard RAM &Fanless Design
Maintenance-free embedded technology without regular RAM
slot or rotating parts ensures its durabitily & minimum downtime.
Rich & Functional I/O Ports
Rich EMC-compliant interfaces for various peripheral devices.

Category | Descriptions | |
Model | No. | EVC-6032 |
Nucleus Module | CPU | J1900 (4C/4T,2.00/2.42GHz,2MB Cache,10W) |
I5-6200U / I5-7200U / I5-8265U / I5-10210U | ||
I7-7500U / I7-8665U | ||
Chipset | Skylake ULT SOC integrated chipset | |
BIOS | AMI 64Mbit Flash ROM | |
RAM | Onboard DDR4 2133MHZ 4GB (Up to 8GB ) | |
Storage | 1*mSATA slo, 1*SATA bay Msata 64/128/256GB | |
Graphic | Integrated HD Graphics 510/520 | |
Network | 2* i211-AT 10/100/1000M Network LAN | |
Display | LCD | 12" TFT color LCD, resolution: 1024 x 768px, LCD MTBF: 50,000H (standard) Brightness: 350cd/m² |
Touch Screen | HMI panel | 5-wire resistive, Lifespan: 10 million times touch @ 250gf Force |

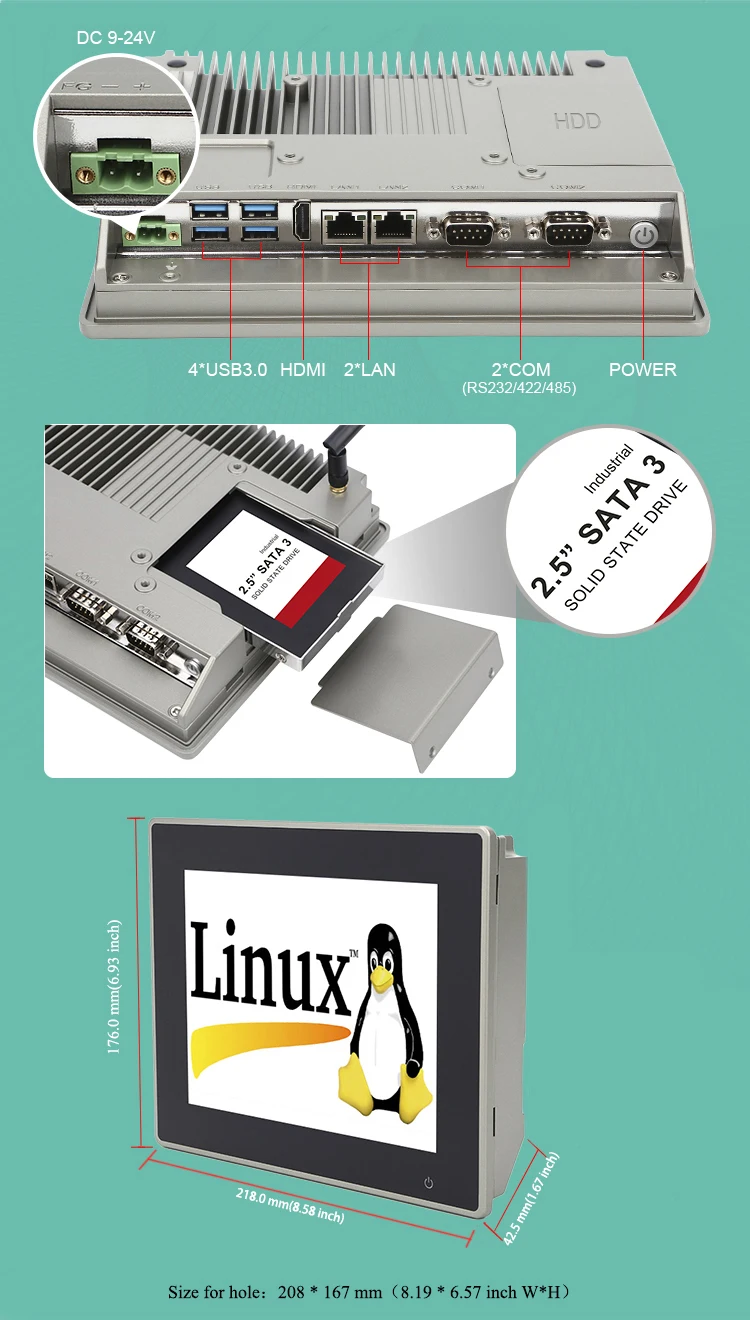

I/O | Lan | 2*RJ45 (Gigabit Ethernet) |
USB | 4*USB3.0 | |
Display | 1 HD Integrated HD Graphics | |
COM | 2*COM RS-232/422/485 | |
Button | 1*Power Button | |
Expansion | 1*mini-PCIe (support WiFi) | |

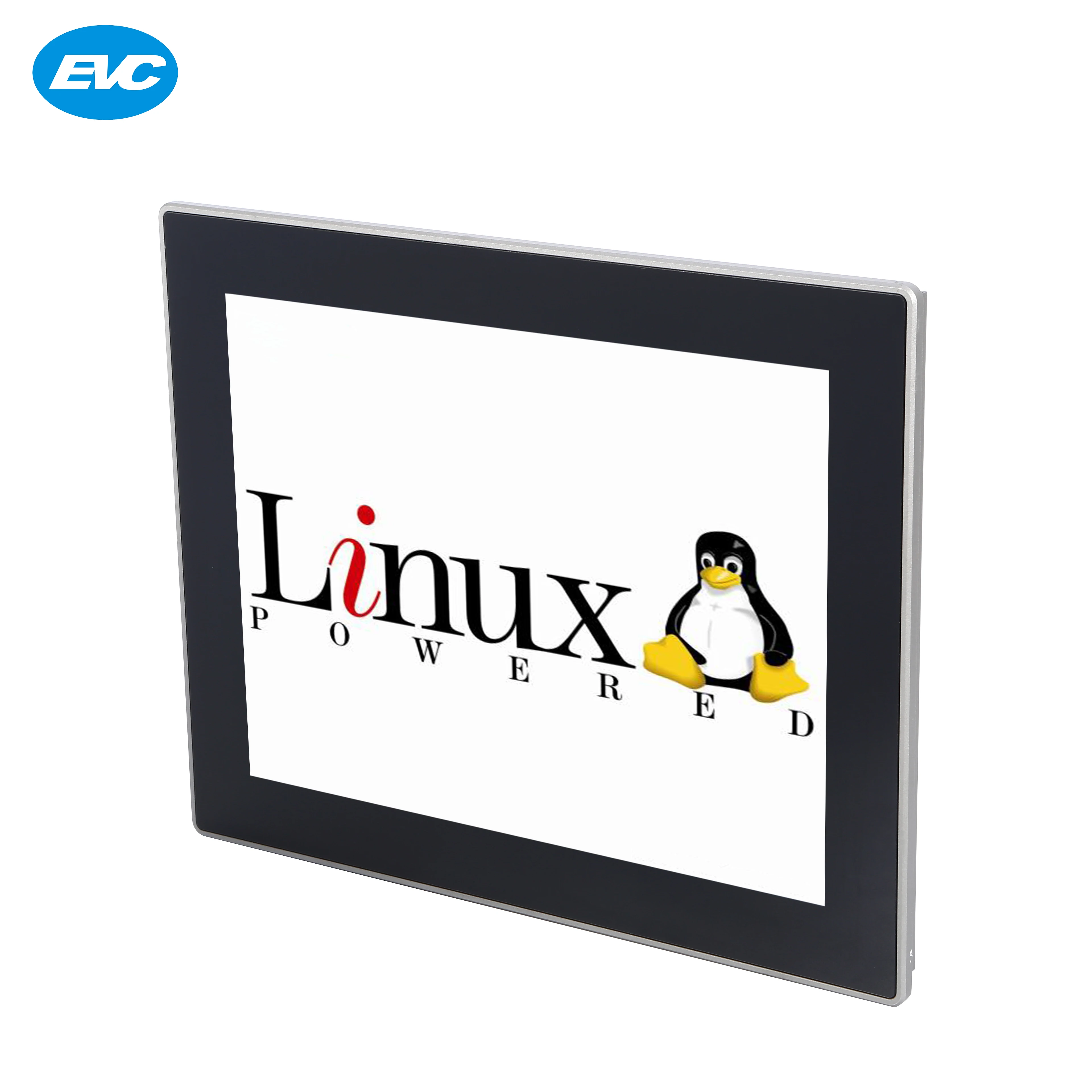

OS | Operating System | Win 7/8/10, Lin-ux |

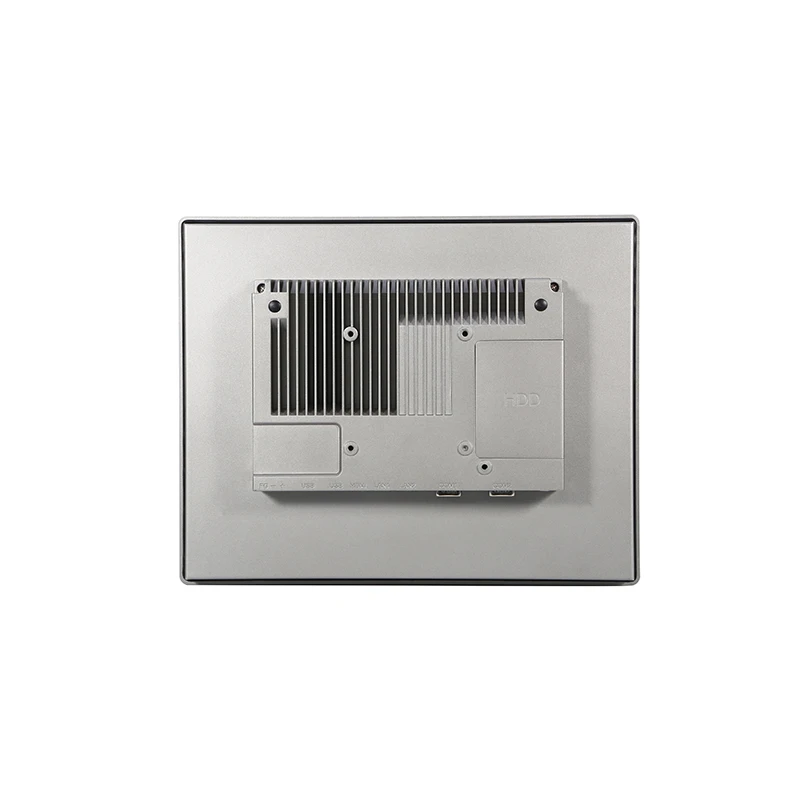

Structure | Dissipation | high-quality profile case for quick heat dissipation |
Housing | aluminum alloy | |
Bracket | Hooks for wall mount, or VESA bracket(Optional) | |
Dimensions | 218.0*176.0*42.5mm / 8.58 * 6.93 * 1.67 Inch (WxDxH) | |
Weight | 1.8KG(N.W.), 2.4KG(G.W.) | |
Power | DC In | DC 9-36V power supply and AC power adapter |
Temperature & Humidity | Working Temp. | -20°C~ 65°C (-4°F~149°F) |
Strorage Temp. | -40°C~ 80°C (-40°F~176°F) | |
Working Humidity | 10% - 95% @40°C non-condensing | |
Environment | Safety | CE, FCC, RoHS |

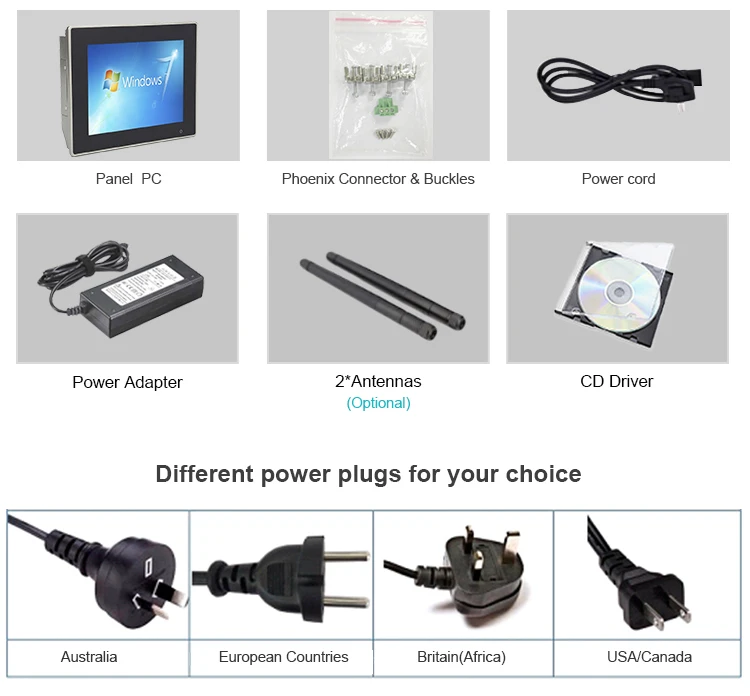

Package | Items | panel, power adapter, Power cord, CD Driver, VESA bracket & HD-MI to VGA Adapter(Optional) |
Application Scenario
This panel pc is widely used in the fields of entrance guard,
factory production line control,information processing,communications
security,intelligent traffic control system,rail transportation,and etc.

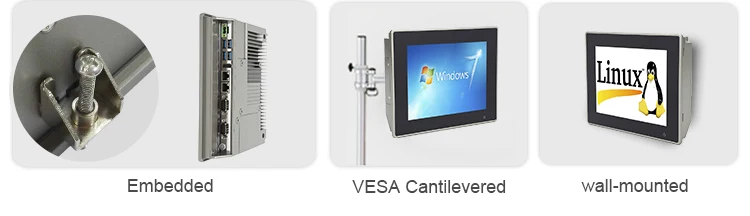

Installation Method

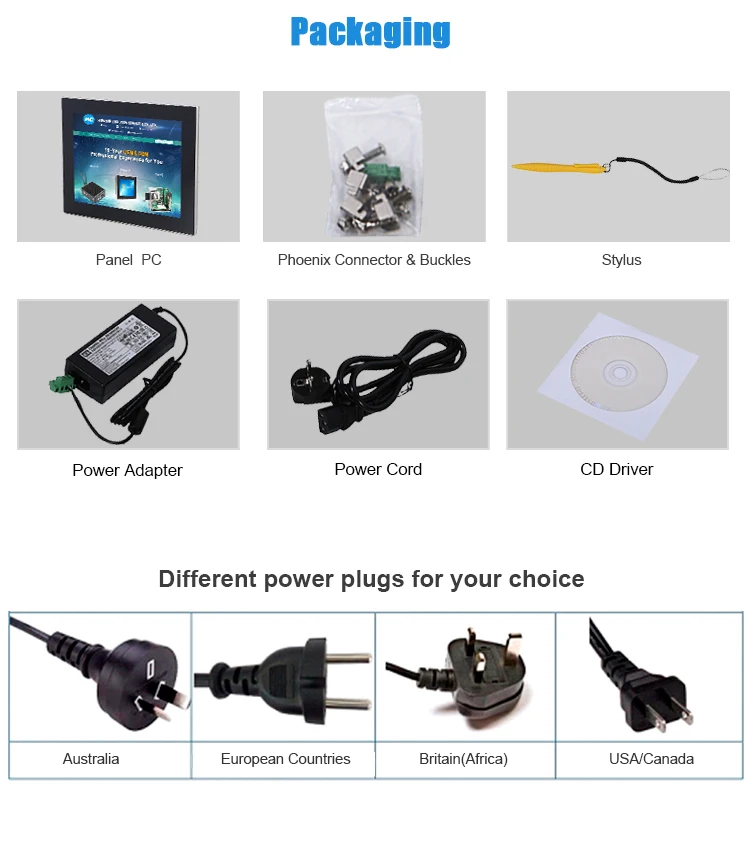

Packaging


1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
5.Q: Can I have my logo printed on the computers?
A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: 1). Put your brand on the device housing by laser printing
2). Put your own label below the device housing;
3). Supply Warranty Card in the package for free;
4). Make the booting interface with your company logo or brand for free.
7.Q: What Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, 1-3 days for samples, 7 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
