  • EU Version Huawei Sun2000 10ktl m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price
EU Version Huawei Sun2000 10ktl m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price
EU Version Huawei Sun2000-10ktl-m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price
EU Version Huawei Sun2000-10ktl-m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price
EU Version Huawei Sun2000-10ktl-m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price
EU Version Huawei Sun2000-10ktl-m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price
EU Version Huawei Sun2000-10ktl-m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price
EU Version Huawei Sun2000-10ktl-m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price

EU Version Huawei Sun2000 10ktl m1 Wechselrichter 5kw 6kw 8kw 10kw 12kw 20kw 3 phase Huawei on grid solar inverters price

Share on (1600901271038):


Price:$780.00 - $850.00

Quantity:


Product Overview

Description



Product Description










Specification


Technical Specification
SUN2000 -3KTL-M1
SUN2000 -4KTL-M1
SUN2000-5KTL-M1
SUN2000-6KTL-M1
SUN2000-8KTL-M1
SUN2000-10KTL-M1
SUN2000-12KTL-M1
Efficiency
Max. Efficiency
98.2%
98.3%
98.4%
98.6%
98.6%
98.6%
98.6%
European Efficiency
96.7%
97.1%
97.5%
97.7%
98.0%
98.1%
98.2%
Input
Recommended max. PV power 1
4500 Wp
6000 Wp
7500wp
9000wp
12000wp
15000wp
18000wp
Max. input voltage 2
1100V
Start voltage
200v
Max. input current per MPPT
11A
Maximum short circuit current
15A
Operating voltage range 3
140V~980V
Rated input voltage
600V
Maximum input number
2
Max. input number per MPP tracker
2
Input (DC Battery)
Compatible Battery
HUAWEI Smart String ESS 5kwh – 30kwh
Operating voltage range
600 V ~ 980 V
Max operating current
16A
Max charge Power
10,000 W
Max discharge Power
3300 W
4400 W
5500W
6600W
8800W
10000W
10000W
The output
Grid connection
Three-phase
Rated output
3000 W
4000 W
5000W
6000W
8000W
10000W
12000W
Maximum apparent power
3,300 VA
4,400 VA
5,500VA
6,600VA
8,800VA
11,000VA
12,000VA
Rated output voltage
220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
Output voltage frequency
50HZ/60HZ
Maximum output current
5.1 A
6.8 A
8.5A
10.1A
13.5A
16.9A
18.4A
Max. total harmonic distortion
<3%
Output （Backup Power via Backup Box-B1）
Maximum apparent power
3,300 VA
Rated output voltage
220 V / 230 V
Maximum output current
15A
General Data
Weight (with mounting plate)
17Kg
Dimensions (W x H x D)
525 x 470 x 146.5 mm (20.7 x 18.5 x 5.8 inch)
Protection Degree
IP65

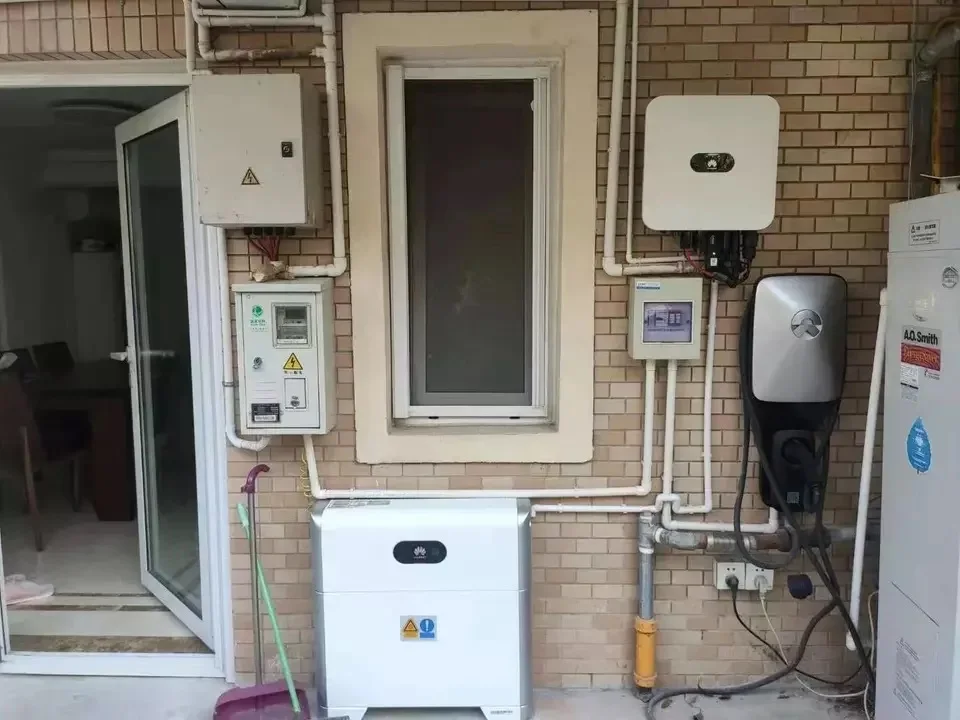

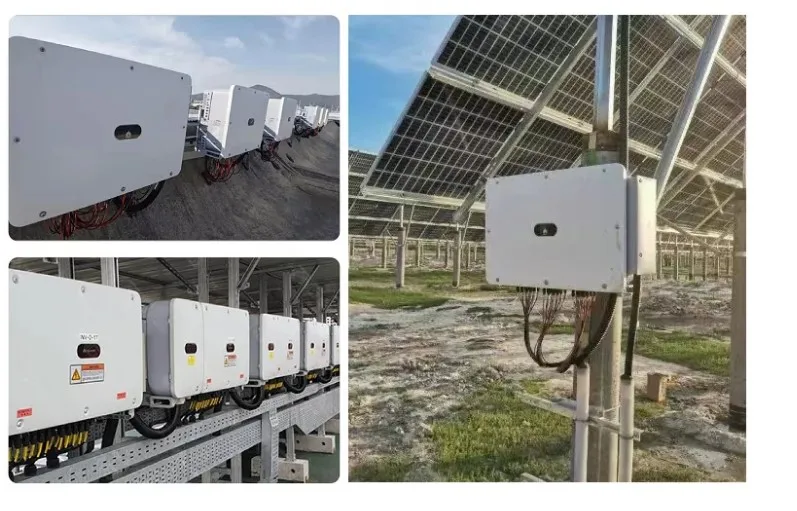

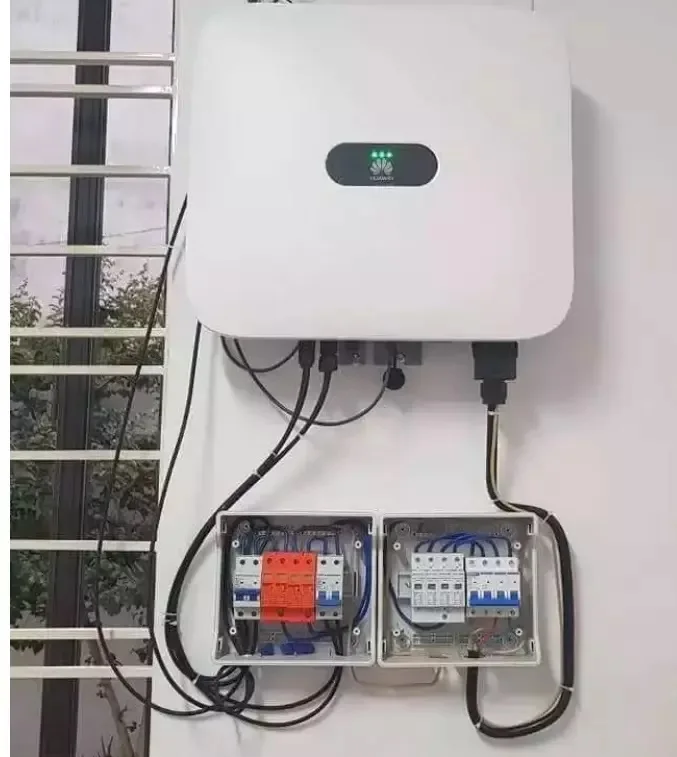

Project Cases

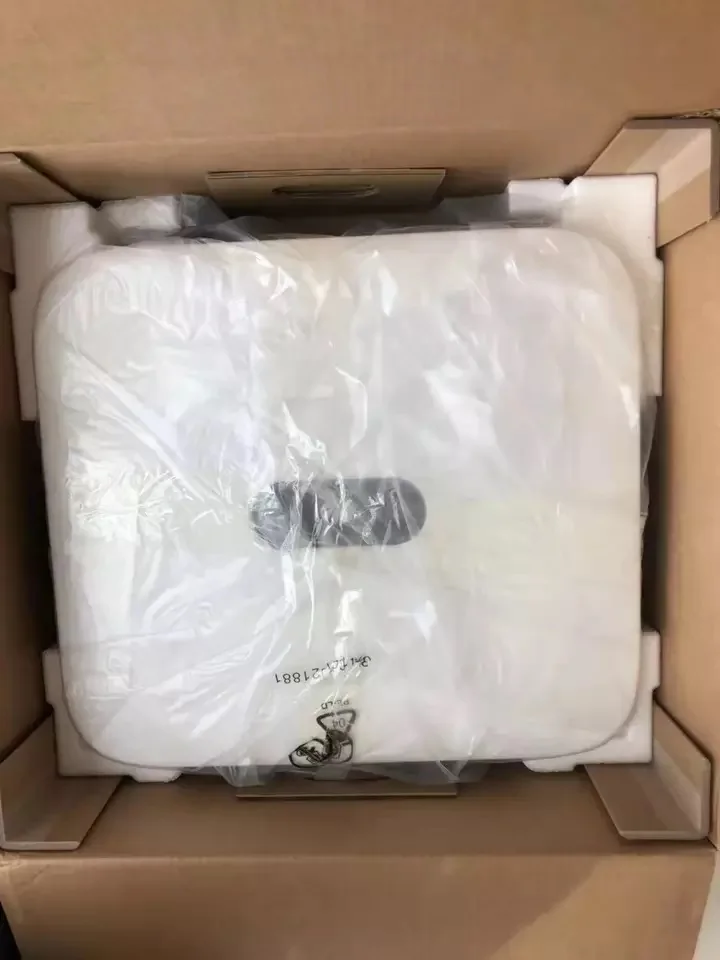

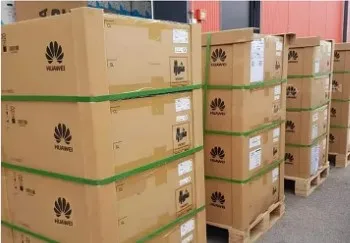

Product Packing




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2022,sell to Domestic Market(40.00%),Western Europe(15.00%),Southern
Europe(15.00%),Northern Europe(15.00%),Eastern Europe(15.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Panel, Battery, Solar Inverter, Solar Energy System, Auto Parts

4. why should you buy from us not from other suppliers?
our major products include Solar Panels Hot sale 380W 450W 500W 540W 595W 670W,all goods have CE/TUV/CEC Certificates.,MPPT solar controllers,Solar racking and mounting structure system. We cooperated with reliable grid tie inverters, lithium batteries

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
