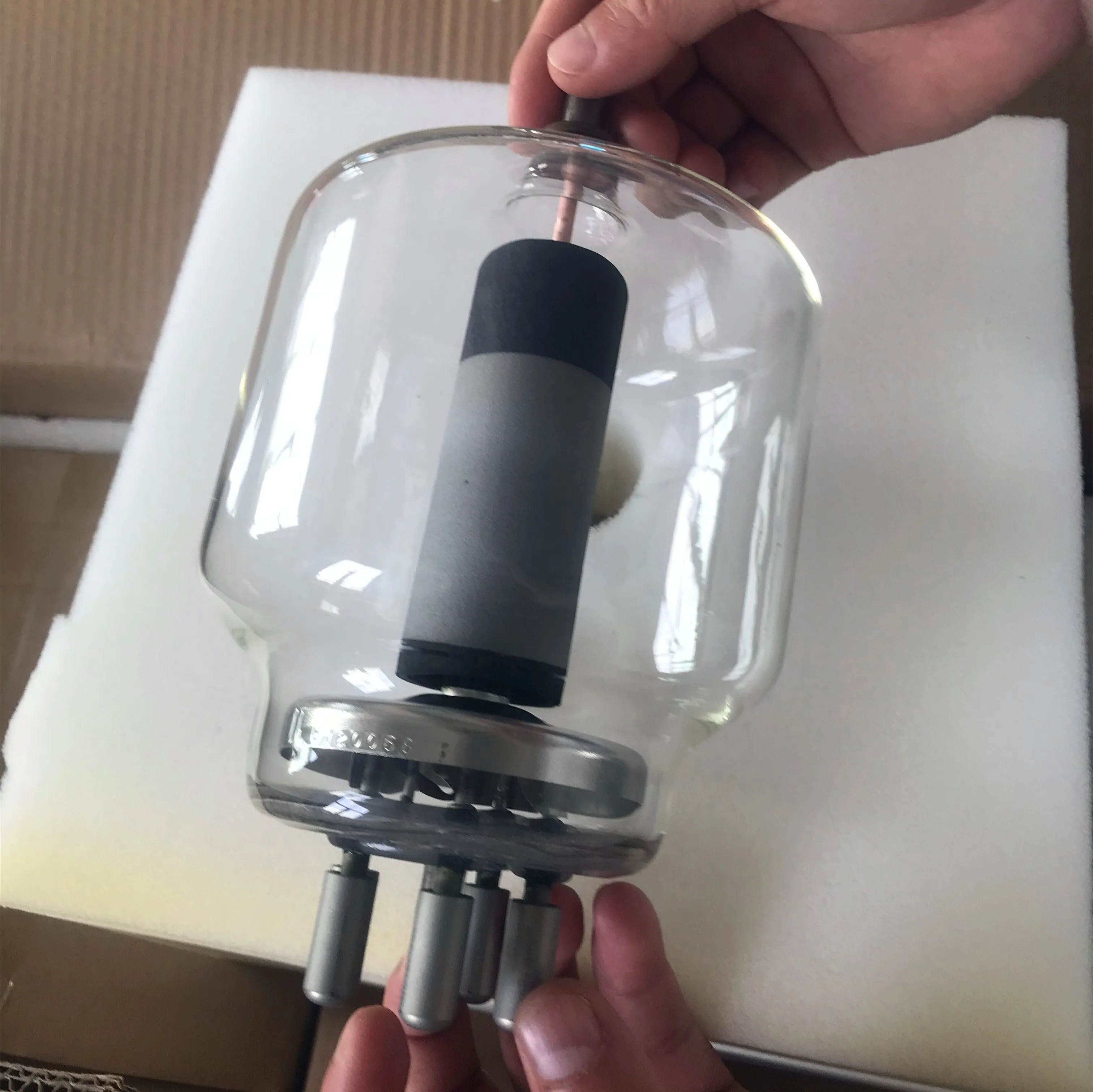

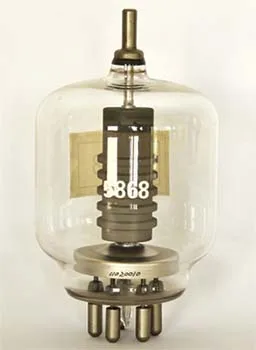

RF Power Triode Tube TB4/1250,Glass Oscillation Tube 5868
- Category: Oscillators old >>>
- Supplier: Dongguan Jingyi High Frequency Machinery Co. Ltd.
Share on (1600901345121):
Product Overview
Description
Product Overview

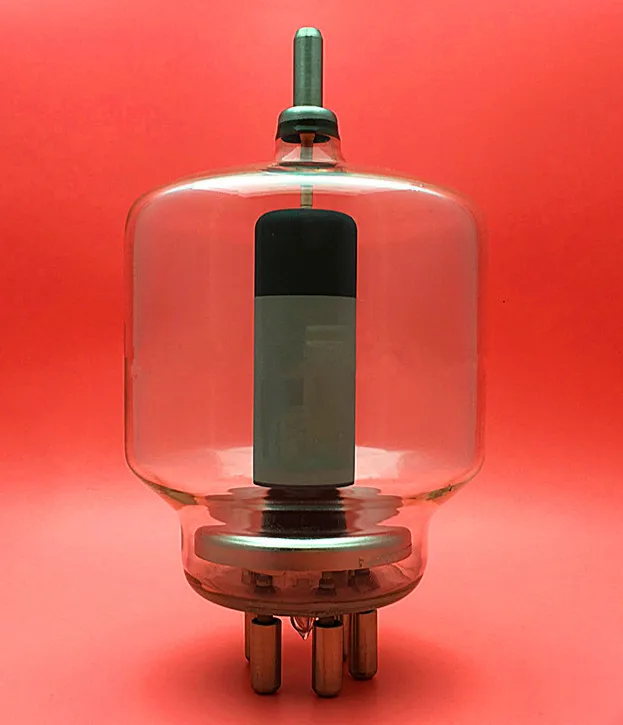

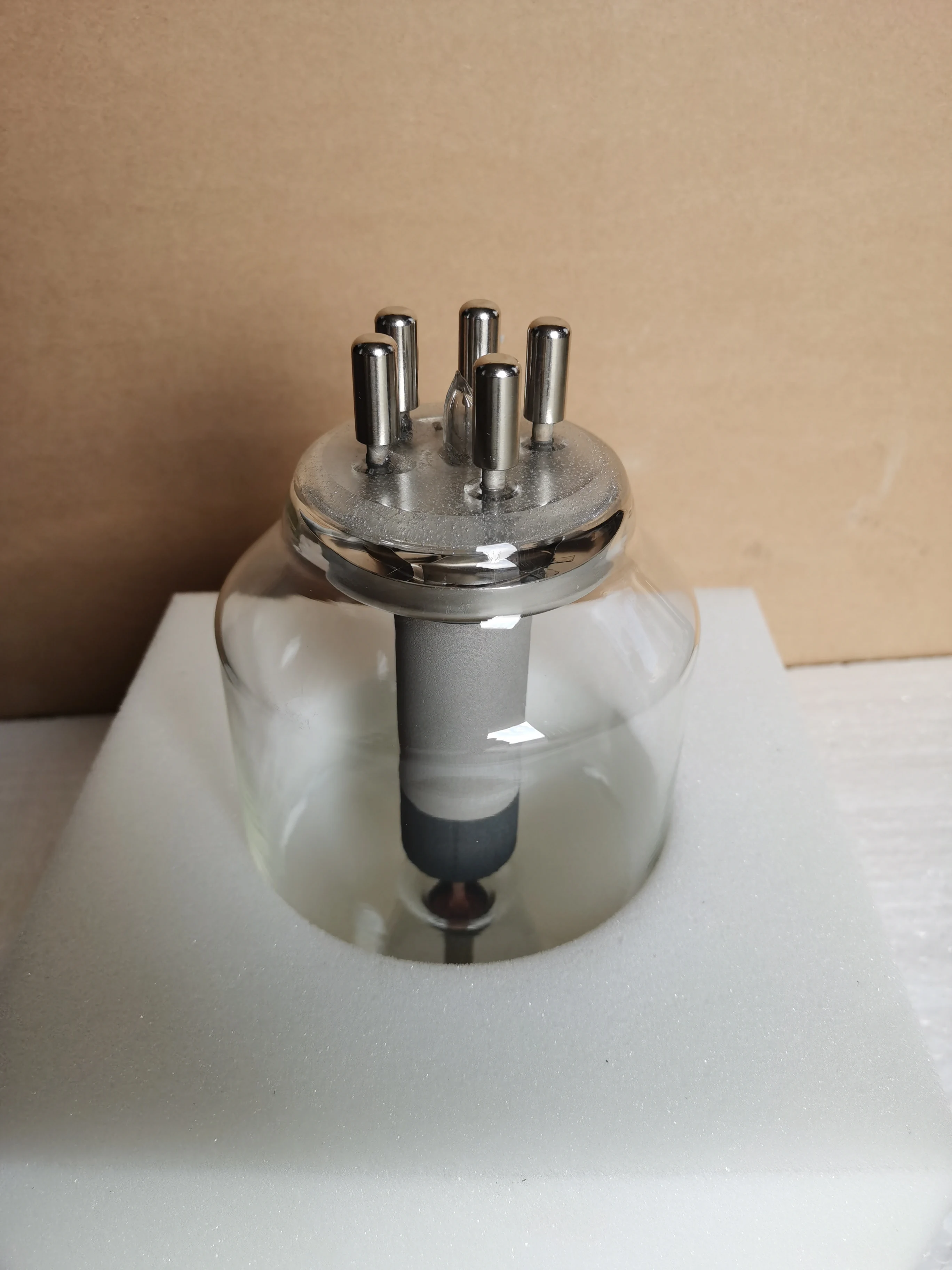

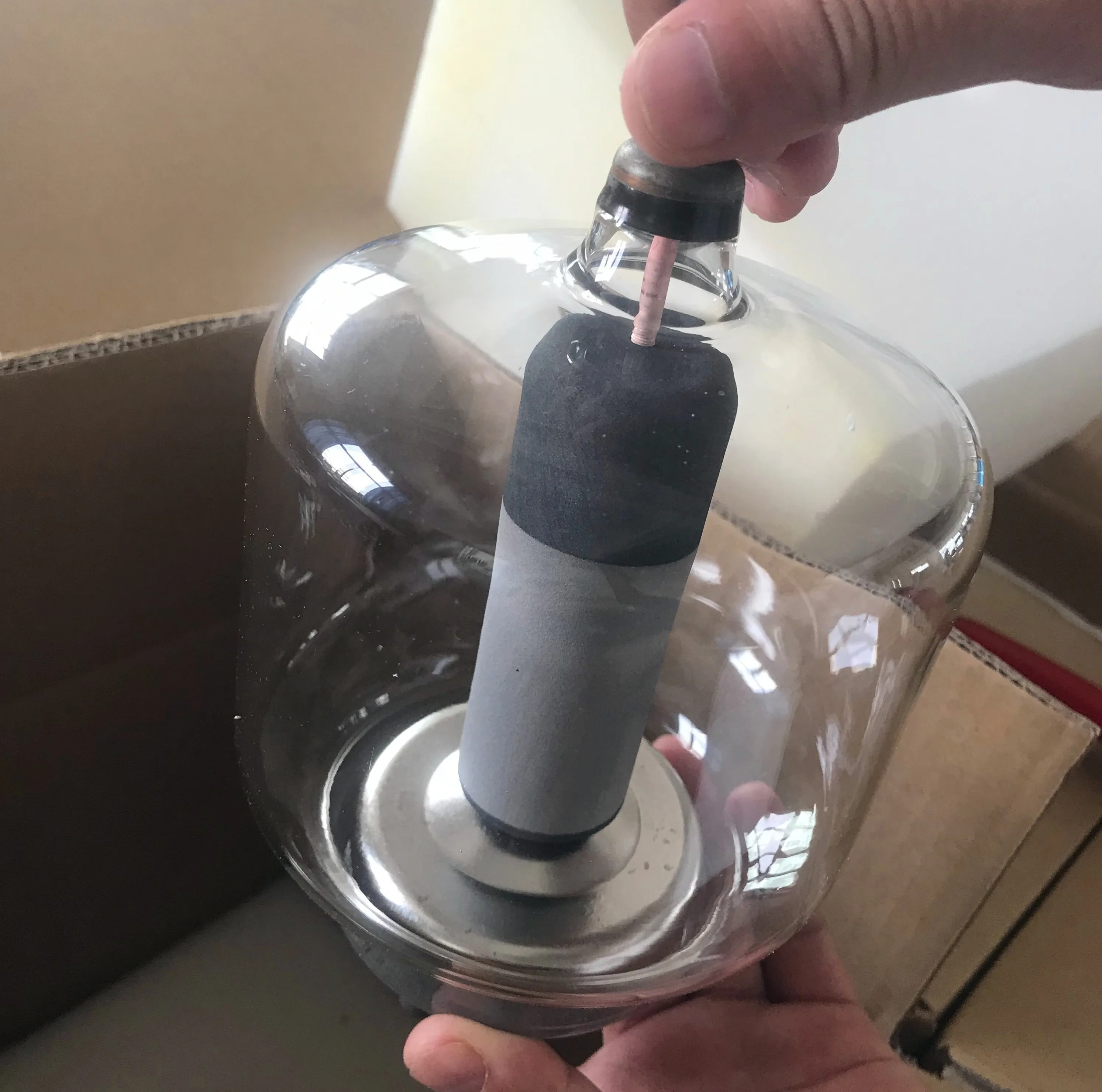

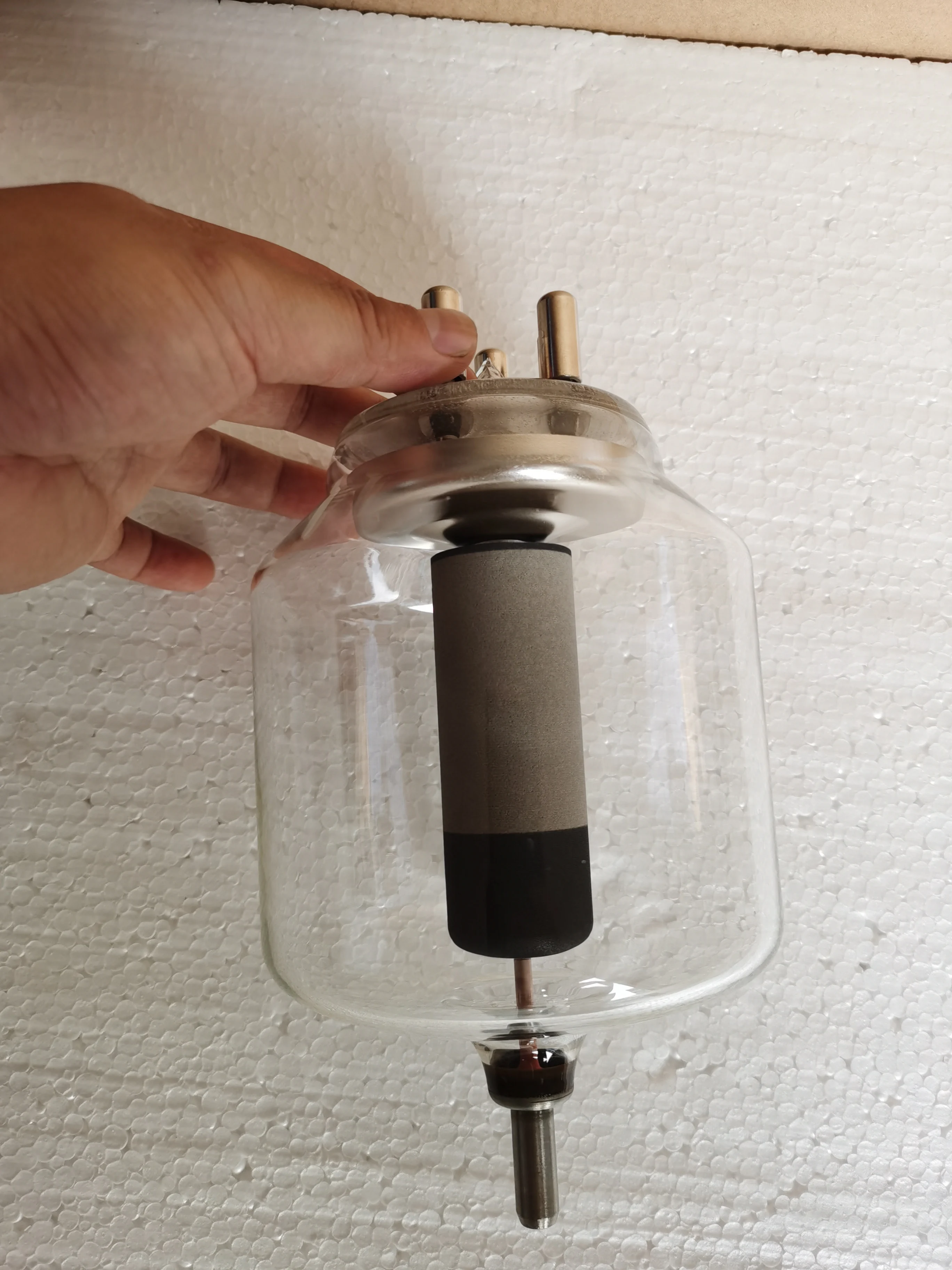

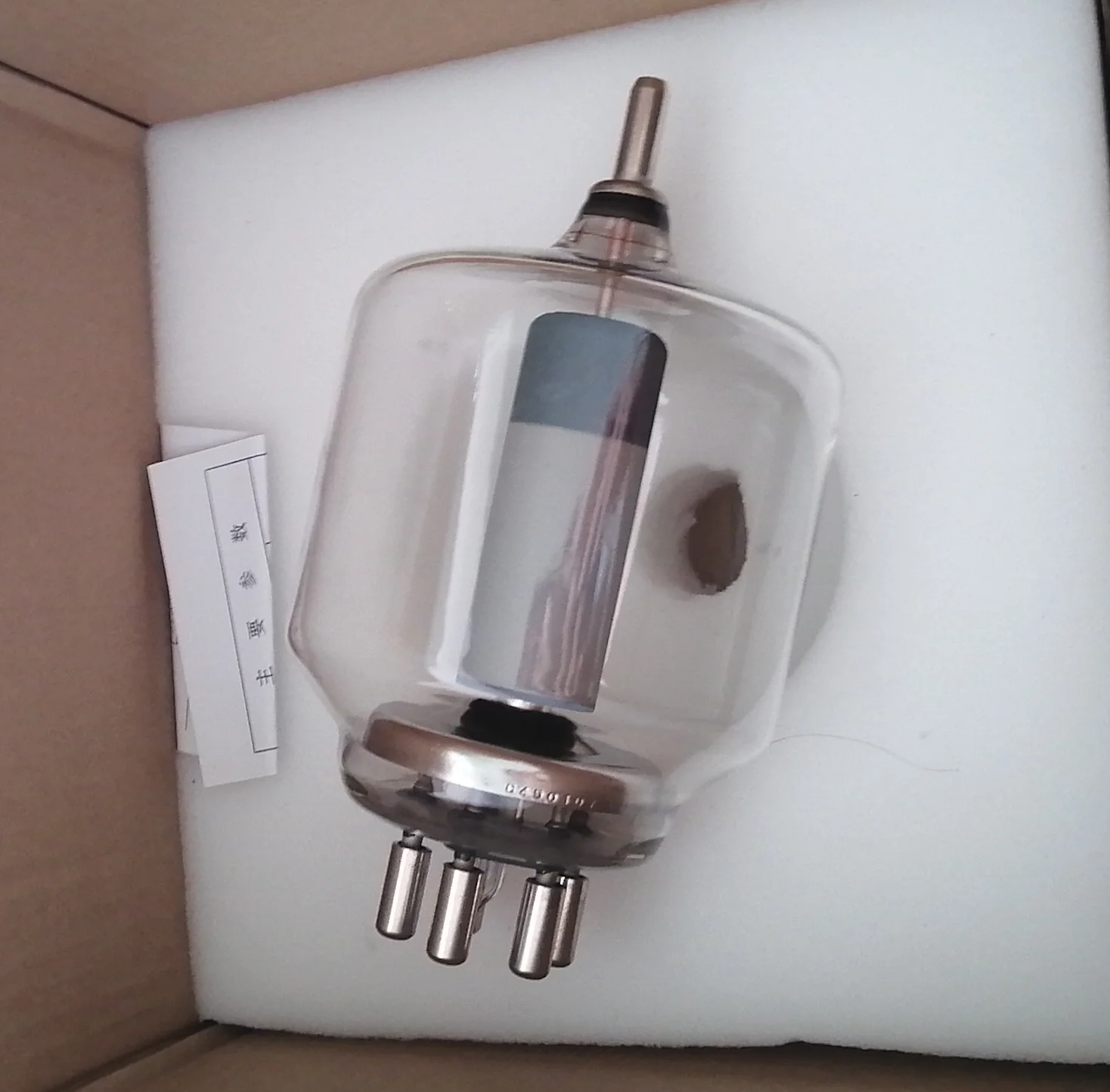

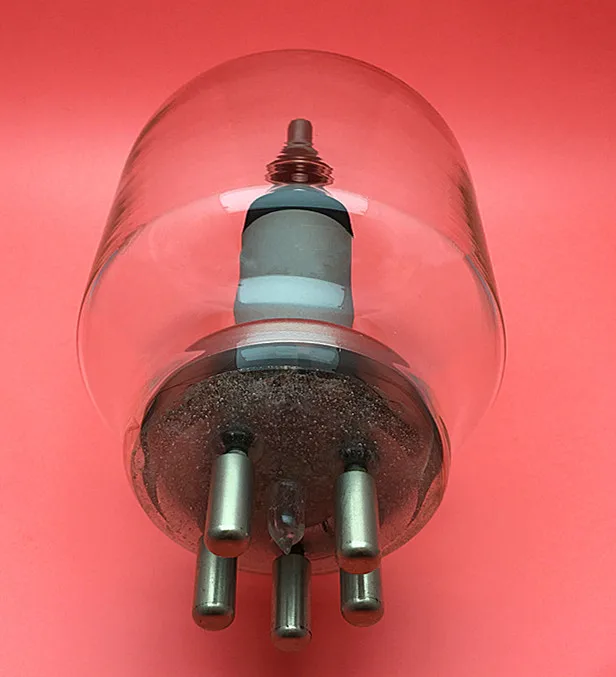

Oscillation tube tb4-1250
The 833A transmitting tube is a medium-mu power triode intended for use in RF amplifier, oscillator, or class B modulator
service. The 833A features rugged construction for high power RF transmitter applications. The envelope is fabricated from hard glass intended specifically for the high-temperature operation of transmitting tubes.
The internal tube parts are supported by low loss ceramic insulators for high-temperature operation and high voltage hold-off. The rugged grid structure is particularly well suited for industrial heating applications.
General Characteristics
Electrical
Filament: Thoriated-tungsten
Voltage (AC or DC) 10.0 +/- 0.5 V
Current 10 A
Amplification factor (average)
35
Electrical
Filament: Thoriated-tungsten
Voltage (AC or DC) 10.0 +/- 0.5 V
Current 10 A
Amplification factor (average)
35
Direct interelectrode capacitances (grounded filament):
Grid to plate 6.3 pF
Grid to filament 12.3 pF
Plate to filament 8.5 pF
Maximum frequency for full ratings 30 MHz
Grid to plate 6.3 pF
Grid to filament 12.3 pF
Plate to filament 8.5 pF
Maximum frequency for full ratings 30 MHz
Mechanical
Cooling Radiation and convection or
Forced air
Socket None. Post terminals
Plate and grid connector Special, such as
Operating position Axis vertical, with filament posts up or down Horizontal
With plate in vertical plane (on edge)

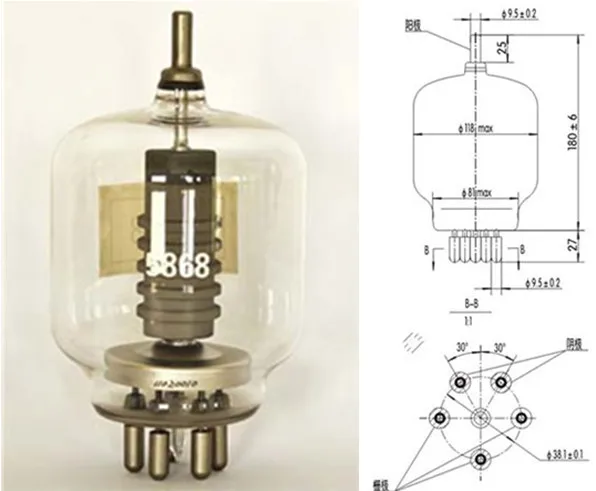

Nominal dimensions:
Diameter 116.8 mm (4.60 in.)
Overall height 219.2 mm (8.63 in.)
Net weight 0.6kg
Cooling Radiation and convection or
Forced air
Socket None. Post terminals
Plate and grid connector Special, such as
Operating position Axis vertical, with filament posts up or down Horizontal
With plate in vertical plane (on edge)
Nominal dimensions:
Diameter 116.8 mm (4.60 in.)
Overall height 219.2 mm (8.63 in.)
Net weight 0.6kg
Model | FU-33/833A/833C |
Filament Voltage | 10V |
Filament Current | 9.9A |
Transconductance | 4.5mA/V |
Cathode-the grid | 11pf |
Anode-cathode | 8 pf |
Weight | 0.42kg |
Magnification Factor | 28 |
Operation Position | Any |
Cooling | Forced Air |
Base | Special, Coaxial |
All Model Triodes:
E3062E E3085 E3109 E3069 E3130 E3185 E3050/9T75 E3116 E3132
6T58RA 7T62R 7T84RB 7T85RB 7T69RB
8T20B 8T20RB 8T30A 8T64B 8T64RB 8T69JB 8T30RA
8T85RB 8T25RA 8T25 8T61A 8T72B 8T87B 8T87RB 8T61A 8T72B
9T64B 9T71C 9T94A 9T38A/LD961 9T40 9T83 E3050/9T75
3-500Z FU-998FA FU-834FA FU-998F FU-501 FU-605 FU606 FU8785F FU-33/833A/833C
TB5-2500/7092FU/606/6T50 TB4-1250/5867 TB3-750/5867A/TY4-400
6T51 5727 813
3CX800A7 3CX2500H3 3CX2500F3 3CX1500A7 3CX15000H3 3CX3000A7 3CX3000F7
3CW20000H3 3CW30000H7 3CXH10000D3 3CXH1000H3 3CX800A7 3CX4500F3/YU108 YU148
4CX250B 4CX500A 4CX3500A 4CX2000 4CX2000C 4CX5000A 4CX7500A
ITL5-1 ITL12-1 ITL15-2 ITK15-2 CTK15-2
FD-911S FD-912S FD-934S FD-935S
7F37R 7F71R 8F67R 8F68R 8F76R 9F45
RS3021 RS3150
6T58RA 7T62R 7T84RB 7T85RB 7T69RB
8T20B 8T20RB 8T30A 8T64B 8T64RB 8T69JB 8T30RA
8T85RB 8T25RA 8T25 8T61A 8T72B 8T87B 8T87RB 8T61A 8T72B
9T64B 9T71C 9T94A 9T38A/LD961 9T40 9T83 E3050/9T75
3-500Z FU-998FA FU-834FA FU-998F FU-501 FU-605 FU606 FU8785F FU-33/833A/833C
TB5-2500/7092FU/606/6T50 TB4-1250/5867 TB3-750/5867A/TY4-400
6T51 5727 813
3CX800A7 3CX2500H3 3CX2500F3 3CX1500A7 3CX15000H3 3CX3000A7 3CX3000F7
3CW20000H3 3CW30000H7 3CXH10000D3 3CXH1000H3 3CX800A7 3CX4500F3/YU108 YU148
4CX250B 4CX500A 4CX3500A 4CX2000 4CX2000C 4CX5000A 4CX7500A
ITL5-1 ITL12-1 ITL15-2 ITK15-2 CTK15-2
FD-911S FD-912S FD-934S FD-935S
7F37R 7F71R 8F67R 8F68R 8F76R 9F45
RS3021 RS3150
Packing & Delivery
We use international standard plywood case pack the machine to protect machine being damaged during shipping period.

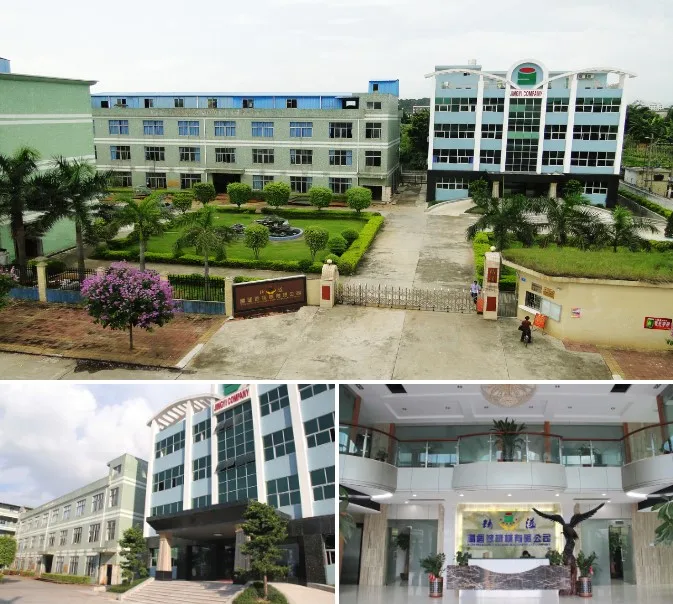

Company Profile
