10kV Digital High Precision 5KV 10kV Digital Insulation Tester Meggar 10kV
- Category: >>>
- Supplier: Wuhan Kaidi Zhengda Electric Co. Ltd.
Share on (1600901350273):
Product Overview
Description
Product Description
Products introduction

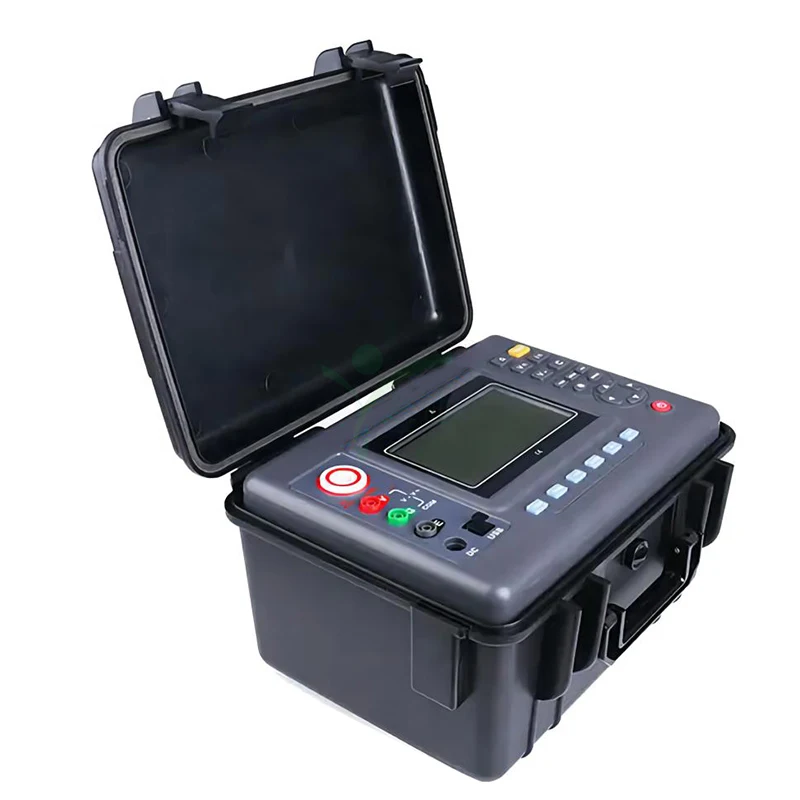

KD50A series digital insulation resistance tester, also known as megohmmeter and high-voltage insulation resistance meter, is used for insulation resistance test. This instrument has the functions of large-screen LCD gray backlight display, data storage, data query, alarm, automatic discharge, charging, automatic shutdown, etc. At the same time, it also has the function of measuring DC voltage AC voltage absorption ratio and polarization index. The whole machine is beautiful, with wide range, high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance, large output power and strong anti-interference ability.
KD50A series digital insulation resistance tester also has shock-proof, dust-proof and moisture-proof structure and can adapt to harsh working environment. It is a commonly used instrument for telecommunication, electric power, meteorology, computer room, oil field, electromechanical installation and maintenance, and industrial enterprise departments that use electric power as industrial power or energy. It is suitable for measuring the insulation resistance of various insulation materials and transformers, motors, cables and electrical equipment.

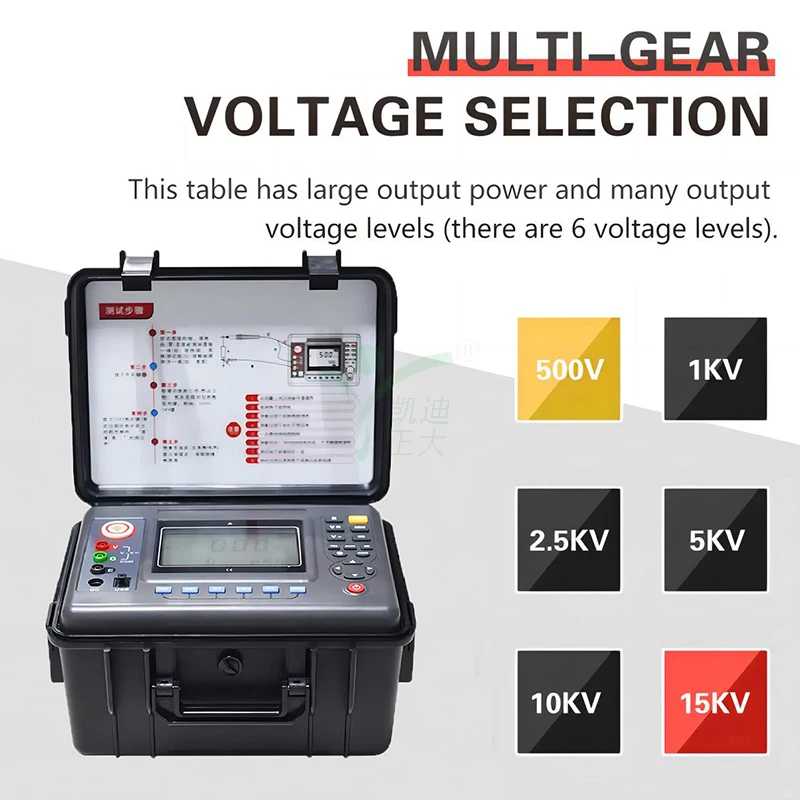

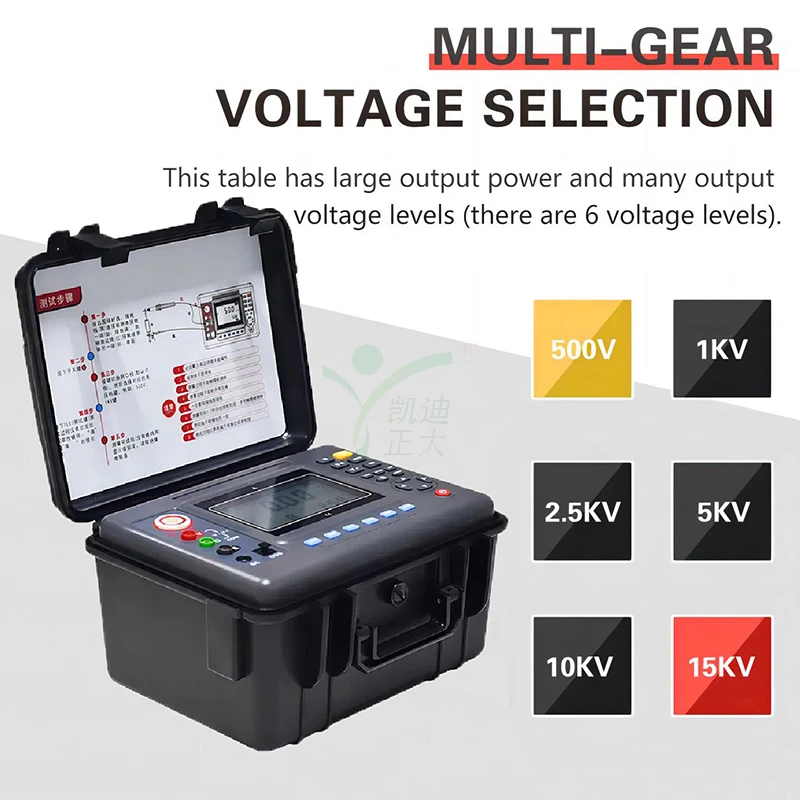

KD50A series digital insulation resistance tester consists of medium and large scale integrated circuits. This meter has large output power and multiple output voltage levels (6 voltage levels). The rated insulation test voltage range is 100V~15kV (the output voltage is determined according to the model), and the step adjustment voltage function can output a variety of different voltage levels (for example, the 15kV model can produce 12KV and other voltage levels, with a wider range of use), and the insulation resistance measurement range is 0.01M Ω~50T Ω (the measurement range is determined according to the model); DC voltage measurement range 0~1000V; AC voltage measurement range 0~750V; DC current measurement range: 0.01nA-6mA; Capacitance measurement range: 10nF~50uF.
KD50A series digital insulation resistance tester also has shock-proof, dust-proof and moisture-proof structure and can adapt to harsh working environment. It is a commonly used instrument for telecommunication, electric power, meteorology, computer room, oil field, electromechanical installation and maintenance, and industrial enterprise departments that use electric power as industrial power or energy. It is suitable for measuring the insulation resistance of various insulation materials and transformers, motors, cables and electrical equipment.
KD50A series digital insulation resistance tester consists of medium and large scale integrated circuits. This meter has large output power and multiple output voltage levels (6 voltage levels). The rated insulation test voltage range is 100V~15kV (the output voltage is determined according to the model), and the step adjustment voltage function can output a variety of different voltage levels (for example, the 15kV model can produce 12KV and other voltage levels, with a wider range of use), and the insulation resistance measurement range is 0.01M Ω~50T Ω (the measurement range is determined according to the model); DC voltage measurement range 0~1000V; AC voltage measurement range 0~750V; DC current measurement range: 0.01nA-6mA; Capacitance measurement range: 10nF~50uF.
Main technical features
Function: insulation resistance test, voltage test, current test, capacitance test
Reference condition: 23 ℃± 5 ℃, below 75% rh
Rated applied voltage (V):
100V； 250V； 500V； 1000V； 2500V； 5000V precision rated voltage × （1±10%）
250V； 500V； 1000V； 2500V； 5000V； 10KV precision rated voltage × （1±10%）
500V； 1000V； 2500V； 5000V； 10KV； 15KV precision rated voltage × （1±10%）
Insulation resistance range (G Ω):
0.01M Ω ～ 10T Ω Accuracy: ± 3% rdg ± 5dgt Resolution: 0.01M Ω
: 0.01M Ω ～ 35T Ω Accuracy: ± 3% rdg ± 5dgt Resolution: 0.01M Ω
: 0.01M Ω ～ 50T Ω Accuracy: ± 3% rdg ± 5dgt Resolution: 0.01M Ω
DC voltage range: 0.1~1000V Accuracy: ± 1.5% rdg ± 3dgt Resolution: 0.1V
AC voltage range: 0.1~750V Accuracy: ± 1.5% rdg ± 3dgt Resolution: 0.1V
DC current measurement: 0.01nA ～ 6mA Accuracy: ± 5.0% rdg ± 5dgt Resolution: 0.01nA
Capacitance measurement: 10nF ～ 50uF Accuracy: ± 10% rdg ± 5dg (resolution: 10nF)
Output short-circuit current: ≥ 6mA
Measurement of absorption ratio and polarization index: yes
Power supply: 12V rechargeable battery
Backlight: controllable gray white screen backlight, suitable for use in the dark field

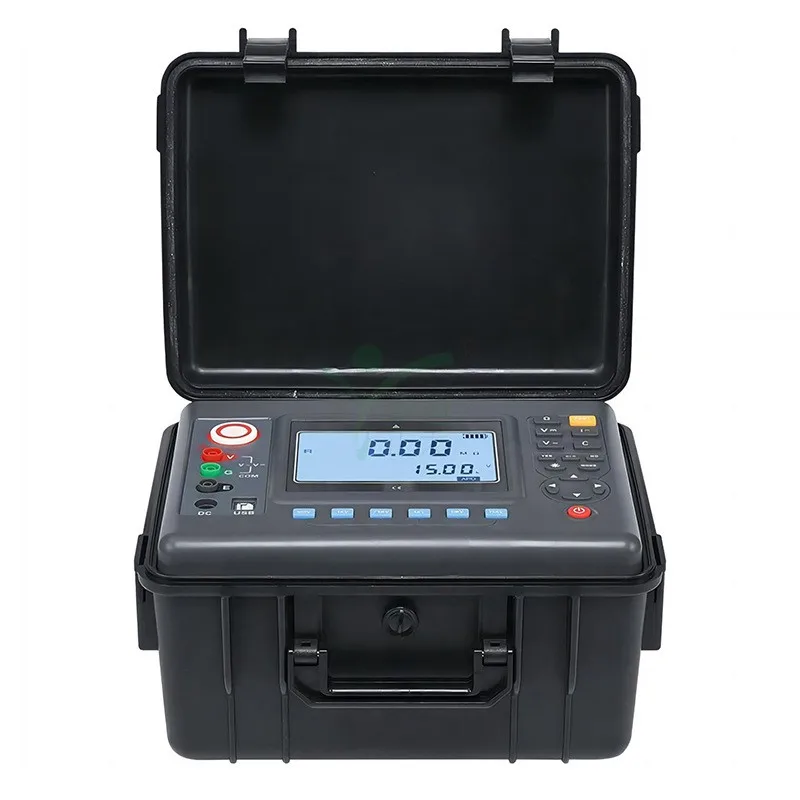

Display mode: 4-bit large LCD display, gray and white screen backlight
LCD display size: 108mm × 65mm

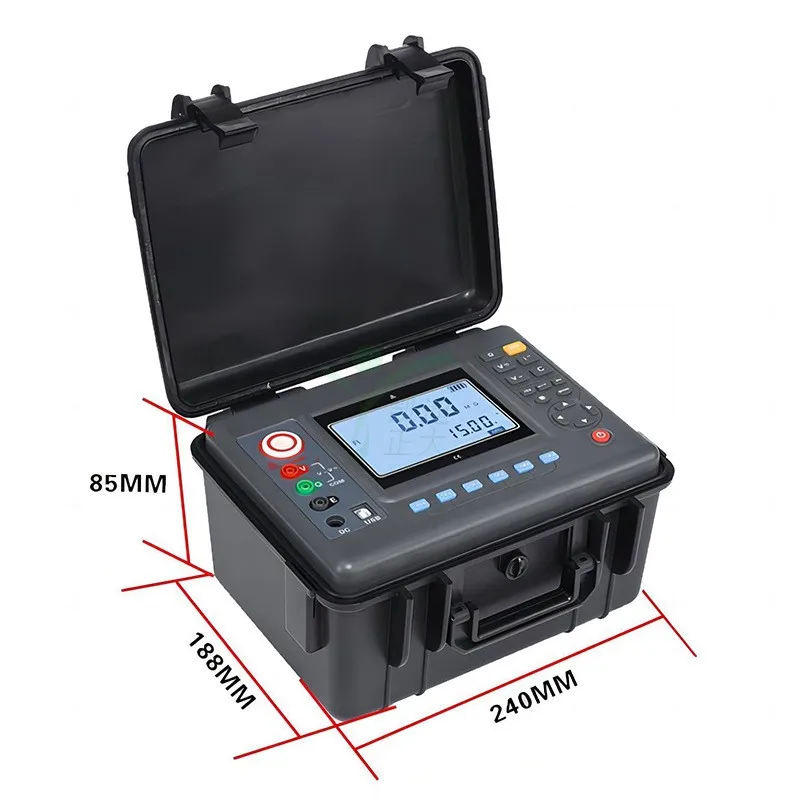

Instrument size: 240mm (length) × 188mm (width) × 85mm high
USB interface: with USB interface, software monitoring, storage data can be uploaded to the computer, save and print
Communication cable: 1 USB communication cable
Test line: high voltage bar red 3m, high voltage test line black 1.5m, green line 1.5m
Data storage: 500 groups, flashing "FULL" symbol indicates that the storage is full
Data lookup: data lookup function: "READ" symbol display
Overflow display: Overrange overflow function: "OL" symbol display
Alarm function: send alarm prompt when the measured value exceeds the alarm setting value
power waste:
Standby: 30mA Max (backlight off)
Turn on backlight: 42mA Max
Measurement: 200mA Max (backlight off)
Instrument mass: 2340g (including battery)
Battery voltage: the battery voltage is insufficient, and the low power symbol "" is displayed
Automatic shutdown: the instrument will be shut down after about 15 minutes without operation
Insulation resistance: ≥ 50M Ω (between measuring line and shell)
Withstand voltage: AC3kV/50Hz 1min
Operating temperature and humidity: - 10 ℃~+50 ℃ ＜ 85% RH
Storage temperature and humidity: - 15 ℃~+55 ℃ ＜ 90% RH
Applicable safety regulations: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
Packing list

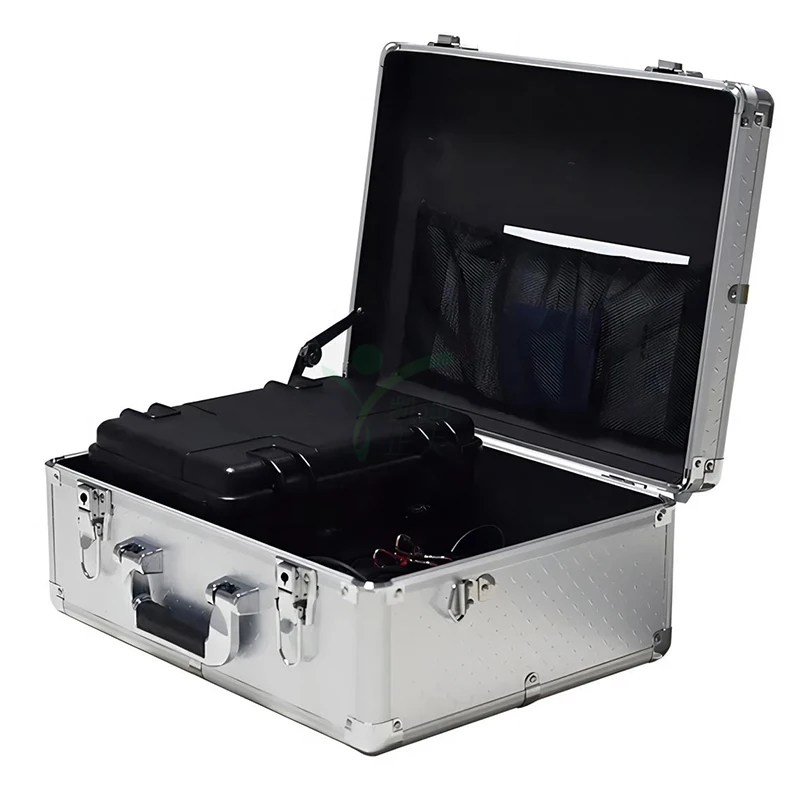

Instrument: 1 set
High pressure rod: 1 red
High voltage test line: 2 (1 black, 1 green)
Monitoring software CD: 1 copy
USB communication cable: 1
Charger: 1
Instructions and warranty certificate: 1 set
Instrument box: 1
Reference condition: 23 ℃± 5 ℃, below 75% rh
Rated applied voltage (V):
100V； 250V； 500V； 1000V； 2500V； 5000V precision rated voltage × （1±10%）
250V； 500V； 1000V； 2500V； 5000V； 10KV precision rated voltage × （1±10%）
500V； 1000V； 2500V； 5000V； 10KV； 15KV precision rated voltage × （1±10%）
Insulation resistance range (G Ω):
0.01M Ω ～ 10T Ω Accuracy: ± 3% rdg ± 5dgt Resolution: 0.01M Ω
: 0.01M Ω ～ 35T Ω Accuracy: ± 3% rdg ± 5dgt Resolution: 0.01M Ω
: 0.01M Ω ～ 50T Ω Accuracy: ± 3% rdg ± 5dgt Resolution: 0.01M Ω
DC voltage range: 0.1~1000V Accuracy: ± 1.5% rdg ± 3dgt Resolution: 0.1V
AC voltage range: 0.1~750V Accuracy: ± 1.5% rdg ± 3dgt Resolution: 0.1V
DC current measurement: 0.01nA ～ 6mA Accuracy: ± 5.0% rdg ± 5dgt Resolution: 0.01nA
Capacitance measurement: 10nF ～ 50uF Accuracy: ± 10% rdg ± 5dg (resolution: 10nF)
Output short-circuit current: ≥ 6mA
Measurement of absorption ratio and polarization index: yes
Power supply: 12V rechargeable battery
Backlight: controllable gray white screen backlight, suitable for use in the dark field
Display mode: 4-bit large LCD display, gray and white screen backlight
LCD display size: 108mm × 65mm
Instrument size: 240mm (length) × 188mm (width) × 85mm high
USB interface: with USB interface, software monitoring, storage data can be uploaded to the computer, save and print
Communication cable: 1 USB communication cable
Test line: high voltage bar red 3m, high voltage test line black 1.5m, green line 1.5m
Data storage: 500 groups, flashing "FULL" symbol indicates that the storage is full
Data lookup: data lookup function: "READ" symbol display
Overflow display: Overrange overflow function: "OL" symbol display
Alarm function: send alarm prompt when the measured value exceeds the alarm setting value
power waste:
Standby: 30mA Max (backlight off)
Turn on backlight: 42mA Max
Measurement: 200mA Max (backlight off)
Instrument mass: 2340g (including battery)
Battery voltage: the battery voltage is insufficient, and the low power symbol "" is displayed
Automatic shutdown: the instrument will be shut down after about 15 minutes without operation
Insulation resistance: ≥ 50M Ω (between measuring line and shell)
Withstand voltage: AC3kV/50Hz 1min
Operating temperature and humidity: - 10 ℃~+50 ℃ ＜ 85% RH
Storage temperature and humidity: - 15 ℃~+55 ℃ ＜ 90% RH
Applicable safety regulations: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
Packing list
Instrument: 1 set
High pressure rod: 1 red
High voltage test line: 2 (1 black, 1 green)
Monitoring software CD: 1 copy
USB communication cable: 1
Charger: 1
Instructions and warranty certificate: 1 set
Instrument box: 1
