plywood veneer door laminate hydraulic hot press machine for wood
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600901404048):
Product Overview
Description

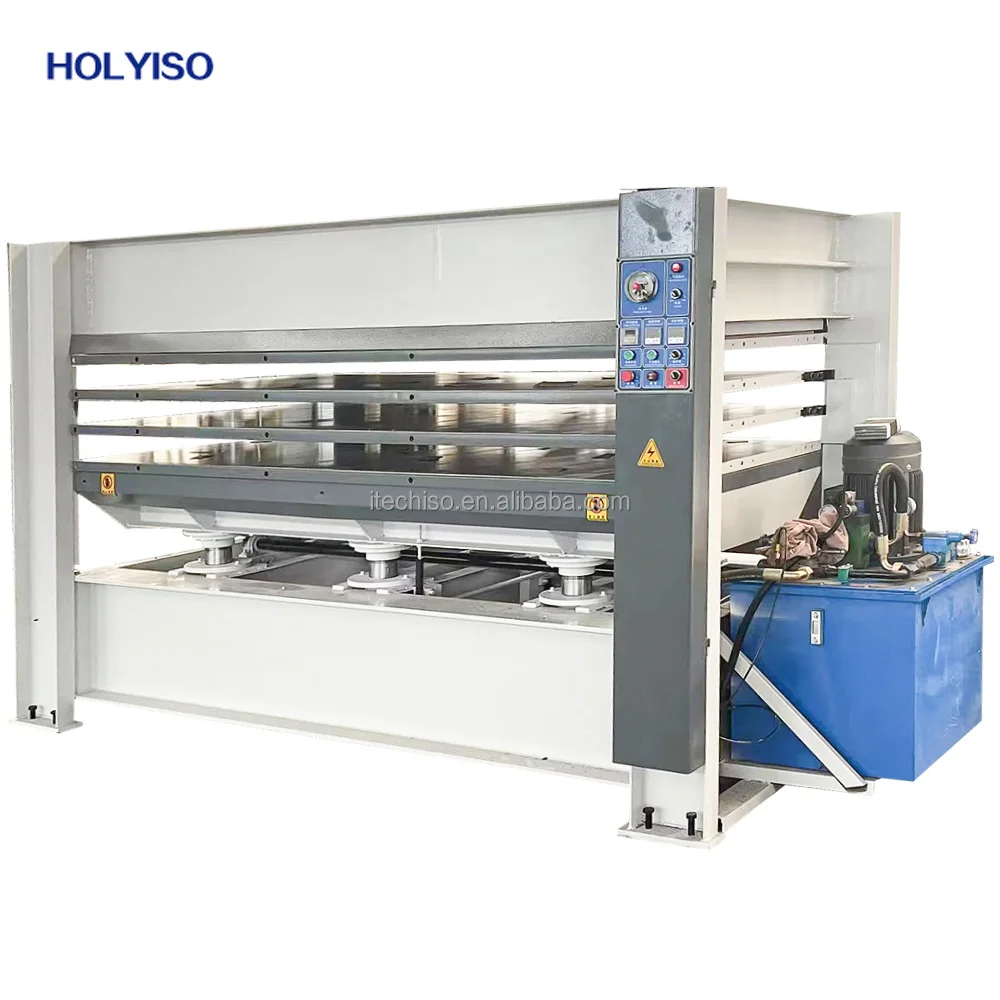

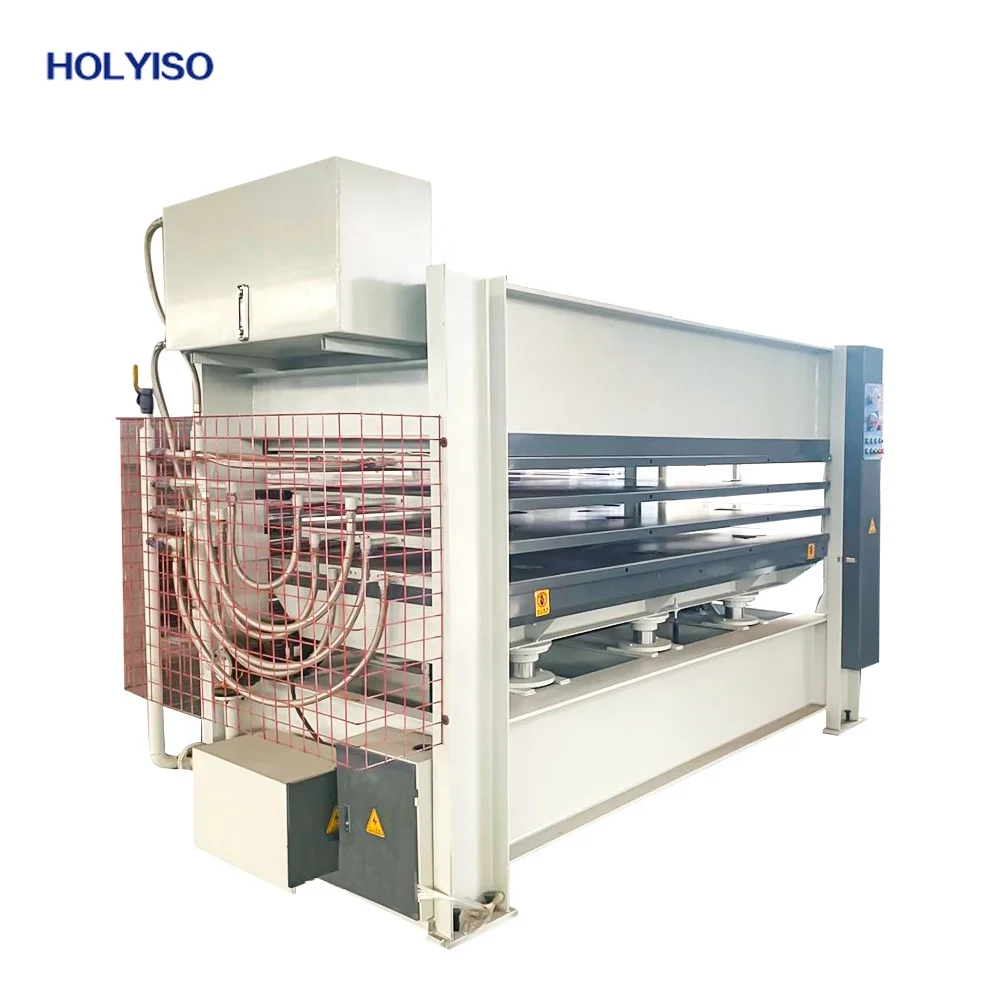

Hot Press Machine
Application:
Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as
wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
Features:
1.PLC programmable control system so that it smooth,rapid closure,stable,effective and pre-loading

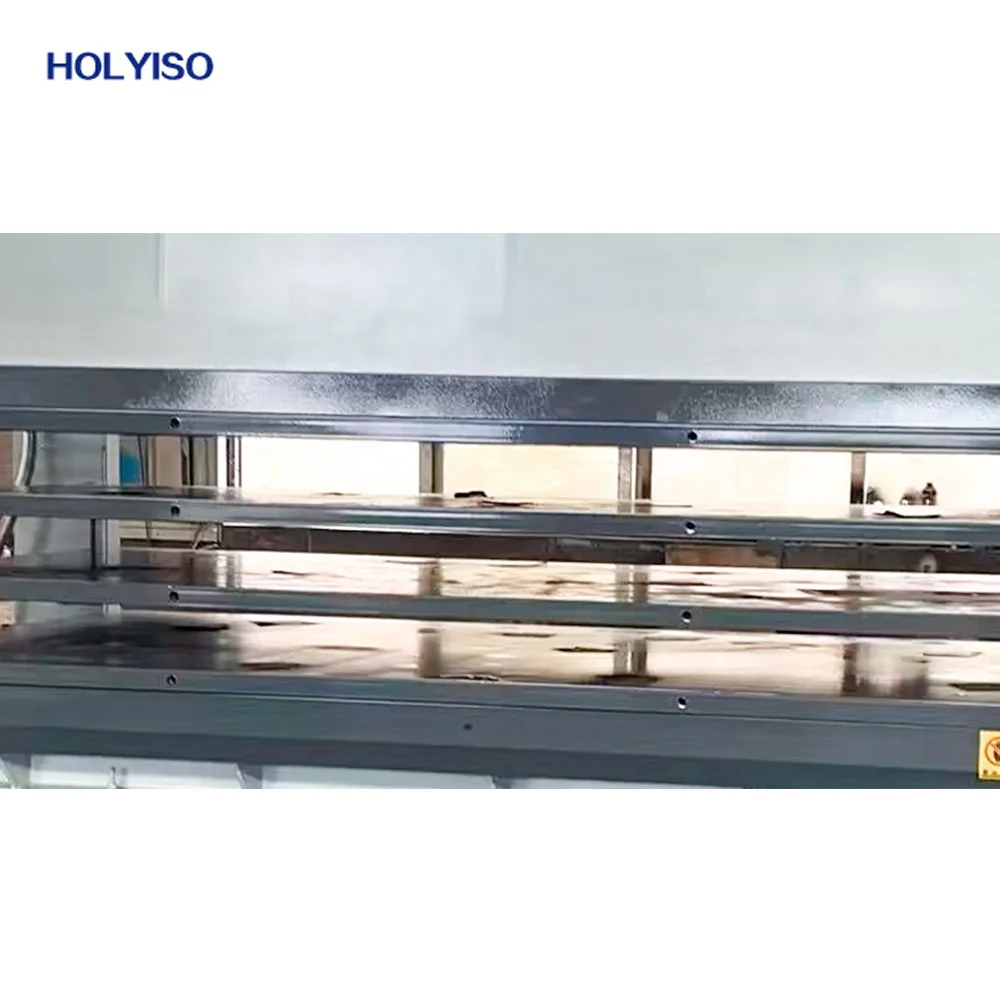

2.Hot platen:It is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
3.It is manufactured on special worktable,so as to keep the hot platen easy to operate.
The electric oil heater is environmental protection instead of using coal or wood as it’s fuel.
4.Hydraulic system:It is “Triple Filter”and it has excellent oil pump and electric motor.
It uses right-angled one-way valve so that it can work smoothly.The pressure is adjustable.
5.Control system:Microcomputer ,Manually/Automatic controlled.
Advantage:
1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.
3.Cylinder:It is worked through excellent CNC precision machine tool.
4.It uses high quality oil envelop so as to avoid of oil leaking.
Popular Model | AY214×8/5(5)H1RC | AY214×8/10(1)H1RC | AY214×8/12(3)H1RC | AY214*8/16(5)HRC-B1 | ||||
Working pressure | 50T | 100T | 120T | 160T | ||||
Working layers | 5 | 1 | 3 | 5 | ||||
Number of hot plates | 6-2500*1300*42mm | 2-2500*1300*42mm | 4-2500*1300*42mm | 6-2500*1300*42mm | ||||
Unit surface pressure | 1.53kgf/cm2 | 3.07kgf/cm2 | 3.69kgf/cm2 | 4.92kgf/cm2 | ||||
Number and diameter of cylinders | 4pcs/100mm | 6pcs/85mm | 6pcs/100mm | 8pcs/100mm | ||||
Closing speed | 40mm/s | 40mm/s | 40mm/s | 40mm/s | ||||
Heating method and medium | Electric heating heat transfer oil | Electric heating heat transfer oil | Electric heating heat transfer oil | Electric heating heat transfer oil | ||||
Platen opening way | Electric | Electric | Electric | Electric | ||||
Heat plate spacing | 100mm | 100mm | 100mm | 100mm | ||||
Rated oil pressure | 26MPA | 25MPA | 25MPA | 26MPA | ||||
Cylinder stroke | 500mm | 300mm | 300mm | 500mm | ||||
Installed power | Hydraulic power 7.5 kw / heating power 54kw / heat conduction oil pump 2.2kw | Hydraulic power 7.5 kw / heating power 24kw / heat conduction oil pump 1.5kw | Hydraulic power 7.5 kw / heating power 36kw / heat conduction oil pump 1.5kw | Hydraulic power 7.5 kw / heating power 54kw / heat conduction oil pump 2.2kw | ||||
Maximum temperature | 200℃ | 200℃ | 200℃ | 200℃ | ||||
Overall dimension | 3800*1500*2350mm | 3800*1500*1800mm | 3800*1600*2100mm | 3800*1600*2350mm | ||||
Weight | 10000kg | 5500kg | 7400kg | 10000kg | ||||
* Machine can be customized according to your needs * | ||||||||
Product Details

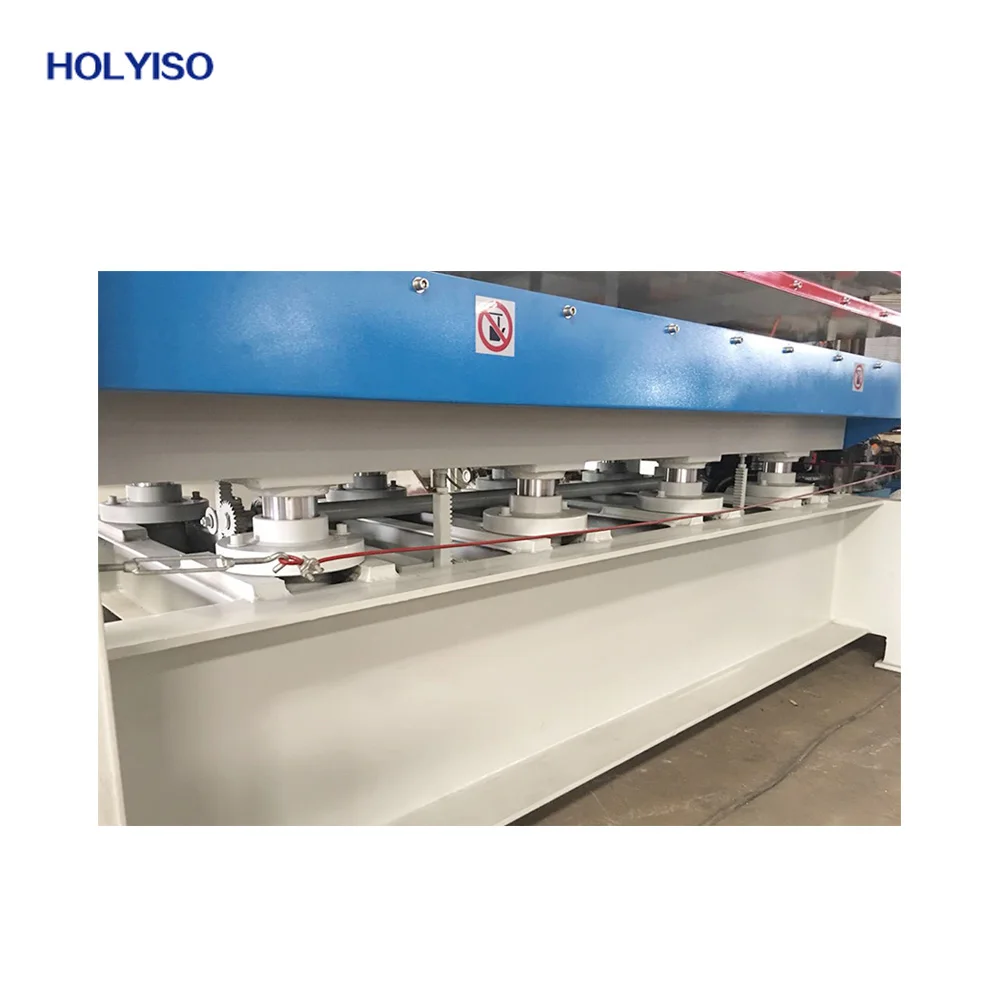

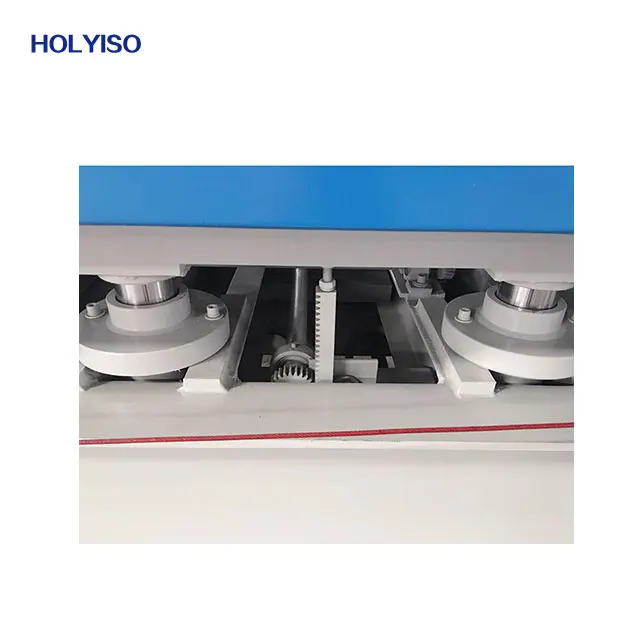

Chain Drive
Make the machine movement more stable and quickly

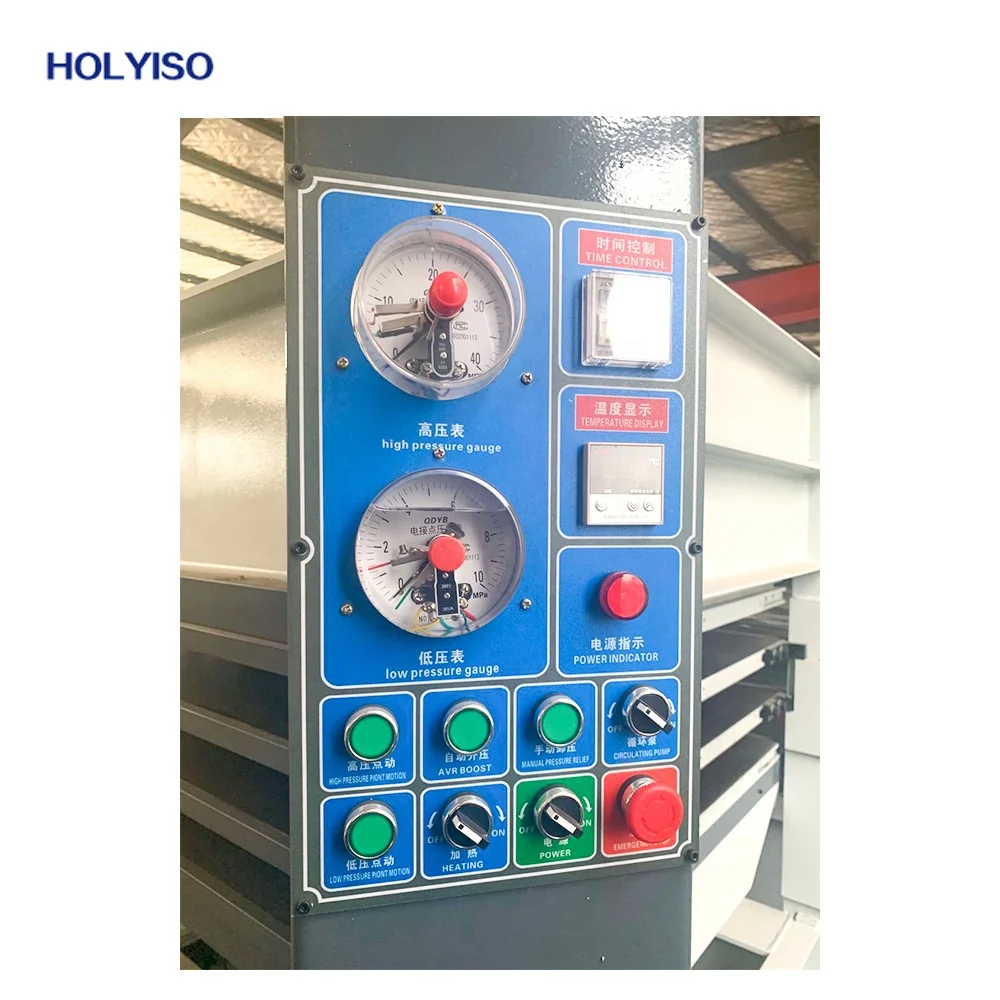

Humanized control panel
Easily adjust the machine up and down, operation more convenient
Hydraulic Pump
Reduce noise, low energy consumption, high speed
Application:
Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneen.

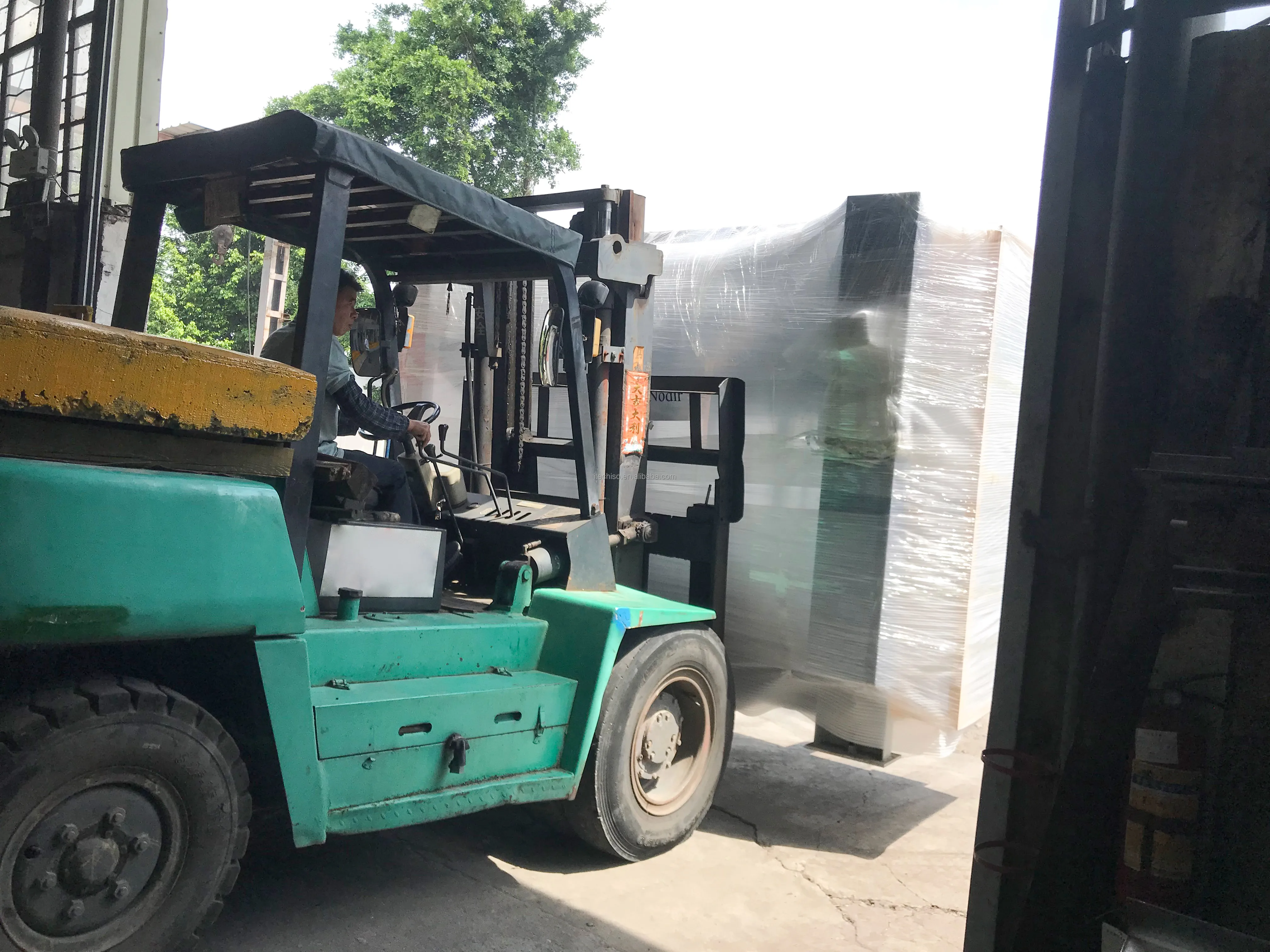

Packing & Shiping
1.Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.

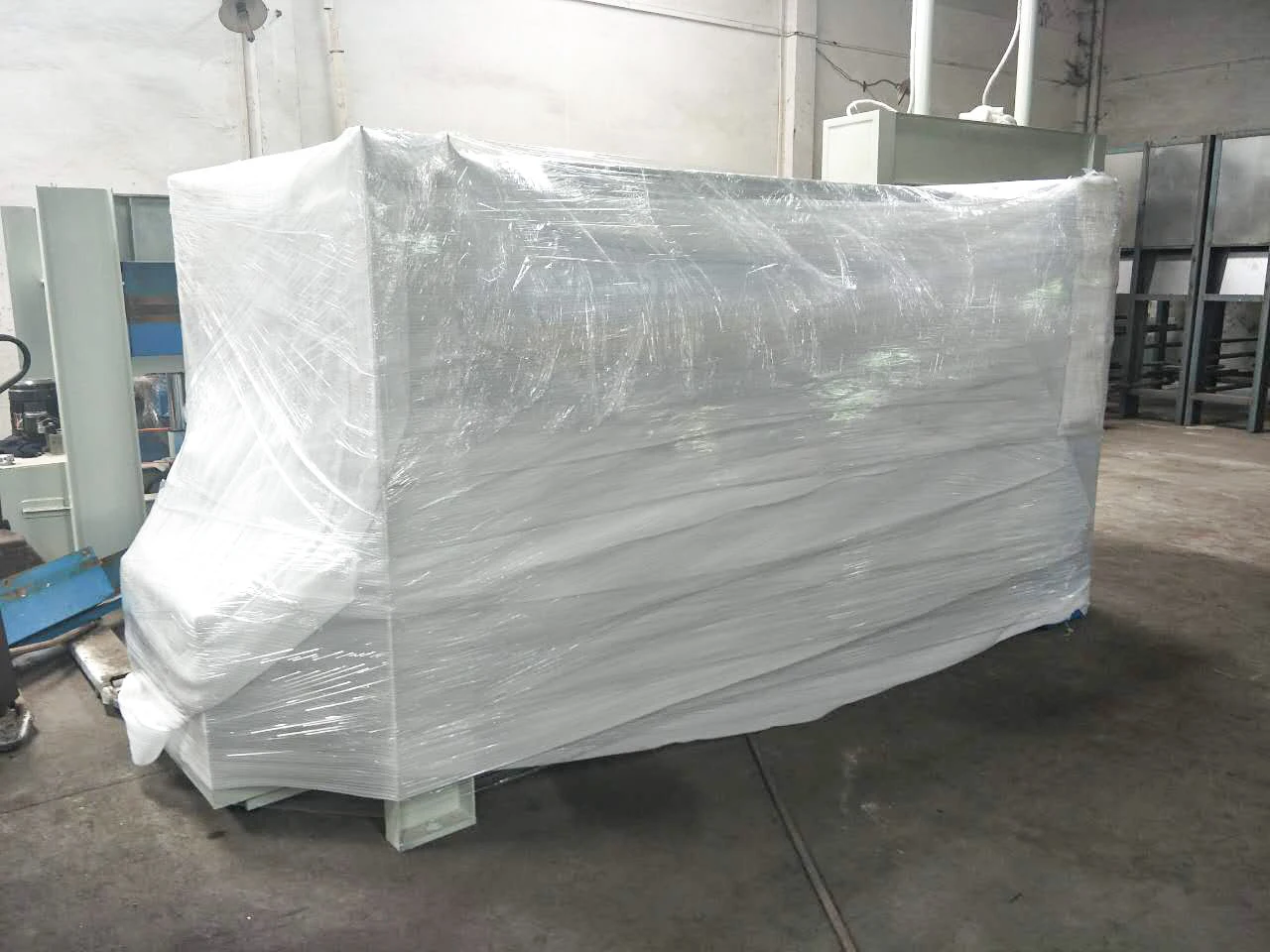

2.Package:

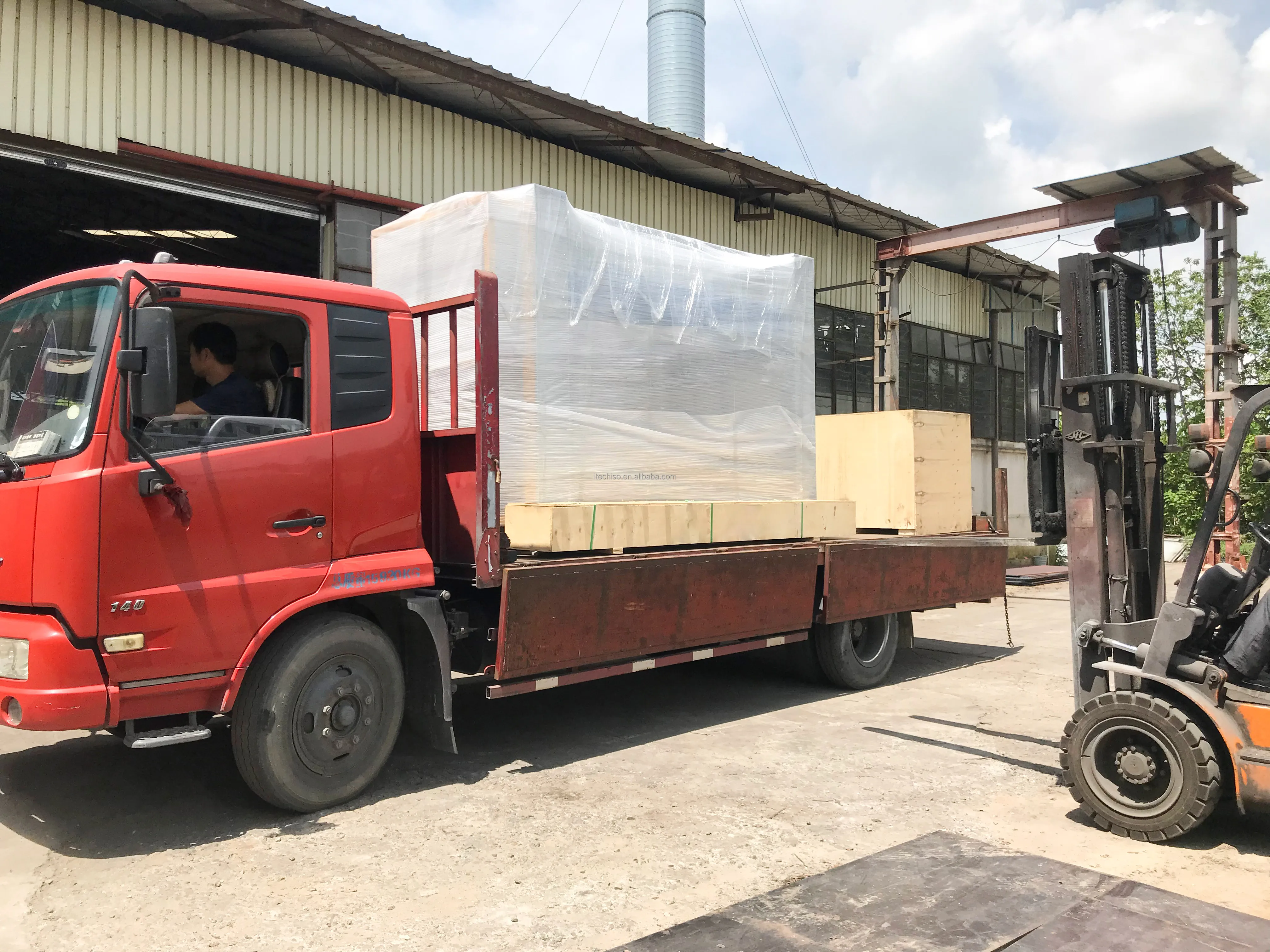

We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Recommend Products
Company Profile
FAQ
1. Do you provide installation services?
Our machine is almost assembled before it is loaded into the container. It is very easy for installation in your workshop. We provide free video guidance and English manuals. Engineers can be sent to service in site if the buyer request.
Our machine is almost assembled before it is loaded into the container. It is very easy for installation in your workshop. We provide free video guidance and English manuals. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?
Most spare parts are in stock. The spare parts will be sent directly from our warehouse to the buyer at the original price.
3. How soon can we get replacement parts?
Common spare parts can be delivered by express delivery within one week. Some parts can be purchased locally.
4. What technical support do you provide?
(1). Provide 24/7 technical support via phone, email, WhatsApp/Skype or remote control.
(2). English version manual and operation video.
(3). Engineer available to service machinery overseas.
Most spare parts are in stock. The spare parts will be sent directly from our warehouse to the buyer at the original price.
3. How soon can we get replacement parts?
Common spare parts can be delivered by express delivery within one week. Some parts can be purchased locally.
4. What technical support do you provide?
(1). Provide 24/7 technical support via phone, email, WhatsApp/Skype or remote control.
(2). English version manual and operation video.
(3). Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 70 countries around the world, such as Russia, Uzbekistan, the United States, Canada, Argentina, Colombia, Mexico, Peru, Chile, Ecuador, Romania, Vietnam, the Philippines, Australia, Malaysia, Thailand, Singapore, South Korea, Indonesia etc.
6. Can you customized the machine?
Our machines can be customized according to the buyer's requirements.
7. What other machines do you provide?
We provide buyers with one-stop production line services for woodworking machinery. Other types of woodworking machinery can also be provided, such as double-side planer, four-side planer, finger jointer machine, sanding machine, horizontal band saw, etc.
8. Can you set the system to our language?
Our system supports common languages such as Chinese, English, Russian, Spanish, French, German, Vietnamese, etc.
6. Can you customized the machine?
Our machines can be customized according to the buyer's requirements.
7. What other machines do you provide?
We provide buyers with one-stop production line services for woodworking machinery. Other types of woodworking machinery can also be provided, such as double-side planer, four-side planer, finger jointer machine, sanding machine, horizontal band saw, etc.
8. Can you set the system to our language?
Our system supports common languages such as Chinese, English, Russian, Spanish, French, German, Vietnamese, etc.
