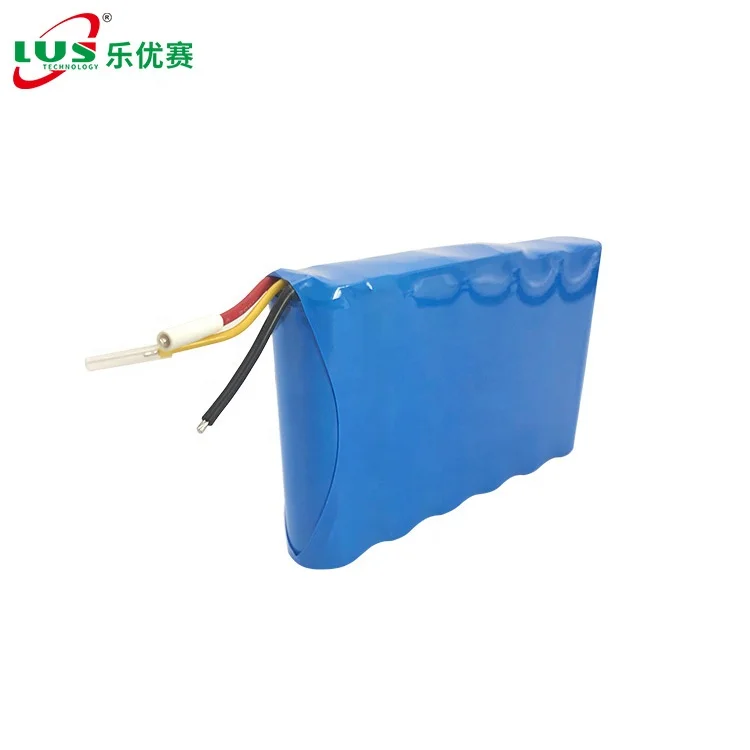

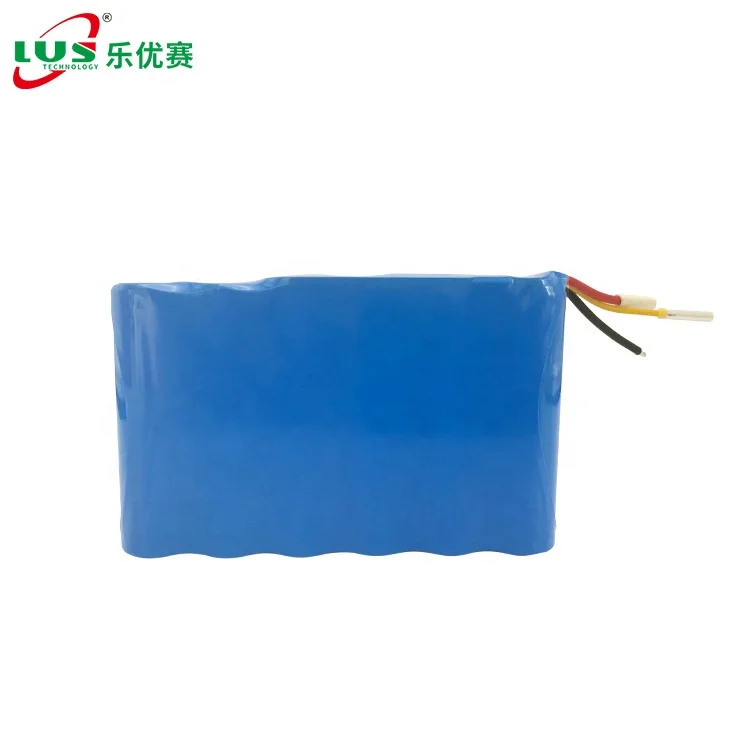

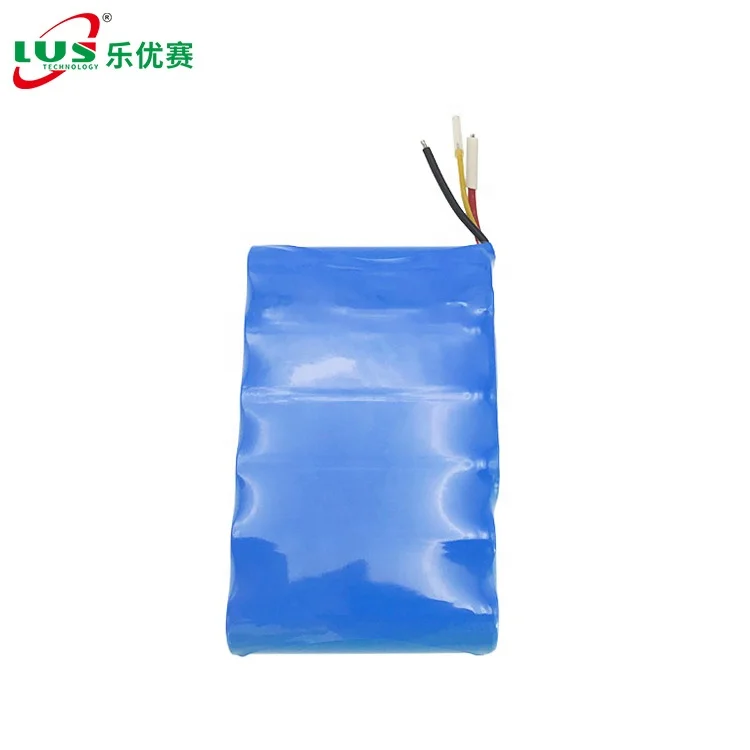

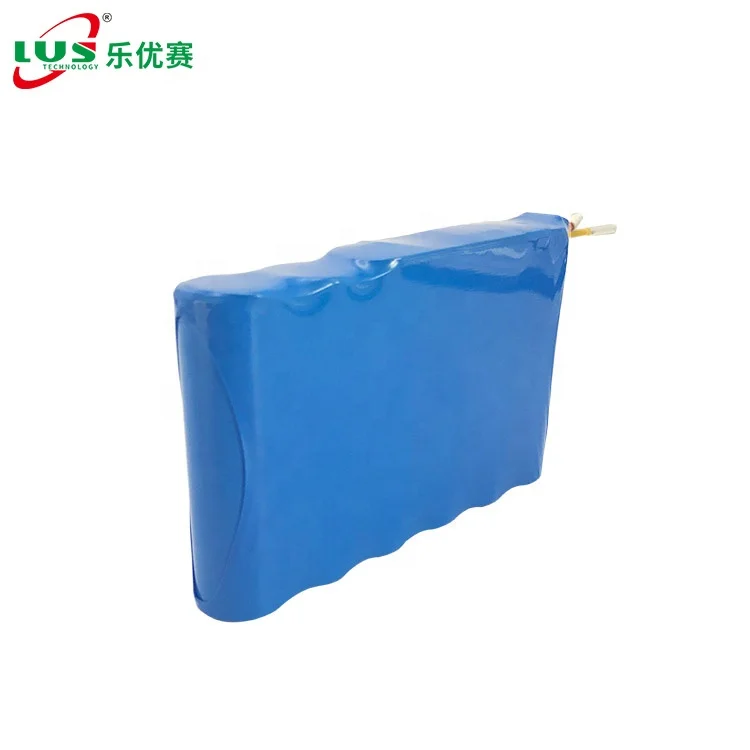

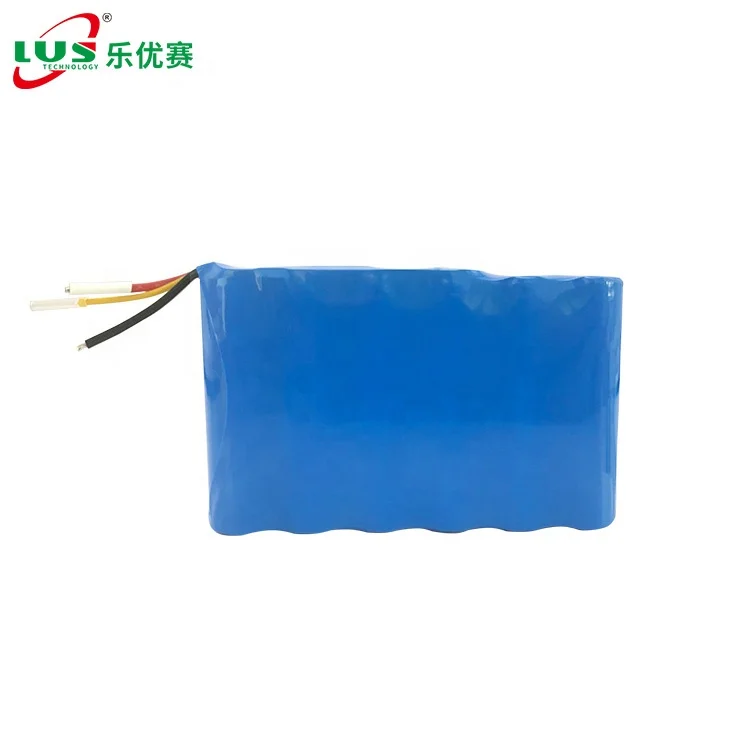

1S6P li-ion pack 18650 Lithium ion battery 1S6P 3.7V 15.6Ah 57.72Wh Lithium-ion Battery Pack Customized
Lithium Ion Battery
Lithium ion battery 1S6P-18650 3.7V 15.6Ah 57.72Wh
1S6P 3.7V15.6Ah 18650 lithium ion Battery Pack for power supply, using 18650 cell, 1S6P assembly, widely use for
*Camping light,
*Portable devices,
*Emergency light,
*golf cart, wheelchair,
*LED light,
*Lawn Lamp.
| Description | 1S6P 3.7V 15.6Ah 57.72Wh 18650 Lithium ion battery |
| Battery Type | Li ion 18650 cell |
| Typical Capacity | 15.6Ah |
| Typical Voltage | 3.7V |
| End of Charge Voltage | 4.2V |
| Charge Current | 0.2C |
| Charging time | 5-6 Hours |
| Over-Charge Voltage Protection cell | 4.25V |
| Max continuous charge current | 3.3A |
| Maximum Continuous Discharging Current | 12A |
Lithium ion battery
| Cell model | Voltage /V | Capacity /mAh | Capacity /mAh | Charge current | Discharge current | Plus current | Resistance /mΩ | Size/mm | Weight /g | Power Wh/Kg | |||
| Standard | Max. | Standard | Rapid | Max. | |||||||||
| IFR18650-1600mAh | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C | 10A,5S | ≤40 | φ18.45*65.3 | 39.5 | 130 |
| IFR18650-1800mAh- | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C | 10A,5S | ≤40 | φ18.45*65.3 | 41.5 | 139 |
| IFR26650-3200mAh- | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C | 15A,5S | ≤30 | φ26.2*65.6 | 84 | 122 |
| IFR26650-3600mAh- | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C | 20A,5S | ≤25 | φ26.2*65.6 | 85 | 136 |
| IFR26650-3800mAh- | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C | 20A,5S | ≤25 | φ26.2*65.6 | 87.5 | 139 |
| IFR26650-4000mAh- | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C | 20A,5S | ≤25 | φ26.2*65.6 | 87.5 | 146 |
| IFRP18650-1100mAh- | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C | 40A,10S | ≤18 | φ18.45*65.3 | 39.5 | 89 |
| IFRP26650-3000mAh- | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C | 45A,5S | ≤15 | φ26.2*65.6 | 81.5 | 118 |
| INR18650-2200mAh- | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C | 10A,5S | ≤35 | φ18.45*65.3 | 42.5 | 186 |
| INR18650-2600mAh- | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C | 8A,5S | ≤35 | φ18.45*65.3 | 45 | 208 |
| INR26650-5000mAh- | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C | 15A,5S | ≤30 | φ26.2*65.6 | 92.5 | 195 |
Cost Performance
♦ Long-run Cost: LiFePO4 battery could work at 60°c, with long life 5-10 years.
♦ Smaller Space: 1/3 of the lead acid battery.
♦ Low Maintenance Cost: maintenance free, centralized monitoring and module installatin also to reduce cost for transportation.
♦ Safety Cost: stable discharge platform to avoid euipmet exception.
♦ Save Electricity Power: with same capacity, LiFePO4 battery is more powerful hank lead acid battery, and could support longer.
Outstanding Performance of BMS
Self-Checking
Defect Alerting Function
Capacity (SOC) Calculating
High Voltage Leakage Warning
Charging and Discharging Management
Collection of Voltage, Current and Temperature
Over Current, Over Volt, Temperature Protection
Communication: display / car can bus communication, data transferring
Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
Intellectual Robots
Power tools: electric drills, toys
Energy Storage
Solar-Wind Power System
City Grid (On/Off)
Community and Family
Back-up System and UPS
Telcom Base, CATV system, Computer Server Center, Medical Instrumnt
Other Applications
Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Cells part number
18650 26650 18500 18350 17500 17650 16340 14500 14430 10440 10280 20700 21700
OEM lithium battery packs
Li ion Application
Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, flashlight, high-end flashlight, high power flashlight, brightflashlight;
Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight;
Customer electronics: MPS, Tablet PC. laptop, Blue tooth earphone, power bank, portable DVD player, speaker, microphone, sound equipments, audio, Digital camera, vidican;
Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes, electric blanket;
Medical devices;
Instruments and meters: water meter, gas meter;
Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor;
Power tools: electric drill, mower;
UPS, GPS;
Customized Battery Pack Solutions for windly range.
Hot model:
Why choose us
1) Comprehensive
One-stop service of R&D, production, and marketing of all kinds batteries and battery packs.
High production capability can keep stable and reliable supply to enhance the competitive of your market.
Products cover the most complete category of batteries: Branded battery, 3V lithium primary battery, Li-ion battery & pack, Lithium polymer battery, Ni-MH battery& pack, Ni-Cd battery& pack, Lithium thionyl chloride battery, Li-FePO4 battery, Custom/OEM button battery,Battery holder, Battery charger,etc.
2. Professional
Professional R&D team aims to providing the most creative and advanced products to facilitate your business development.
With strong technical strength; Sophisticated production equipment; Rich-experienced sales and after-sales team.
3. Fast
Quick delivery: 3 -7 days for samples; 15-20 days for batch goods.
Prompt direct-shipping or drop-shipping to your customers.
4. Price
Affordable and competitive price for each product with the highest quality.
5. Quality
Complete and strict product testing is accordance with international test standard.
100% tested and inspection before shipping to make no unqualified goods in order to reduce your risk.
Talent in green products with environmental friendly chemistry.
6. Reputation
Products are highly appreciated and commented by our customers from all over the world.
7. Service
Support multiple payment way,such as L/C,T/T,Western Union,Paypal,etc.
OEM/ODM service and customize design to meet customers' special demands. Your logo and brand can be added as your request.
We will definitely provide our full support to help you achieve your business goals with our highest quality, best price, fast delivery and sincerest service.
Sincerely looking forward to from you. Many thanks!
