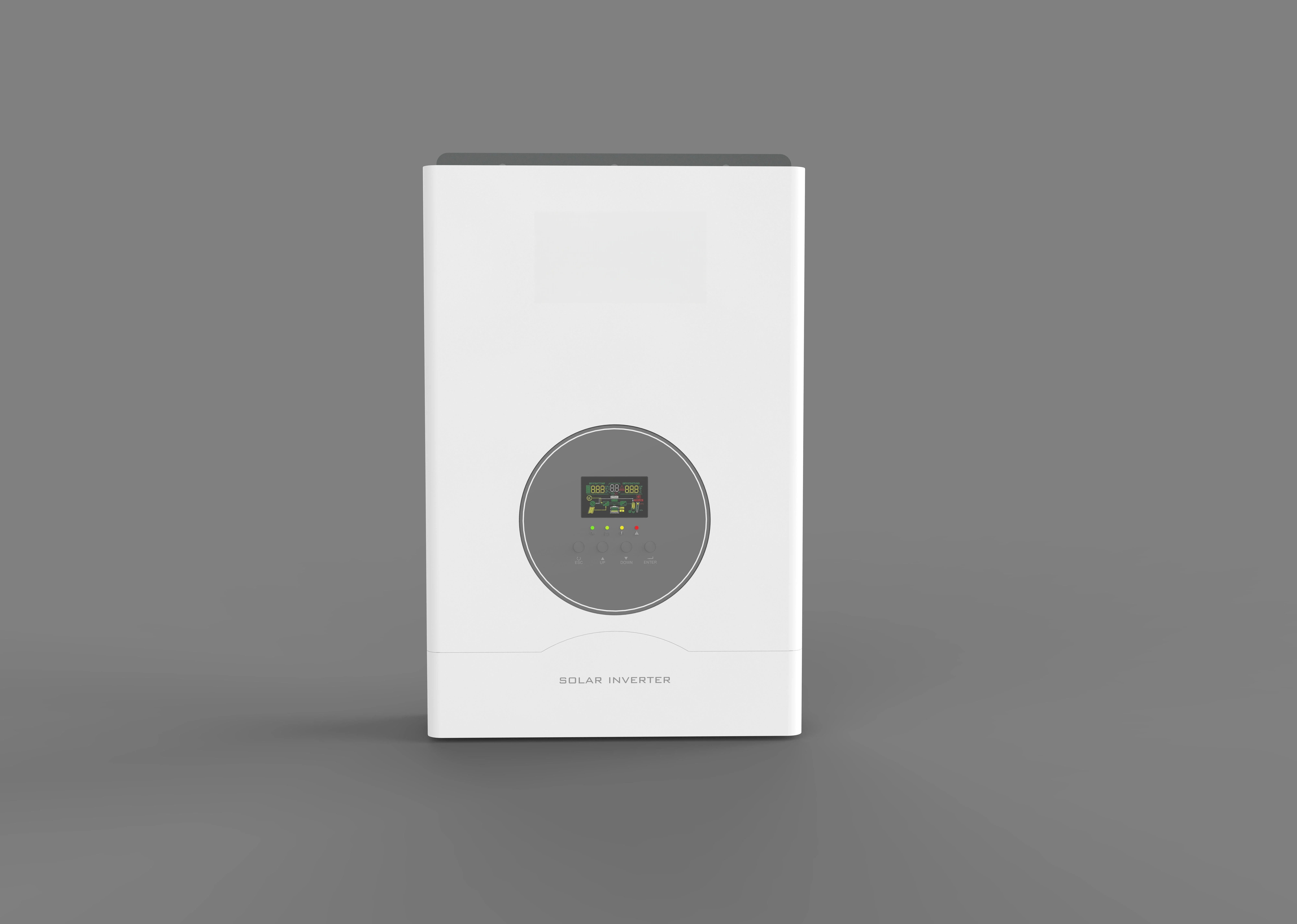

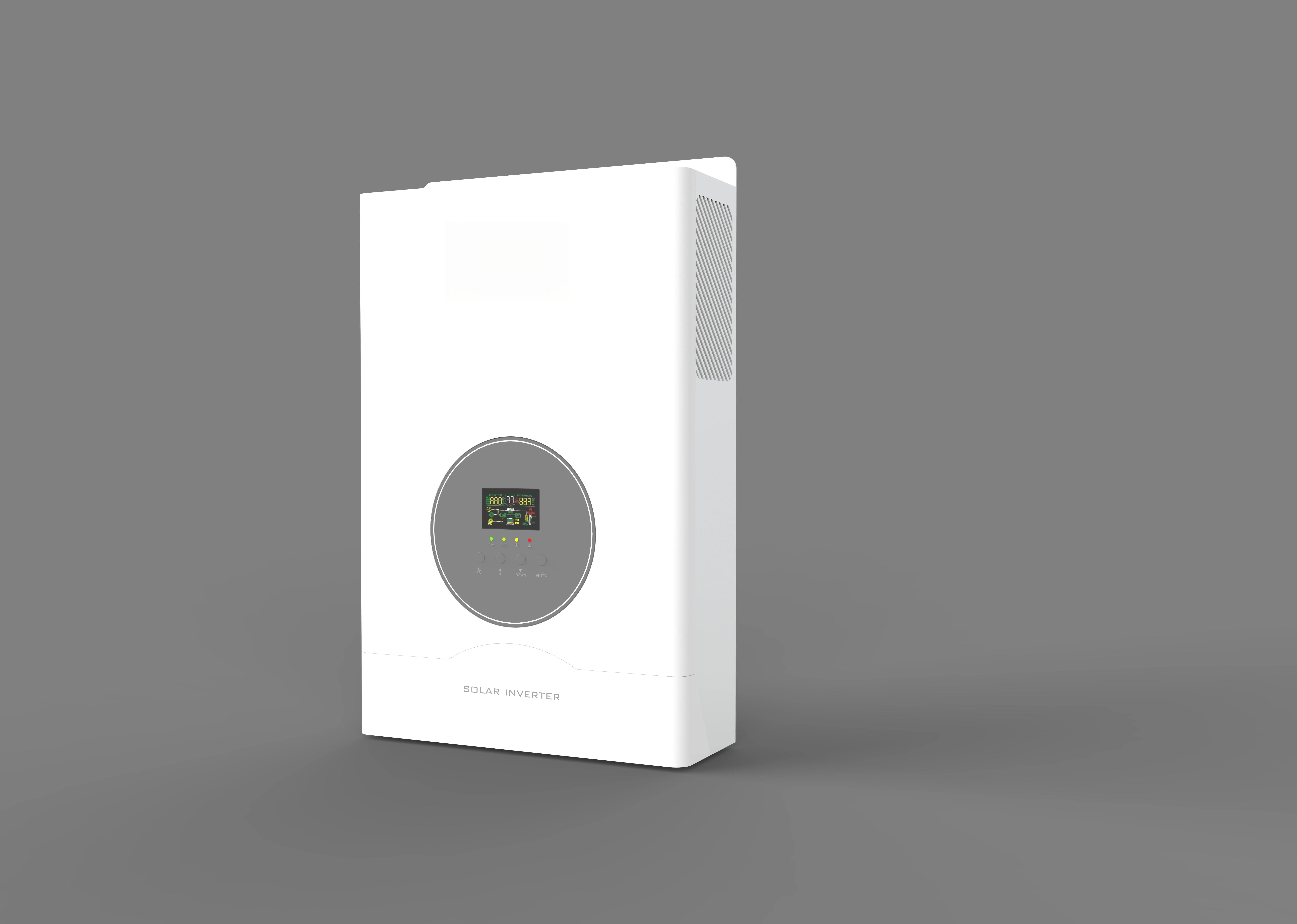

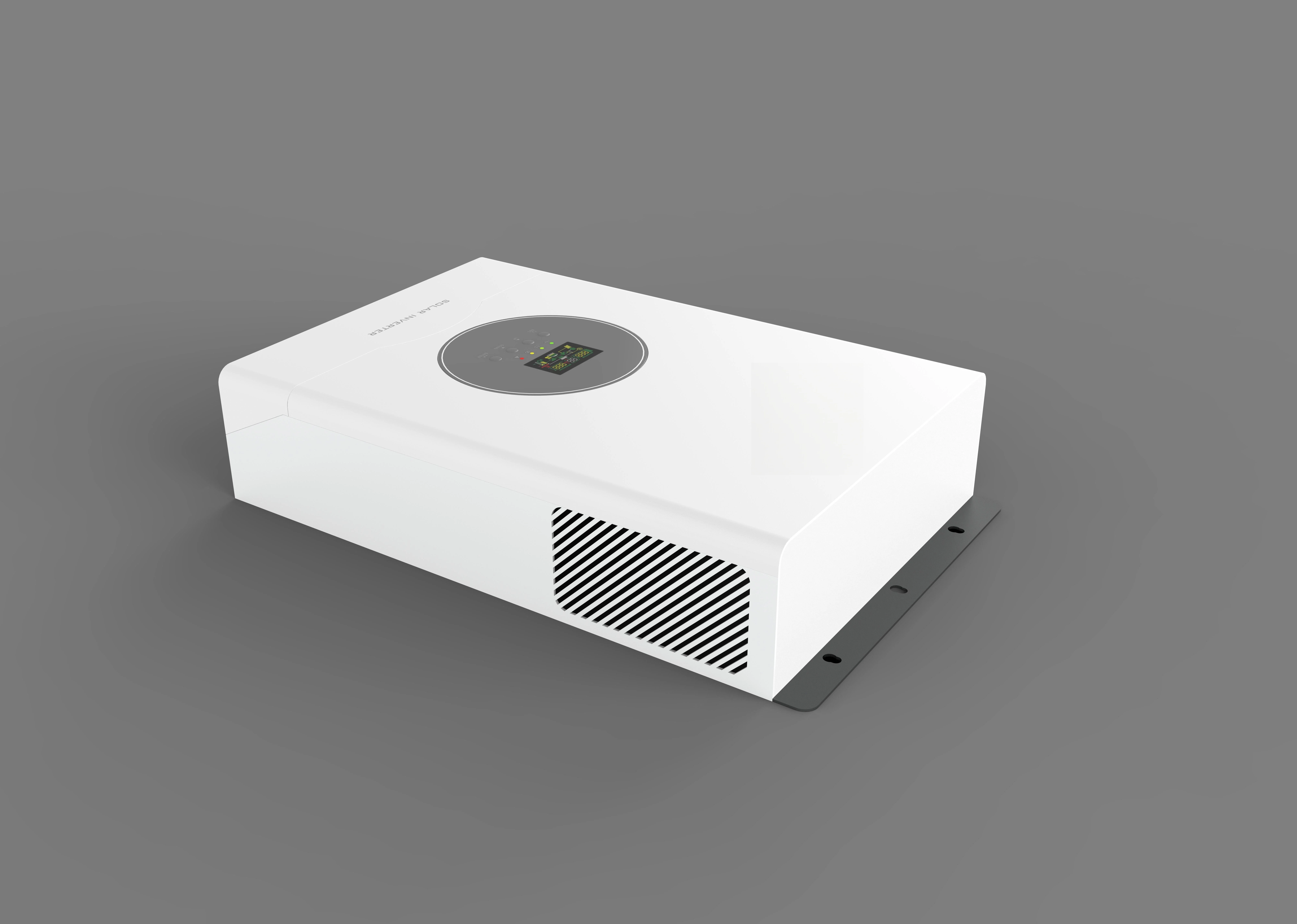

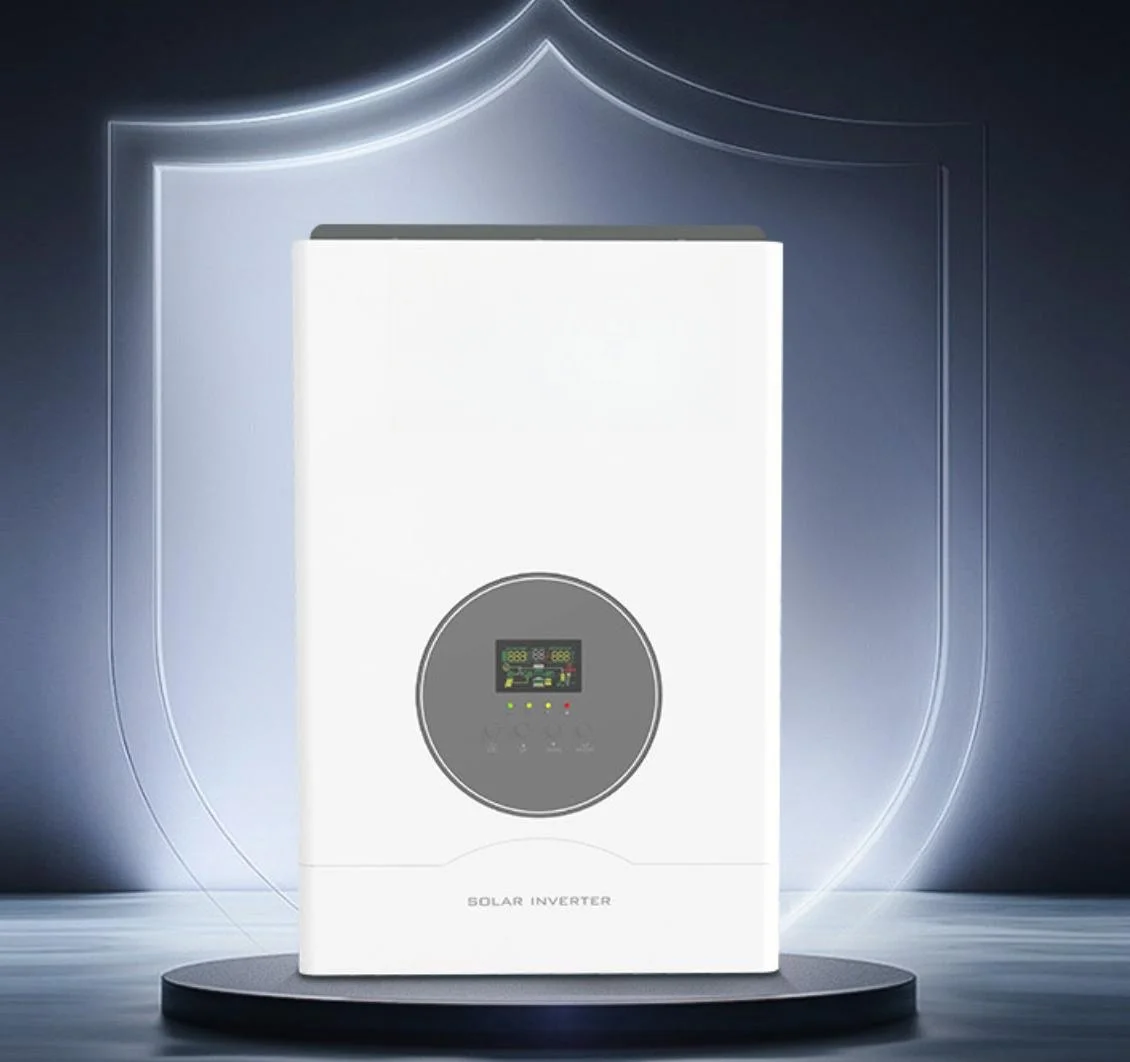

China intelligent Manufacturing 300W 500W 800W 1200W 1600W 2400W Hybrid Solar Inverter 2000w hybrid inverthybrid solar inverter
- Category: >>>
- Supplier: Wuxi Inki New Energy Co. Ltd.
Share on (1600901540404):
Product Overview
Description
Model | UD0512R | UD0812R | UD1012R | UD1512/24R | UD1012/24 | UD1512/24 | UD2012/24 | UD3024/48 | UD5024/48 | ||||||||
AC Input voltage | 220VAC (standard) | 220VAC (standard) | |||||||||||||||
范围Input voltage range | 154-275VAC±5V(Nor Model) | 154-264VAC±3V(Nor Model)185-264VAC±3V(UPS model) 175-285VAC±3V(AVR Type) | |||||||||||||||
Input frequency | 50/60Hz±5% | 50/60Hz±5% | |||||||||||||||
功率Out put power | 500VA 300W | 800VA 500W | 1000VA 800W | 1500VA 1200W | 1000VA 800W | 1500VA 1200W | 2000VA 1600W | 3000VA 2400W | 5000VA 4000W | ||||||||
AC model output Voltage | With AVR function 220V±10% | The output voltage under the mains is the same as the input voltage (with AVR function 220V±10%) | |||||||||||||||
AC model outout frequency | The output frequency under the mains is the same as the input frequency | The output frequency under the mains is the same as the inputfrequency | |||||||||||||||
Battery model output voltage | 220VAC±3% | 220VAC±10% | |||||||||||||||
Battery model output frequency | 50HZ or 60HZ±l% | 50HZ or 60HZ±l% | |||||||||||||||
Battery model output wave | 正弦波Pure sine wave | 正弦波Pure sine wave | |||||||||||||||
Battery type | External lead-acid battery,Gel battery, water battery or Lithium battery | External lead-acid battery.Gel battery, water battery or Lithium battery | |||||||||||||||
Battery voltage | 12VDC | 12VDC | 12VDC | 12/24VDC | 12/24VDC | 12/24VDC | 12/24VDC | 24/48VDC | 24/48VDC | ||||||||
Battery charging voltage | 13.75VDC | 13.75VDC | 13.75VDC | 13.75/27VDC | 13.75/27VDC | 13.75/27VDC | 13.75/27VDC | 27/54VDC | 27/54VDC | ||||||||
Maximum PV array power | 12V：400W 24V:800W | 12V:800W 24V:1600W 48V:3200W | |||||||||||||||
Solar input voltage range | 12V: PWM 15V-30VDC 24V: PWM 30V-60VDC | 12V: MPPT 15V-150VDC/PWM 15V-30VDC 24V:MPPT 30V-150VDC/PWM 30V-60VDC 48V: MPPT 60V-150VDC/PWM 60V-105VDC | |||||||||||||||
Maximum PV Display Open Circuit Voltage | 12V: PWM 30VDC 24V： PWM 60VDC | 12V：MPPT 150VDC/PWM 30VDC 24V：MPPT 150VDC/PWM 60VDC 48V：MPPT 150VDC/PWM 105VDC | |||||||||||||||
Maximum solar charging current | 30A | 60A | |||||||||||||||
Maximum AC Charge Current | 8A | 15A | 20A | 30A/18A | 15A/8A | 30A/15A | 40A/20A | 30A/15A | 42A/21A | ||||||||
Battery charging voltage range | 154-275VAC±5V | 154-280VAC | |||||||||||||||
Transfer time | GOms | 《10ms （UPS模式）“20ms （INV模式） | |||||||||||||||
比load peak ratio | (MAX)3:1 | (MAX)3:1 | |||||||||||||||
Protective function | Under inverter: overload protection,short circuit protection, low voltage protection, (with battery anti-reverse connection, board). | ||||||||||||||||
Status Display | You can view parameters such as AC voltage, AC frequency, PVvoltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys. | ||||||||||||||||
Voice prompt | When the overload is less than 130%, the buzzer will sound every second.and the output will be turned off a代er 30S. When the overload is greater than 150%,the output will be turned off after 300mS. | ||||||||||||||||
perating temperature | 0°C~40°C | ||||||||||||||||
Storage temperature | -15°C~45°C | ||||||||||||||||
Relative temperature | -10。090。。 no condensation | ||||||||||||||||
Noise | <45dB | ||||||||||||||||
size（L*W*H）mm | 325*263*123MM | 512X320X136MM | |||||||||||||||
