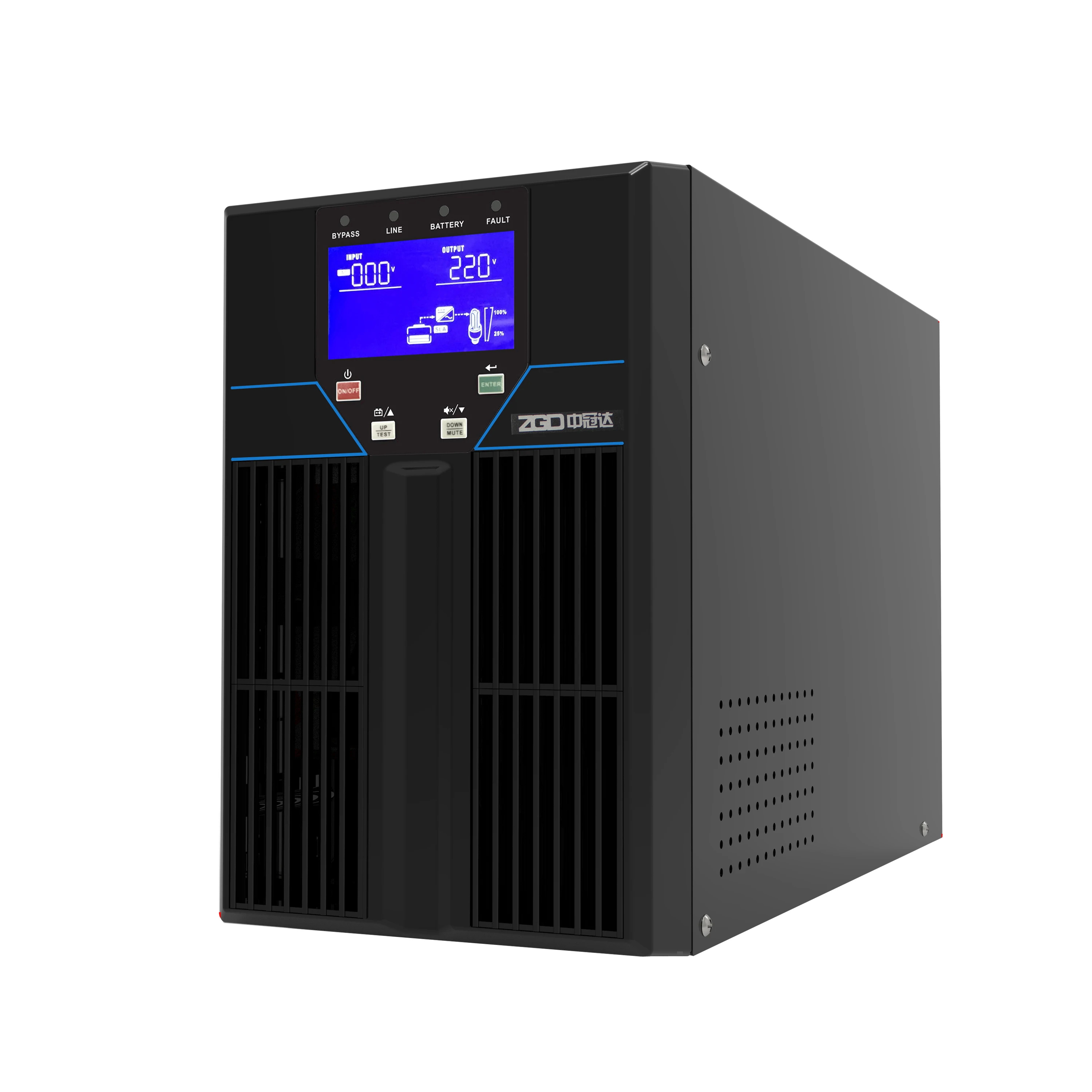

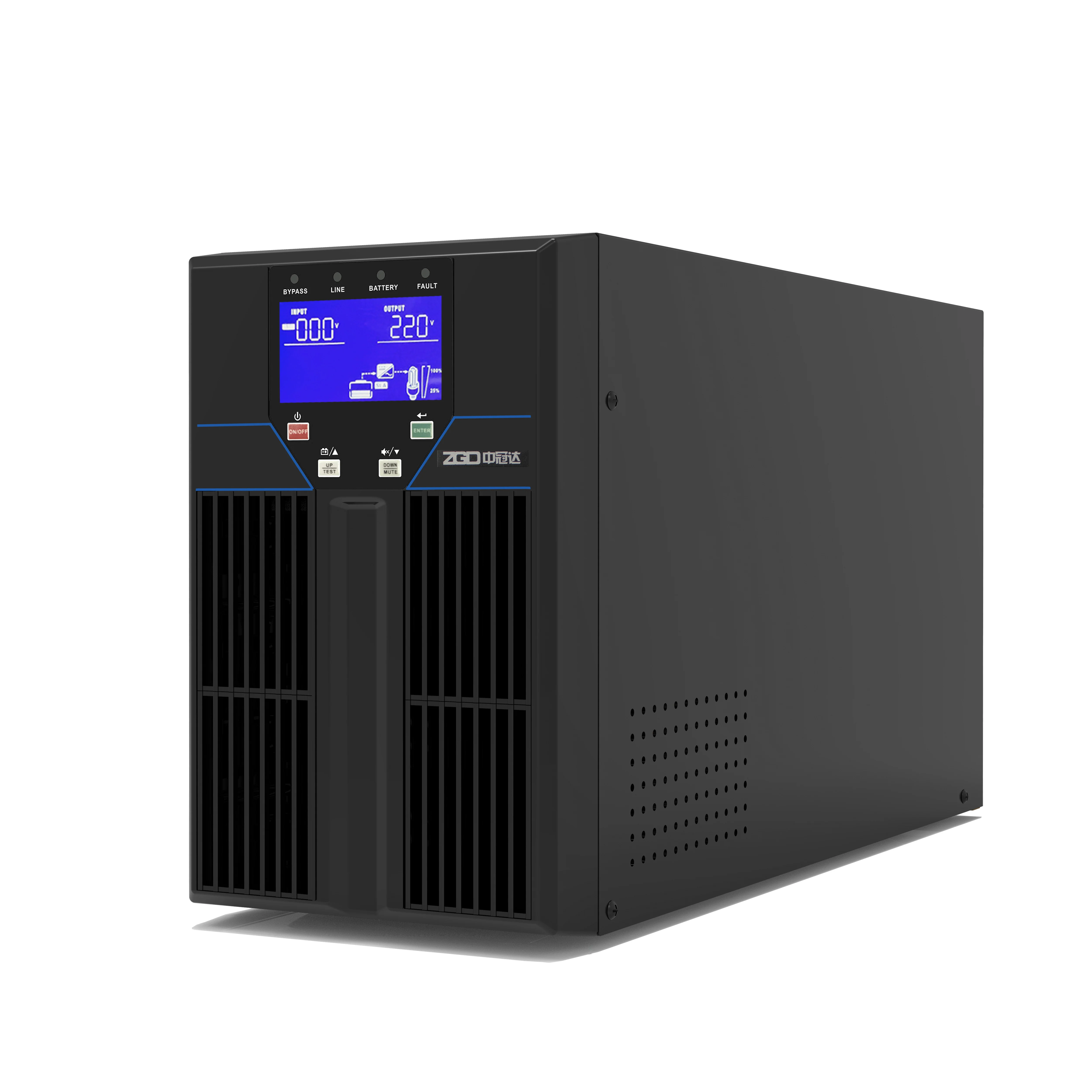

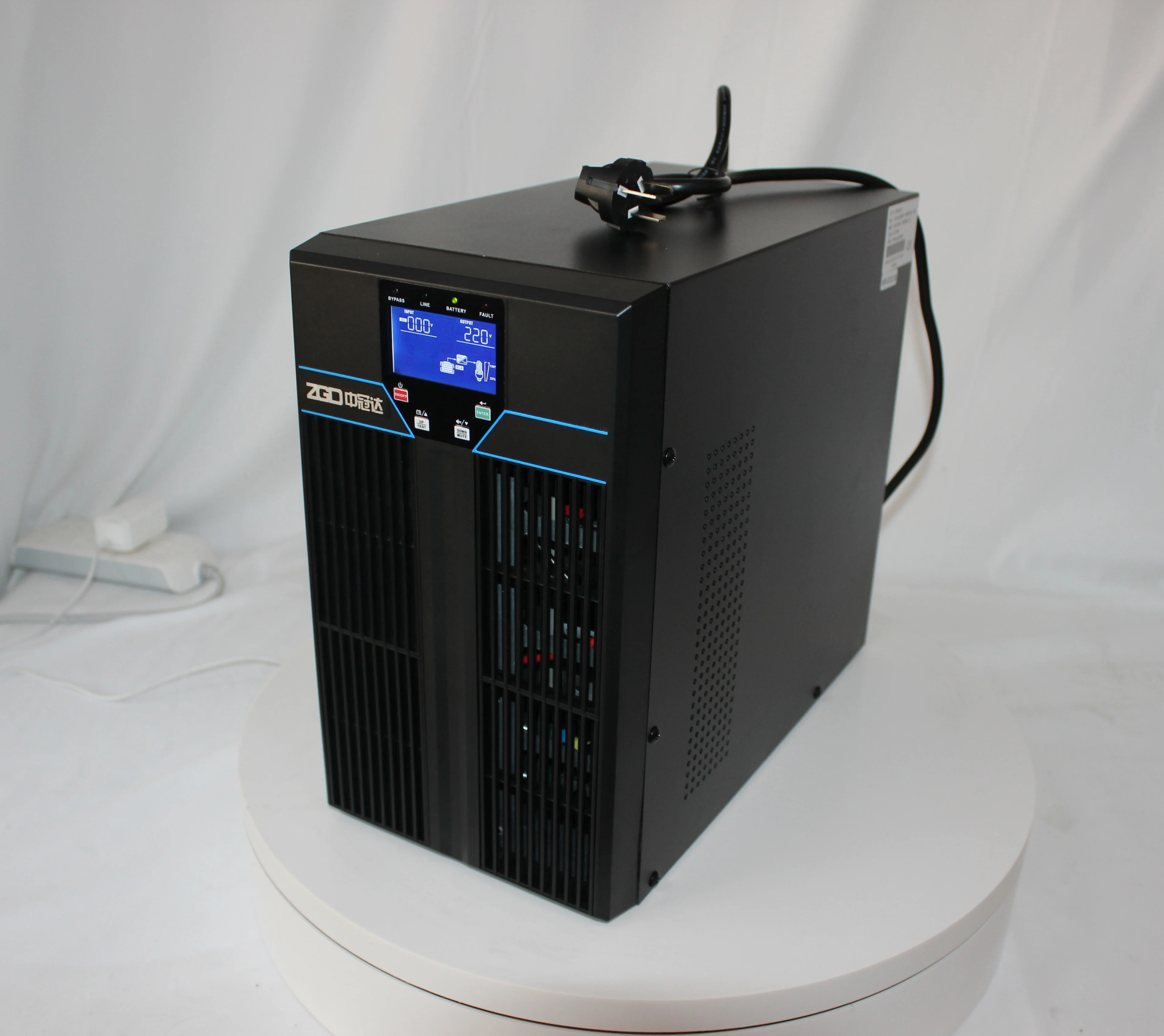

3kva high frequency ups power system online ups 110v for CCTV solution
- Category: >>>
- Supplier: Guangzhou Jalon Power Co. Ltd.
Share on (1600901565461):
Product Overview
Description
Specification
MODEL | ZGD-1K (L) | ZGD-2K (L) | ZGD-3K (L) | |
PHASE | Single phase with ground | |||
CAPACITY | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W | |
INPUT | ||||
Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC | |||
Input Voltage Range | 55-145 VAC or 110-300 VAC | |||
Frequency Range | 40Hz ~ 70 Hz | |||
Power Factor | ≥ 0.99 @ Nominal Voltage (100% load) | |||
OUTPUT | ||||
Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC | |||
Voltage Regulation | ± 1% | |||
Current Crest Ratio | 3:1 | |||
Harmonic Distortion | ≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-linear Load) | |||
Transfer Time | AC to DC | Zero | ||
Inverter to Bypass | 4 ms (Typical) | |||
Waveform (Batt. Mode) | Pure Sinewave | |||
BATTERY | ||||
Standard model machine | Battery type | 12V9AH | ||
Quantity | 2 | 4 | 6 | |
Standard charging time | 4 hours charge to 90% | |||
max charge current | 1A | |||
Charging voltage | 27.3VDC±1% | 82.1VDC±1% | ||
Long-run Model | Battery Type | Depending on the capacity of external batteries | ||
Numbers | 2 or 3 | 4 or 6 or 8 | 6 or 8 | |
Charging Current (max.) | 1.0A/2.0A/4.0A/6.0 A | |||
Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 109.4VDC ±1% | |
MANAGEMENT | ||||

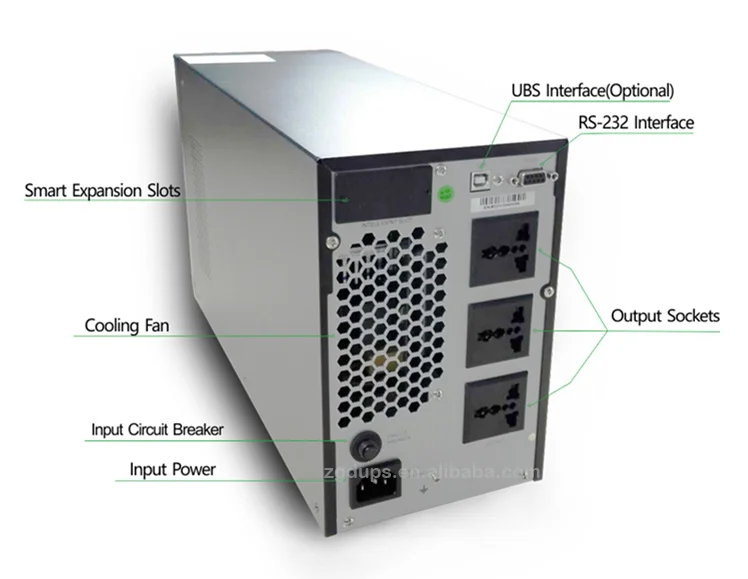

Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC | |||
Optional SNMP | Power management from SNMP manager and web browser | |||
Product Description
Company Profile
Certificates: Shenzhen ZGD Technology Co., Ltd. has imported high technique controlling facilities in our modern production line. We have successfully attained ISO9001 and CE certifications and comply with RoHS standard. Application Fields: Shenzhen ZGD Technology Co., Ltd. provides products and services in many countries around the world. Our products are extensively applied in fields of telecommunication, electric power, railway, finance, securities, hospital, school, aviation, airport, taxation, custom house as well as frontier defense, traffic, education, public security, national defense, energy sources and national key projects. They have won users' consentaneous compliments by complete varieties, reliable quality and perfect post-service. Operation Principle: No matter in what condition, we will put our customer at the first place, consider for customers and give them best service to meet their proper needs. We will firmly adhere to the enterprise culture of "uninterrupted power, uninterrupted progress". We will pay much attention to the quality of our products and try our best to make high-rank products. |
FAQ
1. Price terms: We always offer best prices to our clients, base on differenct quantity, you'll get special extra discount as well. 2. MOQ terms: MOQ is not strictly required, minimum 1unit also welcome. The larger quantity, the better prices you'll get. 3. Brand terms: We're practical in engineer, welcome to custom your own brand/logo, or use our brand POCASA. 4. Payment terms: Usually accept T/T, 50% deposit and balance 50% before shipment. 5. Lead time: 7-14 days for samples, 20-30 work days for bulk orders. 6. Month Capacity: It depends on which model, small capacity models reach to 20000pcs and big capacity near 3000pcs. 7. Warranty polocy: Standard warranty 1 year, 2-5 years optional, prices will different. 8. Certification: Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST . 9. Shipment: Small quantity usually send by Express like DHL/FedEx/UPS, hundreds weight send by Air, bulk orders send by sea. |
