3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step Down Controller 5KW8KW15KW22KW
3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step-Down Controller 5KW8KW15KW22KW
3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step-Down Controller 5KW8KW15KW22KW
3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step-Down Controller 5KW8KW15KW22KW
3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step-Down Controller 5KW8KW15KW22KW
3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step-Down Controller 5KW8KW15KW22KW
3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step-Down Controller 5KW8KW15KW22KW

3 Phase Motor Soft Starter Online Slow Start Module Solid State Relay Decompression And Step Down Controller 5KW8KW15KW22KW

Share on (1600901656563):


Price:$38.42

Quantity:


Product Overview

Description



Describe

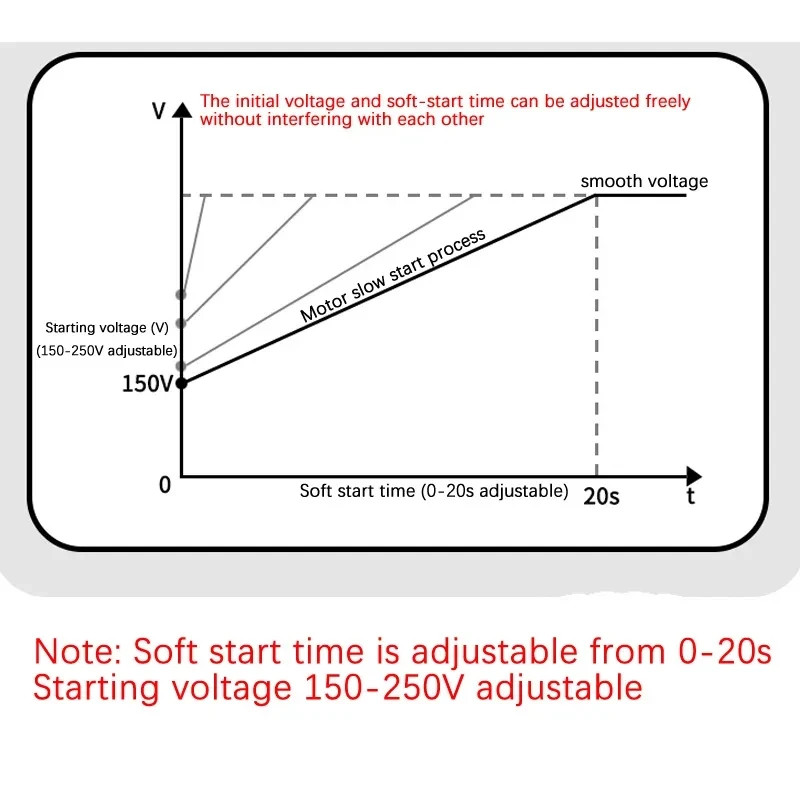

The soft-start time is adjustable in 20s (the rise of time refers to the soft-start voltage setting value to 380v);
The starting voltage is 150-250V, adjustable slow start to rated voltage 380V;

There are three ways to use the product:
①When the switch of the control terminal of the module is closed, the main power is energized, and the soft start starts;
②The main circuit is energized and controlled by the contact of the module control terminal, and when it is closed, the soft start starts;
③When the main circuit is powered on, it is controlled by the contact of the module control terminal. If there is a 5-24Vdc signal input, the soft start starts.

Programs included in the three-phase soft-start module:
①Loss phase protection function;
②Overheating protection function;
③Soft start function;
④Soft stop function (soft stop can be set to 0 or soft stop to soft start value or closed);
⑤ Phase sequence protection function (can be set to open or close);
Both functions of ④⑤ can be set to off or on.
1. With soft start and soft stop (to the start value or 0), with phase sequence protection
2. With soft start and soft stop (to the start value or 0), no phase sequence protection
3. With soft start, no soft stop, with phase sequence protection
4. With soft start, no soft stop, no phase sequence protection
A total of 6 states of the module can be arbitrarily set, flexible and powerful.
The initial state is: with soft start, no soft stop, and no phase sequence protection.

If you need to set other states, you can consult customer service or refer to the manual.
For example: if the module state is set to soft stop to 0, there is phase sequence protection and the two potentiometers are turned to the corresponding positions of 150v and 20s respectively.
At this time, the main circuit is energized, the control terminal switch is closed (or 5-24Vdc), the output voltage of the module will slowly rise from 150V to 38OV, and the time is 20s;
If the control terminal switch is disconnected (or disconnected from 5-24Vdc), the output voltage of the module will slowly drop from 380V to 0V for 20s.
(If the soft-stop setting is to stop to the soft-start value, the output voltage of the module will slowly drop from 38OV to 150v for 20s, and then turn off immediately).
