Fanuc all electric injection molding machine making Plastic Syringe Manufacturer Disposable Plastic Syringe Medical Product

Product Overview

Description

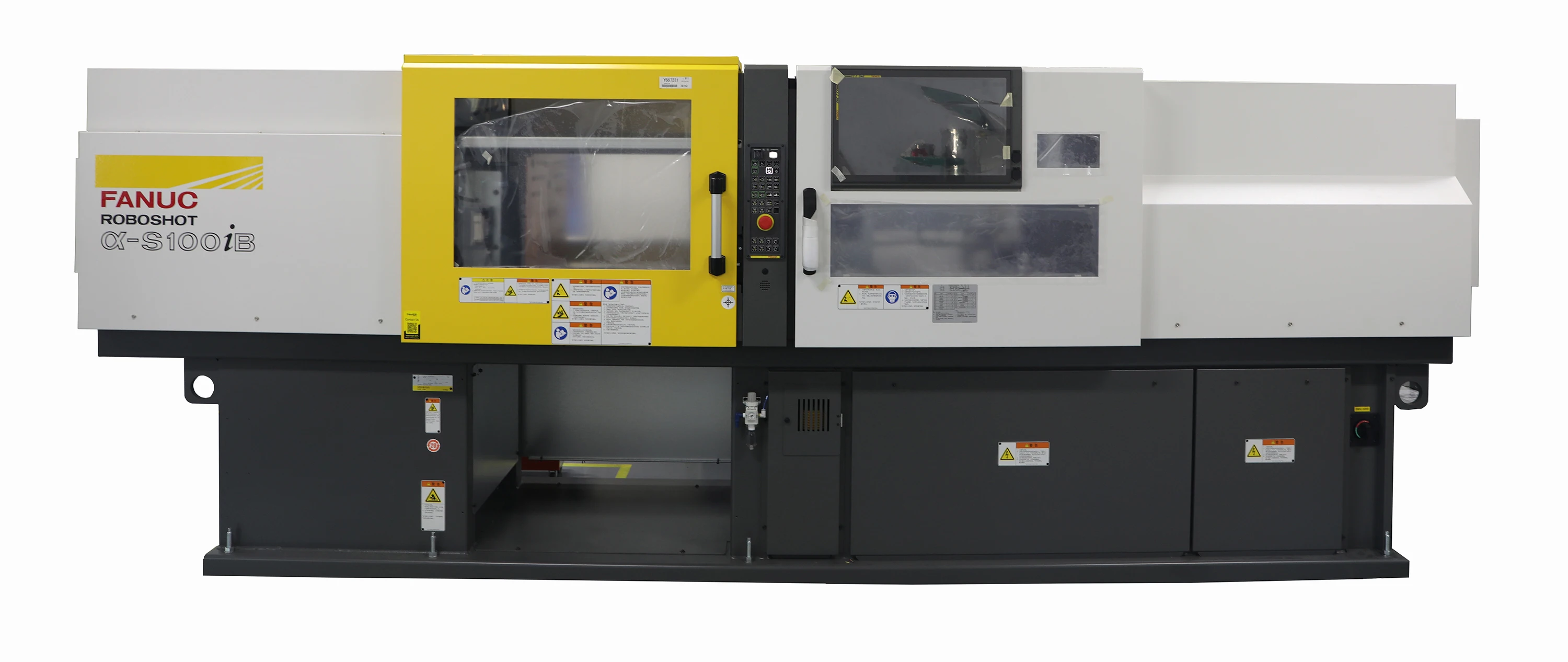

FANUC All electric injection molding machine

Contactor : Kevin zhou
Whatsapp & Wechat : +18067841986

α-S100ib MACHINE PARAMETERS

Item		Unit	α-S100ib
Clamping Unit	Tonnage	kN	100
	Clamping stroke	mm	350
	Tie bar spacing (HxV)	mm	460x610
	Platen size (HxV)	mm	660x610
	Ejector point/force/stroke	point/kN/mm	5/25/100
Injection Unit	Screw diameter	mm	28
	Maximum injection volume	cm³	58
	Injection specitification	---	200mm/s
	Maximum injection pressure (High pressure filing mode)	mpa	320
	Maximum injection pressure	mpa	270
	Maximum pack pressure	mpa	270
	Maximum injection speed	mm/s	200
	Maximum screw rotation speed	min-1	300
	Injection specitification	---	350mm/s
	Maximum injection pressure (High pressure filing mode)	mpa	320
	Maximum injection pressure	mpa	270
	Maximum pack pressure	mpa	270
	Maximum injection speed	mm/s	350
	Maximum screw rotation speed	min-1	450
	Injection specitification	---	550mm/s
	Maximum injection pressure (High pressure filing mode)	mpa	340
	Maximum injection pressure	mpa	220
	Maximum pack pressure	mpa	220
	Maximum injection speed	mm/s	550
	Maximum screw rotation speed	min-1	450

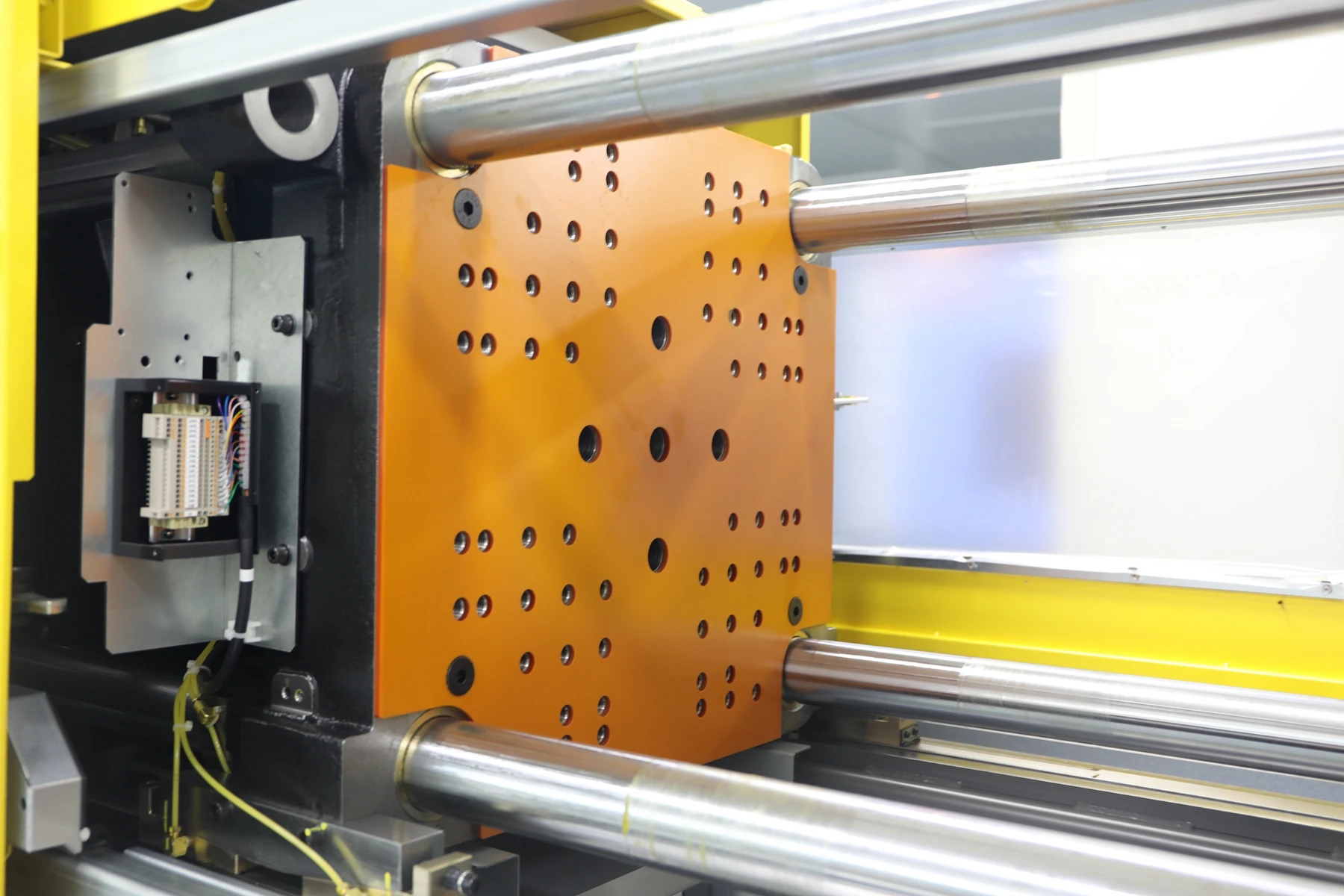

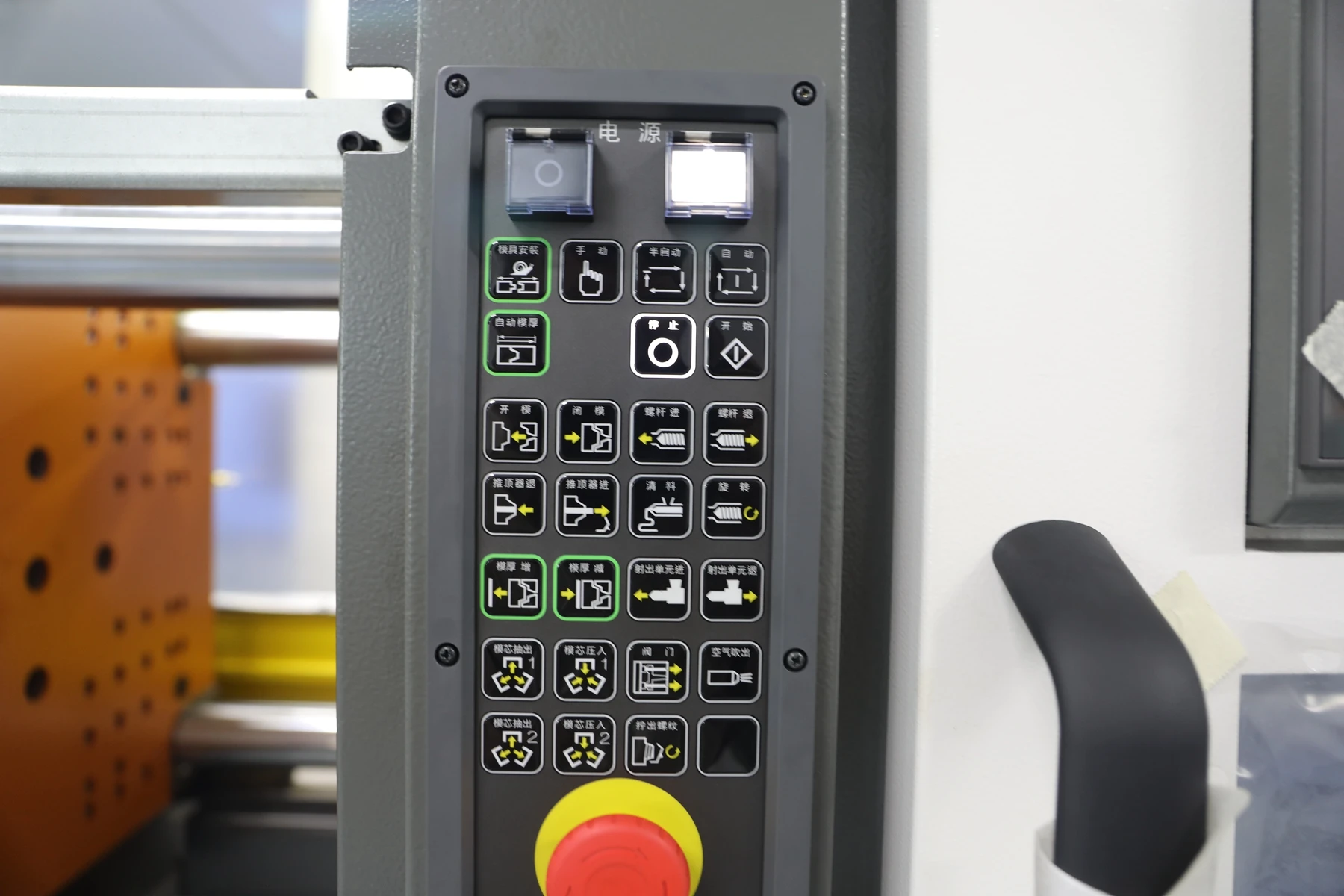

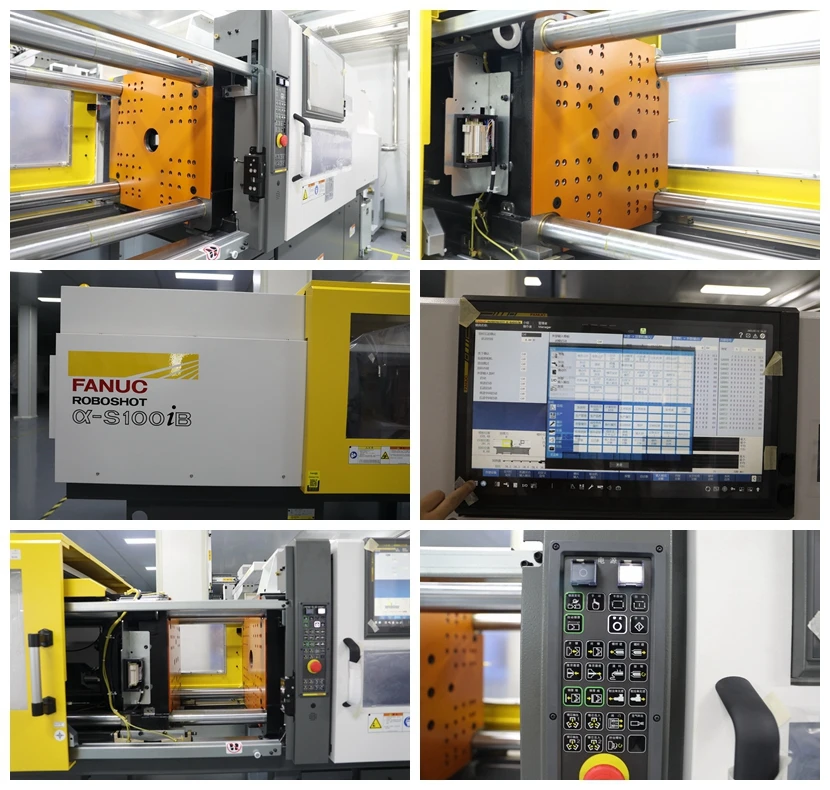

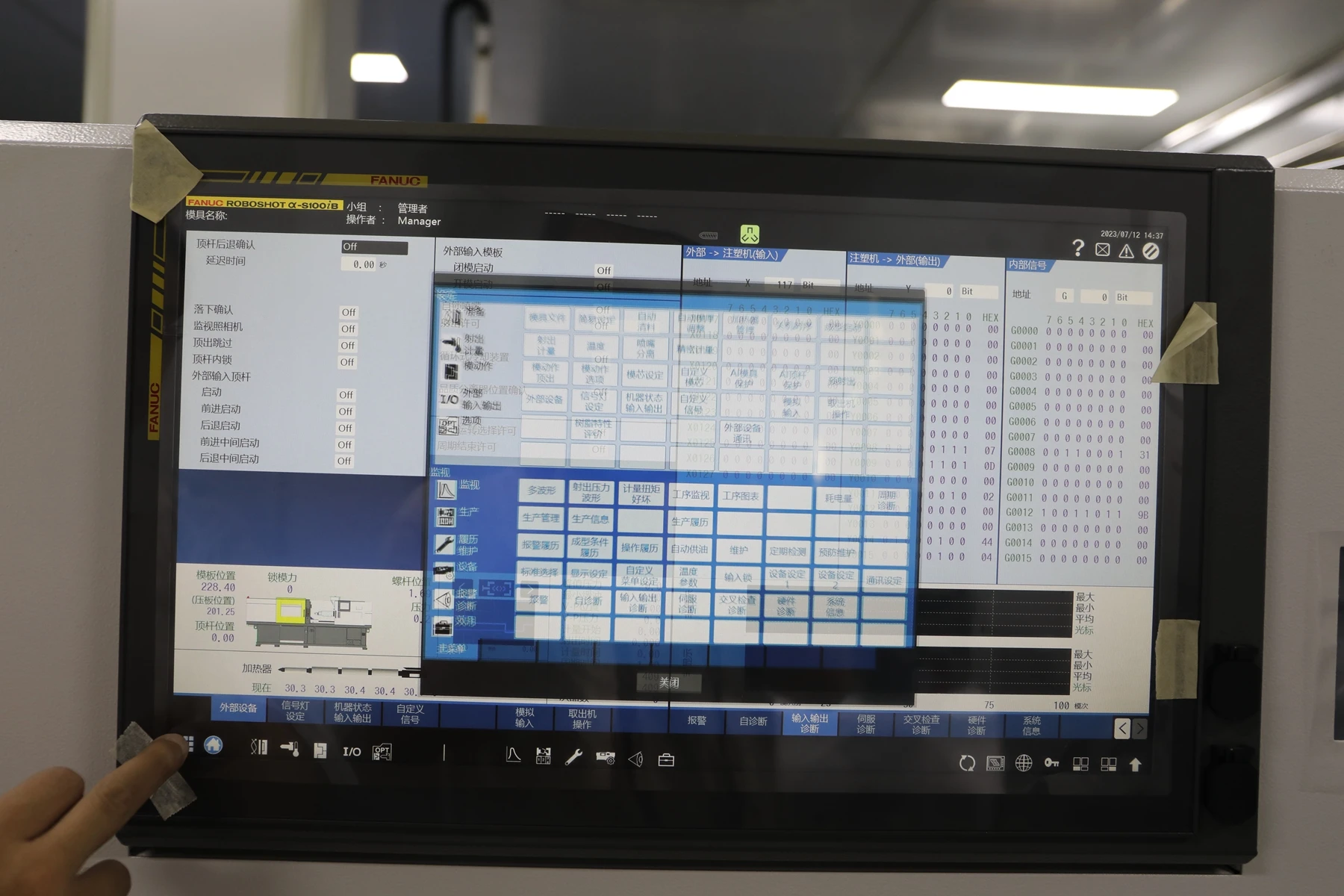

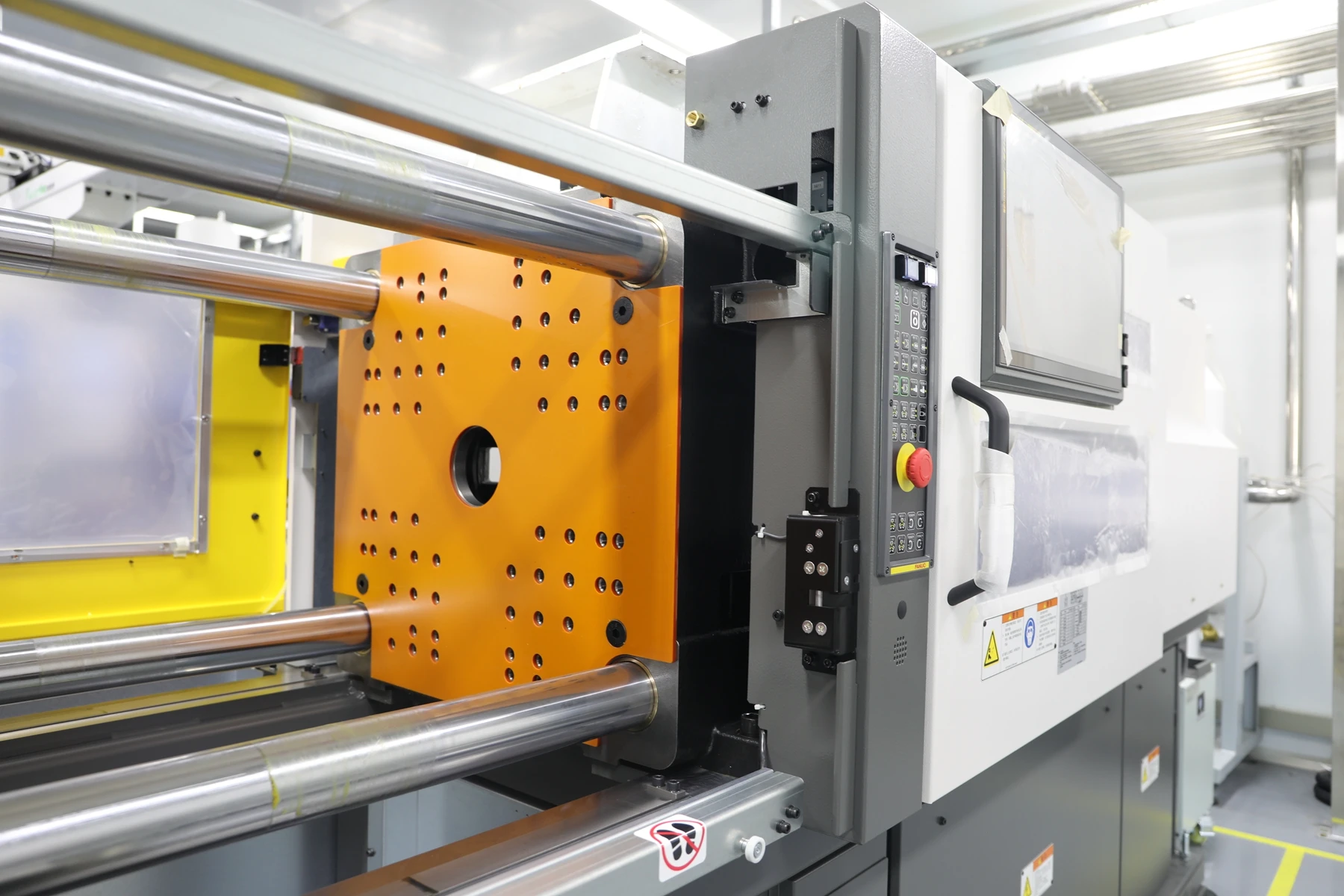

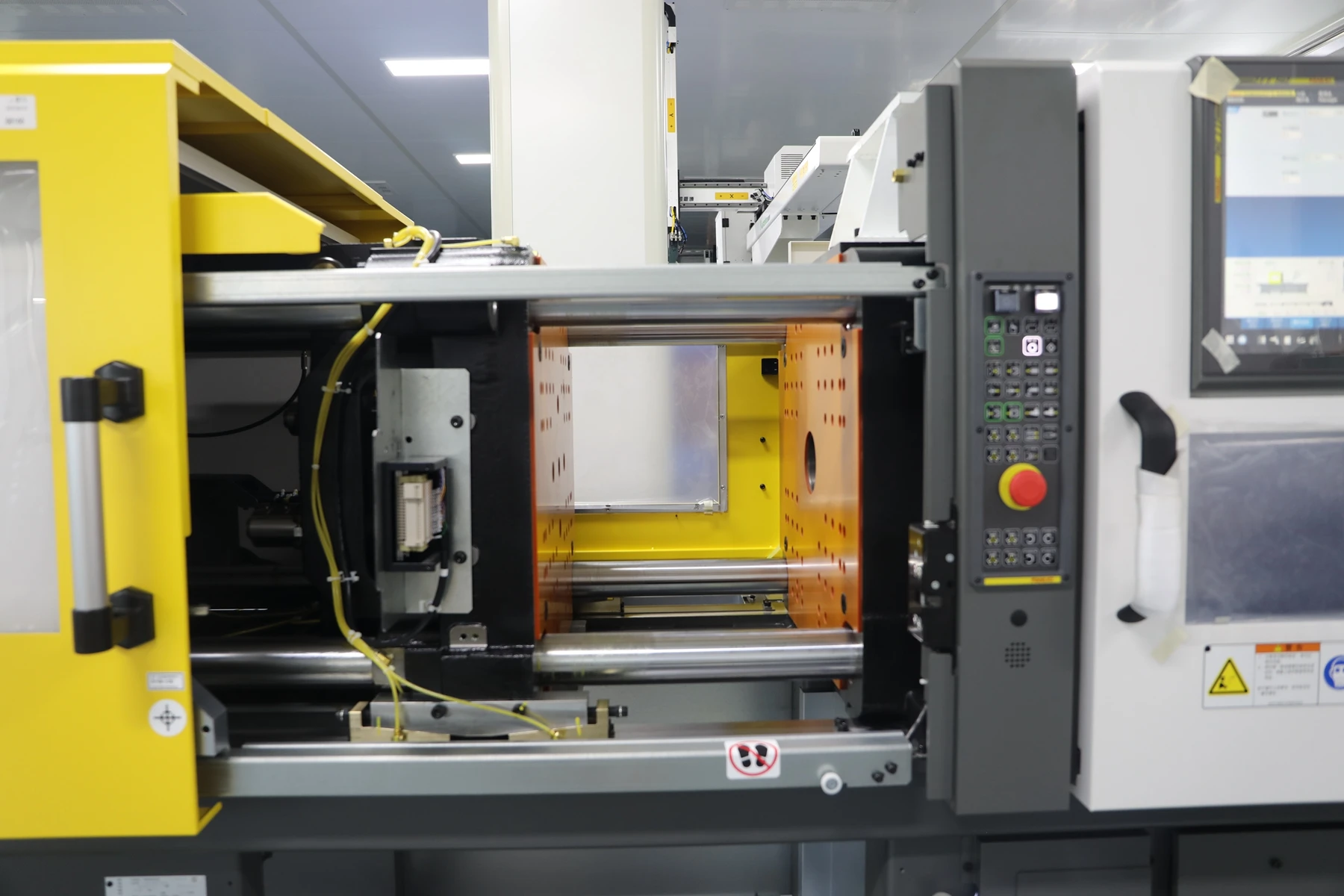

MACHIINE DETAILS

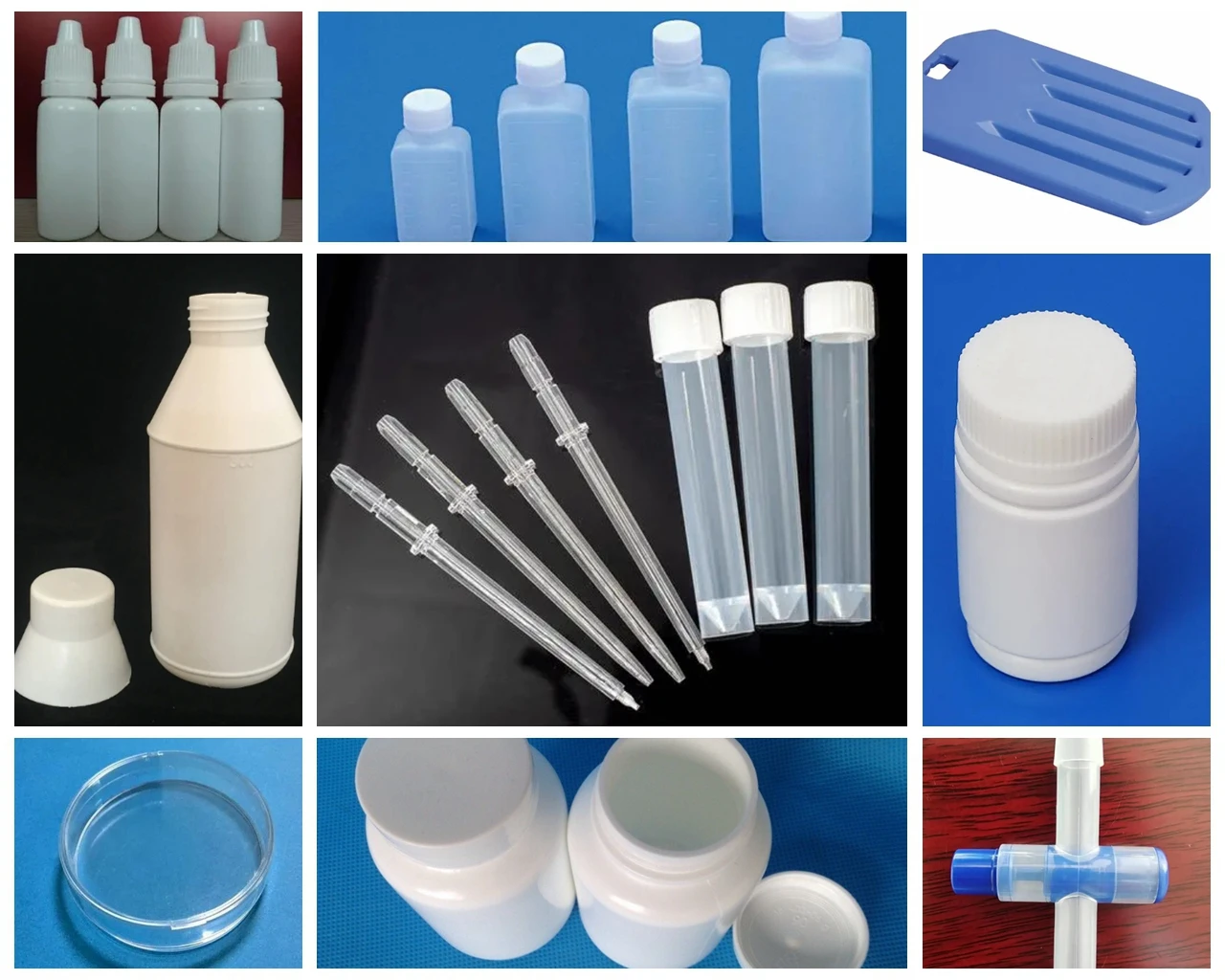

APPLICIATION

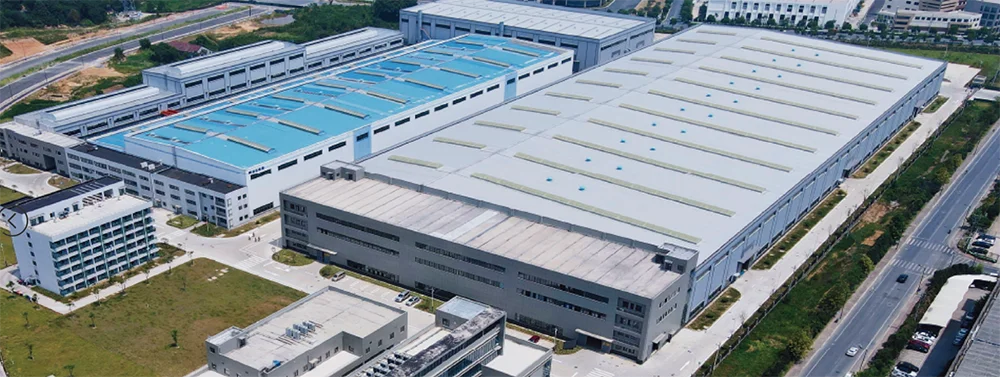

COMPANY OVERVIEW

RFQ

1.How to choose injection molding machine?

The injection weight should be about 1.2× product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.



2.How to pay?

30% deposit T/T in advance, the balance 70% payment by T/T before delivery (we accept payment by T/T, L/C and alibaba trade insurance, etc.)



3.Is that possible for your company to send engineer to install machine for commissioning, even train our workers?

Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.



4.If we buy your machines, is there any warranty?

Yes, definitely. 1YEAR after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 3YEARS. We will supply those parts in freeway but the possible transportation cost should be paid by clients.
