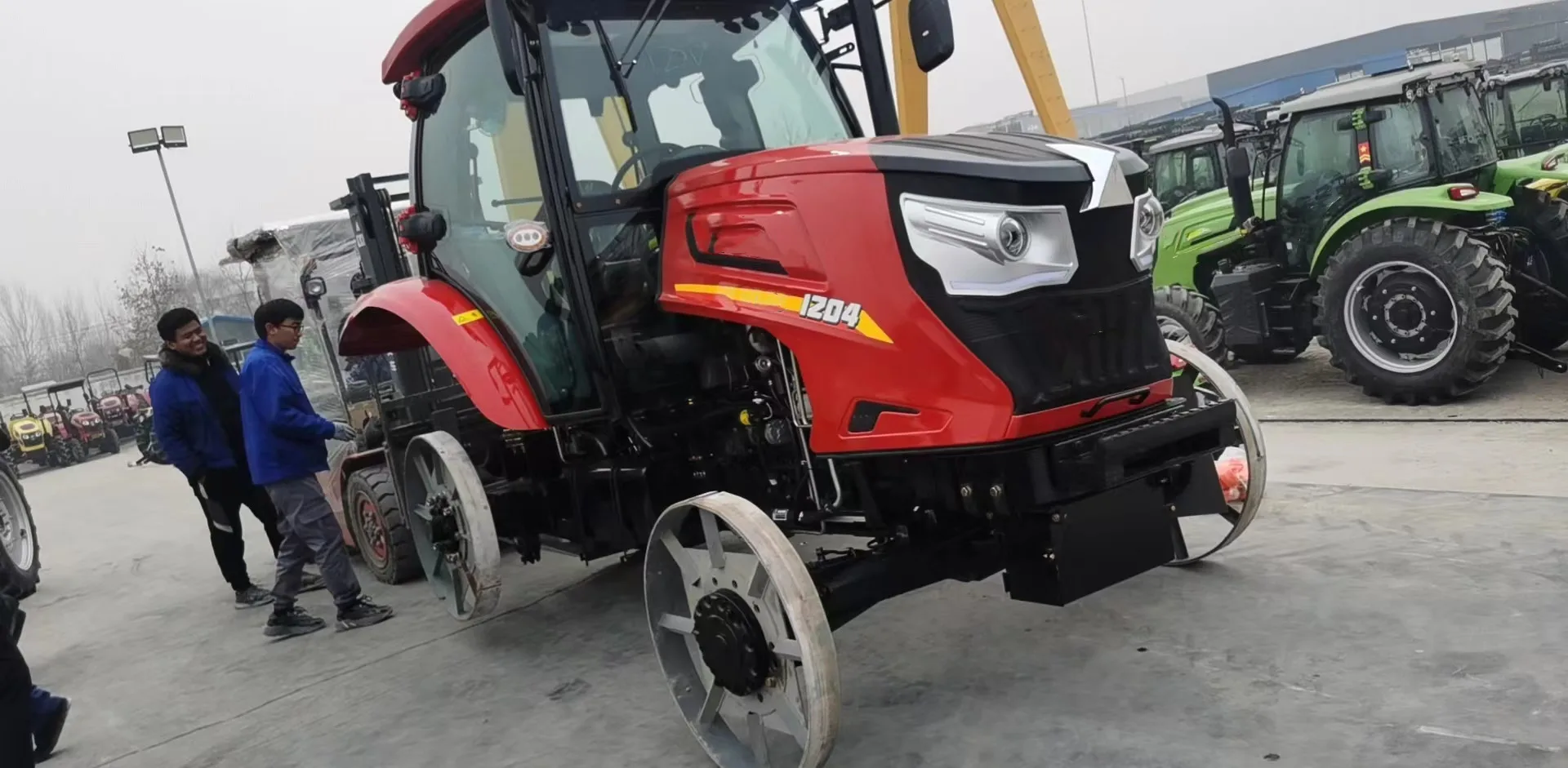

Model | 1204 | |||||
Type | 4×4 Wheeled Type | |||||
Dimensions of Tractor (mm) | Length | 5060 | ||||
Width | 2345 | |||||
Height | 2900 | |||||
Tread | Front Wheel | 16,121,712,195,220,700,000 | ||||
Rear Wheel | 1860(usual)-2000 | |||||
Wheel Base | 2582 | |||||
Min. Ground Base | 395(the bottom of front axle ) | |||||
Min. Usage Mass(kg) | 5300 | |||||
Engine | Model | WEICHAI HUAFENG 4RMIZT28 | ||||
Type | Vertical, water cooled and 4-stroke | |||||
Rated Power(kw) | 92 | |||||
Rated Rev.(r/min) | 2300 | |||||
Fuel | Diesel Oil | |||||
Tire | Front Wheel | 13.6-24 | ||||
Rear Wheel | 16.9-34 | |||||
Clutch | Dry-friction, single disc and two stage | |||||
Steering | Hydraulic type | |||||
Transmission Box | 4 ×(2+1)×2 Composed | |||||
Suspension Type | Post Positioned Tree point Suspension Catalogue Ⅲ | |||||
PTO | Post-position, independent type 760/850 | |||||
Type and Rev.(r/min) | ||||||
Spline Size | Spline with 6 teeth | |||||
