43 50 55Inch Indoor Advertising Kiosk Lcd Advertising Payers And Displays Kiosk Android Windows Freestanding Digital Signage

Share on (1600901817161):


Price:$198.00 - $255.00

Quantity:


Product Overview

Description


digital signage display


digital kiosk



Product Description


43 50 55Inch Indoor Advertising Kiosk Lcd Advertising Payers And Displays Kiosk Android Windows Freestanding Digital Signage


Specification


Support OEM / ODM Infrared TOUCH ( optional ),


Thickness :3cm(or 2cm)


32 / 43 / 49 / 55 / 75 inch Screen can support


Stand-alone / Android / windows version optional

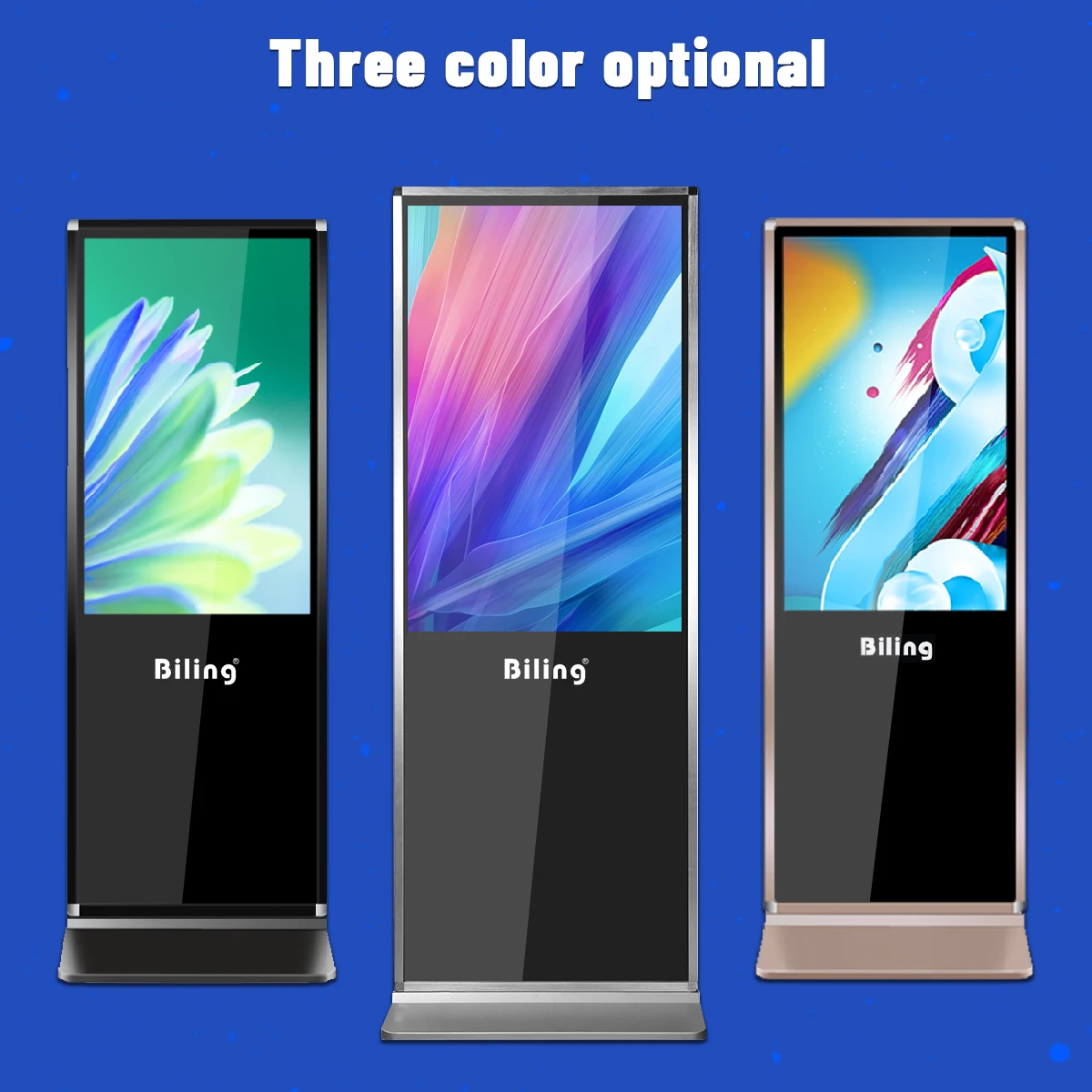

black , gold , silver ( optional )





Tips: The price of this link is the price of 32 inch super thin floor standing kiosk ( with IR touch screen )





Digital signage Material: (New PE material Case / Metal Case Optional )


1.Hardware shell, strong and stable equipment


2. Toughened glass protective screen, explosion-proof, clear light transmittance.


3. Optional to add moving wheel, convenient machine movement.





Wifi function no touch:


interface : usb*2 + RJ45 + power switch

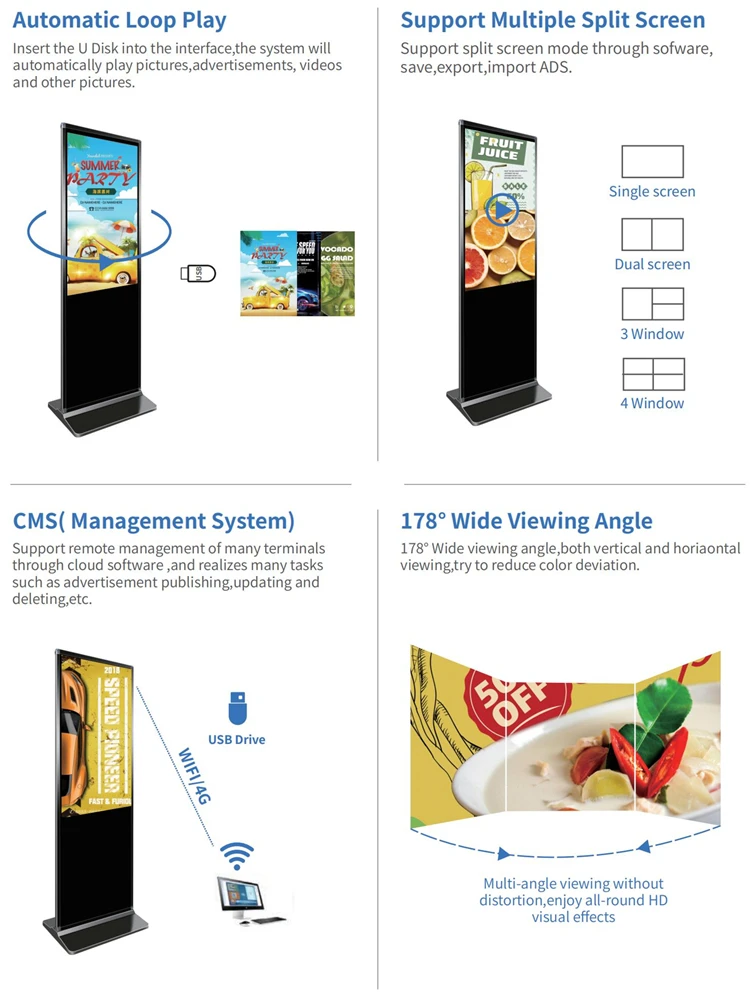

1. Support U disk playback, play pictures, videos, text scrolling, split screen playback


2.The device supports network cable connection, WiFi connection, or 4G/5G connection,

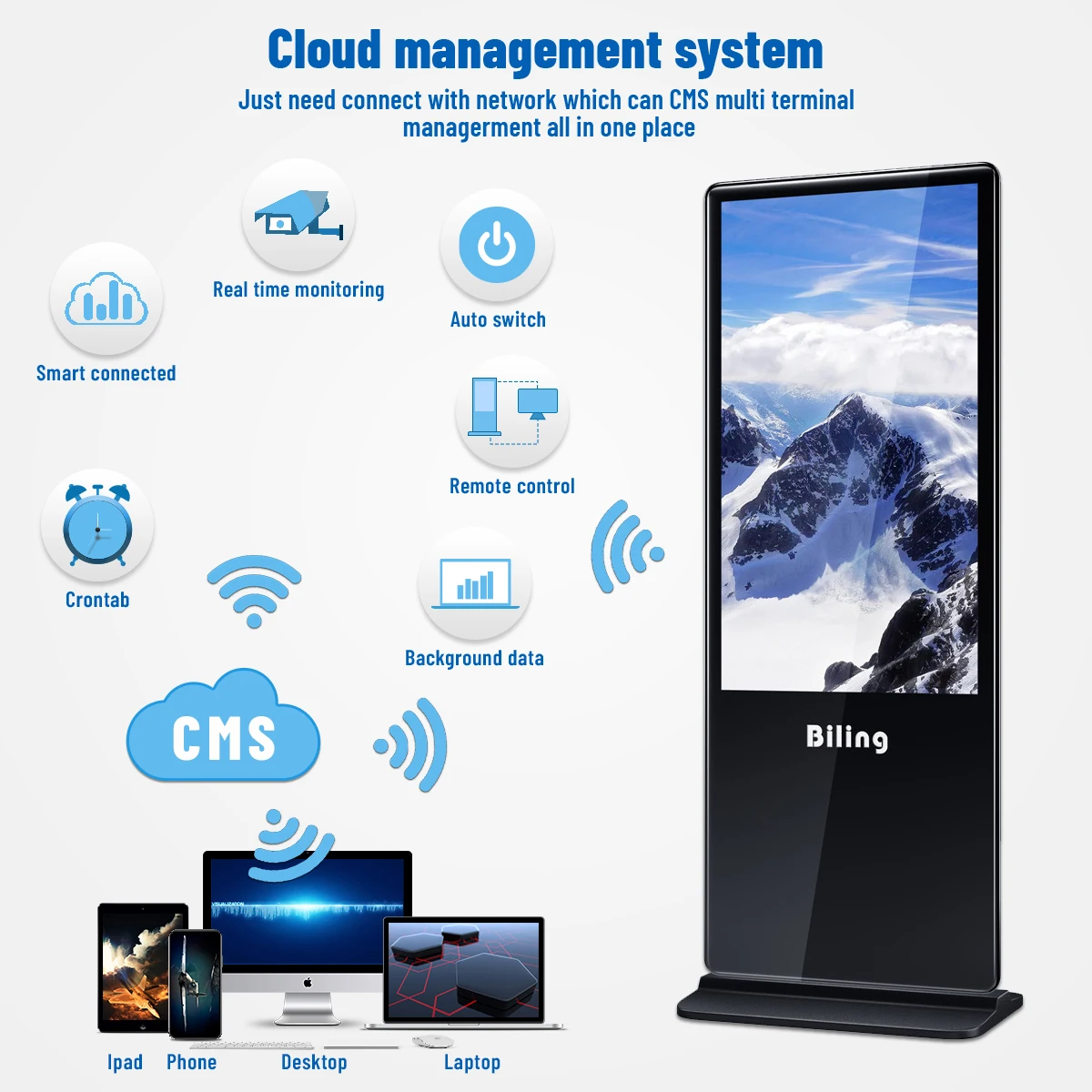

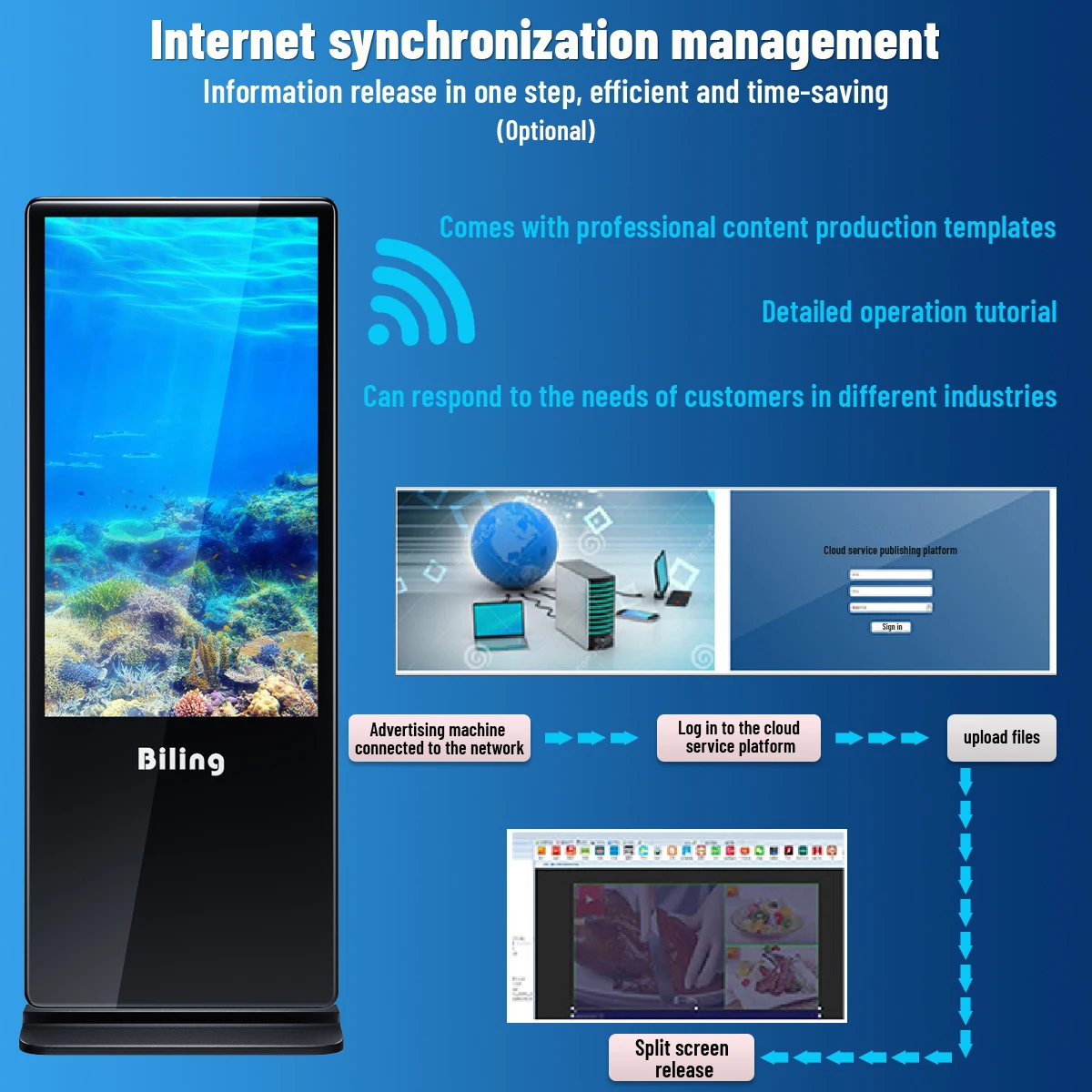

3. Remote release picture, video , website...for mobile phone/computer


4. Supports multiple periods of time automatic switching on/off function in a day.


5. Provide CMS software


6.Support multi-language, and different countries of the socket





Android Touch:


interface: usb*2 + RJ45 + power switch+DC12V+hdmi+TF+Ear phone


1. Support multi-point, ten-point touch.Can be installed App


2. Support touch to turn pictures, click to play videos, interactive touch query


3. support remote release of touch query programs and custom touch query programs


4. Supports multiple periods of time automatic switching on/off function in a day.


5. Provide CMS software ,

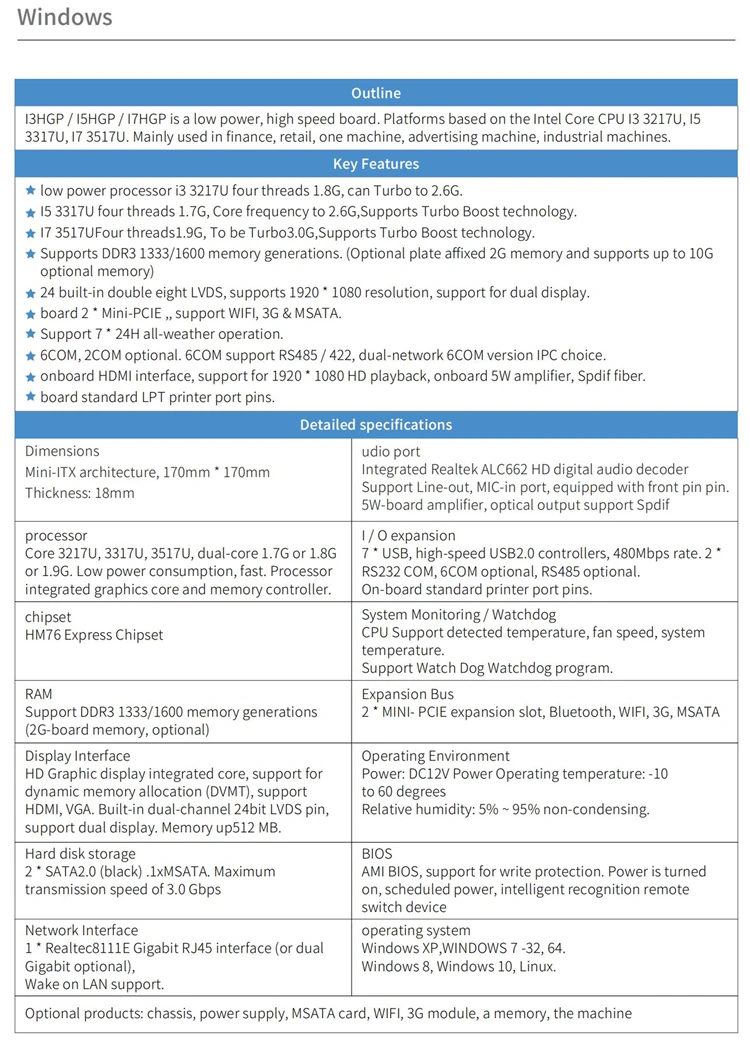

Windows touch:


Optional configuration N2940+4(running memory)+64(storage)


interface:usb*4 + RJ45 + power switch+DC12V+hdmi(out)*2+Audio out*1; 6.Audio in(Mic)*1


i3+4(running memory)+128(storage)


i5+4(running memory)+128(storage)


i3+8(running memory)+128(storage)


i5+8(running memory)+128(storage)


i3+8(running memory)+256(storage)


i5+8(running memory)+256(storage)


i3+8(running memory)+500(storage)


i5+8(running memory)+500(storage)

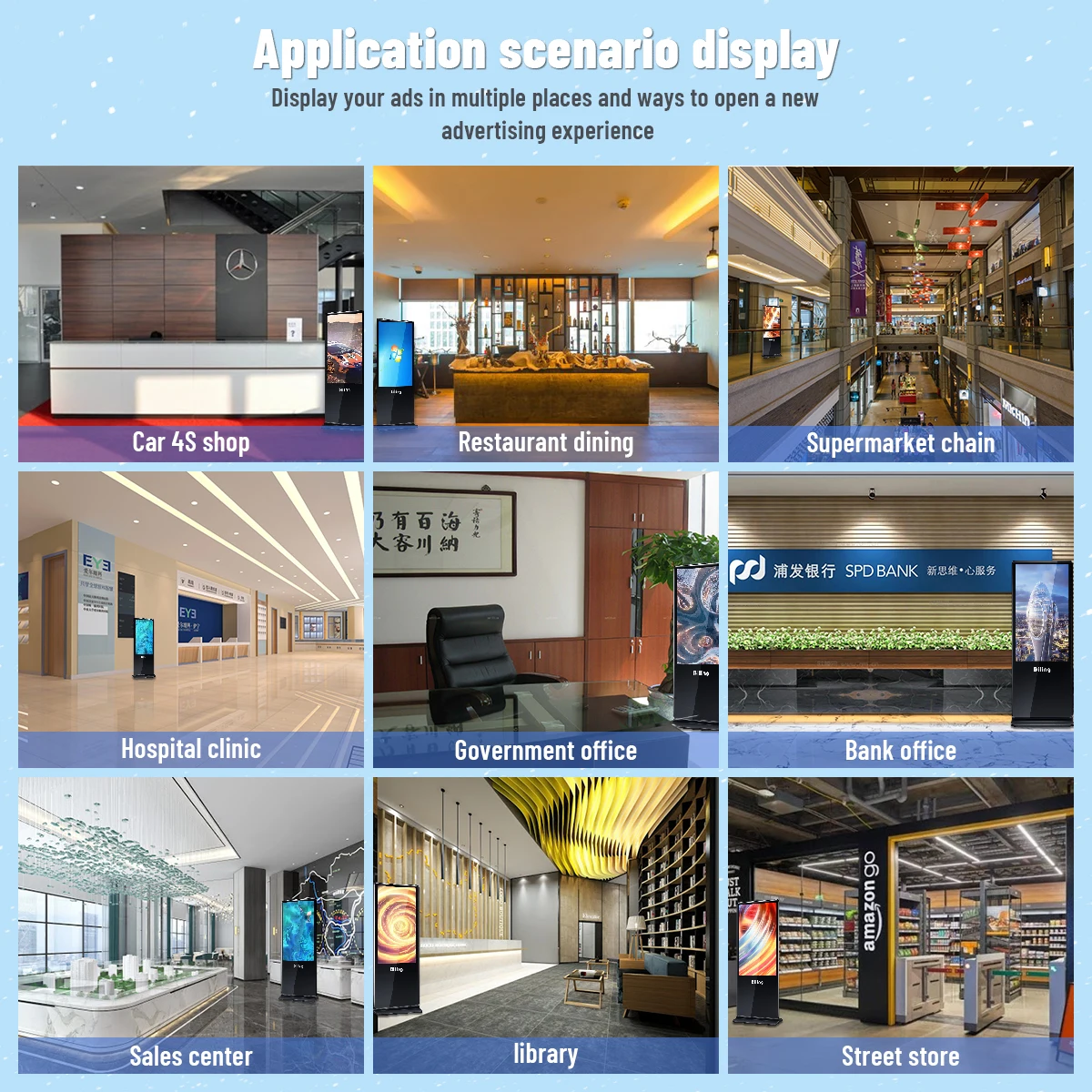

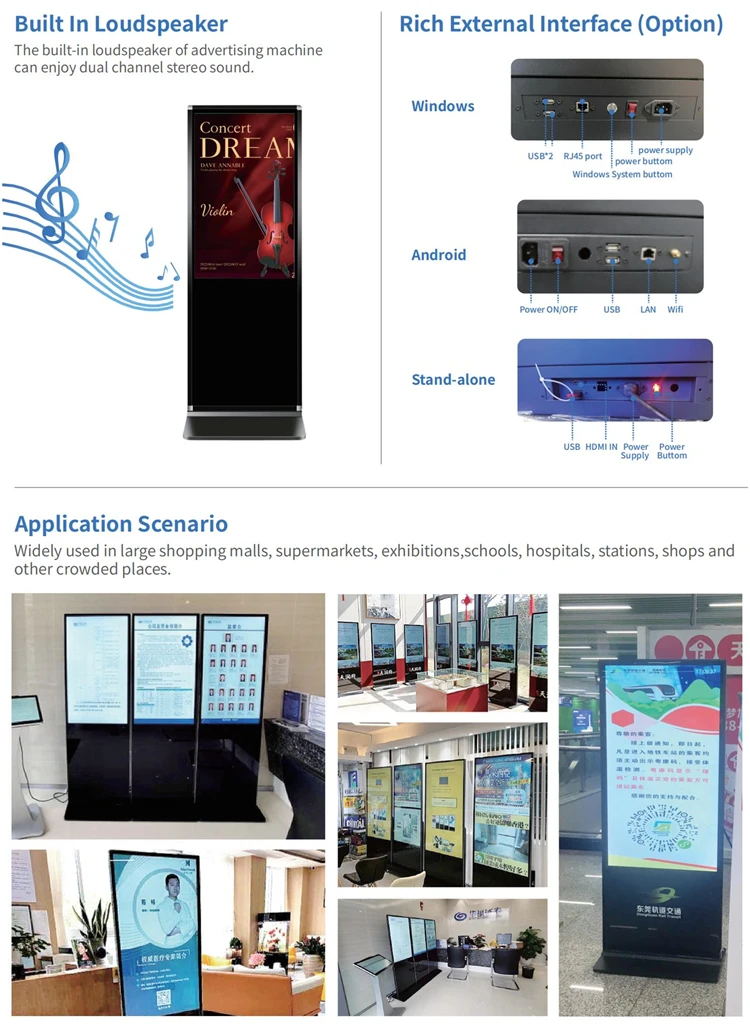

Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.


OEM ODM 3D Hologram Fan Shopping Center Standalone totem LCD AIO PC indoor outdoor digital signage and displays

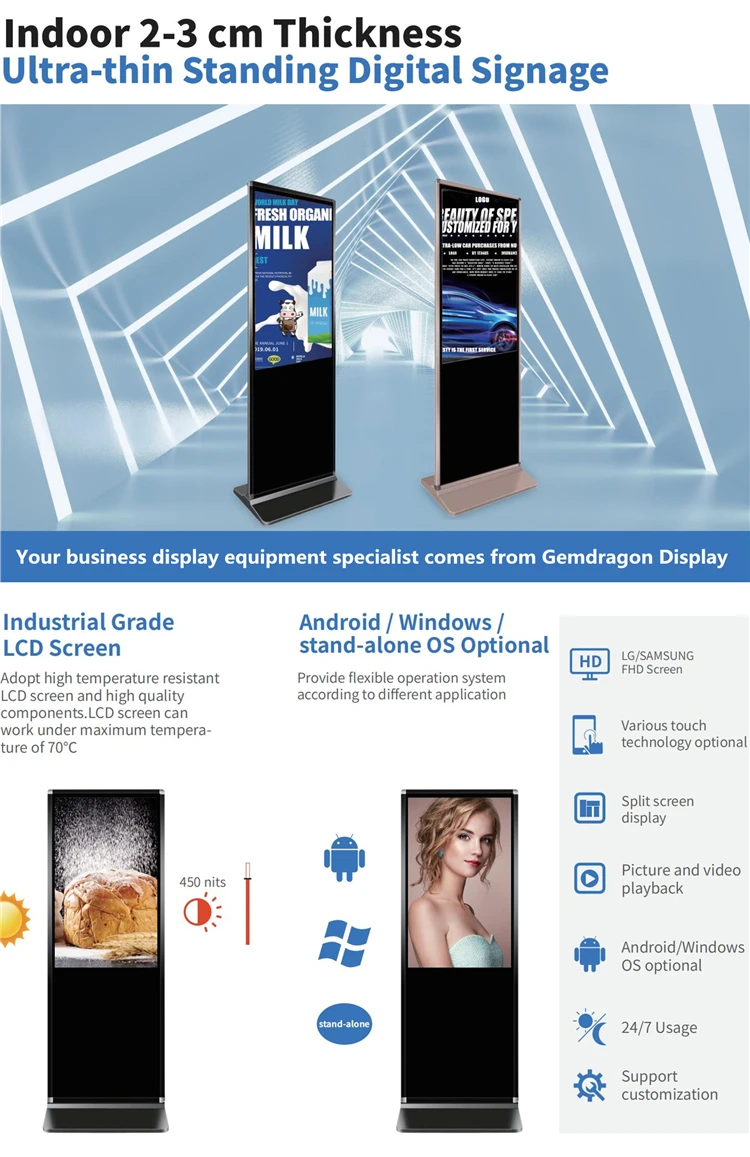

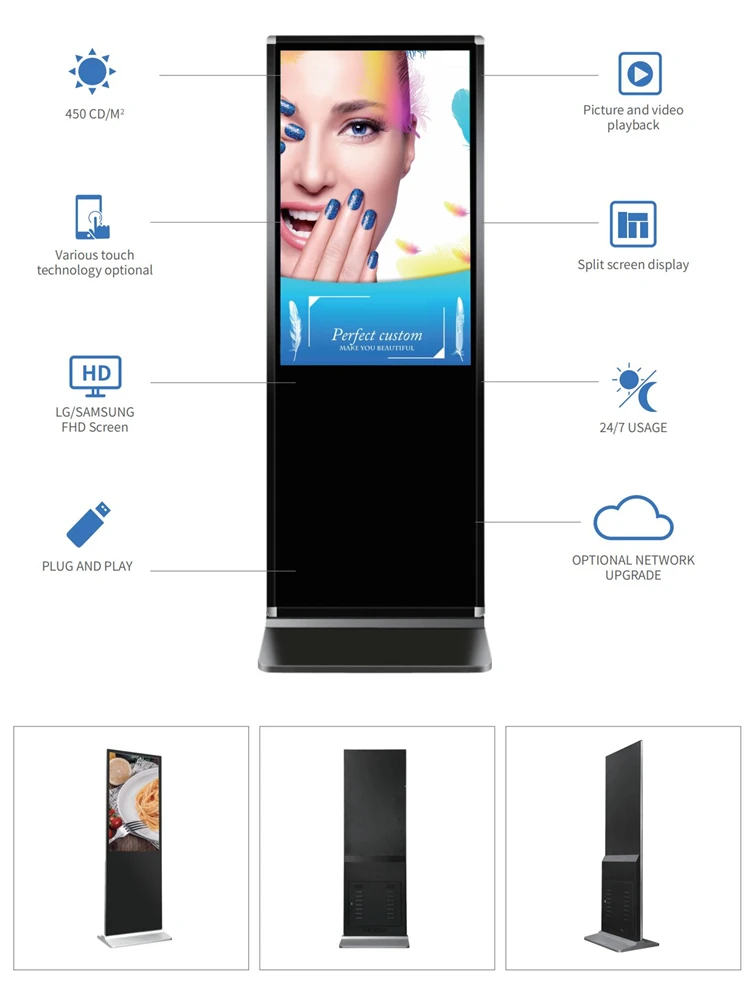

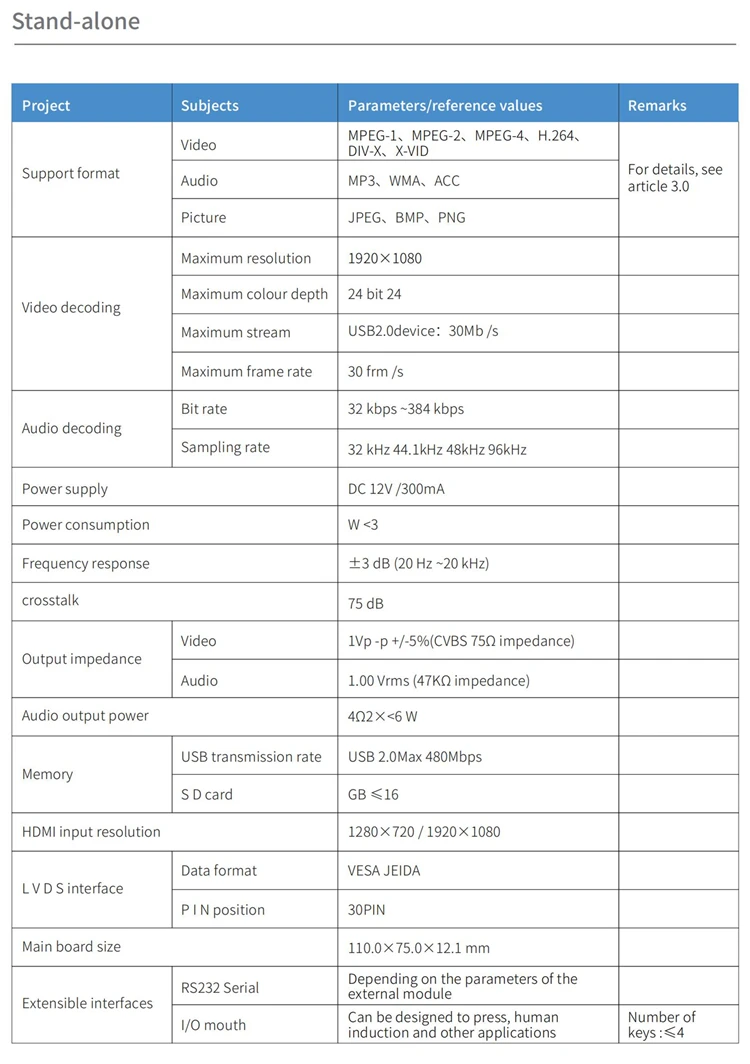

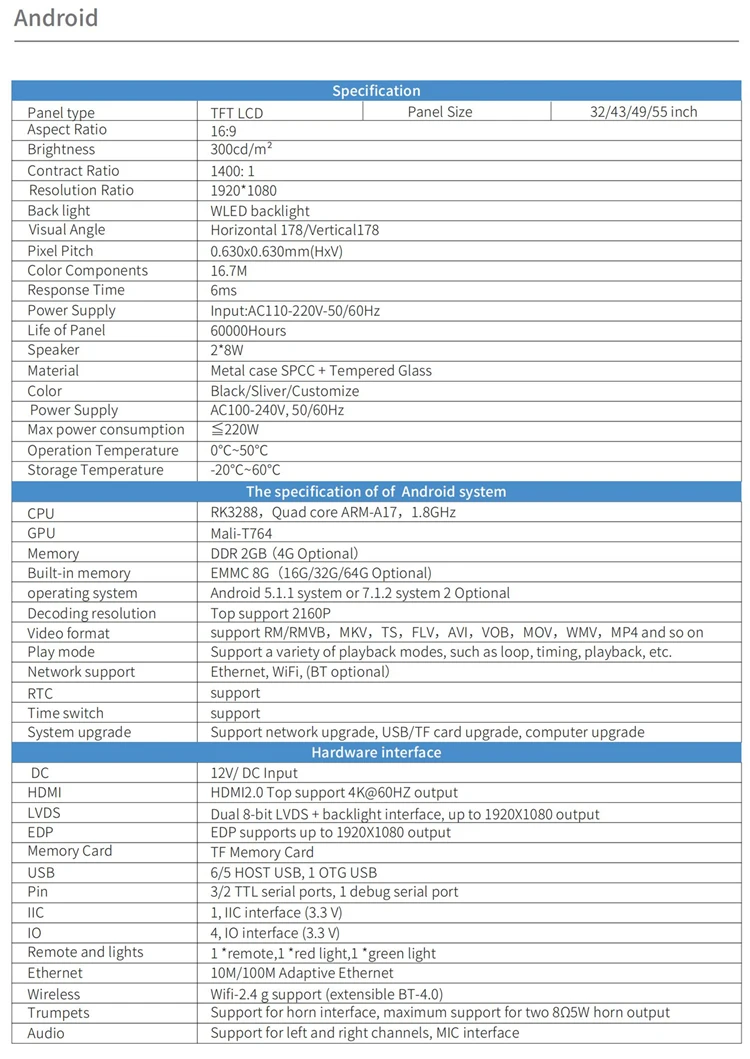

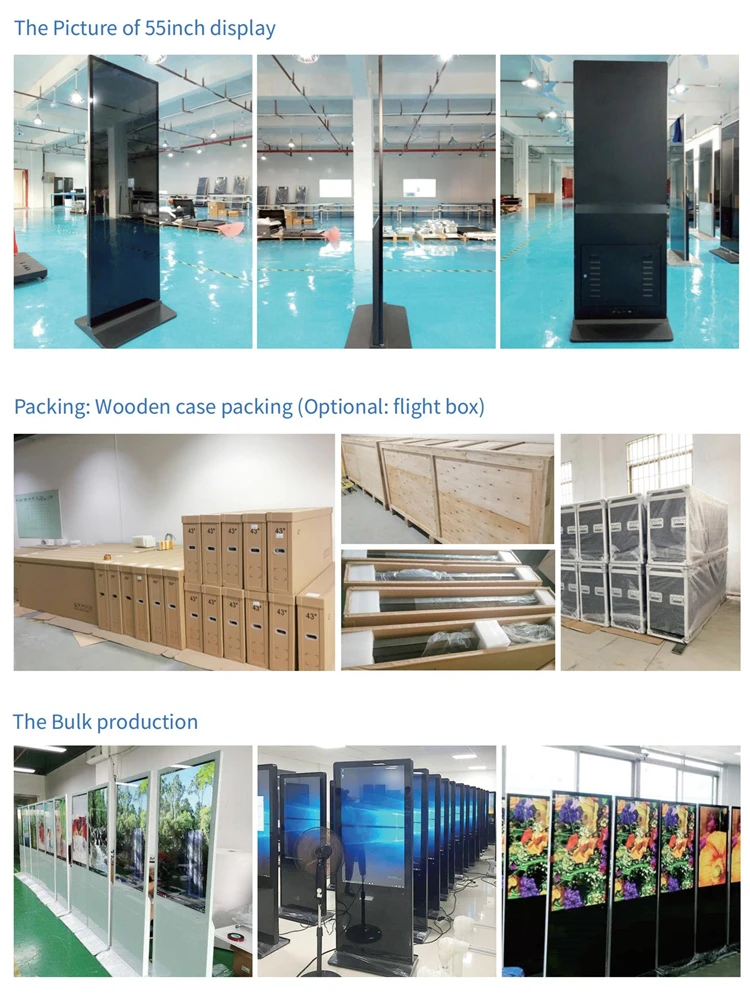

advertising display (1)advertising display (2)advertising display (3)advertising display (4)advertising display (5)advertising display (6)advertising display (7)advertising display (8)advertising display (9)

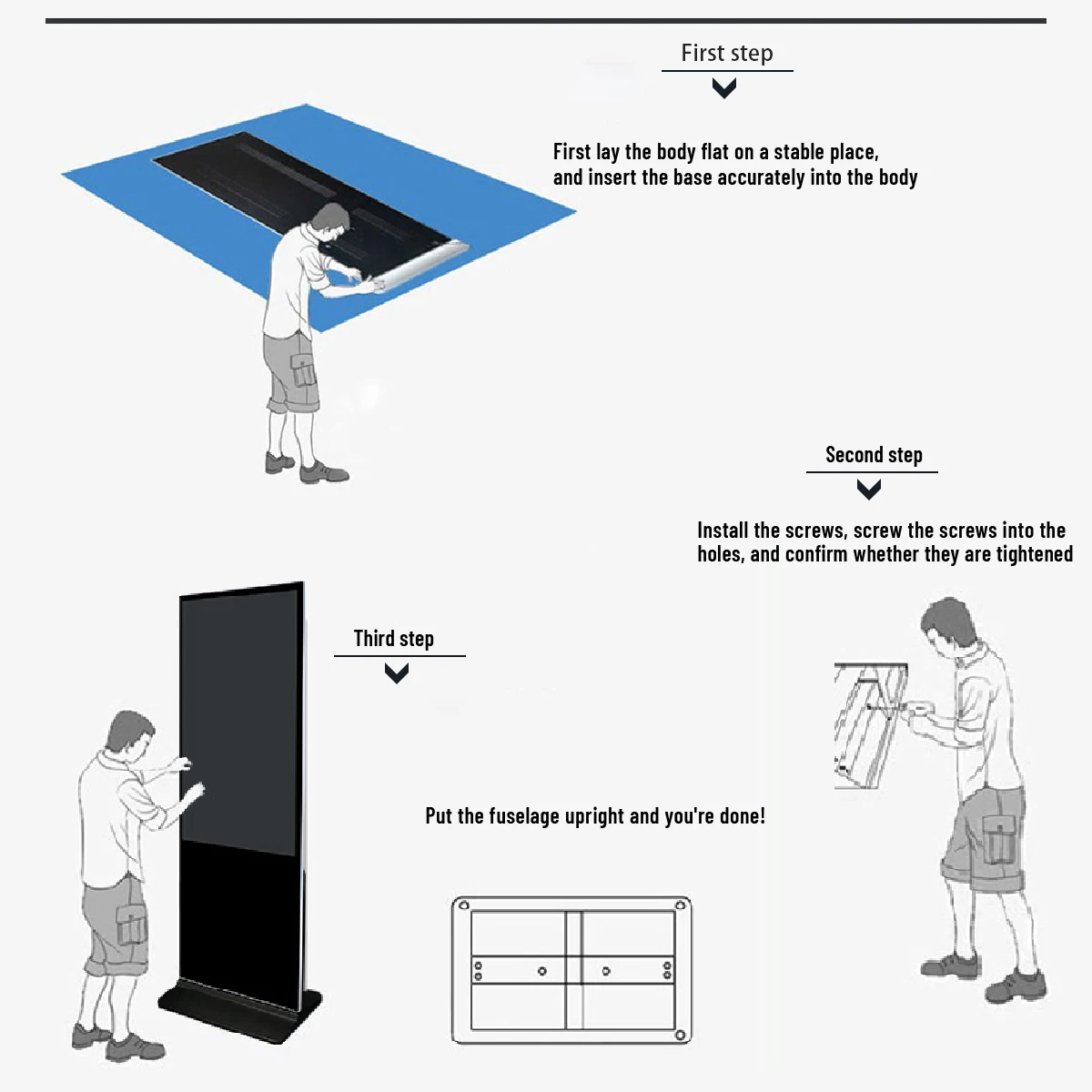

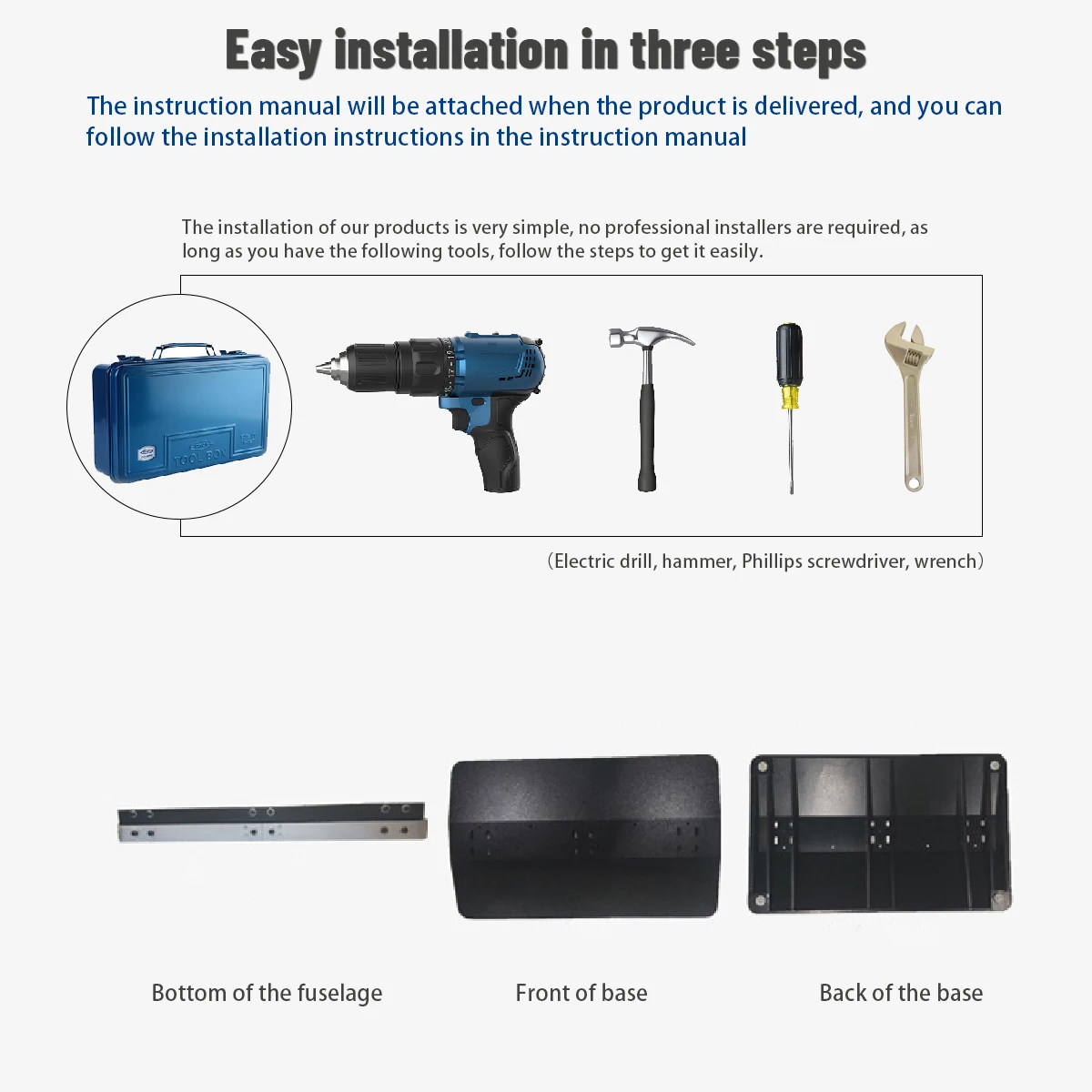

Installation

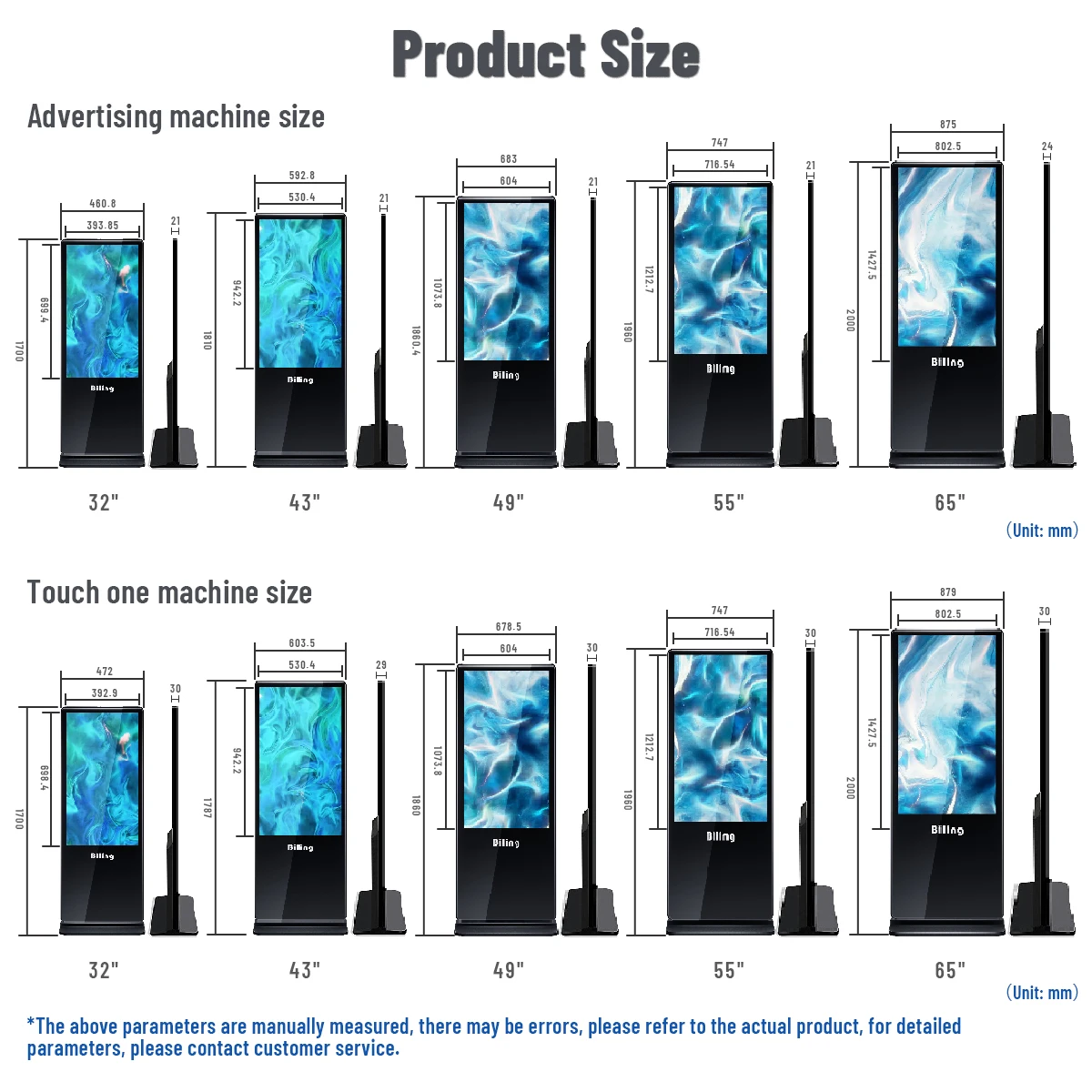

Floor standing kiosk (21)Floor standing kiosk (22)Floor standing kiosk (23)


49 inch Floor stand portable kiosk totem media advertising display player lcd digital signage





Product Paramenters
























































































































































































































Screen configuration


Screen size

32" (43 / 49 / 55 / 65 / 75 / 86 / 98 / 100 inch Screen can support)

Resolution

1920 (RGB) × 1080 [FHD] / 2K / 4K

Display size


941.184 × 529.416 mm (H × V)


Visual size


945.18 × 533.42 mm (H × V)


Brightness (cd/m2)


300 - 400 (Typ.) (Please contact us for higher brightness requirements)


Best angle


full view


Viewing angle


89/89/89/89 (Min.) (CR ≥ 10)


Pitch


0.227mm (H) x 0.227mm (W)


Number of colors


16.7M/1.07B, 95% [CIE1931]


Screen weight


6.30Kgs (Typ./Max.)


Refresh rate


60Hz


Signal system


LVDS (2 ch, 10-bit), terminal, 51 pins


Supply voltage


12.0V (Typ.)


Maximum rating


Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C


Screen type


LCD module, a-Si TFT-LCD.


Pixel configuration


RGB vertical strip


Appearance size


975.5 × 582.2 × 10.5 (H × V × D)


Surface treatment


matte (Haze 3%), Hard coating (1H)


Contrast ratio


1100 : 1 (Typ.) [Transmission]


Optical mode


IPS, normally black display, transmissive


Response speed


6 (Typ.) (G to G) ms


Backlight type


WLED, 30K hours, no drive


Motherboard configuration(Android)


CPU


RK3568, Quad-core, the main frequency up to 2.0GHz, Android11



GPU



Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1



Internal storage



Standard with 2GB, optional 4GB



Built-in storage capacity



The eMMC is standard with 16GB optional 32GB


TF Card Extension (available for extension SSD)



Network



Support RJ45 R / A 100 trillion Ethernet, support Ethernet;


Support the 2.4GHz Wi-Fi; support the Wi-Fi 802.11b/g/n protocol;


.2Support Bluetooth 4, mobile phone Bluetooth send program.



Picture orientation



Support 0 degrees, 90 degrees, 180 degrees, 270 degrees, manual rotation; optional gravity sensing sensor, support automatic rotation



Displays the interface



1 * LVDS interface (single / dual, 6 bit / 8 bit), support 3.3V / 5V / 12V power supply


1 EDP interface, 1 HDMI


1-way V-By-One interface and supports 1080P output


Reserve a 1-channel HDMI IN interface, which can be equipped with a small board


The onboard backlight control supports the 12V backlight power supply



Touch screen



Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nanomembrane touch, multi-point sound wave


Touch, multipoint optical touch, etc...



RTC



Built-in real-time clock function



USB



1 USB-3.0 HOST, 1 USB 3.0 OTG, 5 extended USB port



Infrared



Infrared receiving seat, support for infrared remote control function



LED



1 * Power Status LED (green), 1 * System LED (green, default flashing)



Operating system



Android  11



Audio frequency



MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3 GPP and other formats



Video frequency



Support H.265,H.264,VP8, MAV , WMV , AVS , H.263, MPEG4 and other video formats






Support JPG, BMP, PNG and other picture formats



System management



Original ecological Android system, open root permission, can be customized product development



Infrared touch


Material


Glass thickness


Surface abrasion strength


strong, determined by the glass surface


Homogeneity


good


Touch the parameter


The number of times the theory is determined by the degree of glass wear


Design life


more than 5 years


Touch the fastest response speed


6ms


Touch the average reaction speed


8ms


Electrical parameters


Working voltage


4.5 ~ 5.5Vdc


Working current


≤120mA


Power


≤ 900mW


digital kiosk


3d creativity hologram 43 inch floor standing lcd c android indoor digital signage indoor media player digital signage





Company Information


Shenzhen Gemdragon Display Technology Co., Ltd.

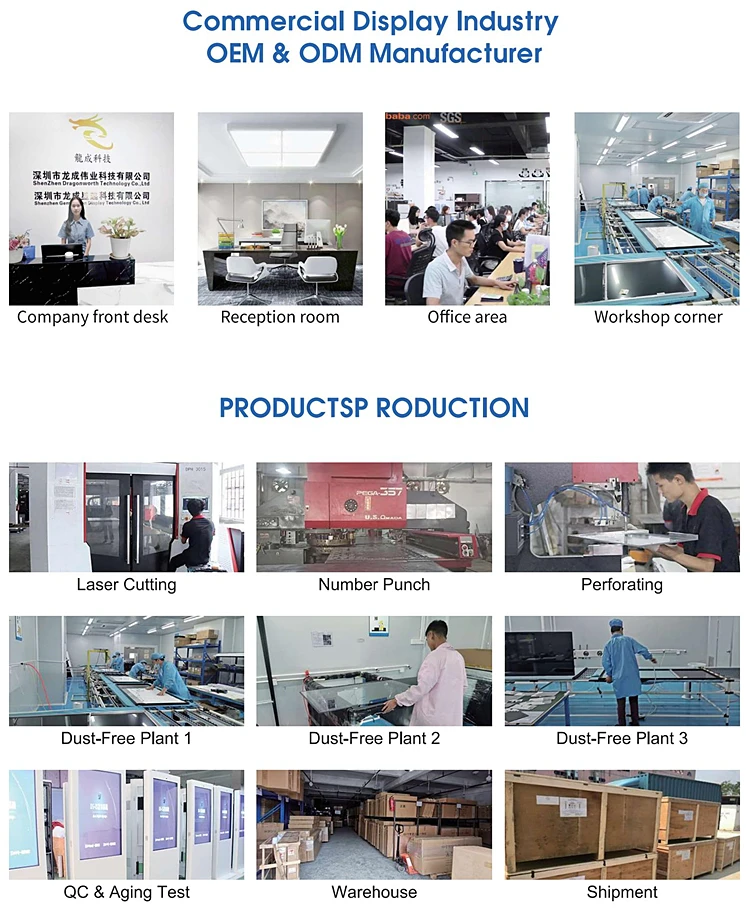

We are a manufacturer of Digital Signage with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.


digital kiosk company (2)


digital kiosk company (3)





Why Choose Us


Pre-sale service:


Inquiries will be replied within 24 hours. Market research and forecast for customer. Provide unique and professional solutions based on customer's requirement. Data sheet and samples offered. Other required services such as special packing design, factory visiting and so on.





In-sale service:


Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts provided.





After-sale service:


Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


digital kiosk


Floor standing digital signage





Certifications


HD SCAN FILE


gemdragon display





Packaging & Shipping

digital kiosk company (4)

DELIVERY TIME:


DHL:3-4 Days arrive


ups:4-5 Days arrive


Fedex:4-5 Days arrive


EUEXP:7-10 Days arrive


USPS:10-20 Days arrive


digital kiosk company (1)





FAQ


Q1: Are you a factory or trading company?


We are a OEM / ODM factory.





Q2: How long is the warranty time for your products?


Our officially promised warranty time is one whole year after delivery at best.





Q3: I haven't done business with you guys before,how can i trust your company?


Our company has been in China for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for 10 years.what's more,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV onsite check certificate.I hope those above will be persuasive enough.Our Trade Assurance Limit is US $736356.7, and it is still going up.





Q4: what's the shipment terms and delivery time of your company?


Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.





Q5: what brand of screen are you using?


Samsung and LG screenare normally used for the digital signages and video walls, while customized screen is also supported.





Q6: I would like to ask you if it's possible to have my logo on the product.


We hope you know that our company Gendragon perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.





Q7: What is the minimum order?


Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames, like 7 inch.


digital kiosk
