foamed aluminum sandwich panels for wall claddig

Product Overview

Description



Description



Aluminum foam material is made by adding additives to pure aluminum or aluminum alloy through foaming process. It is a lightweight engineering material with both metal and air bubble characteristics. Aluminum foam can be designed with the required comprehensive properties by changing its density and pore structure.











Specification

 Under different manufacturing processes, aluminum foam panels will have different densities and transparency. Aluminum foam can be a fully transparent panel, a closed panel, or a panel with open sides.

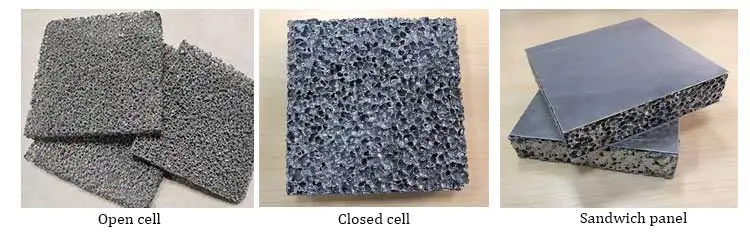

Type	Available in closed-cell, open-cell ,micro-open-cell
Form	foam panel,or sandwich foam panel
Pore diameter	3-8mm
Size & Shape	can be made in different shape as per request
Density	0.2-0.6g/cm 3
Size availability	520*520,1000*2000,1200*600
Acoustic absorption coefficient NRC	0.7
Fire-proof level	A1
Sound absorption (1000Hz -2000Hz)	40% ~ 80%
Compressive strength	3-10Mpa
Specific stiffness	1Gpa/gcm 3









Feature



Lightweight: the density is 0.1-0.4 times that of metal aluminum



High specific stiffness: its bending specific stiffness is 1.5 times that of steel



High damping shock absorption performance and impact energy absorption rate: the damping performance is 5-10 times that of metal aluminum.

Recycled and reprocessed to reduce the waste of resources



Excellent electromagnetic shielding performance, good thermal performance, non-combustible and good heat resistance. Easy processing, easy installation, etc.









Application



Aluminum foam is mainly used as lightweight,easy to install materials,it is widely used in building materials. It can absorb surrounding noise well, and its diverse specifications can provide designers with more space for diversified designs.

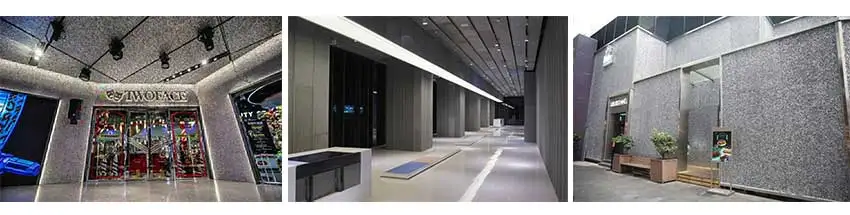

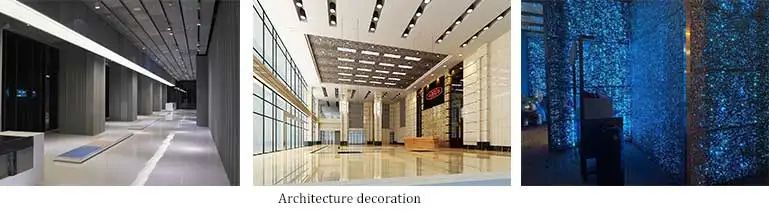

Architectural and Design Industry



It is used for facades, wall cladding, ceiling tiles or dropped ceilings, restaurants, bars, offices, apartment buildings, showroom displays, signage, lighting fixtures, exhibits, and any application that you dare to imagine.



















 Packaging& Shipping





 FAQ

Q1: Can aluminum foam be customized?
A: Yes. You just need to provide the drawings and dimensions, we will provide you with the product you want.



Q2: How to install aluminum foam?
A: The foam aluminum material can be mechanically or fixed directly with screw connections and card slots. This easy-to-install feature can better help present a variety of stunning effects indoors and outdoors.
