1Ton Mechanical Stacker Electric Forklift Truck Electric Stacker Warehouse Stacker Crane
- Category: >>>
- Supplier: Zhejiang Kaixun Mechanical And Electrical Co. Ltd.
Share on (1600901846181):
Product Overview
Description
Product Description

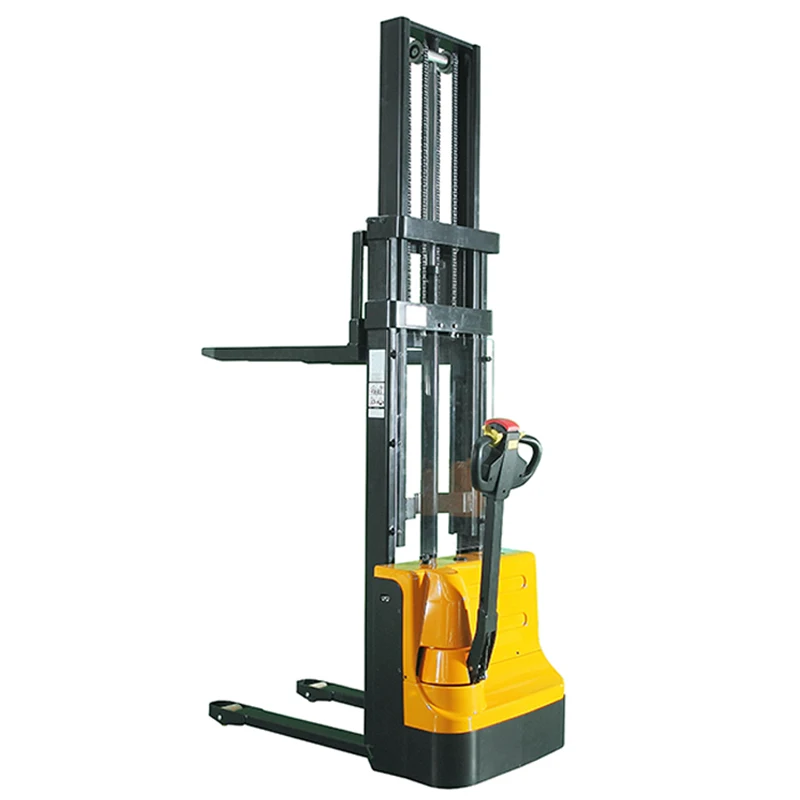

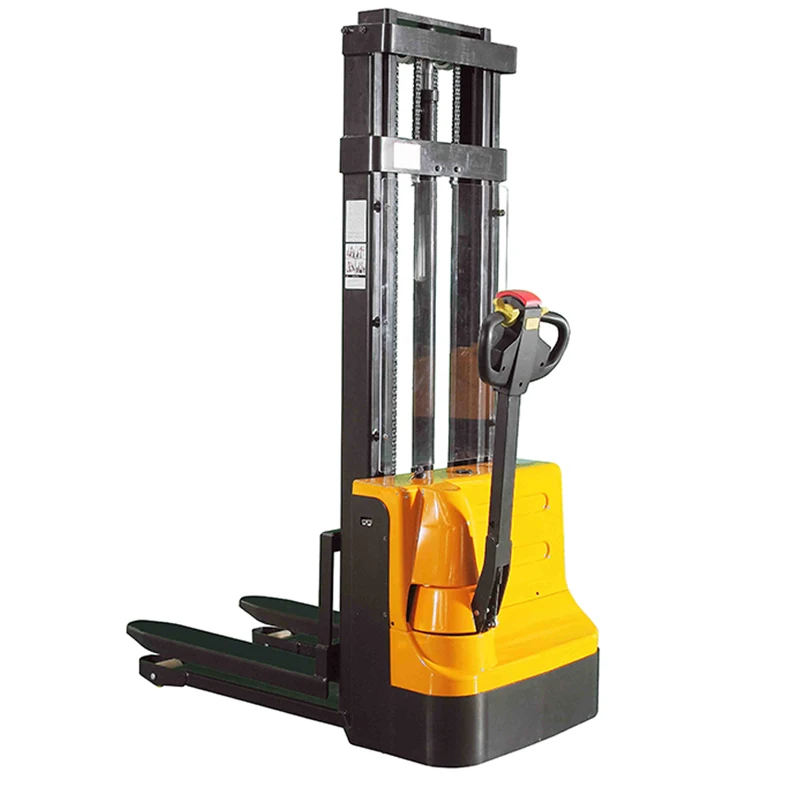

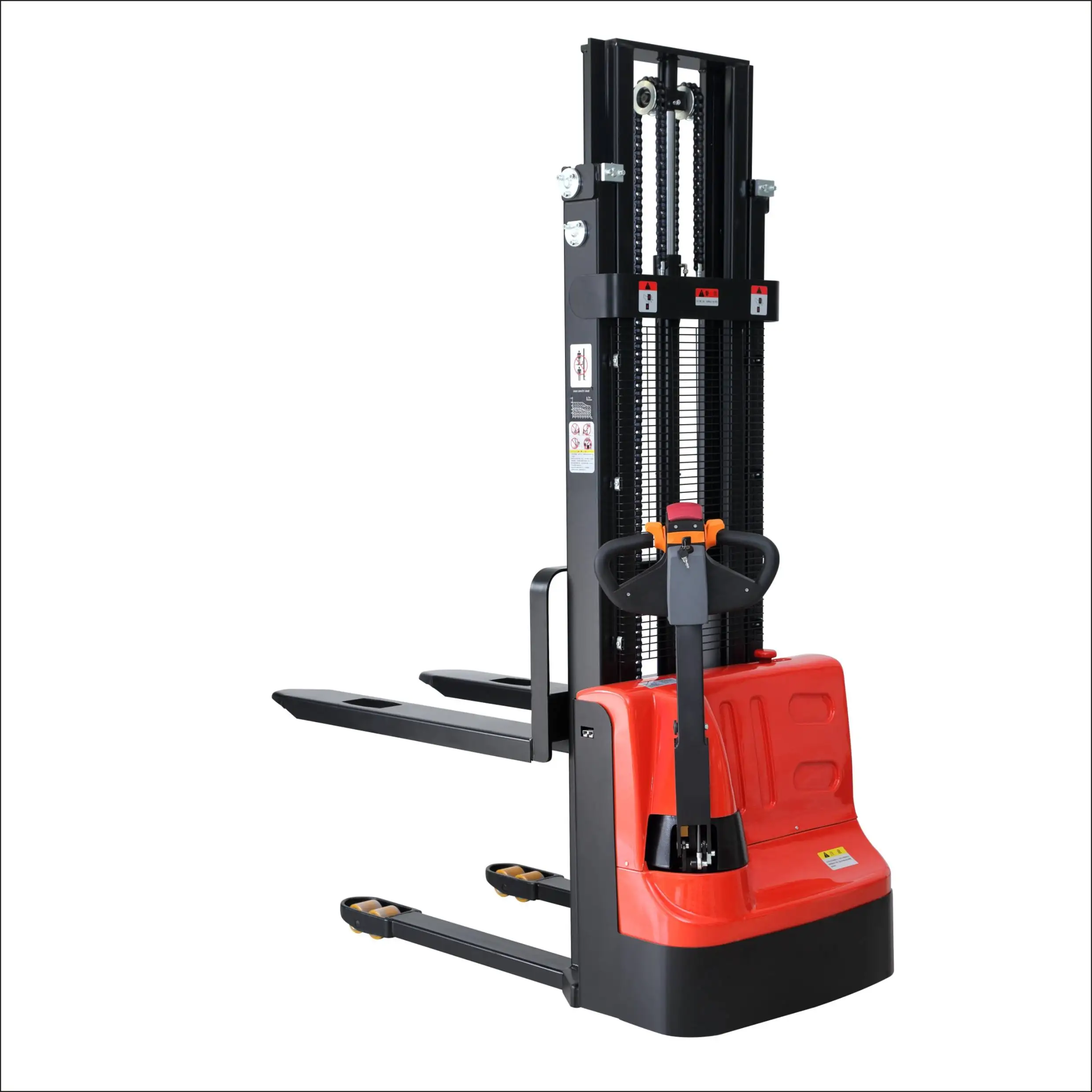

KX-CDD-B Electric Stacker
1 T capacity
3m Lifting Height
1150mm Fork Length and 550/685mm Fork Width
2 × 12V Lead-acid Battery
Turing Radius 1360mm

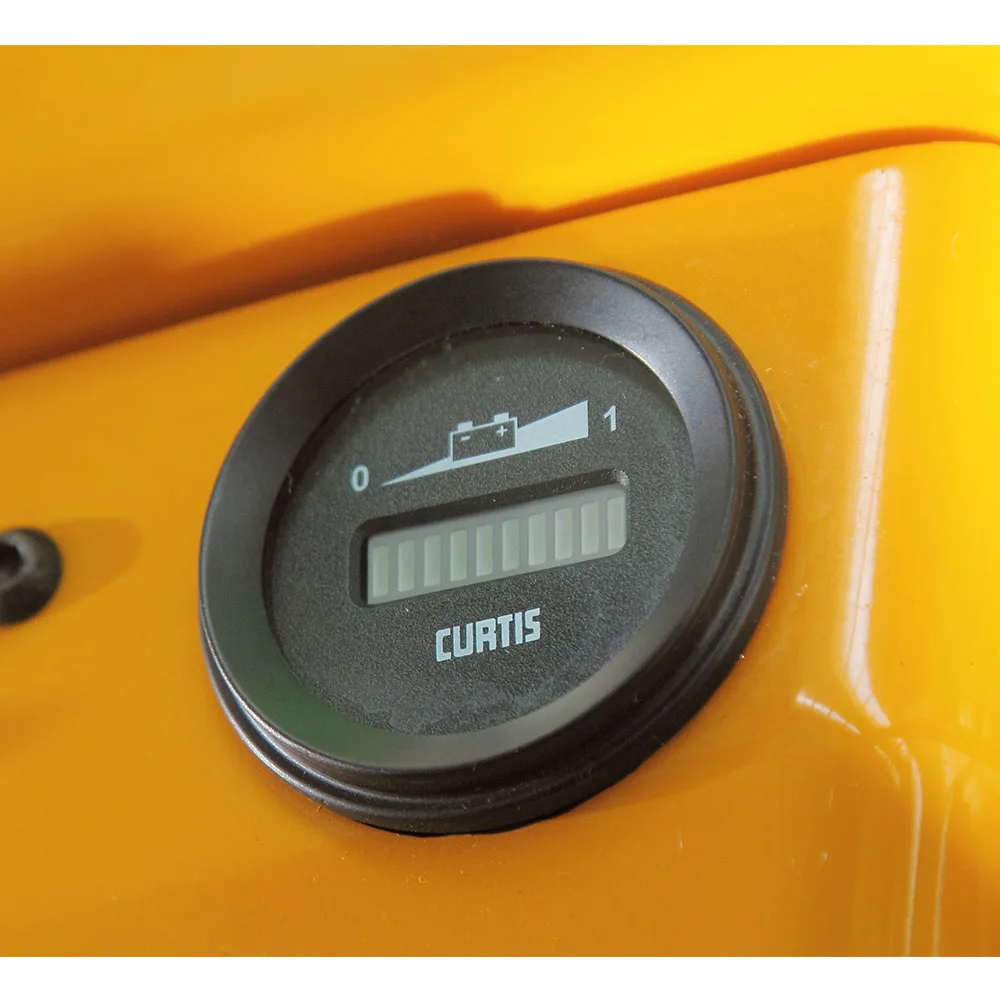

Curtis PCB Board
With Emergency Button and Anti-collision Button
3m Lifting Height
1150mm Fork Length and 550/685mm Fork Width
2 × 12V Lead-acid Battery
Turing Radius 1360mm
Curtis PCB Board
With Emergency Button and Anti-collision Button
Advantages

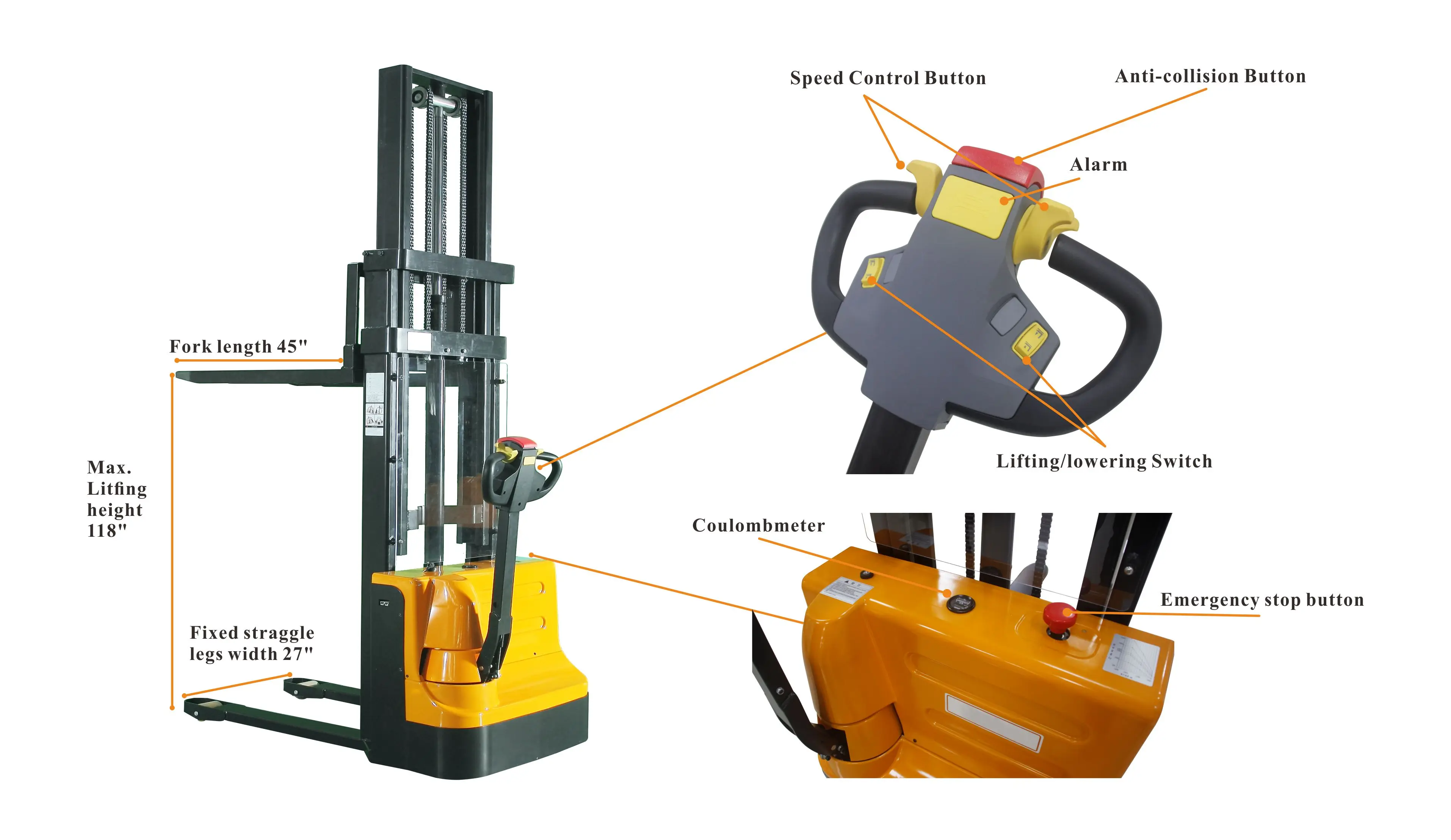

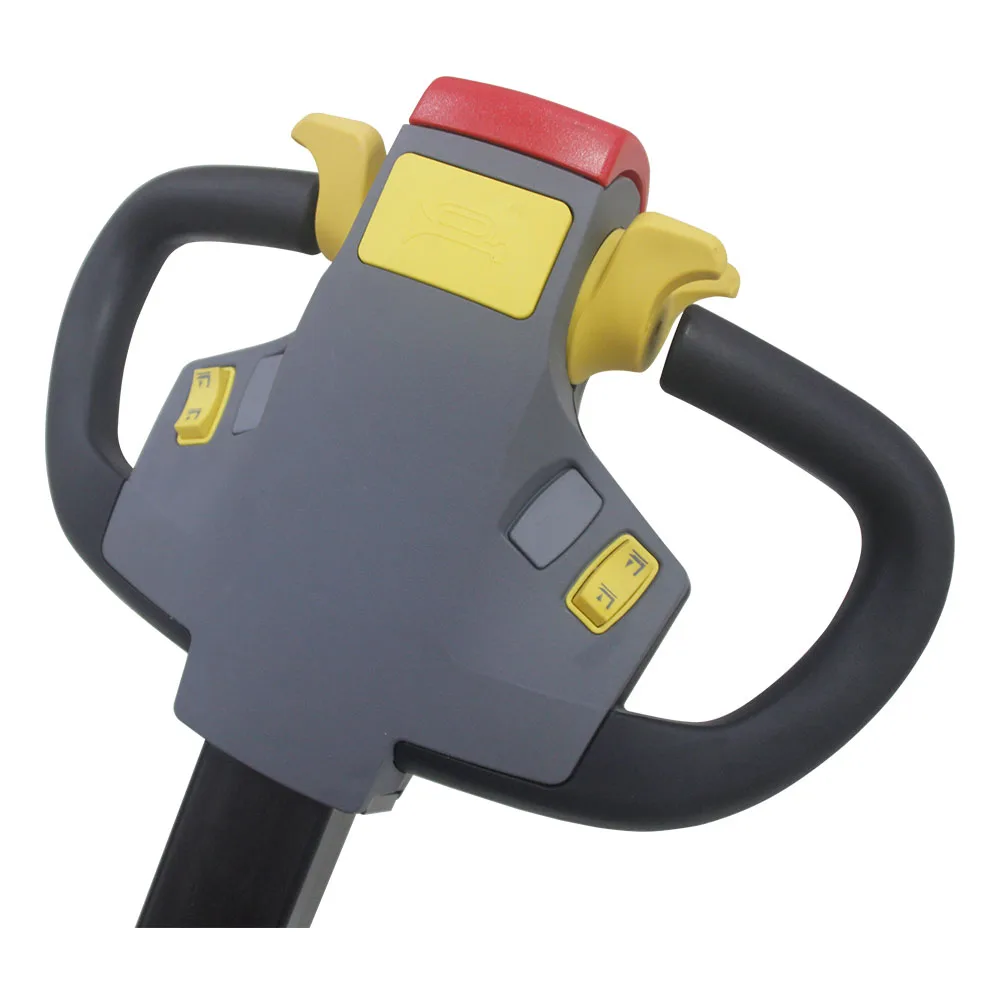

* Multi-function controller handle with speed control button, lifting/lowering switch, alarm, and anti-collision button.
* 2 × 12V lead-acid battery keeps long working hours
* Poly-carbonate board protects user from lift chains

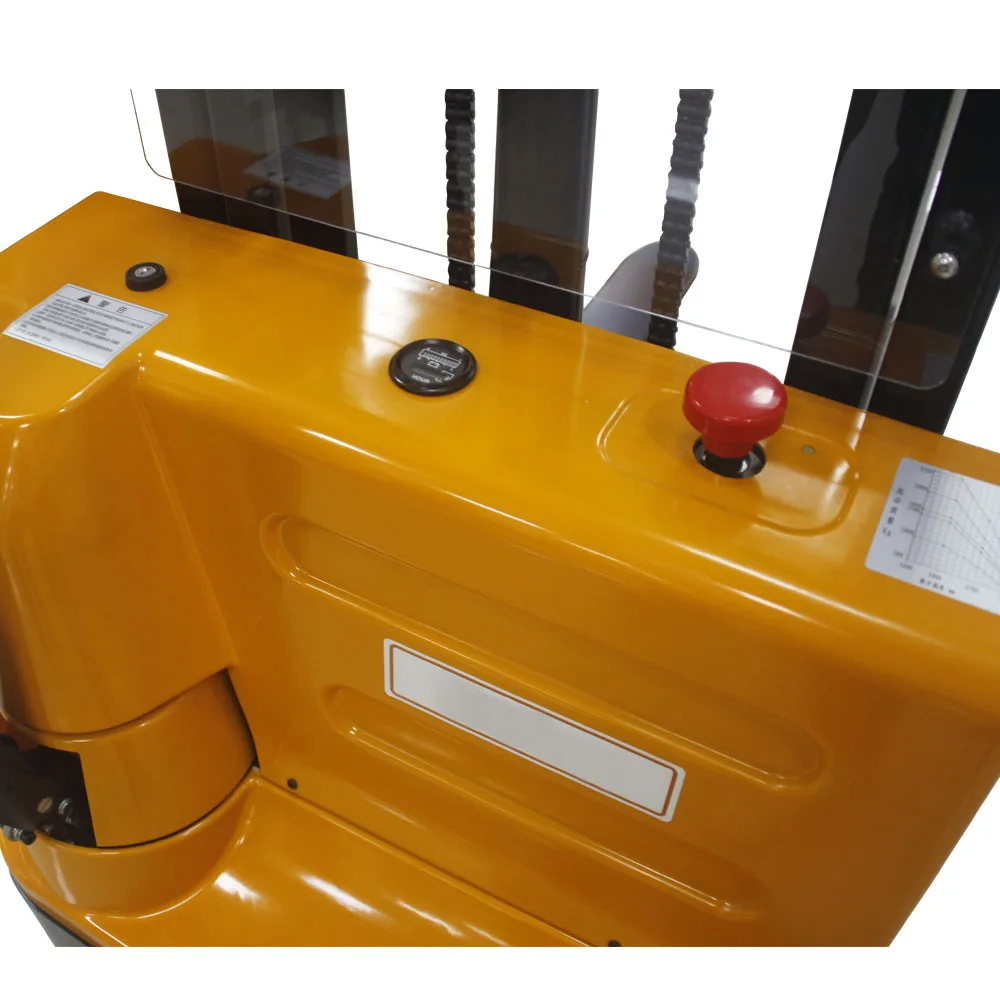

* With emergency button and anti-collision button ensure the safety of operator.
* Small size and 1360mm turning radius can be easy used at narrow space
* 2 × 12V lead-acid battery keeps long working hours
* Poly-carbonate board protects user from lift chains
* With emergency button and anti-collision button ensure the safety of operator.
* Small size and 1360mm turning radius can be easy used at narrow space
Product Specifications
Articles/Model | Unit | KX-CDD-B10 | KX-CDD-B12 | ||
Main characteristics | Drive mode | QD | Electric | ||
Driving mode | JS | Stand/Step | |||
Rated load capacity | kg | 1000 | 1200 | ||
Load center distance | mm | 500 | |||
Wheel specification | Wheel material | PU | Polyurethane | ||
Carrying wheel | mm | Φ80×70 | |||
Driving wheel | mm | Φ180×50 | |||
Size | Lifting height | mm | 1600/2000/2500/3000/3500 | ||

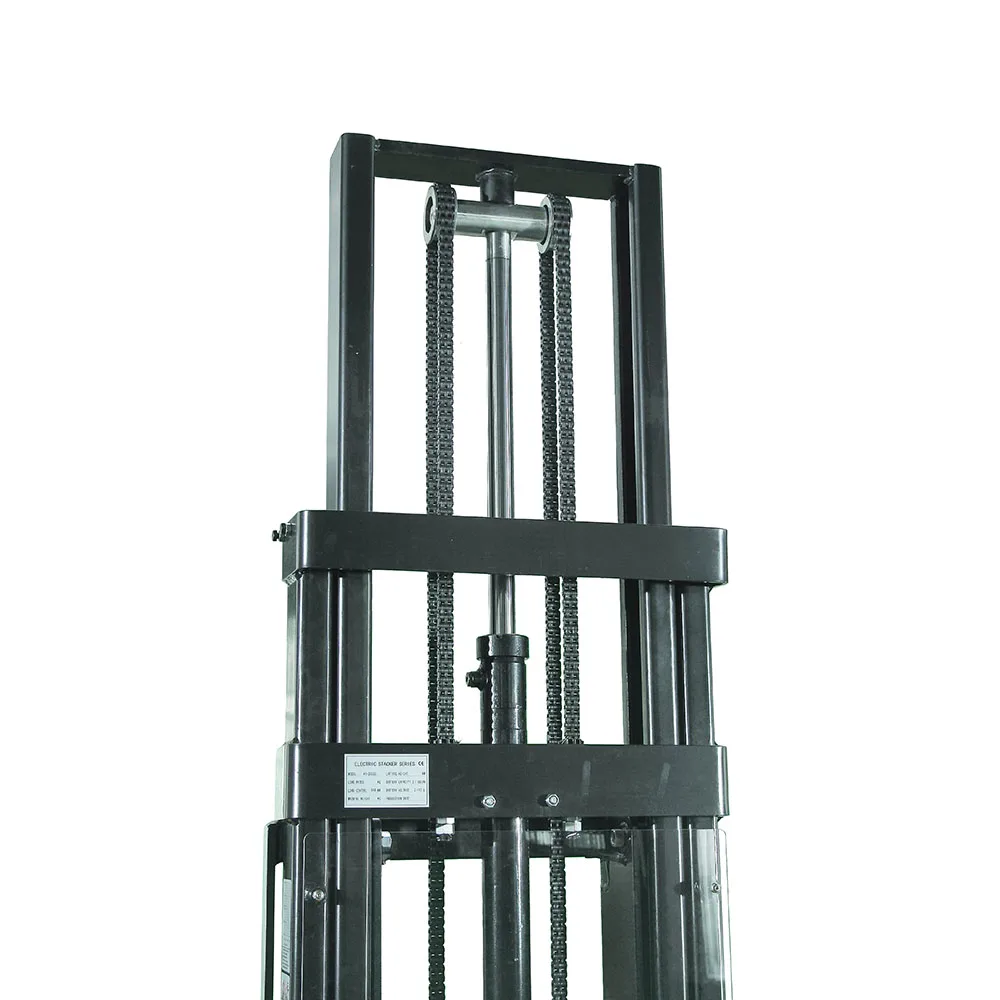

Max. mast height | mm | 2068/2568/3068/3568/4068 | |||
Fork length | mm | 1150 | |||
Fork width | mm | 550/685 | |||
Overall width | mm | 800 | |||
Overall length (including pedal) | mm | 1755 | |||
Turning radius | mm | 1360 | |||
Performance parameter | Driving speed no-load/full-load | km/h | 4 | ||
Lifting speed no-load/full-load | mm/s | 100 | |||
Brake mode | Z | Electromagnetic brake | |||
Motor battery | Battery voltage/rated capacity | V/Ah | 2*12/80 | ||
Driving motor | kw | 0.75 | |||
Lifting motor | kw | 2.2 | |||

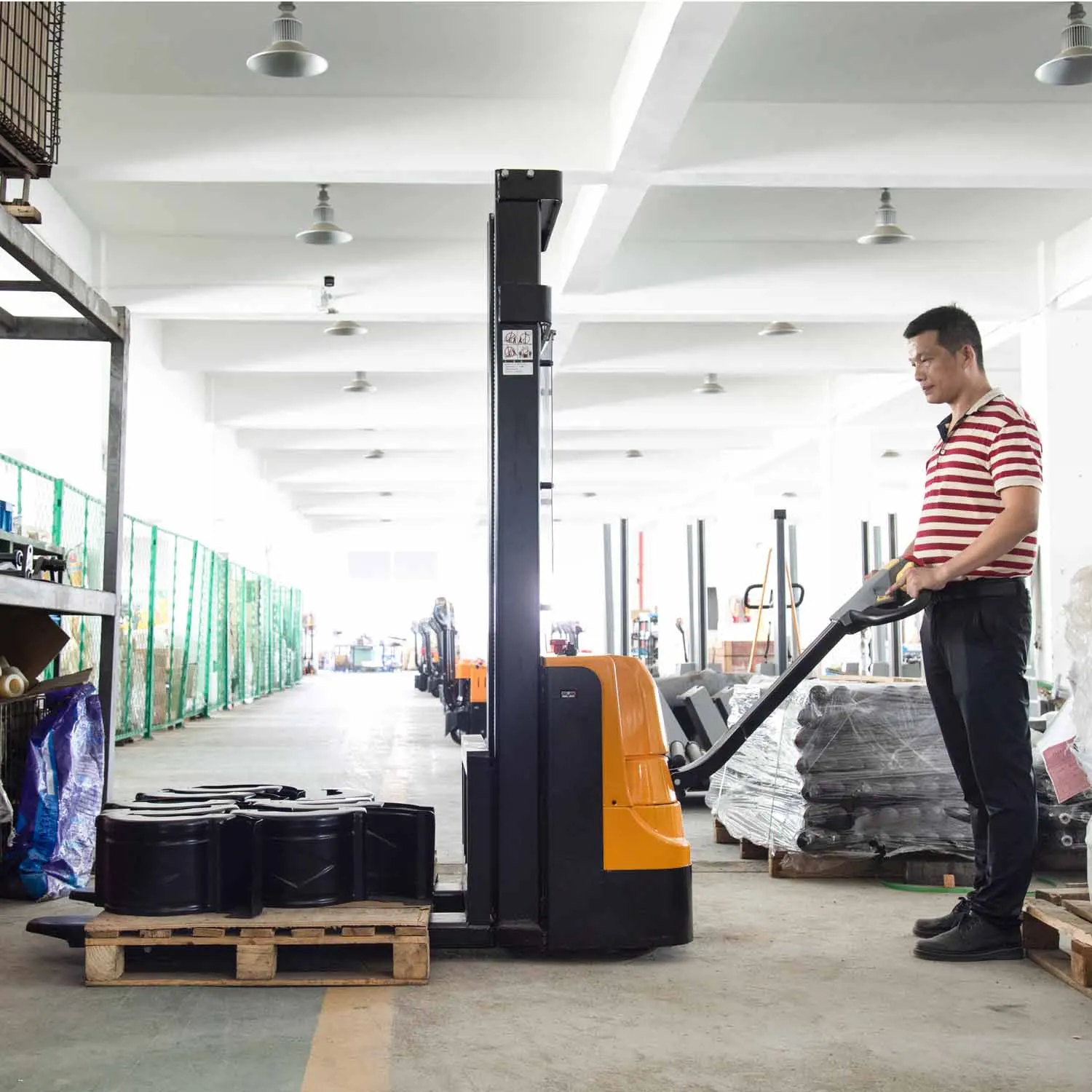

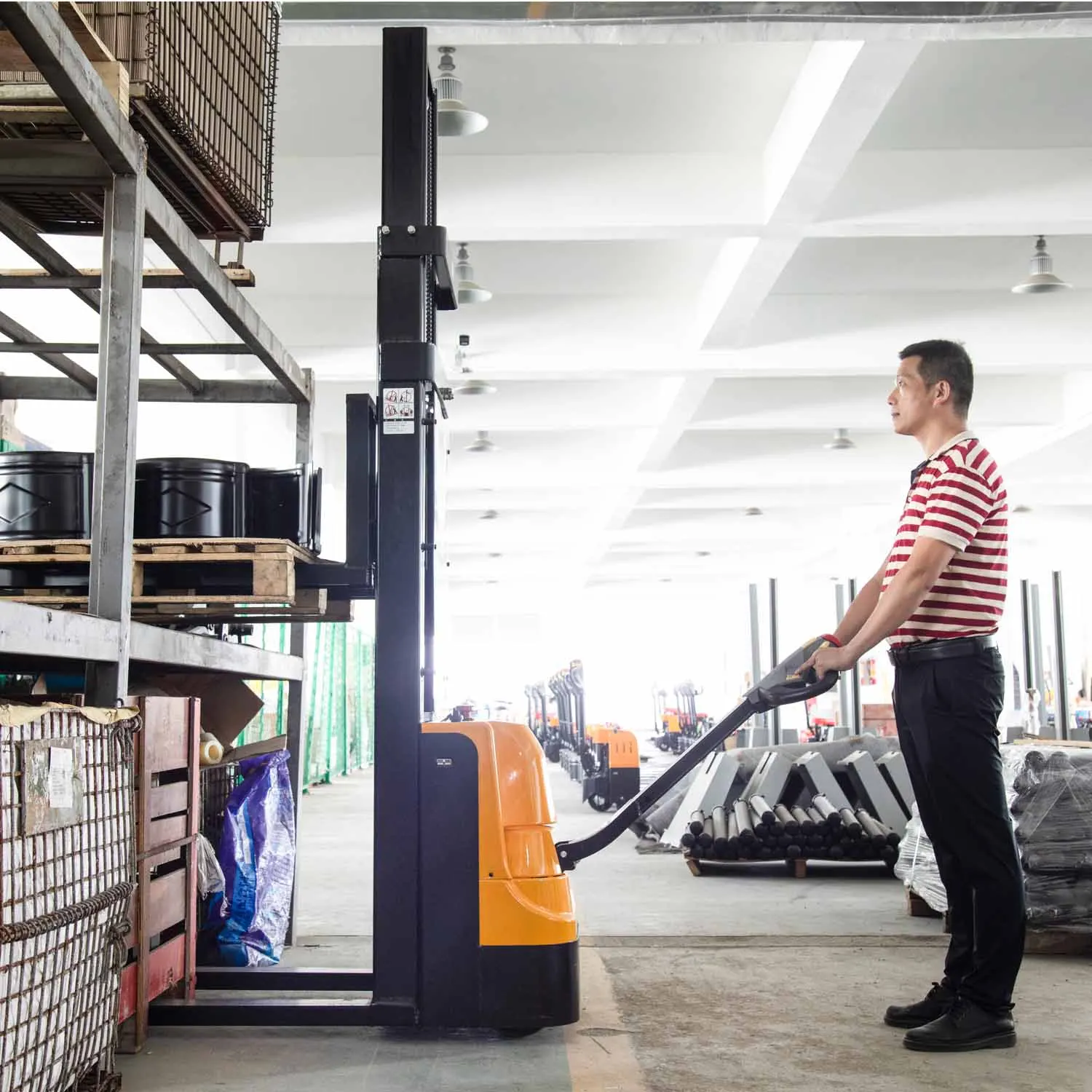

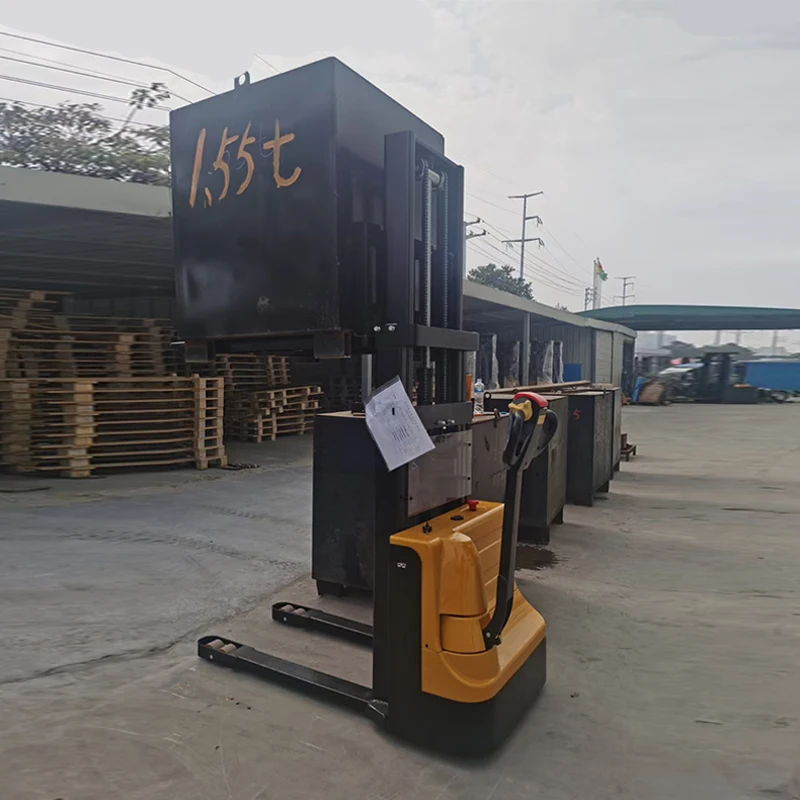

Product Display

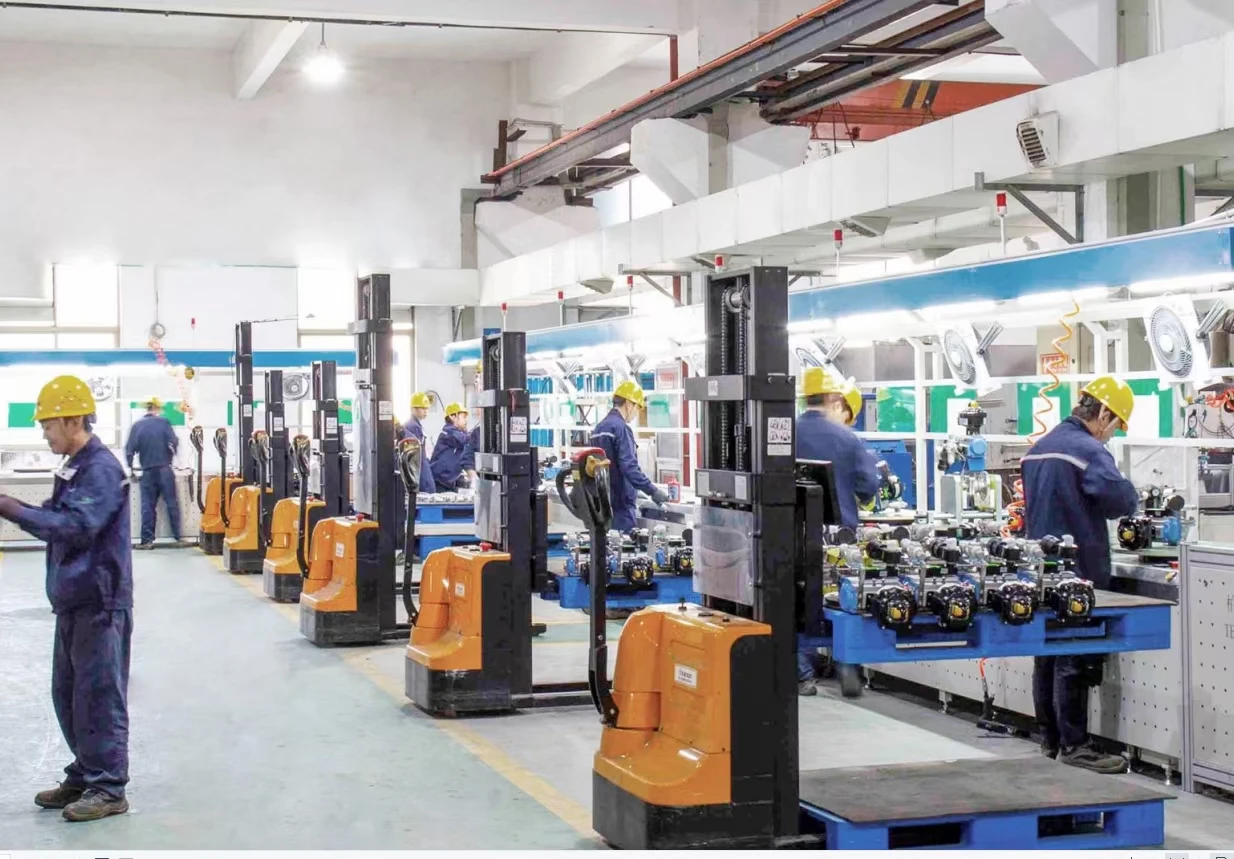

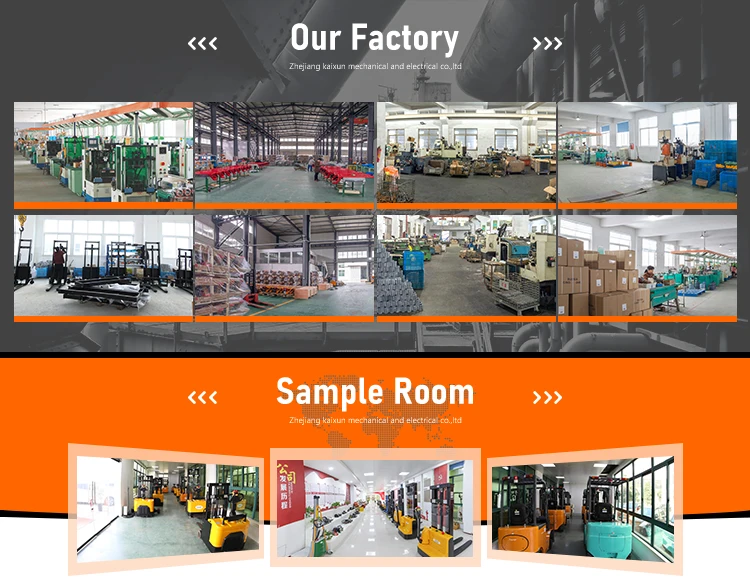

Company Profile
Zhejiang kaixun mechanical and electrical co.,ltd founded in 1998, an Export-oriented high-tech enterprises, specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.
Our company locates at Linyang Ind.Zone, Rui'an city,covers an area of 59000m², structure area 87000m². With self-possessed capital RMB 350 million and production equipment 880 sets.
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
Our company locates at Linyang Ind.Zone, Rui'an city,covers an area of 59000m², structure area 87000m². With self-possessed capital RMB 350 million and production equipment 880 sets.
We have passed the certificate of ISO9001:2015 quality system. Many products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals. Most products passed evaluation of province-class and got the national special equipment production license and industrial products production license.
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
Packaging
Certifications
Exhibition
Why Choose Us
1.Experiences
We have 20 years experiences of producing material handling equipment.
2.Team
We enjoy a good team of Sales department and professional design team
3.Fully customized service
1)Support customization of color, logo, fork length and other machine attributes;
2) Welcome to customize non-standard models.
4.R&D new products
1)We are specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.
2)The r&d team constantly develops new products according to customer needs
5.Product quality certification
1)We have passed the certificate of ISO9001:2015 quality system and BSCI.
2)Our products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals.
3)Our products got the national special equipment production license and industrial products production license.
We have 20 years experiences of producing material handling equipment.
2.Team
We enjoy a good team of Sales department and professional design team
3.Fully customized service
1)Support customization of color, logo, fork length and other machine attributes;
2) Welcome to customize non-standard models.
4.R&D new products
1)We are specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.
2)The r&d team constantly develops new products according to customer needs
5.Product quality certification
1)We have passed the certificate of ISO9001:2015 quality system and BSCI.
2)Our products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals.
3)Our products got the national special equipment production license and industrial products production license.
