Ventilation Duct Connection PVC Flexible Duct Connector
- Category: >>>
- Supplier: Guangzhou Yida Composite Material Co. Ltd.
Share on (1600901849938):
Product Overview
Description
Product Description

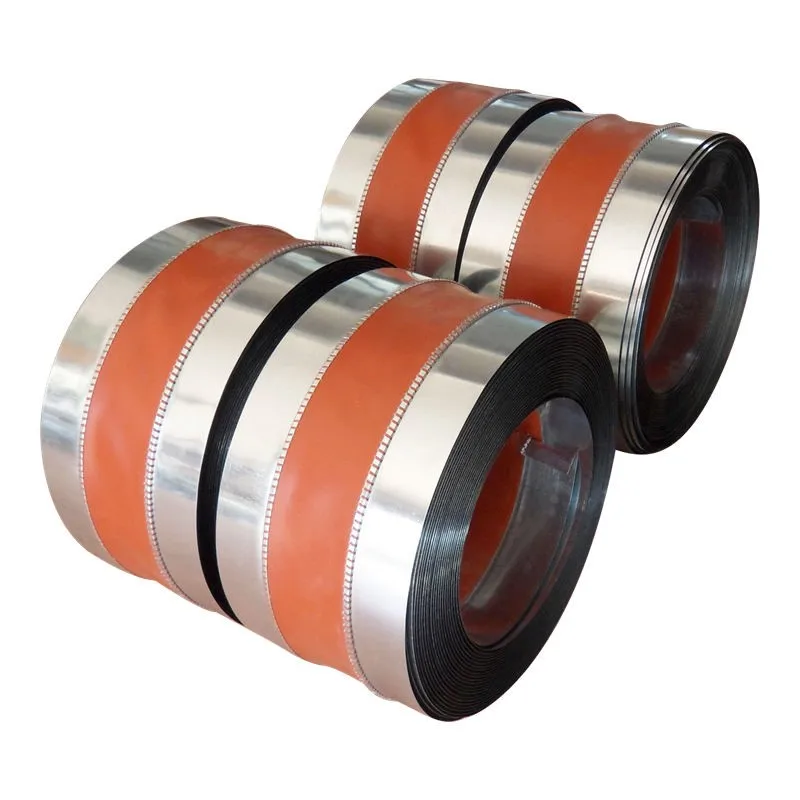

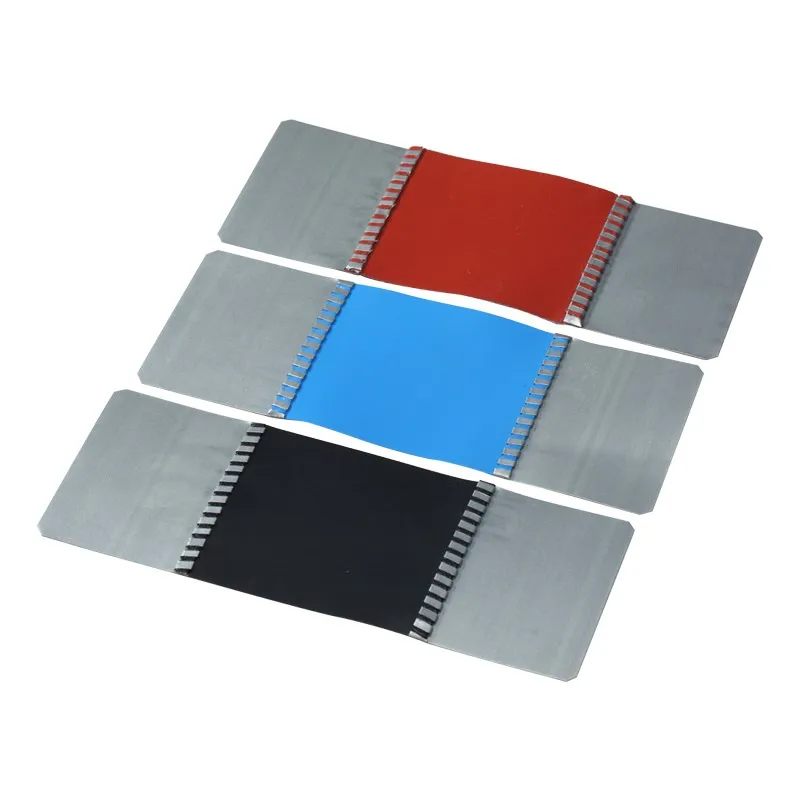

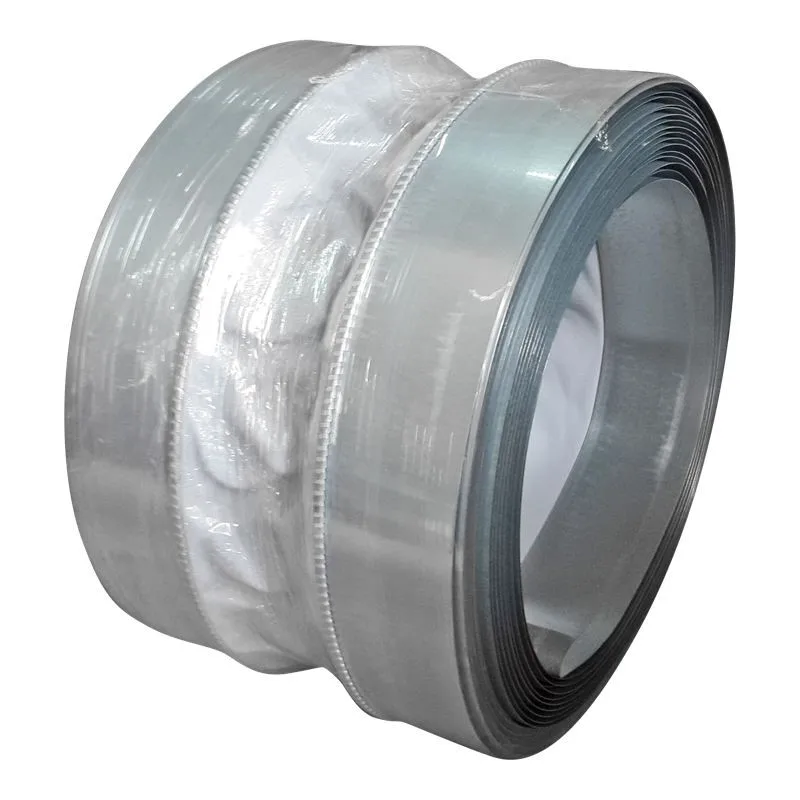

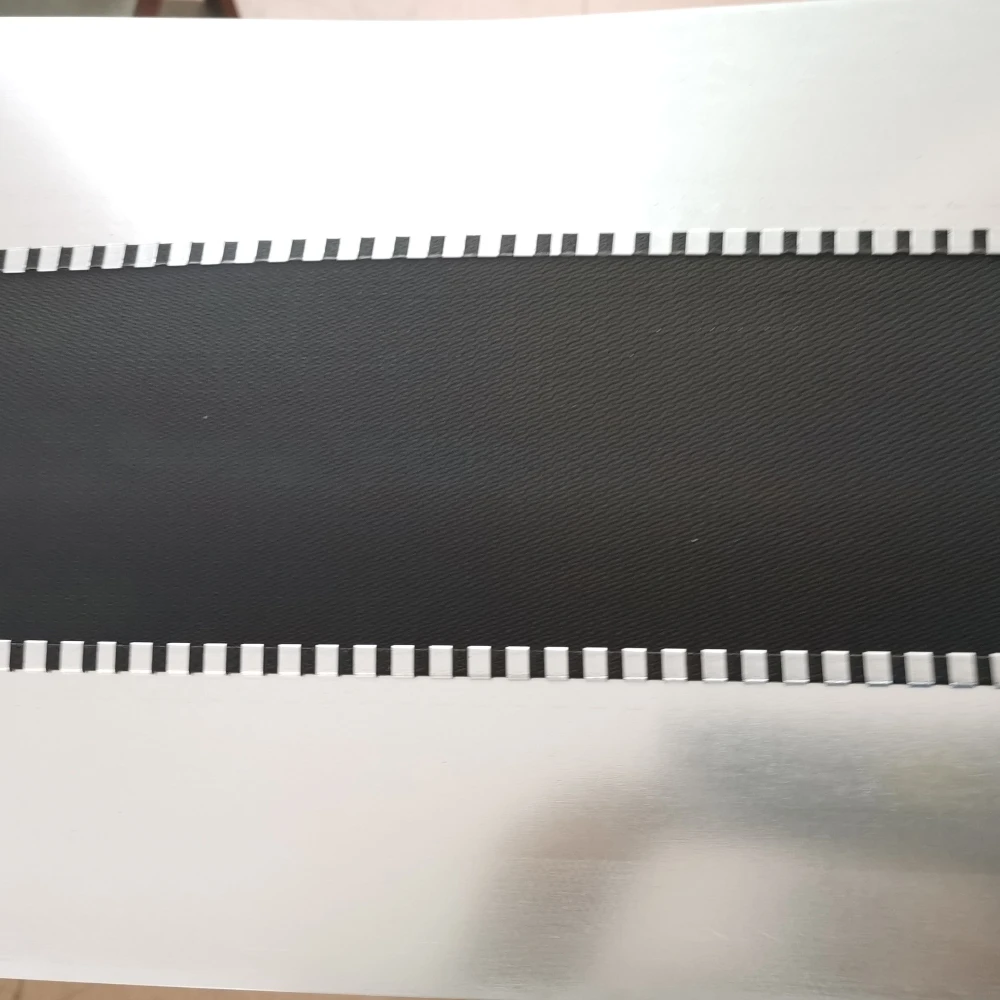

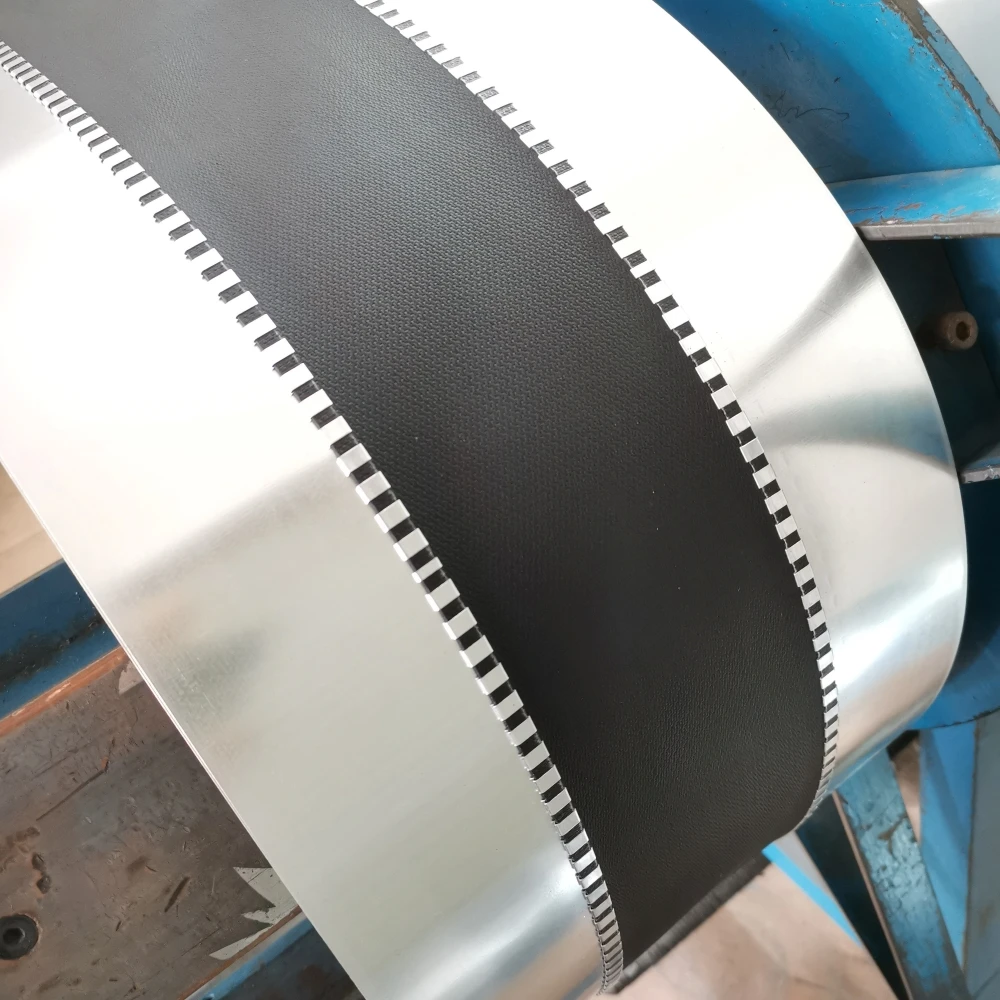

Ventilation Duct Connection PVC Flexible Duct Connector is made of fabrics and galvanized iron plate. The two tight special seams between the fabric and metal plate are airtight. In order to isolate vibrations caused by air handling units, fans or other equipment connected to air ducts, it is necessary to install a Flexible Duct Connector joint between the outlet of these devices and the airduct.
Specification
Size | Metal Thickness | Length/roll | Fabric Material | |||
45X60X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | Vinyl/PU/Neoprene/ Silicone for your option(Thickness from 0.4mm-6mm) | |||
45X75X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
45X100X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
45X150X45mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
75X100X75mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
75X150X75mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
93X100X93mm | 0.4/0.5/0.6mm | 25/30/45/50m | ||||
Customized services are available. | ||||||
Appication
1.easy and quick to be installed.
2.strong air tight lock seams.
3.available in various widths of fabric and metal.
4. high temperature resistant.
5. fire resistant.
Apply for industrial, commercial and residential, ventilation systems
All air duct installations for heating, cooling or ventilation are connected to mechanical equipment containing a fan or blower. Vibrations, noises and rattles resulting from the operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system.
All air duct installations for heating, cooling or ventilation are connected to mechanical equipment containing a fan or blower. Vibrations, noises and rattles resulting from the operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system.
Features
1.easy and quick to be installed.
2.strong air tight lock seams.
3.available in various widths of fabric and metal.
4. high temperature resistant.
5. fire resistant.
6.wear resistant.
7.Replaces traditional canvas.
8.Available in various widths of metal and fabric.
