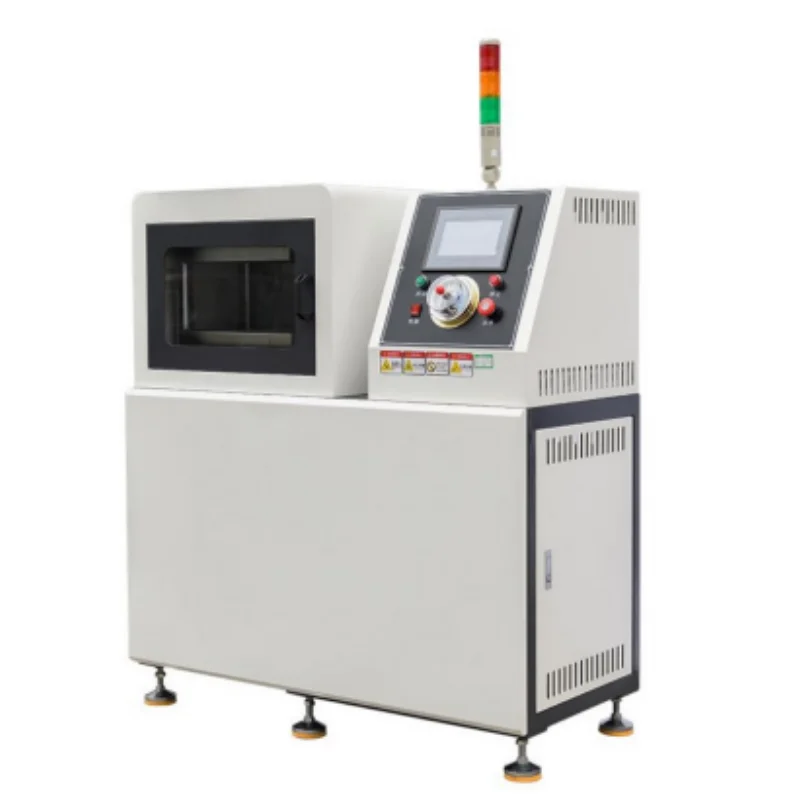

Lab Rubber Moulding Machine/Plate Vulcanizing Press/ 25T Rubber Flat Plate Vulcanizer
- Category: >>>
- Supplier: Dongguan Lonroy Equipment Co. Ltd.
Share on (1600901854868):
Product Overview
Description
Lab Rubber Moulding Machine/Plate Vulcanizing Press/ 25T Rubber Flat Plate Vulcanizer
Overview
This series of plate vulcanizing machine is used to press all kinds of rubber model products and non-model products of the main equipment, can also be used to press all kinds of thermosetting plastics and foaming rubber and plastic products. It has an independent power mechanism and electrical system, and adopts centralized control by buttons. The working pressure and heating temperature can be adjusted within a certain range. This model is split and semi-automatic two.
Lab Rubber Moulding Machine/Plate Vulcanizing Press/ 25T Rubber Flat Plate Vulcanizer
Equipment parameters
Item Model | LR-6014A-25 |
Pressure capacity | 25T |
Pressure gage | The double node pressure is adjustable, and the pressure adjustment accuracy is 10% |
Platen size (mm metric) | 250*250/300*300/350*350/400*400/450*450/500*500/600*600[mm] |
Hot press plate material | High temperature resistant imported steel plate, surface carbonization quenching, special treatment of fast heat conduction, pressure parallel type, wear-resistant. |
Platen hardness | 50~60HRC |
Flatness of the platen | 0.03mm |
Platen parallelism | ≤0.16mm |
Temperature range [select one based on the price list] | Room temperature -250℃ [can be customized maximum temperature of 500 degrees] |
Temperature uniformity | 2.5℃ [The larger the pressure plate, the higher the temperature, the worse the temperature uniformity] |
Temperature controller | Precision module, with PLC touch screen control, touch screen display, numerical display. |
Temperature control type | Temperature control motherboard precise control, self-tuning with high-precision sensor, temperature control accuracy: ±1.0℃. |
Chronometer | Set the display in the touch screen, the time range is 0.1S ~ 99min ~ 9.9hr |
Heater | Heating mold built-in cylinder [According to the platen area configuration of different power packaging platen temperature uniformity, not the same power] |
Heating tim
| It takes about 15min from room temperature to 160℃ |
Two hot plates | Each hot plate can be set to control the temperature |
Heating method | electrical heating |
Cooling mode | Free Cooling |
Oil hydraulic system | CREE.6 hydraulic flow closed loop control system, oil pump drive high performance electro-hydraulic with high precision no resistance cylinder piston to perform constant speed control mode, with automatic pressure compensation function. One pressure automatic pressure, strong load force, stable rise and fall; Automatic pressure, pressure retention, pressure relief. |
Cylinder stroke | Max 150mm [customizable] |
Speed of the cylinder | 11mm/s |
Manometer | 0~200kg/sq.cm |
Mold opening mode | Automatic ascent and descent (manual automatic dual function) |
Safety device | Safety shields, safety doors. |
Number of safety devices | 4 pc |
Supporting mold frame [optional] | Custom
|
Volume | (W×D×H)1100×550×1500 mm |
Power voltage | ,AC220V |
Weight | ≈680kg |
