Product Overview
Description
TUBULAR CENTRIFUGE
Tubular centrifuge is a high speed centrifuge with a tubular drum. The whole machine adopts closed structure, clean lined stainless steel (304), beautiful appearance, its drum diameter is small, large length, high speed, used for the treatment of low concentration suspension and emulsion components that are difficult to separate. The separation factor of tube centrifuge is as high as 13000-21000, the separation effect is good, suitable for the treatment of solid particle diameter 0.01-100 micron, solid concentration is less than 1%, the density difference between light phase and heavy phase is greater than 0.01 kg/micrometer difficult separation suspension or emulsion, the processing capacity is 0.1-2 cubic meters per hour. Tubular separator is often used for the separation of oil, water, bacteria, protein, essential oil clarification, etc. Special over speed tubular separator can be used for separation and concentration of gas mixtures of different densities. Strong separation ability, simple structure, easy operation and maintenance, low energy consumption, small footprint. High speed, high separation factor, suitable for high and low temperature materials, low noise.
GF SERIES | 45 | 75 | 105 | 125 | 150 | 200 |
GQ SERIES | 45 | 75 | 105 | 125 | 150 | 200 |
GF SERIES: used for separating various emulsions, especially for liquid- liquid separation with a small proportion of two-phase and liquid-liquid- solid separation with a small amount of impurities, such as transformer oil, turbine oil,lubricating oil, fuel oil, dye, grease, saponification, all kinds of powder materials, all kinds of oral liquid, all kinds of liquid, 920 separation; Separation of plasma biological from animal blood; Edible oil, CAI pan soak liquid, tea Phenol, soybean concentrated phospholipid refining, oil and water separation and sewage treatment.
GQ SERIES: it is used for separating all kinds of suspension which is difficult to be separated. It is especially suitable for solid-liquid separation with small concentration, high viscosity, fine solid phase particles and small difference in solid-liquid weight. For example, all kinds of liquid , grapes clarification of sugarwash bitide, malic acid, oral liquid and beancurd root; Coal tar, graphite slag removal;of various proteins, algal bands and pectin; Refining molasses; Blood separation, vaccine mycelium, each settlement of seed glucose; paint, dye, various resins, rubber solution purification.

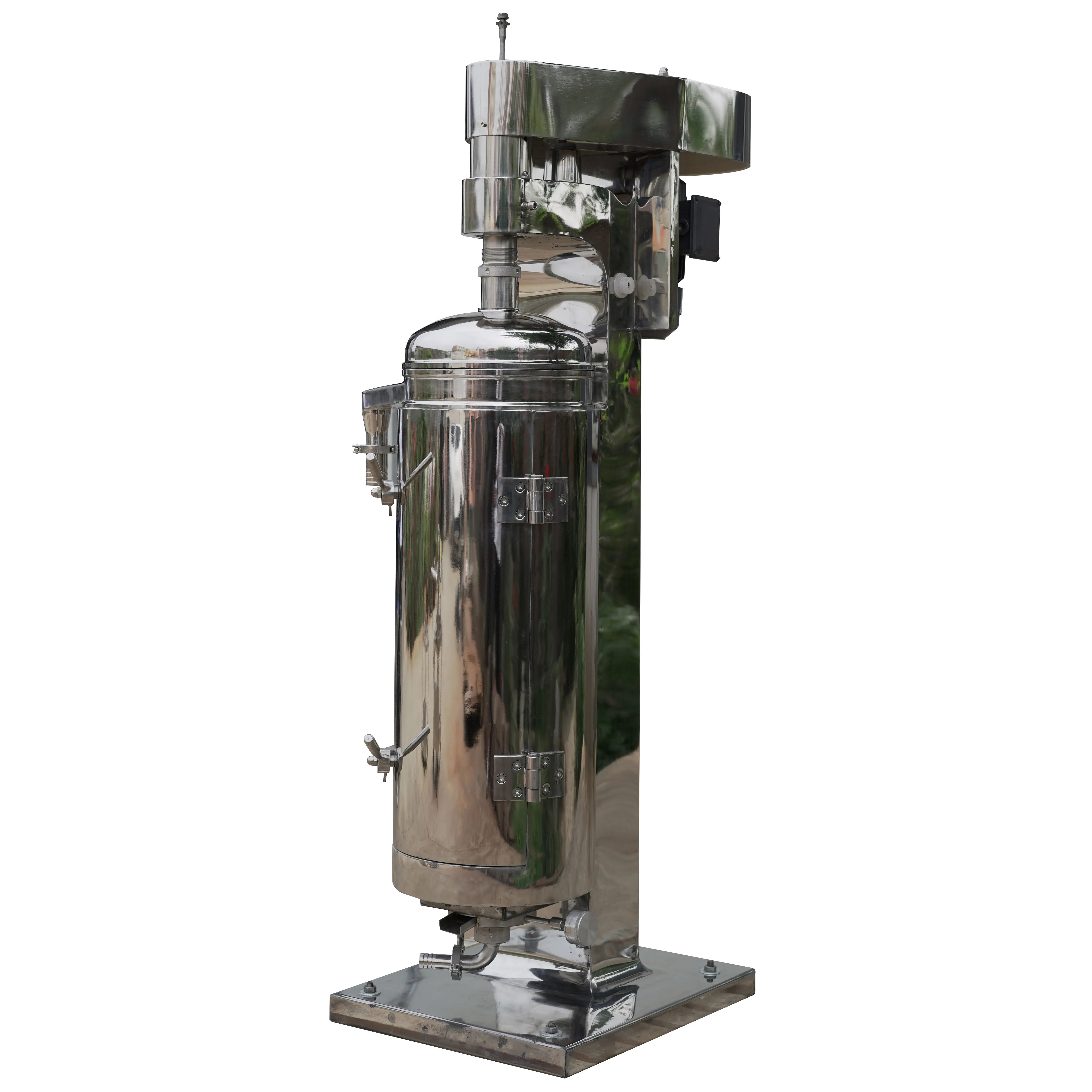

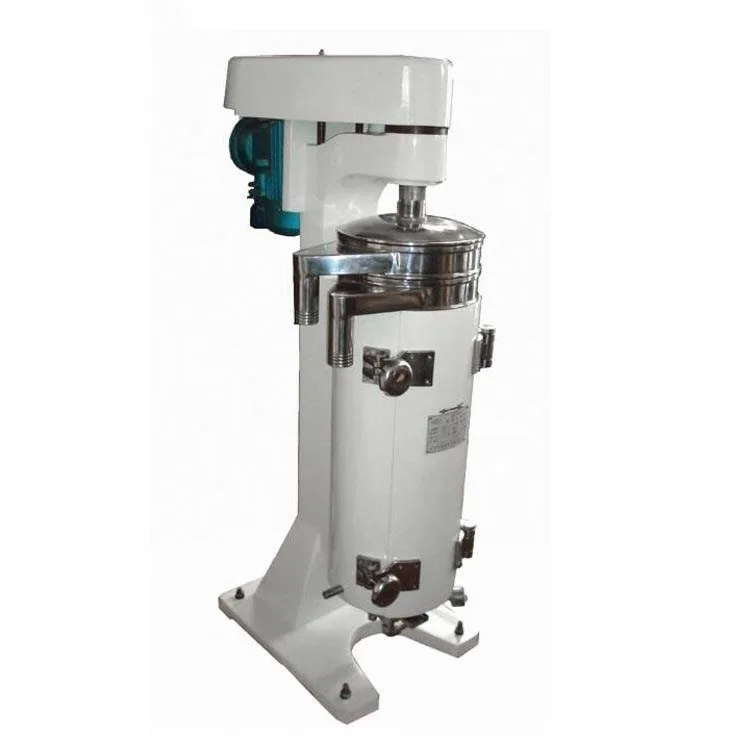

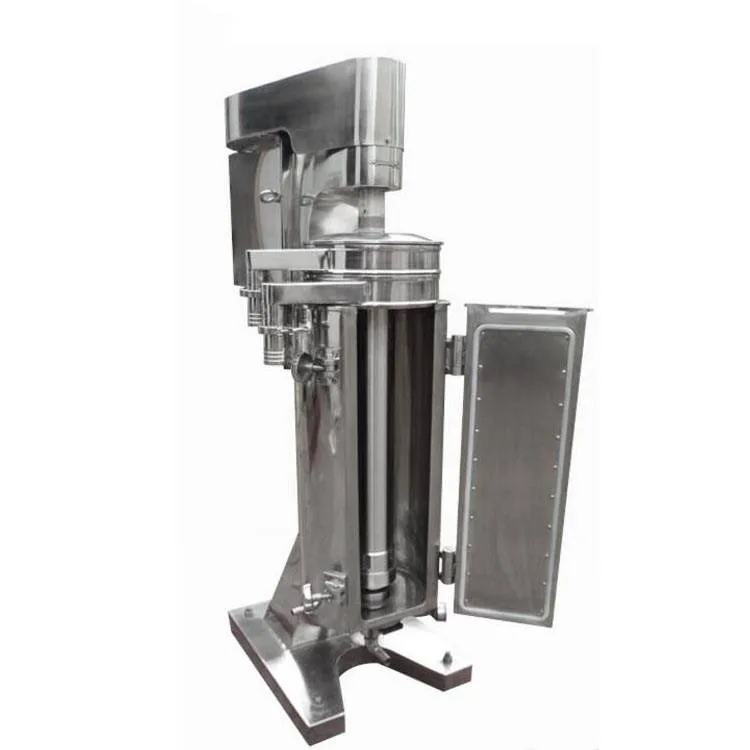

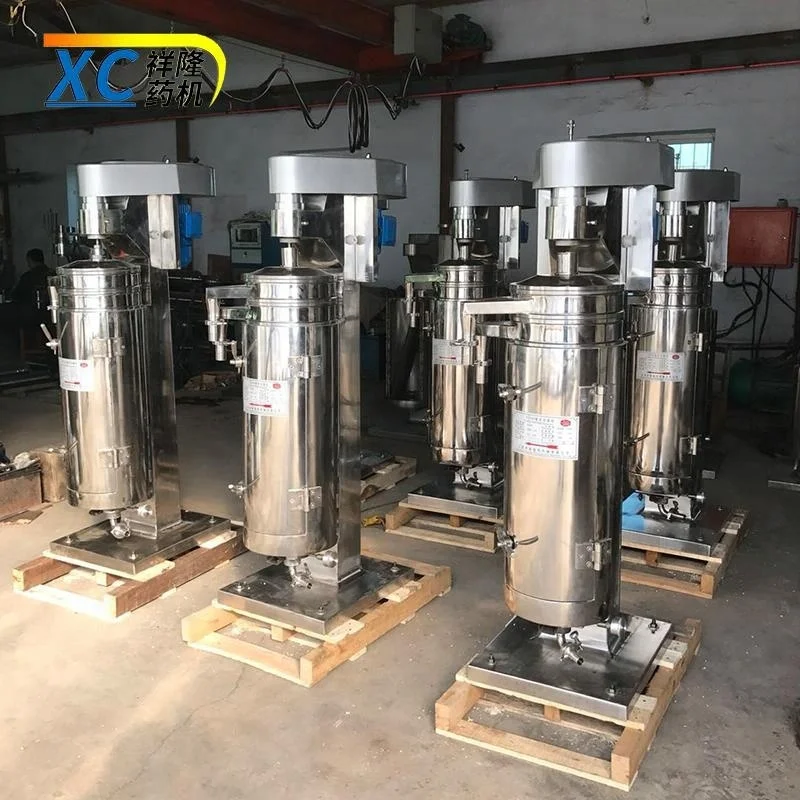

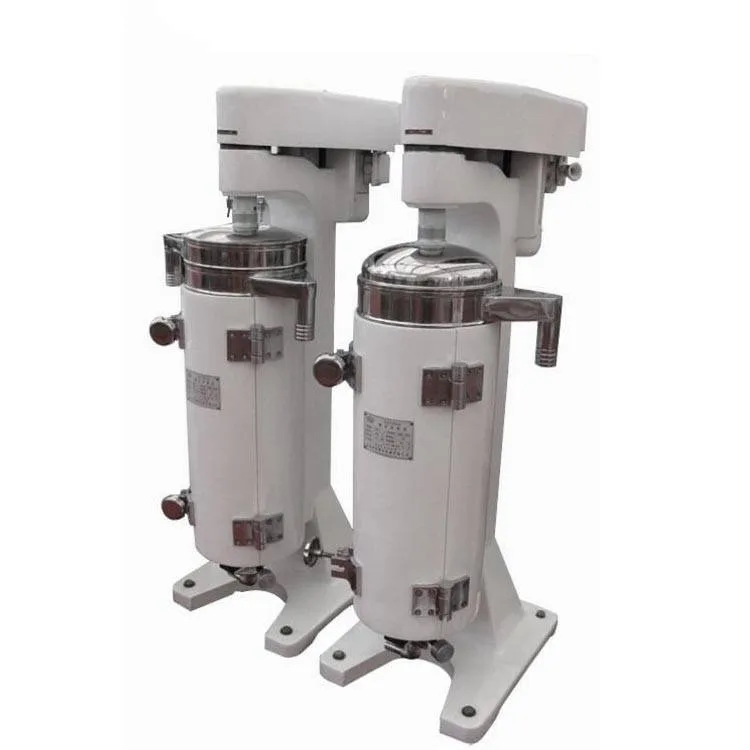

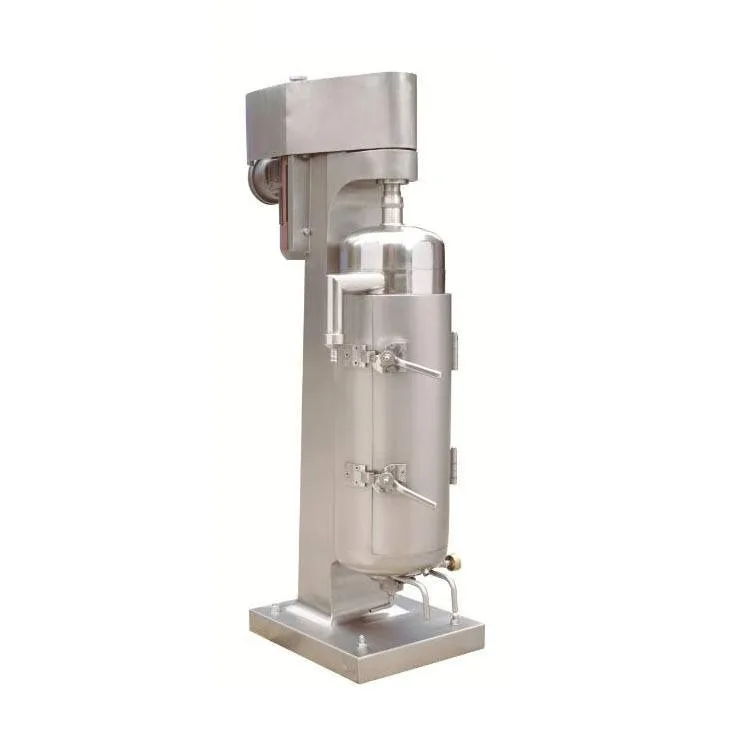

MACHINE PICTURE

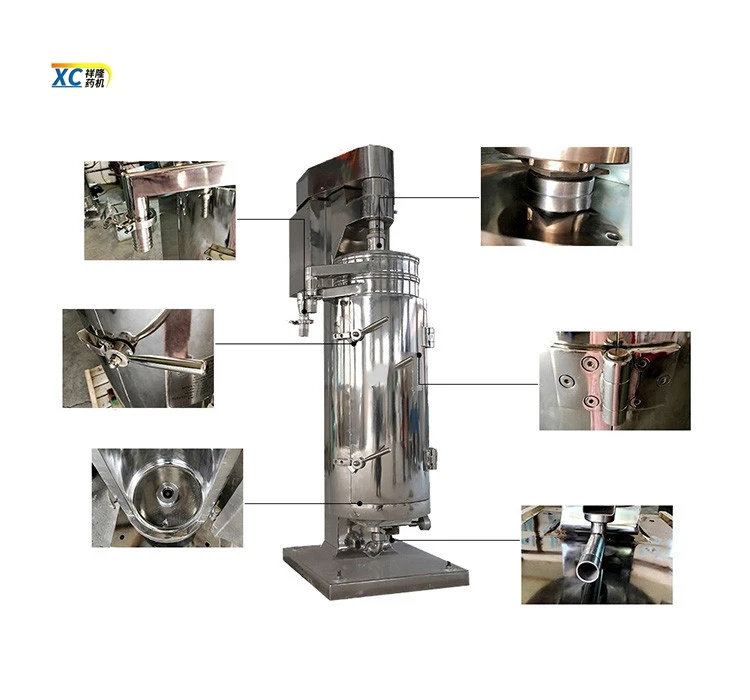

DETAIL DISPLAY

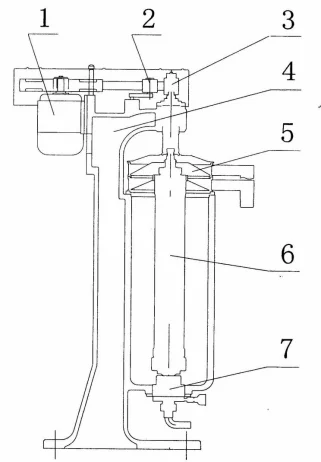

MACHINE DRAWING
1. Motor
2. Bearing assembly
3. Spindle assembly
4. Machine body
5. Cover assemblies for liquid collection
6. Bowl assembly
7. Drag assembly

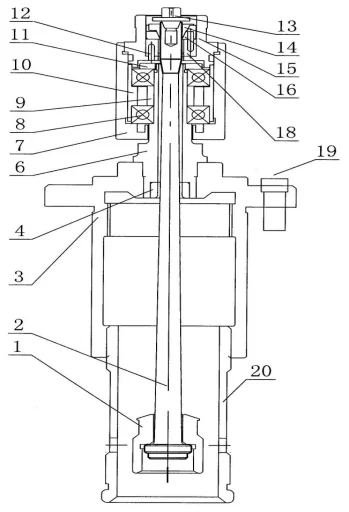

BEARING ASSEMBLY
1.Coupling nut
2.Spindle
3.Bearing housing
4.Thrust collar
6.Lock nut
7.Bearing pulley
8.Bearing 6203
9.Inner Spacer
10.Outer Spacer
11.Bearing binding nut
12.Positioning pin
13.Spindle nut
14.Male clutch
15.Bearing housing
16.Female clutch
18.Buffer
19.Inner hexagon screw M8*25
20.Lock nut

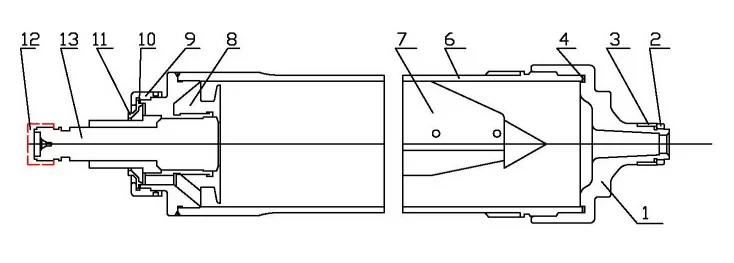

BOWL ASSEMBLY
1 | Bowl bottom | 8 | Inner separating ring |
2 | Screw cap | 9 | Ring dam nut |
3 | Boss sleeve | 10 | Ring dam gasket |
4 | Bowl bottom gasket | 11 | Outer separating ring (GF only) |
6 | Bowl wall | 12 | Protecting cap |
7 | Three wing | 13 | Separating head |
FOUNDATION DRAWING
GF/GQ75 Foundation drawing
GF/GQ105, GF/GQ125 & GF/GQ150 Foundation drawing

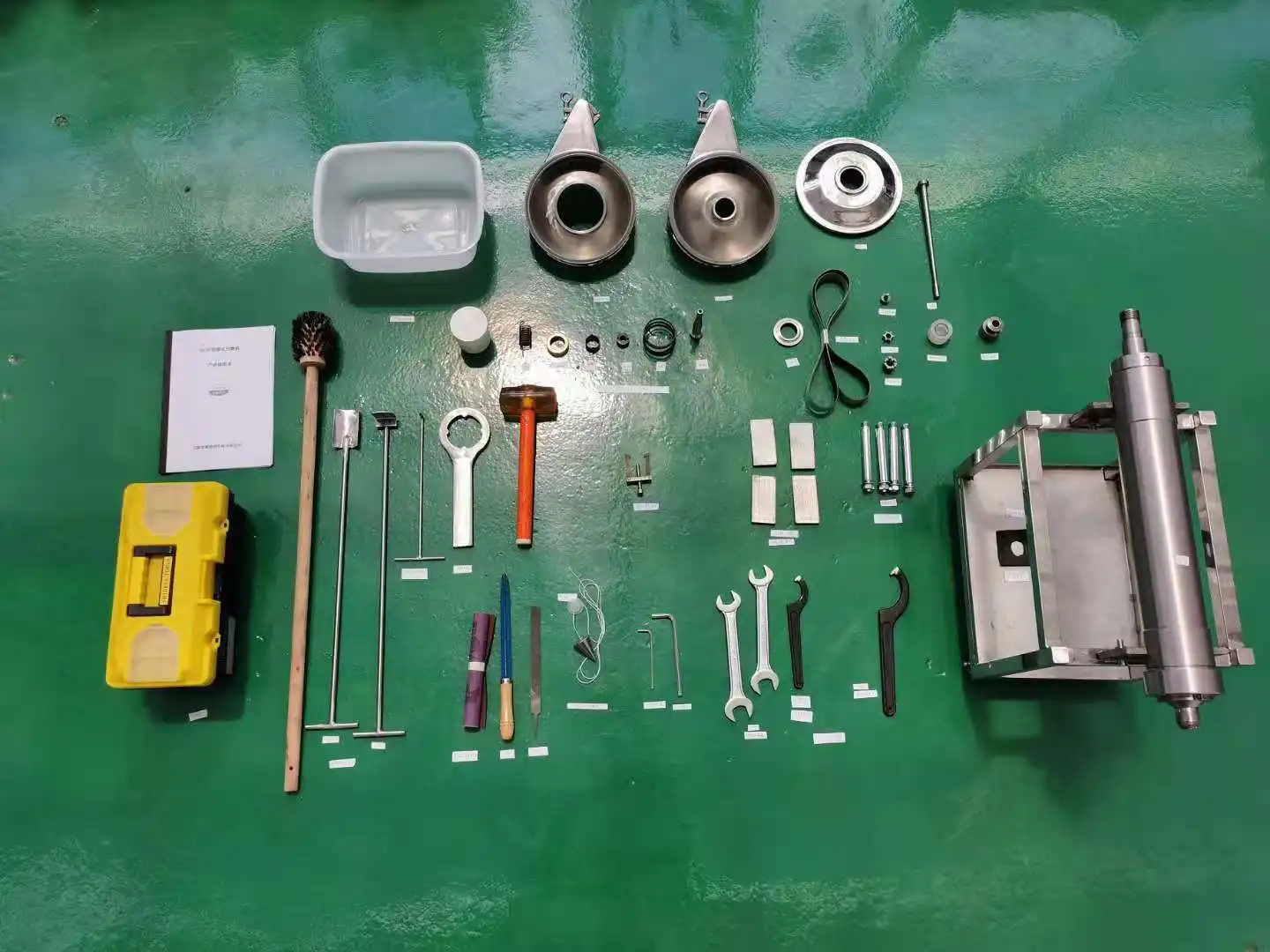

GEARS&PARTS
APPLIED DOMAIN

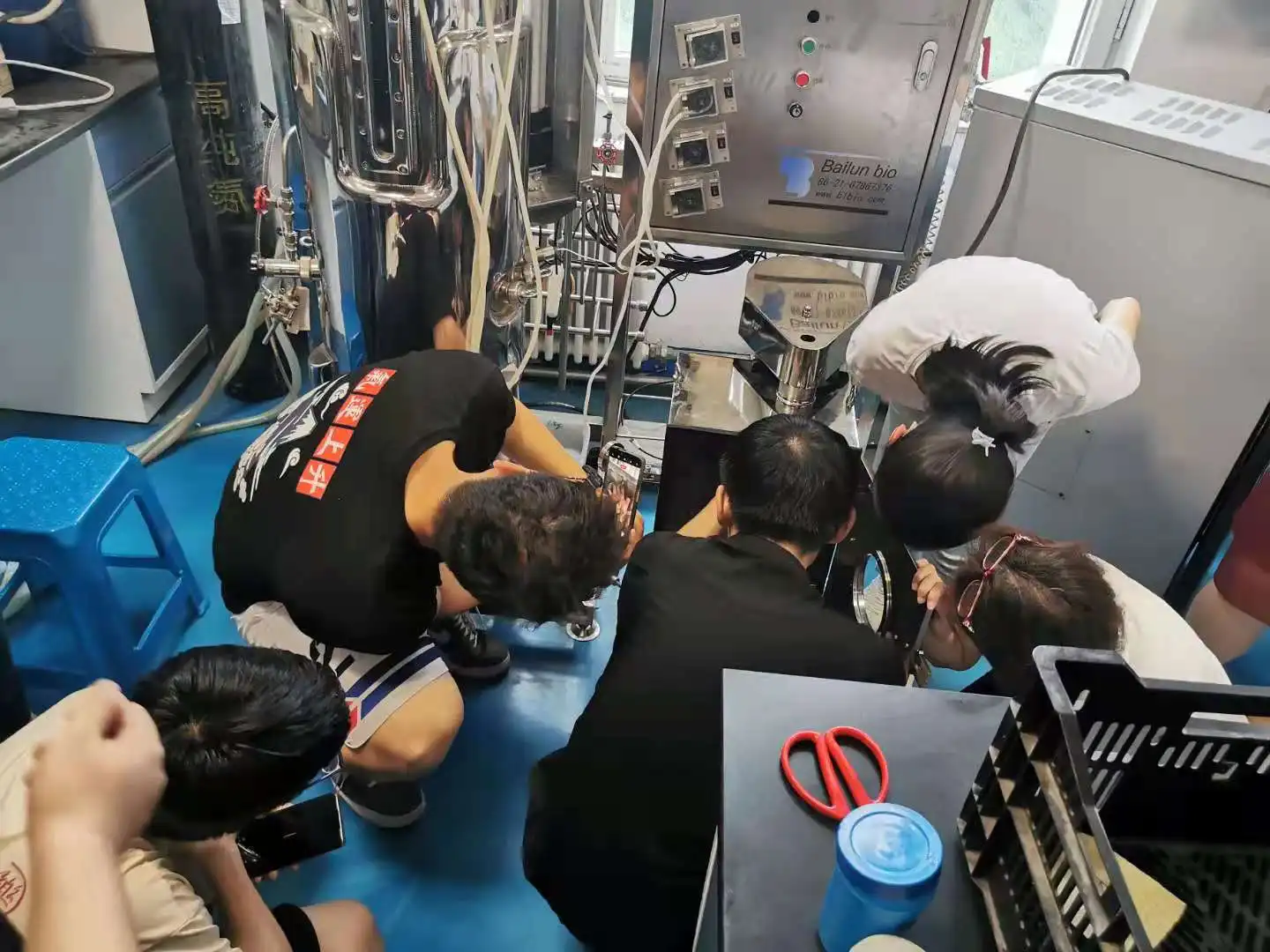

FIELD INSTALLATION &TEST
Technical specifications
Item | GF45 |
Diameter/mm | 45 |
Height/mm | 255 |
Volume/L | 0.4 |
Rotation/min | 10000-28000 |
Working Pressure | ≥0.05MPa |
Water Flow/L/h | ≈100 |
Gross Power | 0.4 |
Dimension | 380*395*850 |
Weight | 120 |
Item | GQ45 |
Diameter/mm | 45 |
Height/mm | 255 |
Volume/L | 0.4 |
Rotation/min | 10000-28000 |
Working Pressure | ≥0.05MPa |
Water Flow/L/h | ≈100 |
Gross Power | 0.4 |
Dimension | 380*395*850 |
Weight | 120 |
Items | GF75 | GF105 | GF125 | GF150 | GQ75 | GQ105 | GQ125 | GQ150 | |||||||
Diameter/mm | 75 | 105 | 125 | 150 | 75 | 105 | 125 | 150 | |||||||
Height/mm | 450 | 730 | 730 | 730 | 450 | 730 | 730 | 730 | |||||||
Volume/L | 2.2 | 6 | 8 | 10 | 2.2 | 6 | 8 | 10 | |||||||
Rotation/min | 19200 | 16300 | 15000 | 14000 | 19200 | 16300 | 15000 | 14000 | |||||||
Working Pressure | ≥0.05MPa | ||||||||||||||
Water Flow/L | 500 | 1200 | 2000 | 2500 | 600 | 1200 | 2000 | 3000 | |||||||
Gross Power | 1.5 | 3 | 4 | 4 | 1.5 | 3 | 4 | 4 | |||||||
Dimension | 760*450*1120 | 840*500*1600 | 900*550*1600 | 900*550*1600 | 760*450*1120 | 840*500*1600 | 900*550*1600 | 900*550*1600 | |||||||
Weight | 300 | 570 | 610 | 665 | 300 | 570 | 610 | 665 | |||||||

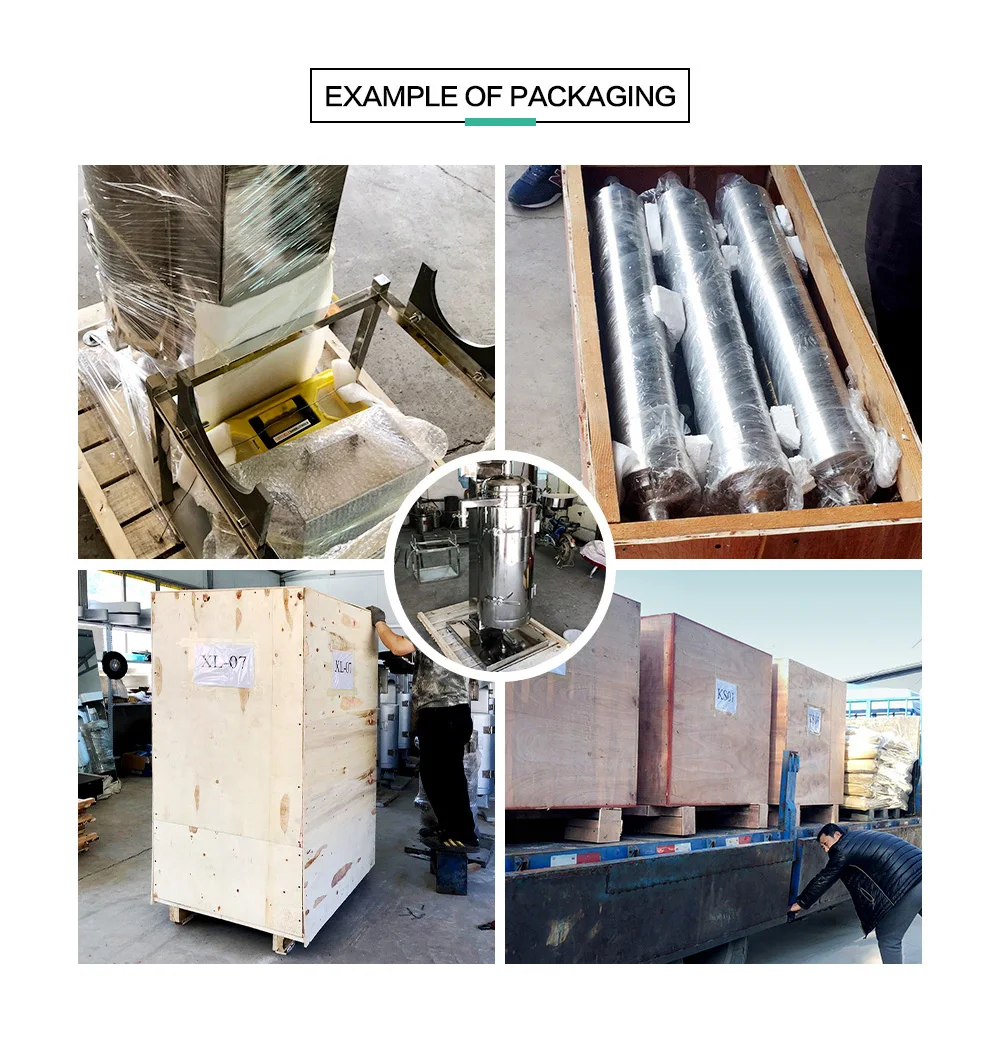

Packing & transportation
