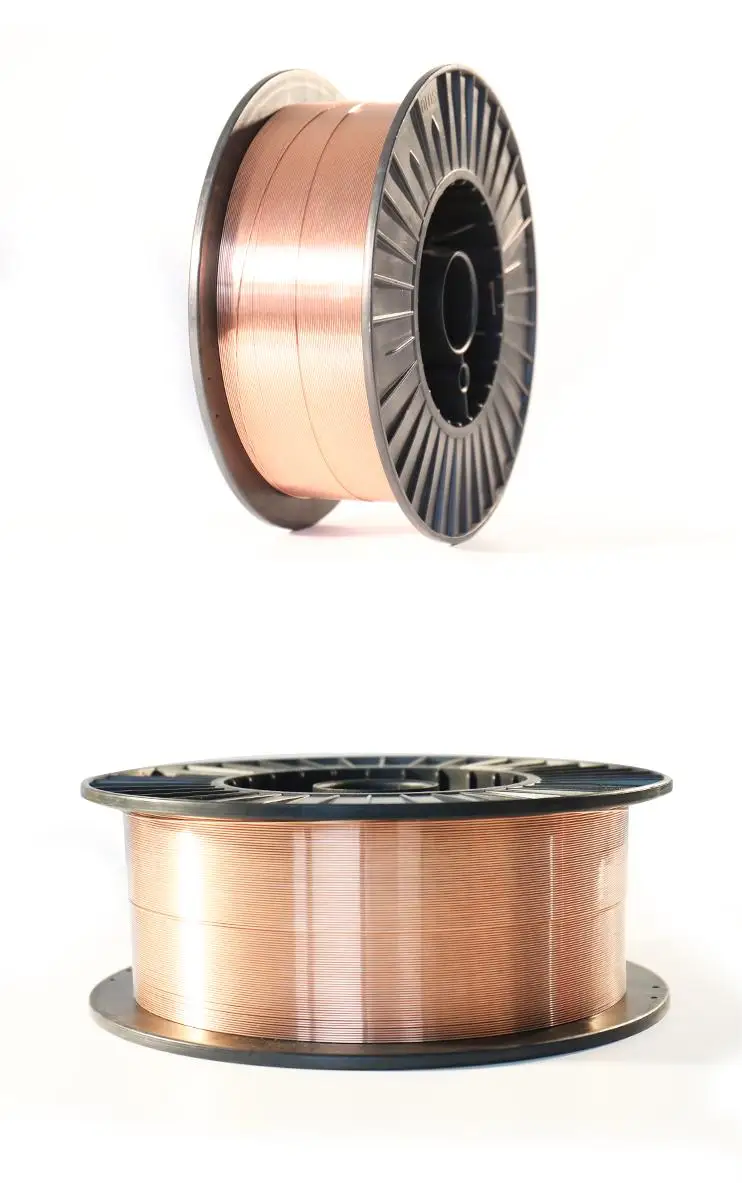

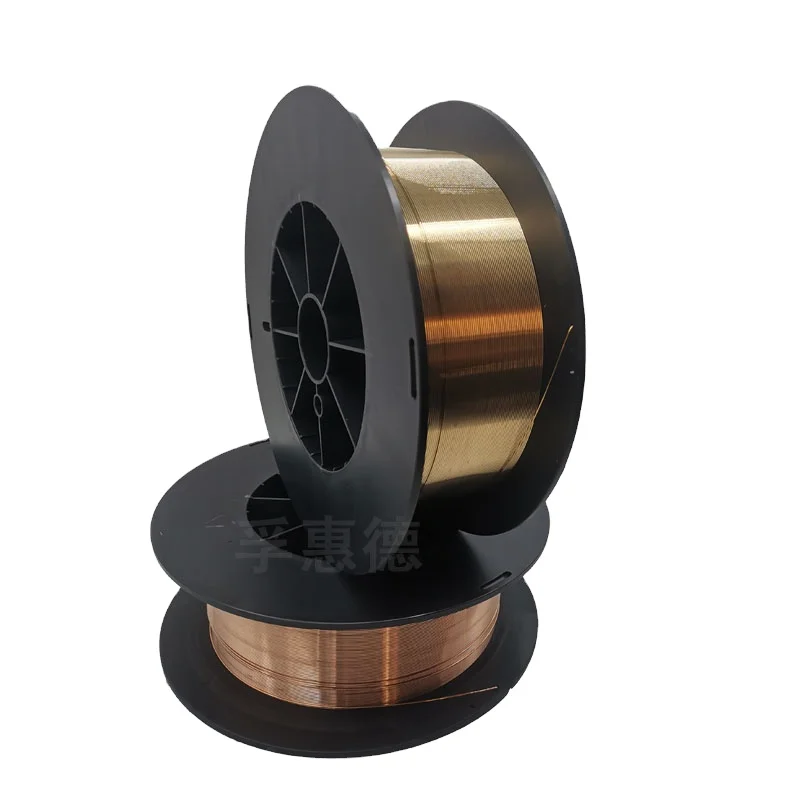

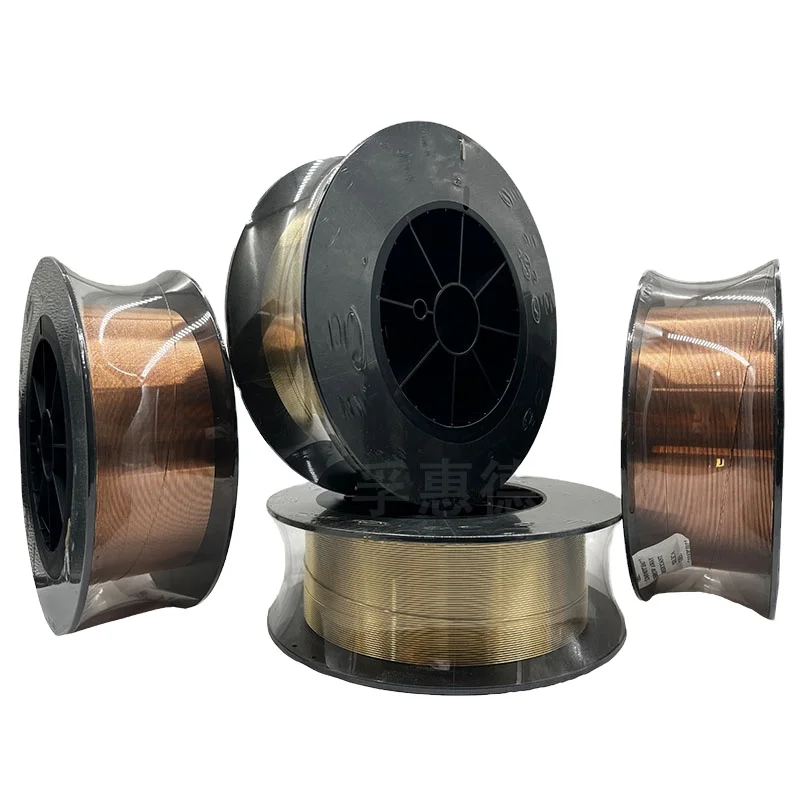

popularity Fuhuide A5.18 ER70S 6 Co2 copper Welding Wire 15/kg n20kg

Share on (1600901885375):


Price:$1.00 - $1.60

Quantity:


Product Overview

Description


64


Applications:
It is designed for welding of low carbon steel and Rm500Mpa lever low alloy steel, such as Gr.50 or so with shield gas CO2.
Characteristics:
Small spatter, beautiful appearance, high deposition efficiency,small weld metal porosity sensitivity. All position is suitable.
Attention:
1.Rust,oil,water and other impurities in the weld area must be removed before welding.


2.Mechanical properties of all weld metal are decided by heat input, normally the small heat input will be better than larger one.
































Diameter of wire & reference current(DC+)



Diameter of wire (mm)




φ0.8




φ1.0




φ1.2




φ1.6




Reference current (A)




40-180




100-220




160-320




170-550




Arc voltage (V)




16-21




17-27




18-32




23-43









































Chemical composition of welding wire (%)








C




Mn




Si




S




P




Cu




standard value




0.06-0.15




1.40-1.85




0.80-1.15




≤0.035




≤0.025




≤0.5




sample value




0.07




1.50




0.94




0.008




0.007




0.20







































Mechanical properties of deposited metal









Tensile strength

σb(mpa)




Yield point

σ0.2(mpa)




Elongation

σ5(%)




AKV impact value

(J)(-30℃)




Shielding gas




Standard value




≥ 500




≥420




≥22




≥27




CO2




Typical value




558




472




27




98




CO2

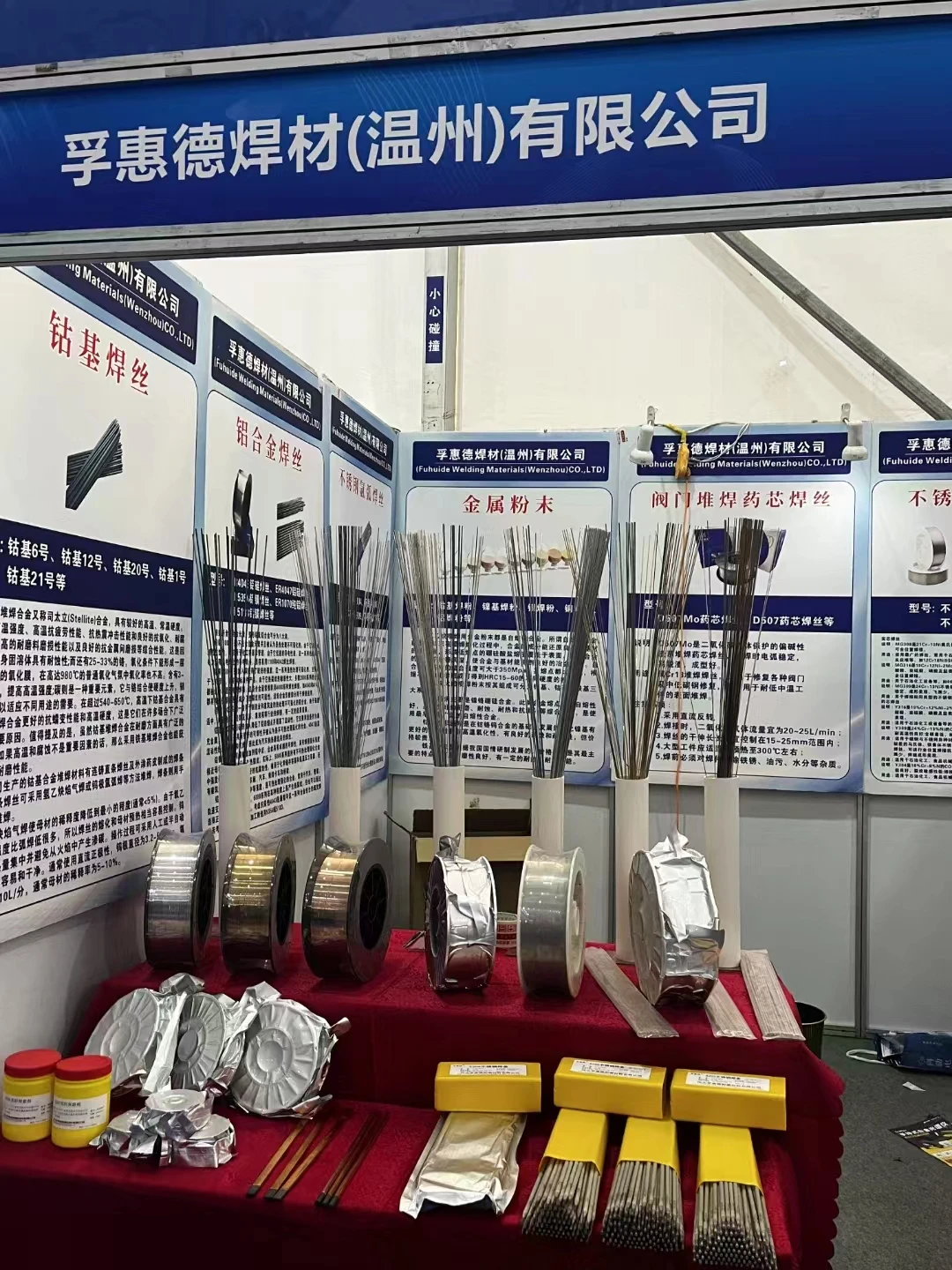

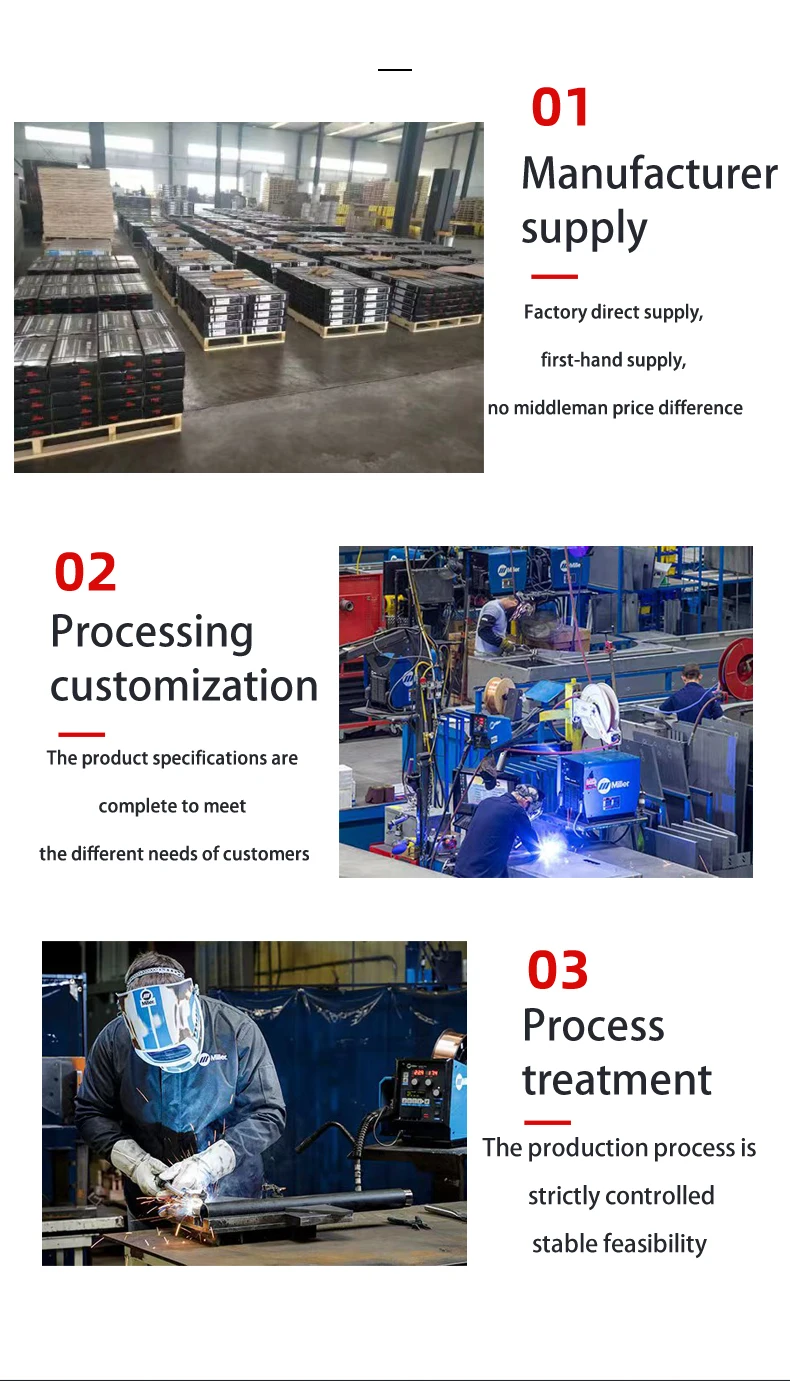

Company introduction:

17792

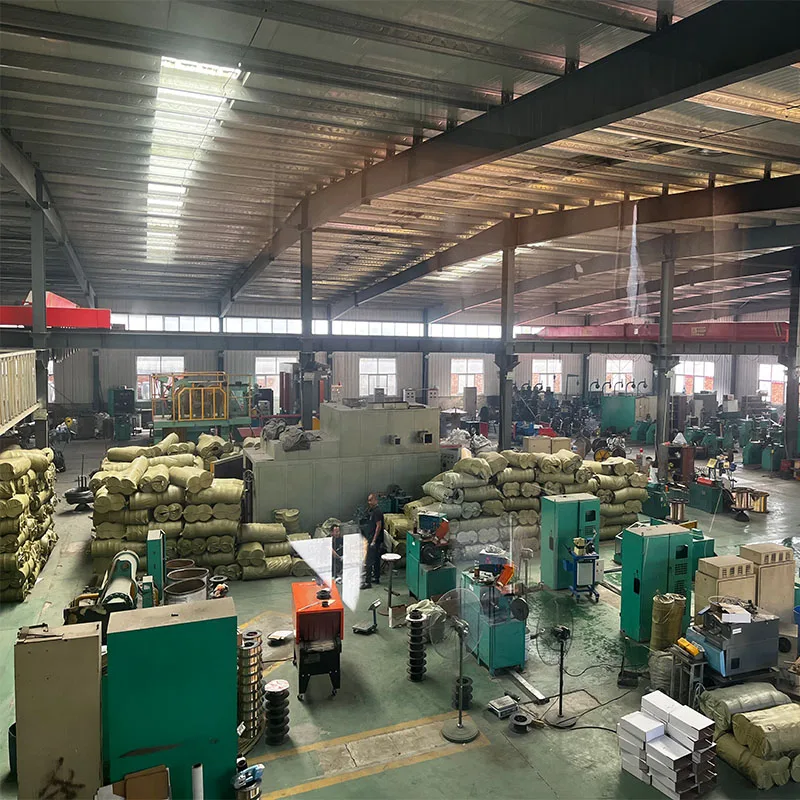

     Our product production technology is advanced, with domestic first-class inert gas protection continuous casting production line, vertical, horizontal hot extrusion, connecting, connecting, polishing production equipment, ultrasonic cleaning and other production lines and complete testing equipment. Good product quality, domestic and foreign users praise! The company's goal: the pursuit of excellence, based on users, dedicated to the new and old customer

service. Main categories: (cobalt base, nickel base, silver base, aluminum alloy, copper alloy, stainless steel, wear-resistant, carbon steel, low alloy steel, high strength steel, heat resistant steel) and other wire welding powder electrode.





FAQ


 Q: Are your trading company or manufacturer?
A:We are factory
Q:How long is your delivery time:
A:Generally it's 7-15 days if the goods are in stock,or it's 15-20days if goods are not in stock,it depends on quantity.
Q:What is your payment term?
A:payment<=1000usd,100% in advance.payment>1000usd ,30%TT in advance,balance before shippment.
If you have another question, pls feel free to contact us as below:
