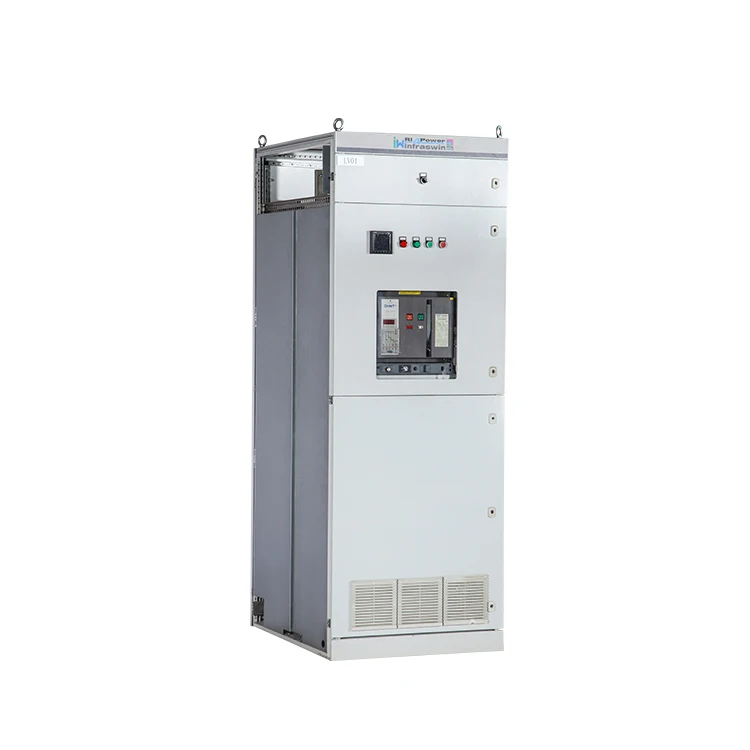

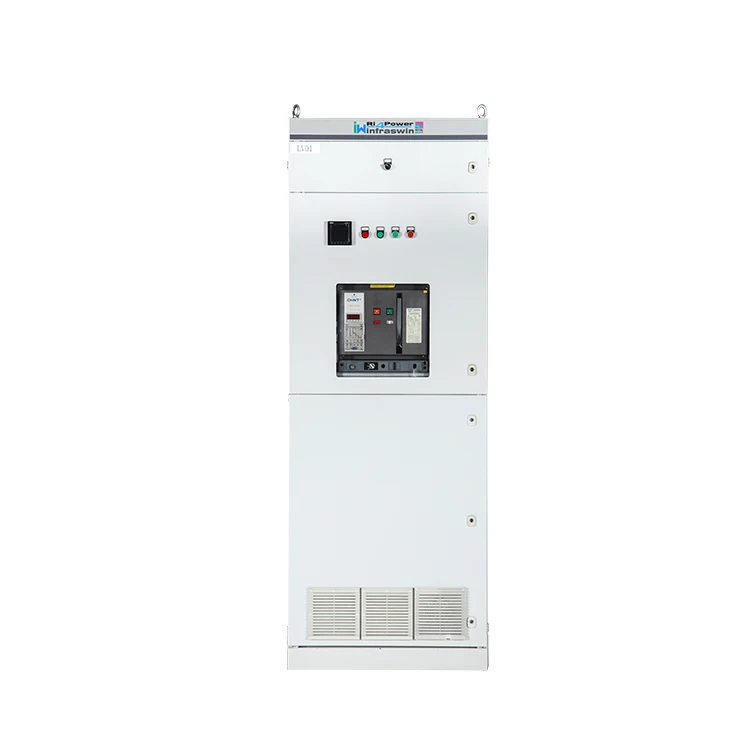

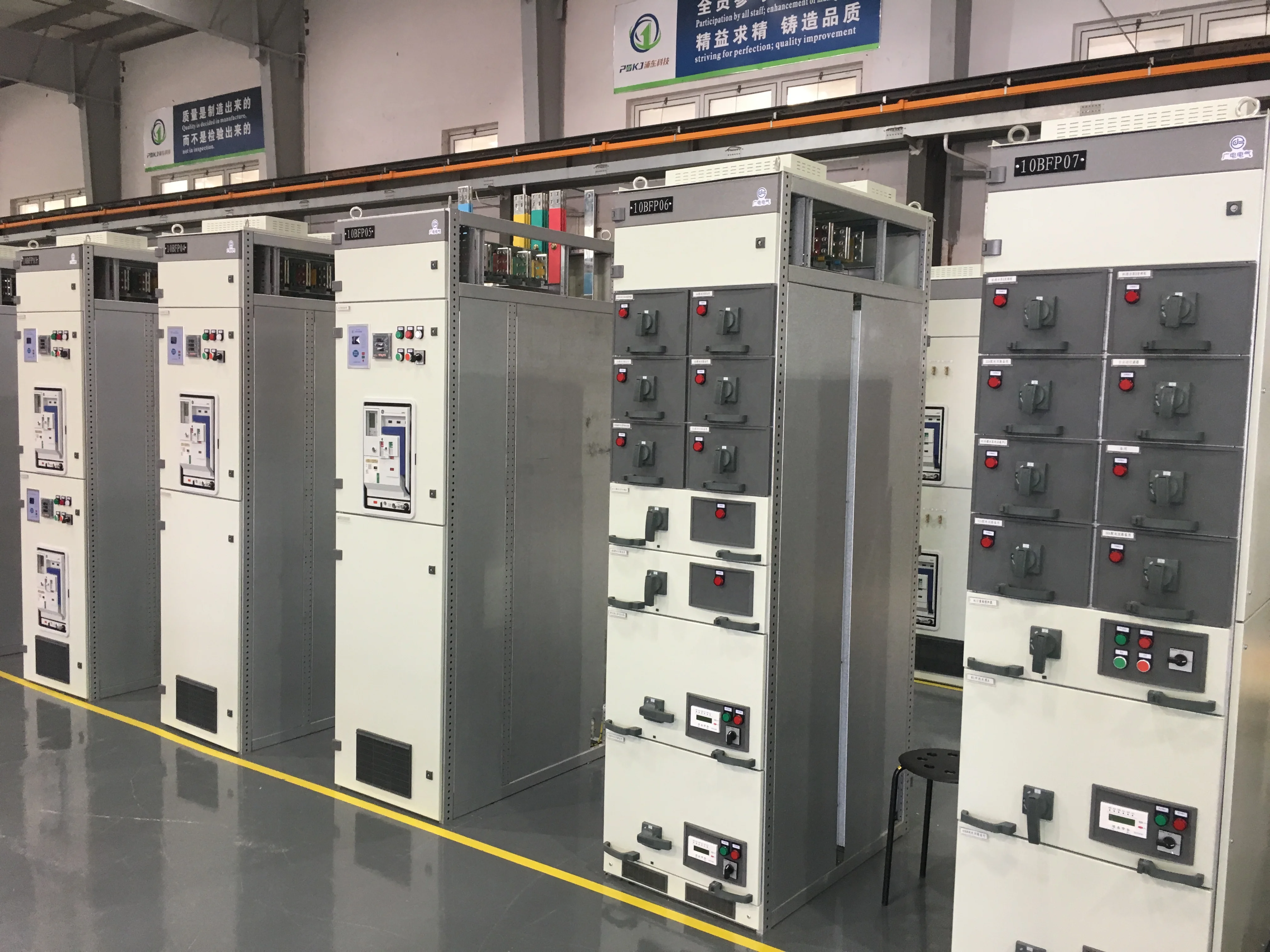

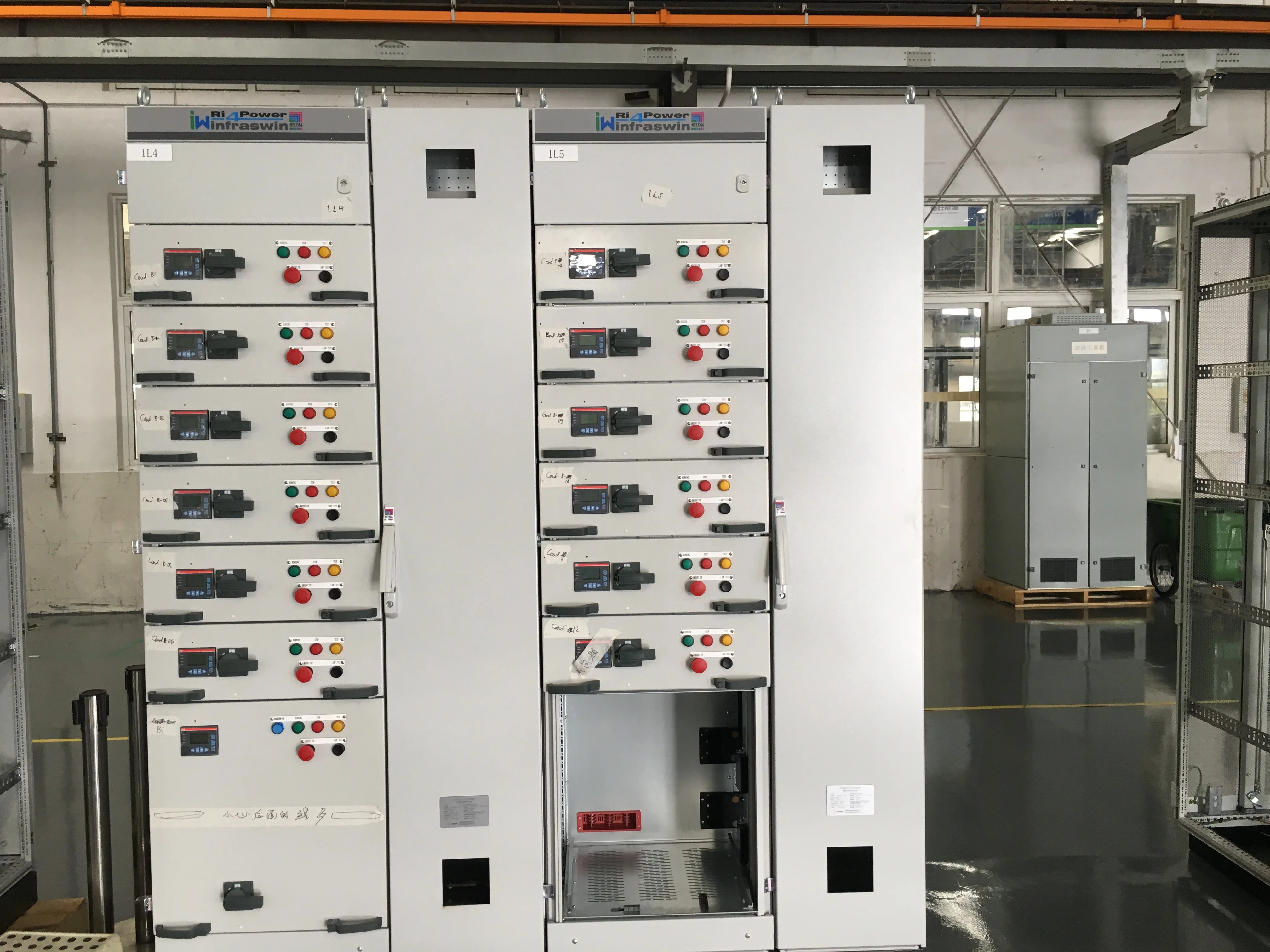

CE ABB Siemens Rittal TS8 Series Electrical Switchgear Manufacturer
- Category: >>>
- Supplier: Shanghai Infraswin Energy Co. Ltd.
Share on (1600901892124):
Product Overview
Description
Specification
Item | Parameters | ||
Rated working voltage (Ue) V | The main circuit | AC380V, AC690V | |
Auxiliary circuit | AC220V, AC380V; DC110V, DC220V | ||
Rated insulation voltage (Ui) V | The main circuit | AC500V, AC690V | |
Rated impulse withstand voltage kV (1.2 / 50μs) | Main bus | 8kV | |
Feeder circuit | 6kV | ||
Rated working current A (at IP3X) | Horizontal bus | 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 3600A, 4000A, 5000A, 6300A☀ | |
Vertical bus | 1250A (drawer type), 1500A (drawer type capacity increase type), ≤ 2000A (plug-in MCCB) | ||
Rated short-time withstand current (Icw) kA / 1 second | Horizontal bus | 50,80,100 | |
Vertical bus | 50,80,90 | ||
Rated peak withstand current (Ipk) kA / 0.1 second | Horizontal bus | 105,176,220 | |
Vertical bus | 105,176,198 | ||
Protection class | close the door | IP3X, 42, 54 | |
Open the door | IP2X | ||
Product Description
■ Applicable standards:
GB 7251.1-2013 Low-voltage switchgear and control equipment
IEC60439 Low-voltage switchgear and control equipment
IEC60529 Enclosure protection level (IP code) Chinese national standard
EN61439-1:2011 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
EN61439-2:2011 Low-voltage switchgear and controlgear assemblies - Part 2: Power switchgear and controlgear assemblies
EN61000-6-2:2005 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments
EN61000-6-4:2007 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
GB 7251.8-2020 General technical requirements for intelligent complete sets of low-voltage switchgear and control equipment
GB / T14048_1 General rule for low-voltage switchgear and control equipment
GB / T15576 Low-voltage complete reactive power compensation device
GB7947 Color code for insulated and bare conductors
JB / T9661 Low-voltage withdrawable complete switchgear
IEC60439 Low-voltage switchgear and control equipment
IEC60529 Enclosure protection level (IP code) Chinese national standard
EN61439-1:2011 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
EN61439-2:2011 Low-voltage switchgear and controlgear assemblies - Part 2: Power switchgear and controlgear assemblies
EN61000-6-2:2005 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments
EN61000-6-4:2007 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
GB 7251.8-2020 General technical requirements for intelligent complete sets of low-voltage switchgear and control equipment
GB / T14048_1 General rule for low-voltage switchgear and control equipment
GB / T15576 Low-voltage complete reactive power compensation device
GB7947 Color code for insulated and bare conductors
JB / T9661 Low-voltage withdrawable complete switchgear
Product features:
Ri4Power is intelligent low-voltage switchgear developed jointly by Shanghai Infraswin Energy Co., Ltd. and Germany Rittal Electro-Mechanical Technology (Shanghai) Co., Ltd. It is modular low-voltage switchgear assembled by factory using standard modules. It is used for the distribution, conversion, control and reactive power compensation of indoor power distribution systems with AC 50Hz or 60Hz, rated operating voltage ≤690V, rated operating current ≤6300A. This product is suitable for applications in power plants, petrochemicals, offshore platforms, metallurgy, paper making, public facilities engineering and other occasions.
Ri4Power low-voltage systems provide leading solutions in the field of power distribution and motor control, and provide switch cabinets integrating power and automation for customers in the process industry, power and infrastructure industries, superior safety protection for personnel and equipment, lower operating costs, improve equipment operation availability, reliable, flexible, scalable, and easy maintenance from the front of the switchgear.
■ Use Rittal top-level TS8 cabinet.
■ Protection class IP54, PU foam seal, full of elasticity, resistant to 180 degrees high temperature without hardening.
■ The frame is welded by a unique 16-fold profile, with high strength and excellent load-bearing performance.
■ The surface of the cabinet is treated with oil removal and phosphating, electrophoretic primer, powder sprayed, the surface of the paint has high strength, strong corrosion resistance, grease resistance, weak acid and alkali resistance.
■ An independent metal bus channel is set on the side of the front of the cabinet to keep the communication bus away from power cables and bus bars, reducing interference and easy to install and debug.
■ Adopt special communication connector to connect with intelligent equipment in drawer.
■ Cabinet body adopts modular structure, 25mm modular hole frame, easy to install.
■ Isolation level up to form 4b
Ri4Power low-voltage systems provide leading solutions in the field of power distribution and motor control, and provide switch cabinets integrating power and automation for customers in the process industry, power and infrastructure industries, superior safety protection for personnel and equipment, lower operating costs, improve equipment operation availability, reliable, flexible, scalable, and easy maintenance from the front of the switchgear.
■ Use Rittal top-level TS8 cabinet.
■ Protection class IP54, PU foam seal, full of elasticity, resistant to 180 degrees high temperature without hardening.
■ The frame is welded by a unique 16-fold profile, with high strength and excellent load-bearing performance.
■ The surface of the cabinet is treated with oil removal and phosphating, electrophoretic primer, powder sprayed, the surface of the paint has high strength, strong corrosion resistance, grease resistance, weak acid and alkali resistance.
■ An independent metal bus channel is set on the side of the front of the cabinet to keep the communication bus away from power cables and bus bars, reducing interference and easy to install and debug.
■ Adopt special communication connector to connect with intelligent equipment in drawer.
■ Cabinet body adopts modular structure, 25mm modular hole frame, easy to install.
■ Isolation level up to form 4b

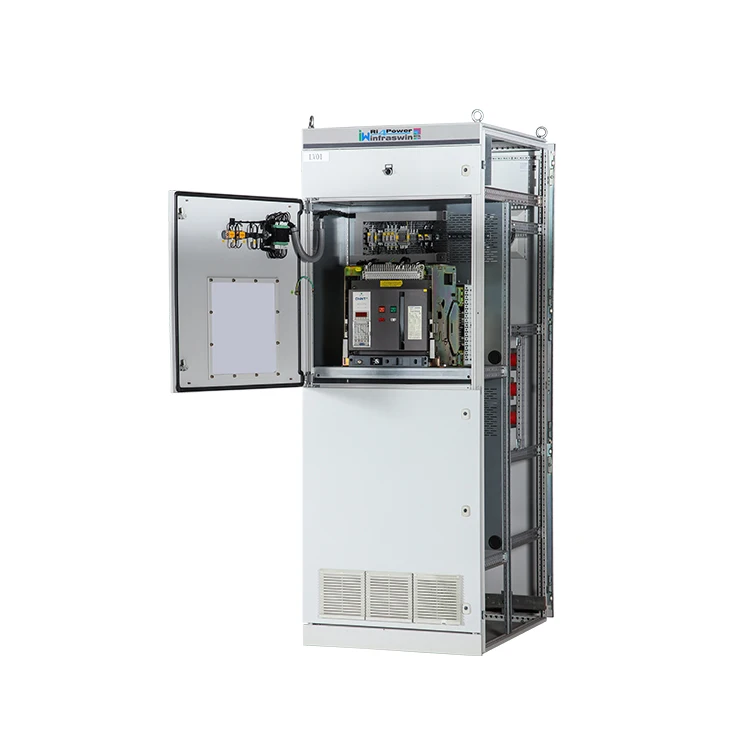

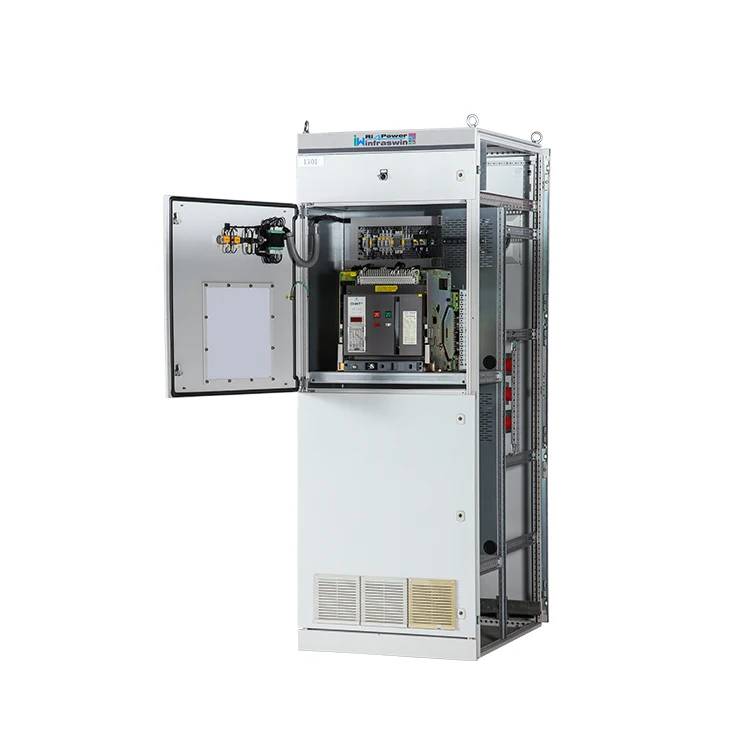

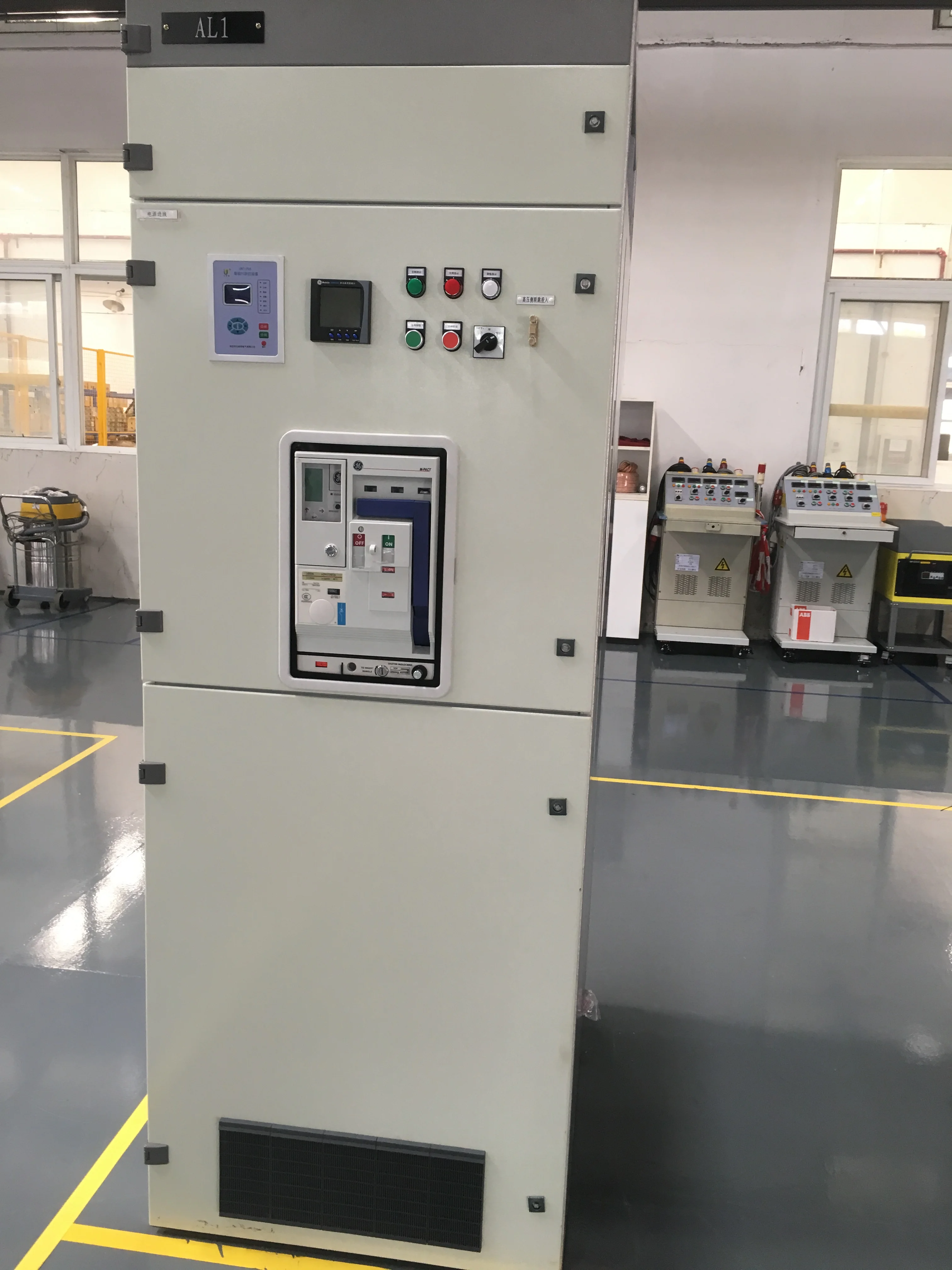

It uses the top TS8 cabinet of Rittal
The front side of the cabinet is provided with an independent metal bus channel, so that the communication bus is far away from the power cable and bus, reducing interference and easy to install and debug.
Use special communication connectors to interface with intelligent devices in the drawer.
Company Profile
Our Advantages
Certificate
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Do your products have export qualifications?
A1: Our products comply with IEC standards, and have passed UL508A certification (North America) and CE certification (the European Union), and have export qualifications.
Q2: Can your company customize products?
A2: We are a professional one-stop enterprise energy management solution provider with 14 years experience, and a listed company on the NEEQ. According to the specific situation of customers, we can provide solutions to determine the parameter and accurate prices of products. So it can be customized.
Q3: How is the company's after-sales service?
A3: Our company can provide product installation and operation videos for overseas customers. When there is a problem, we can communicate with customers online. On-site overseas after-sales service is provided at the customer's expense.
A1: Our products comply with IEC standards, and have passed UL508A certification (North America) and CE certification (the European Union), and have export qualifications.
Q2: Can your company customize products?
A2: We are a professional one-stop enterprise energy management solution provider with 14 years experience, and a listed company on the NEEQ. According to the specific situation of customers, we can provide solutions to determine the parameter and accurate prices of products. So it can be customized.
Q3: How is the company's after-sales service?
A3: Our company can provide product installation and operation videos for overseas customers. When there is a problem, we can communicate with customers online. On-site overseas after-sales service is provided at the customer's expense.
