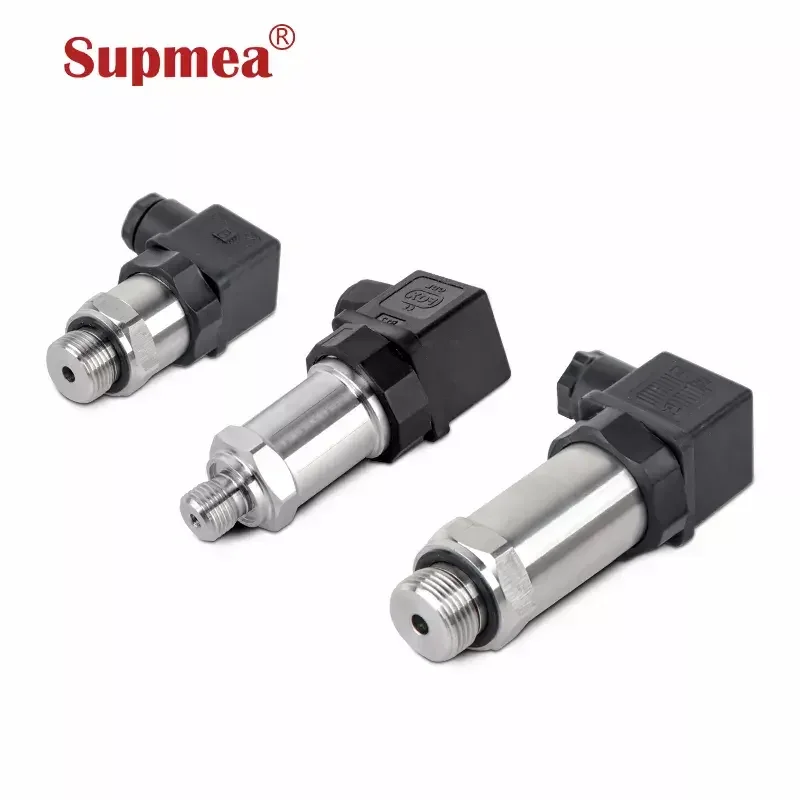

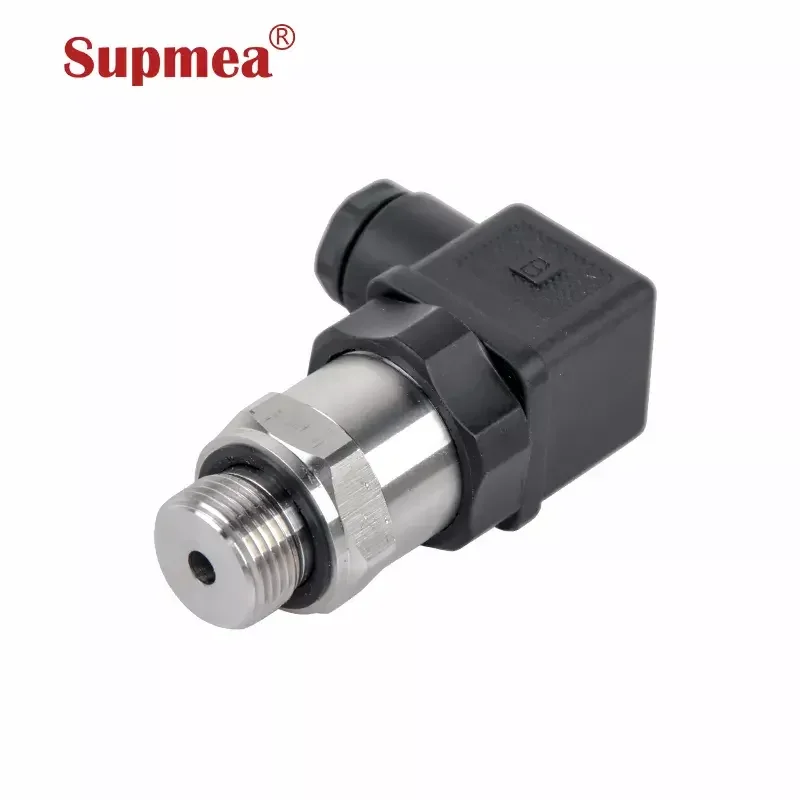

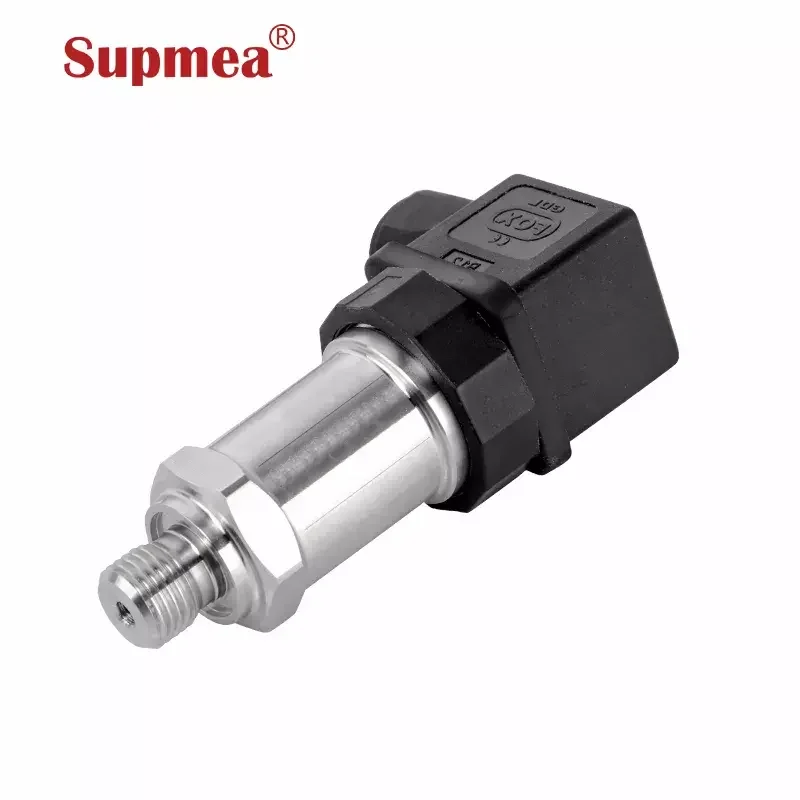

high temperature pressure transducer absolute pressure sensor hydraulic pressure sensor
- Category: >>>
- Supplier: Hangzhou Supmea International Trading Co. Ltd.
Share on (1600901893025):
Product Overview
Description
Products Description
Specification | |
Pressure Type | Gauge pressure/ absolute pressure /sealing pressure |
Power Supply | 24VDC（9~36V） |
Signal Output | 4~20mA;1~5V;0~10V;0~5V;RS485 |
Range | -0.1…0/0.01…60Mpa |
Accuracy | 0.3%、0.5% |
Long Term Stability | ±0.2%FS/year |
Ingress Protection | IP65 |
Pressure Connection | G1/4, G1/2,1/2NPT,1/4NPT, M20*1.5etc.(optional) |
Measure Medium | Gas, water, oil etc. (non-explosion-proof area) |
Electrical Connections | DIN connector type, M12 connector, cable connector type |
Time Response | ≤10ms（up to 90％FS） |
Housing material | 304/316L stainless steel |
Fill Fluid | Silicon oil |
Operation conditions | |
Working Temperature | -20℃~85℃ |
MediumTemperature | -20℃~85℃ |
Storage Temperature | -40℃~125℃ |
Compensation Temperature | -10℃～70℃ |
