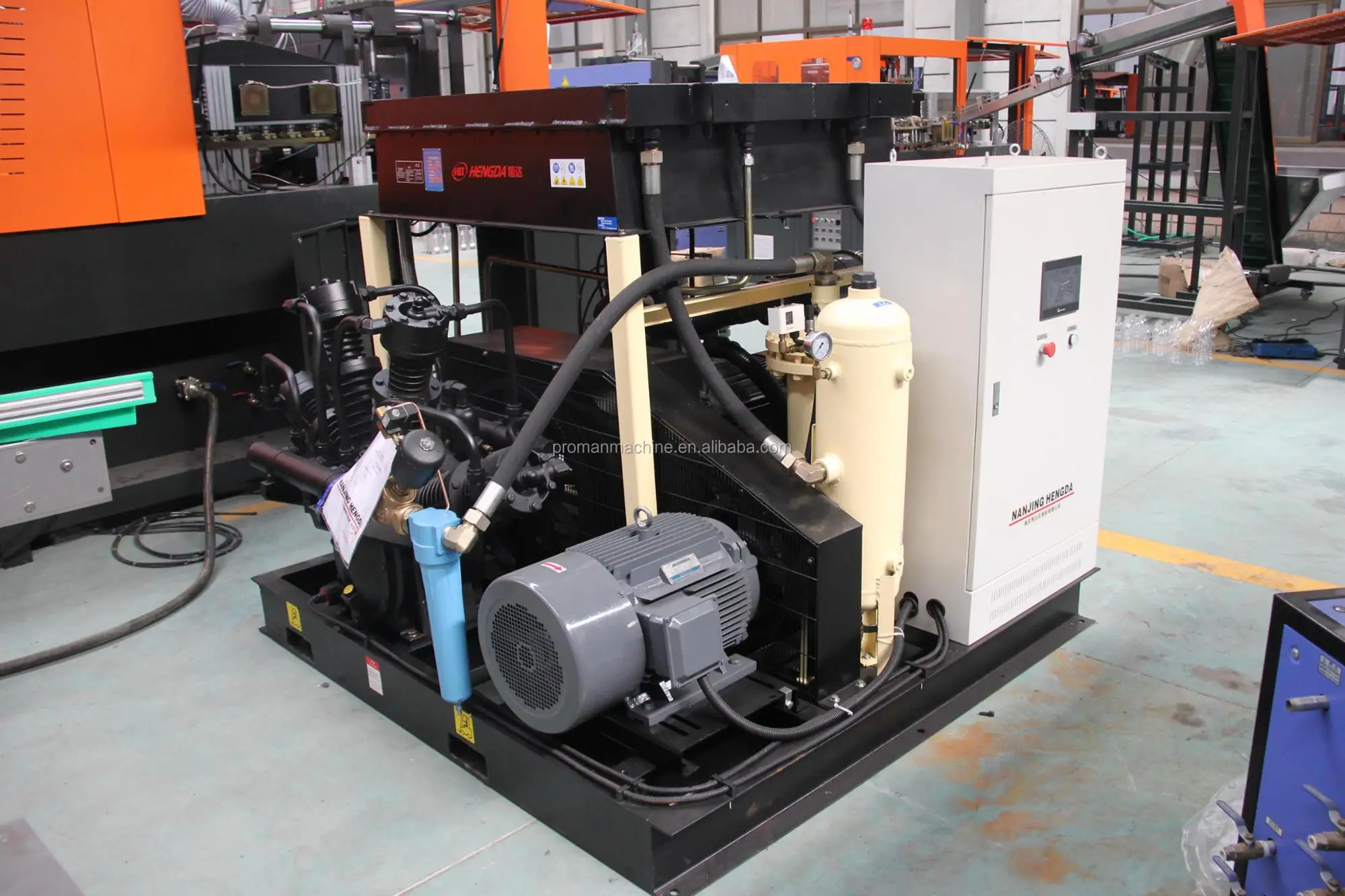

Complete 5 Gallon 20 Liters Barrel Bottle Blowing Bottling Machine Factory Price
- Category: >>>
- Supplier: Zhangjiagang Proman Machine Co. Ltd.
Share on (1600901904566):
Product Overview
Description

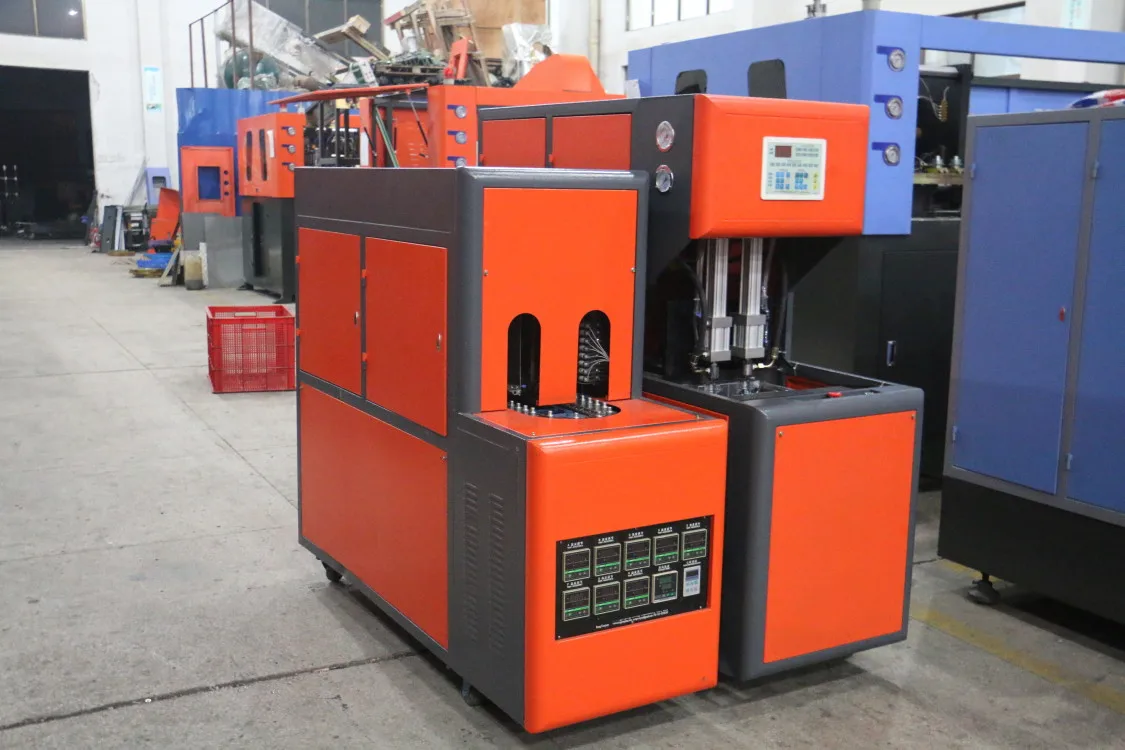

1L 5L 10L 20L 5 Gallon Semi Automatic Water Oil Plastic Bottle Blowing Making Machine
Product Description
Semi-automatic bottle blowing machine adopts direct pressure, icrocomputer control, two step blowing bottle.
The main blow tube blank PET mineral water bottles, beverage bottles, edible oil bottles, etc..
It has various cavities and the maximum capacity of the products is 20L.
The gas path is designed to separate the gas and blowing, adopting low pressure(0.4-0.8Mpa) mould clamping, mould locking, sealing, stretching and high pressure(3-3.5Mpa) blowing form, and the gas-liquid locking structure, to not only ensure the clamping and locking action smoothly, also ensure the safety of mould and blowing quality, as a result can save the bottle perform material.
The main blow tube blank PET mineral water bottles, beverage bottles, edible oil bottles, etc..
It has various cavities and the maximum capacity of the products is 20L.
The gas path is designed to separate the gas and blowing, adopting low pressure(0.4-0.8Mpa) mould clamping, mould locking, sealing, stretching and high pressure(3-3.5Mpa) blowing form, and the gas-liquid locking structure, to not only ensure the clamping and locking action smoothly, also ensure the safety of mould and blowing quality, as a result can save the bottle perform material.
Our Advantages
1. Produce bottle from 5L to 20L(1-2 cavity)
2. Output capacity up to 180 for 20L using one-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second

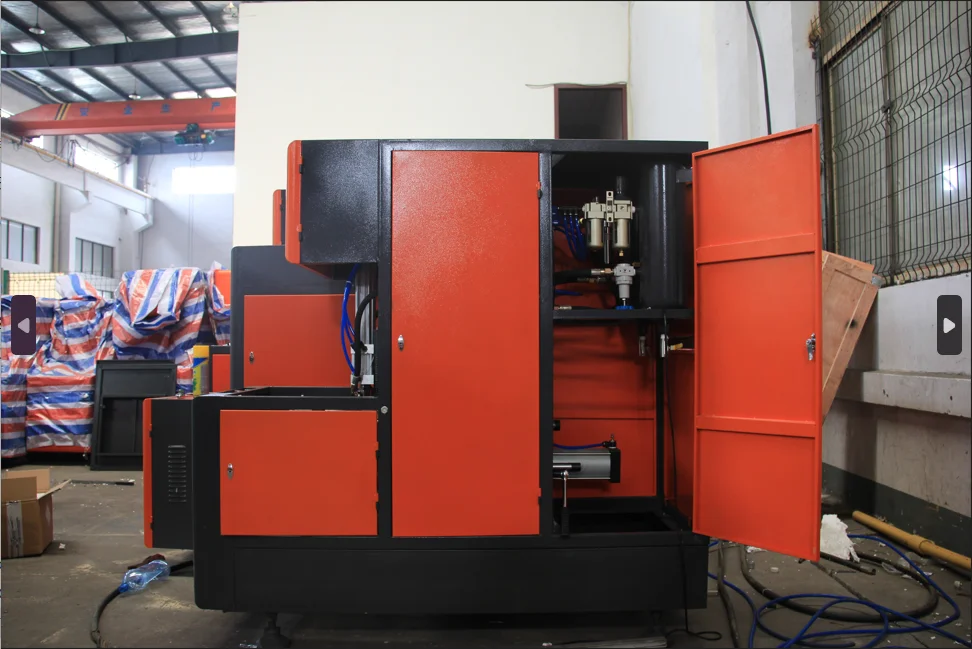

4. Equipped with special designed air storage unit

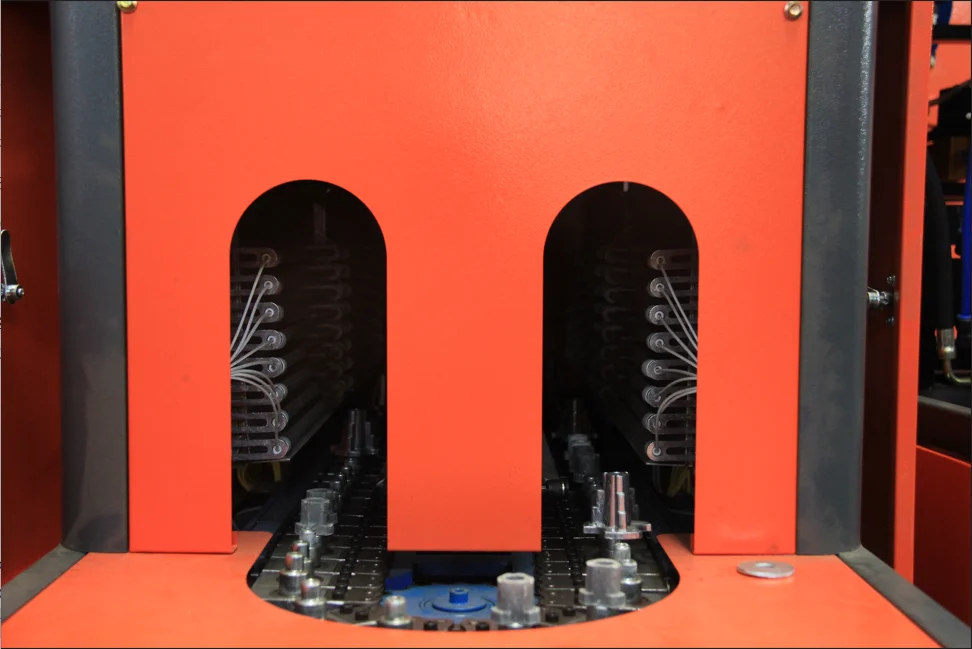

5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms
8. Operated only by one person without special training
9. Simple installation & startup adjustment
10. Waste rate of finished bottle is less than 0.2%
2. Output capacity up to 180 for 20L using one-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms
8. Operated only by one person without special training
9. Simple installation & startup adjustment
10. Waste rate of finished bottle is less than 0.2%
Technical parameter
Model | Item | Unit | PM-12 | PM-8Y | PM-1500 | PM-1-20 | |||
Theoretical output | Pcs/H | 500 | 900 | 1800 | 120 | ||||
Product | Volume | L | 5.0 | 2.0 | 2.0 | 20 | |||
MAX.Height | mm | 360 | 360 | 360 | 550 | ||||
MAX.Diameter | mm | 120 | 105 | 105 | 300 | ||||
Mould | Number of cavities | / | 1 | 2 | 4 | 1 | |||
Mould piate dimension(L*H) | mm | 490*470 | 490*405 | 490*405 | 620*620 | ||||
Mould thinkness | mm | 250 | 220 | 220 | 380 | ||||
Mould opening stroke | mm | 220 | 180 | 180 | 380 | ||||
Electrical | Power | / | 220_380V/50_60HZ | ||||||
Total power | KW | 11 | 11 | 21 | 36 | ||||
Heating power | KW | 10 | 10 | 20 | 37 | ||||
Machine | Main body dimension (L*W*H) | M | 1.5*0.65*2.0 | 1.5*0.65*2.0 | 1.5*0.65*2.0 | 2.1*0.75*1.6 | |||
Main body weight | KG | 600 | 550 | 550 | 900 | ||||
Pre-heater(L*W*H) | M | 1.5*0.65*1.5 | 1.4*0.65*1.5 | 1.8*0.65*1.5 | 2.7*0.7*1.6 | ||||
Pre-heater weight | KG | 300 | 300 | 350 | 400 | ||||
Packing & Delivery

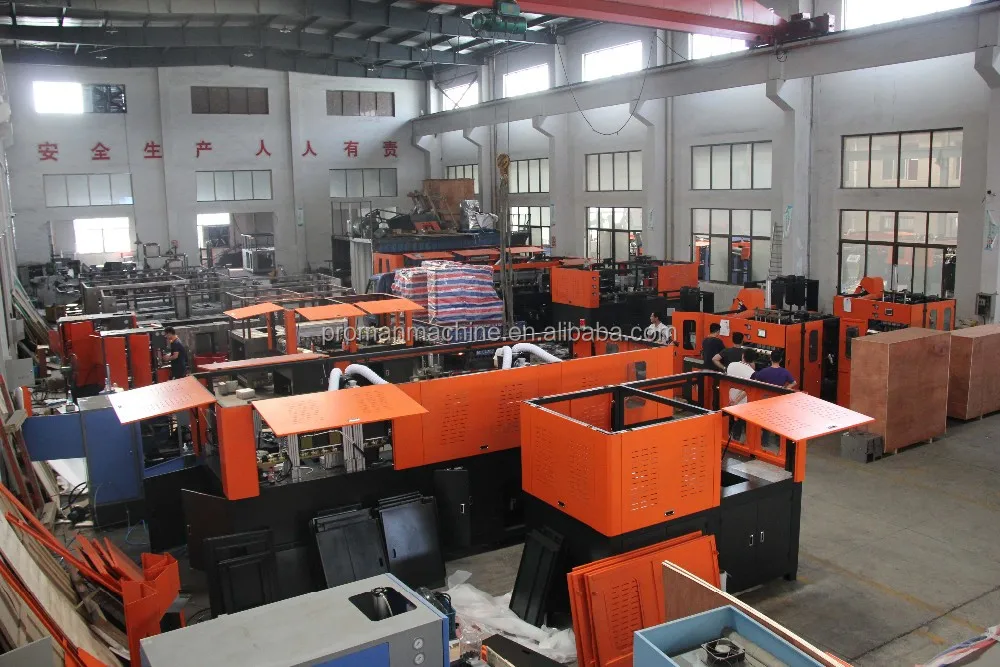

Company Profile
Our main products have: Water filling production line, water treatment system,juice filling production line, carbonated drinks production line, and also 5Gallon bottle filling production line, and all other auxiliary equipments.
Every year we attend the exhibitions, like Canton fair, PROPAK, and other exhibitions in Dubai, Kenya, Saudi Arabia and Algeria and etc., that time we always visit some local old customers and we are sure that we can offer more and better services than other supplier.
We warmly welcome customers all over the world visit our factory!
Every year we attend the exhibitions, like Canton fair, PROPAK, and other exhibitions in Dubai, Kenya, Saudi Arabia and Algeria and etc., that time we always visit some local old customers and we are sure that we can offer more and better services than other supplier.
We warmly welcome customers all over the world visit our factory!
Why choose us
1.More than 20 years of mechanical manufacturing experience
2.Strong cooperation team and professional technical support
3.Customer recognition
Certifications
2.Excellent technology and perfect R&D team
FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.
