2000Mm Electric Reach Stacker 2 Ton Electric Stacker Controller Semi Manual Stacker
- Category: >>>
- Supplier: Zhejiang Kaixun Mechanical And Electrical Co. Ltd.
Share on (1600901905265):
Product Overview
Description
Product Description

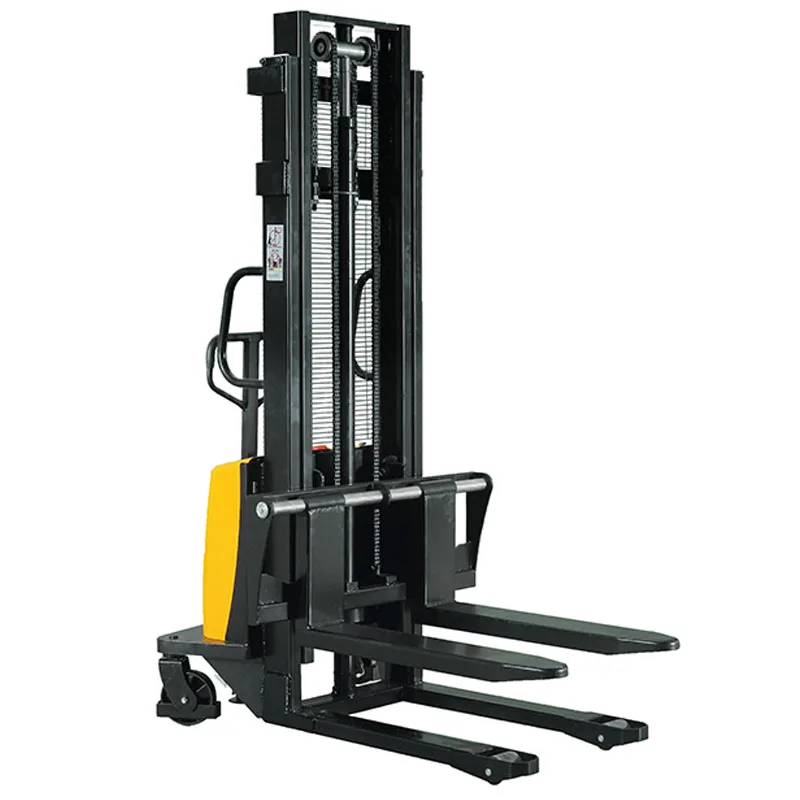

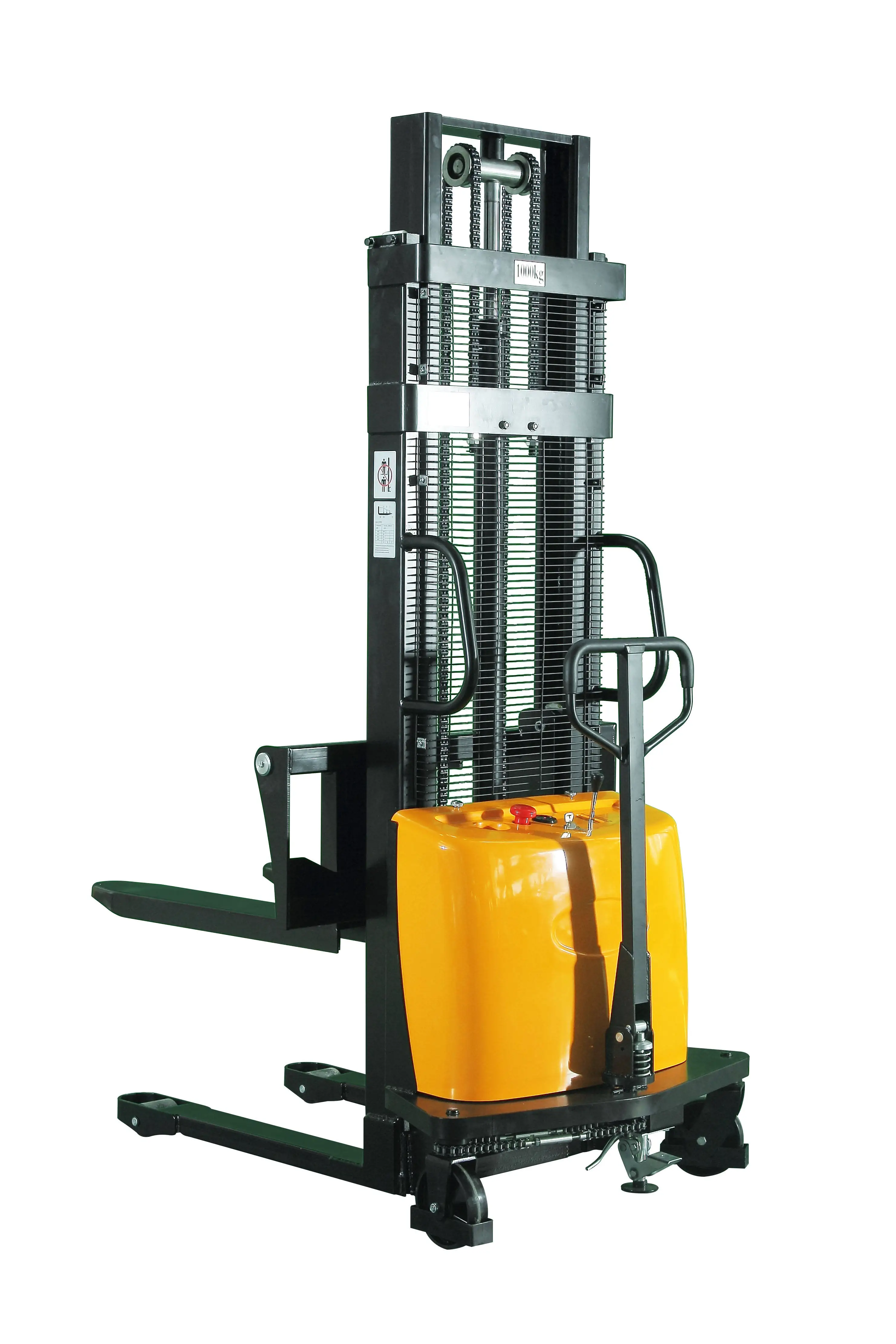

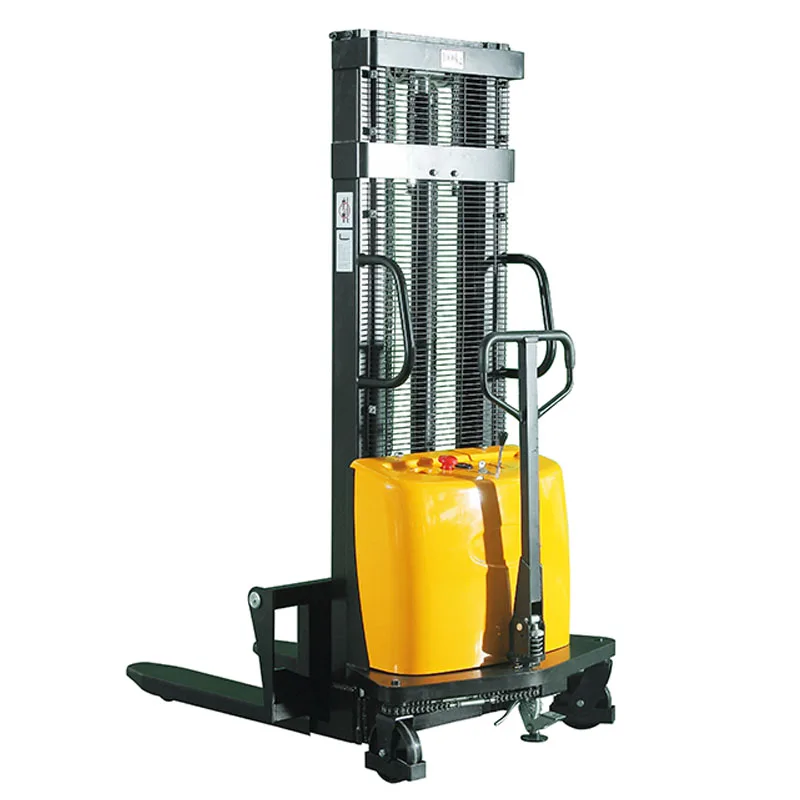

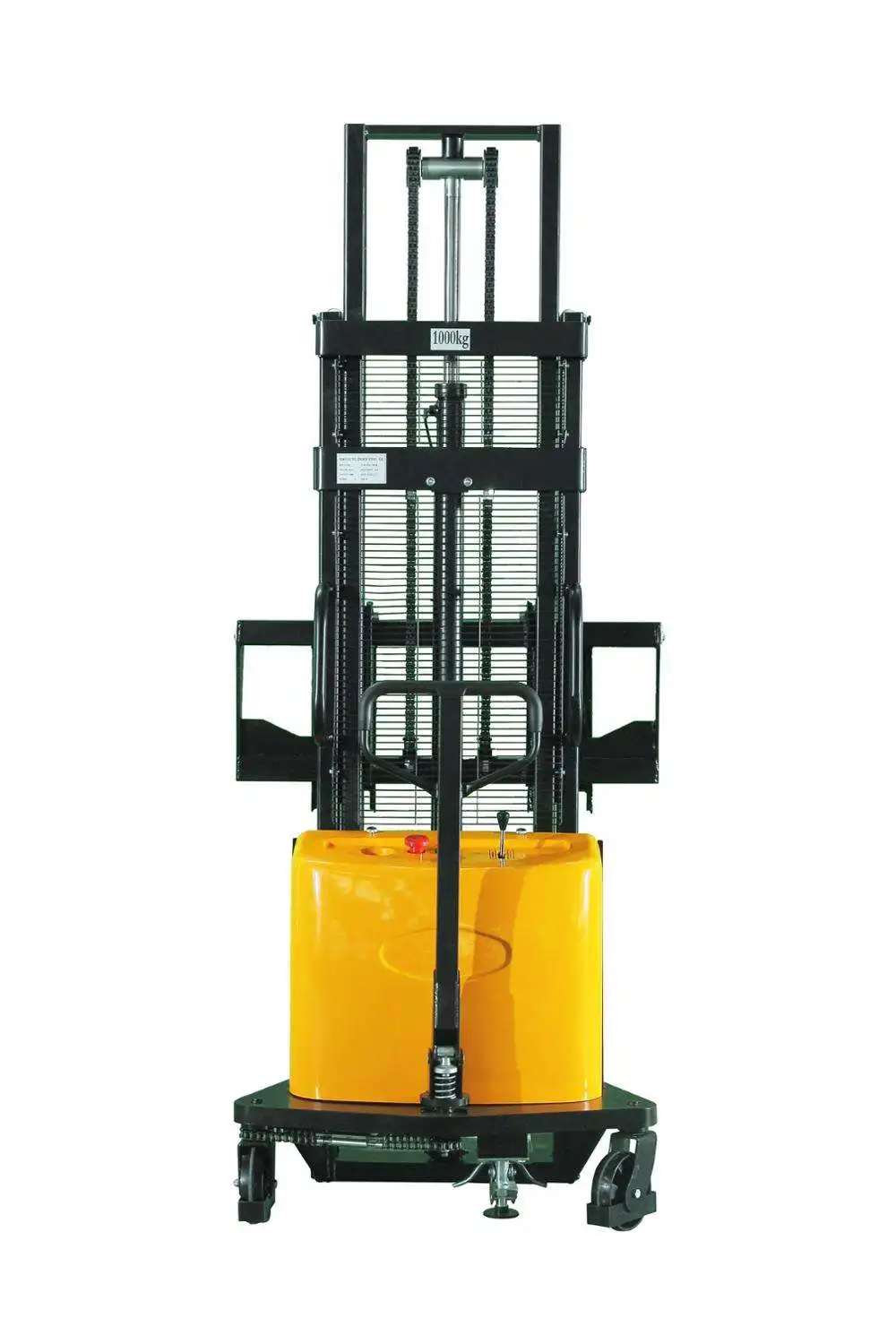

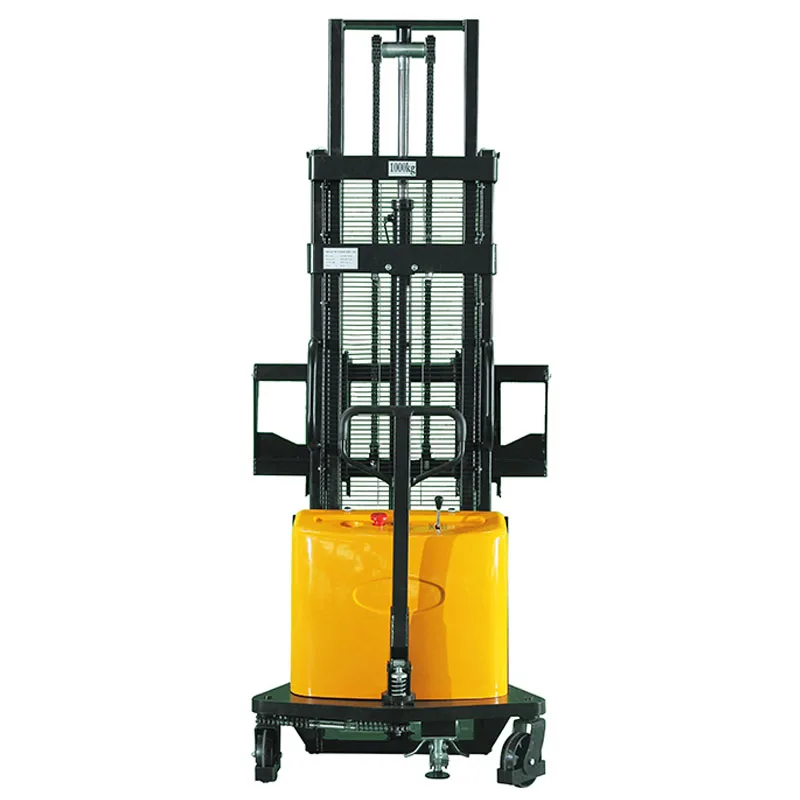

KX-CDSD Semi-Electric Stacker
1. 910mm/1150mm fork length and adjustable width from 340mm to 1000mm
2. Fixed straggle legs with width 685mm/550mm
3. 1480mm turning radius
4. 1.6 Kw lifting motor
5. 12V 100Ah lead-acid battery
2. Fixed straggle legs with width 685mm/550mm
3. 1480mm turning radius
4. 1.6 Kw lifting motor
5. 12V 100Ah lead-acid battery
Advantages
* Reasonable design and compact structure
* steady lifting, flexible moving, and convenient operation
* High efficient pumps makes the controlor easier to operate
* Metal grid protects user from lift chains
* 12V lead-acid battery keeps long working hours
* Small size and 58.26" turning radius can be easy used at narrow space
* With brake system to ensure safety during operation.
* Easy service
* steady lifting, flexible moving, and convenient operation
* High efficient pumps makes the controlor easier to operate
* Metal grid protects user from lift chains
* 12V lead-acid battery keeps long working hours
* Small size and 58.26" turning radius can be easy used at narrow space
* With brake system to ensure safety during operation.
* Easy service
Product Specifications
Articles/Model | Unit | KX-CDSD-10 | KX-CDSD-15 | KX-CDSD-20 | |||
Main characteristics | Rated load capacity | kg | 1000 | 1500 | 2000 | ||
N.W. | kg | 330 390 405 420 435 | 363 417 436 458 478 | 382 424 444 464 484 | |||
Max.mast height | mm | 2068/2568/3068/3568/4068 | |||||
Wheel specification | Wheel material | PU/Nylon | |||||
Wheel specification | Carrying wheel | mm | Φ80×70 | ||||
Driving wheel | mm | Φ180×50 | |||||
Wheel base | mm | 1200 | |||||
Size | Lifting height | mm | 1600/2000/2500/3000/3500 | ||||
Fork length | mm | 910/1150 | |||||
Fork adjustable width | mm | 340-1000 | |||||
Overall width | mm | 1045 | |||||
Overall length | mm | 1585 | |||||
Turning radius | mm | 1480 | |||||
Motor battery | Battery voltage/rated capacity | V/Ah | 12/100 | ||||
Performance parameter | Lifting motor | kw | 1.6 | ||||
Product Display
Company Profile
Zhejiang kaixun mechanical and electrical co.,ltd founded in 1998, an Export-oriented high-tech enterprises, specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.
Our company locates at Linyang Ind.Zone, Rui'an city,covers an area of 59000m², structure area 87000m². With self-possessed capital RMB 350 million and production equipment 880 sets.
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
Our company locates at Linyang Ind.Zone, Rui'an city,covers an area of 59000m², structure area 87000m². With self-possessed capital RMB 350 million and production equipment 880 sets.
We have passed the certificate of ISO9001:2015 quality system. Many products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals. Most products passed evaluation of province-class and got the national special equipment production license and industrial products production license.
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
Packaging
Certifications
Exhibition
Why Choose Us
1.Experiences
We have 25 years experiences of producing material handling equipment.
2.Team
We enjoy a good team of Sales department and professional design team
3.Fully customized service
1)Support customization of color, logo, fork length and other machine attributes;
2) Welcome to customize non-standard models.
4.R&D new products
1)We are specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.
2)The r&d team constantly develops new products according to customer needs
5.Product quality certification
1)We have passed the certificate of ISO9001:2015 quality system and BSCI.
2)Our products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals.
3)Our products got the national special equipment production license and industrial products production license.
We have 25 years experiences of producing material handling equipment.
2.Team
We enjoy a good team of Sales department and professional design team
3.Fully customized service
1)Support customization of color, logo, fork length and other machine attributes;
2) Welcome to customize non-standard models.
4.R&D new products
1)We are specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.
2)The r&d team constantly develops new products according to customer needs
5.Product quality certification
1)We have passed the certificate of ISO9001:2015 quality system and BSCI.
2)Our products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals.
3)Our products got the national special equipment production license and industrial products production license.
