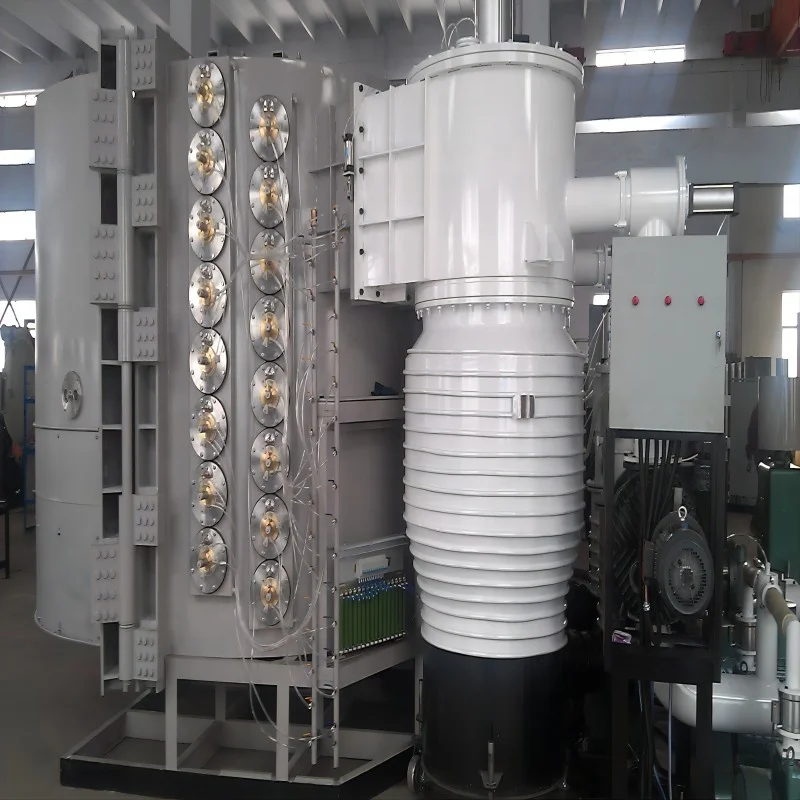

Best sale pvd vacuum coating machine /magnetron sputtering coating machine /arc coating machine
- Category: >>>
- Supplier: Longkou Tongyi Machinery Equipment Co. Ltd.
Share on (1600901914503):
Product Overview
Description
Product Description
Specification
DY Multi Arc Ion vacuum coating machine model and technical parameter (hardware, ceramic, cutlery etc ) | ||||||||||||
model | DY-700 | DY -900 | DY -1000 | DY -1250 | DY -1400 | DY -1600 | ||||||
Chamber size | Ф700×H900mm | Ф900×H1100mm | Ф1000×H1200mm | Ф1250×H1350mm | Ф1400×H1600mm | Ф1600×H1800mm | ||||||
Power type | Arc power, filament power, pulse bias power | |||||||||||
Vacuum chamber structure | Vertical front door structure, postposition sucking gas system, double layer water cooling chamber | |||||||||||
Vacuum chamber material | High quality stainless steel chamber | |||||||||||
Ultimate vacuum | 6.0×10-4Pa | |||||||||||
Pumping time(no load) | pumping from atmosphere to 8.0×10-3Pa≤15per minutes | |||||||||||
Vacuum pumping system | Diffusion or molecular pump+ Roots pump+ mechanical pump+ holding pump (The detailed model need to collocate according to customer need) | |||||||||||
arc power | 4 sets or 6 sets | 6 sets or 8 sets | 8 sets or 10 sets | 10 sets or 12 sets | 14 sets or 16 sets | 16 sets or 18 sets | ||||||
Bias power | 10KW/1set | 20KW/1set | 20KW/1set | 30KW/1set | 40KW/1set | 50KW/1set | ||||||
Workpiece rotating method | Planetary revolution and rotation, inverter control(controlled and adjustable) | |||||||||||
Technological Process

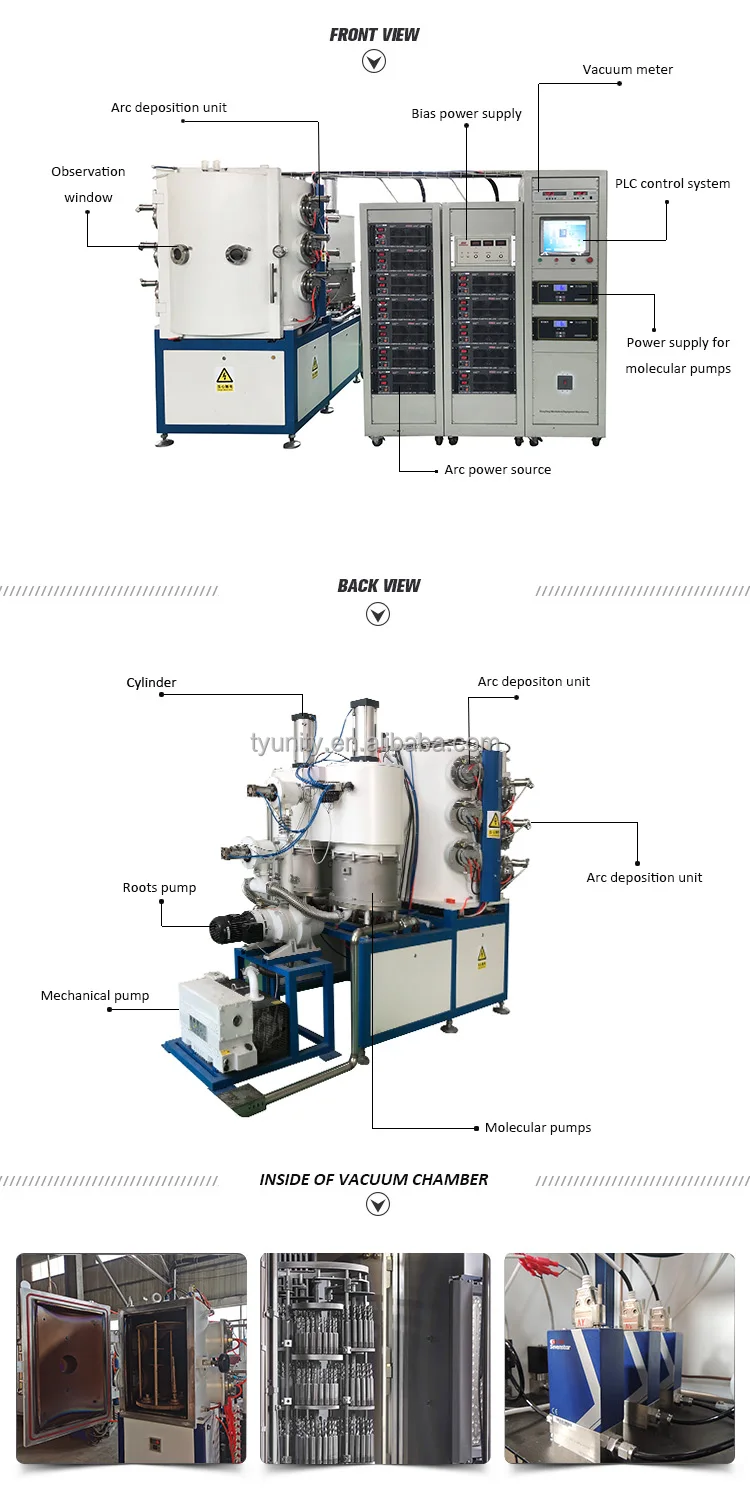

Our Advantage
Double layer Vacuum Chamber
DYVAC use double layer of stainless steel 304 to manufacture the vacuum chamber , with advanced welding technology and ensure the air tightness of the chamber . better vacuum pressure protection capability ,higher ultimate vacuum , More durable service life.
and built in high power heater and ensure the temperature inside the chamber .
and built in high power heater and ensure the temperature inside the chamber .

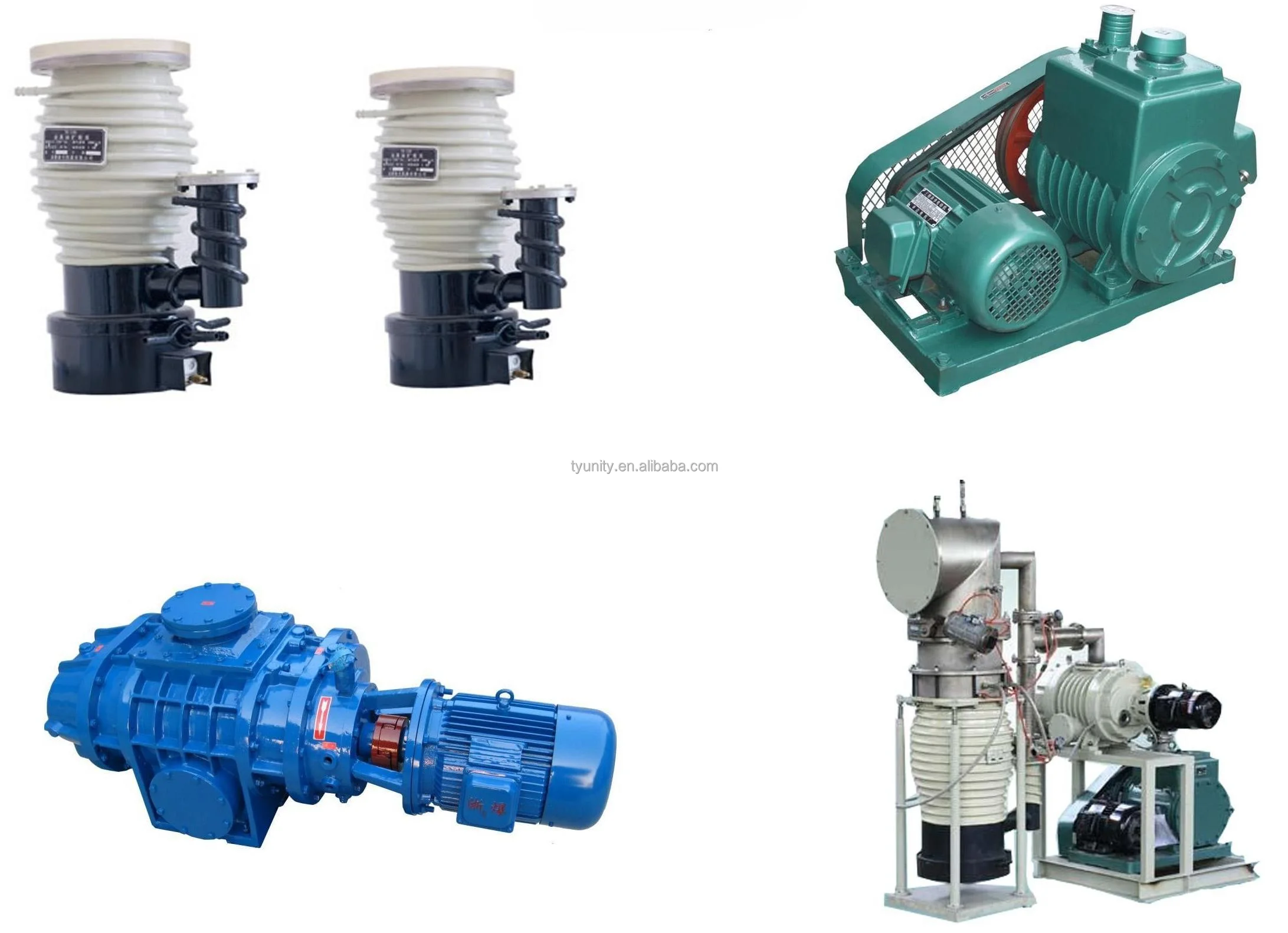

Excellent vacuum pumping system
DYVAC choose the famous Chinese brand pump for the vacuum pumping system . its Vacuum is fast and steady .to obtain high efficiency coating cycle time , greatly reduces the vibration frequency and energy consumption of the equipment .
We can offer the import brand pump service if the customer required .Such Leybold ,Osaka, Shimadzu ,Pfeiffer etc .
We can offer the import brand pump service if the customer required .Such Leybold ,Osaka, Shimadzu ,Pfeiffer etc .

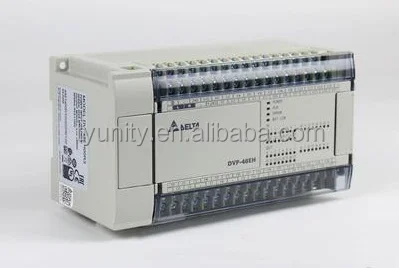

Control System and Famous Electrical Production
Delta DVP series PLC programmable industrial controller, the whole machine automatic monitoring, protection, control, coating. With manual, semi-automatic, fully automatic functions

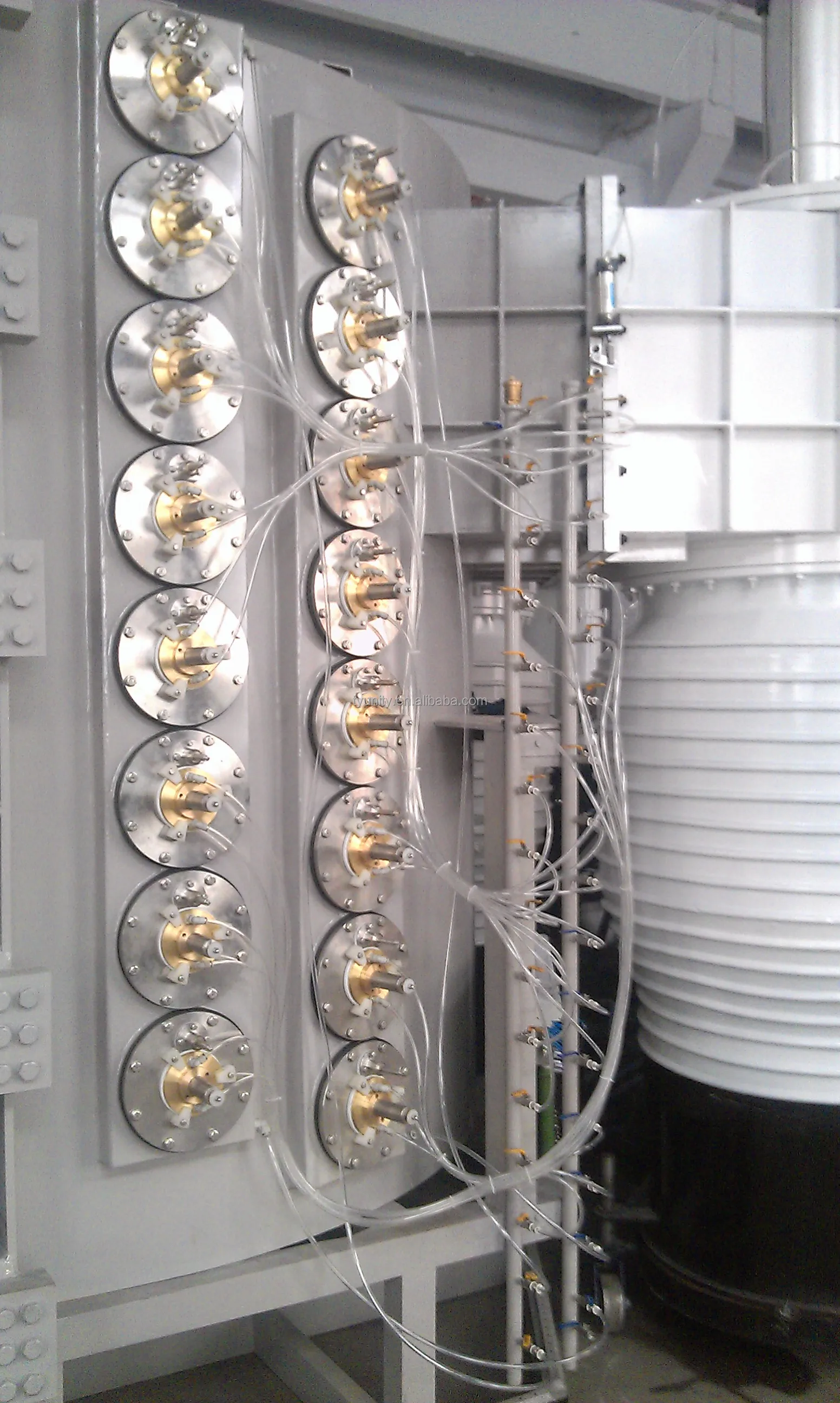

DYVAC’s 10th Arc Source and the Parts
Equipped with DYVAC’s 10th generation high-performance arc power supply and cathode arc source device , it means more uniform coating film , leading reliable performance of continuous coating
DYVAC keep the technology R&D , so the technology are progressing .
DYVAC keep the technology R&D , so the technology are progressing .

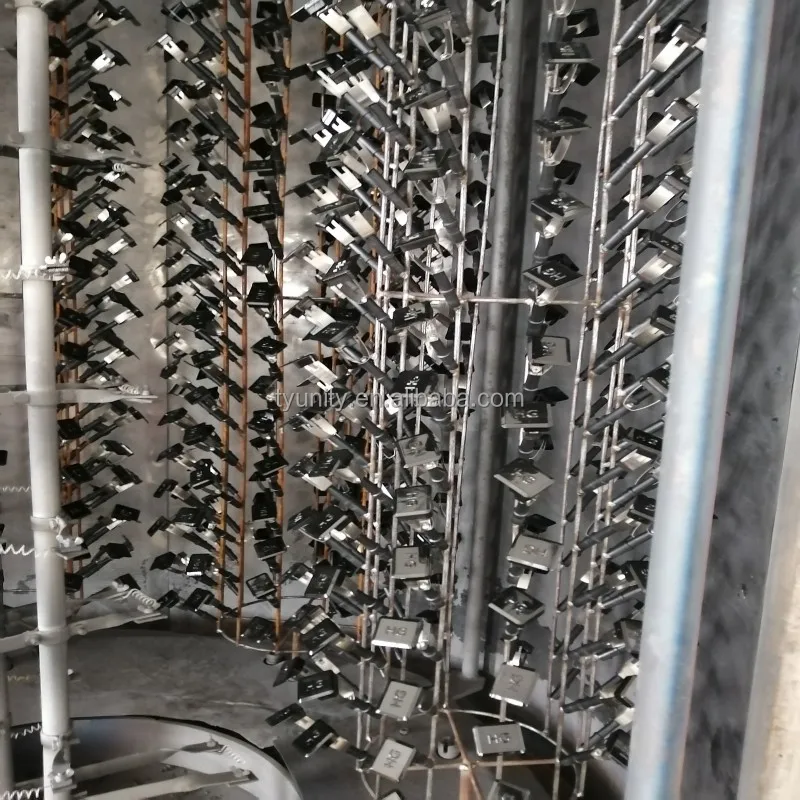

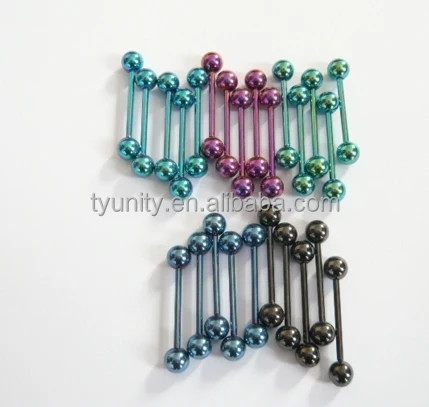

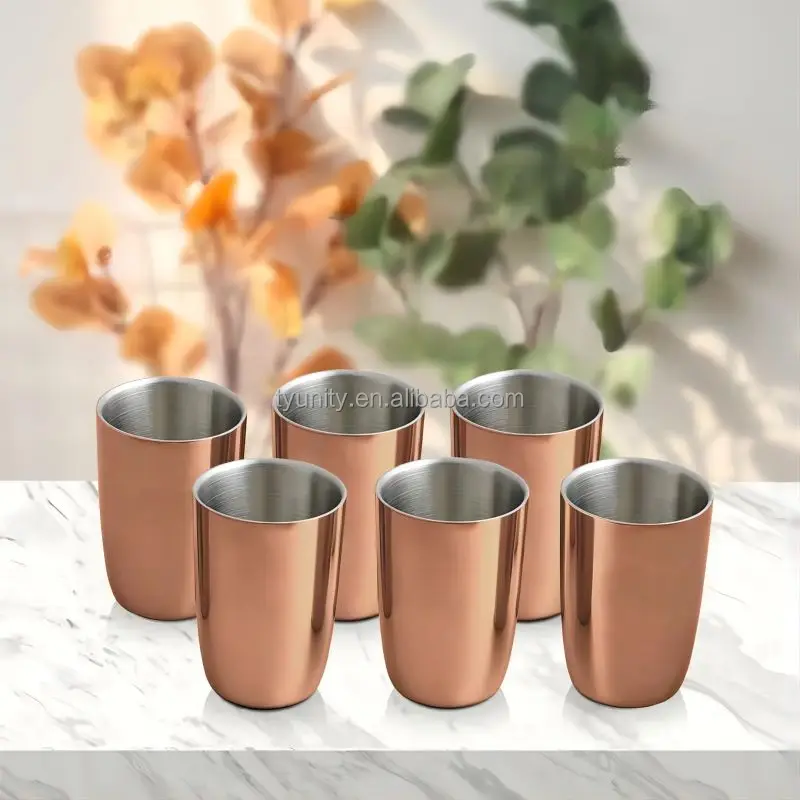

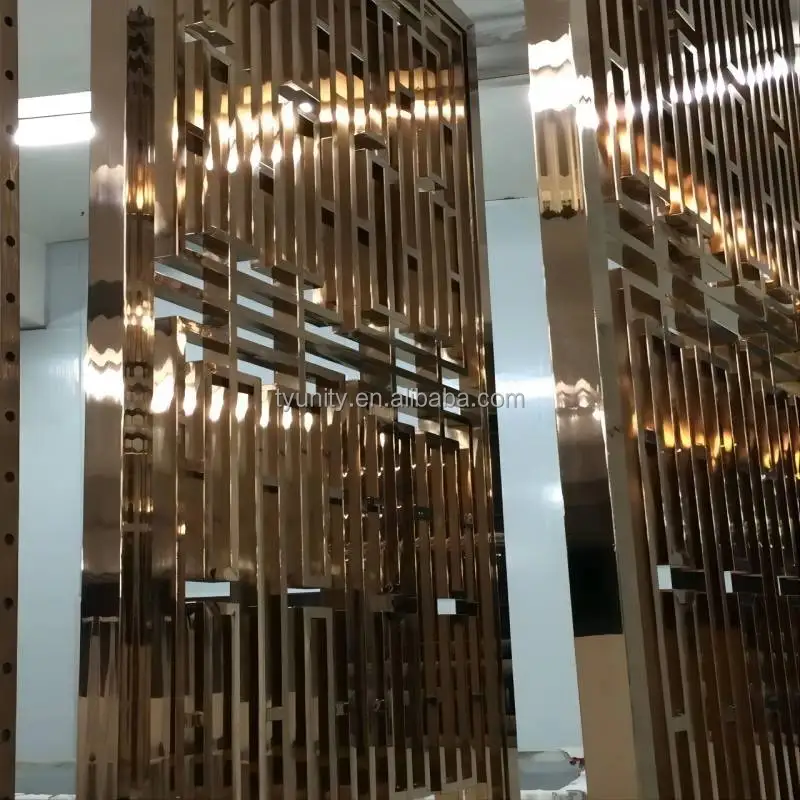

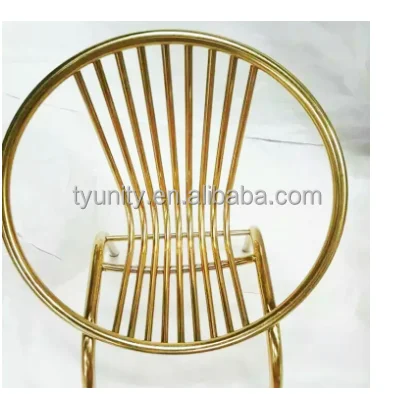

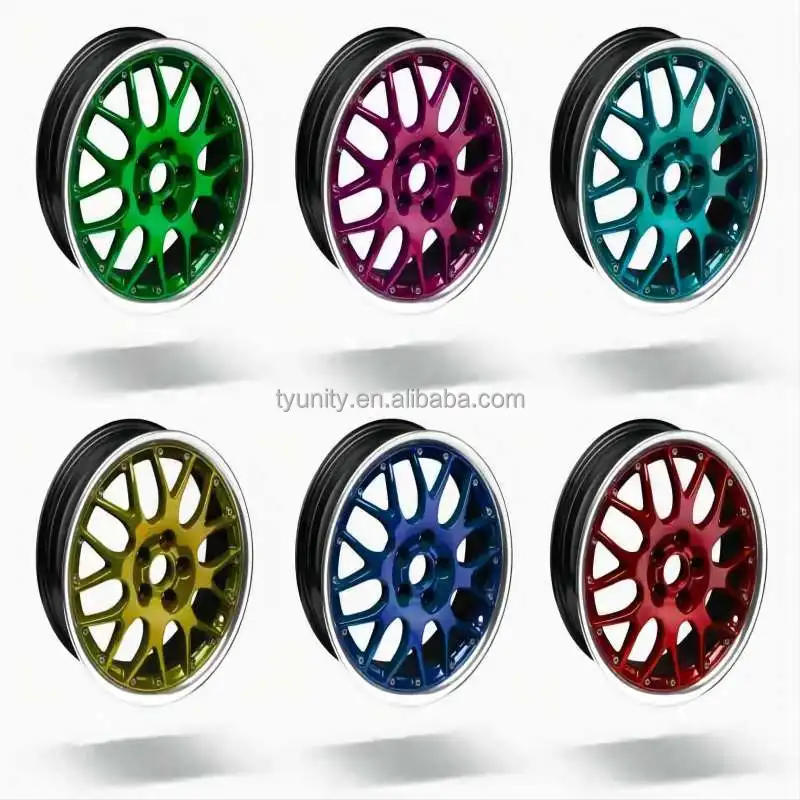

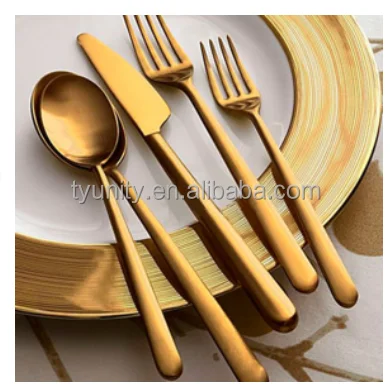

Finished Product Photo

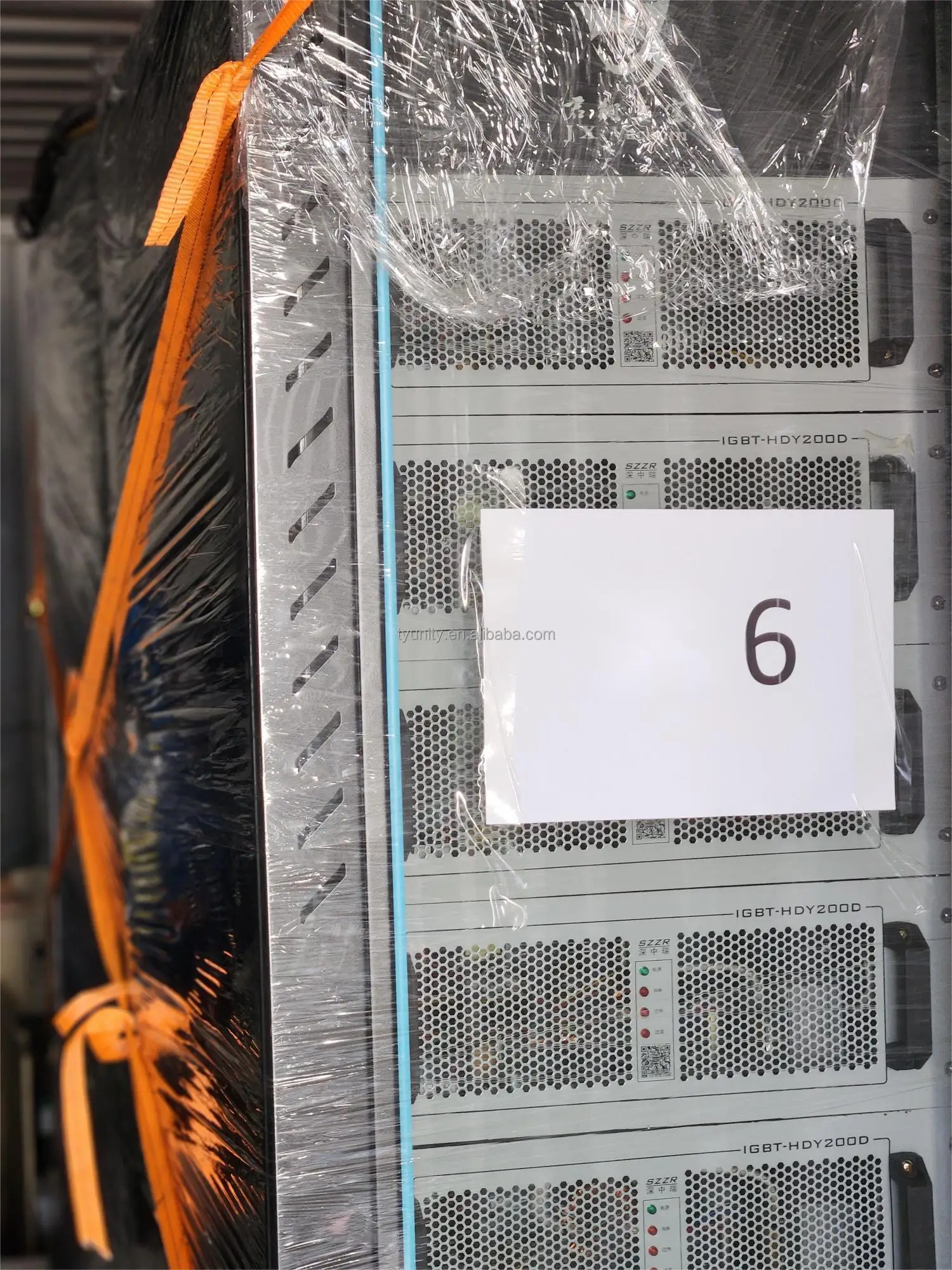

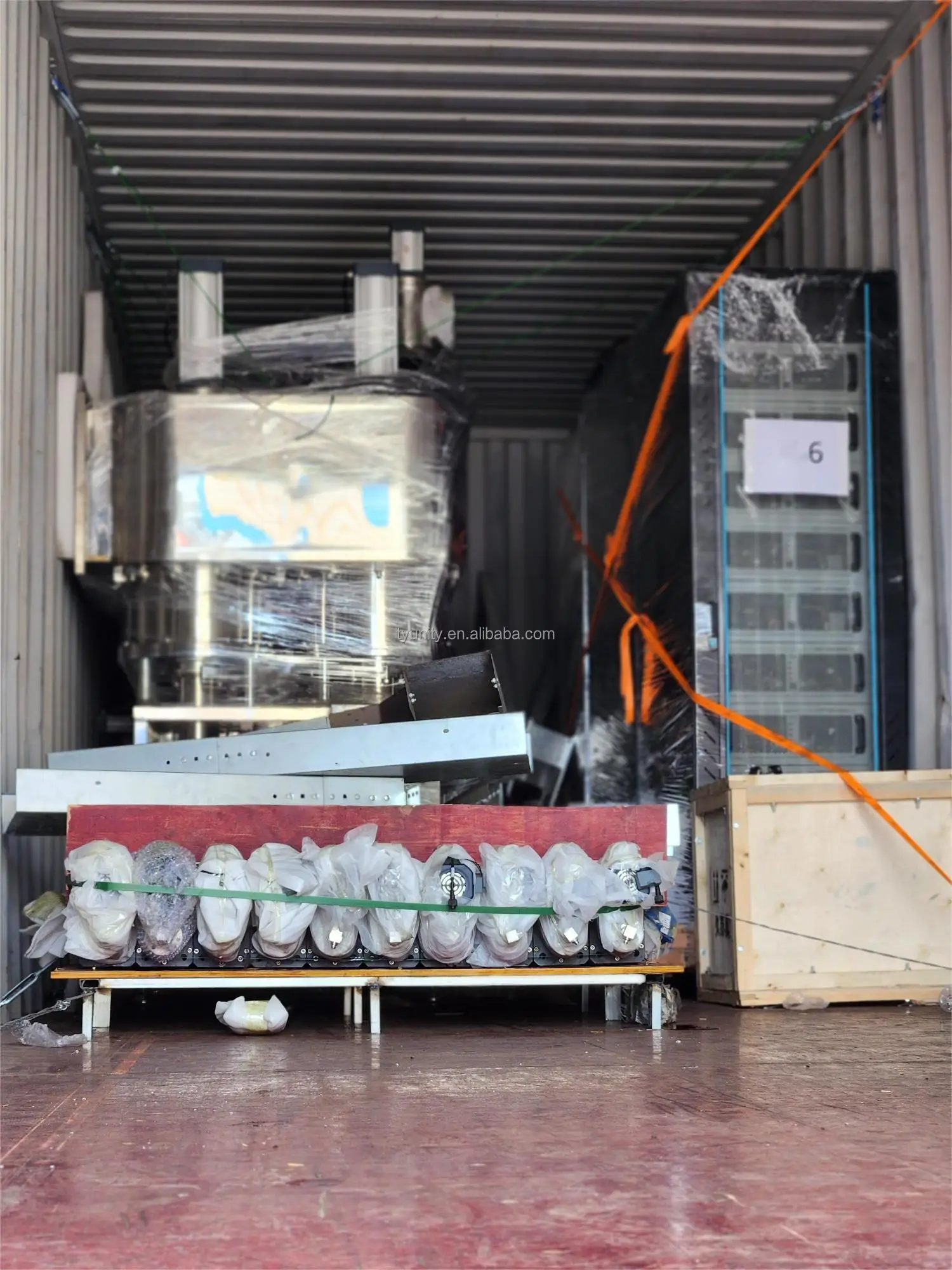

Packaging&Shipping
Company Profile
Tongyi Vacuum Technology Co., Ltd specializes in the R&D,production and sales of various vacuum applications. Committed to providing customized process technology and solutions according to customer needs. including unbalanced magnetron , medium frequency magnetron sputtering ,multi arc-ion sputtering ,multi arc-ion and magnetron ion sputtering,arc evaporation sources equipment and other coating equipment. Widely used in tool cutting tools, military, automotive, lighting, mobile phones, hardware watches, jewelry, ceramics, stainless steel plates, stainless steel products and other industries.
We sincerely hope to cooperate with friends from home and abroad and help you succeed with our profession.
We sincerely hope to cooperate with friends from home and abroad and help you succeed with our profession.
FAQ
Q1. How about the quality control about your products?
We have the ISO9001 QMS , CE certification.
All machine will past the internal quality test and field testing.
Q2. Does your company provide after-sale service ?
Yes. We have the field engineer to set-up and debug the machine .
After the machine is fully running . we have one year of quality warranty and full-life maintenance service .
Q3. Can you provide technical support about my work-flow?
Yes . The Tongyi have more than 20 years of experience in Vacuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
No. All machine in Tongyi are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
Yes . We can supply you all the accessories especially for some consumable material .
We have the ISO9001 QMS , CE certification.
All machine will past the internal quality test and field testing.
Q2. Does your company provide after-sale service ?
Yes. We have the field engineer to set-up and debug the machine .
After the machine is fully running . we have one year of quality warranty and full-life maintenance service .
Q3. Can you provide technical support about my work-flow?
Yes . The Tongyi have more than 20 years of experience in Vacuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
No. All machine in Tongyi are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
Yes . We can supply you all the accessories especially for some consumable material .
