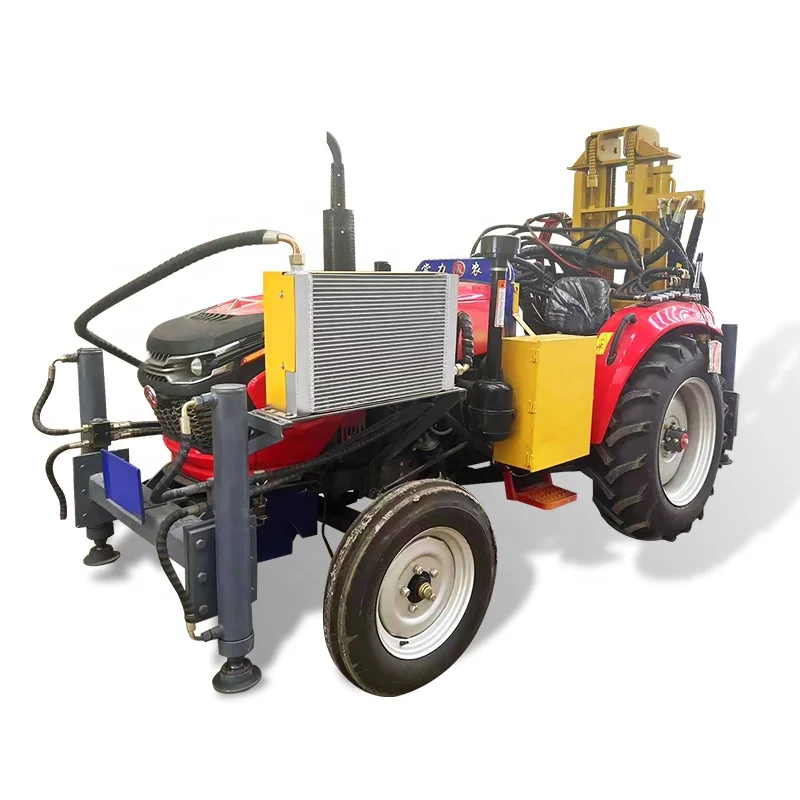

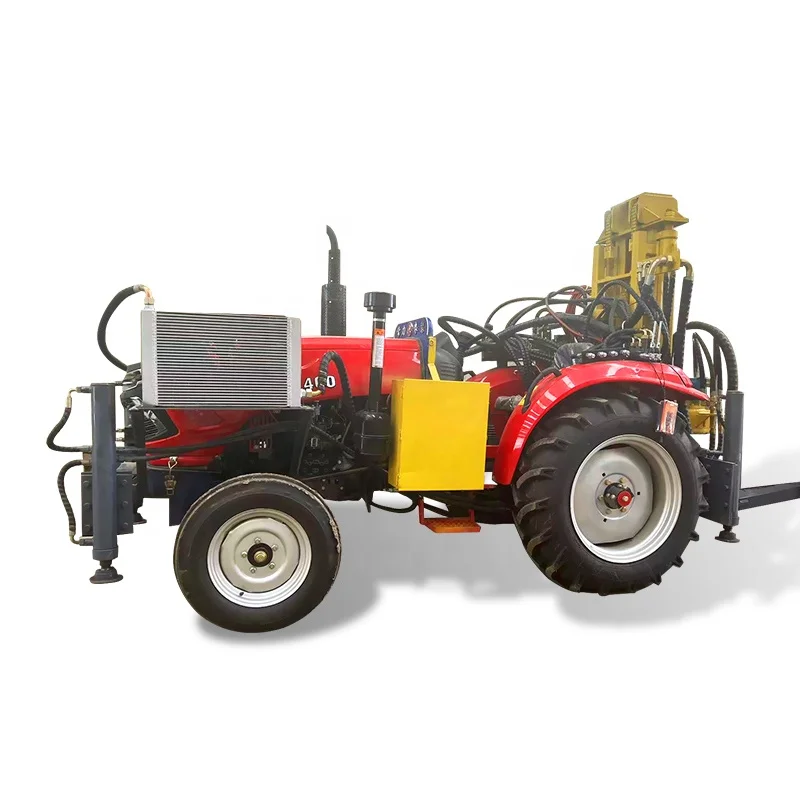

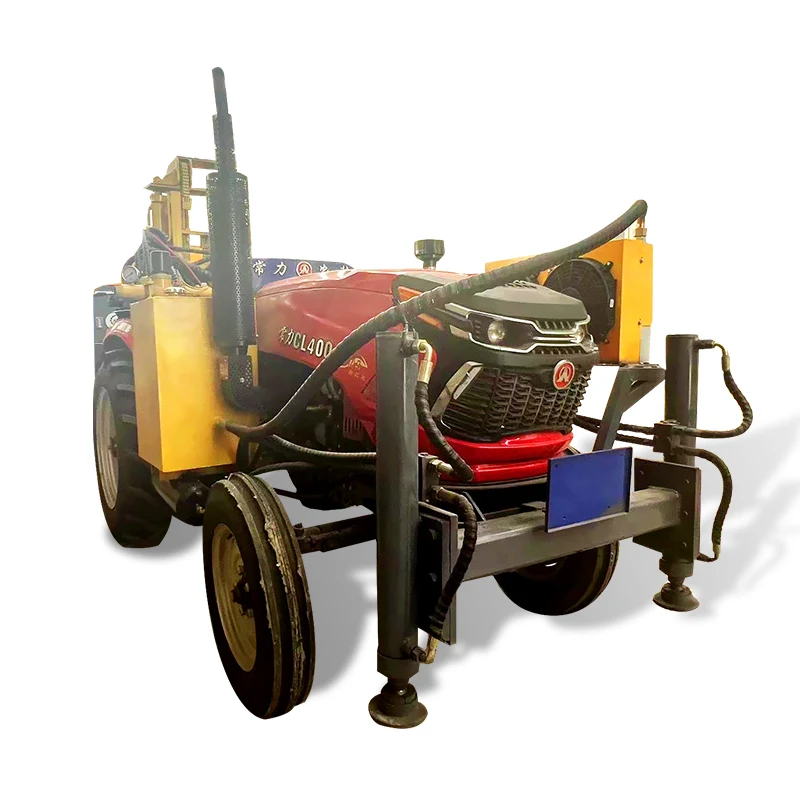

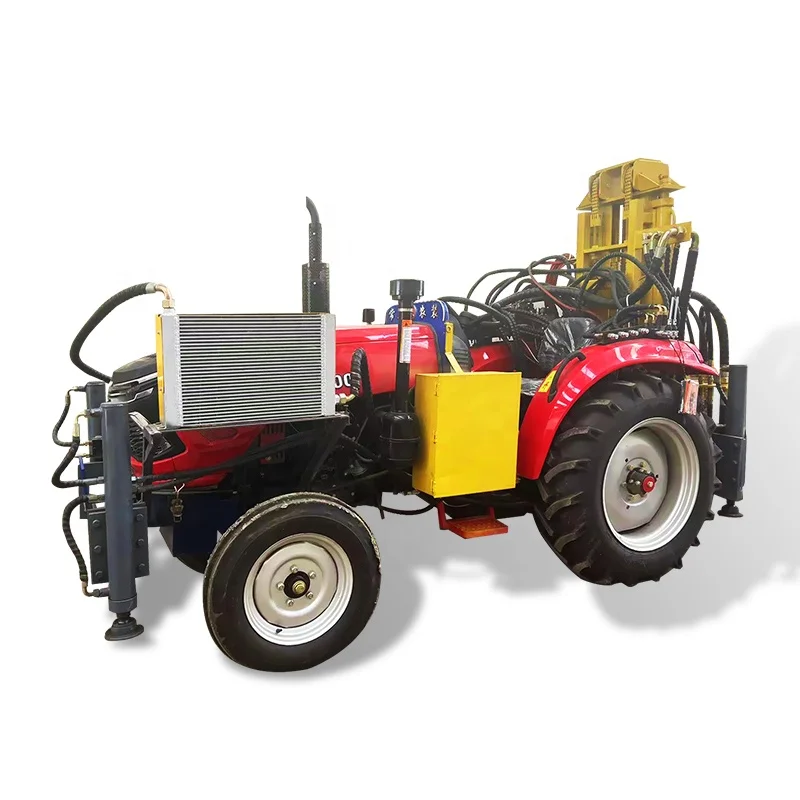

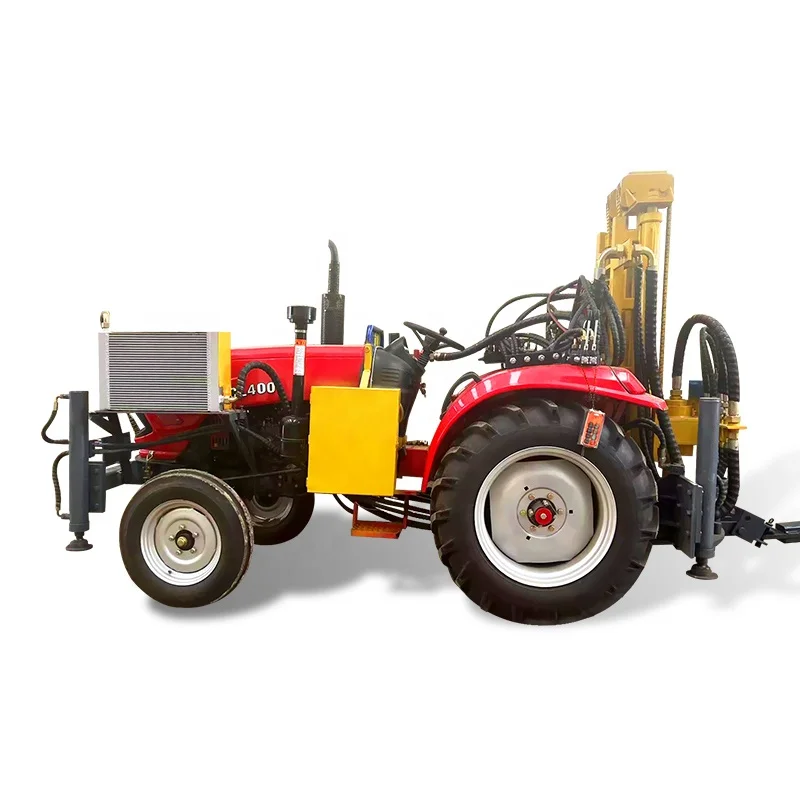

High Efficiency 40HP Diesel Tractor Mounted 200m Deep Hydraulic Underground Water Well Borehole Drilling Rig Machine
- Category: >>>
- Supplier: Shandong Relied Heavy Industry Co. Ltd.
Share on (1600901939013):
Product Overview
Description
We build the portable water well drilling rigs with nothing but the best components and materials. We work with hydraulic experts to help us make sure the rigs we build have an efficient hydraulic system. No matter what model of drilling rig you choose, you can rest assure that we have put many hours builing, testing and inspecting your rig.
II. Characteristics

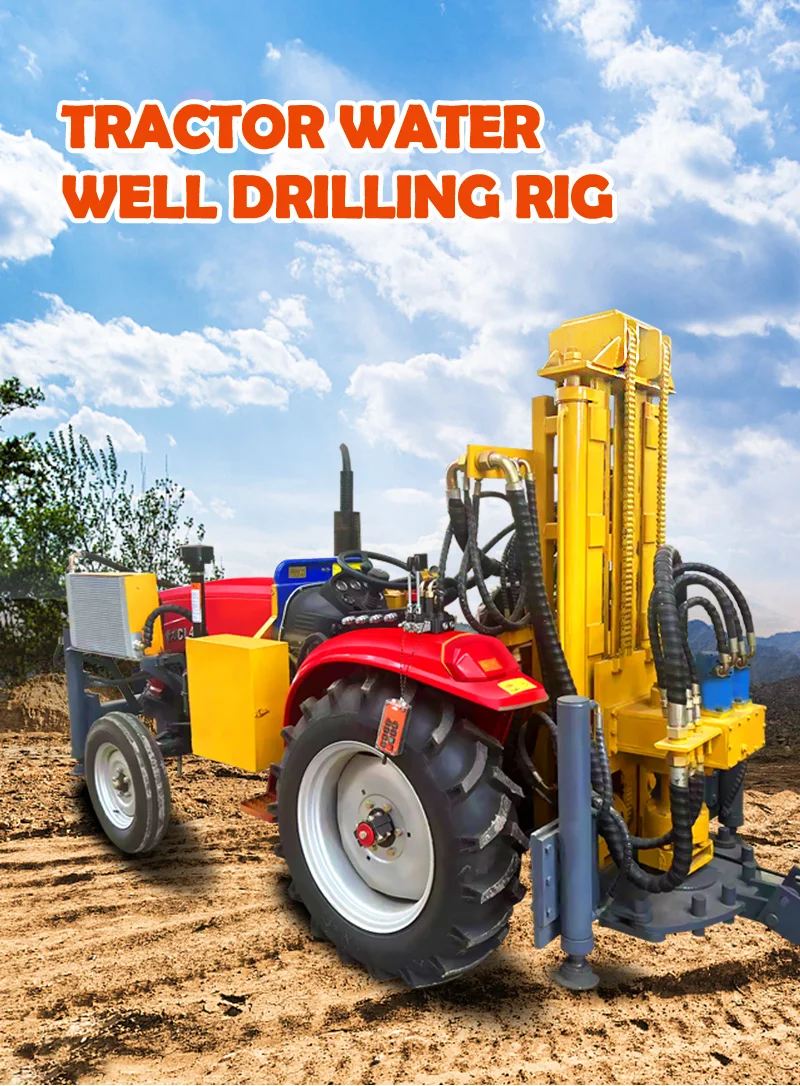

The drilling rig is integrated together with tractor, the tractor is a drilling machine and a transportation machine, air compressor can be hung behind,you just need to equip a tricycl to load pipes. The system uses hydraulic power from tractor as the driving force to realize the function of drilling. You do not need to turn on the air compressor when lifting the pipes,just use the hydraulic power of tractor.Make drilling cost lower and economic benefit is higher.
Model | TRLD-200 |
Overall weight (T) | 3.5 |
Dimension(mm) | 3400*1500*2200 |
Drilling diameter(mm) | 130-325 |
Drilling depth (m) | 200 |
One-time advance length of the drill (mm) | 2000 |
Traveling speed(km/h ) | 30 |
Climbing capacity(max) | 25° |
Minimum ground clearance(mm) | 250 |
Working Air Pressure(Mpa) | 1.45-2.5 |
Air consumption(m3 /min) | 15-27 |
Main machine power (HP) | 40 |
Rotation speed (rpm) | 38-80 |
Rotary torque(Nm) | 4000-5000 |
Packing & Delivery
Company Profile
FAQ
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2, What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2. 100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
Minimum order is 1 pc only, dealership is warmest welcome.
2, What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2. 100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
