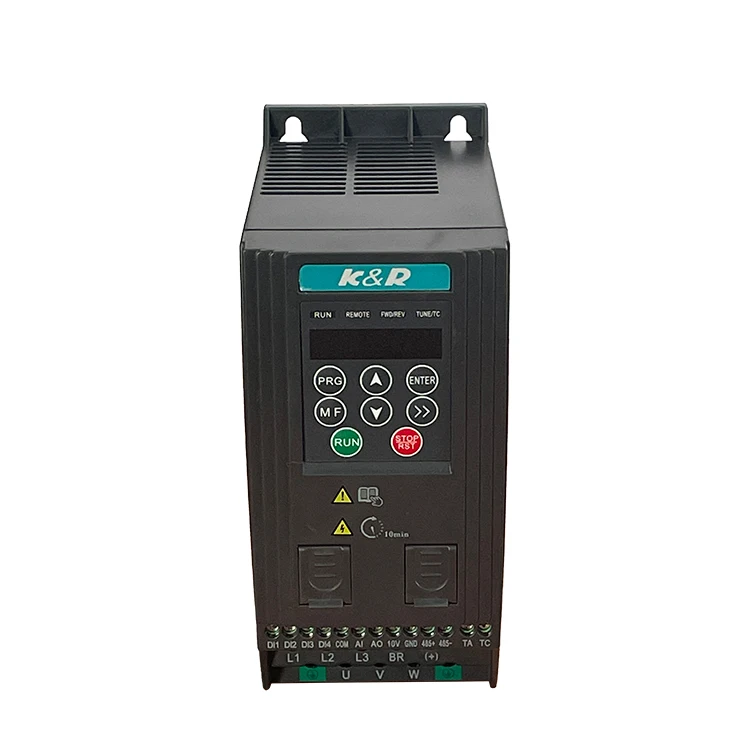

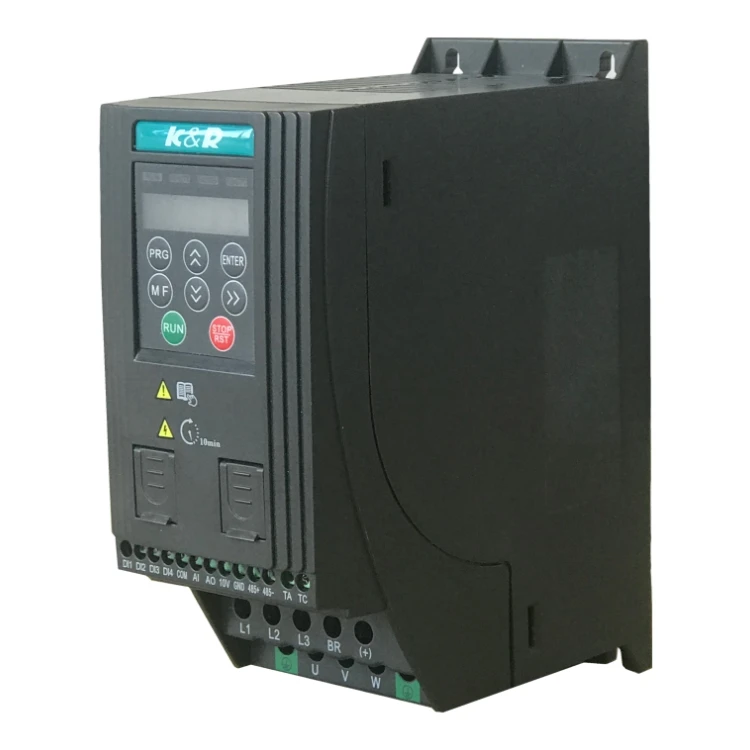

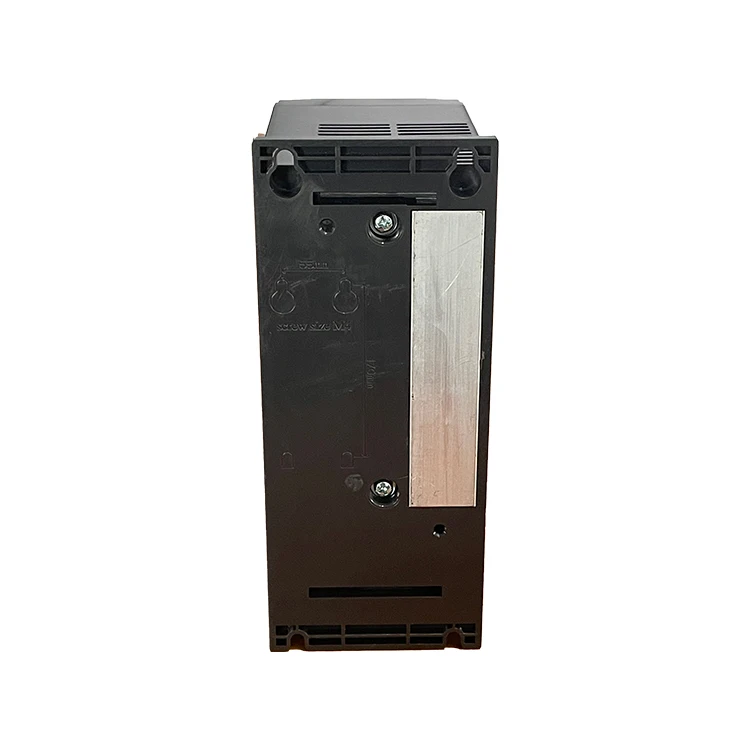

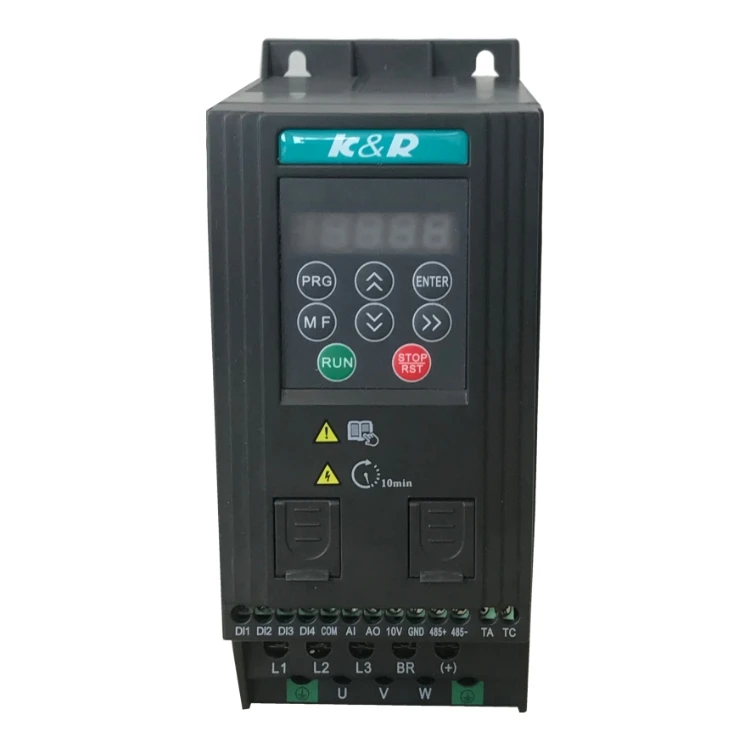

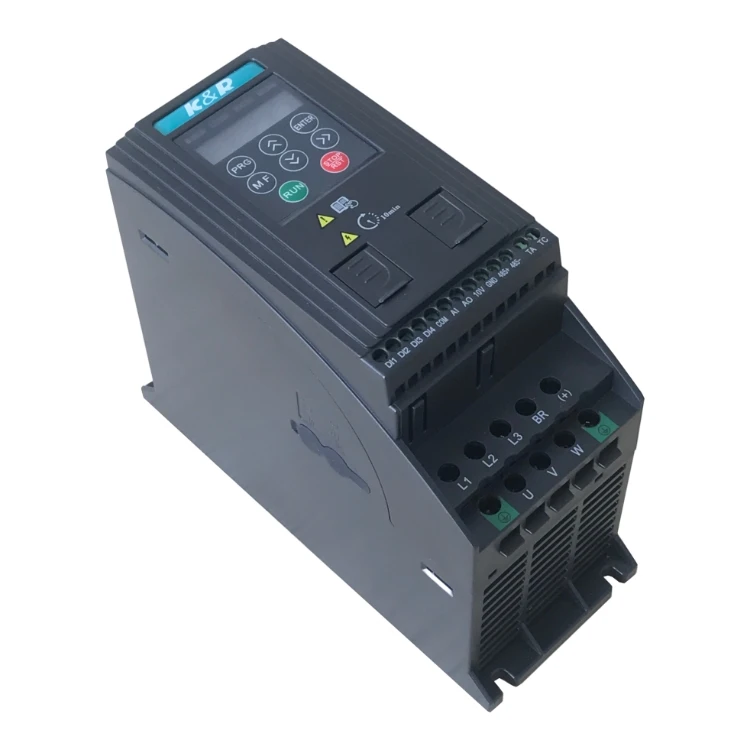

Ac Inverter Variable Frequency Drive Manufacturer 0.4kw 50hp Variable Frequency Converter Drives variable Frequency Drive
- Category: >>>
- Supplier: Qingdao Speedo Industry & Commerce Co. Ltd.
Share on (1600901940592):
Product Overview
Description
Parameters
Technical indicators | Instructions | |
Input | Input voltage range | 1AC220V±15%, 3AC220V±15%,3AC380V±15%,3AC660V±10% |
Input frequency range | 47-63Hz | |
Power Factor | ≥95% | |
Control characteristics | Control method | V/F control, PG-free vector control (SVC), PG vector control (FVC) |
Frequency given mode | Digital reference, analog reference, pulse frequency reference, serial communication reference, multispeed and simple PLC reference, PID reference, etc. A given combination and mode switching can be achieved. | |
Overload capability | 150% rated current 60S; 180% rated current 3S | |
Starting torque | 0.5Hz/150% (SVC); OHz/180% (FVC) | |
Speed range | ±0.5% (SVC); ±0.02% (FVC) | |
Simple PLC and multi-speed operation | Up to 16 speeds via built-in PLC or control terminals | |
Built-in PID | Closed-loop control system that facilitates process quantities (such as pressure, temperature, flow, etc.) | |
Input and output terminal | Input terminal | 6 programmable digital inputs, expandable 4 channels, 1 of which can be used as high speed pulse input; 1 channel analog voltage input -10 ~10VDC; two voltages 0-10VDC or current 0-20mA input |
Output terminal | 1 way open collector output, can expand 1 high speed pulse output: 2 way relay output, 2 way analog output: two analog output. 0-10V/0-20mA |

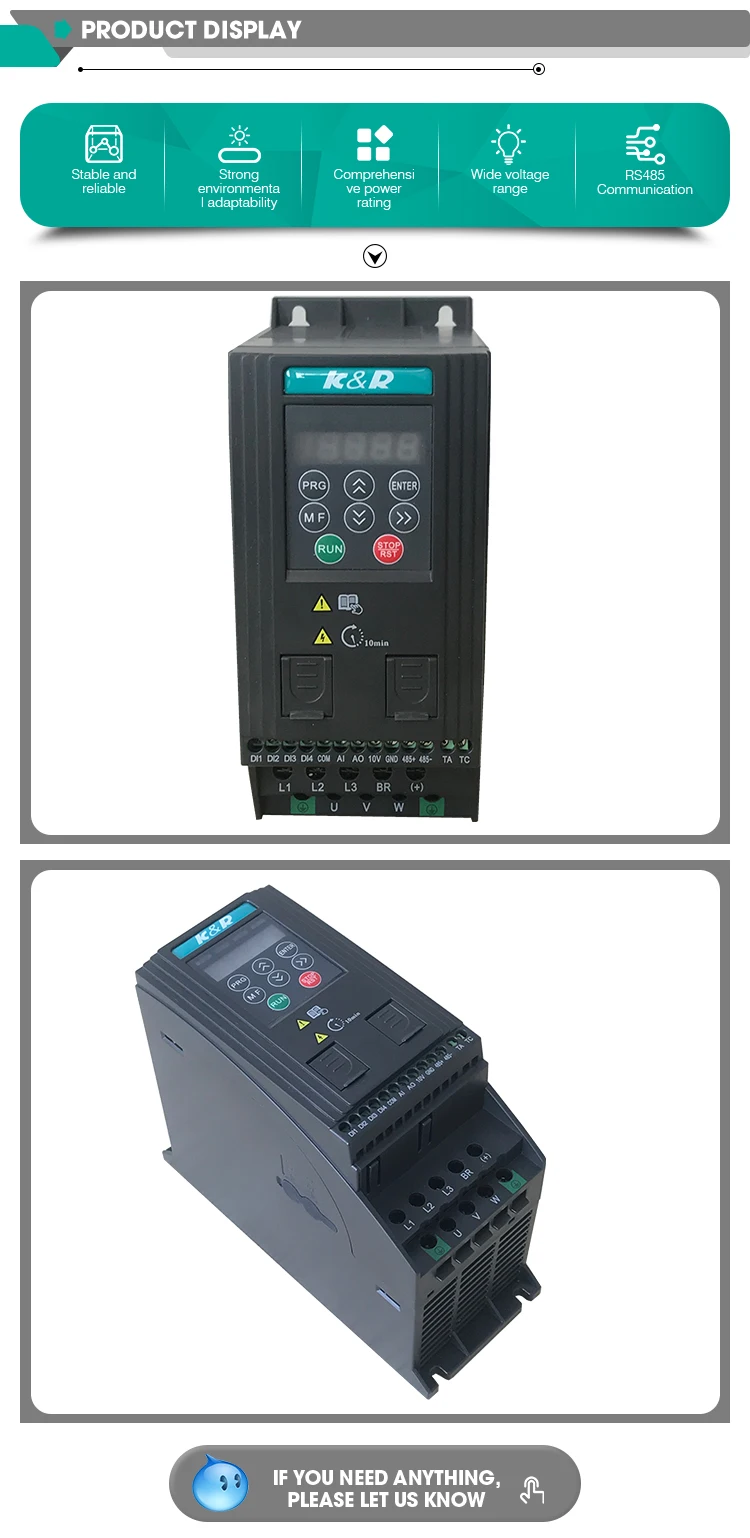

Product Display
Product Details
Product Application
Products Category
Company Profile
Packaging&Delivery
Q: Is the output voltage of our inverter stable ?
A: Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter.
Q: What should be noticed when installing inverter?
A: Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter.
Q: Can I get some samples for test?
A: Yes.
Q: Do you accept OEM/ODM ?
A:Yes.
Q: How is delivery time?
A: Usually it takes 5-10 days for regular type , for large orders or OEM/ODM orders, pls negotiate with sales.
Q: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q : How do you control quality ?
A : Our production follow ISO9001 quality control system strickly. After four time quality inspection and high temperature
testing, we will print "QA" pass.
Q : what kind of certificate do you have ?
A : We have ISO9001, CE.
A: Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter.
Q: What should be noticed when installing inverter?
A: Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter.
Q: Can I get some samples for test?
A: Yes.
Q: Do you accept OEM/ODM ?
A:Yes.
Q: How is delivery time?
A: Usually it takes 5-10 days for regular type , for large orders or OEM/ODM orders, pls negotiate with sales.
Q: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q : How do you control quality ?
A : Our production follow ISO9001 quality control system strickly. After four time quality inspection and high temperature
testing, we will print "QA" pass.
Q : what kind of certificate do you have ?
A : We have ISO9001, CE.
