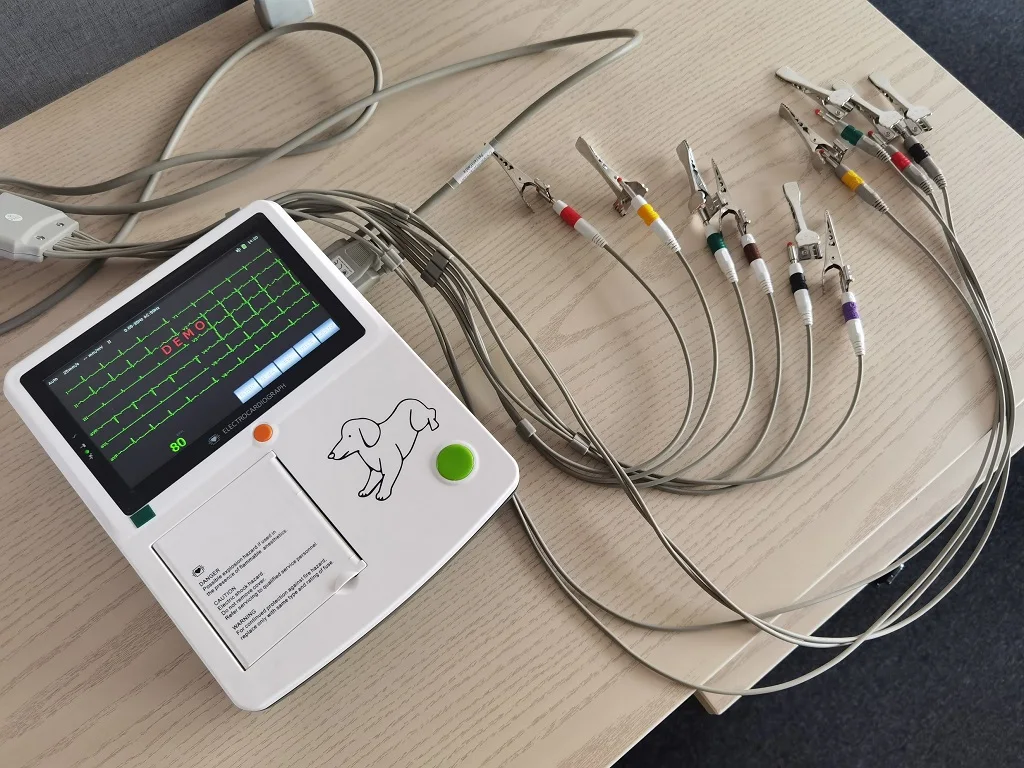

Vet ECG Machine For Animal
Vet ECG Machine For Animal
Vet ECG Machine For Animal
Vet ECG Machine For Animal
Vet ECG Machine For Animal
Vet ECG Machine For Animal
Vet ECG Machine For Animal

Vet ECG Machine For Animal

Share on (1600901967986):


Price:

Quantity:


Product Overview

Description



Products Description

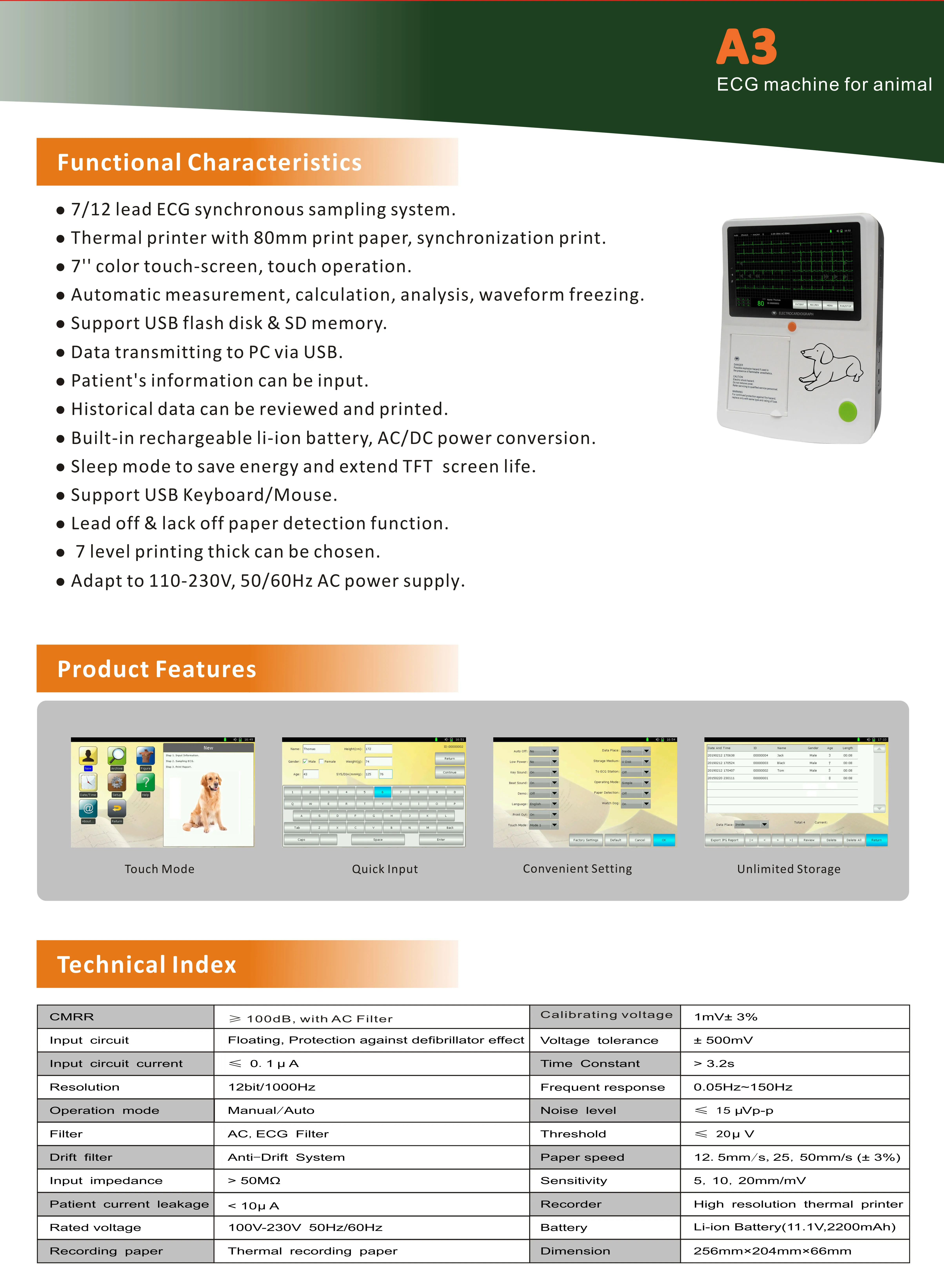

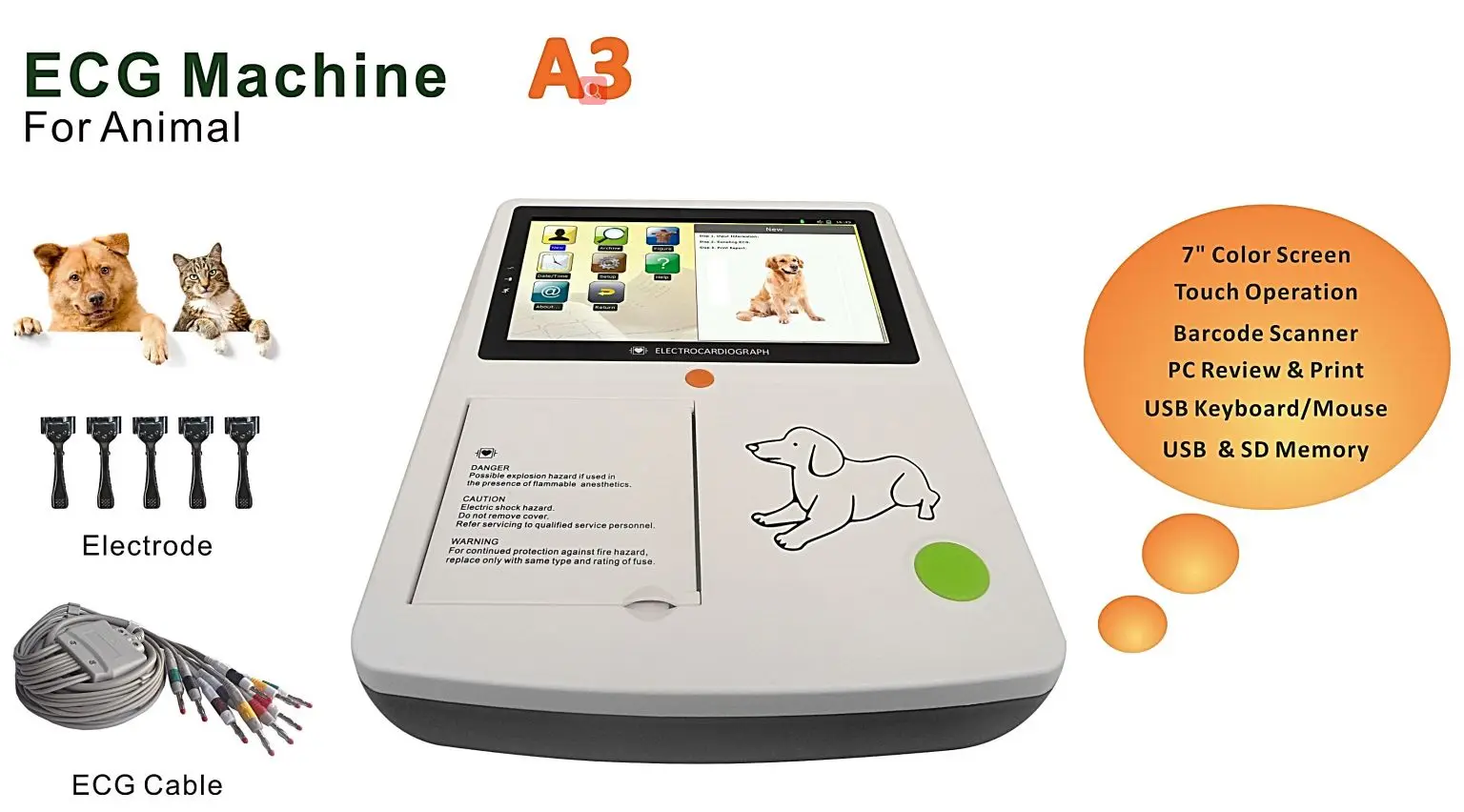

Function Features of A3 ECG Machine

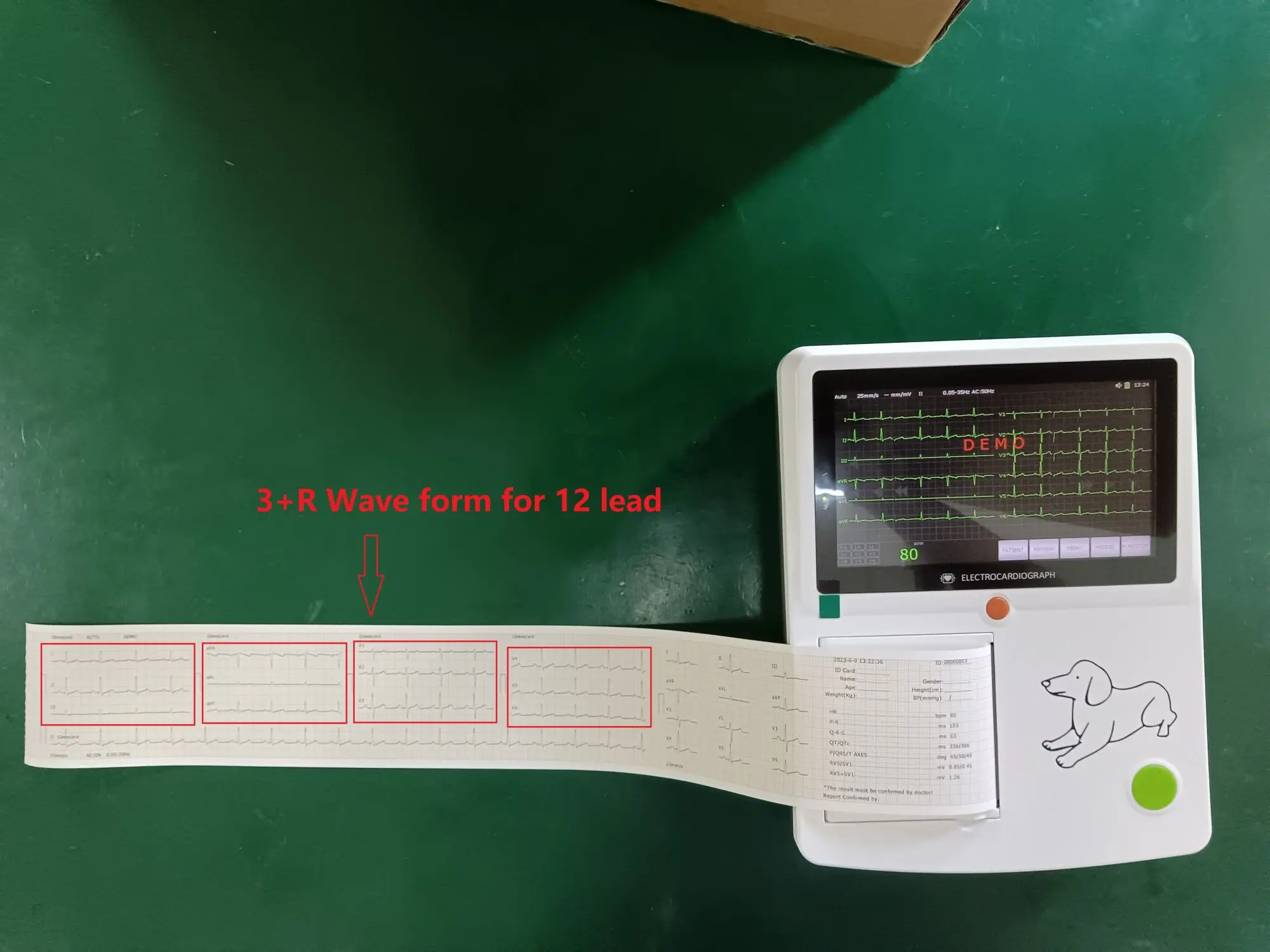

•7/12 lead ECG synchronous sampling system.

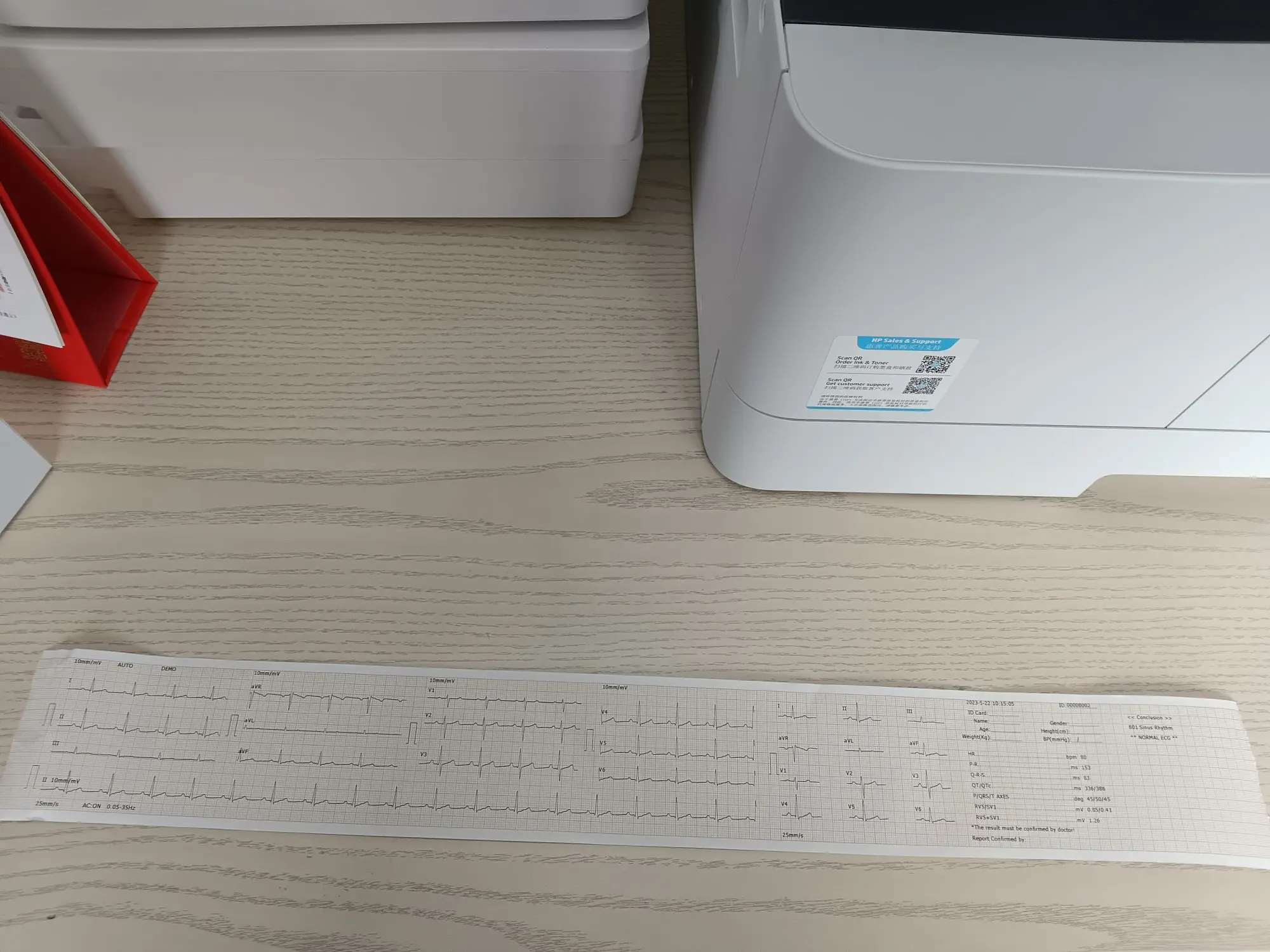

•Thermal printer with 80mm print paper, synchronization print.

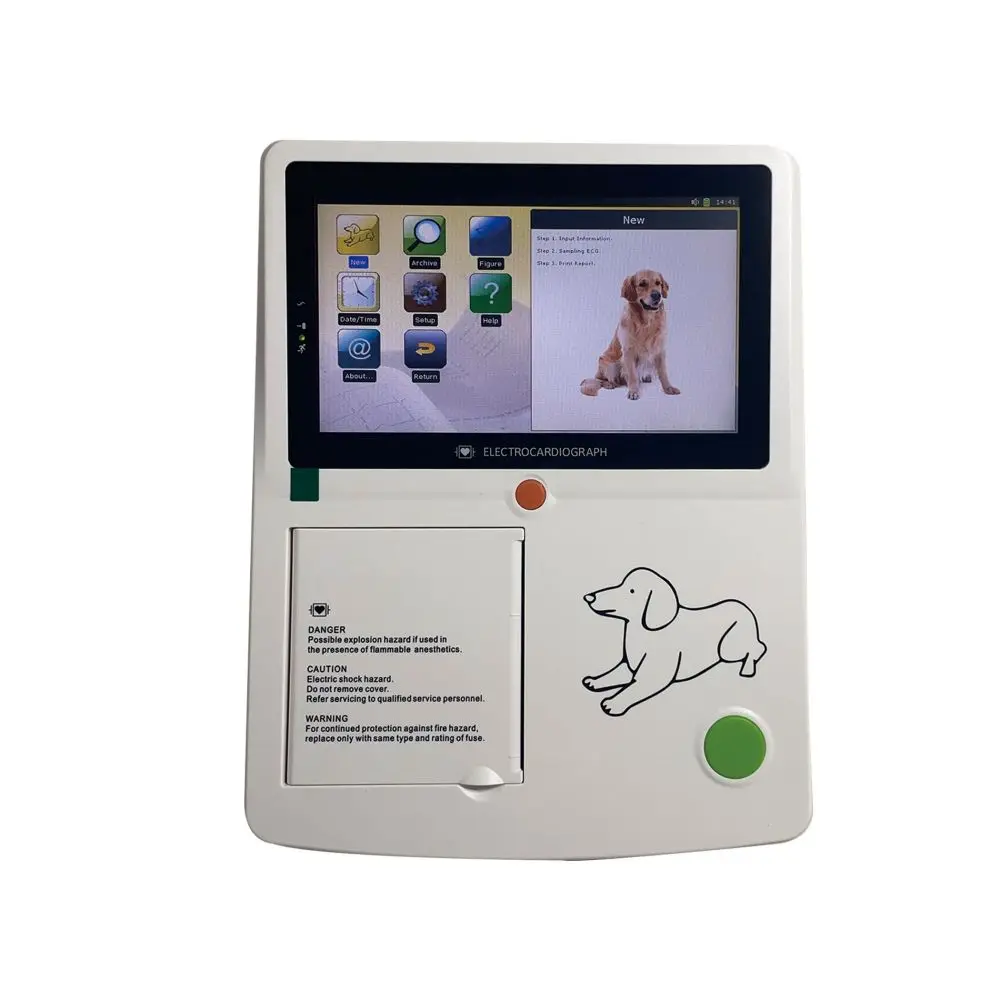

•7" color touch-screen, touch operation. •Automatic measurement, calculation, analysis, waveform freezing.
•Support USB flash disk & SD memory.
•Data transmitting to PC via USB. •Animal's information can be input. •Historical data can be reviewed and printed. •Built-in rechargeable li-ion battery, AC/DC power conversion.
•Sleep mode to save energy and extend TFT screen life.
•Support USB Keyboard/Mouse.
•Lead off & lack off paper detection function.
•7 level printing thick can be chosen.
•Adapt to 110-230V, 50/60Hz AC power supply.


Product Paramenters


Parameters of A3 ECG Machine
CMRR
≥ 100dB, with AC Filter
Calibrating voltage
1mV± 3%
Input circuit
Floating
Voltage tolerance
± 500mV
Input circuit current
≤ 0.1µ A
Time constant
> 3.2s
Resolution
12bit/1000Hz
Frequent response
0.05Hz~150Hz
Operation mode
Manual/Auto
Noise level
≤ 15µ Vp-p
Filter
AC. EMG Filter
Threshold
≤ 20µ V
Drift filter
Anti-Drift System
Paper speed
12.5, 25, 50mm/s (± 3%)
Input Impedance
> 50MΩ
Sensitivity
5，10，20mm/mV
Patient current leakage
< 10µ A
Recorder
High resolution thermal printer
Specification of fuse
T1.6A 250V Ø5×20
Battery
Built-in rechargeable Li-ion battery 11.1V(2200mAh)
Recording paper
Thermal recording paper
Package
256mm*204mm*66mm


Product Introduction
















FAQ


1.Q:If I buy more,will there be any discount?
    A:1.For new customers:There is 2% discount for order value above $3000-$8000.
        2.For old customer:discount detail talk with saler.
2.Q:When can I receive item after made payment?
    A:Normally,we will send it by DHL,FEDEX,and it takes about 3~5 days arrive.
3.Q:I still have not received the item after 5 days,what should I do?
    A:Maybe your address is not scope DHL,FEDEX,If you still have not received it by then,Pls contact us by TM or email.
4.Q:What I received is different from picture,how can I do?
    A:The picture show only some of our samples,also design must confirm with saler before book order,still not satisfied with it,please contact with saler.
For more product details, please send an inquiry to contact us, thank you.
