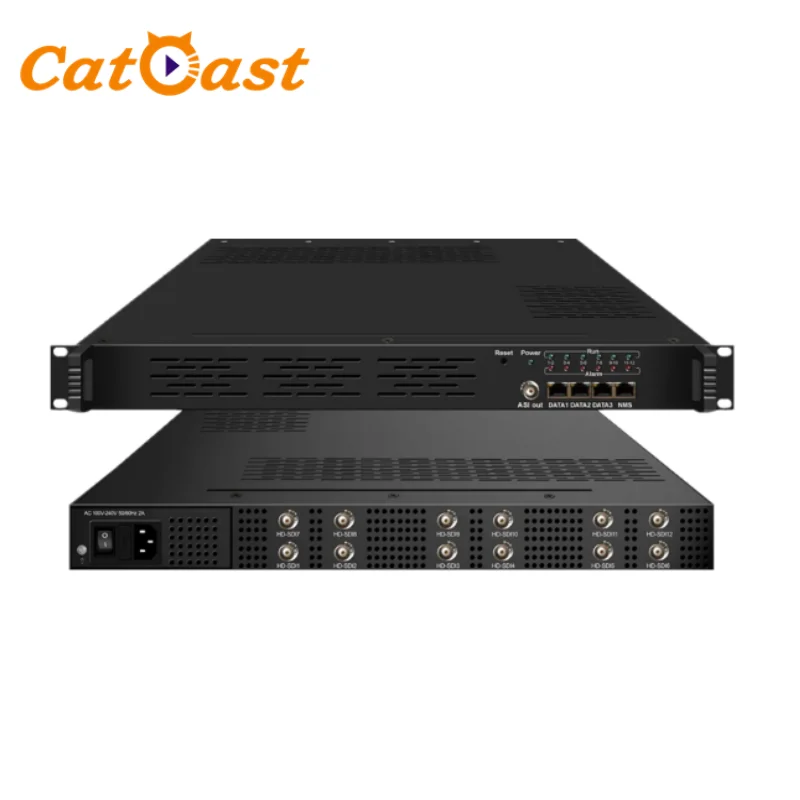

12 IN 1 HD MPEG2 Encoder For Digital TV Headend Equipment CATV Encoder
- Category: >>>
- Supplier: Catcast Technology Co. Ltd. (chengdu)
Share on (1600901970902):
Product Overview
Description
12 IN 1 HD MPEG2 Encoder For Digital TV Headend Equipment CATV Audio Encoder
Product Description

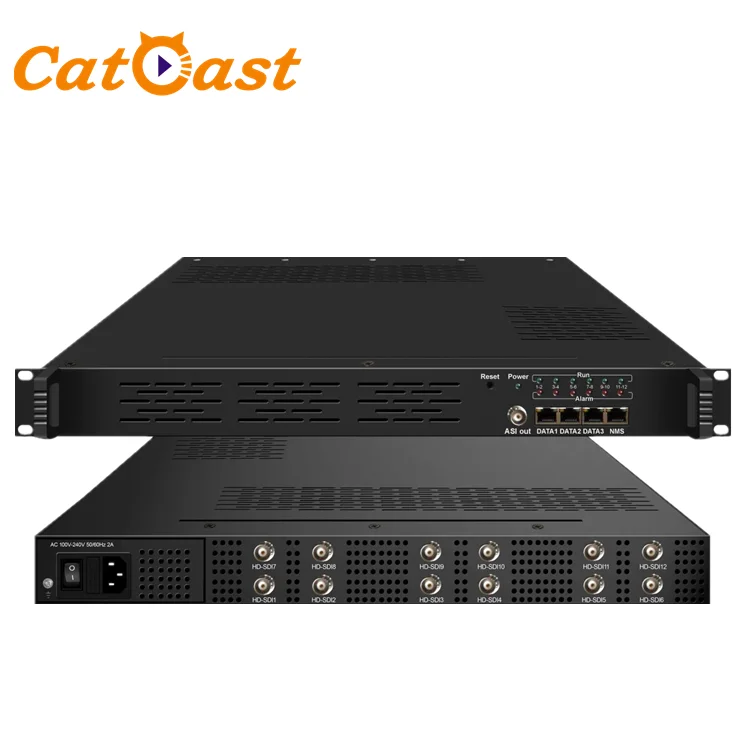

HPR8533D MPEG-2 & H.264 HD Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with 12 SDI audio & video input interfaces. It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) audio encoding (Optional), AC3 (2.0/5.1) pass through. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Key Features
● 12 HD-SDI inputs with MPEG2 & MPEG4 AVC/H.264 Encoding
● MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional) AC3
(2.0/5.1) passthrough
● Support 12 channel CC (close caption) input, EIA608/EIA708
● Support 1MPTS and 12 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP
● Support ASI output as mirror of MPTS
● Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
● Control via web management, and easy updates via web
Specification
Input | 12 HD-SDI inputs with CC (EIA608/EIA708) | ||||||
Video | Resolution | Input | 1920*1080_60p, 1920*1080_50p,1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i | ||||
Output | 1920*1080_60p, 1920*1080_50p,1920*1080_60i, 1920*1080_50i, 1440*1080_60i, 1440*1080_50i, 1280*720_60p, 1280*720_50P, 720*576_50p, 720*576_50i, 720*576_30p, 720*576_25p, 720*480_60p, 720*480_60i,720*480_30p, 720*480_25p,320*240_60p,320*240_50p, 320*240_30p, 320*240_25p,320*180_60p, 320*180_50p, 320*180_30p, 320*180_25p, 960*540_50i, 704*576_50i,704*480_60i, 640*576_50i 640*480_60i, 544*576_50i,544*480_60i, | ||||||
Encoding | MPEG2 & MPEG4 AVC/H.264 | ||||||
Bit-rate | 0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding | ||||||
Rate Control | CBR/VBR | ||||||
GOP Structure | GOP B Frame: 0-3, GOP P Frame: 0-6 | ||||||
Advanced Pretreatment | De-interlacing, noise reduction | ||||||
Audio | Encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough | |||||
Sampling rate | 48KHz | ||||||
Resolution | 24-bit | ||||||
Bit-rate | 64Kbps-320kbps each channel | ||||||
Multiplexing | Maximum PID Remapping | 256 input per channel | |||||
Function | PID remapping ( automatically or manually) | ||||||
Accurate PCR adjusting | |||||||
Generate PSI/ SI table automatically | |||||||
Stream output | 1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 2 1 ASI output as mirror of MPTS | ||||||
System function | Network management (WEB) | ||||||
Ethernet software upgrade | |||||||
Miscellaneous | Dimension (W×L×H) | 482mm×440mm×44mm | |||||
Approx weight | 8kg | ||||||
Environment | 0~45℃(work)；-20~80℃（Storage） | ||||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||||
Power consumption | 20W | ||||||
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
Company Introduction
Catcast Technology Co.,Ltd is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
