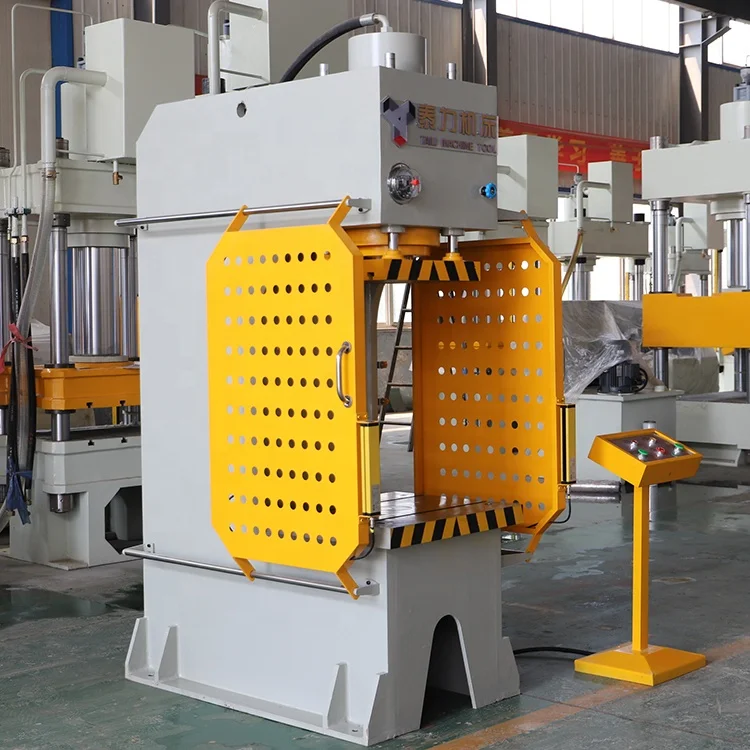

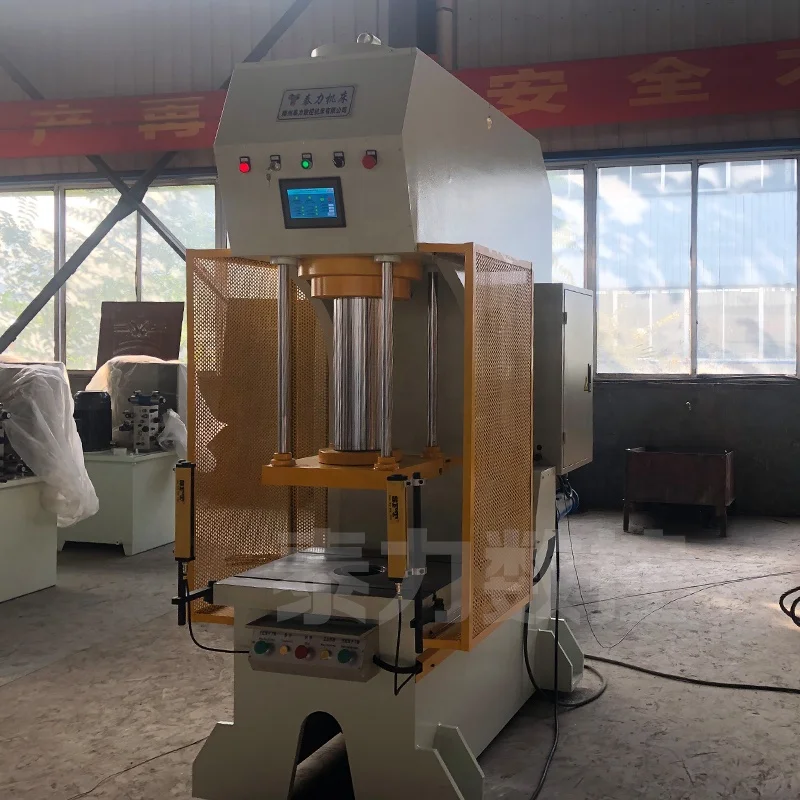

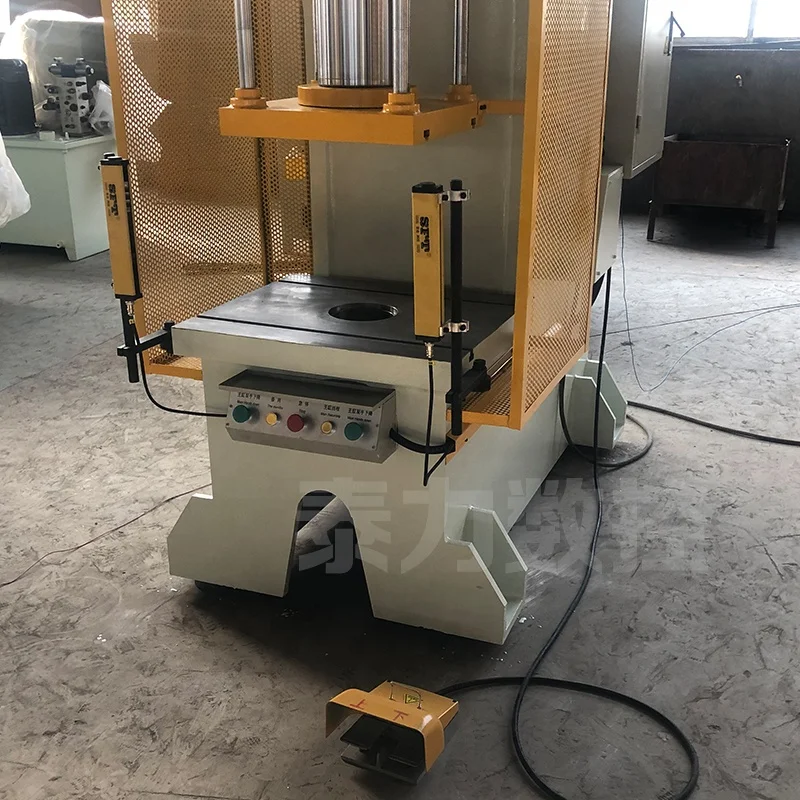

100 tons of sheet metal tensile forming single arm automatic hydraulic press 160 tons of stainless steel single arm press
- Category: >>>
- Supplier: Tengzhou Taili CNC Machine Tool Co. Ltd.
Share on (1600901972890):
Product Overview
Description
Product Description

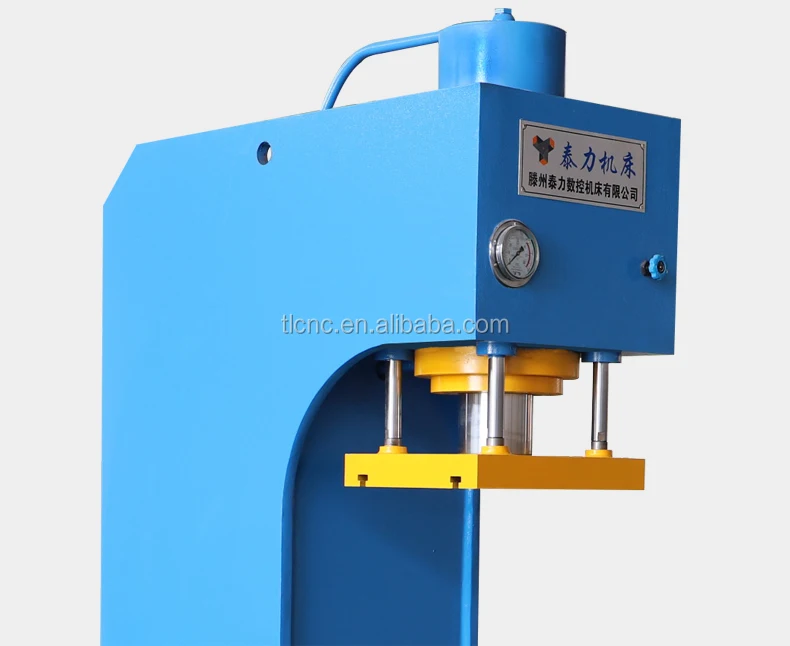

1. The single column hydraulic press is mainly used to calibrate and press the axle and sleeve parts, and can also be used for other process purposes.
2. The vertical layout of single column hydraulic press, and the lattice components of the equipment are in the body, with neat and beautiful appearance.
3. The single column hydraulic press can be used for handle and foot operation. The pressure of the equipment can be adjusted within the specified range. The stroke size can be controlled and the operation is relatively simple.
2. The vertical layout of single column hydraulic press, and the lattice components of the equipment are in the body, with neat and beautiful appearance.
3. The single column hydraulic press can be used for handle and foot operation. The pressure of the equipment can be adjusted within the specified range. The stroke size can be controlled and the operation is relatively simple.
C-Frame Hydraulic Press | Nominal Force | Table Size | Slide Stroke | Max Opening Height | Throke Depth | Descending Speed | Pressing Speed | Returning Speed | Main Motor Power | ||
Unit | Kn | mm | mm | mm | mm | mm/s | Kw | ||||
Y41-16T | 160 | 200 | 400 | 150 | 30-18 | 30-15 | 48-28 | 4/2.2 | |||
Y41-20T | 200 | 200 | 400 | 200 | 30-12 | 30-12 | 40-18 | 5.5/2.2 | |||
Y41-40T | 400 | 500*400 | 260 | 500 | 200 | 40-16 | 40-16 | 55-24 | 5.5/3 | ||
Y41-60T | 600 | 600*400 | 350 | 500 | 250 | 75-12 | 28-12 | 50-20 | 5.5/5.5 | ||
Y41-100T | 1000 | 700*600 | 500 | 800 | 350 | 30-15 | 15-8 | 37-45 | 5.5/5.5 | ||
Y41-160T | 1600 | 700*600 | 500 | 800 | 350 | 30-16 | 16-8 | 45-60 | 7.5 | ||
Y41-200T | 2000 | 900*700 | 500 | 800 | 400 | 40-15 | 15-8 | 45 | 7.5 | ||
Y41-250T | 2500 | 1000*800 | 500 | 800 | 450 | 50-15 | 15-8 | 73 | 11 | ||
Y41-315T | 3150 | 1250*800 | 500 | 800 | 400 | 50-12 | 12-6 | 68 | 15 | ||
Y41-400T | 4000 | 1250*900 | 600 | 1000 | 500 | 50-15 | 15-10 | 57-35 | 18.5 | ||
Y41-500T | 5000 | 1500*900 | 500 | 1200 | 500 | 180-15 | 15-10 | 120-50 | 15*2 | ||
Y41-630T | 6300 | 1200*1200 | 600 | 1200 | 600 | 150-12 | 12-6 | 100-63 | 15*2 | ||
Advantages
1. It has the characteristics of good structural rigidity, good guiding performance and fast speed.
1. It has the characteristics of good structural rigidity, good guiding performance and fast speed.
2. The convenient manual adjustment mechanism can adjust the pressing head or upper table to press at any position in the stroke, and can also adjust the length of the fast forward and working forward stroke at any time in the design stroke; 3. L the solid open structure welded as a whole can keep the fuselage rigid enough and have the most convenient operation space.
4. The whole body casting has the advantages of strong deformation resistance, high working accuracy and long service life, which is suitable for products with high
requirements.
requirements.

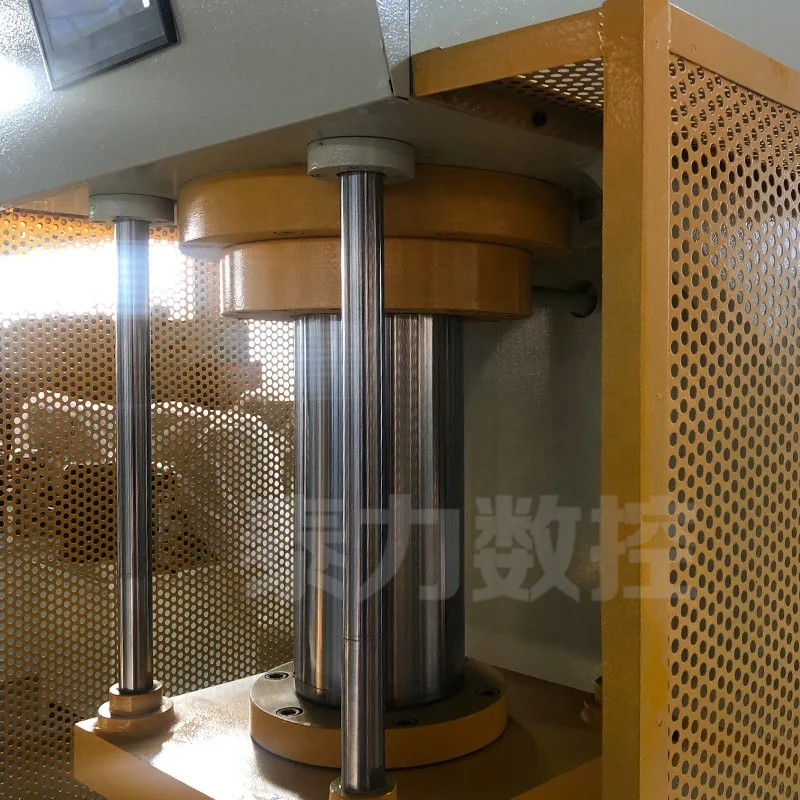

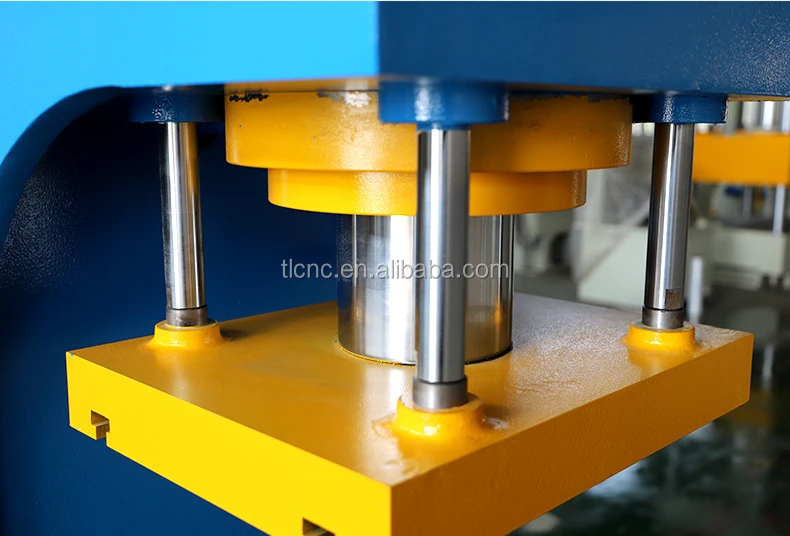

Detailed Images

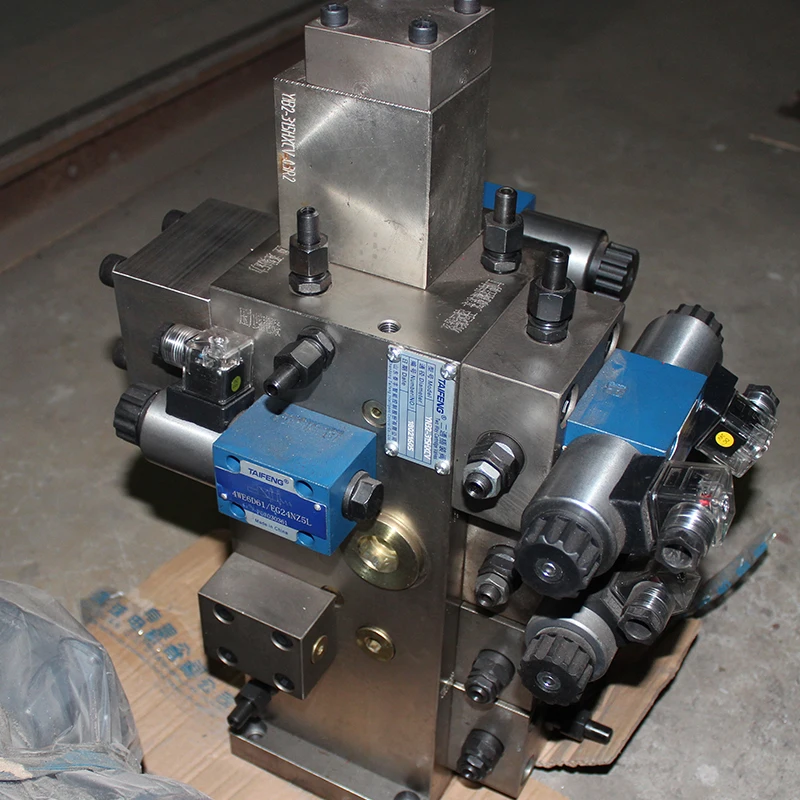

(2) the hydraulic control adopts the plug-in valve integrated system, which has reliable action, long service life, small hydraulic impact, and reduces the connection pipeline and leakage point.

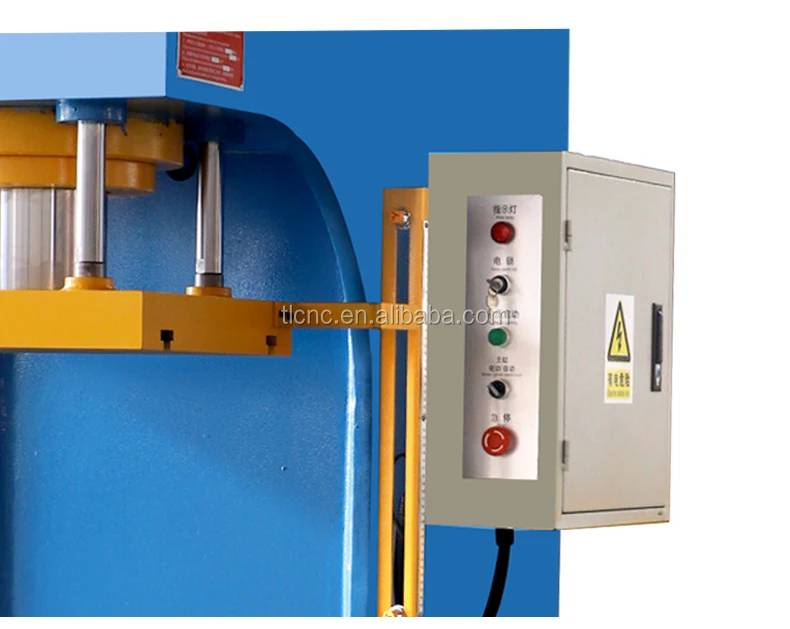

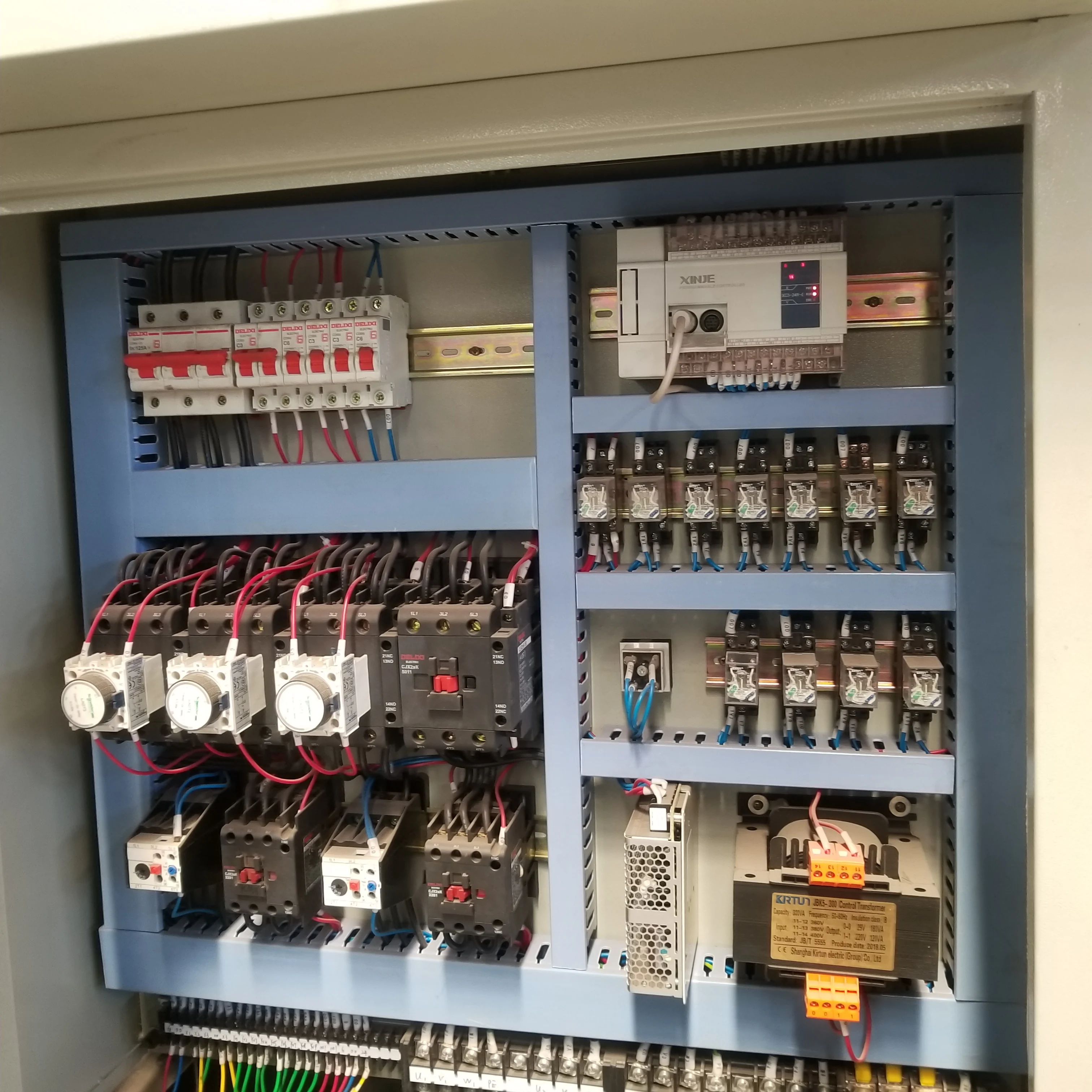

(3) independent electrical control system, reliable operation, objective action and convenient maintenance.

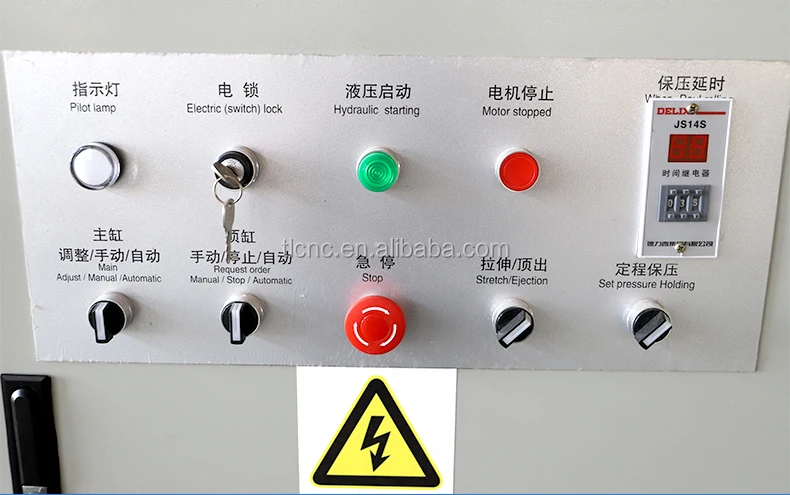

(4) adopt button centralized control, with three operation modes of adjustment, manual and semi-automatic.
(4) adopt button centralized control, with three operation modes of adjustment, manual and semi-automatic.
(6) the working pressure of the slider, the travel range of no-load fast down and slow working in can be adjusted according to the process needs.
Why Choose Us
Certificate
Since the establishment of our company for more than 10 years, we have obtained various certificates, passed the national CE ISO certificate and exported products to all over the world.

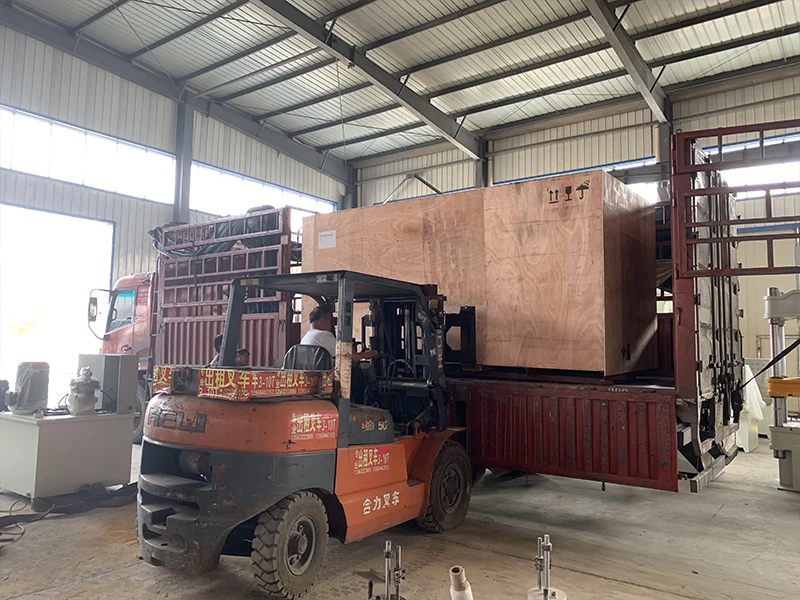

Packing&Shipping
1.Good environmental protection performance. Nowadays, the requirements of environmental protection are getting higher and higher in all countries in the world.
2.Strong barrier properties. The purpose of export wooden box packaging is to prevent the entry of oxygen, prevent oxidation, or slow down the oxidation rate. Our export wooden box packaging has strong barrier properties to ensure the quality of the goods.
3.Good impact resistance. When there is an impact during transportation, our export wooden box
packaging has a certain impact resistance to protect the goods from damage.
packaging has a certain impact resistance to protect the goods from damage.
Company Introduction
Shandong Tengzhou Taili CNC Machine Tool Co., Ltd. is a professional manufacturer of designated forging equipment in the former Ministry of Machinery. It is located in the hometown of Mozi, Tengzhou City, Shandong Province, Yimeng in the east, Weishan Lake in the west, Jiangsu in the south, and Confucius hometown in the north Qufu. Tengzhou has a long history and culture and a developed industrial economy. The National Highway 104, the Beijing-Fuzhou Expressway, and the Beijing-Shanghai Railway run through the north and south of Tengzhou, and the traffic conditions are very convenient. The company is located in the Economic Development Zone of Tengzhou Industrial Park. The company has advanced processing equipment and a perfect quality management system, and has taken the responsibility to improve the overall level of domestic advanced manufacturing and the industrialization of numerical control technology. With the enterprise spirit of "honesty, dedication, pragmatism, and customer first", we serve customers Provide excellent products and quality services, and strive to build Lunan forged aircraft carriers.

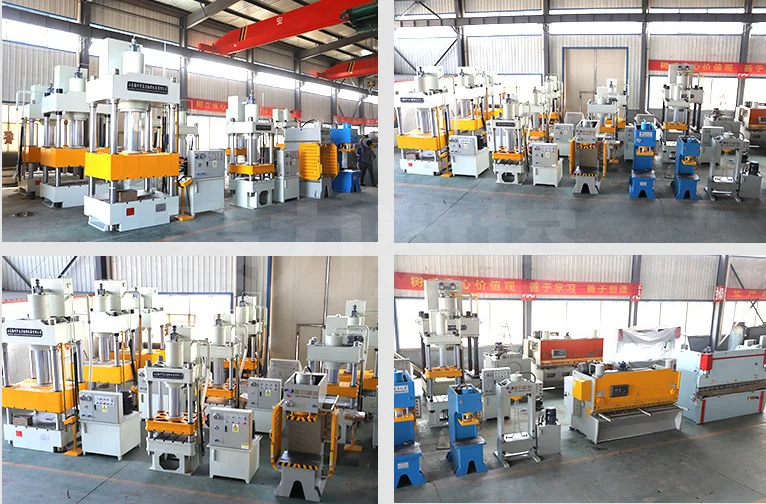

Our Services & Strength

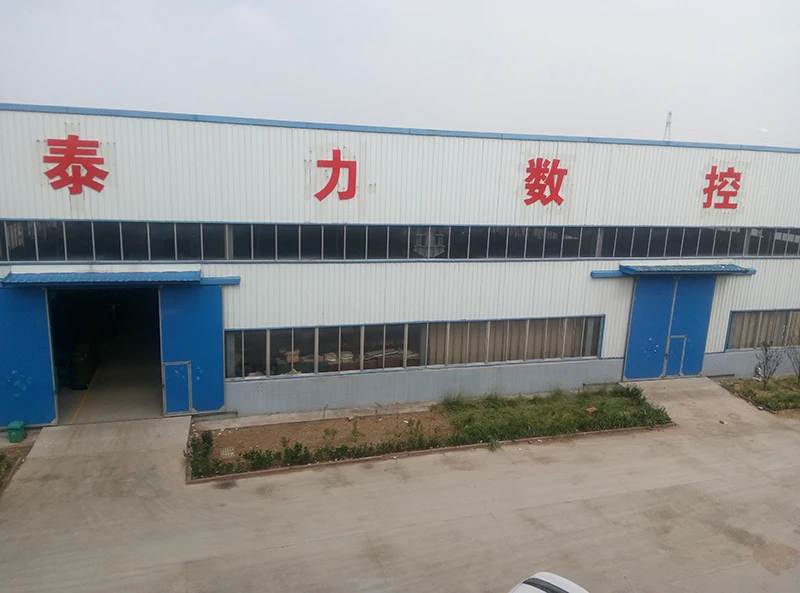

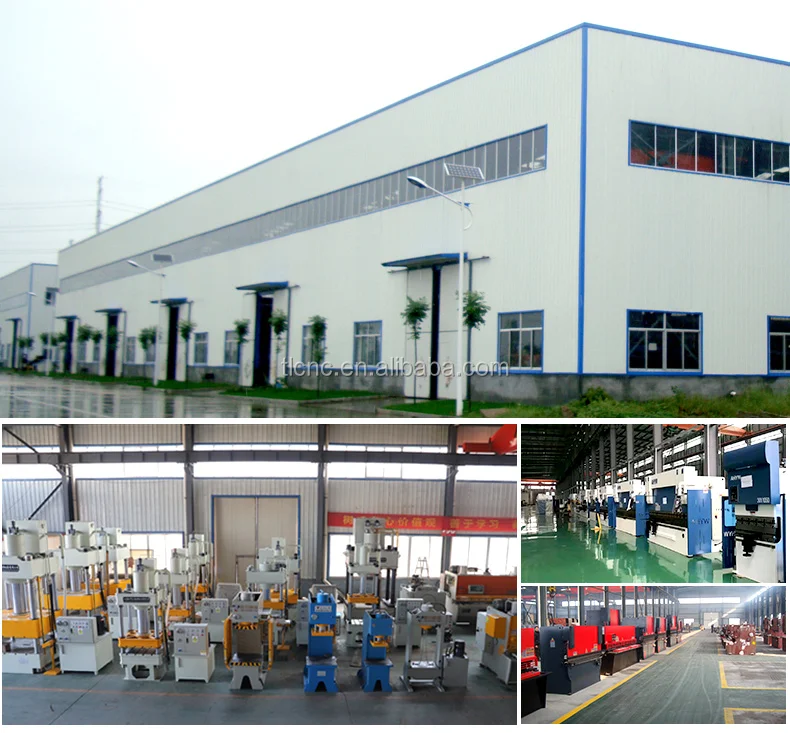

Company picture Tengzhou Taili CNC Machine Tool Co., Ltd. is a professional manufacturer of universal CNC forging machine tools.General-purpose machine tools include YQ32 series four-column hydraulic presses, Y27 series single-acting sheet drawing machine,Y28 series double-acting sheet drawing machine, YLM series. Gantry hydraulic press, YQ41 series single column (single arm)hydraulic press, QC12Y series ordinary hydraulic swing type shearing machine, QC12K series CNC swing type shearing machine, QC11Kseries CNC gate type shearing machine, Q11 series mechanical shearing machine, WC67Y series General hydraulic bending machine,WC67K series CNC bending machine, YL21 series hydraulic press, JC23 / J23 series open tilting press, J21 / J21S / JC21 series open fixed table press, radial drilling machine and other products Used in automotive metallurgy, chemical industry, machinery, aviation, electronics, electrical appliances, agricultural machinery, hardware and other industries, and sold to the international market. The company can help you design and customize various special-shaped forging machine tools according to your requirements.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are an honest manufacturer. We welcome you to visit our factory.
Q2: How long is your delivery time?
A2: Most of our products are made-to-order products, which are determined according to quantity and other requirements. If there is stock, usually 3-5 days delivery, we will complete the delivery with quality and quantity.
Q3: Do you provide samples? Is it free or extra?
A3: Yes, we can provide you with samples. As for the cost, we can negotiate with each other.
Q4: How to pay?
A4: First of all, we negotiate, usually 30% in advance, and the remaining 70% before delivery. We support
various payment methods such as wire transfer and letter of credit.
various payment methods such as wire transfer and letter of credit.
Q5: How long is the warranty?
A5: The quality of our machines
is guaranteed. One year warranty and lifetime maintenance, of course, mainly based on the contract we negotiate.
is guaranteed. One year warranty and lifetime maintenance, of course, mainly based on the contract we negotiate.
