stainless steel 304 disc manual type semi lined PTFE butterfly valve
- Category: >>>
- Supplier: Gongyi Runda Pipeline Manufacturing Co. Ltd.Gongyi Ltd.
Share on (1600901984894):
Product Overview
Description
Products Description
Name of product | stainless steel 304 disc manual type semi lined PTFE butterfly valve |
Size | DN40-DN1200 |
Body | stainless steel,PTFE |
Pressure | PN10/16 |
Temp | -20~120℃ |
Suitable medium | Water,neutral liquid,etc. |
Application | Municipal construction, water conservancy project, electric power, water supply and drainage, water treatment, etc. |
Power | Handle,Turbine box,Pneumatic actuator,Ecectric actuator |
Design | GB/T12238 |
Face to face | GB/T12221 |
Top flange | ISO 5211 |

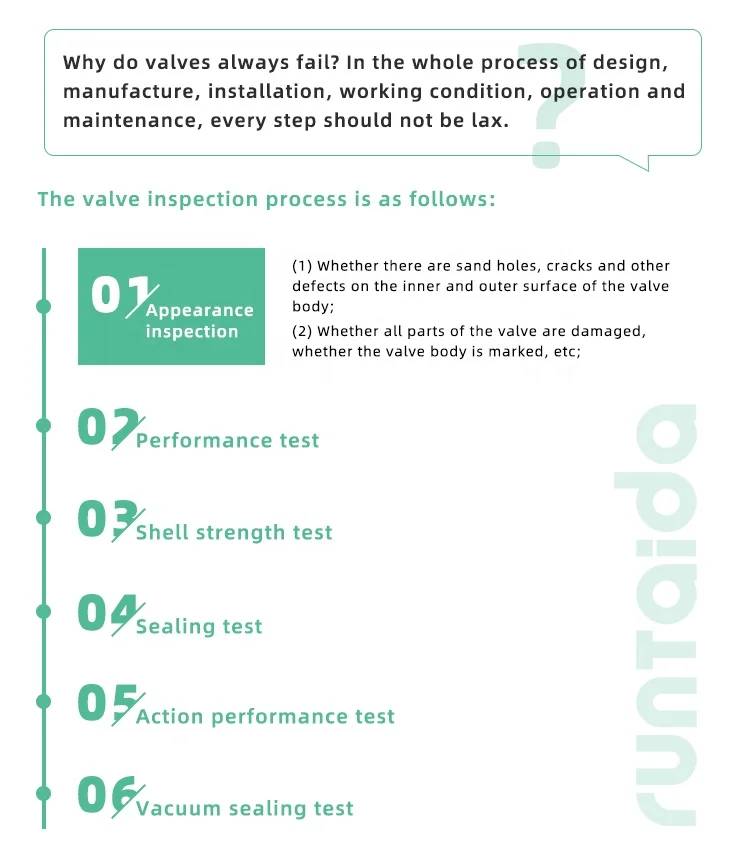

Pressure test | GB/T 13927 |
Product Features:
1.Small and light , and easy installation and mintanance. It can be mounted wherever needed.
1.Small and light , and easy installation and mintanance. It can be mounted wherever needed.
2.Compact structure, 90 degree fast switch.
3.Miniminzed operating torque, energy saving.
4.Flow curve tending to straight line. Excellent regulation performance.
5.Long service life Standing the test of tens of thousands opening/closing operations.
6.Bubbles-tight sealing with no leakage under the pressure test.
7.Wide selection of materials, applicable forvarious medium.
3.Miniminzed operating torque, energy saving.
4.Flow curve tending to straight line. Excellent regulation performance.
5.Long service life Standing the test of tens of thousands opening/closing operations.
6.Bubbles-tight sealing with no leakage under the pressure test.
7.Wide selection of materials, applicable forvarious medium.

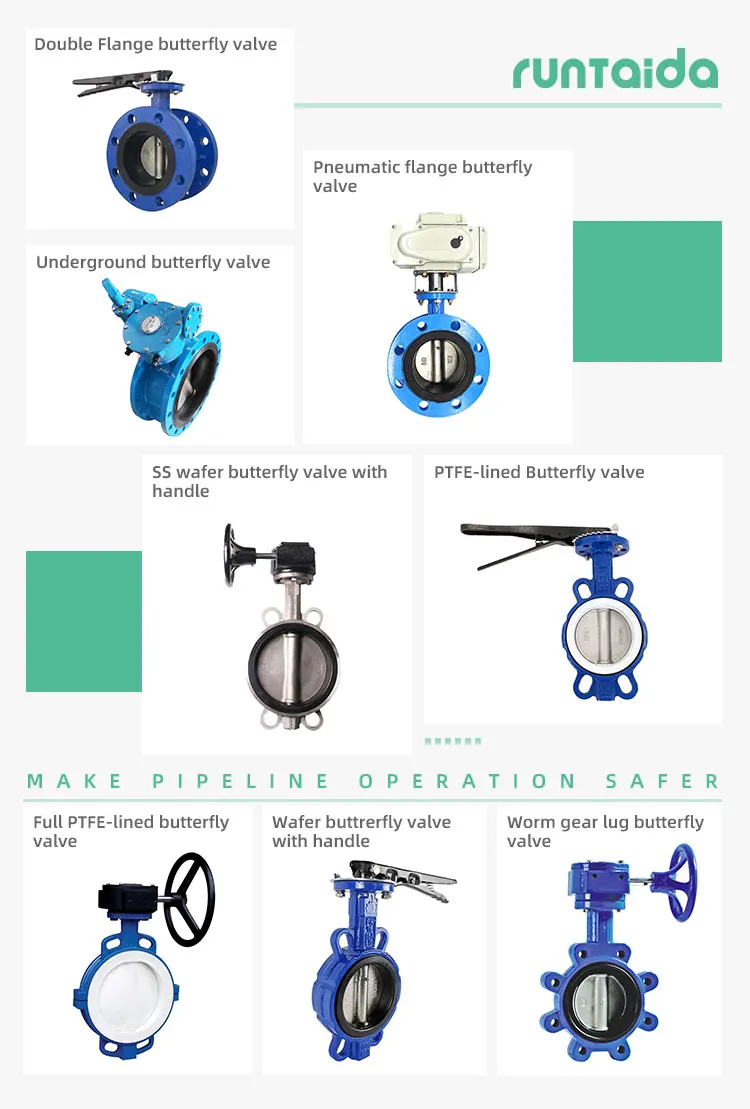

Types of butterfly Valves
Product parameters
Main size information | ||||||||||||||
DN | NPS(Inch)) | A | B | C | L | D | n-Ød | |||||||
50 | 2" | 69.5 | 126.5 | 32 | 108 | 125 | 4-Ø19 | |||||||
65 | 2.5" | 72 | 136 | 32 | 112 | 145 | 4-Ø19 | |||||||
80 | 3" | 88 | 146 | 32 | 114 | 160 | 8-Ø19 | |||||||
100 | 4" | 96.5 | 158 | 32 | 127 | 180 | 8-Ø19 | |||||||
125 | 5" | 115 | 179 | 32 | 140 | 210 | 8-Ø19 | |||||||
150 | 6" | 126 | 197 | 32 | 140 | 240 | 8-Ø23 | |||||||
200 | 8" | 161 | 230 | 45 | 152 | 295 | 12-Ø23 | |||||||
250 | 10" | 199 | 271 | 45 | 165 | 355 | 12-Ø28 | |||||||
300 | 12" | 215 | 305 | 45 | 178 | 410 | 12-Ø28 | |||||||
350 | 14" | 261 | 350 | 45 | 190 | 470 | 16-Ø28 | |||||||
400 | 16" | 290 | 381 | 51 | 216 | 525 | 16-Ø31 | |||||||
450 | 18" | 307 | 392 | 51 | 222 | 585 | 20-Ø31 | |||||||
500 | 20" | 340 | 441 | 57 | 229 | 650 | 20-Ø34 | |||||||
600 | 24" | 396 | 500 | 70 | 267 | 770 | 20-Ø37 | |||||||
700 | 28" | 496 | 567 | 66 | 292 | 840 | 24-Ø37 | |||||||
800 | 32" | 543 | 641 | 66 | 318 | 950 | 24-Ø40 | |||||||
900 | 36" | 584 | 692 | 118 | 330 | 1050 | 28-Ø40 | |||||||
100 | 40" | 638 | 735 | 142 | 410 | 1170 | 28-Ø43 | |||||||
1200 | 44" | 763 | 917 | 150 | 470 | 1390 | 32-Ø49 | |||||||

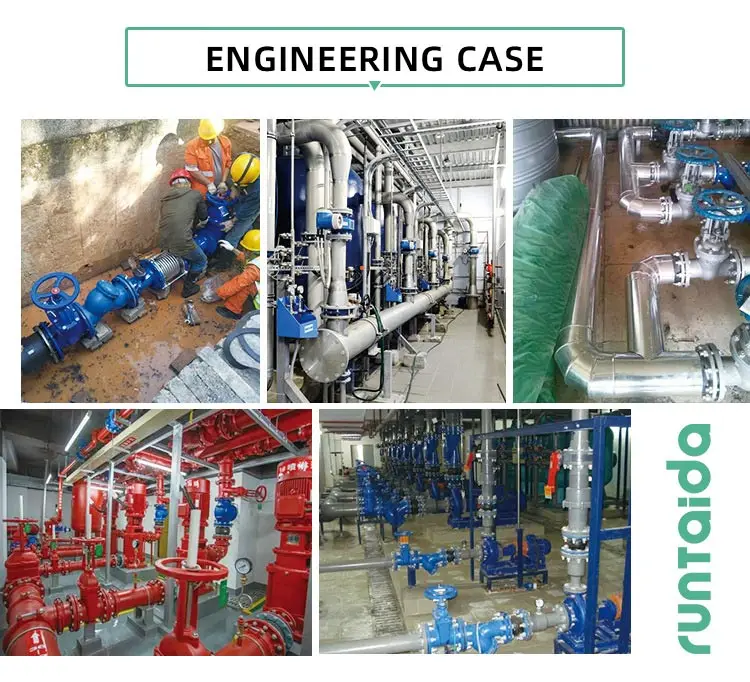

Product Application

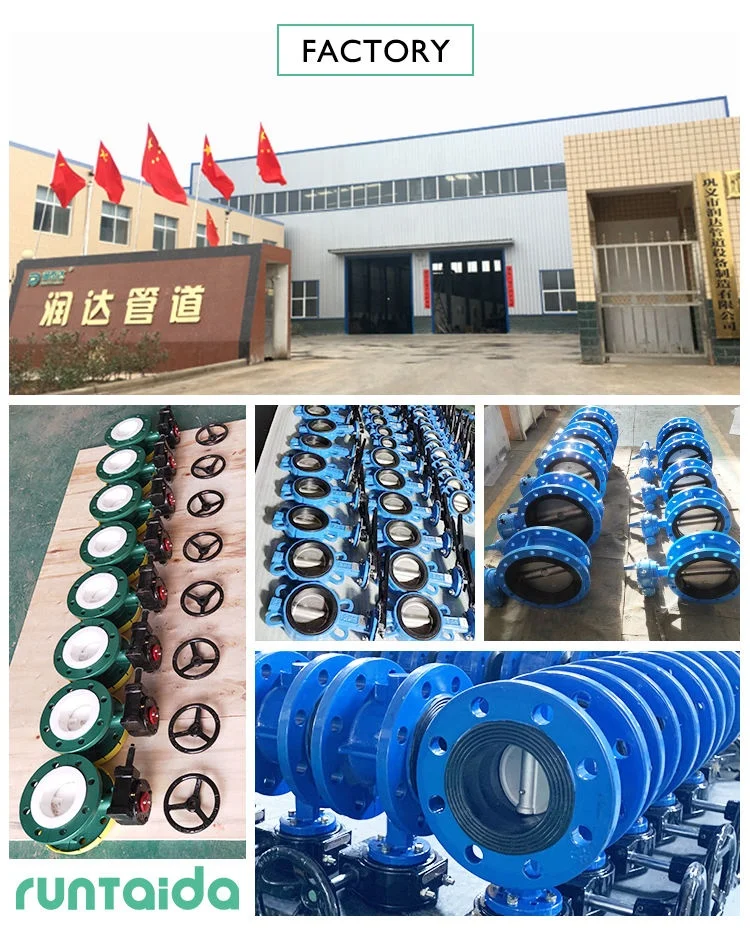

Company information
Gongyi Runda Pipeline Manufacturing Co., Ltd.
Gongyi Runda Pipeline Manufacturing Co.,Ltd.is located in Xicun village pipeline equipment industrial park,Gongyi city,Henan province,China mainland.The company registered trademark"runtaida".The main products are:Butterfly valve,Duckbill check valve,rubber expansion joint,repair clamp,bellow expansion joint,flexible metal hose,double flange dismantling joint,flange adaptor,dresser coupling,fabric expansion joint,etc.
Gongyi Runda Pipeline Manufacturing Co.,Ltd.is located in Xicun village pipeline equipment industrial park,Gongyi city,Henan province,China mainland.The company registered trademark"runtaida".The main products are:Butterfly valve,Duckbill check valve,rubber expansion joint,repair clamp,bellow expansion joint,flexible metal hose,double flange dismantling joint,flange adaptor,dresser coupling,fabric expansion joint,etc.
Packing & Delivery
Our products are exported to 100+ countries and regions overseas.
You will not be disappointed if you choose us!
We have established long-term cooperative relations with global customers and accumulated a large number of loyal old customers.
You will not be disappointed if you choose us!
We will take every customer's goods seriously to ensure customer satisfaction.
FAQ
Q:Can you make the product as per client's requirement?
A:Yes, we can make it with your exact requirement.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A:Shanghai, Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Give us a trust, we will not let you down, welcome to inquire and place an order.
A:Yes, we can make it with your exact requirement.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A:Shanghai, Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Give us a trust, we will not let you down, welcome to inquire and place an order.
