Product Overview
Description
PRODUCT DESCRIPTION
BF series
modified phenolic resin backing, constantan alloy, encapsulated gauges with temperature compensation and creep compensation; high accuracy, good stability , for manufacturing precision transducers (0.02%FS)

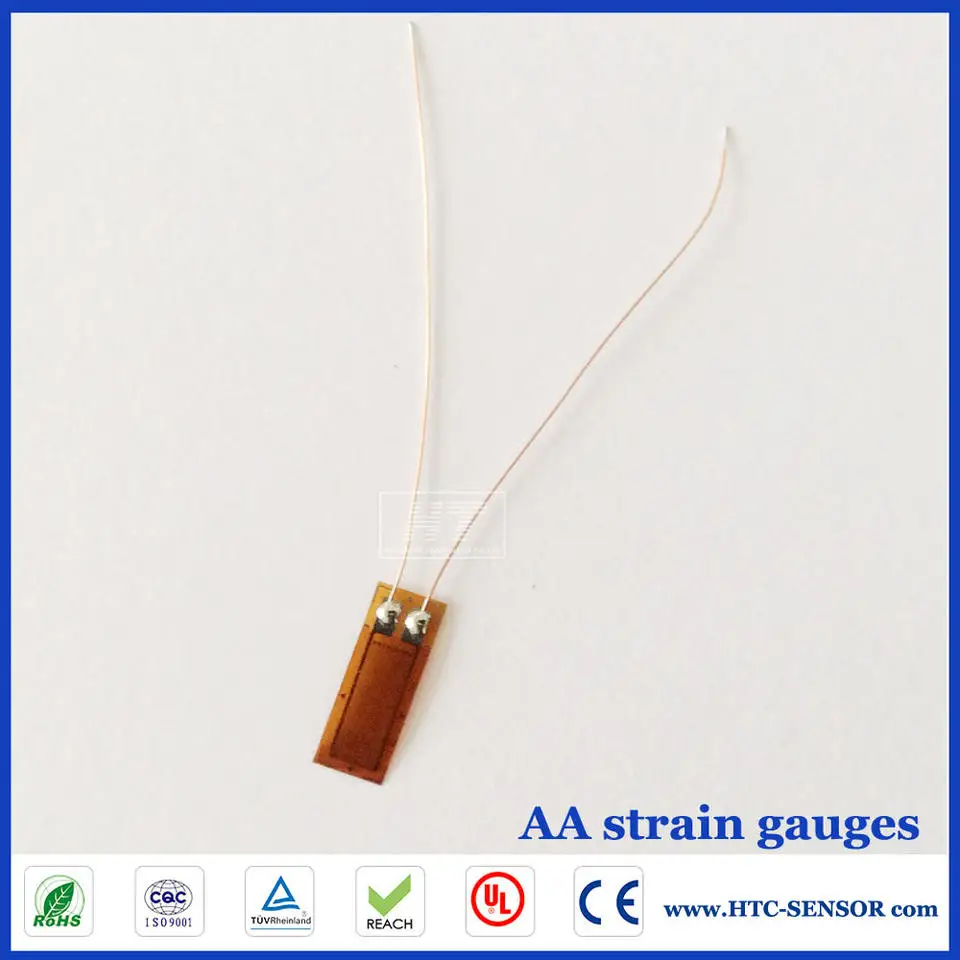

BA series
Polyamide resin ,constantan alloy, encapsulated gauges with temperature compensation, high elongation, wider operating temperature range, suitable for stress analysis under 150 ℃ and build in 0 . 0 5 % F S accuracy transducers.
ZF series
Modified phenolic resin backing karma alloy encapsulated gauges with temperature compensation and creep compensation (or modulus compensation) high accuracy good stability, high resistance, small power loss for manufacturing 0.02%FS accuracy transducers.
specification | BF series | BA series | ZF series | ||
nominal resistance(Ω) | 350,650,1000 | 350,650,1000 | 350,650,1000 | ||
tolerance of resistance | <±0.1% | <±0.1% | <±0.1% | ||
gauge factor | 2.00~2.20 | 1.86~2.20 | 1.86~2.40 | ||
gauge factor resistance | <±1% | <±1% | <±1% | ||
strain limit | 2.00% | 2.00% | 2.00% | ||
fatigue life | >10000000 | >10000000 | >10000000 | ||
effective modulus compensation | not available | not available | aluminum(23) | ||
metal foil | constantan alloy | constantan alloy | karma alloy | ||
creep compensation | available | available | available | ||
working temperature range | -30~+80℃ | -30~+150℃ | -30~+80℃ | ||
temperature compensation | titanium(9), steel alloy(11), stainless steel(16), aluminum(23), | ||||
curing temperature | 135℃(curing process) 165℃(post curing process) | ||||

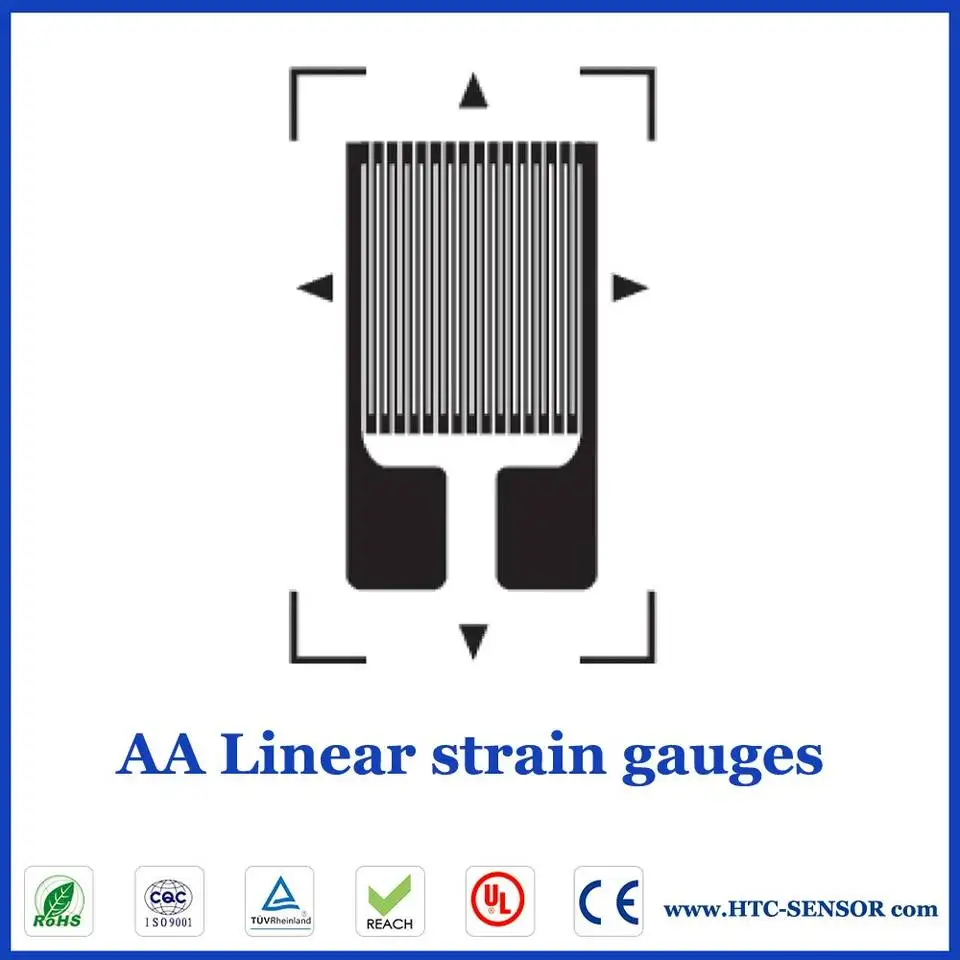

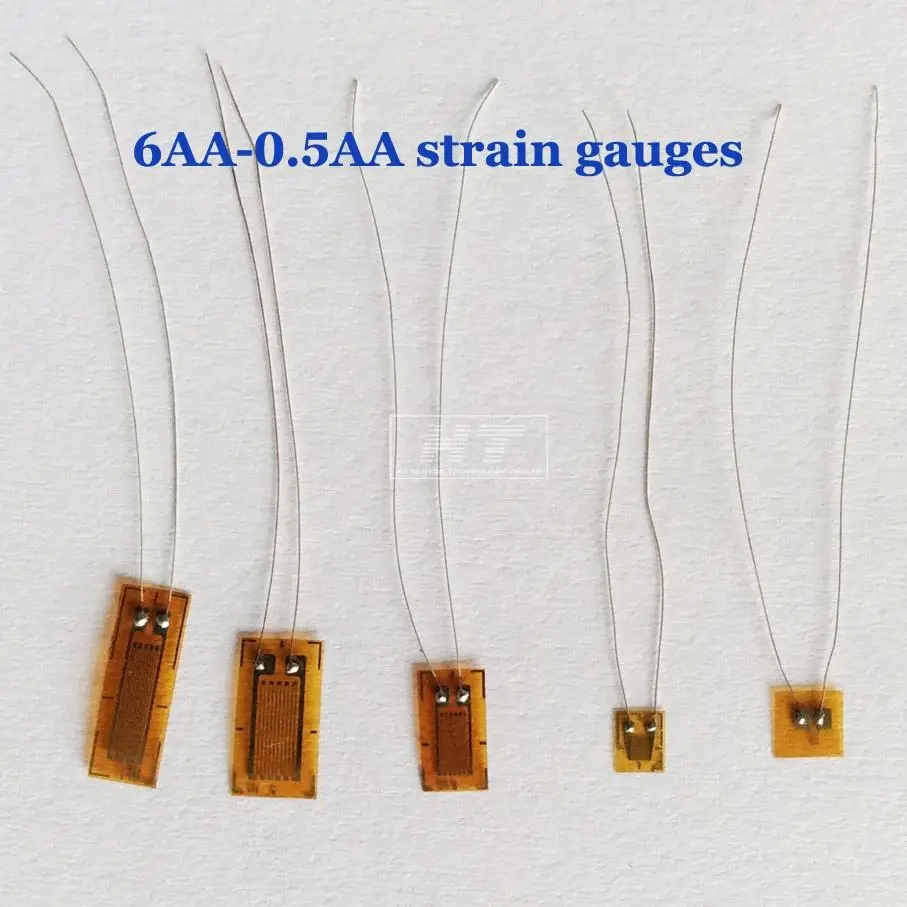

MODEL | GRID DIM/mm L x W | Backing Dia/mm L x W | ||
BF350-1AA(**) | 1.0x3.75 | 4.6x4.7 | ||
BF350-1.5AA | 1.7x3.85 | 4.8x4.7 | ||
BF350-2AA(**) | 2.1x3.4 | 5.1x4.2 | ||
BF350-3AA(**) | 3.2x3.1 | 7.3x4.1 | ||
BF350-5AA(**) | 5.0x2.9 | 9.3x3.9 | ||
BF350-6AA(**) | 6.0x2.9 | 10.3x3.0 | ||
BF1000-1.5AA(**) | 1.7x4.2 | 5.0x5.0 | ||
BF1000-3AA(**) | 3.15x3.7 | 6.9x4.6 | ||

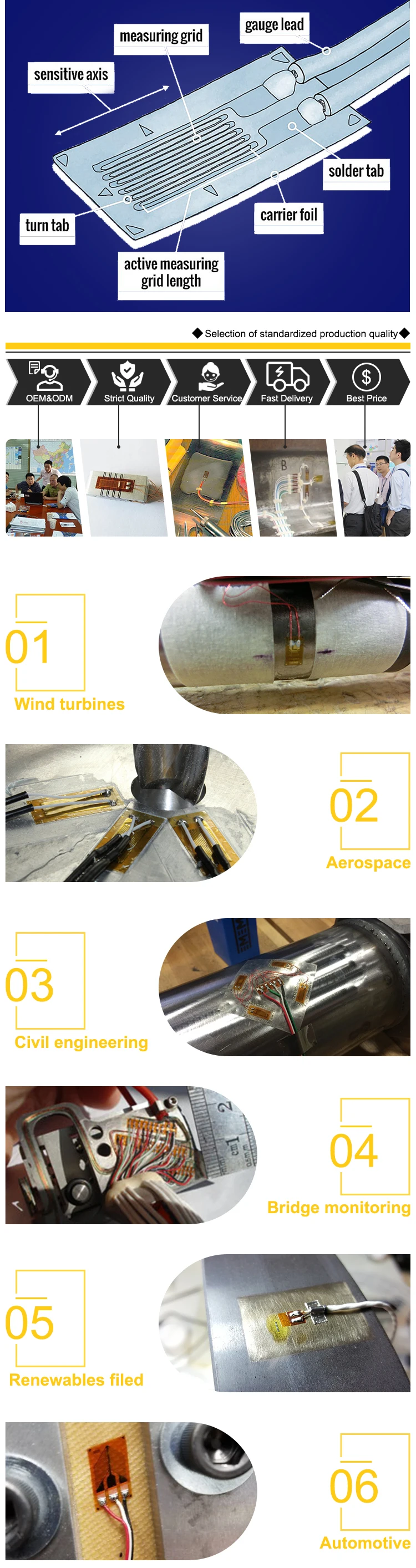

TECHNICAL SPECIFICATION

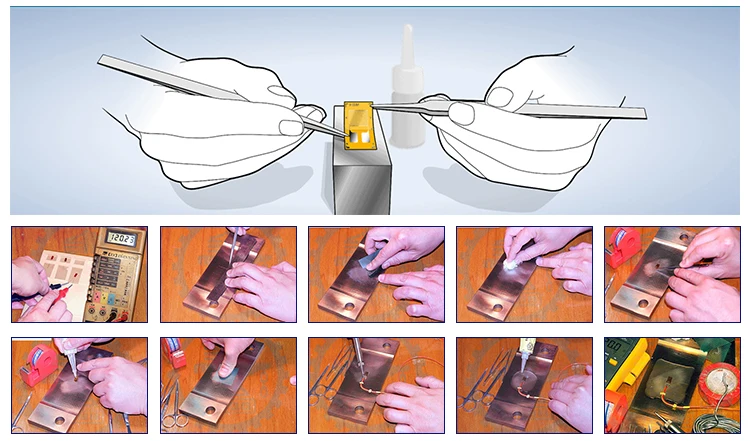

HOW TO BOND A STRAIN GAUGE?

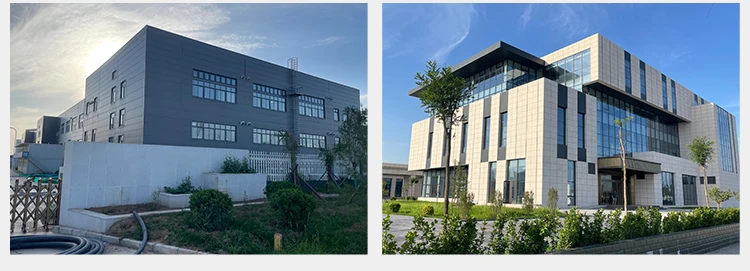

COMPANY PROFILE
We are a professional manufactory engaged in the development, sale and service of strain gauge, load cell, tension sensor, torque sensor, position travel sensor and proper instruments for electronic scales, factory automation and process control.
We have outstanding and experienced senior engineers with more than 20 years experience on the industry technology to support our customized service and help customers to get project solution.
In recent years, our factory has introduced a series of advanced equipment including CNC machine, Laser marking machine, calibration instrument and temperature testing chamber. In addition, the company obtained ISO 9001 :2015 certificates. All of our products pass the testing and obtain ROSH and CETest reports.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our products are selling well in all cities around China. Our sensors are also exported to clients across the globe, special for the countries as USA , Canada, Germany, Italy, Australia, Japan, South Korea etc.
We have outstanding and experienced senior engineers with more than 20 years experience on the industry technology to support our customized service and help customers to get project solution.
In recent years, our factory has introduced a series of advanced equipment including CNC machine, Laser marking machine, calibration instrument and temperature testing chamber. In addition, the company obtained ISO 9001 :2015 certificates. All of our products pass the testing and obtain ROSH and CETest reports.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our products are selling well in all cities around China. Our sensors are also exported to clients across the globe, special for the countries as USA , Canada, Germany, Italy, Australia, Japan, South Korea etc.
We are available to provide support for any product, service or inquiry.
We are located in Xi 'an China. Welcome you.
Sincerely hope to become your trusted partner.
