Auto Harness Wire Sleeve Braided Expandable Cable Loom Sleeving
- Category: >>>
- Supplier: Shenzhen Worldlink Industrial Co. Ltd.
Share on (1600902134313):
Product Overview
Description
Product Description

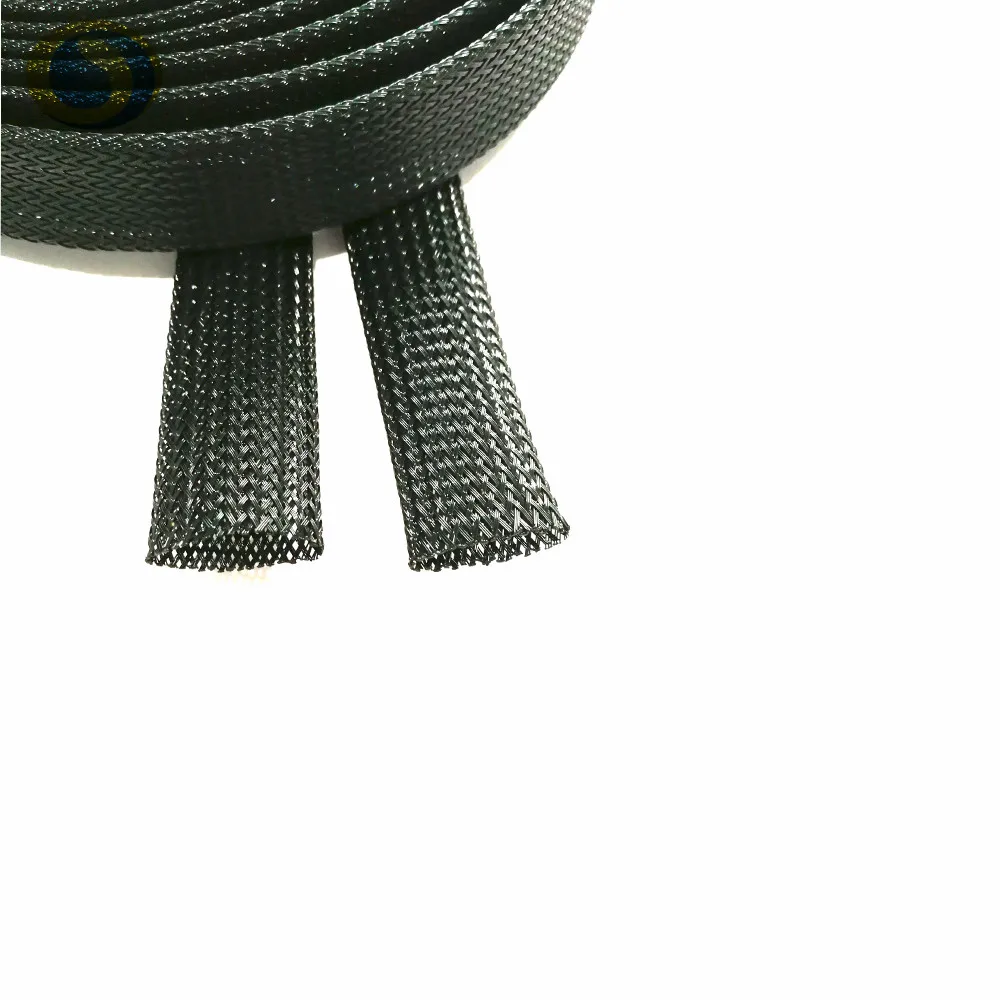

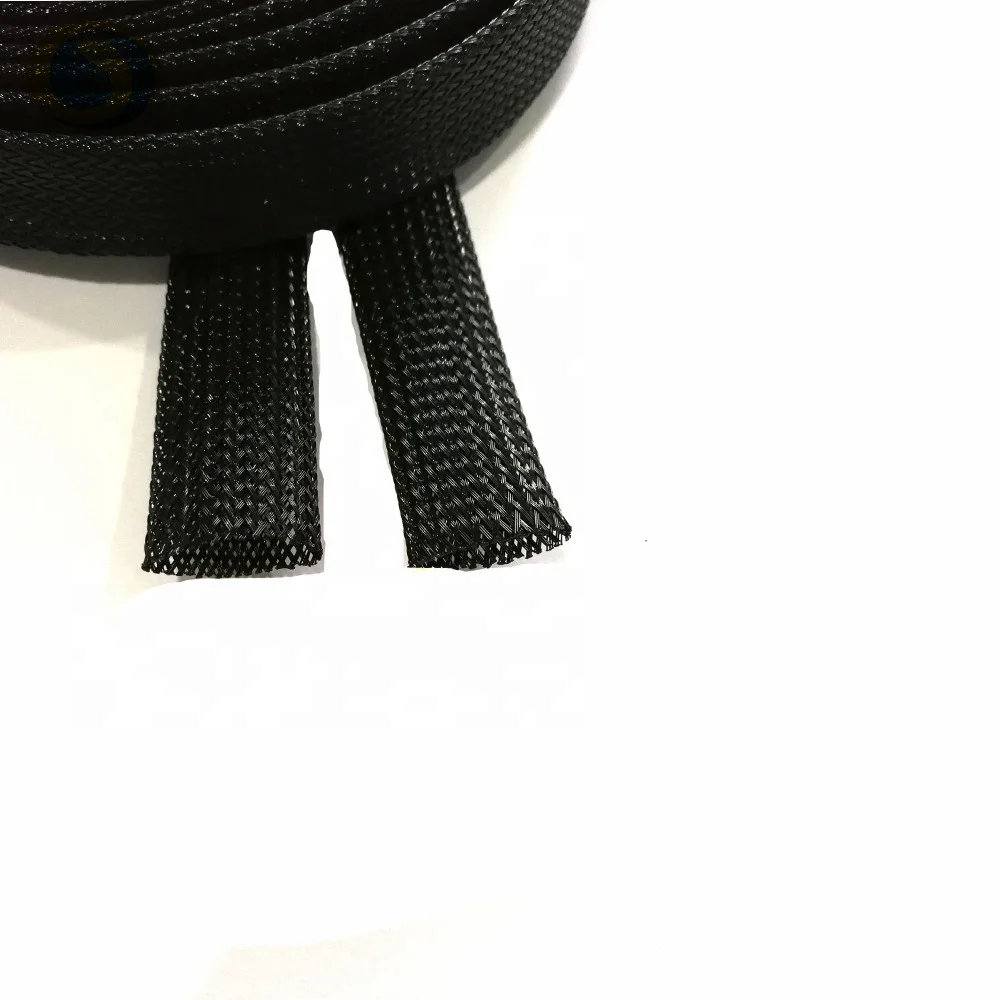

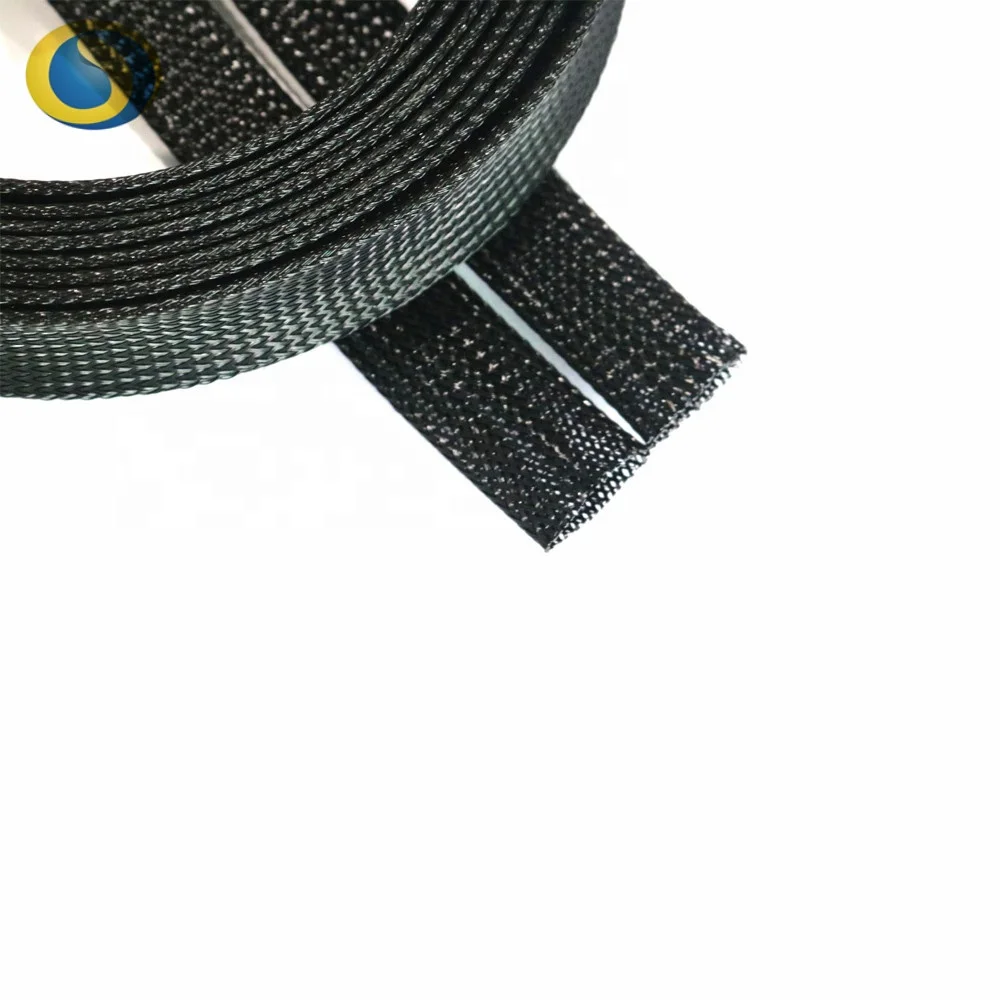

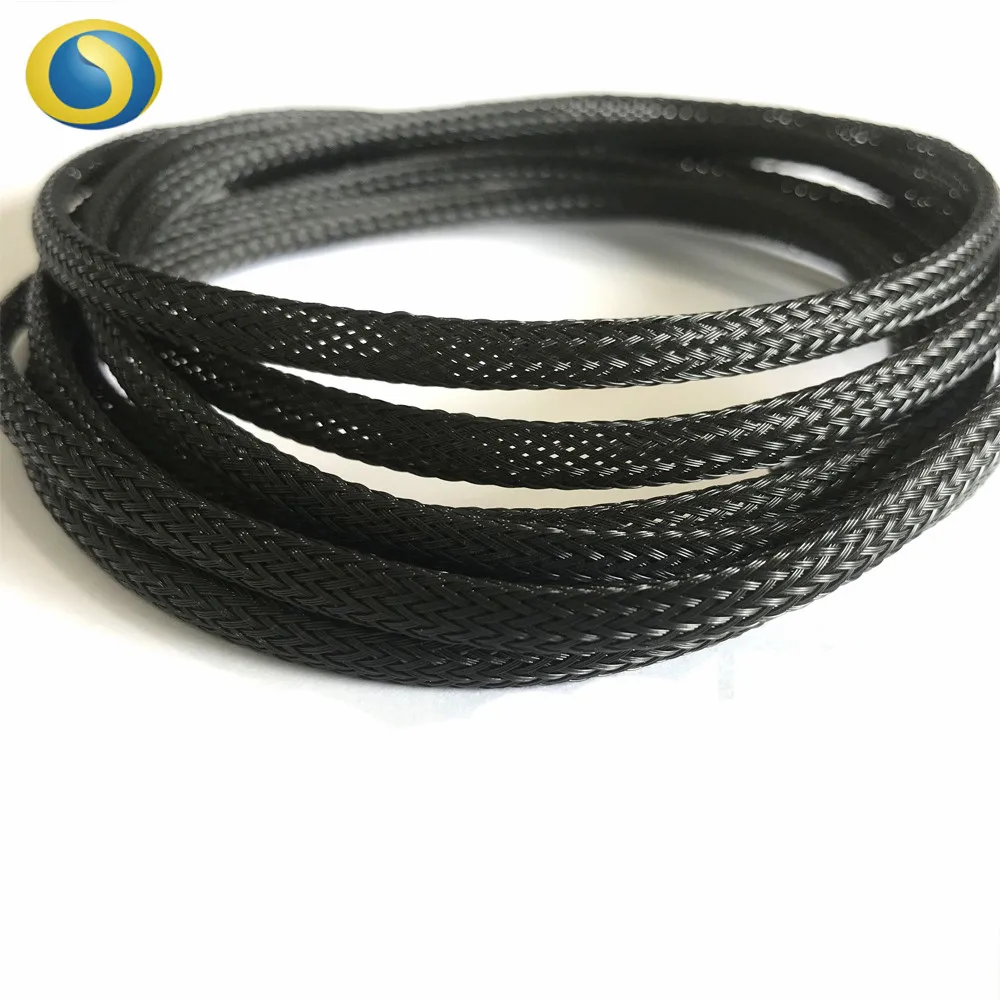

Braided Expandable Cable Loom Auto Harness Wire Sleeve
Flame-Retardant PET Expandable Sleeving expands up to 150% & is braided from 0.20mm & 0.25mm polyethylene terepthalate (PET) monofilament yarns.
It is the perfect choice for electronic & high tech applications where flame retardance & durability are primary concerns.
Braided Expandable Cable Loom Auto Harness Wire Sleeve

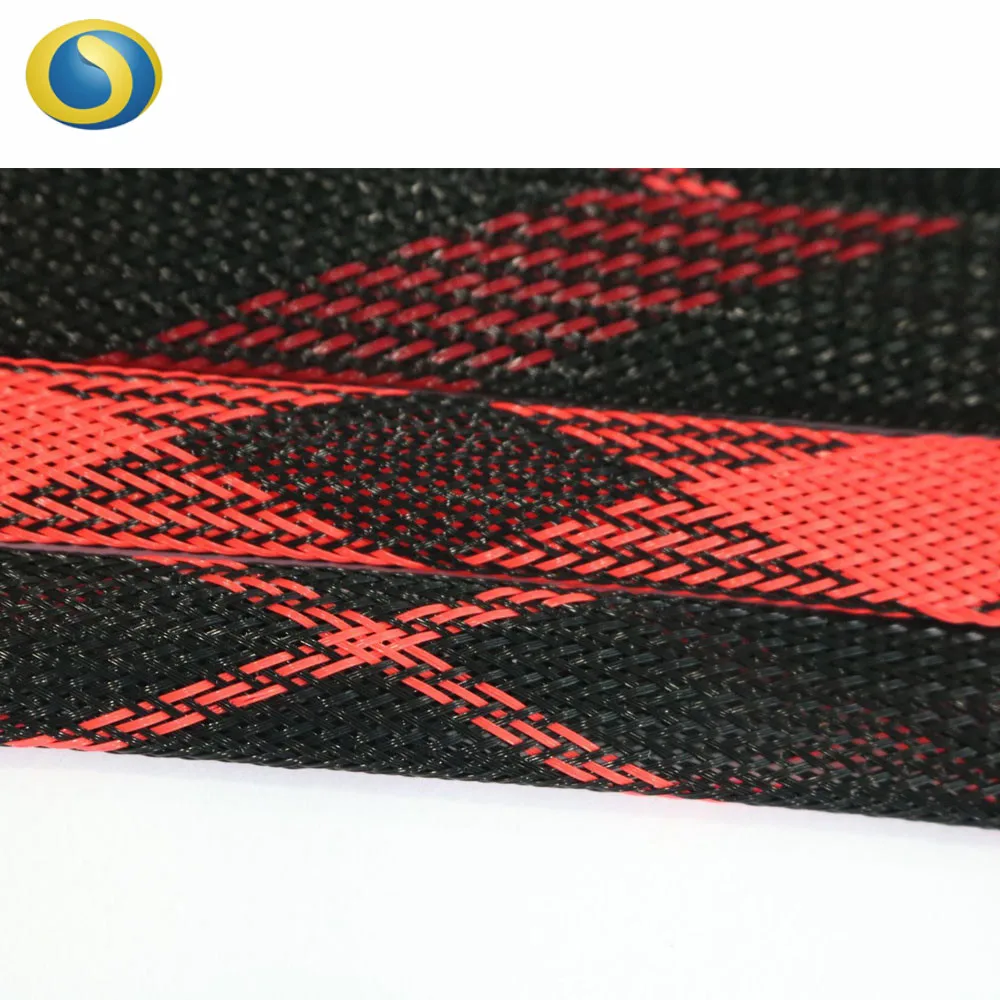

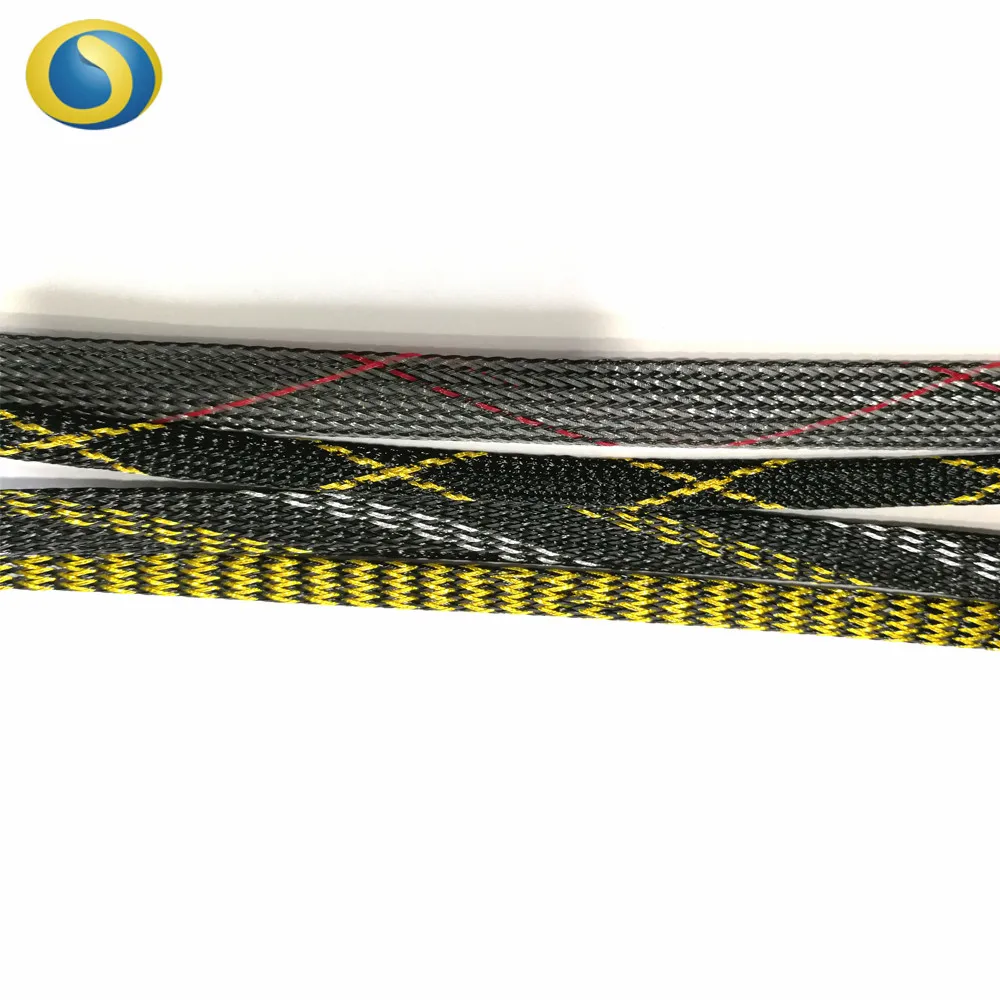

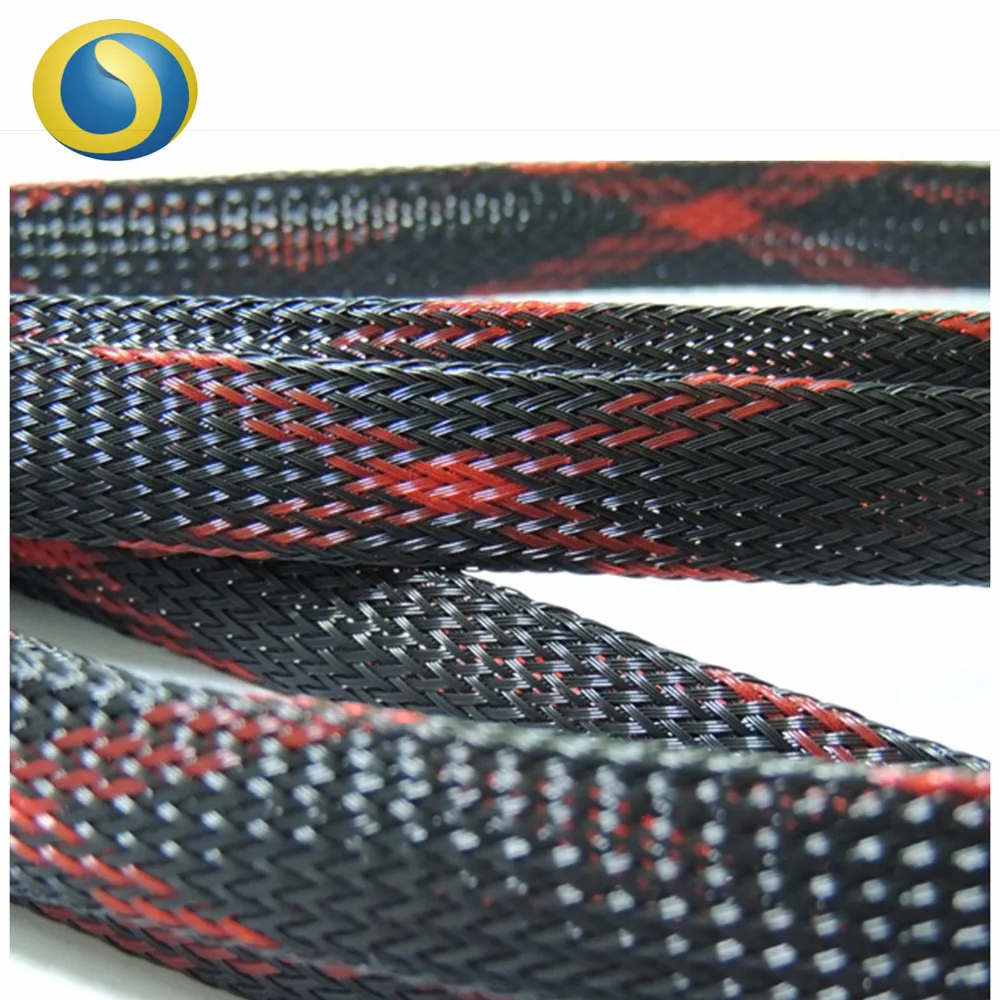

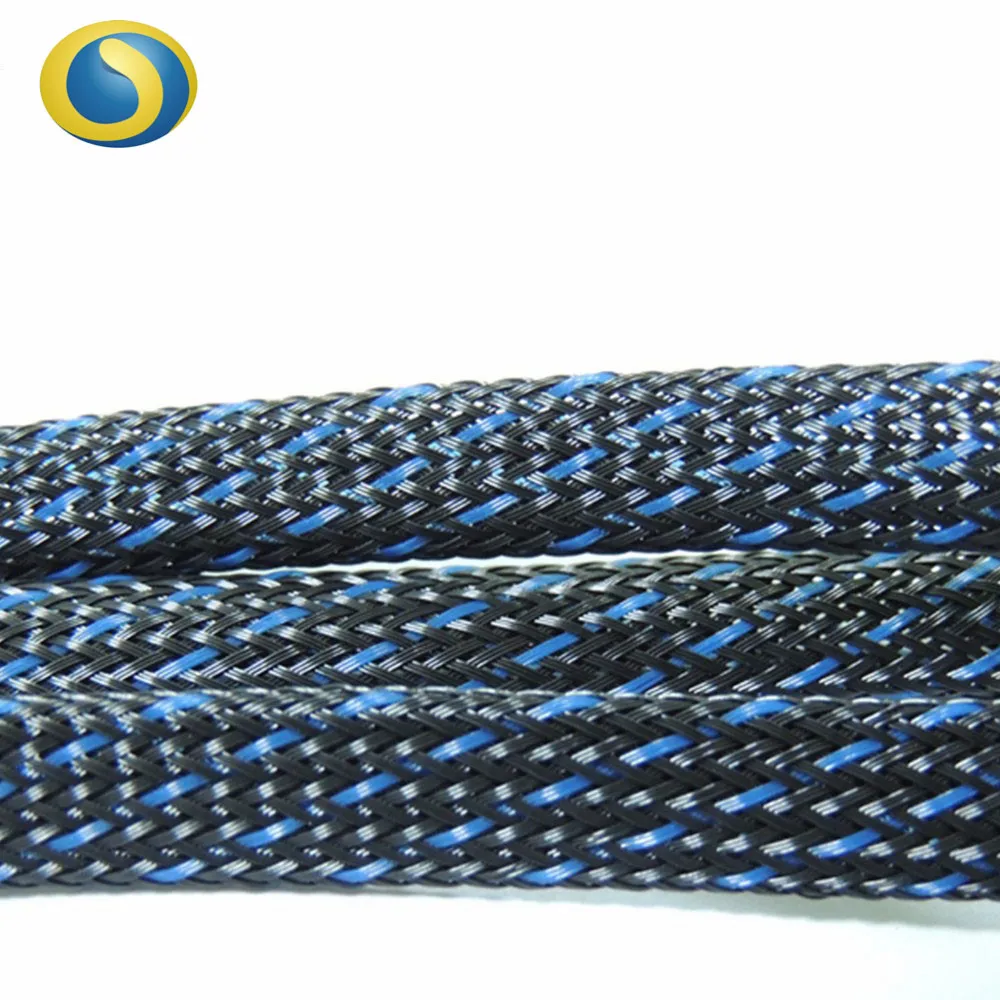

Black sleeving comes with a white tracer & white sleeving comes with a black tracer.

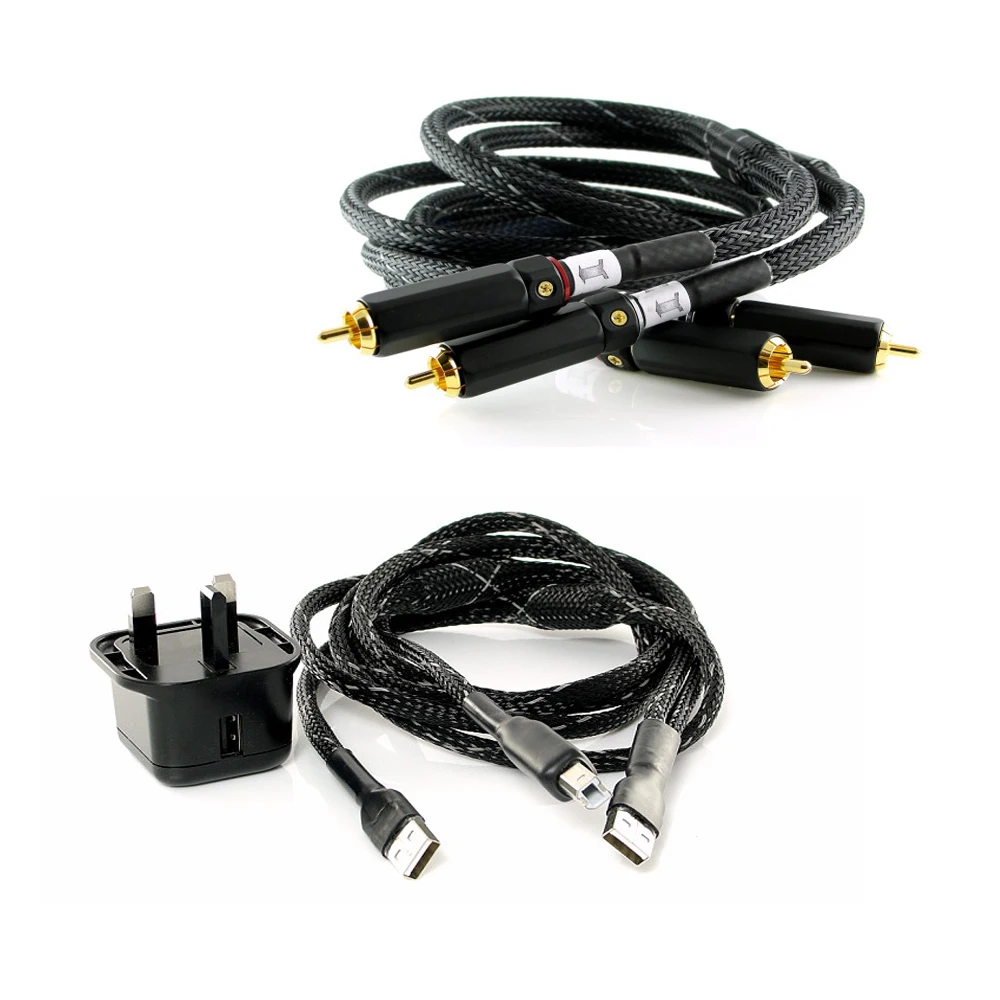

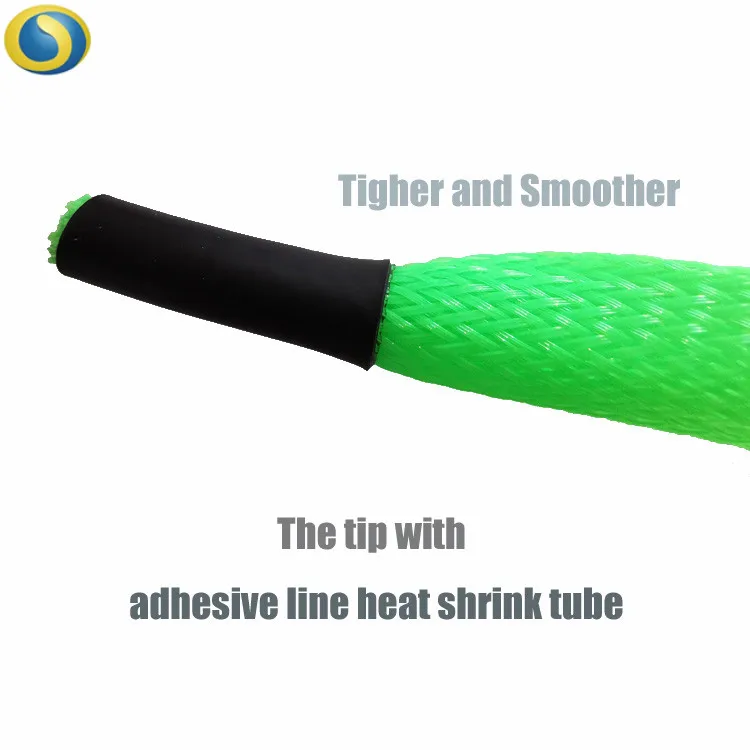

The sleeving cuts easily & cleanly with a hot knife & once installed, will beautify & protect any wire, hose or cable application.
Available in additional formulations & colors by special order.
Temperature rating from -70°C (-94°F) to 155°C (311°F).
Characteristics

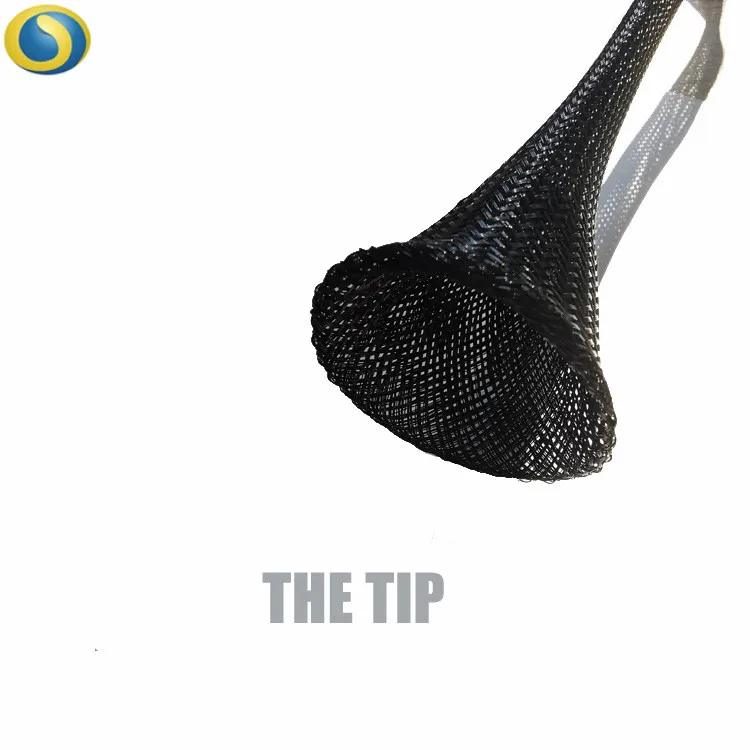

The unique braided construction & wide expandability allows quick & easy installation over large connectors & long run wire or cable. Abrasion & cut resistant; also resists UV radiation, gasoline & other engine chemicals.

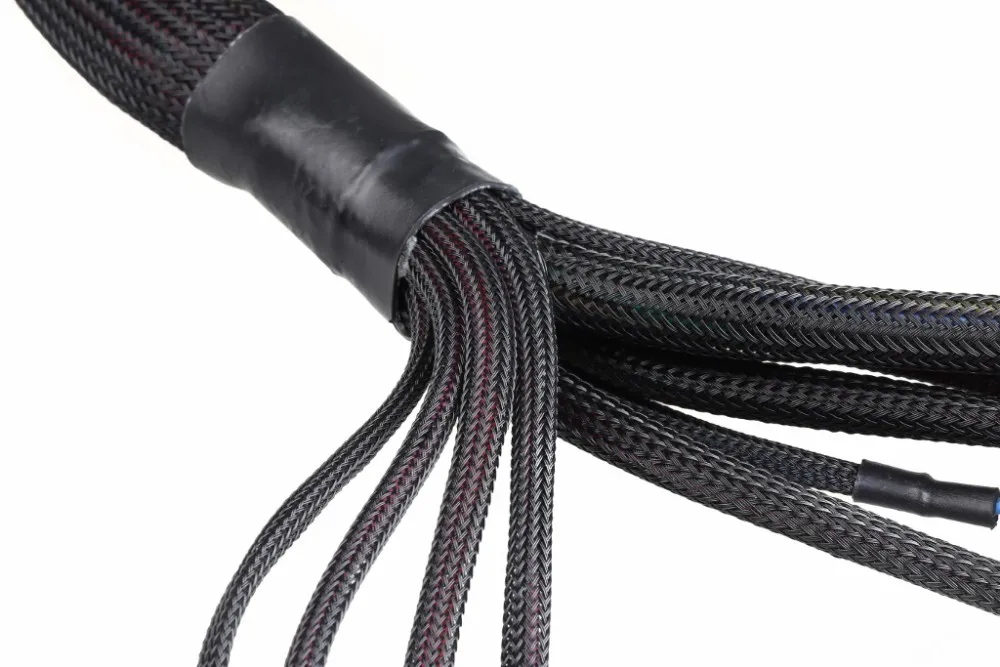

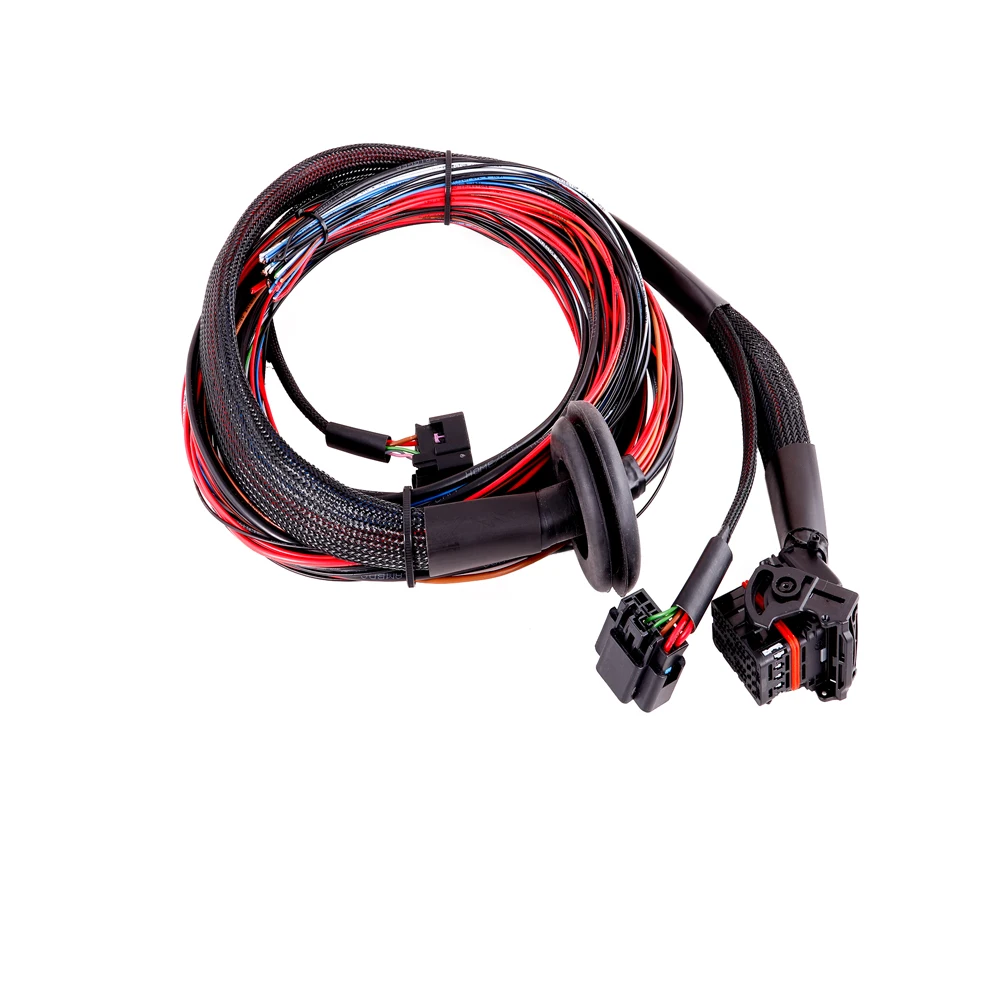

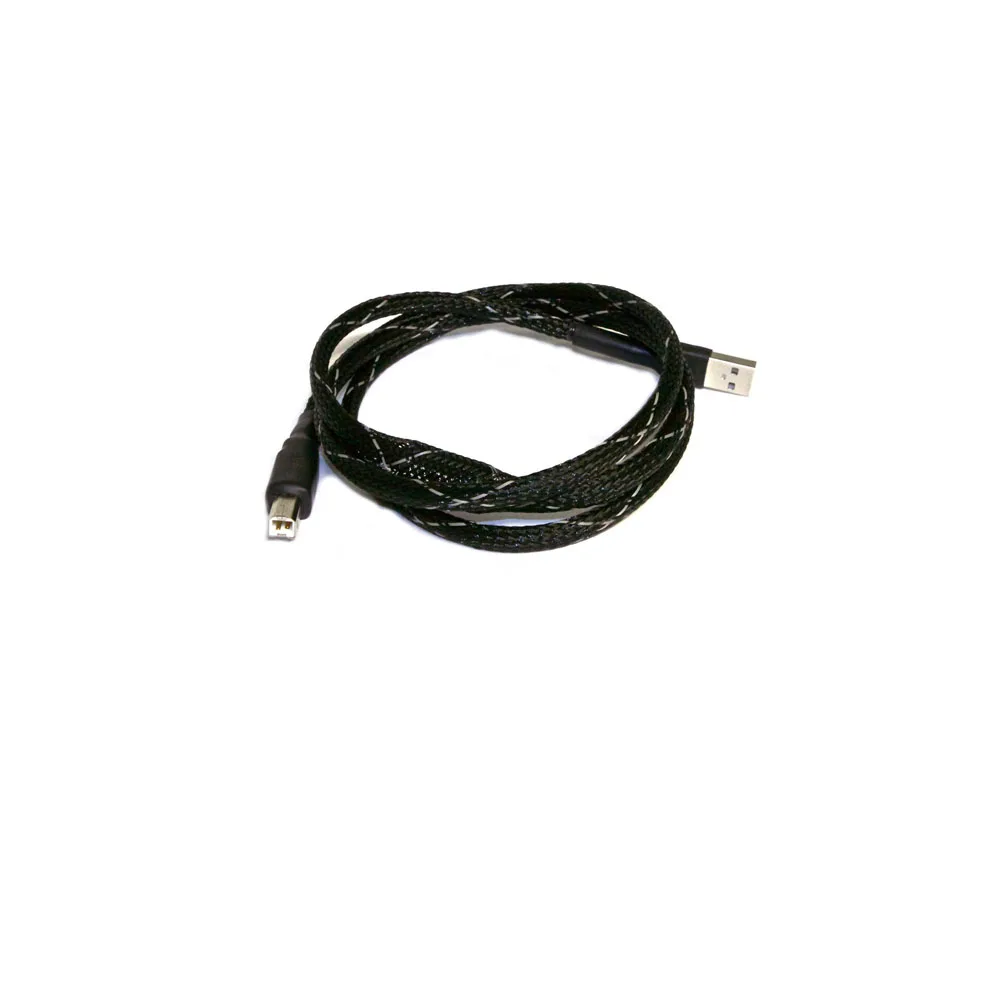

Lightweight, self-fitting, monofilament sleeving designed to encapsulate and protect cable bundles and wire assemblies.
Characteristics
1.\tOperating temperature range: -70~+155ºC
2.\tMelt temperature: 250 ºC
3.\tFlame retardant, UV resistant, Anti chemicals and solvents, Light weight and Flexible

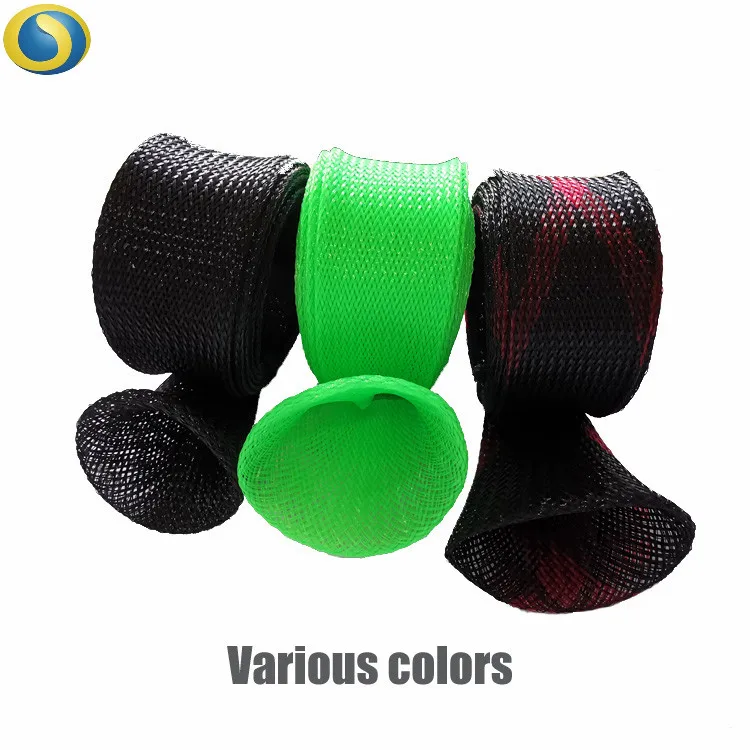

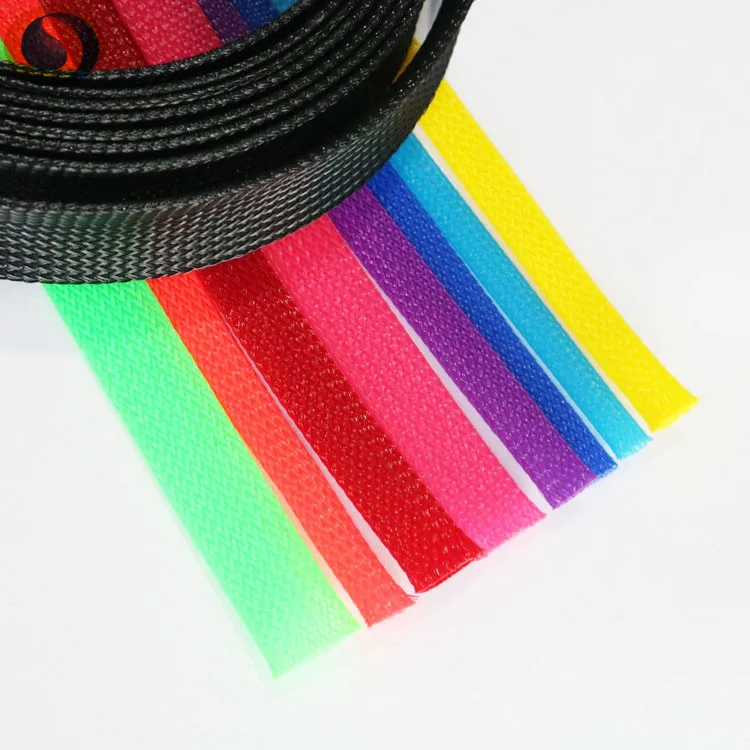

4.\tStandard color: Black, White, Grey, Yellow, Blue, Red, Green etc.
Dimension

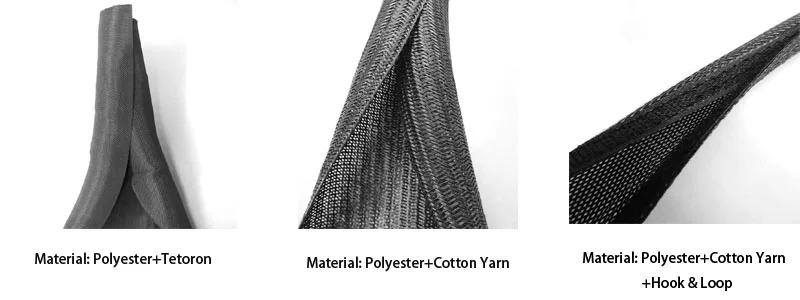

Detailed Images
Packing & Delivery
Main Products
Polyolefin(PE) Heat Shrink Tube
Operation temp: -55~+125 ℃
Shrink ratio: 2:1 & 3:1 & 4:1
Shrink temp: +84~+120 ℃
ID range: 0.6 mm~250 mm
Color: black, others could be supplied upon request.
Expandable Polyester Braided Sleeve
Material: Polyester
Working temp:-50℃~+150℃
Yarn number: one or three
Size Range: 1.5~70.0mm
Color: The standard color is black, other colors upon customer's requirement
Soft Silicone Rubber Tube
Working temp:-60~+200 ℃
Materials:silicone rubber
ID range : 0.8~20.0mm
Color:Transparent, black, white, red, etc
Grade: flame retardant or food grade
Soft PVC Tube
Working temperature: -30~+105 ℃
Materials: polyvinyl colloidal particle
ID range: 0.8~25.0mm
Color: Transparent, black, white, red, etc
Voltage rate:300V & 600V
Fire-resistant Fiberglass Sleeve
Working temp:-65℃~+260 ℃
Materials: silicone resin and braided fiberglass sleeving
ID range:6.0~120.0mm
color: rust red, others could be customized
Transient temp: 1650 ℃ within 15~30 seconds
Nonslip Heat Shrink Tube
Shrink ratio: 2:1
Working temp: -55~110 C
Material: polyolefin
Flexible and special designed for fishing rod, handles etc.
Color: Black, red, blue, yellow, etc.

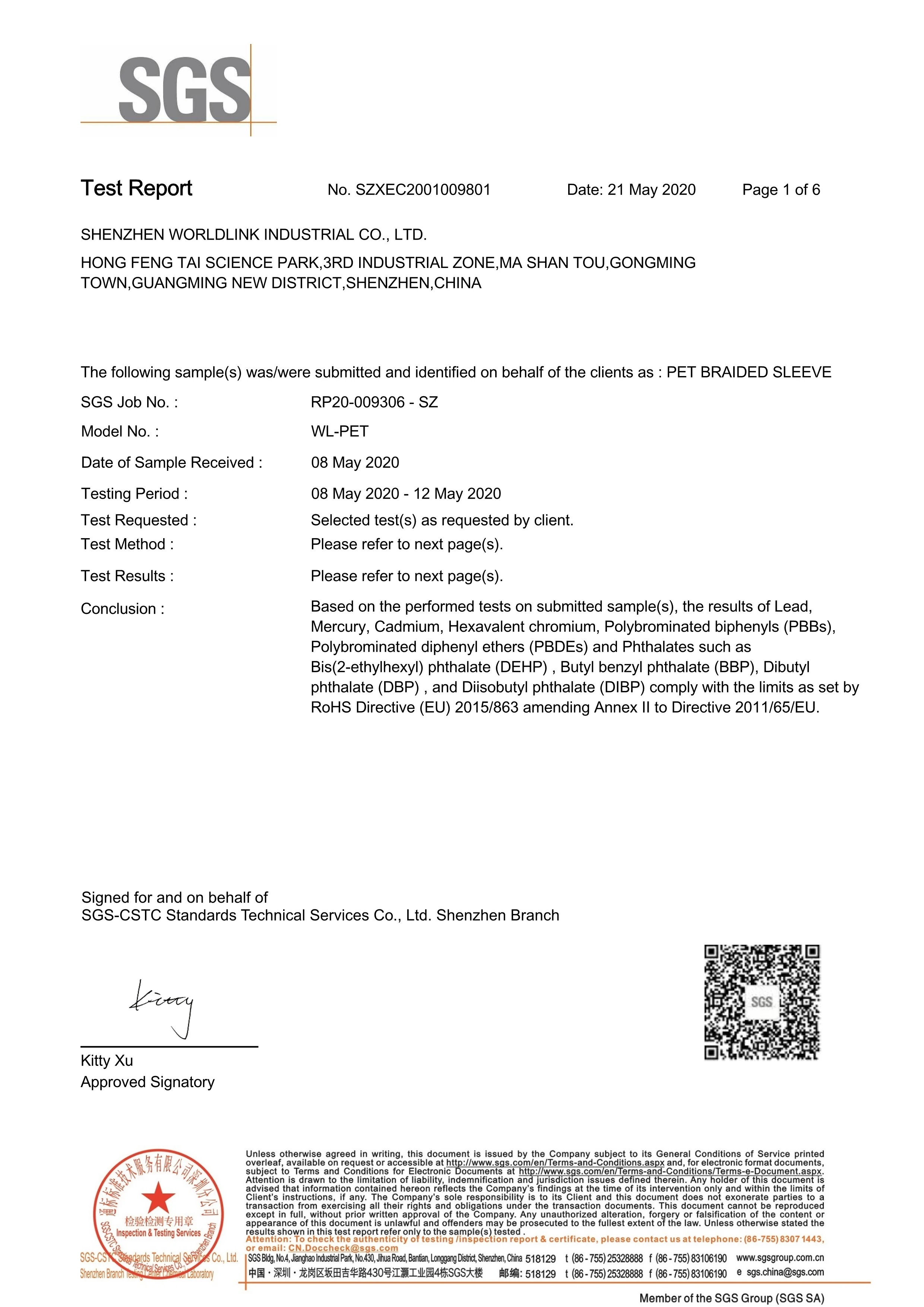

Certifications
