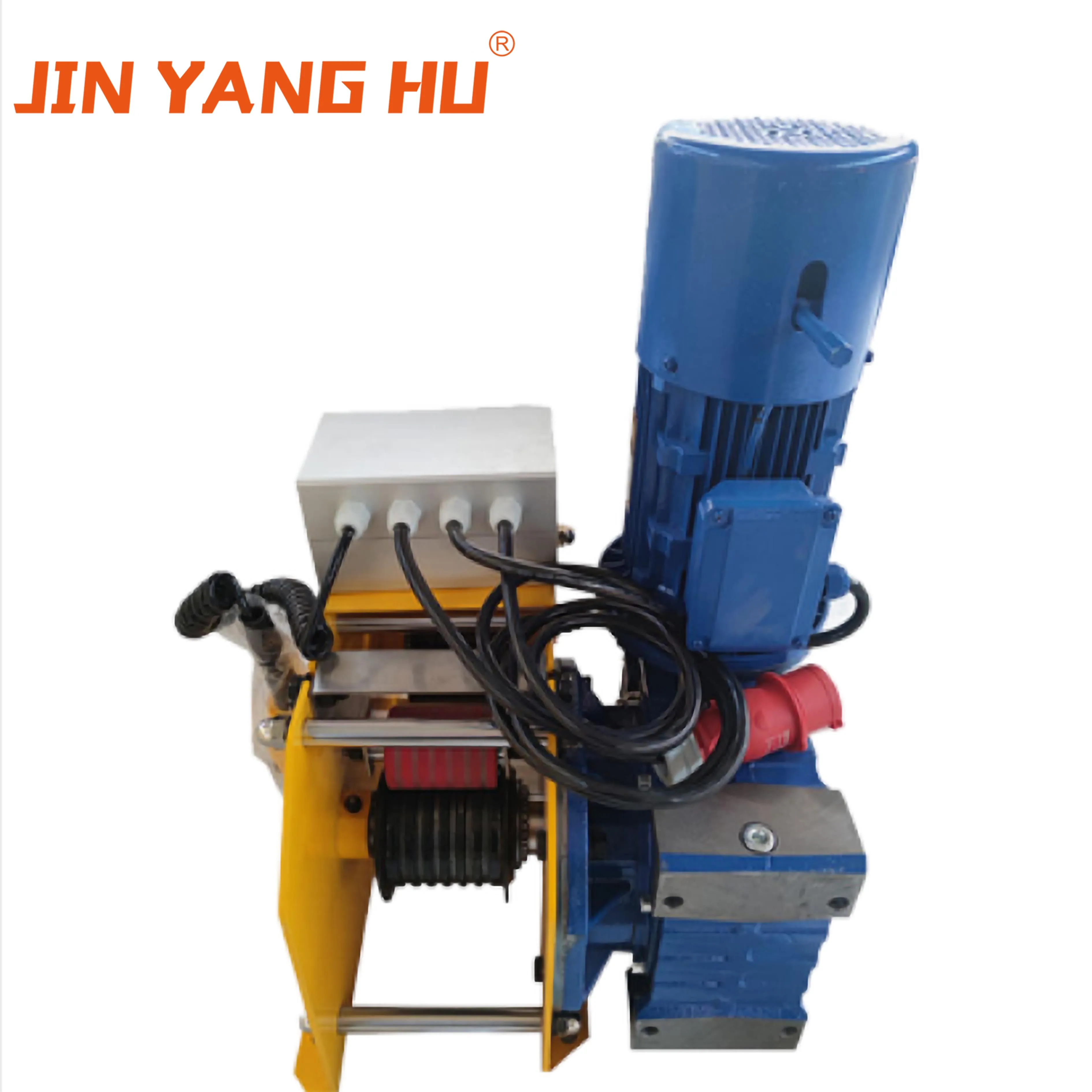

JIN YANG HU Electric Traction Winch with Adjustable Speed Electromagnetic Brake and Worm Gear Grive

Share on (1600902141867):


Price:

Quantity:


Product Overview

Description

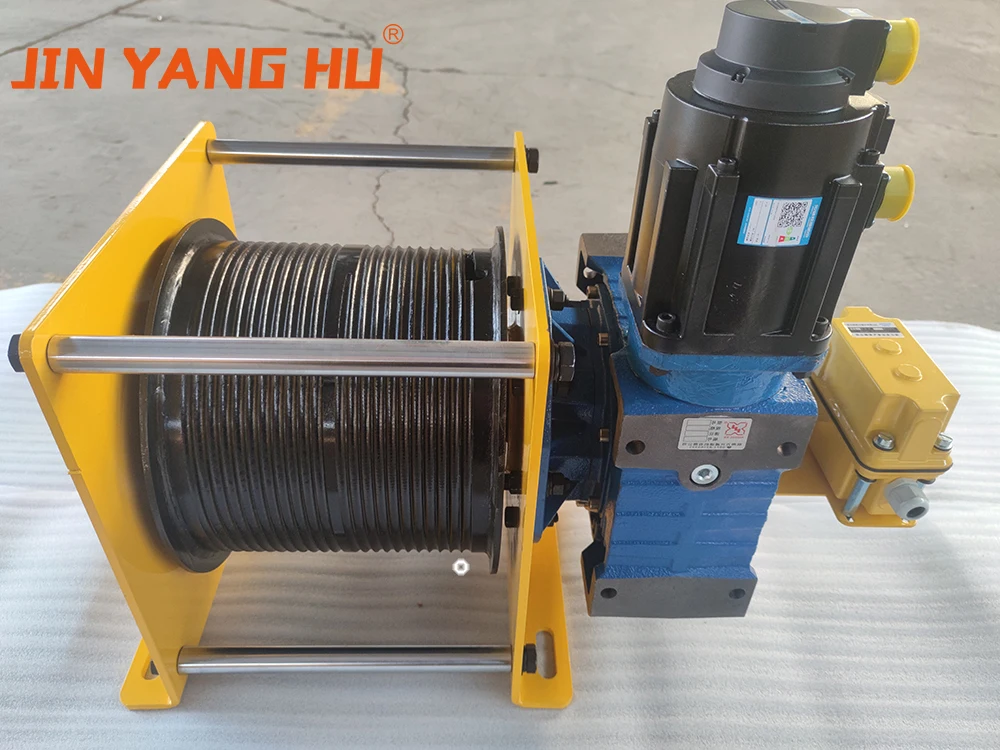

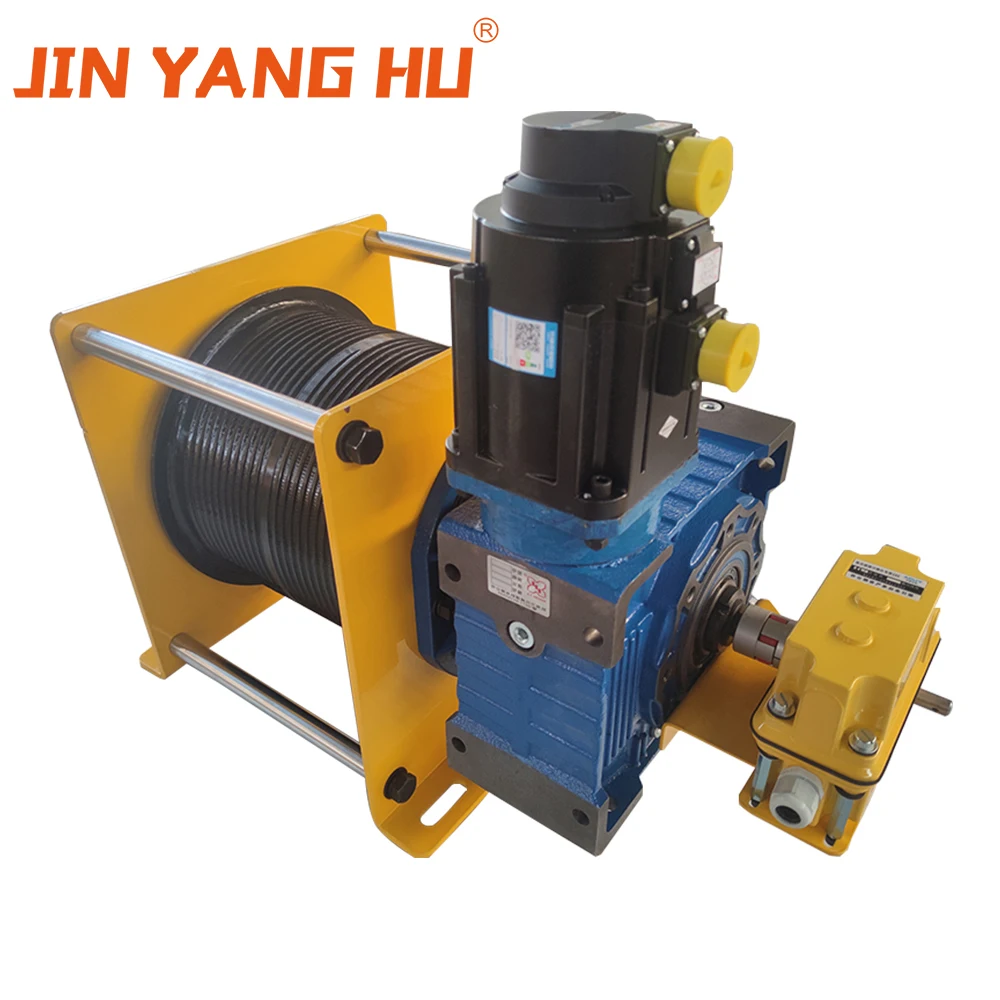

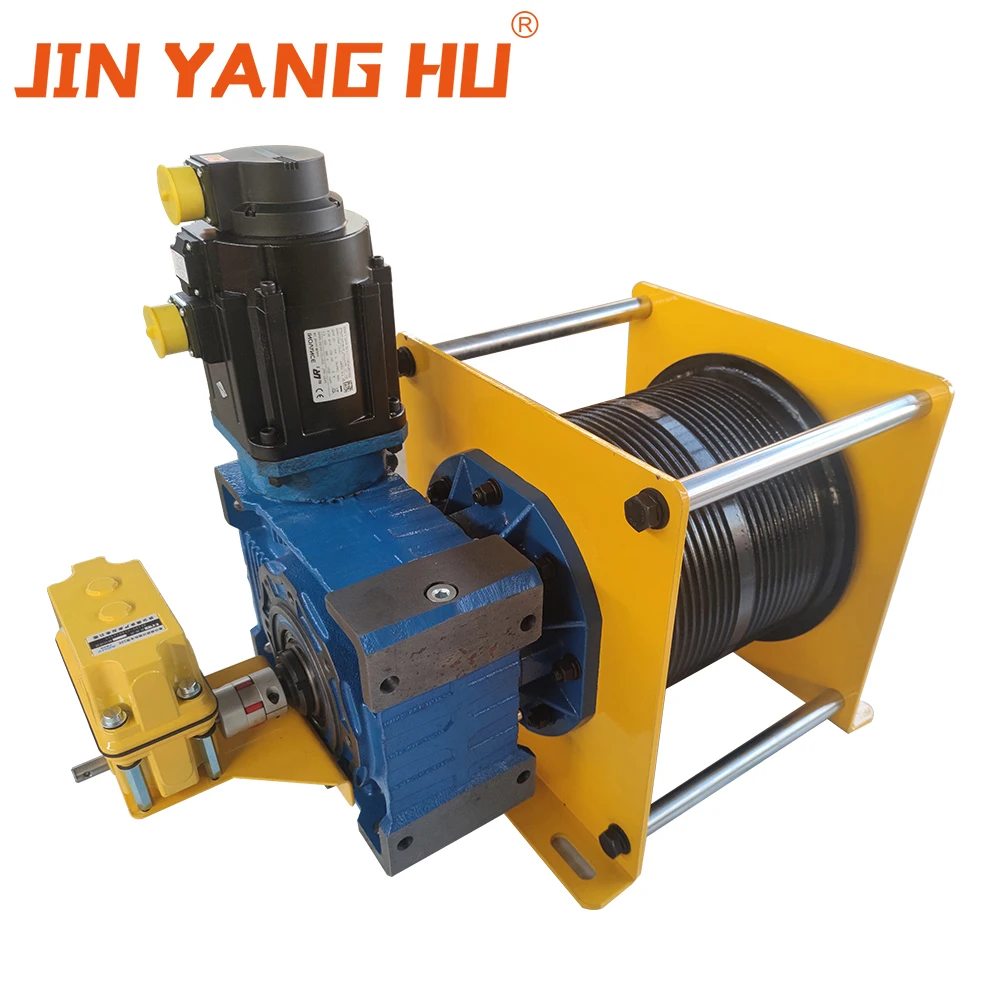

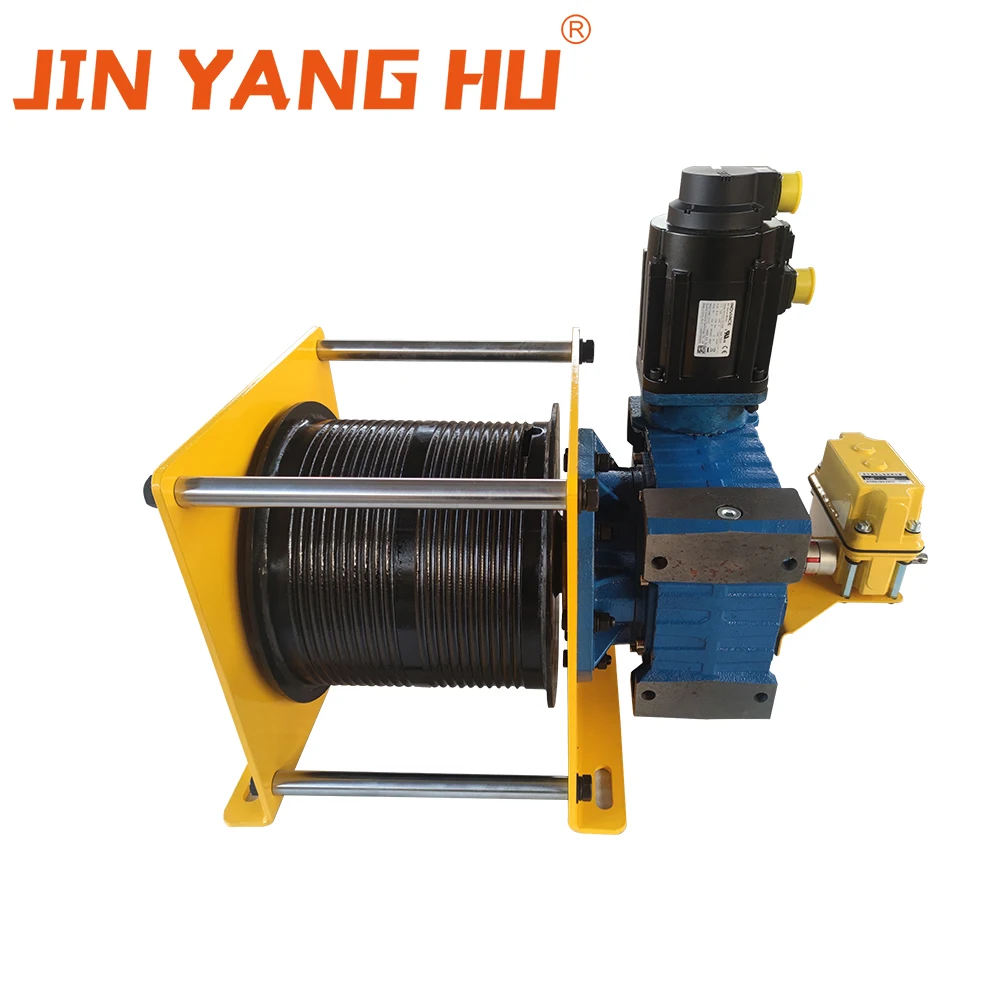

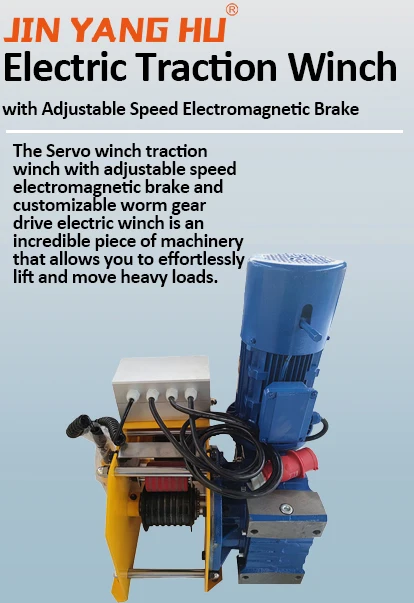

JIN YANG HU Electric Turbo Servo Winch




JIN YANG HU Turbo Servo Winch adopted turbo type reducer can be matched with servo motor or ordinary motor, with rope winding slot design can be used for multiple linkage.Matching brake type servo motor to achieve double braking protection.
It also adopted rope groove type reel with pressure roller design, which can realize multiple synchronous operations.
The product has the characteristics of compact structure, small volume, low noise and smooth operationwhich can meet the needs of different occasions.


Product Details


ELECTRIC MOTOR
The full range of turbine lifting winches can be equipped with three-phase motors of any standard voltage of 50 or
60Hz, the winch models NLS400,NLS900,NLS1400 and NLS2000 are single-phase, using any standard voltage of 50 or 60HZ.All motors are TEFC flange mounted to NEMA, EEMAC or lEC specifications
WINCH DRUM
The reels are steel and designed for a specific load capacity.
The size of the reel is according to ASME B30.7.2007 and its
minimum pitch diameter is 15 times the standard rope diameter. Electric power is directly output to the reel through
the turbine, eliminating the consumption of multi-stage transmission


We support customization.

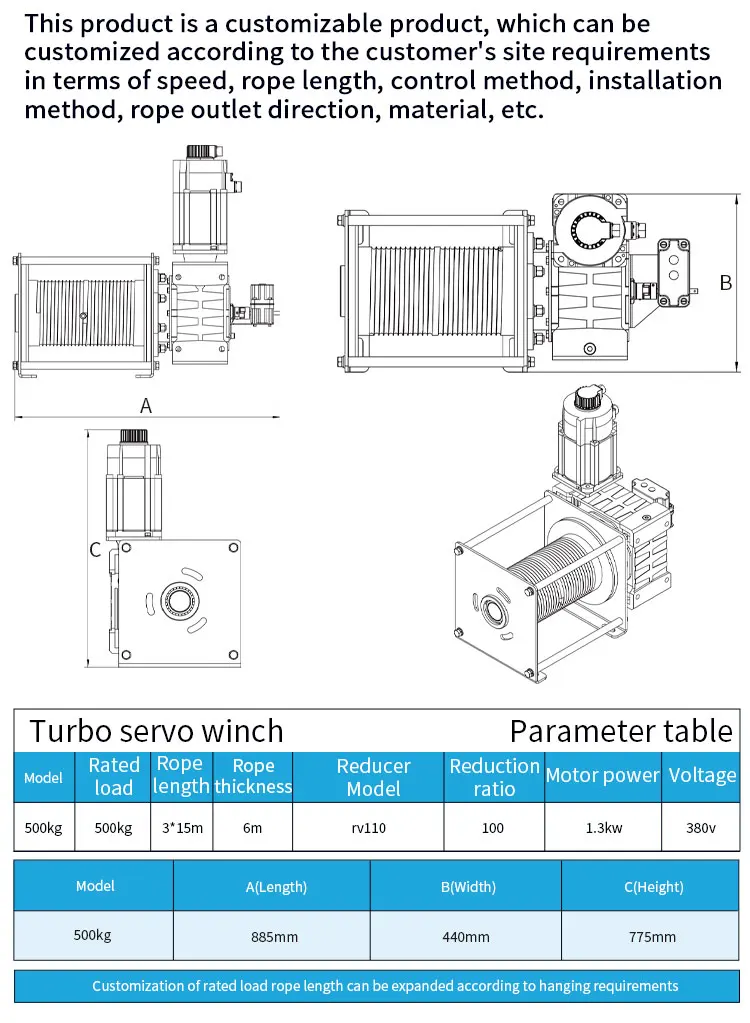

This product is a customizable product, which can be customized according to the customer's site requirements in terms of speed, rope length, control method, installation method, rope outlet direction, material, etc.


Specification


item
value
Warranty
4 Year
Power
1400W
Customized support
OEM
Place of Origin
China
Shanxi
Brand Name
JIN YANG HU
Model Number
JIN YANG HU-PSJ-3
Power Source
Electro Gasoline power or Diesel power
Application
Power Construction
Voltage
Other
Power Source
Electric
Application
ATV/UTV
Capacity
1 T
Customized support
Software reengineering
Motor
1.3 kw
Product name
Turbo servo traction winch
Color
Yellow




Packing & Delivery




Usually packed by wooden case. or according to customers' demand


Company Profile






Taiyuan Jinchangsheng Hoisting Machinery Co. ,Ltd , established in 2008, is a professional Hoisting Machinery manufacturer engaged in the research, development, production, sale and service of Mobile Gantry crane,Electric hoist ,Manual hoist,Electric forklift,Hand pallet truck&Stacker,and other Rigging products. We are located in Taiyuan with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment for the crane machine production. In addition, we have obtained certificates as CE,ISO,SGS. Selling well in all cities and provinces around of China, our products are also exported to clients in such countries and regions as Europe,South America,Middle East, Australia,Africa and Southeast Asia. We always supply the products with very high quality and received the very good feedback from all the customers. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. You will always be welcome. Thanks!


FAQ


1. What is a servo winch traction winch?
A: A servo winch traction winch is an electric winch that uses a servo motor to control the speed of the winch. It can be used for various applications, including lifting heavy loads.

2. How does the adjustable speed electromagnetic brake work?
A: The adjustable speed electromagnetic brake is designed to control the speed of the winch by using electromagnetic force. The brake can be adjusted to provide more or less resistance, allowing the operator to control the speed of the winch.

3. What is a customizable worm gear drive?
A: A customizable worm gear drive is a type of gear drive that can be customized to fit a specific application. It is often used in winches because of its ability to transmit high torque while maintaining a compact size.

4. What are the benefits of using an electric winch?
A: Electric winches are easy to operate, quiet, and require minimal maintenance. They can be powered by batteries or an external power source and offer precise control over load handling.

5. What are some applications of servo winch traction winches?
A: Servo winch traction winches can be used in a variety of applications, including marine, offshore, industrial, and military. They are often used for lifting heavy loads, towing, and anchoring.

6. Can the speed of the servo winch traction winch be adjusted?
A: Yes, the speed of the servo winch traction winch can be adjusted using the servo motor. This allows the operator to control the speed of the winch based on the application.

7. Is it possible to customize the servo winch traction winch to fit a specific application?
A: Yes, the servo winch traction winch can be customized to fit a specific application. The customizable worm gear drive and adjustable speed electromagnetic brake make it easy to tailor the winch to meet the needs of the application.
