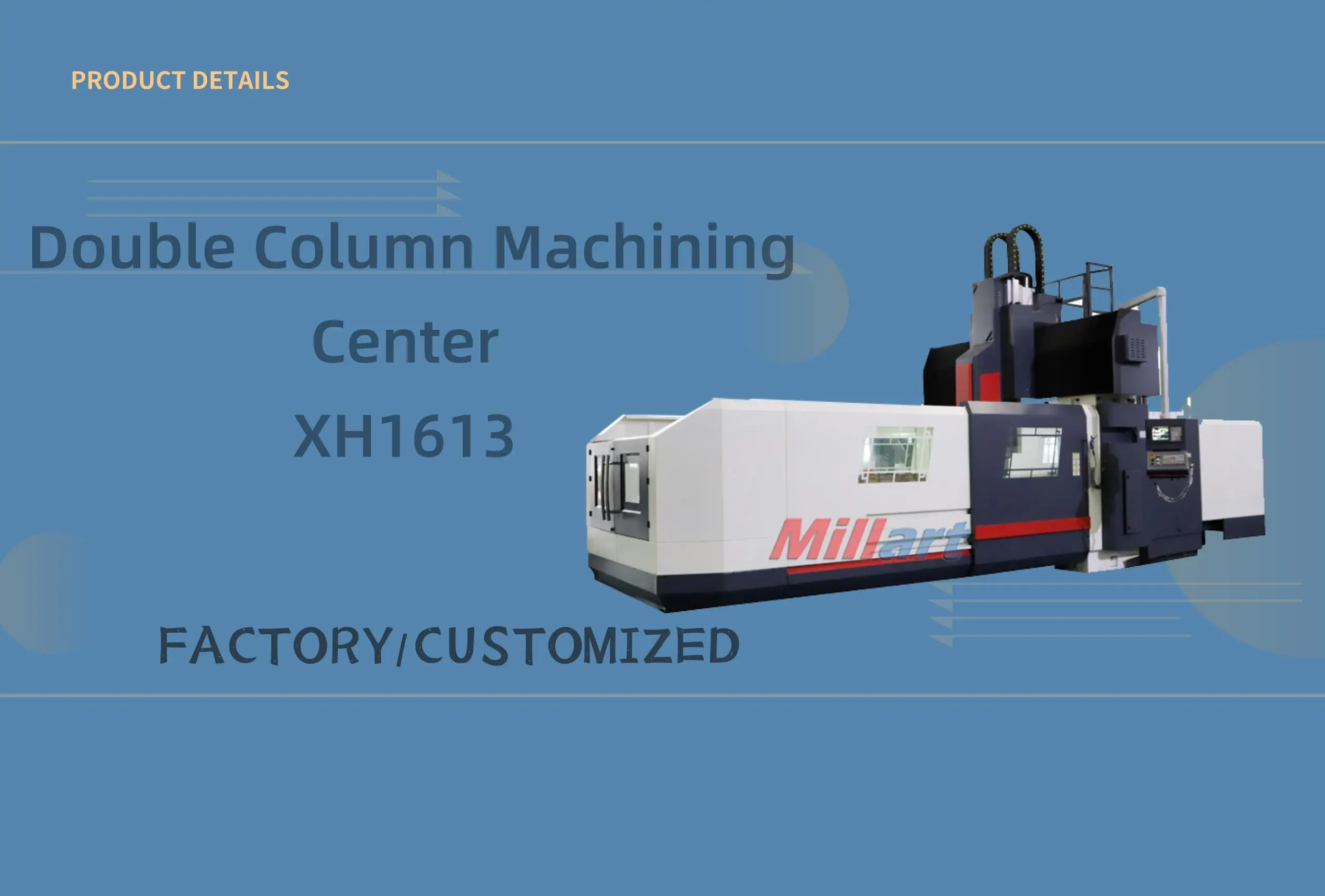

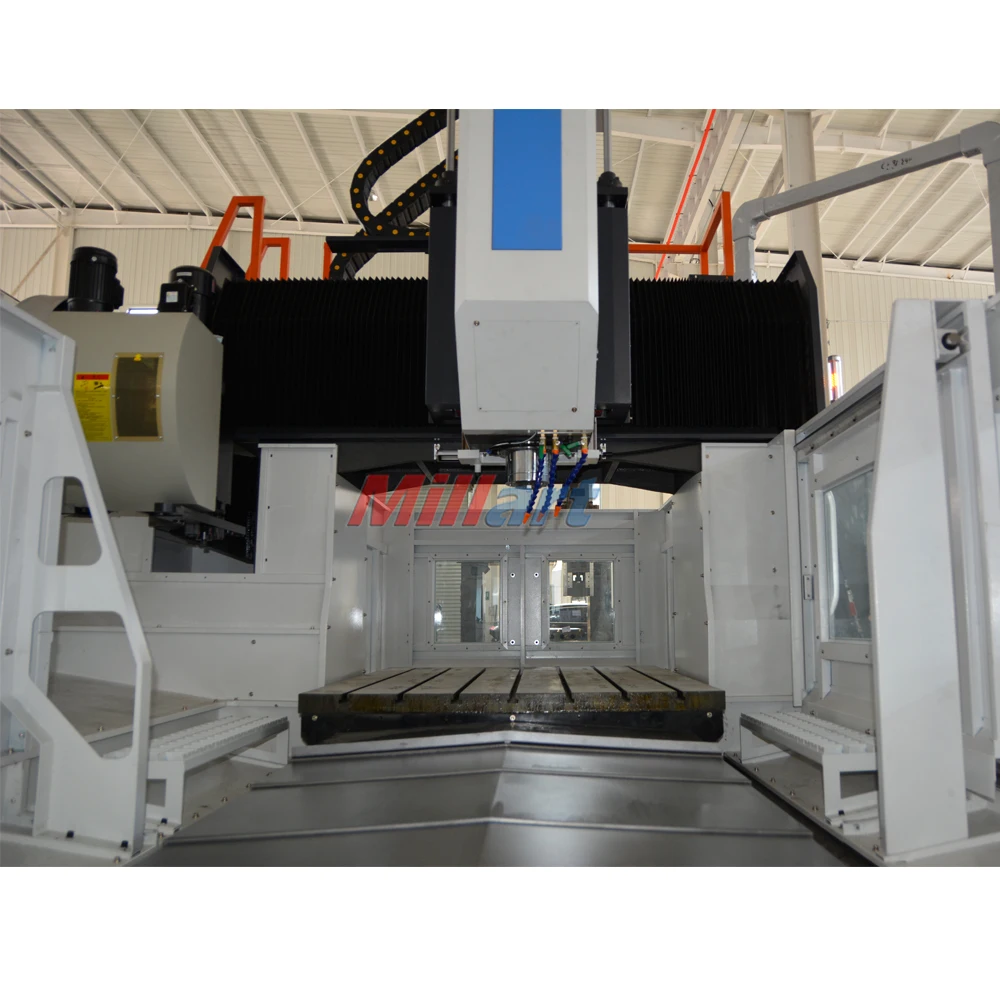

XH1613 CNC Milling Machine /Gantry type milling XH16113 With Fanuc/Siemens/Syntec/GSK Controller System
- Category: >>>
- Supplier: Tengzhou Millart Machine Tool Co. Ltd.
Share on (1600902142196):
Product Overview
Description
Product Description
Technical Parameter:
| Item | Unit | XH1613 |
| X axis travel | mm | 1600 |
| Y axis travel | mm | 1300 |
| Z axis travel | mm | 650 |
| Spindle nose to worktable | mm | 70-770 |
| Distance between two column | mm | 1400 |
| Leadscrew diameter | mm | 50/45/45 |
| Linear guideway width | mm | 45/45/45 |

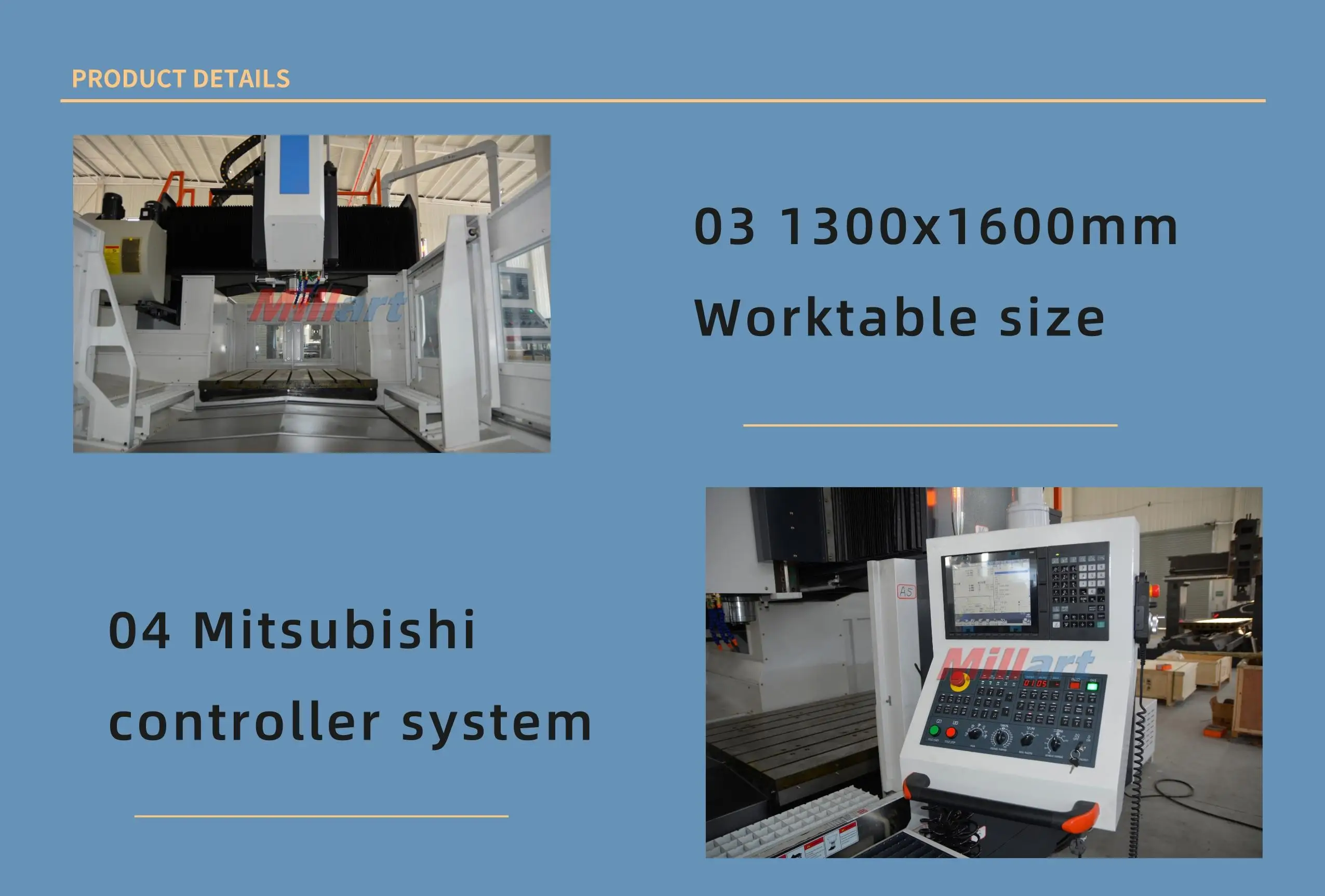

| Worktable Length | mm | 1600 |
| Worktable width | mm | 1300 |
| T slot qty-width*distance | mm | 7-22*140 |
| Max loading capacity | Ton | 2 |

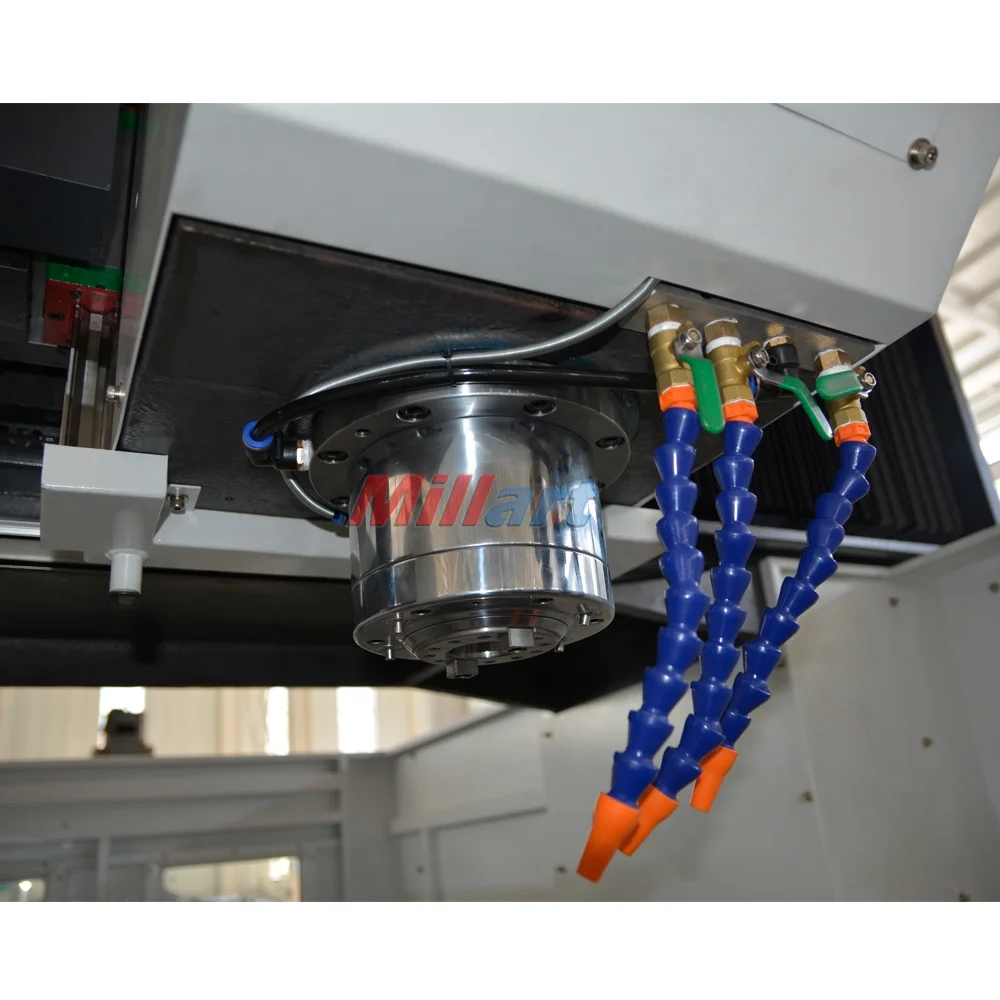

| Spindle speed | rpm | 8000/belt |
| Spindle motor power | kw | 15 |
| Fast moving speed | m/min | 20 |
| Cutting speed | mm/min | 1-8000 |
| Spindle taper | BT40 | |
| X/Y/Z axsis motor torque | Nm | 30/22/22 |

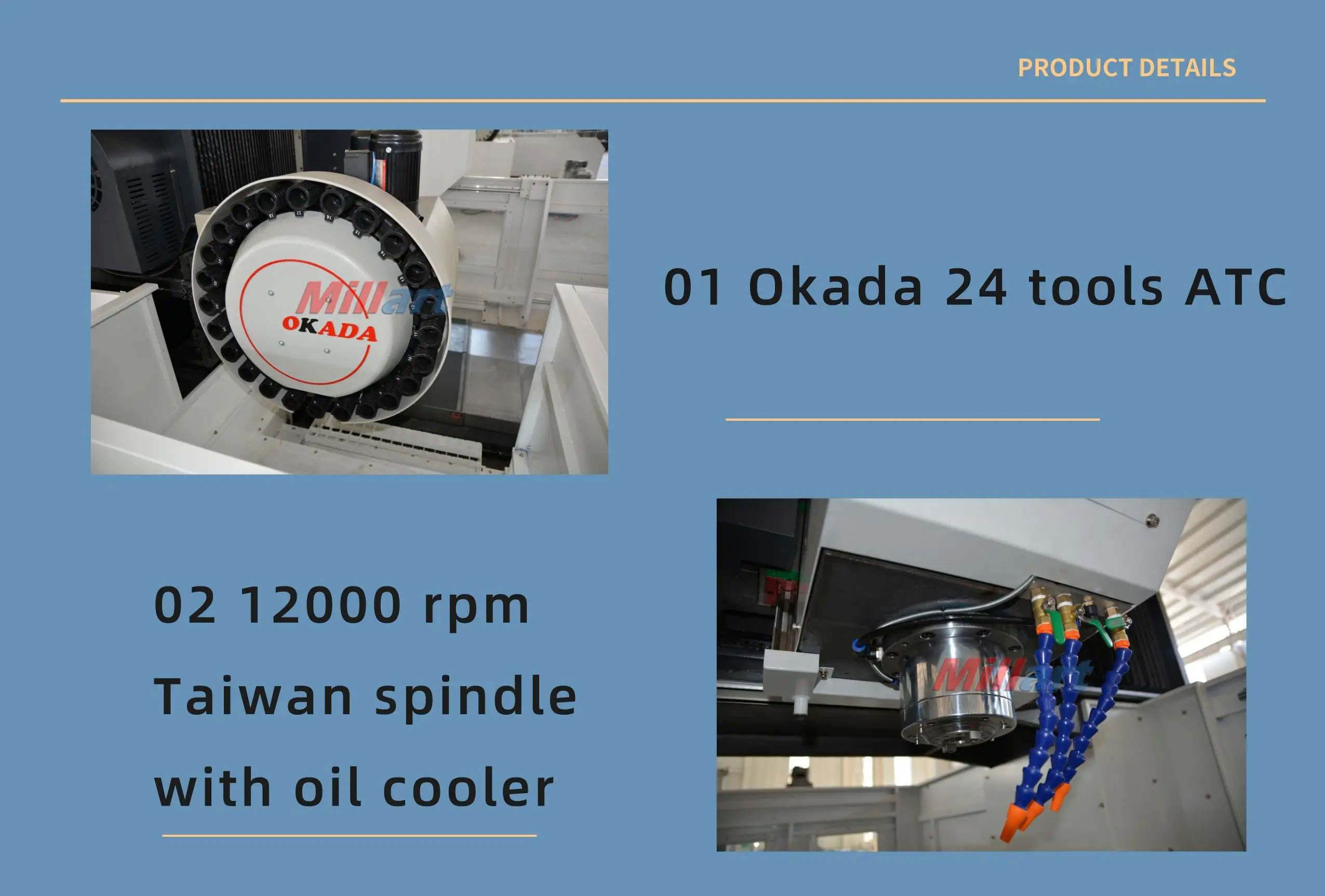

| Tool Magazine Capacity | pcs | Disc/24 |
| Positioning accuracy | mm | 0.016/0.015/0.015 |
| Repeat accuracy | mm | 0.012/0.010/0.010 |
| Length | mm | 4600 |
| Width | mm | 2720 |
| Height | mm | 3320 |
| Weight | kg | 10600 |

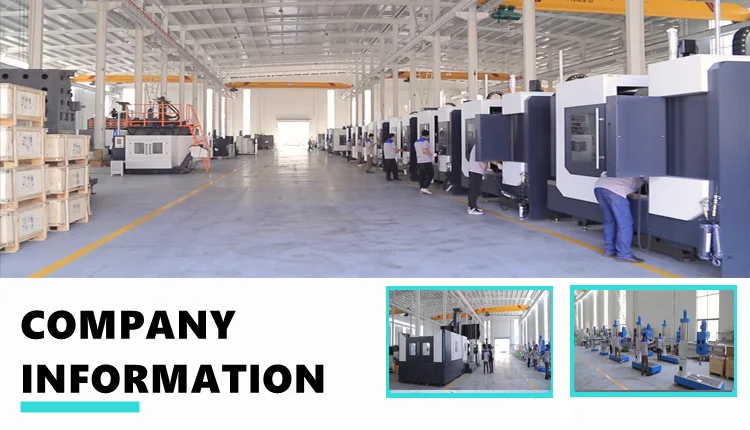

Company Information
